Volvo XC90
Date of manufacture
2019 – to this day (Large SUV)
Platform
Volvo SPA
Manufacturing locations
Torslanda, Sweden
Designer
Thomas Ingenlath
Robin Page
Tags
Large SUV
Swedish cars
The Volvo XC90 is a large SUV that was first manufactured in 2019 in Sweden. The vehicle is built on the Volvo SPA platform and offers both petrol and hybrid powertrains. The highest power output is from the T8 Recharge AWD with 228 kW, the lowest fuel consumption is 1.2 l/100 km and emissions are 28 g/km. The highest speed is achieved by the T6 AWD with 230 km/h. The size of the luggage compartment is 262 litres. In terms of safety, EURONCAP gave the car a rating of 5 out of 5 in 2015.
Car body style
Large SUV
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
-Engine size
Technical data
Large SUV
| T5 AWD | T6 AWD | B5 | B6 AWD | T8 Recharge AWD | T8 Recharge AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | from to 2021 | from to 2021 | from 2021 to |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 184/5500 | 228/5700 | 184/5400-5700 combustion 10 el. | 220/5400 combustion 10 el. | 223/6000 combustion 65/7000 el. | 228/6000 combustion 107/0-3280 el. |
| Maximum torque [Nm/min-1] | 350/1800-4800 | 400/2200-5100 | 350/1800-4800 combustion 40 el. | 420 combustion 40 el. | 400/4500 combustion 240/0-3000 el. | 400/3000-4800 combustion 309/0-3280 el. |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.8:1 | 10.3:1 | 10.5:1 | 9.0:1 | 10.3:1 | 10.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 215 | 230 | 180 | 180 | 230 [125 el.] | 180 [140 el.] |
| Acceleration 0–100 km/h [s] | 7.9 | 6.5 | 7.7 | 6.7 | 5.8 | 5.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2-9.4 | 10.3 | 9.8-9.1 | 9.6-9.3 | - | - |
| Out of town [l] | 7.1-7.0 | 7.1-6.8 | 6.5-5.9 | 6.4-6.2 | - | - |
| Combined [l] | 8.1-7.9 | 8.3-8.1 | 7.7-7.1 | 7.6-7.4 | 2.4-2.2 [18.0-17.5 kWh] | - |
| CO2 emissions [g/km] | 189184 | 192-187 | 177-162 | 173-169 | 55-50 | - |
| Low speed [l] | - | - | 13.7-12.3 | - | - | 9.5-8.6 |
| Medium speed [l] | - | - | 9.1-8.2 | - | - | 6.9-6.4 |
| High speed [l] | - | - | 8.0-7.1 | - | - | 7.2-6.6 |
| Extra high speed [l] | - | - | 9.8-8.6 | - | - | 9.6-8.7 |
| Combined speed [l] | 10.5-9.3 | 10.8-9.8 | 9.7-8.4 | 10.0-8.7 | 3.4-2.9 [16.6-15.7 kWh] | 1.5-1.2 [23.5-20.5 kWh] |
| CO2 emissions [g/km] | 238-211 | 245-221 | 2121-191 | 228-198 | 77-67 | 34-28 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | 48 | 400 | 400 |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 11.6 kWh | Lithium-Ionen-Akkumulator, 18.8 kWh |
| Range with fully charged battery [km] | - | - | - | - | 41-45 [WLTP] | 64-73 [WLTP] |
| Charging time | - | - | - | - |
|
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2012 [2045 seven seats] | 2016 [2040 seven seats] | 2064 [2105 seven seats] | 2103 [2140 seven seats] | 2329 | 2297 |
| Overall weight [kg] | 2360 [2750 seven seats] | 2630 [2750 seven seats] | 2640 [2790 seven seats] | 2640 [2790 seven seats] | 2980 | 2950 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2700 | 750/2400 | 750/2700 | 750/2400 | 750/2350 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 110 | 110 | 110 | 110 | 110 | 110 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 721 [692 seven seats] | 721 [692 seven seats] | 709 [680 seven seats] | 709 [680 seven seats] | 640 | 262 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1886 [1868 seven seats] | -/1886 [1868 seven seats] | -/1874 [1856 seven seats] | -/1874 [1856 seven seats] | -/1816 | -/1816 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1220 [554 seven seats] | 1220 [554 seven seats] | 1220 [554 seven seats] | 1220 [554 seven seats] | 1220 [554 seven seats] | 1220 [554 seven seats] |
| Boot length with rear seats folded [mm] | 2040 | 2040 | 2040 | 2040 | 2040 | 2040 |
| Boot width between wheels/max [mm] | 1130/- | 1130/- | 1130/- | 1130/- | 1130/- | 1130/- |
| Boot height to headliner/ceiling [mm] | -/889 | -/889 | -/889 | -/889 | -/889 | -/889 |
| Loading edge height [mm] | 782 | 782 | 782 | 782 | 782 | 782 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Boot opening width min/max [mm] | 986/1204 | 986/1204 | 986/1204 | 986/1204 | 986/1204 | 986/1204 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4-7 | 4-7 | 4-7 | 4-7 | 4-7 | 4-7 |
| Fuel tank volume [l] | 71 | 71 | 71 | 71 | 70 | 71 |
| AdBlue tank volume [l] | - | - | 11.7 | 11.7 | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/55 R19 | 235/55 R19 | 235/55 R19 | 235/55 R19 | 275/45 R20 | 275/45 R20 |
| Tyre dimensions rear | 235/55 R19 | 235/55 R19 | 235/55 R19 | 235/55 R19 | 275/45 R20 | 275/45 R20 |
| Wheel size front | 8,0J x 19 | 8,0J x 19 | 8,0J x 19 | 8,0J x 19 | 9,0J x 20 | 9,0J x 20 |
| Wheel size rear | 8,0J x 19 | 8,0J x 19 | 8,0J x 19 | 8,0J x 19 | 9,0J x 20 | 9,0J x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 |
| Turning diameter track/circumference [m] | 11.8-12.1/12.2-12.5 | 11.8-12.1/12.2-12.5 | 11.8-12.1/12.2-12.5 | 11.8-12.1/12.2-12.5 | 11.8-12.1/12.2-12.5 | 11.8-12.1/12.2-12.5 |
| Overall length [mm] | 4953 | 4953 | 4953 | 4953 | 4953 | 4953 |
| Overall width without/including mirrors [mm] | 1923/2140 | 1923/2140 | 1923/2140 | 1923/2140 | 1923/2140 | 1923/2140 |
| Overall height [mm] | 1771 | 1771 | 1771 | 1771 | 1771 | 1771 |
| Wheelbase [mm] | 2984 | 2984 | 2984 | 2984 | 2984 | 2984 |
| Front wheel track [mm] | 1665 | 1665 | 1665 | 1665 | 1665 | 1665 |
| Rear wheel track [mm] | 1667 | 1667 | 1667 | 1667 | 1667 | 1667 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1079 | 1079 | 1079 | 1079 | 1079 | 1079 |
| Clearance [mm] | 217-223 | 217-223 | 217-223 | 217-223 | 217-223 | 217-223 |
| Wading depth [mm] | 450 | 450 | 450 | 450 | 450 | 450 |
| Approach angle front [°] | 19.7 | 19.7 | 19.7 | 19.7 | 19.7 | 19.7 |
| Approach angle rear [°] | 22.1 | 22.1 | 22.1 | 22.1 | 22.1 | 22.1 |
| Transition angle [°] | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1033-1051 | 1033-1051 | 1033-1051 | 1033-1051 | 1033-1051 | 1033-1051 |
| Headroom rear [mm] | 979-999 | 979-999 | 979-999 | 979-999 | 979-999 | 979-999 |
| Front elbow/shoulder width [mm] | 1422/1465 | 1422/1465 | 1422/1465 | 1422/1465 | 1422/1465 | 1422/1465 |
| Rear elbow/shoulder width [mm] | 1435/1435 | 1435/1435 | 1435/1435 | 1435/1435 | 1435/1435 | 1435/1435 |
| Legroom front knees/total [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Legroom rear knees/total [mm] | -/940-989 | -/940-989 | -/940-989 | -/940-989 | -/940-989 | -/940-989 |
| Third row of seats, headroom [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Third row elbow/shoulder width [mm] | 1140/1192 | 1140/1192 | 1140/1192 | 1140/1192 | 1140/1192 | 1140/1192 |
| B5 AWD | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1969 | |||||
| Maximum output / speed [kW/min-1] | 173/4000 10 el. | |||||
| Maximum torque [Nm/min-1] | 480/1750-2250 40 el. | |||||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | |||||
| Compression ratio | 15.8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 180 or 220 | |||||
| Acceleration 0–100 km/h [s] | 7.6 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 8.2-6.4 | |||||
| Out of town [l] | 5.5-5.1 | |||||
| Combined [l] | 6.3-5.6 | |||||
| CO2 emissions [g/km] | 166-147 | |||||
| Low speed [l] | 9.0-8.3 | |||||
| Medium speed [l] | 8.2-6.7 | |||||
| High speed [l] | 6.7-5.8 | |||||
| Extra high speed [l] | 8.1-6.9 | |||||
| Combined speed [l] | 7.7-6.4 | |||||
| CO2 emissions [g/km] | 203-173 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 48 | |||||
| Battery type and capacity | - | |||||
| Range with fully charged battery [km] | - | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2120 [2172 seven seats] | |||||
| Overall weight [kg] | 2670 [2840 seven seats] | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2700 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 110 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 709 [680 seven seats] | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1874 [1856 seven seats] | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1220 [554 seven seats] | |||||
| Boot length with rear seats folded [mm] | 2040 | |||||
| Boot width between wheels/max [mm] | 1130/- | |||||
| Boot height to headliner/ceiling [mm] | -/889 | |||||
| Loading edge height [mm] | 782 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 816 | |||||
| Boot opening width min/max [mm] | 986/1204 | |||||
| Number of doors | 5 | |||||
| Number of seats | 4-7 | |||||
| Fuel tank volume [l] | 71 | |||||
| AdBlue tank volume [l] | 11.7 | |||||
| Air resistance [Cd] | 0.33 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink Integral Blade suspension | |||||
| Tyre dimensions front | 235/55 R19 | |||||
| Tyre dimensions rear | 235/55 R19 | |||||
| Wheel size front | 8,0J x 19 | |||||
| Wheel size rear | 8,0J x 19 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering | |||||
| Number of steering wheel turns | 2.9-3.0 | |||||
| Turning diameter track/circumference [m] | 11.8-12.1/12.2-12.5 | |||||
| Overall length [mm] | 4953 | |||||
| Overall width without/including mirrors [mm] | 1923/2140 | |||||
| Overall height [mm] | 1771 | |||||
| Wheelbase [mm] | 2984 | |||||
| Front wheel track [mm] | 1665 | |||||
| Rear wheel track [mm] | 1667 | |||||
| Forward overhang [mm] | 890 | |||||
| Rear overhang [mm] | 1079 | |||||
| Clearance [mm] | 217-223 | |||||
| Wading depth [mm] | 450 | |||||
| Approach angle front [°] | 19.7 | |||||
| Approach angle rear [°] | 22.1 | |||||
| Transition angle [°] | 19.6 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1033-1051 | |||||
| Headroom rear [mm] | 979-999 | |||||
| Front elbow/shoulder width [mm] | 1422/1465 | |||||
| Rear elbow/shoulder width [mm] | 1435/1435 | |||||
| Legroom front knees/total [mm] | -/1038 | |||||
| Legroom rear knees/total [mm] | -/940-989 | |||||
| Third row of seats, headroom [mm] | 923 | |||||
| Third row elbow/shoulder width [mm] | 1140/1192 |

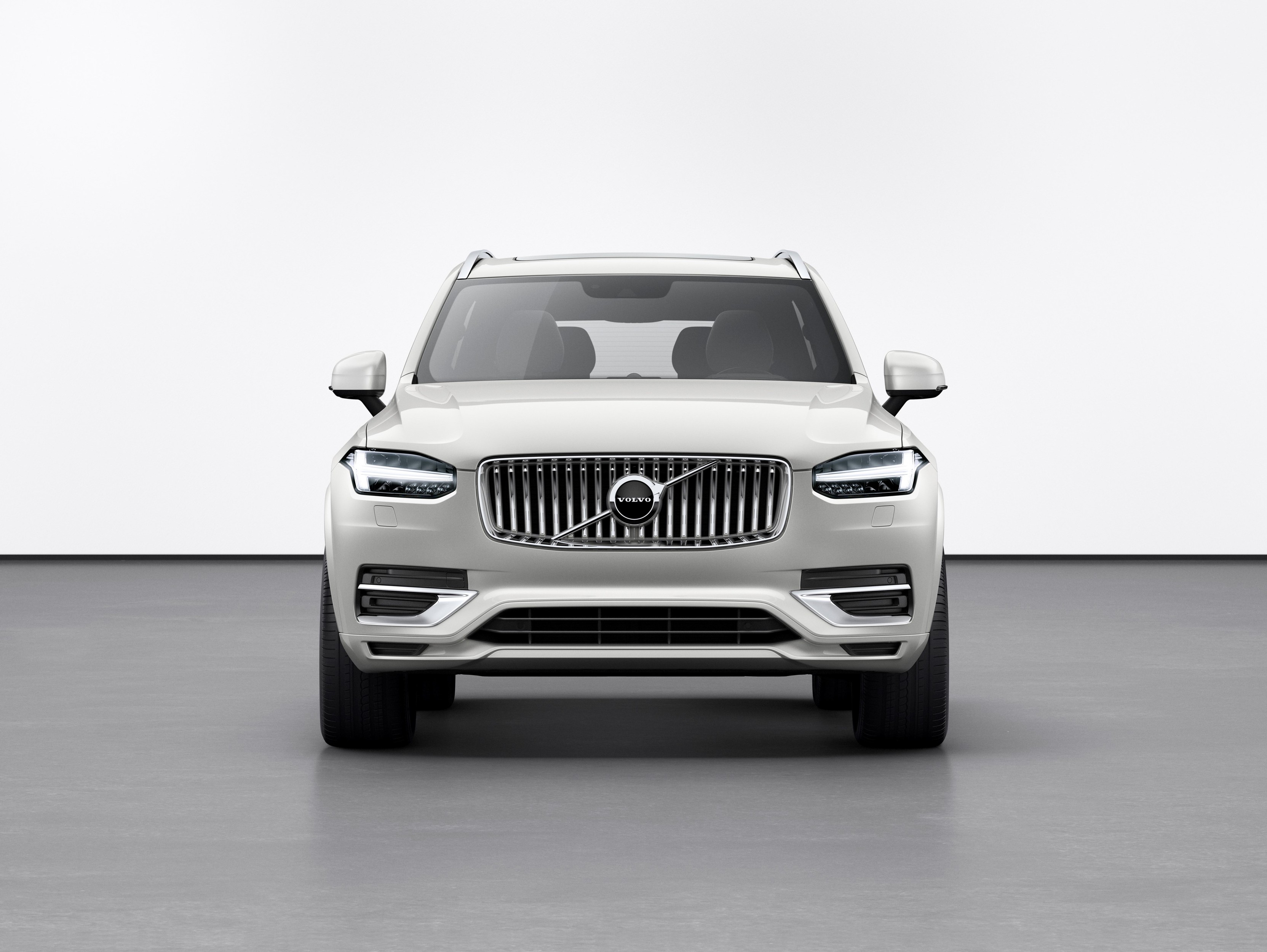

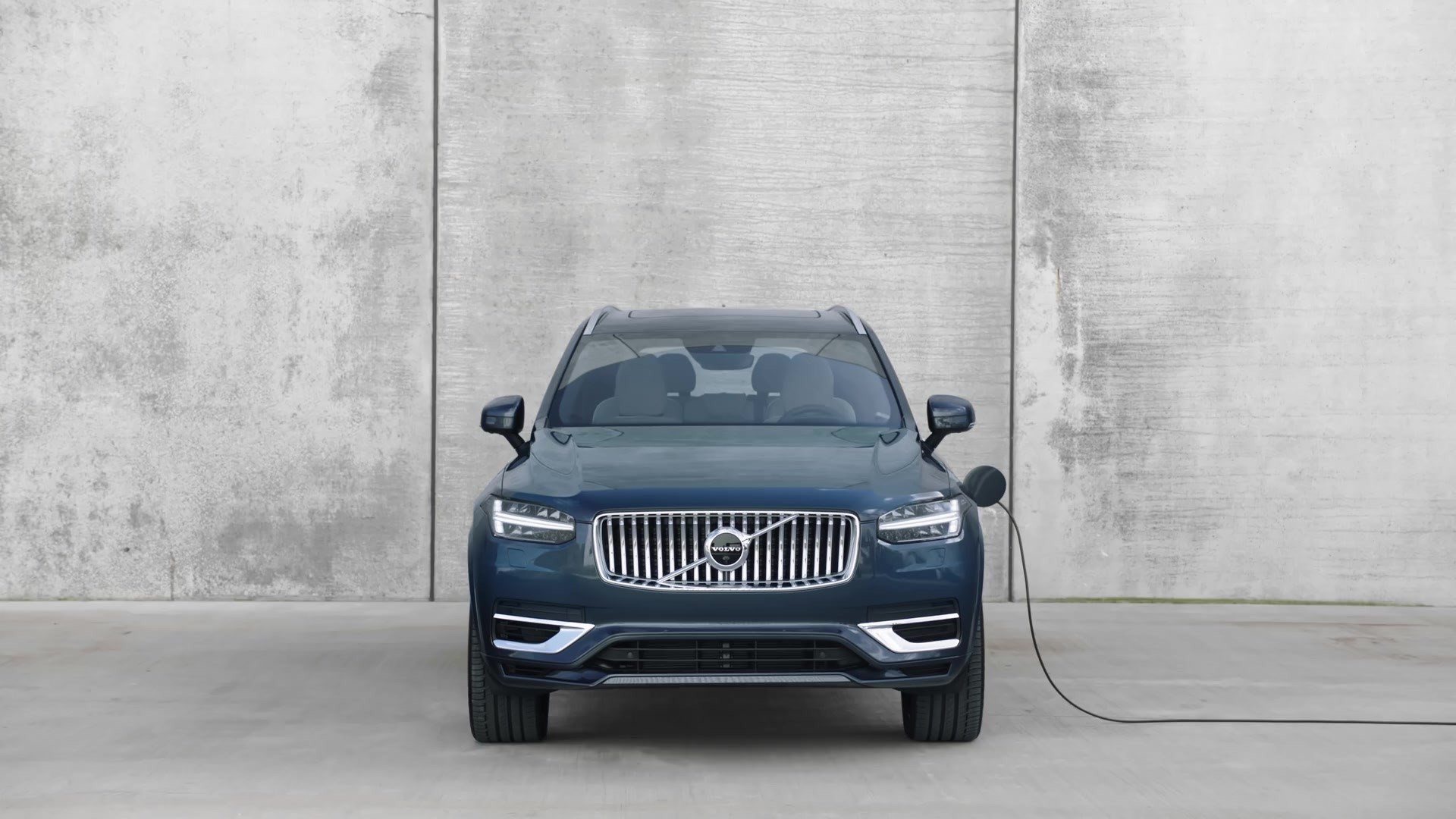

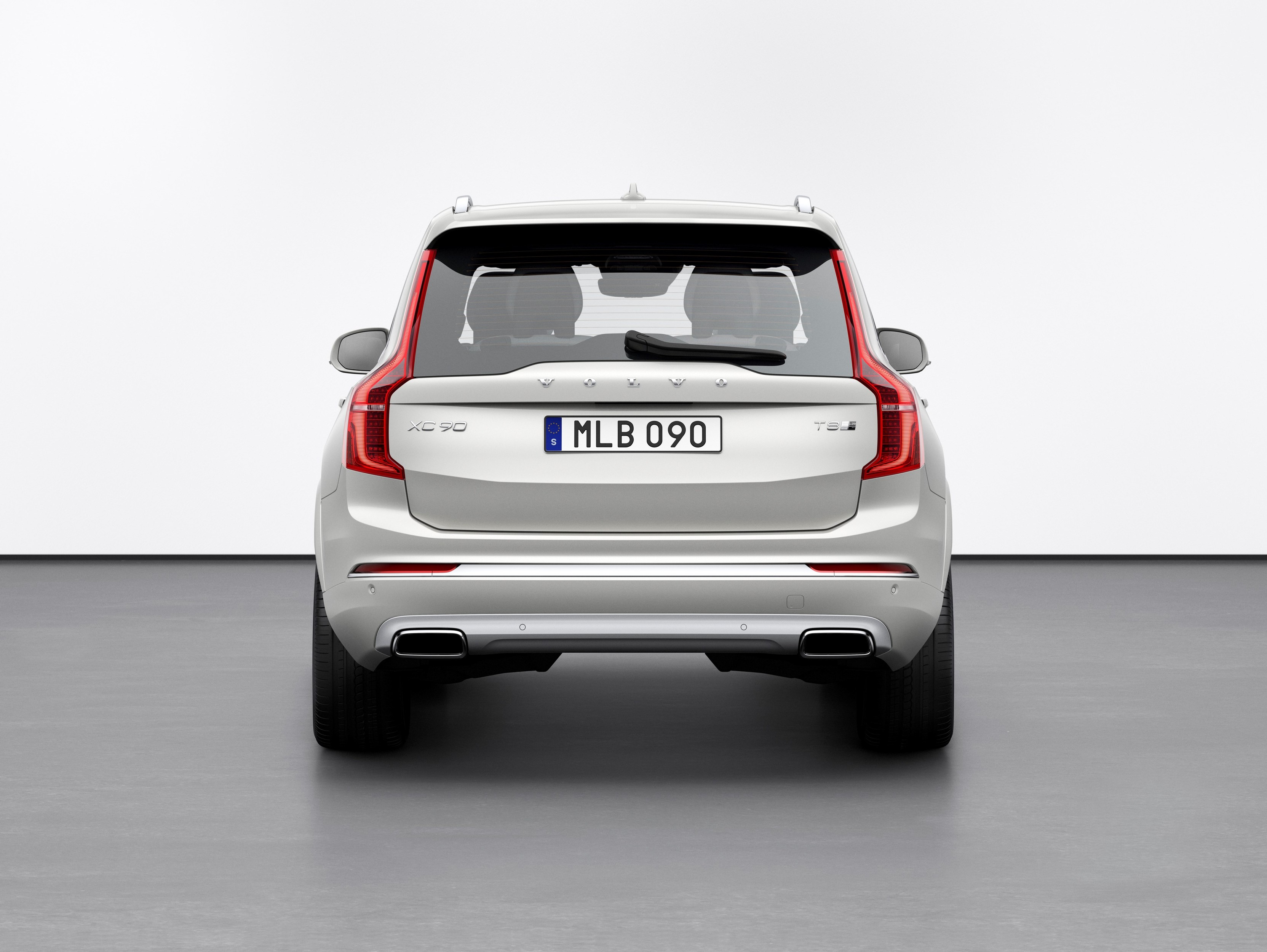

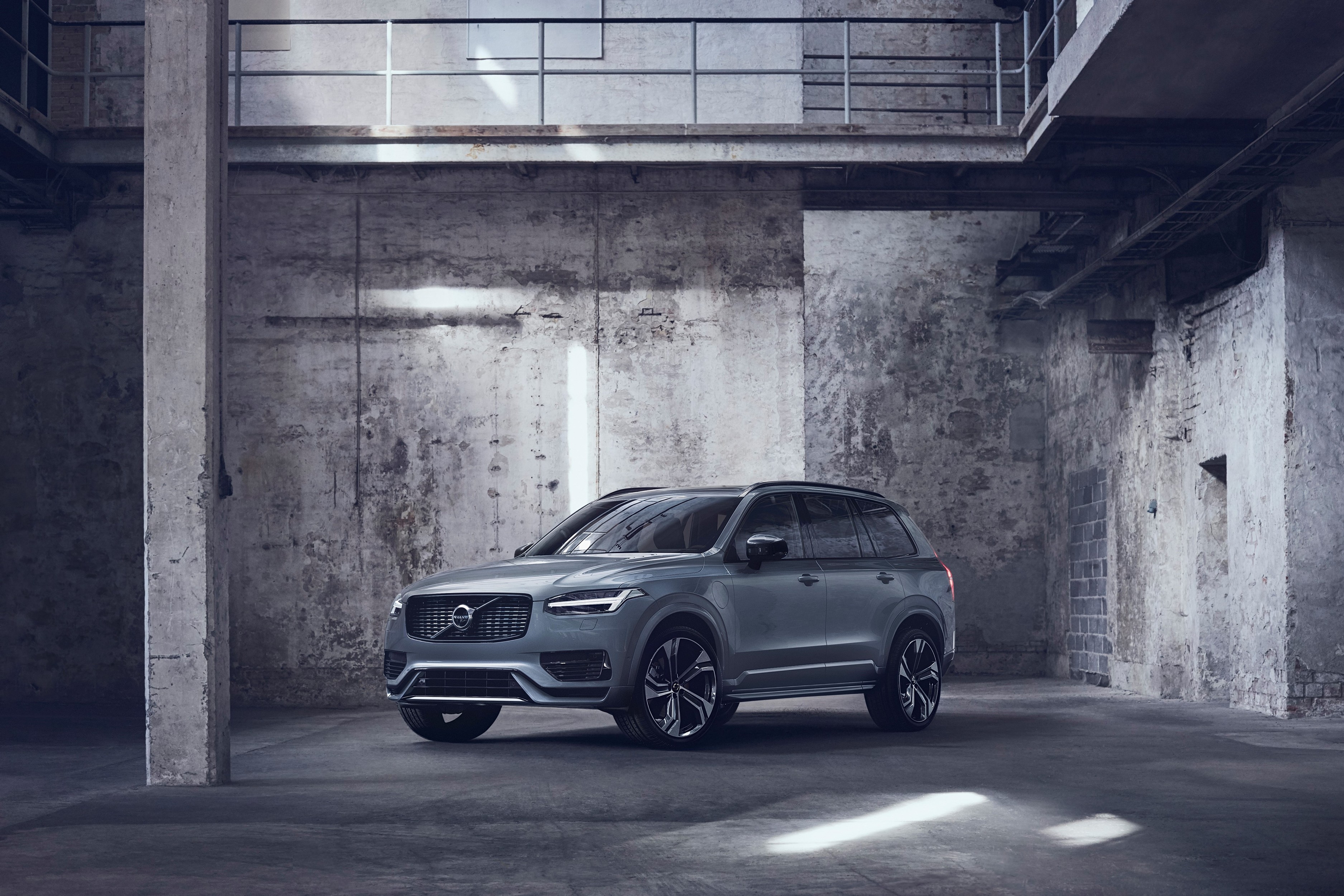

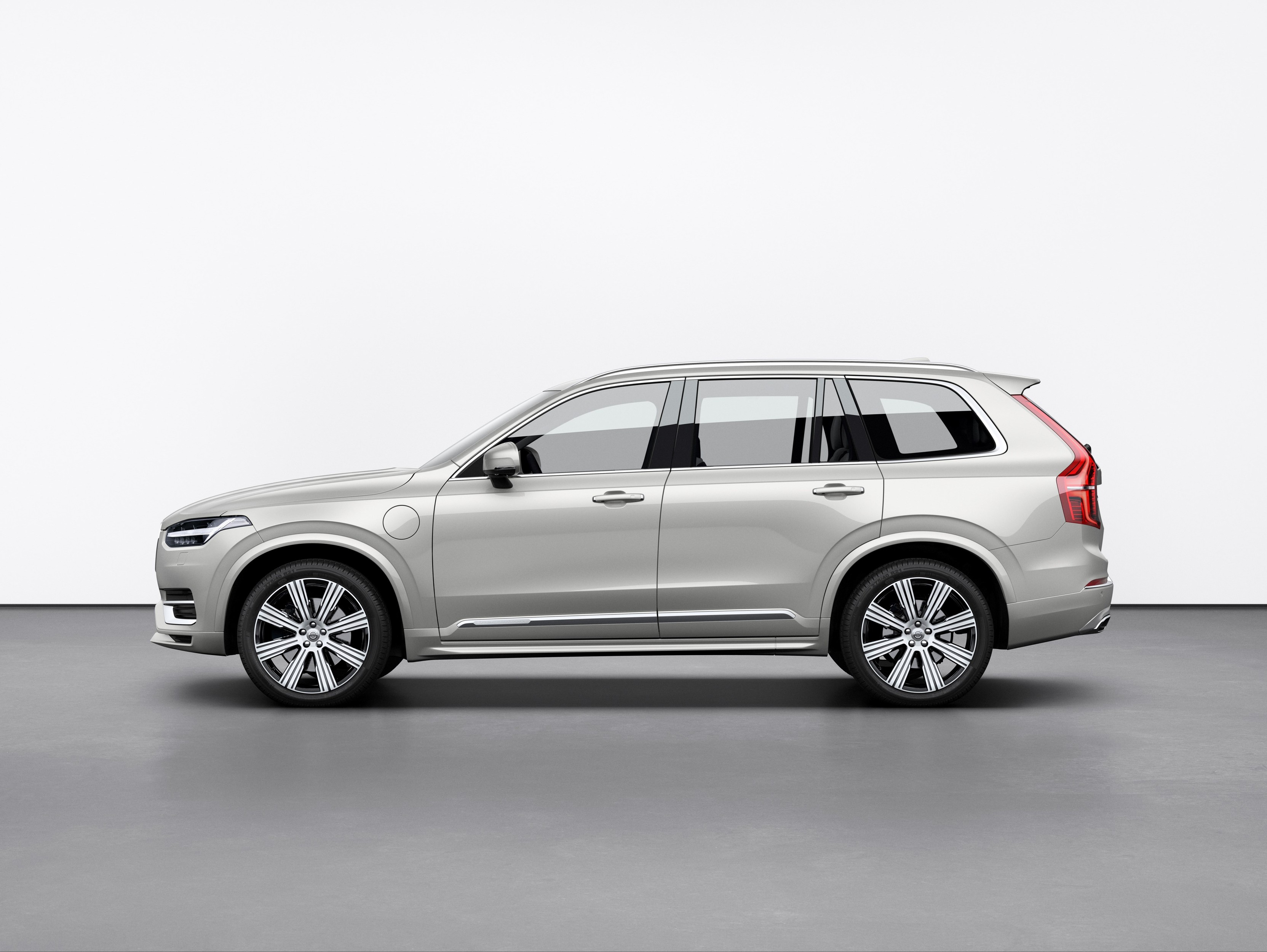

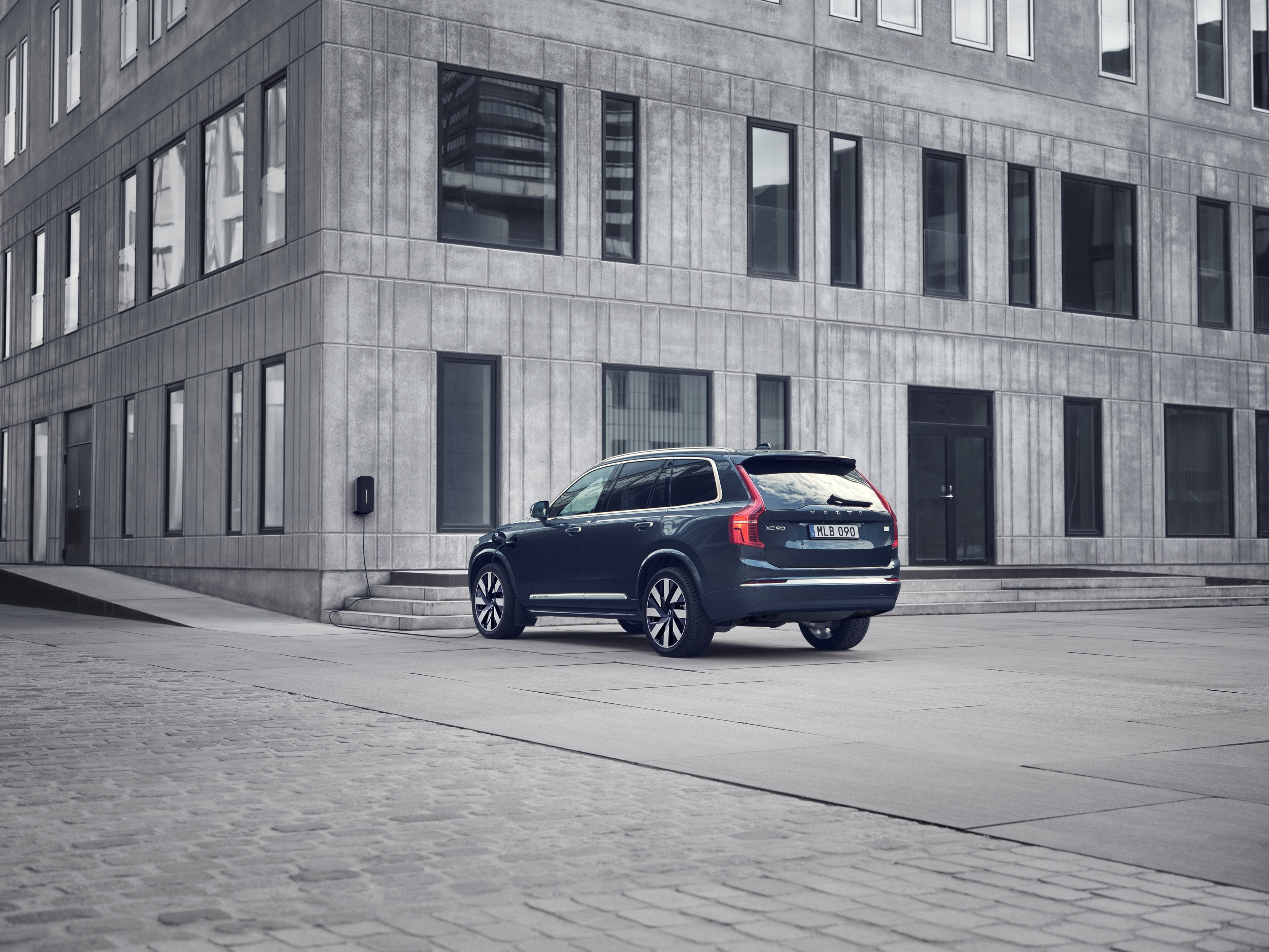

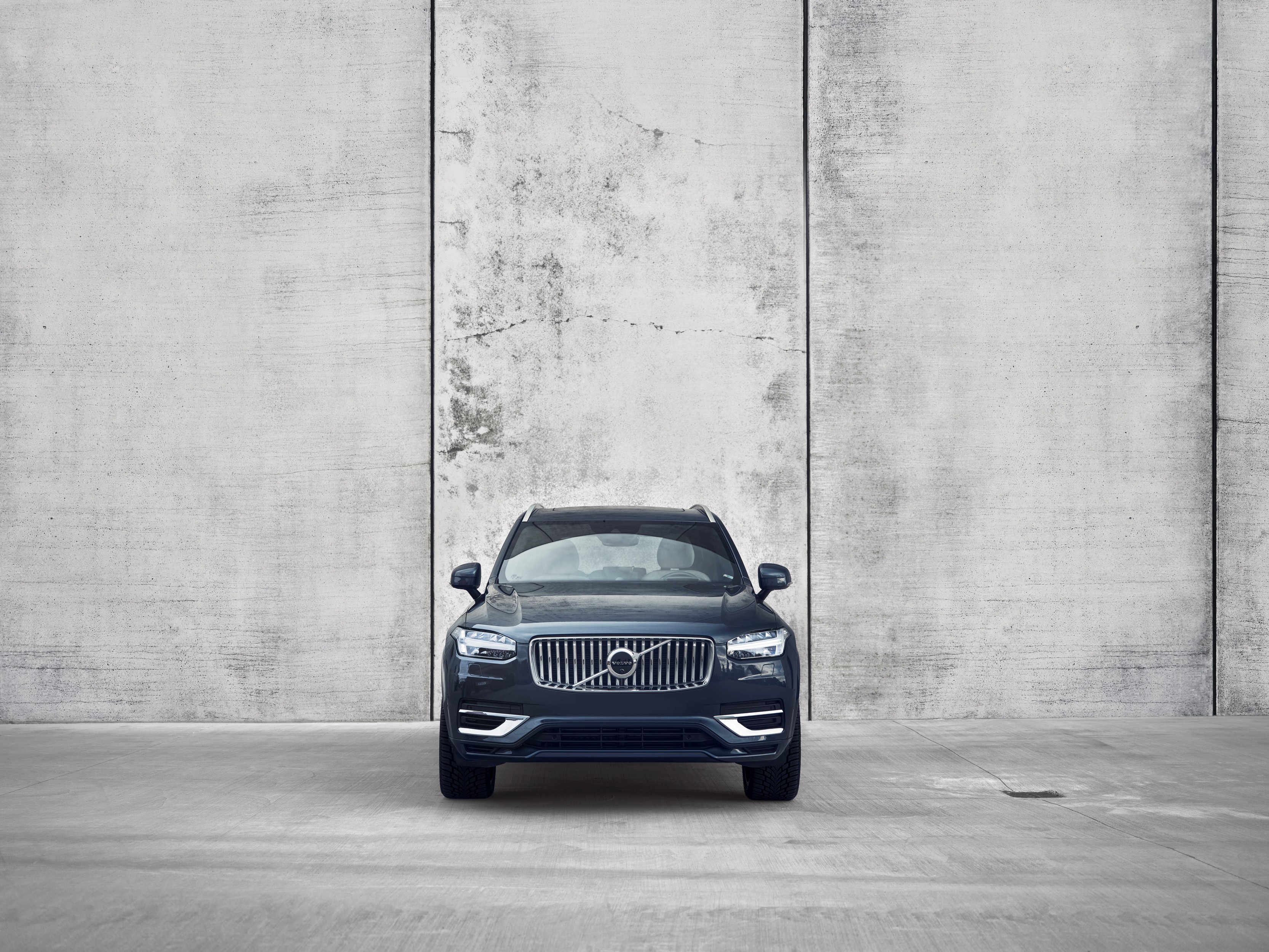

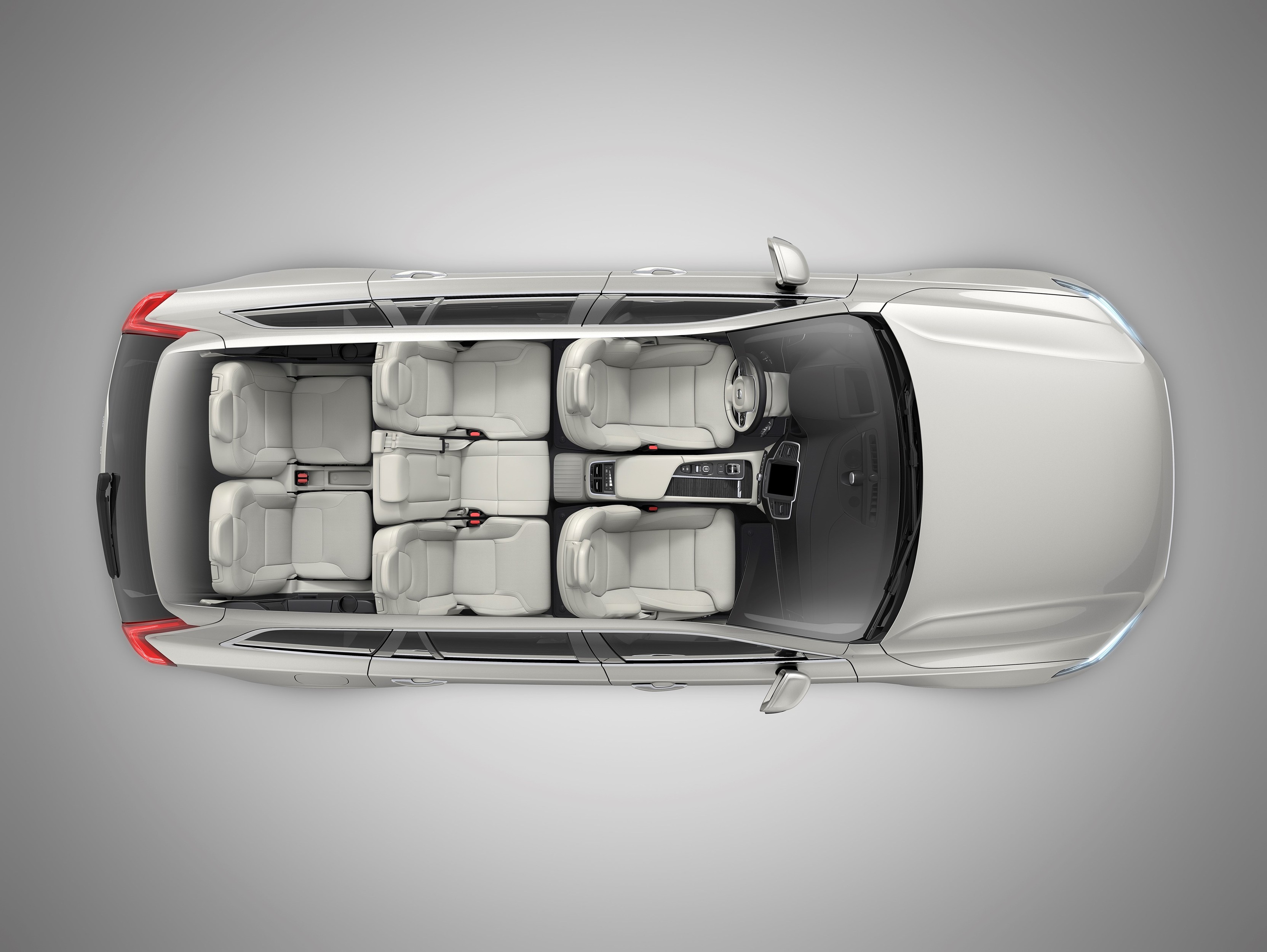

Gallery
