Volvo XC60
Date of manufacture
2008 – 2013 (Medium SUV)
Platform
Volvo P3
Manufacturing locations
Ghent, Belgium
Chengdu, People's Republic of China
Designer
-
Tags
Compact SUV
Swedish cars
The Volvo XC60 is a mid-size SUV that was first produced in 2008 and is manufactured in two countries - Belgium and China. The vehicle is built on the Volvo P3 platform and offers a wide range of petrol and diesel engines. The top model is the T6 AWD with 224 kW, which reaches a top speed of 210 km/h. The D3 has the lowest fuel consumption of 5.3 l/100 km and emissions of 139 g/km. The luggage compartment has a capacity of 495 litres. The XC60's safety was tested by EURONCAP in 2009 and achieved an overall rating of 5 out of 5.
Car body style
Technical data
Medium SUV
| 2.0T | 3.2 AWD | T5 | 3.2 AWD | T6 AWD | T6 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from to 2010 | from 2010 to | from 2010 to | from 2008 to 2010 | from 2010 to |
| Engine type | Ignition supercharged | Petrol | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1999 | 3192 | 1999 | 3192 | 2953 | 2953 |
| Maximum output / speed [kW/min-1] | 149/6000 | 175/6200 | 177/5500 | 179/6400 | 210/5600 | 224/5600 |
| Maximum torque [Nm/min-1] | 300/1750-4000 | 320/3200 | 320/1800-5000 | 320/3200 | 400/1500-4800 | 440/2100-4200 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 84,0 x 96,0 | 87,5 x 83,1 | 84,0 x 96,0 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.0:1 | 10.8:1 | 10.0:1 | 10.8:1 | 9.3:1 | 9.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 205 | 210 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 8.9 | 9,4 | 8.1 | 9.9 | 7,5 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.3 | 16,3 | 11.4 | 13.8 | 17,1-17,3 | 15.2 |
| Out of town [l] | 6.9 | 8,3 | 6.8 | 7.6 | 8,5-8,9 | 8.1 |
| Combined [l] | 8.5 | 11,2 | 8.5 | 9.9 | 11,7-11,9 | 10.7 |
| CO2 emissions [g/km] | 198 | 267 | 198 | 229 | 274-284 | 249 |
| Emission standard | EU5 | EU4 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1833 | 1815 | 1830 | 1941 | 1848 | 1959 |
| Overall weight [kg] | 2270 | 2430 | 2270 | 2430 | 2440 | 2440 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 75-90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 75-100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Boot length [mm] | 972 | 972 | 972 | 972 | 972 | 972 |

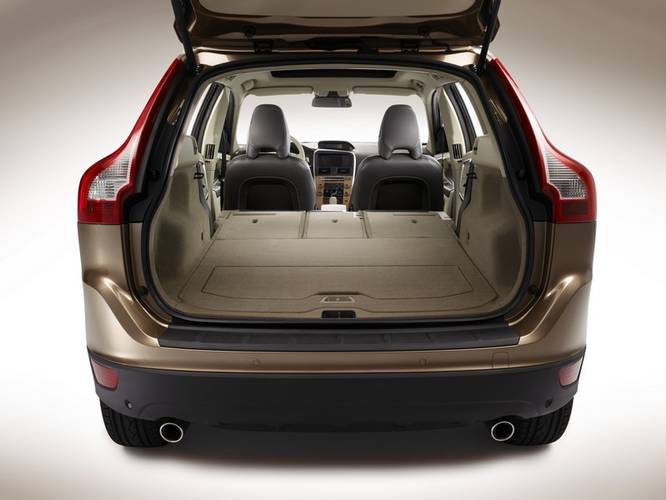

| Boot length with rear seats folded [mm] | 1789 | 1789 | 1789 | 1789 | 1789 | 1789 |
| Boot width between wheels/max [mm] | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- |
| Boot height to headliner/ceiling [mm] | -/802 | -/802 | -/802 | -/802 | -/802 | -/802 |
| Loading edge height [mm] | 748 | 748 | 748 | 748 | 748 | 748 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 802 | 802 | 802 | 802 | 802 | 802 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 |
| Overall length [mm] | 4627 | 4627 | 4627 | 4627 | 4627 | 4627 |
| Overall width without/including mirrors [mm] | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 |
| Overall height [mm] | 1713 | 1713 | 1713 | 1713 | 1713 | 1713 |
| Wheelbase [mm] | 2774 | 2774 | 2774 | 2774 | 2774 | 2774 |
| Front wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 909 | 909 | 909 | 909 | 909 | 909 |
| Rear overhang [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Clearance [mm] | 230 | 230 | 230 | 230 | 230 | 230 |
| Wading depth [mm] | 350 | 350 | 350 | 350 | 350 | 350 |
| Approach angle front [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Approach angle rear [°] | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 |
| Transition angle [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 |
| Legroom rear knees/total [mm] | -/924 | -/924 | -/924 | -/924 | -/924 | -/924 |
| 2.4D AWD | 2.4D AWD | 2.4D | 2.4D | D3 | D3 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from 2010 to 2011 | from 2010 to 2011 | from 2011 to | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2400 | 2400 | 2400 | 2400 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 120/4000 | 120/4000 | 129/3000-4000 | 129/3000-4000 | 100/3500 | 100/3500 |
| Maximum torque [Nm/min-1] | 340/1750-2750 | 340/1750-2750 | 420/1500-2750 | 420/1500-2750 | 350/1500-2250 | 350/1500-2250 |
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 17.3:1 | 17.3:1 | 17.3:1 | 17.3:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 195 | 190 | 205 | 205 | 195 | 185 |
| Acceleration 0–100 km/h [s] | 10,5 | 10,9 | 9,8 | 10,2 | 11.2 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,8-10,1 | 10,1-10,9 | 7,8 | - | 6.4 | 7.9 |
| Out of town [l] | 5,6-6,2 | 6,1-6,8 | 5,0 | - | 4.6 | 5.0 |
| Combined [l] | 6,9-7,5 | 7,5-8,3 | 6,0 | 6,9 | 5.3 | 6.0 |
| CO2 emissions [g/km] | 183-199 | 199-219 | 159 | 183 | 139 | 159 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1790 | 1808 | 1718 | 1742 | 1847 | 1871 |
| Overall weight [kg] | 2505 | 2505 | 2505 | 2505 | - | - |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/2000 | 750/1500 | - | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Boot length [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Boot length with rear seats folded [mm] | 1789 | 1789 | 1789 | 1789 | 1789 | 1789 |
| Boot width between wheels/max [mm] | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- |
| Boot height to headliner/ceiling [mm] | -/802 | -/802 | -/802 | -/802 | -/802 | -/802 |
| Loading edge height [mm] | 748 | 748 | 748 | 748 | 748 | 748 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 802 | 802 | 802 | 802 | 802 | 802 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 |
| Overall length [mm] | 4627 | 4627 | 4627 | 4627 | 4627 | 4627 |
| Overall width without/including mirrors [mm] | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 |
| Overall height [mm] | 1713 | 1713 | 1713 | 1713 | 1713 | 1713 |
| Wheelbase [mm] | 2774 | 2774 | 2774 | 2774 | 2774 | 2774 |
| Front wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 909 | 909 | 909 | 909 | 909 | 909 |
| Rear overhang [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Clearance [mm] | 230 | 230 | 230 | 230 | 230 | 230 |
| Wading depth [mm] | 350 | 350 | 350 | 350 | 350 | 350 |
| Approach angle front [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Approach angle rear [°] | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 |
| Transition angle [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 |
| Legroom rear knees/total [mm] | -/924 | -/924 | -/924 | -/924 | -/924 | -/924 |
| D3 | D3 | D3 AWD | D3 AWD | D4 | D4 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from 2010 to 2011 | from 2010 to 2011 | from 2010 to 2011 | from 2011 to | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 120/2900 | 120/2900 | 120/2900 | 120/2900 | 120/3500 | 120/3500 |
| Maximum torque [Nm/min-1] | 400/1400-2850 | 400/1400-2850 | 400/1400-2850 | 400/1400-2850 | 400/1500-2750 | 400/1500-2750 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 200 | 195 | 195 | 190 | 200 | 195 |
| Acceleration 0–100 km/h [s] | 10.3 | 10.3 | 10.5 | 10.9 | 10,3 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 8.9 | 8.9 | 9.5 | 6,4 | 7,9 |
| Out of town [l] | 4.9 | 5.6 | 5.3 | 5.5 | 4,6 | 5,0 |
| Combined [l] | 5.9 | 6.8 | 6.6 | 7.0 | 5,3 | 6,0 |
| CO2 emissions [g/km] | 154 | 179 | 174 | 184 | 139 | 159 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1869 | 1921 | 1939 | 1847 | 1871 |
| Overall weight [kg] | 2505 | 2505 | 2505 | 2505 | 2505 | 2505 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/2000 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 90 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Boot length [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Boot length with rear seats folded [mm] | 1789 | 1789 | 1789 | 1789 | 1789 | 1789 |
| Boot width between wheels/max [mm] | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- |
| Boot height to headliner/ceiling [mm] | -/802 | -/802 | -/802 | -/802 | -/802 | -/802 |
| Loading edge height [mm] | 748 | 748 | 748 | 748 | 748 | 748 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 802 | 802 | 802 | 802 | 802 | 802 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 |
| Overall length [mm] | 4627 | 4627 | 4627 | 4627 | 4627 | 4627 |
| Overall width without/including mirrors [mm] | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 |
| Overall height [mm] | 1713 | 1713 | 1713 | 1713 | 1713 | 1713 |
| Wheelbase [mm] | 2774 | 2774 | 2774 | 2774 | 2774 | 2774 |
| Front wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 909 | 909 | 909 | 909 | 909 | 909 |
| Rear overhang [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Clearance [mm] | 230 | 230 | 230 | 230 | 230 | 230 |
| Wading depth [mm] | 350 | 350 | 350 | 350 | 350 | 350 |
| Approach angle front [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Approach angle rear [°] | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 |
| Transition angle [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 |
| Legroom rear knees/total [mm] | -/924 | -/924 | -/924 | -/924 | -/924 | -/924 |
| D4 AWD | D4 AWD | D5 AWD | D5 AWD | D5 AWD | D5 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2011 to | from 2008 to 2010 | from 2008 to 2010 | from 2010 to 2011 | from 2010 to 2011 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 120/3500 | 120/3500 | 136/4000 | 136/4000 | 151/4000 | 151/4000 |
| Maximum torque [Nm/min-1] | 400/1500-2750 | 400/1500-2750 | 400/2750 | 400/2750 | 420/1500-3250 | 420/1500-3250 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 17.3:1 | 17.3:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 195 | 190 | 205 | 200 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 10,5 | 10,9 | 9,5 | 9,9 | 8,5 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,0 | 8,9 | 9,8 | 10,9 | 8.9 | 9.5-9,2 |
| Out of town [l] | 4,9 | 5,6 | 6,2 | 6,8 | 5.3 | 5.5-5,6 |
| Combined [l] | 5,3 | 6,8 | 7,5 | 8,3 | 6.6 | 7.0-6,9 |
| CO2 emissions [g/km] | 139 | 179 | 199 | 219 | 174 | 184-183 |
| Emission standard | EU5 | EU5 | EU4 | EU4 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1921 | 1941 | 1816 | 1816 | 1921 | 1939 |
| Overall weight [kg] | 2505 | 2505 | 2505 | 2505 | 2505 | 2505 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/1800 | 750/2000 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 75-90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 | -/1455 |
| Boot length [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Boot length with rear seats folded [mm] | 1789 | 1789 | 1789 | 1789 | 1789 | 1789 |
| Boot width between wheels/max [mm] | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- | 1165/- |
| Boot height to headliner/ceiling [mm] | -/802 | -/802 | -/802 | -/802 | -/802 | -/802 |
| Loading edge height [mm] | 748 | 748 | 748 | 748 | 748 | 748 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 802 | 802 | 802 | 802 | 802 | 802 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 | 235/65 R17 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 | 11.7/12.1 |
| Overall length [mm] | 4627 | 4627 | 4627 | 4627 | 4627 | 4627 |
| Overall width without/including mirrors [mm] | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 | 1891/2120 |
| Overall height [mm] | 1713 | 1713 | 1713 | 1713 | 1713 | 1713 |
| Wheelbase [mm] | 2774 | 2774 | 2774 | 2774 | 2774 | 2774 |
| Front wheel track [mm] | 1632 | 1632 | 1632 | 1632 | 1632 | 1632 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 909 | 909 | 909 | 909 | 909 | 909 |
| Rear overhang [mm] | 944 | 944 | 944 | 944 | 944 | 944 |
| Clearance [mm] | 230 | 230 | 230 | 230 | 230 | 230 |
| Wading depth [mm] | 350 | 350 | 350 | 350 | 350 | 350 |
| Approach angle front [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Approach angle rear [°] | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 | 27.0 |
| Transition angle [°] | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 | 22.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- | 1439/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 | -/1047 |
| Legroom rear knees/total [mm] | -/924 | -/924 | -/924 | -/924 | -/924 | -/924 |
| D5 AWD | D5 AWD | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2011 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 5/20 | 5/20 | ||||
| Engine displacement [cm³] | 2400 | 2400 | ||||
| Maximum output / speed [kW/min-1] | 158/4000 | 158/4000 | ||||
| Maximum torque [Nm/min-1] | 420/1500-3250 | 440/1500-3000 | ||||
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 6 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 210 | 205 | ||||
| Acceleration 0–100 km/h [s] | 8,1 | 8,3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6,0 | 8,9 | ||||
| Out of town [l] | 4,9 | 5,6 | ||||
| Combined [l] | 5,3 | 6,8 | ||||
| CO2 emissions [g/km] | 139 | 179 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1921 | 1941 | ||||
| Overall weight [kg] | 2505 | 2505 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 495 | 495 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1455 | -/1455 | ||||
| Boot length [mm] | 972 | 972 | ||||
| Boot length with rear seats folded [mm] | 1789 | 1789 | ||||
| Boot width between wheels/max [mm] | 1165/- | 1165/- | ||||
| Boot height to headliner/ceiling [mm] | -/802 | -/802 | ||||
| Loading edge height [mm] | 748 | 748 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 802 | 802 | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 70 | 70 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 235/65 R17 | 235/65 R17 | ||||
| Tyre dimensions rear | 235/65 R17 | 235/65 R17 | ||||
| Wheel size front | 7,5J x 17 | 7,5J x 17 | ||||
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | ||||
| Number of steering wheel turns | 2.9 | 2.9 | ||||
| Turning diameter track/circumference [m] | 11.7/12.1 | 11.7/12.1 | ||||
| Overall length [mm] | 4627 | 4627 | ||||
| Overall width without/including mirrors [mm] | 1891/2120 | 1891/2120 | ||||
| Overall height [mm] | 1713 | 1713 | ||||
| Wheelbase [mm] | 2774 | 2774 | ||||
| Front wheel track [mm] | 1632 | 1632 | ||||
| Rear wheel track [mm] | 1586 | 1586 | ||||
| Forward overhang [mm] | 909 | 909 | ||||
| Rear overhang [mm] | 944 | 944 | ||||
| Clearance [mm] | 230 | 230 | ||||
| Wading depth [mm] | 350 | 350 | ||||
| Approach angle front [°] | 22.0 | 22.0 | ||||
| Approach angle rear [°] | 27.0 | 27.0 | ||||
| Transition angle [°] | 22.0 | 22.0 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1025 | 1025 | ||||
| Headroom rear [mm] | 1003 | 1003 | ||||
| Front elbow/shoulder width [mm] | 1439/- | 1439/- | ||||
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | ||||
| Legroom front knees/total [mm] | -/1047 | -/1047 | ||||
| Legroom rear knees/total [mm] | -/924 | -/924 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
