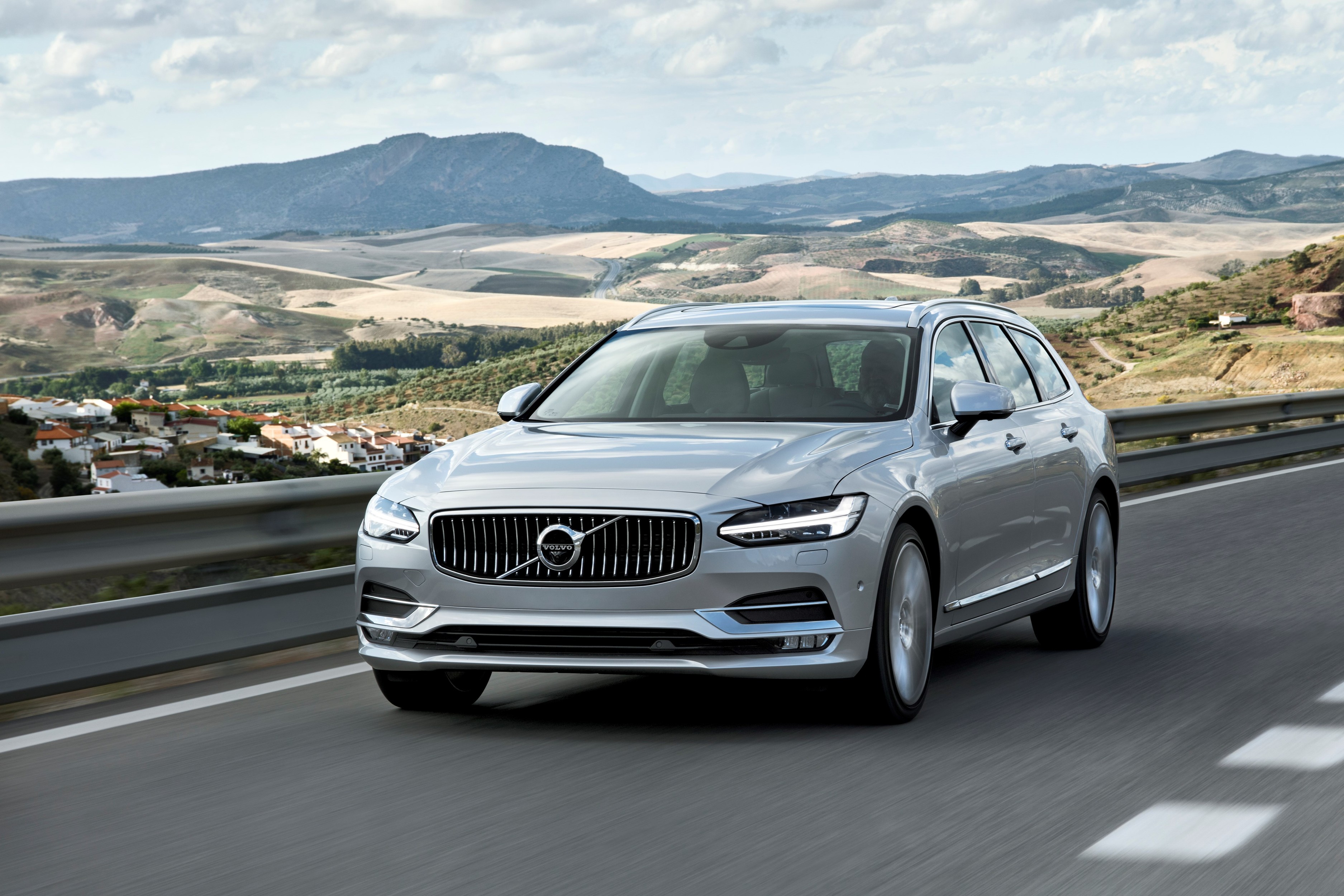

Volvo V90
Date of manufacture
2016 – 2020 (Estate)
Platform
SPA
Manufacturing locations
Torslanda, Sweden
Designer
Thomas Ingenlath
Tags
E-segment
Swedish cars
The Volvo V90 is available in a station wagon body style and has been produced in Sweden since 2016. Built on the SPA platform, it offers gasoline, diesel and hybrid engines. The most powerful version, the T6 AWD Cross Country, has 235 kW and the fastest, the T8 TWIN ENGINE AWD, reaches a top speed of 250 km/h. The most economical version is the T8 TWIN ENGINE AWD with a claimed fuel consumption of 2 l/100 km and CO2 emissions of 46 g/km. The trunk volume is 560 liters.
Car body style
Estate
Date of manufacture
2016 – 2020Internal designation
-Technical data
Estate
| T4 | T5 | T5 | T6 AWD | T6 AWD | T5 Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to 2019 | from 2017 to | from to 2017 | from 2017 to | from 2017 to | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 140/5000 | 184/5500 | 187/5500 | 228/5700 | 235/5700 | 184/5500 |
| Maximum torque [Nm/min-1] | 300/1600-4000 | 350/1800-4800 | 350/1500-4800 | 400/2200-5100 | 400/2200-5400 | 350/1800-4800 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.3:1 | 10.8:1 | 10.8:1 | 10.3:1 | 10.3:1 | 10.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 210 | 230 | 230 | 250 | 250 | 230 |
| Acceleration 0–100 km/h [s] | 8.9 | 7.0 | 7.0 | 6.1 | 6.1 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.1-8.9 | 9.0-8.6 | 9.0 | 10.2-9.6 | 9.6 | 9.4 |
| Out of town [l] | 5.7-5.6 | 5.7-5.6 | 5.6 | 6.4-6.1 | 6.1 | 6.5-6.3 |
| Combined [l] | 6.9 | 6.8 | 6.8 | 7.8-7.4 | 7.4 | 7.6-7.4 |
| CO2 emissions [g/km] | 160-156 | 159-156 | 154 | 181-169 | 169 | 176-172 |
| Low speed [l] | 11.4-10.9 | 11.5-10.8 | - | 13.0-12.7 | - | 12.5-12.1 |
| Medium speed [l] | 8.5-7.7 | 8.5-7.7 | - | 9.9-9.1 | - | 9.3-8.8 |
| High speed [l] | 7.3-6.4 | 7.2-6.5 | - | 8.3-7.5 | - | 7.9-7.3 |
| Extra high speed [l] | 8.4-7.0 | 8.5-7.1 | - | 9.1-8.1 | - | 9.2-8.4 |
| Combined speed [l] | 8.5-7.5 | 8.5-7.5 | - | 9.5-8.7 | - | 9.3-8.7 |
| CO2 emissions [g/km] | 192-169 | 193-171 | - | 216-198 | - | 210-196 |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1851 | 1861 | 1832 | 1956 | 1922 | 1834 |
| Overall weight [kg] | 2300 | 2300 | 2300 | 2400 | 2400 | 2400 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/2200 | 750/2200 | 750/2400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 or 110 | 100 or 110 | 110 | 100 or 110 | 110 | 130 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 |
| Boot length [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
| Boot length with rear seats folded [mm] | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 610 | 610 | 610 | 610 | 610 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.35-0.37 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 235/55 R18 |
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 235/55 R18 |
| Wheel size front | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 7.5J x 18 |
| Wheel size rear | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 8,0J x 18 | 7.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 |
| Turning diameter track/circumference [m] | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.6/12.0 |
| Overall length [mm] | 4936 | 4936 | 4936 | 4936 | 4936 | 4939 |
| Overall width without/including mirrors [mm] | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2052 |
| Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1543 |
| Wheelbase [mm] | 2941 | 2941 | 2941 | 2941 | 2941 | 2941 |
| Front wheel track [mm] | 1628 | 1628 | 1628 | 1628 | 1628 | 1652 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1643 |
| Forward overhang [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Rear overhang [mm] | 1122 | 1122 | 1122 | 1122 | 1122 | 1125 |
| Clearance [mm] | 153 | 153 | 153 | 153 | 153 | 210 |
| Wading depth [mm] | 250 | 250 | 250 | 250 | 250 | 300 |
| Approach angle front [°] | - | - | - | - | - | 18.9 |
| Approach angle rear [°] | - | - | - | - | - | 17.7 |
| Transition angle [°] | - | - | - | - | - | 20.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 |
| Rear elbow/shoulder width [mm] | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 |
| Legroom front knees/total [mm] | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 |
| Legroom rear knees/total [mm] | -/911 | -/911 | -/911 | -/911 | -/911 | -/911 |
| T5 Cross Country | T6 AWD Cross Country | T6 AWD Cross Country | T8 TWIN ENGINE AWD | T8 TWIN ENGINE AWD | D3 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2017 to | from 2017 to | from 2017 to 2018 | from 2017 to 2018 | from to 2019 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 187/5500 | 228/5700 | 235/5700 | 223/6000 combustion 65/7000 el. | 235/5700 combustion 65/7000 el. | 110/3750 |
| Maximum torque [Nm/min-1] | 350/1500-4800 | 400/2200-5100 | 400/2200-5400 | 400/2200-4800 combustion 240/0-3000 el. | 400/2200-5400 combustion 240/0-3000 el. | 320/1750-3000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.8:1 | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 230 | 230 | 240 | 250 [125 el.] | 250 | 205 |
| Acceleration 0–100 km/h [s] | 7,4 | 6.3 | 6,3 | 5.3 | 4.8 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,4 | 10.0-9.6 | 9,9 | - | - | 5.8-5,4 |
| Out of town [l] | 6,3 | 6.7-6.4 | 6,5 | - | - | 4.4-4,0 |
| Combined [l] | 7,4 | 7.9-7.6 | 7,7 | 2.2 [16.8 kWh] | 2.0 [17.0 kWh] | 4.9-4,5 |
| CO2 emissions [g/km] | 169 | 183-176 | 176 | 49 | 46 | 129-119 |
| Low speed [l] | - | 12.4-12.0 | - | - | - | - |
| Medium speed [l] | - | 9.3-8.8 | - | - | - | - |
| High speed [l] | - | 8.0-7.4 | - | - | - | - |
| Extra high speed [l] | - | 9.1-8.5 | - | - | - | - |
| Combined speed [l] | - | 9.3-8.7 | - | 2.9-2.4 [15.6-15.0 kWh] | - | 6.2-5.3 |
| CO2 emissions [g/km] | - | 210-196 | - | 66-54 | - | 163-138 |
| Emission standard | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP | Euro 6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 400 | 400 | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 10.4 kWh | Lithium-Ionen-Akkumulator, 11.6 kWh | - |
| Range with fully charged battery [km] | - | - | - | 47-57 [WLTP] | 50 | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1934 | 1842 | 1954 | 2150 | 2130 | 1833 |
| Overall weight [kg] | 2400 | 2420 | 2420 | 2620 | 2620 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2400 | 750/2500 | 750/2100 | 750/2100 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 130 | 130 | 130 | 100 or 110 | 110 | 100 or 110 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 |
| Boot length [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
| Boot length with rear seats folded [mm] | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 610 | 610 | 610 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | - | 50 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | 11.5 |
| Air resistance [Cd] | 0.35-0.37 | 0.35-0.37 | 0.35-0.37 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/55 R18 | 235/55 R18 | 235/55 R18 | 255/40 R19 | 245/45 R18 | 225/55 R17 |
| Tyre dimensions rear | 235/55 R18 | 235/55 R18 | 235/55 R18 | 255/40 R19 | 245/45 R18 | 225/55 R17 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 8,5J x 19 | 8,0J x 18 | 8,0J x 17 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 8,5J x 19 | 8,0J x 18 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 |
| Turning diameter track/circumference [m] | 11.6/12.0 | 11.6/12.0 | 11.6/12.0 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 |
| Overall length [mm] | 4939 | 4939 | 4939 | 4936 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1879/2052 | 1879/2052 | 1879/2052 | 1879/2019 | 1879/2019 | 1879/2019 |
| Overall height [mm] | 1543 | 1543 | 1543 | 1475 | 1475 | 1475 |
| Wheelbase [mm] | 2941 | 2941 | 2941 | 2941 | 2941 | 2941 |
| Front wheel track [mm] | 1652 | 1652 | 1652 | 1628 | 1628 | 1628 |
| Rear wheel track [mm] | 1643 | 1643 | 1643 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Rear overhang [mm] | 1125 | 1125 | 1125 | 1122 | 1122 | 1122 |
| Clearance [mm] | 210 | 210 | 210 | 153 | 153 | 153 |
| Wading depth [mm] | 300 | 300 | 300 | 250 | 250 | 250 |
| Approach angle front [°] | 18.9 | 18.9 | 18.9 | - | - | - |
| Approach angle rear [°] | 17.7 | 17.7 | 17.7 | - | - | - |
| Transition angle [°] | 20.7 | 20.7 | 20.7 | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 |
| Rear elbow/shoulder width [mm] | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 |
| Legroom front knees/total [mm] | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 |
| Legroom rear knees/total [mm] | -/911 | -/911 | -/911 | -/911 | -/911 | -/911 |
| D3 | D3 | D3 AWD | D4 | D4 | D4 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to 2020 | from 2017 to 2020 | from to 2018 | from to 2019 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 2400 |
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | 110/4250 | 140/4250 | 140/4250 | 140/4000 |
| Maximum torque [Nm/min-1] | 320/1750-3000 | 320/1750-3000 | 350/1500-2500 | 400/1750-2500 | 400/1750-2500 | 440/1500-2750 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 15.8:1 | 15.8:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 205 | 205 | 205 | 225 | 225 | 225 |
| Acceleration 0–100 km/h [s] | 10,2 | 10.2 | 10,5 | 8,5 | 8,5 | 8,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,2 | 5.9-5.8 | 5.9-5,7 | 5.6-5,4 | 5.7-5,2 | 5.9-5,7 |
| Out of town [l] | 4,1 | 4.6-4.5 | 5.1-4,4 | 4.2-4,0 | 4.5-4,1 | 5.1-4,4 |
| Combined [l] | 4,5 | 5.1-5.0 | 5.4-4,9 | 4.7-4,5 | 4.9-4,5 | 5.4-4,9 |
| CO2 emissions [g/km] | 119 | 134-131 | 142-128 | 124-119 | 129-119 | 142-128 |
| Low speed [l] | 7.3-6.6 | 8.0-7.5 | 8.6-8.1 | 7.1-6.9 | 7.9-7.3 | 8.6-8.1 |
| Medium speed [l] | 6.1-5.5 | 6.5-5.9 | 7.3-6.7 | 6.3-5.7 | 6.7-5.8 | 7.3-6.7 |
| High speed [l] | 5.5-4.6 | 5.8-4.8 | 6.2-5.7 | 5.5-4.9 | 5.6-4.9 | 6.2-5.7 |
| Extra high speed [l] | 6.5-5.2 | 6.5-5.2 | 7.1-6.4 | 6.6-5.8 | 6.7-5.5 | 7.1-6.4 |
| Combined speed [l] | 6.2-5.3 | 6.5-5.6 | 7.1-6.5 | 6.3-5.7 | 6.5-5.6 | 7.1-6.5 |
| CO2 emissions [g/km] | 163-138 | 171-147 | 185-169 | 159-143 | 171-147 | 185-169 |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1832 | 1880 | 1950 | 1855 | 1879 | 1949 |
| Overall weight [kg] | 2270 | 2270 | 2380 | 2280 | 2310 | 2380 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2200 | 750/1800 | 750/1800 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 or 110 | 110 | 110 | 110 | 100 or 110 | 110 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 | -/1526 |
| Boot length [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
| Boot length with rear seats folded [mm] | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 | -/1988 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 610 | 610 | 610 | 610 | 610 | 610 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 704 | 704 | 704 | 704 | 704 | 704 |
| Boot opening width min/max [mm] | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 | 1030/1162 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55-60 | 55 | 55 | 60 |
| AdBlue tank volume [l] | - | 11.5 | 11.5 | 11.5 | 11.5 | - |
| Air resistance [Cd] | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 | 0.30-0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Wheel size rear | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 | 8,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 |
| Turning diameter track/circumference [m] | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 | 11.4-11.8/11.8-12.2 |
| Overall length [mm] | 4936 | 4936 | 4936 | 4936 | 4936 | 4936 |
| Overall width without/including mirrors [mm] | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2019 | 1879/2019 |
| Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Wheelbase [mm] | 2941 | 2941 | 2941 | 2941 | 2941 | 2941 |
| Front wheel track [mm] | 1628 | 1628 | 1628 | 1628 | 1628 | 1628 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Rear overhang [mm] | 1122 | 1122 | 1122 | 1122 | 1122 | 1122 |
| Clearance [mm] | 153 | 153 | 153 | 153 | 153 | 153 |
| Wading depth [mm] | 250 | 250 | 250 | 250 | 250 | 250 |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1026 | 1026 | 1026 | 1026 | 1026 | 1026 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 | 1432/1460 |
| Rear elbow/shoulder width [mm] | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 | 1416/1420 |
| Legroom front knees/total [mm] | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 | -/1071 |
| Legroom rear knees/total [mm] | -/911 | -/911 | -/911 | -/911 | -/911 | -/911 |
| D5 AWD | D4 AWD Cross Country | D5 AWD Cross Country | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from 2018 to | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 5/20 | 4/16 | |||
| Engine displacement [cm³] | 1969 | 2400 | 1969 | |||
| Maximum output / speed [kW/min-1] | 173/4000 | 140/4000 | 173/4000 | |||
| Maximum torque [Nm/min-1] | 480/1750-2250 | 440/1500-2750 | 480/1750-2250 | |||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 81,0 x 93,15 | 82.0 x 93.2 | |||
| Compression ratio | 15.8:1 | 16.5:1 | 15.8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 240 | 210 | 230 | |||
| Acceleration 0–100 km/h [s] | 7,2 | 8,8 | 7,5 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.6-5,7 | 6.4-6,2 | 6.7-6,1 | |||
| Out of town [l] | 5.0-4,5 | 5.1-4,7 | 5.2-4,9 | |||
| Combined [l] | 5.6-4,9 | 5.6-5,2 | 5.7-5,3 | |||
| CO2 emissions [g/km] | 148-129 | 147-138 | 151-139 | |||
| Low speed [l] | 9.1-8.4 | 8.6-8.3 | 9.1-8.3 | |||
| Medium speed [l] | 7.5-6.8 | 8.6-8.3 | 7.7-7.1 | |||
| High speed [l] | 6.3-5.7 | 6.1-5.6 | 6.6-6.1 | |||
| Extra high speed [l] | 7.1-6.2 | 7.1-6.5 | 7.4-7.0 | |||
| Combined speed [l] | 7.2-6.5 | 7.0-6.5 | 7.4-6.9 | |||
| CO2 emissions [g/km] | 189-169 | 147-139 | 195-181 | |||
| Emission standard | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1959 | 1954 | 1966 | |||
| Overall weight [kg] | 2400 | 2420 | 2440 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2400 | 750/2500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 100 or 110 | 130 | 130 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 560 | 560 | 560 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1526 | -/1526 | -/1526 | |||
| Boot length [mm] | 1153 | 1153 | 1153 | |||
| Boot length with rear seats folded [mm] | -/1988 | -/1988 | -/1988 | |||
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 610 | 680 | 680 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 704 | 704 | 704 | |||
| Boot opening width min/max [mm] | 1030/1162 | 1030/1162 | 1030/1162 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 60 | 60 | 60 | |||
| AdBlue tank volume [l] | 11.5 | - | 11.5 | |||
| Air resistance [Cd] | 0.30-0.33 | 0.35-0.37 | 0.35-0.37 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | |||
| Tyre dimensions front | 245/45 R18 | 235/55 R18 | 235/55 R18 | |||
| Tyre dimensions rear | 245/45 R18 | 235/55 R18 | 235/55 R18 | |||
| Wheel size front | 8,0J x 18 | 7.5J x 18 | 7.5J x 18 | |||
| Wheel size rear | 8,0J x 18 | 7.5J x 18 | 7.5J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |||
| Number of steering wheel turns | 2.9-3.0 | 2.9-3.0 | 2.9-3.0 | |||
| Turning diameter track/circumference [m] | 11.4-11.8/11.8-12.2 | 11.6/12.0 | 11.6/12.0 | |||
| Overall length [mm] | 4936 | 4939 | 4939 | |||
| Overall width without/including mirrors [mm] | 1879/2019 | 1879/2052 | 1879/2052 | |||
| Overall height [mm] | 1475 | 1543 | 1543 | |||
| Wheelbase [mm] | 2941 | 2941 | 2941 | |||
| Front wheel track [mm] | 1628 | 1652 | 1652 | |||
| Rear wheel track [mm] | 1629 | 1643 | 1643 | |||
| Forward overhang [mm] | 873 | 873 | 873 | |||
| Rear overhang [mm] | 1122 | 1125 | 1125 | |||
| Clearance [mm] | 153 | 210 | 210 | |||
| Wading depth [mm] | 250 | 300 | 300 | |||
| Approach angle front [°] | - | 18.9 | 18.9 | |||
| Approach angle rear [°] | - | 17.7 | 17.7 | |||
| Transition angle [°] | - | 20.7 | 20.7 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1026 | 1026 | 1026 | |||
| Headroom rear [mm] | 966 | 966 | 966 | |||
| Front elbow/shoulder width [mm] | 1432/1460 | 1432/1460 | 1432/1460 | |||
| Rear elbow/shoulder width [mm] | 1416/1420 | 1416/1420 | 1416/1420 | |||
| Legroom front knees/total [mm] | -/1071 | -/1071 | -/1071 | |||
| Legroom rear knees/total [mm] | -/911 | -/911 | -/911 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
