Volvo V60
Date of manufacture
2013 – 2018 (Estate)
Platform
Volvo P3
Manufacturing locations
Torslanda, Sweden
Designer
Örjan Sterner
Jonathan Disley
Pontus Fontaeus
Tags
D-segment
Swedish cars

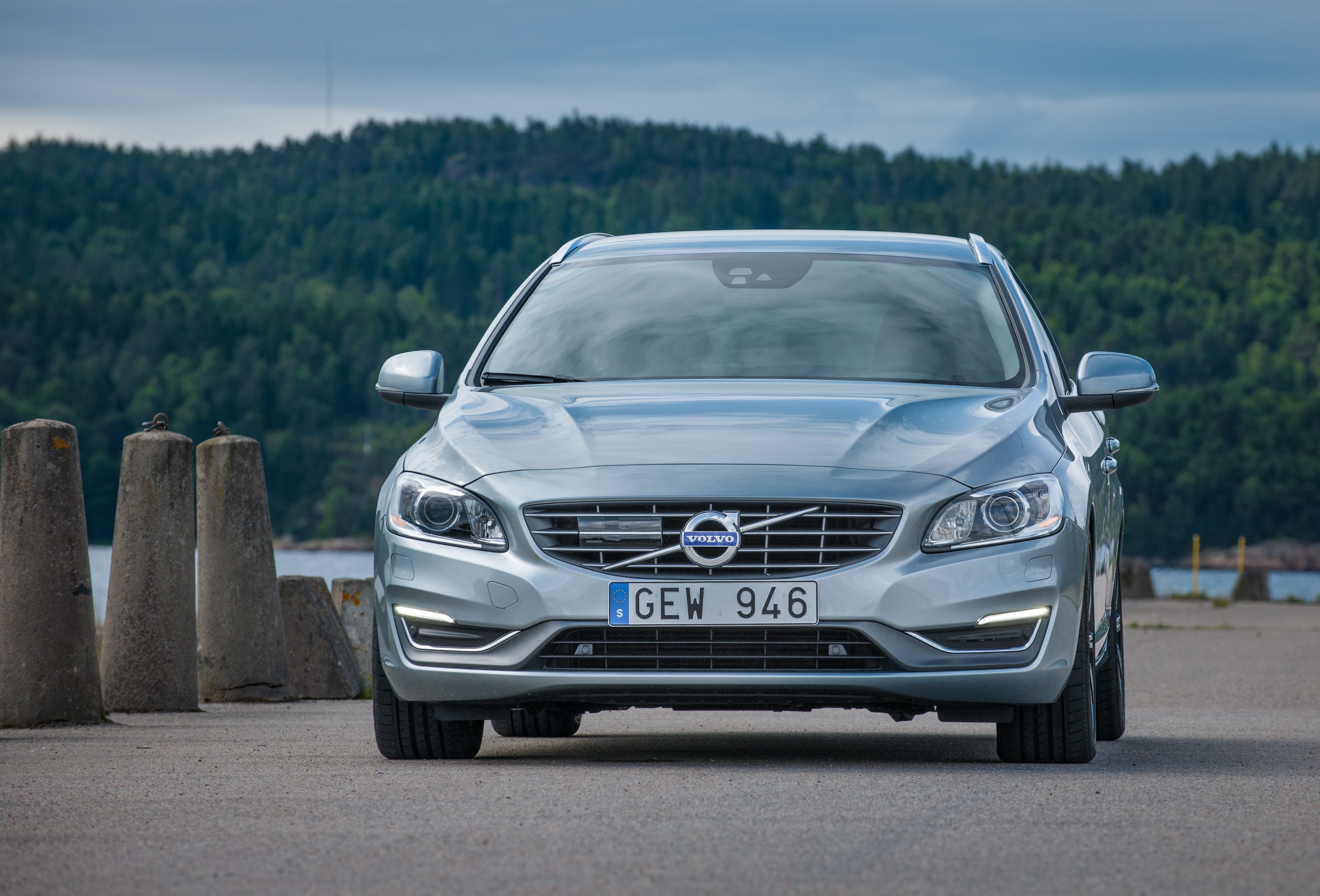

The Volvo V60 is a combi manufactured in 2013 in Sweden. It is built on the Volvo P3 platform and offers plug-in hybrid models. The engine range consists of petrol, diesel and hybrid engines with the highest power output of 270 kW in the POLESTAR model, which reaches a top speed of 250 km/h. The most fuel-efficient model is the D6 TWIN ENGINE AWD with a fuel consumption of 1.8 l/100 km and emissions of 48 g/km. The luggage compartment has a capacity of 305 l and the Volvo V60 received a 5 out of 5 rating in the EURONCAP safety tests according to the 2012 methodology.
Car body style
Estate
after upgrade (facelift)
Date of manufacture
2013 – 2018Internal designation
-Engine size
Technical data
Estate
| T2 Drive-E | T3 | T3 | T3 Drive-E | T3 Drive-E | T4 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1595 | 1595 | 1969 | 1969 | 1595 |
| Maximum output / speed [kW/min-1] | 90/5000 | 110/5700 | 110/5700 | 112/5000 | 112/5000 | 132/5700 |
| Maximum torque [Nm/min-1] | 220/1600-3500 | 240/1600-4000 | 240/1600-4000 | 250/1300-4000 | 250/1700-4000 | 240/1600-5000 |
| Bore and stroke [mm x mm] | 82.0 x 70.9 | 79.0 x 81.4 | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 93.2 | 79.0 x 81.4 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 11.3:1 | 10.3:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 190 | 200 | 205 | 205 | 205 | 220 |
| Acceleration 0–100 km/h [s] | 10.3 | 9,6 | 10,4 | 8,7 | 8,7 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 7,5 | 9,9 | 7,5 | 7,6 | 8,7 |
| Out of town [l] | 4.9 | 5,1 | 5,8 | 4,8 | 4,9 | 5,4 |
| Combined [l] | 5.9 | 6,0 | 7,2 | 5,8 | 5,9 | 6,6 |
| CO2 emissions [g/km] | 138 | 139 | 167 | 135 | 138 | 153 |
| Emission standard | EU6 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680 | 1644 | 1662 | 1674 | 1666 | 1640 |
| Overall weight [kg] | 2200 | 2100 | 2110 | 2130 | 2200 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1600 | 750/1600 | 750/1600 | 750/1500 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67.5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| T4 | T4 Drive-E | T4 Drive-E | T5 | T5 Drive-E | T6 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from 2015 to | from to 2013 | from 2014 to | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1595 | 1969 | 1969 | 1999 | 1969 | 2953 |
| Maximum output / speed [kW/min-1] | 132/5700 | 140/4700 | 140/4700 | 177/5500 | 180/5500 | 224/5600 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 300/1300-4000 | 300/1300-4000 | 320/1800-5000 | 350/1500-4800 | 440/2100-4200 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 93.2 | 87,5 x 83,1 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.0:1 | 11.3:1 | 10.3:1 | 10.0:1 | 10.8:1 | 9.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 8 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 220 | 225 | 225 | 230 | 230 | 250 |
| Acceleration 0–100 km/h [s] | 9,2 | 7,3 | 7,3 | 7.7 | 6.4 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,9 | 7,5 | 7,4 | 11.5 | 8.6-8.4 | 14.8 |
| Out of town [l] | 5,8 | 4,8 | 4,9 | 6.3 | 5.2-4.8 | 7.5 |
| Combined [l] | 7,2 | 5,8 | 5,8 | 8.2 | 6.4-6.1 | 10.2 |
| CO2 emissions [g/km] | 167 | 135 | 136 | 192 | 149-142 | 237 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1662 | 1667 | 1676 | 1696 | 1696-1714 | 1822 |
| Overall weight [kg] | 2110 | 2130 | 2200 | 2140 | 2160-2200 | 2310 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1600-1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 90 | 75 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 70/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67.5 | 67.5 | 67.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/50 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/50 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| T6 Drive-E | T6 Drive-E AWD | POLESTAR | T5 Drive-E AWD Cross Country | D2 | D2 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2014 to 2016 | from 2015 to | from 2015 to | from 2015 to | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 225/5700 | 225/5700 | 270/6000 | 180/5500 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 400/2100-4800 | 400/2100-4800 | 470/3100-5100 | 350/1500-4800 | 270/1750-2500 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10.3:1 | 10.3:1 | - | 10.8:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 230 | 250 | 250 | 210 | 190 | 185 |
| Acceleration 0–100 km/h [s] | 6.0 | 6.0 | 4.8 | 6.8 | 11,3 | 12,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9 | 9.1 | 10.8 | 9.8 | 4,6 | 4,85 |
| Out of town [l] | 5.5 | 5.8 | 6.6 | 6.0 | 3,8 | 3,95 |
| Combined [l] | 6.7 | 7.0 | 8.1 | 7.4 | 4,1 | 4,25 |
| CO2 emissions [g/km] | 157 | 163 | 186 | 168 | 108 | 1105 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1737 | 1792 | 1796 | 1776 | 1680 | 1702 |
| Overall weight [kg] | 2200 | 2270 | 2270 | 2260 | 2110 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | - | 750/1800 | 750/1300 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | - | 90 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67.5 | 67.5 | 67.5 | - | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/50 R17 | 215/50 R17 | 245/35 R20 | 235/55 R17 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 215/50 R17 | 215/50 R17 | 245/35 R20 | 235/55 R17 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | 7,5J x 17 | - | - |
| Wheel size rear | - | - | - | 7,5J x 17 | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4637 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1866/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1545 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2774 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1619 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1577 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 920 | 916 | 916 |
| Clearance [mm] | - | - | - | 201 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D2 Drive-E | D2 Drive-E | D3 | D3 | D3 Drive-E | D3 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1984 | 1984 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 88/3750 | 88/3750 | 100/3500 | 100/3500 | 110/3750 | 110/3750 |
| Maximum torque [Nm/min-1] | 280/1500-2250 | 280/1500-2250 | 350/1500-2250 | 350/1500-2250 | 320/1750-3000 | 320/1750-3000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 | 75,0 x 88,3 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 195 | 195 | 205 | 200 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 11,5 | 11,7 | 10,4 | 10,4 | 9,1 | 9,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,4 | 4,9 | 5,2 | 6,1 | 4,5 | 4,9 |
| Out of town [l] | 3,6 | 4,0 | 4,1 | 4,3 | 3,9 | 4,0 |
| Combined [l] | 3,9 | 4,3 | 4,5 | 4,9 | 4,1 | 4,3 |
| CO2 emissions [g/km] | 104 | 114 | 119 | 129 | 108 | 114 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1679 | 1723 | 1695 | 1725 | 1675 | 1723 |
| Overall weight [kg] | 2170 | 2200 | 2180 | 2200 | 2170 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D4 | D4 | D4 AWD | D4 Drive-E | D4 Drive-E | D4 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2014 | from to 2014 | from to 2014 | from 2014 to 2015 | from 2014 to 2015 | from 2014 to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 2400 | 1969 | 1969 | 2400 |
| Maximum output / speed [kW/min-1] | 120/2900 | 120/2900 | 120/4000 | 133/4250 | 133/4250 | 133/4000 |
| Maximum torque [Nm/min-1] | 400/1400-2850 | 400/1400-2850 | 420/1500-2500 | 400/1750-2500 | 400/1750-2500 | 420/1500-2500 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 93,15 | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 15.8:1 | 15.8:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 220 | 215 | 215 | 225 | 225 | 220 |
| Acceleration 0–100 km/h [s] | 9,4 | 9,4 | 10.4 | 7.6 | 7.6 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,2 | 6,1 | 8.6 | 4.3 | 5.0 | 8.1 |
| Out of town [l] | 4,1 | 4,3 | 5.2 | 3.6 | 3.8 | 4.7 |
| Combined [l] | 4,5 | 4,9 | 6.4 | 3.8 | 4.2 | 5.9 |
| CO2 emissions [g/km] | 119 | 129 | 169 | 99 | 109 | 158 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1701 | 1731 | 1813 | 1685 | 1744 | 1766 |
| Overall weight [kg] | 2180 | 2200 | 2280 | 2120 | 2150 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/1750 | 750/1750 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67.5 | 67.5 | 67.5 | 67.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D4 Drive-E | D4 Drive-E | D4 AWD | D5 | D5 | D5 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1969 | 1969 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 140/4250 | 140/4250 | 140/4000 | 158/4000 | 158/4000 | 158/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 440/1500-2750 | 420/1500-3250 | 440/1500-3000 | 440/1500-3000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 15.8:1 | 15.8:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 225 | 225 | 225 | 230 | 230 | 225 |
| Acceleration 0–100 km/h [s] | 7,7 | 7,7 | 8.9 | 7,5 | 7,7 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,5 | 5,3 | 6.8 | 5,6 | 8,5 | 8,6 |
| Out of town [l] | 3,7 | 3,9 | 4.8 | 4,0 | 4,9 | 5,2 |
| Combined [l] | 4,0 | 4,4 | 5.5 | 4,6 | 6,2 | 6,4 |
| CO2 emissions [g/km] | 104 | 116 | 146 | 120 | 162 | 169 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1691 | 1744 | 1804 | 1714 | 1740 | 1800 |
| Overall weight [kg] | 2170 | 2200 | 2280 | 2180 | 2200 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67.5 | 67,5 | 67,5 | 67.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D5 Drive-E | D3 Drive-E Cross Country | D3 Drive-E Cross Country | D4 Drive-E Cross Country | D4 Drive-E Cross Country | D4 AWD Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from 2015 to | from 2015 to | from 2015 to | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 2400 |
| Maximum output / speed [kW/min-1] | 165/4250 | 110/3750 | 110/3750 | 140/4250 | 140/4250 | 140/4000 |
| Maximum torque [Nm/min-1] | 470/1750-2500 | 320/1750-3000 | 320/1750-3000 | 400/1750-2500 | 400/1750-2500 | 440/1500-2750 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 |
| Compression ratio | 15.8:1 | 16.0:1 | 16.0:1 | 15.8:1 | 15.8:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 230 | 205 | 205 | 210 | 210 | 205 |
| Acceleration 0–100 km/h [s] | 6.5 | 9.1 | 9.1 | 7.8 | 7.8 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 4.6 | 5.3 | 4.6 | 5.3 | 6.8 |
| Out of town [l] | 4.4 | 4.0 | 4.2 | 4.0 | 4.2 | 5.1 |
| Combined [l] | 4.8 | 4.2 | 4.6 | 4.2 | 4.6 | 5.7 |
| CO2 emissions [g/km] | 125 | 111 | 120 | 111 | 120 | 149 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1731 | 1725 | 1758 | 1725 | 1758 | 1823 |
| Overall weight [kg] | 2200 | 2170 | 2200 | 2170 | 2200 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/742 | -/742 | -/742 | -/742 | -/742 | -/742 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 215/55 R16 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | - | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | - | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4637 | 4637 | 4637 | 4637 | 4637 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1866/2097 | 1866/2097 | 1866/2097 | 1866/2097 | 1866/2097 |
| Overall height [mm] | 1484 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Wheelbase [mm] | 2776 | 2774 | 2774 | 2774 | 2774 | 2774 |
| Front wheel track [mm] | 1588 | 1619 | 1619 | 1619 | 1619 | 1619 |
| Rear wheel track [mm] | 1585 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 920 | 920 | 920 | 920 | 920 |
| Clearance [mm] | - | 201 | 201 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Rear elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D6 TWIN ENGINE AWD | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | |||||
| Engine type | Diesel supercharged + Electric | |||||
| Number of cylinders/valves | 5/20 | |||||
| Engine displacement [cm³] | 2400 | |||||
| Maximum output / speed [kW/min-1] | 162/4000 combustion 50/2387 el. 206/4200 total | |||||
| Maximum torque [Nm/min-1] | 440/1500-3000 combustion 200/320-1700 el. 640/1400 total | |||||
| Bore and stroke [mm x mm] | 81,0 x 93,15 | |||||
| Compression ratio | 16.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 230 [125 el.] | |||||
| Acceleration 0–100 km/h [s] | 6.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 1.8 [13.3 kWh] | |||||
| CO2 emissions [g/km] | 48 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 400 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11.2 kWh | |||||
| Range with fully charged battery [km] | 50 [NEDC] | |||||
| Charging time |
| |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2048 | |||||
| Overall weight [kg] | 2505 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 90 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 305 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1126 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | -/742 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 45 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 235/45 R17 | |||||
| Tyre dimensions rear | 235/45 R17 | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Electro-hydraulic power steering | |||||
| Number of steering wheel turns | 2.8 | |||||
| Turning diameter track/circumference [m] | 11.3/11.5 | |||||
| Overall length [mm] | 4635 | |||||
| Overall width without/including mirrors [mm] | 1865/2097 | |||||
| Overall height [mm] | 1484 | |||||
| Wheelbase [mm] | 2776 | |||||
| Front wheel track [mm] | 1588 | |||||
| Rear wheel track [mm] | 1585 | |||||
| Forward overhang [mm] | 943 | |||||
| Rear overhang [mm] | 916 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 999 | |||||
| Headroom rear [mm] | 954 | |||||
| Front elbow/shoulder width [mm] | -/1395 | |||||
| Rear elbow/shoulder width [mm] | -/1349 | |||||
| Legroom front knees/total [mm] | -/1064 | |||||
| Legroom rear knees/total [mm] | -/850 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
