Volvo V40
Date of manufacture
2016 – 2019 (Five-door hatchback)
Platform
Global C
Manufacturing locations
Ghent, Belgium
Designer
Peter Horbury
Chris Benjamin
Pontus Fontaeus
Tags
C-segment
Swedish cars

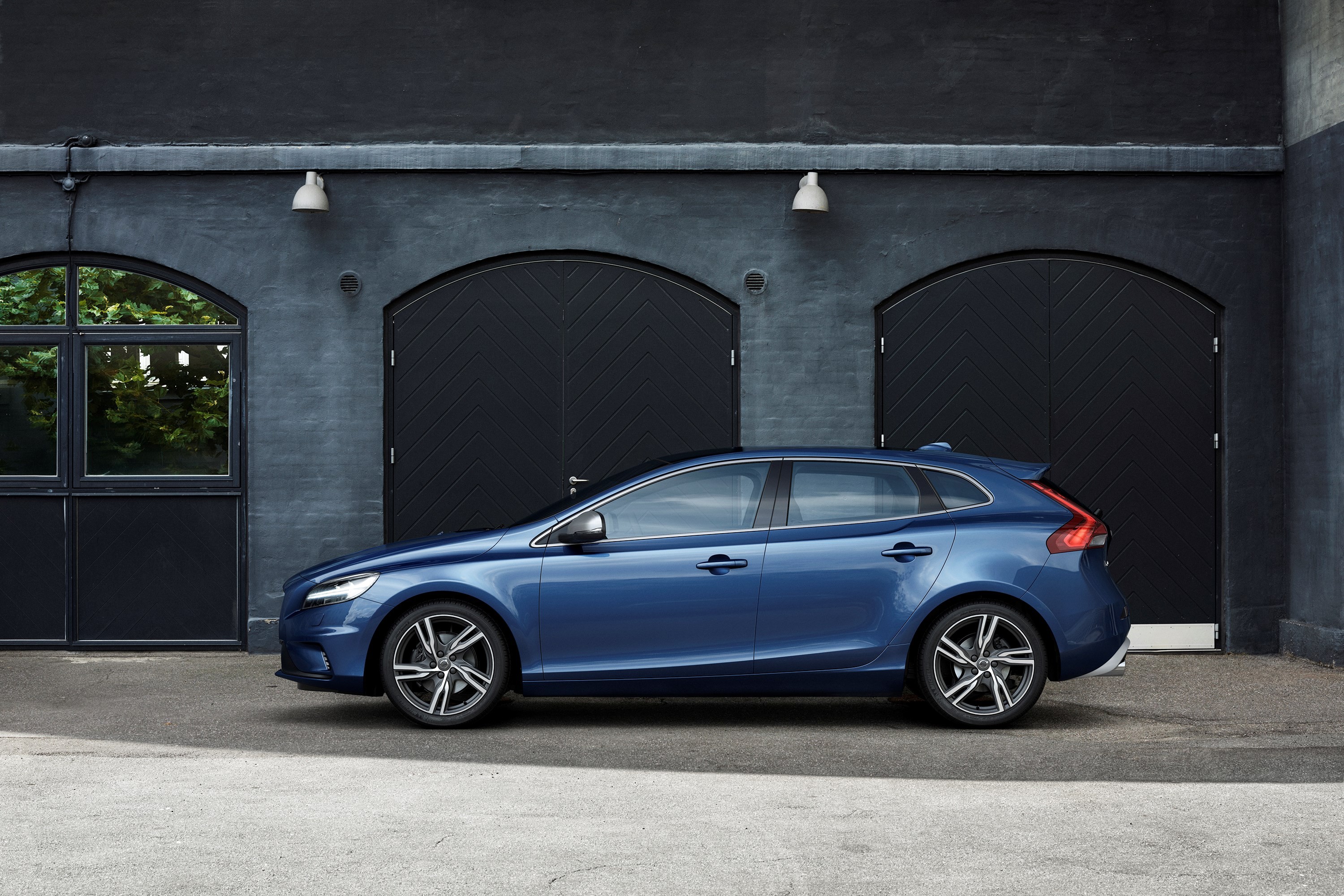

The Volvo V40 is a five-door hatchback that was first produced in 2016. Its country of manufacture is Belgium and it is built on the Global C platform. It offers a wide range of petrol and diesel engines with the highest power output of 180 kW in the T5 Drive-E AWD Cross Country model and the fastest version, the T5 Drive-E, has a top speed of 240 km/h. The most economical variant, the D2 Drive-E, has a fuel consumption of 3.6 l/100 km and emissions of 94 g/km. The car's boot has a capacity of 335 l. The EURONCAP test from 2012 rated the car's safety at 5 out of 5.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
-Engine size
Petrol
Diesel
Technical data
Five-door hatchback
| T2 Drive-E | T2 Drive-E | T3 Drive-E | T3 Drive-E | T4 Drive-E | T4 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1498 | 1969 | 1498 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 112/5000 | 112/5000 | 140/4700 | 140/4700 |
| Maximum torque [Nm/min-1] | 220/1100-3500 | 220/1600-3500 | 250/1300-4000 | 250/1700-4000 | 300/1300-4000 | 300/1300-4000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 70.9 | 82.0 x 93.2 | 82.0 x 70.9 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 11.3:1 | 10.5:1 | 11.3:1 | 10.5:1 | 11.3:1 | 11.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 190 | 190 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 10,4 | 9,8 | 8,9 | 8,3 | 7,8 | 6,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,3 | 7,3 | 7,3 | 7,3 | 7,3 | 7,2 |
| Out of town [l] | 4,6 | 4,5 | 4,6 | 4,5 | 4,6 | 4,6 |
| Combined [l] | 5,6 | 5,5 | 5,6 | 5,5 | 5,6 | 5,5 |
| CO2 emissions [g/km] | 127 | 129 | 127 | 129 | 127 | 128 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1546 | 1554 | 1546 | 1554 | 1546 | 1556 |
| Overall weight [kg] | 1965 | 1965 | 1965 | 1965 | 1965 | 1975 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |

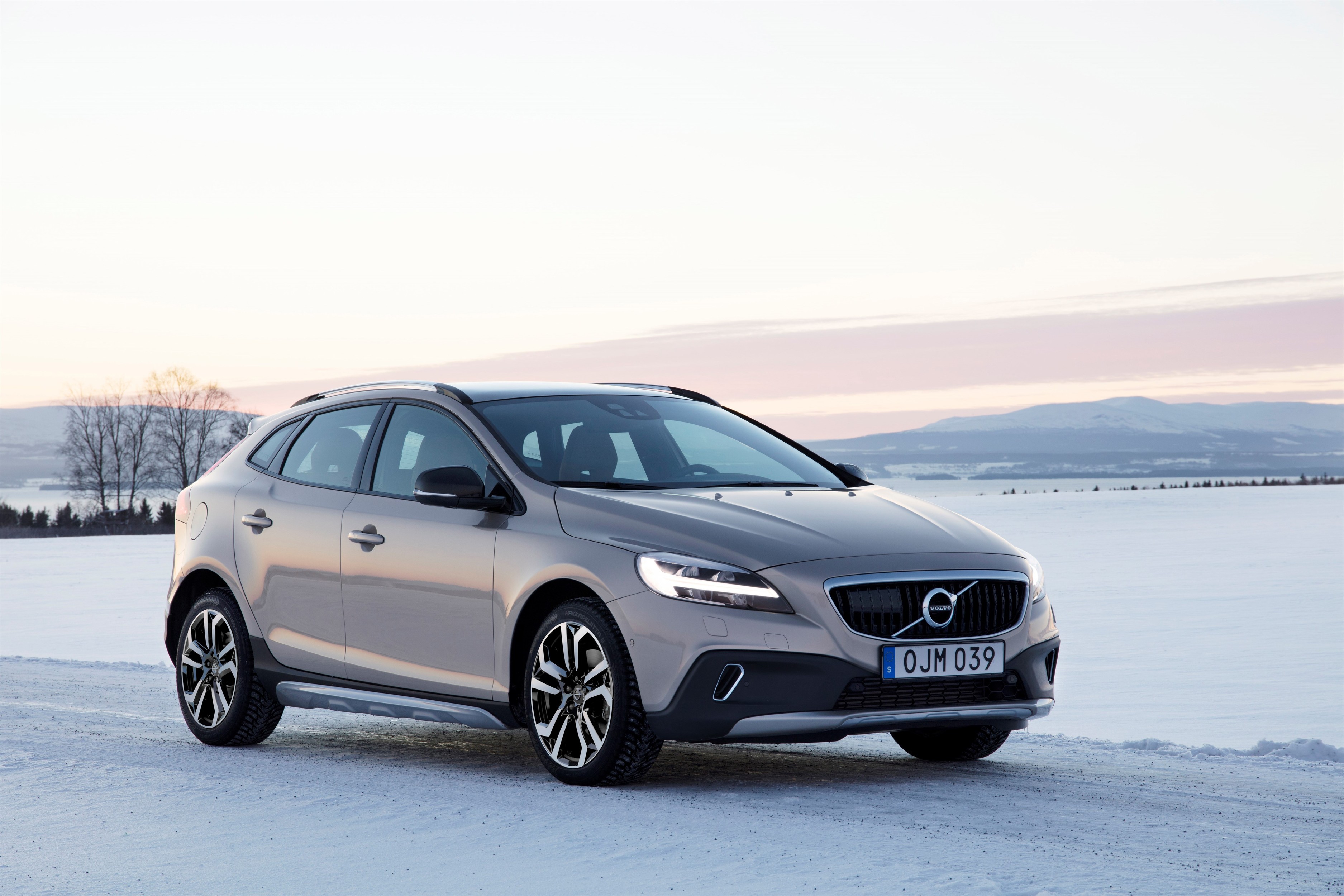

| T5 Drive-E | T3 Drive-E Cross Country | T3 Drive-E Cross Country | T4 Drive-E AWD Cross Country | T5 Drive-E AWD Cross Country | D2 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | - | from to 2018 | from to 2018 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1498 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 180/5500 | 112/5000 | 112/5000 | 140/5000 | 180/5500 | 88/3750 |
| Maximum torque [Nm/min-1] | 350/1500-4800 | 250/1300-4000 | 250/1700-4000 | 320/1500-4000 | 350/1500-4800 | 280/1500-2250 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 70.9 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.8:1 | 11.3:1 | 10.5:1 | 10.8:1 | 10.8:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 240 | 210 | 210 | 210 | 210 | 190 |
| Acceleration 0–100 km/h [s] | 6.3 | 9,1 | 8,5 | 7.4 | 6.1 | 10,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | 7,3 | 7,4 | 8.5 | 8.5 | 4,0 |
| Out of town [l] | 4.8 | 4,6 | 4,6 | 5.2 | 5.2 | 3,3 |
| Combined [l] | 5.9 | 5,6 | 5,6 | 6.4 | 6.4 | 3,6 |
| CO2 emissions [g/km] | 137 | 128 | 131 | 149 | 149 | 94 |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1582 | 1569 | 1573 | 1643 | 1643 | 1532 |
| Overall weight [kg] | 2000 | 1970 | 1975 | 2055 | 2055 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 57 | 62 | 62 or 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/50 R17 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/50 R17 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 17 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 17 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D2 Drive-E | D3 Drive-E | D3 Drive-E | D4 Drive-E | D4 Drive-E | D2 Drive-E Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2018 | from to 2018 | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 88/3750 | 110/3750 | 110/3750 | 140/4250 | 140/4250 | 88/3750 |
| Maximum torque [Nm/min-1] | 280/1500-2250 | 320/1750-3000 | 320/1750-3000 | 400/1750-2500 | 400/1750-2500 | 280/1500-2250 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 15.8:1 | 15.8:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 190 | 210 | 210 | 230 | 230 | 190 |
| Acceleration 0–100 km/h [s] | 10,5 | 8,4 | 8,4 | 7,4 | 7,2 | 10,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,6 | 4,3 | 4,8 | 4,2 | 5,0 | 4,2 |
| Out of town [l] | 3,6 | 3,6 | 3,8 | 3,6 | 3,7 | 3,6 |
| Combined [l] | 3,9 | 3,8 | 4,1 | 3,8 | 4,2 | 3,8 |
| CO2 emissions [g/km] | 104 | 101 | 108 | 99 | 109 | 99 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1577 | 1561 | 1577 | 1578 | 1615 | 1575 |
| Overall weight [kg] | 1995 | 1980 | 1995 | 2005 | 2025 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 or 40 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D2 Drive-E Cross Country | D3 Drive-E Cross Country | D3 Drive-E Cross Country | D4 Drive-E Cross Country | D4 Drive-E Cross Country | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2018 | from to 2018 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | |
| Maximum output / speed [kW/min-1] | 88/3750 | 110/3750 | 110/3750 | 140/4250 | 140/4250 | |
| Maximum torque [Nm/min-1] | 280/1500-2250 | 320/1750-3000 | 320/1750-3000 | 400/1750-2500 | 400/1750-2500 | |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 15.8:1 | 15.8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | |
| Drive specifications |
| - |
| - |
| |
| Top speed [km/h] | 190 | 210 | 210 | 210 | 210 | |
| Acceleration 0–100 km/h [s] | 10,6 | 8,5 | 8,5 | 7,7 | 7,5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4,5 | 4,3 | 4,7 | 4,4 | 5,0 | |
| Out of town [l] | 3,6 | 3,6 | 3,8 | 3,8 | 3,9 | |
| Combined [l] | 3,9 | 3,9 | 4,1 | 4,0 | 4,3 | |
| CO2 emissions [g/km] | 104 | 102 | 109 | 104 | 112 | |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1592 | 1575 | 1592 | 1595 | 1635 | |
| Overall weight [kg] | 1995 | 1980 | 1995 | 2000 | 2020 | |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | |
| Overall width without/including mirrors [mm] | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | 1857/2041 | |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
