Volvo V40
Date of manufacture
2012 – 2016 (Five-door hatchback)
Platform
Global C
Manufacturing locations
Ghent, Belgium
Designer
Peter Horbury
Chris Benjamin
Pontus Fontaeus
Tags
C-segment
Swedish cars
The Volvo V40 is a five-door hatchback first produced in 2012. It is built on the Global C platform and is available with petrol and diesel engines. The most powerful variant is the T5 AWD Cross Country with 187 kW and a top speed of 250 km/h. The most fuel-efficient model is the D2 Drive-E with 3.2 l/100 km and 82 g/km emissions. The boot has a capacity of 335 l. The EURONCAP safety test in 2012 rated the car as 5 out of 5 stars.
Car body style
Five-door hatchback
Date of manufacture
2012 – 2016Internal designation
-Engine size
Diesel
Technical data
Five-door hatchback
| T2 | T2 Drive-E | T2 Drive-E | T3 | T3 Drive-E | T3 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to | from 2015 to | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1969 | 1498 | 1596 | 1969 | 1498 |
| Maximum output / speed [kW/min-1] | 88/4500 | 90/5000 | 90/5000 | 110/5700 | 112/5000 | 112/5000 |
| Maximum torque [Nm/min-1] | 240/1600-3000 | 220/1100-3500 | 220/1600-3500 | 240/1600-4000 | 250/1300-4000 | 250/1700-4000 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 70.9 | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 70.9 |
| Compression ratio | 10.0:1 | 11.3:1 | 10.5:1 | 10.0:1 | 11.3:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 195 | 190 | 190 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 9,9 | 9,8 | 9,8 | 8,8 | 8,3 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,8 | 7,3 | 7,3 | 6,8 | 7,3 | 7,3 |
| Out of town [l] | 4,5 | 4,5 | 4,5 | 4,5 | 4,5 | 4,5 |
| Combined [l] | 5,3 | 5,5 | 5,5 | 5,3 | 5,5 | 5,5 |
| CO2 emissions [g/km] | 124 | 127 | 129 | 124 | 127 | 129 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1463 | 1546 | 1554 | 1470 | 1546 | 1554 |
| Overall weight [kg] | 1910 | 1965 | 1965 | 1910 | 1965 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 700/1500 | 700/1500 | 650/1300 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| T4 | T4 | T5 Drive-E | T5 | T3 Drive-E Cross Country | T3 Drive-E Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2014 to | from to 2014 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1596 | 1596 | 1969 | 2497 | 1969 | 1498 |
| Maximum output / speed [kW/min-1] | 132/5700 | 132/5700 | 180/5500 | 187/5400 | 112/5000 | 112/5000 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 350/1500-4800 | 360/1800-4200 | 250/1300-4000 | 250/1700-4000 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 79.0 x 81.4 | 82.0 x 93.2 | 83.0 x 92.3 | 82.0 x 93.2 | 82.0 x 70.9 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.8:1 | 9.5:1 | 11.3:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 225 | 225 | 240 | 250 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 7,7 | 8,5 | 6.3 | 6.1 | 8,5 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0 | 7,9 | 7.9 | 11.3 | 7,1 | 7,4 |
| Out of town [l] | 4,7 | 5,1 | 4.8 | 6.0 | 4,6 | 4,6 |
| Combined [l] | 5,5 | 6,1 | 5.9 | 7.9 | 5,5 | 5,6 |
| CO2 emissions [g/km] | 129 | 143 | 137 | 185 | 128 | 131 |
| Emission standard | EU5 | EU5 | EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1470 | 1508 | 1582 | 1570 | 1569 | 1573 |
| Overall weight [kg] | 1910 | 1940 | 2000 | 2010 | 1970 | 1975 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 700/1500 | 750/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1458 | 1458 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2646 | 2646 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1552 | 1552 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1540 | 1540 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 816 | 816 |
| Clearance [mm] | 133 | 133 | 133 | 133 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| T4 Cross Country | T4 Cross Country | T4 AWD Cross Country | T4 Drive-E AWD Cross Country | T5 Drive-E AWD Cross Country | T5 AWD Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from 2014 to | from 2014 to | from to 2014 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1596 | 1596 | 1984 | 1969 | 1969 | 2497 |
| Maximum output / speed [kW/min-1] | 132/5700 | 132/5700 | 132/5000 | 140/5000 | 180/5500 | 187/5400 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 300/2700-4000 | 320/1500-4000 | 350/1500-4800 | 360/1800-4200 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 79.0 x 81.4 | 81.0 x 77.0 | 82.0 x 93.2 | 82.0 x 93.2 | 83.0 x 92.3 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.5:1 | 10.8:1 | 10.8:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 210 | 210 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 7,7 | 8,5 | 8.2 | 7.4 | 6.1 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0 | 7,9 | 11.1 | 8.5 | 8.5 | 11.6 |
| Out of town [l] | 4,7 | 5,1 | 6.3 | 5.2 | 5.2 | 6.4 |
| Combined [l] | 5,5 | 6,1 | 8.0 | 6.4 | 6.4 | 8.3 |
| CO2 emissions [g/km] | 129 | 143 | 187 | 149 | 149 | 194 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1485 | 1523 | 1625 | 1643 | 1643 | 1633 |
| Overall weight [kg] | 1910 | 1940 | 2070 | 2055 | 2055 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 700/1500 | 700/1500 | 700/1500 | 750/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2646 | 2646 | 2646 | 2646 | 2646 | 2646 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D2 | D2 | D2 Drive-E | D2 Drive-E | D3 | D3 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1560 | 1560 | 1969 | 1969 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 84/3600 | 84/3600 | 88/3750 | 88/3750 | 110/3500 | 110/3500 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 270/1750-2500 | 280/1500-2250 | 280/1500-2250 | 350/1500-2750 | 350/1500-2750 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 190 | 190 | 190 | 190 | 210 | 205 |
| Acceleration 0–100 km/h [s] | 11,9 | 12,1 | 10,5 | 10,5 | 9,6 | 9,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 3,8 | 4,4 | 3,7 | 4,3 | 5,3 | 6,9 |
| Out of town [l] | 3,1 | 3,6 | 2,9 | 3,4 | 3,8 | 4,3 |
| Combined [l] | 3,4 | 3,9 | 3,2 | 3,7 | 4,3 | 5,2 |
| CO2 emissions [g/km] | 88 | 102 | 82 | 97 | 114 | 136 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1477 | 1526 | 1532 | 1577 | 1569 | 1593 |
| Overall weight [kg] | 1890 | 1940 | 1920 | 1995 | 2020 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 700/1300 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 62 or 40 | 62 or 40 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D3 Drive-E | D3 Drive-E | D4 | D4 | D4 Drive-E | D4 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2014 | from to 2014 | from 2014 to | from 2014 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1984 | 1984 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | 130/3500 | 130/3500 | 140/4250 | 140/4250 |
| Maximum torque [Nm/min-1] | 320/1750-3000 | 320/1750-3000 | 400/1750-2750 | 400/1750-2750 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 77,0 | 81,0 x 77,0 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 | 15.8:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 220 | 215 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 8,4 | 8,4 | 8,6 | 8,3 | 7,4 | 7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,4 | 4,6 | 5,3 | 6,9 | 4,2 | 5,0 |
| Out of town [l] | 3,5 | 3,7 | 3,8 | 4,3 | 3,6 | 3,7 |
| Combined [l] | 3,8 | 4,0 | 4,3 | 5,2 | 3,8 | 4,2 |
| CO2 emissions [g/km] | 99 | 104 | 114 | 136 | 99 | 109 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1561 | 1577 | 1569 | 1593 | 1578 | 1615 |
| Overall weight [kg] | 1980 | 1995 | 2020 | 2040 | 2005 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 532 | 532 | 532 | 532 | 532 | 532 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 60 | 60 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4369 | 4369 | 4369 | 4369 | 4369 | 4369 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1420 | 1420 | 1420 | 1420 | 1420 | 1420 |
| Wheelbase [mm] | 2647 | 2647 | 2647 | 2647 | 2647 | 2647 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D2 Cross Country | D2 Cross Country | D2 Drive-E Cross Country | D2 Drive-E Cross Country | D3 Cross Country | D3 Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1560 | 1560 | 1969 | 1969 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 84/3600 | 84/3600 | 88/3750 | 88/3750 | 110/3500 | 110/3500 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 270/1750-2500 | 280/1500-2250 | 280/1500-2250 | 350/1500-2750 | 350/1500-2750 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 185 | 190 | 190 | 190 | 205 | 200 |
| Acceleration 0–100 km/h [s] | 11,9 | 12,1 | 10,6 | 10,6 | 9,6 | 9,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,1 | 4,5 | 4,2 | 4,5 | 5,3 | 6,8 |
| Out of town [l] | 3,6 | 3,9 | 3,4 | 3,6 | 3,9 | 4,3 |
| Combined [l] | 3,8 | 4,1 | 3,7 | 3,9 | 4,4 | 5,2 |
| CO2 emissions [g/km] | 99 | 108 | 96 | 101 | 117 | 137 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1492 | 1538 | 1575 | 1592 | 1582 | 1607 |
| Overall weight [kg] | 1920 | 1950 | 1980 | 1995 | 2010 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 700/1300 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 62 | 62 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,0J x 15 | 6,0J x 15 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 6,0J x 15 | 6,0J x 15 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2646 | 2646 | 2646 | 2646 | 2646 | 2646 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |
| D3 Drive-E Cross Country | D3 Drive-E Cross Country | D4 Cross Country | D4 Cross Country | D4 Drive-E Cross Country | D4 Drive-E Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2014 | from to 2014 | from 2014 to | from 2014 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1984 | 1984 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | 130/3500 | 130/3500 | 140/4250 | 140/4250 |
| Maximum torque [Nm/min-1] | 320/1750-3000 | 320/1750-3000 | 400/1750-2750 | 400/1750-2750 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 77,0 | 81,0 x 77,0 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 | 15.8:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 210 | 210 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 8,5 | 8,5 | 8,6 | 8,3 | 7,7 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,4 | 4,6 | 5,3 | 6,8 | 4,4 | 5,0 |
| Out of town [l] | 3,5 | 3,7 | 3,9 | 4,3 | 3,8 | 3,9 |
| Combined [l] | 3,8 | 4,0 | 4,4 | 5,2 | 4,0 | 4,3 |
| CO2 emissions [g/km] | 99 | 105 | 117 | 137 | 104 | 112 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1575 | 1592 | 1582 | 1607 | 1595 | 1635 |
| Overall weight [kg] | 1980 | 1995 | 2010 | 2040 | 2000 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 335 | 335 | 335 | 335 | 335 | 335 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 | -/1032 |
| Boot length [mm] | 684 | 684 | 684 | 684 | 684 | 684 |
| Boot length with rear seats folded [mm] | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 | -/1508 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 60 | 60 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Wheel size rear | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 | 7,0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4370 | 4370 | 4370 | 4370 | 4370 | 4370 |
| Overall width without/including mirrors [mm] | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 | 1783/2041 |
| Overall height [mm] | 1458 | 1458 | 1458 | 1458 | 1458 | 1458 |
| Wheelbase [mm] | 2646 | 2646 | 2646 | 2646 | 2646 | 2646 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | 1540 |
| Forward overhang [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Rear overhang [mm] | 816 | 816 | 816 | 816 | 816 | 816 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Headroom rear [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Front elbow/shoulder width [mm] | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 | -/1396 |
| Rear elbow/shoulder width [mm] | 932/- | 932/- | 932/- | 932/- | 932/- | 932/- |
| Legroom front knees/total [mm] | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 | -/1073 |
| Legroom rear knees/total [mm] | -/847 | -/847 | -/847 | -/847 | -/847 | -/847 |

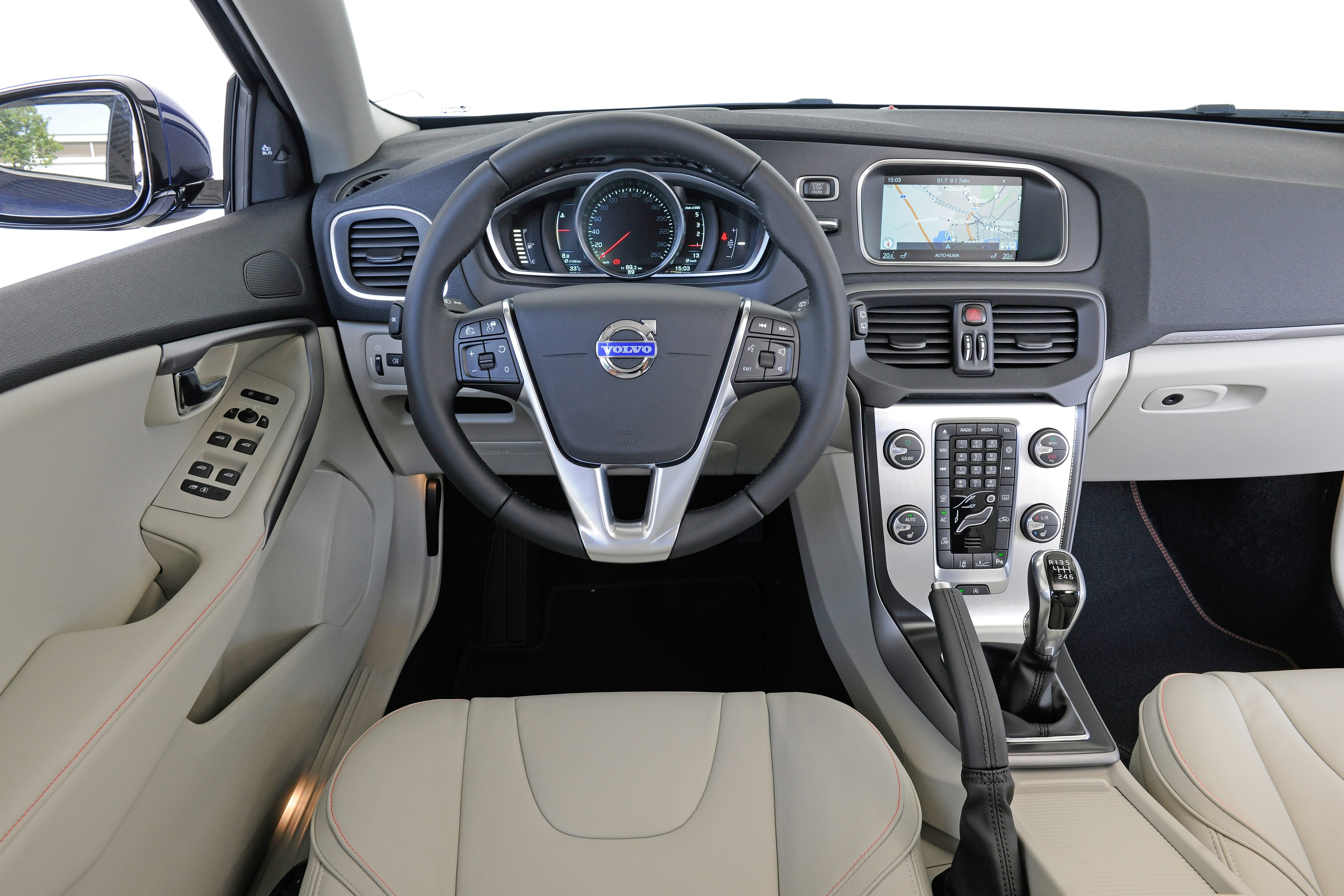

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
