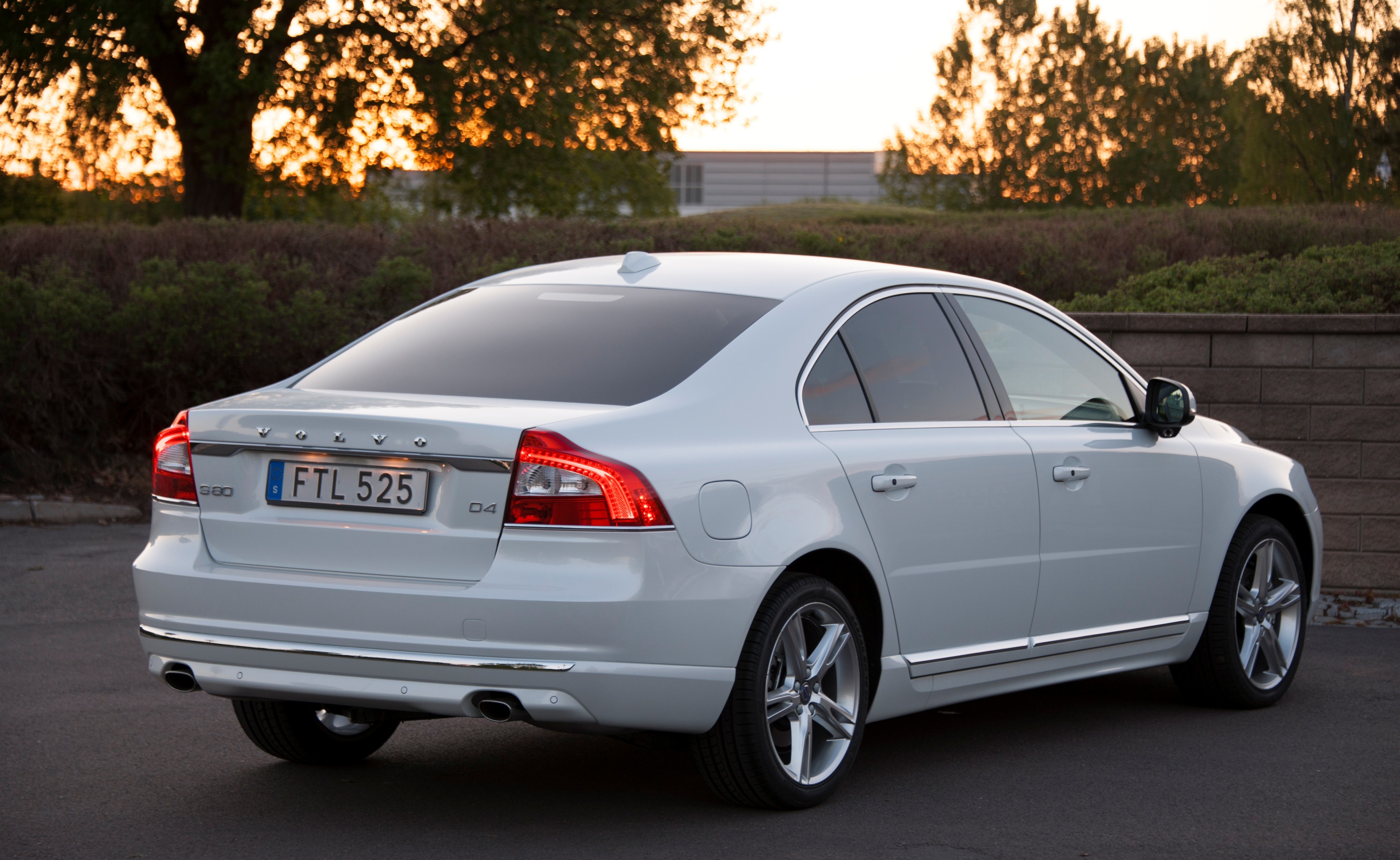

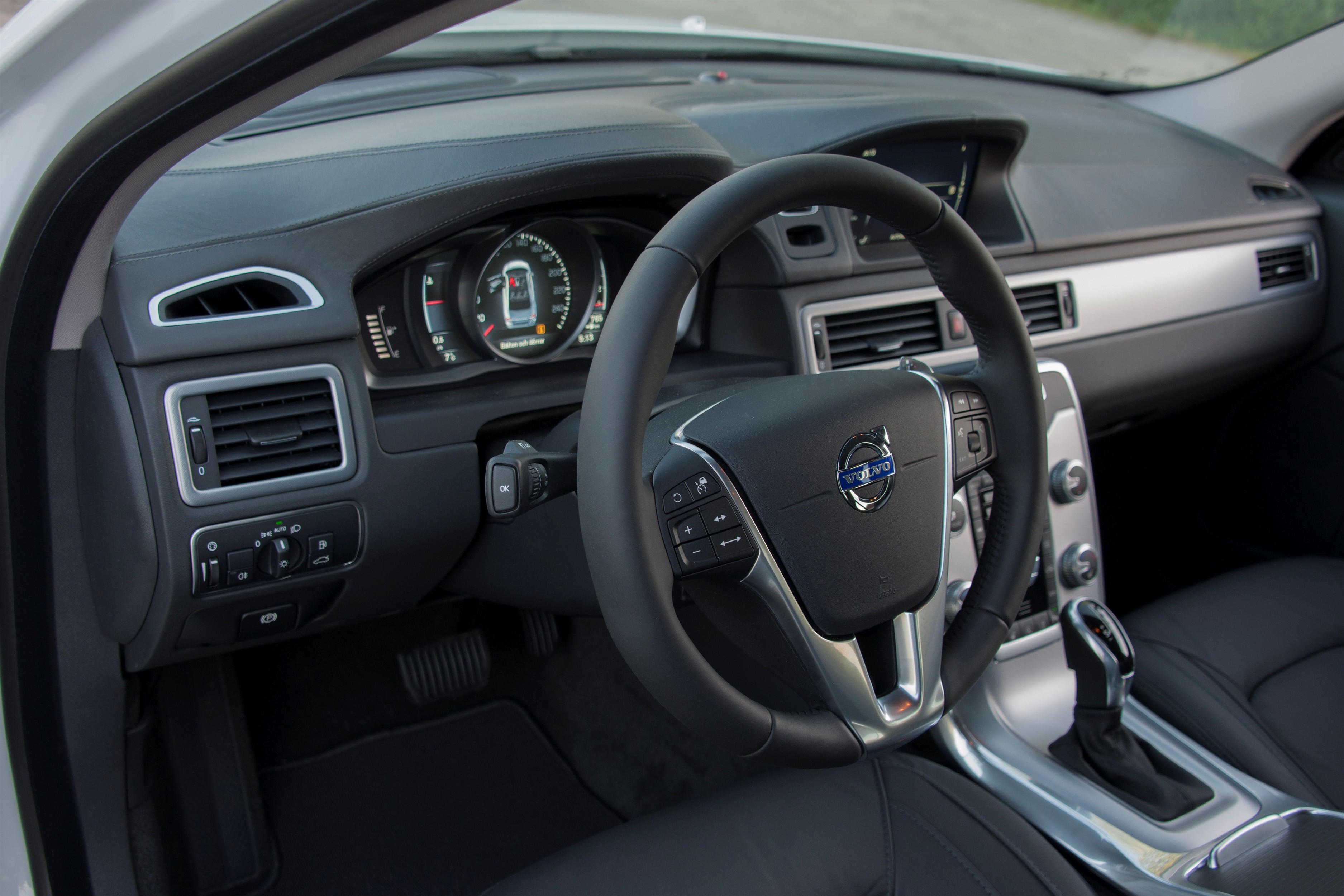

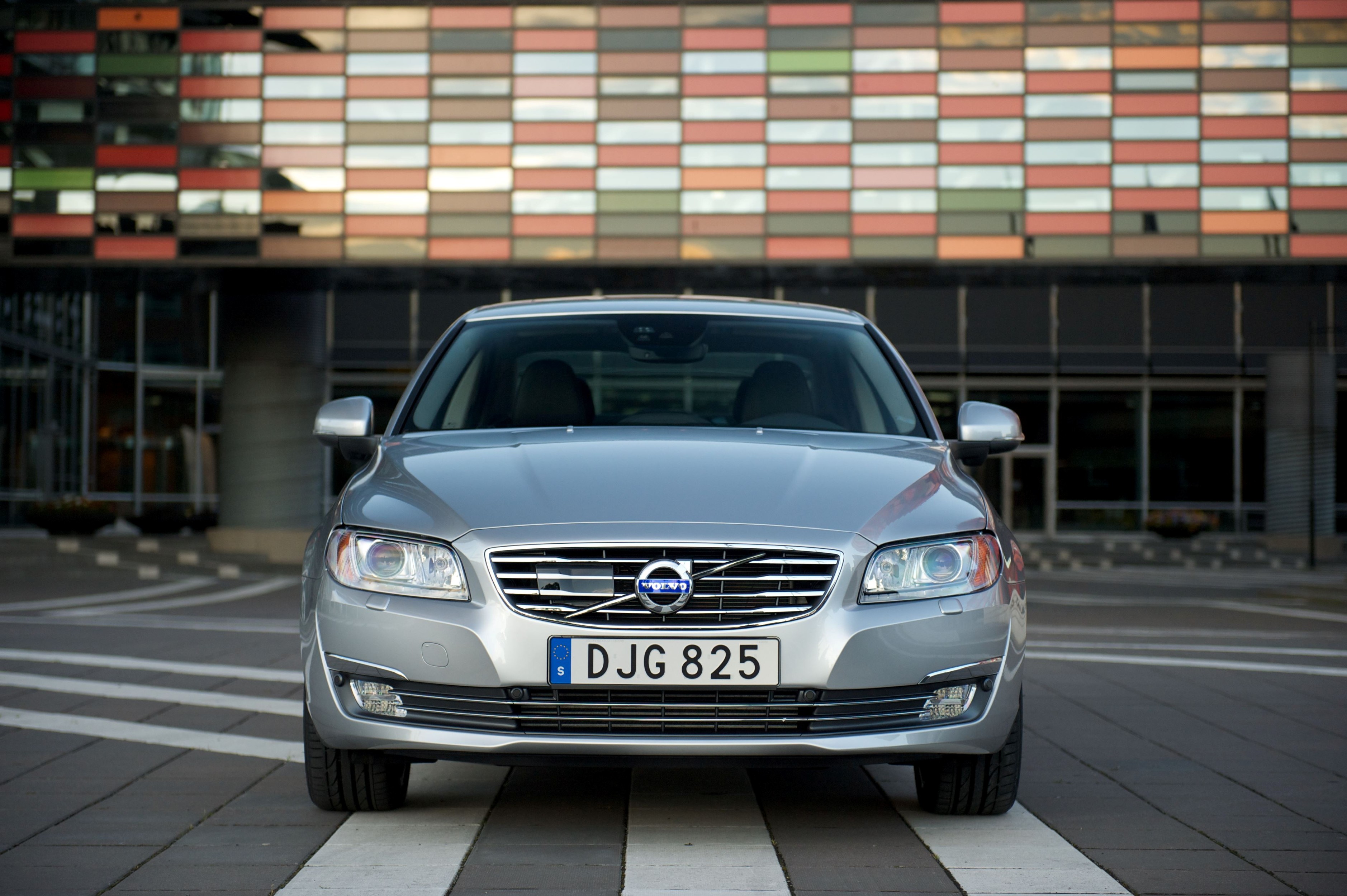

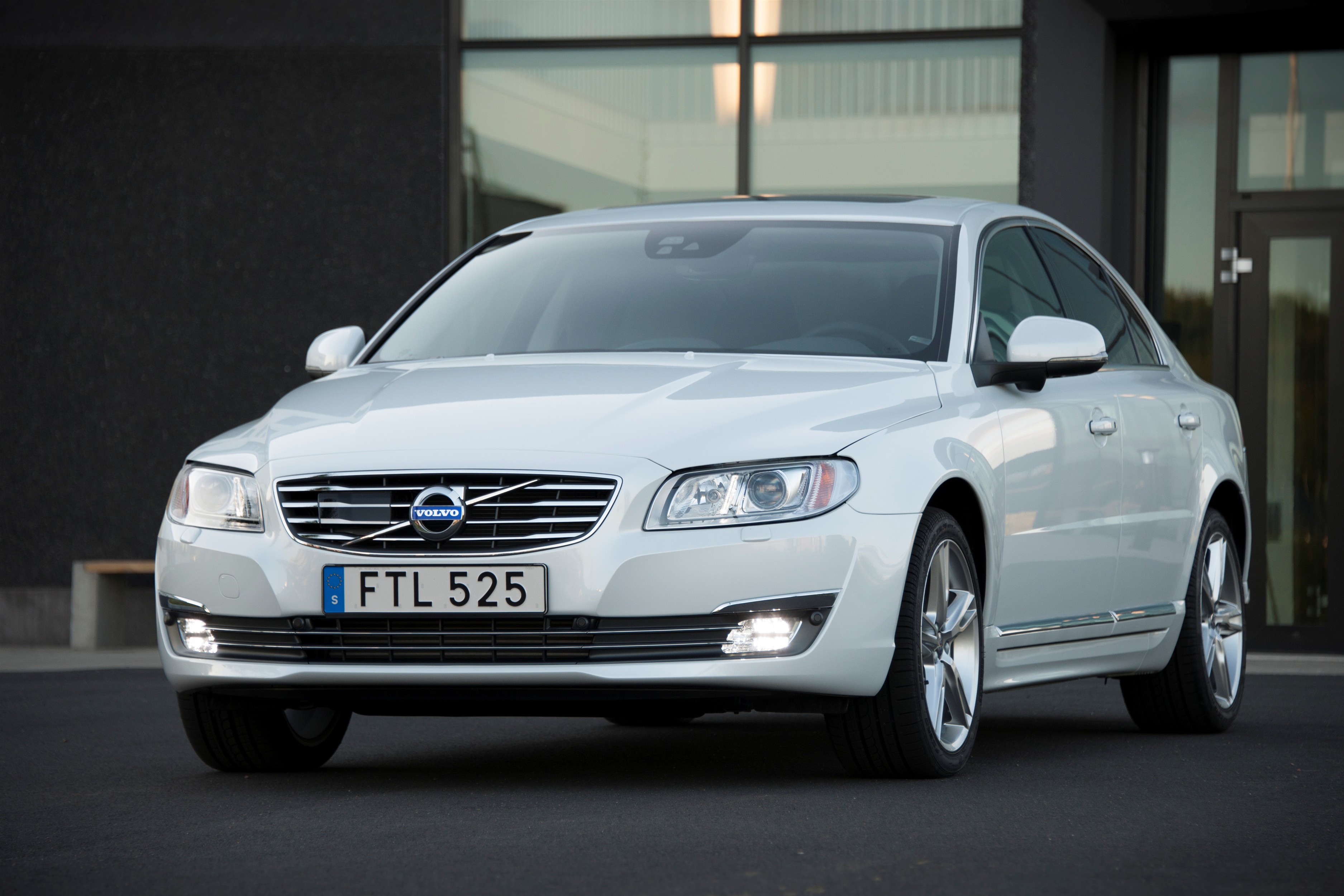

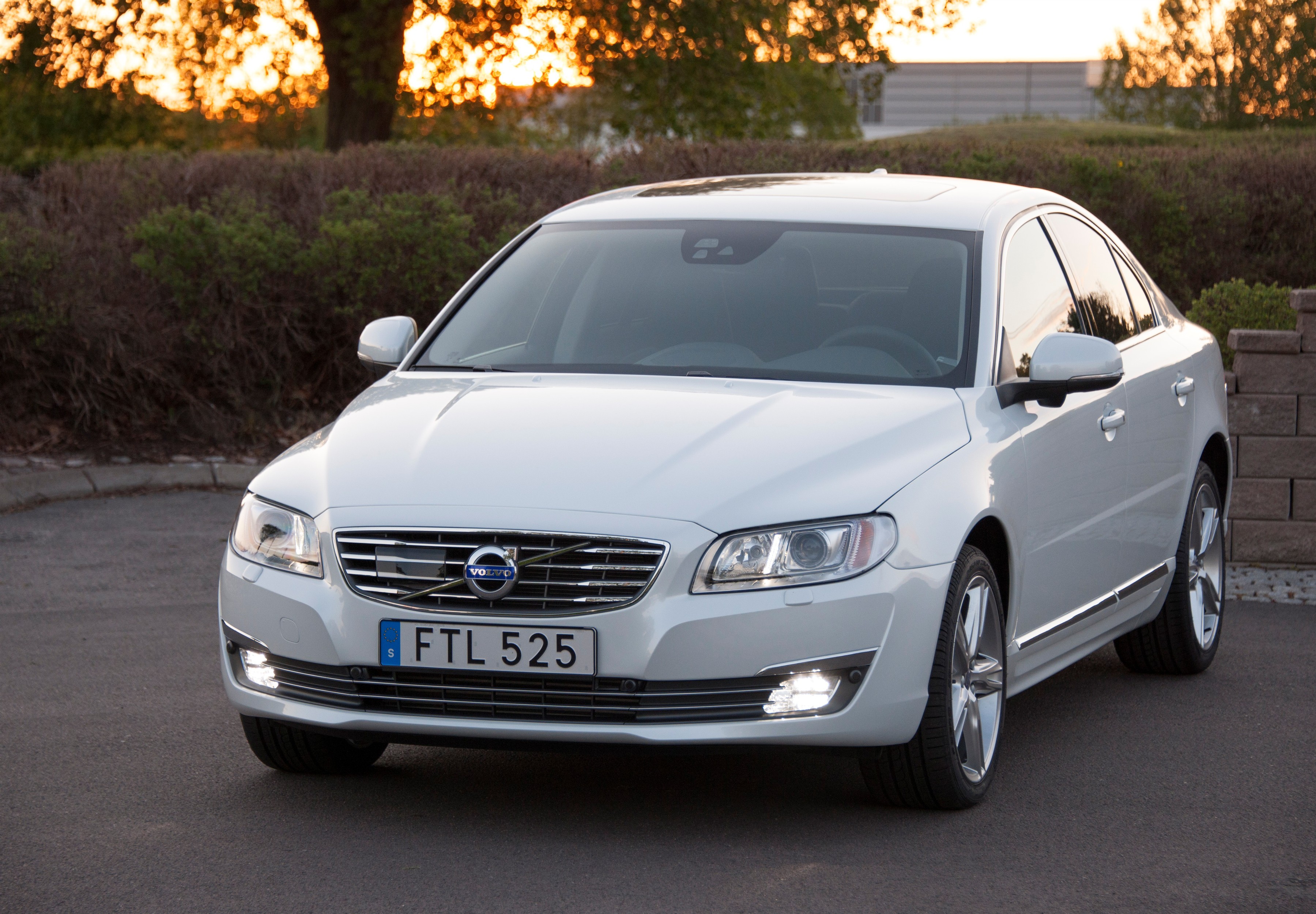

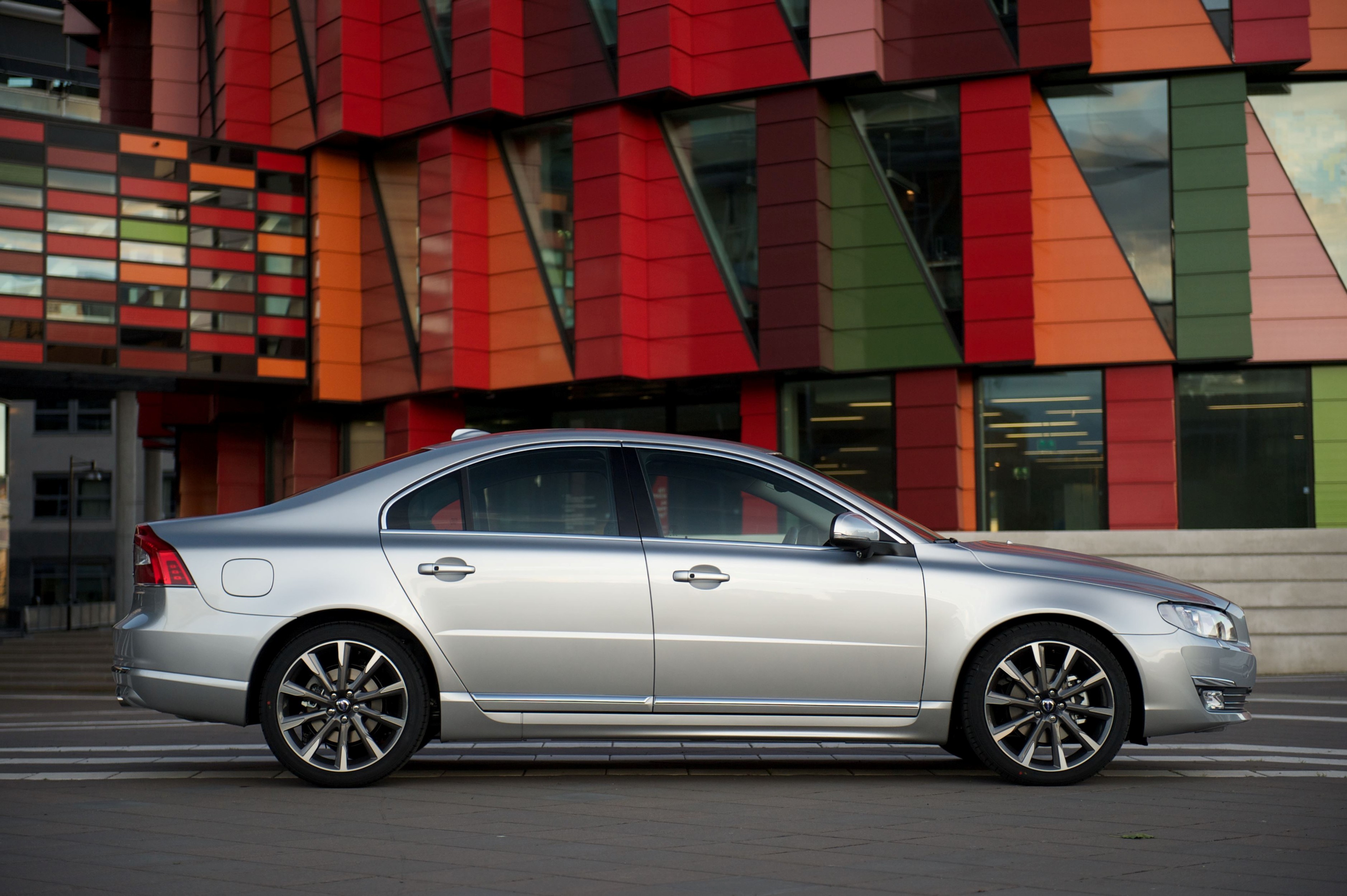

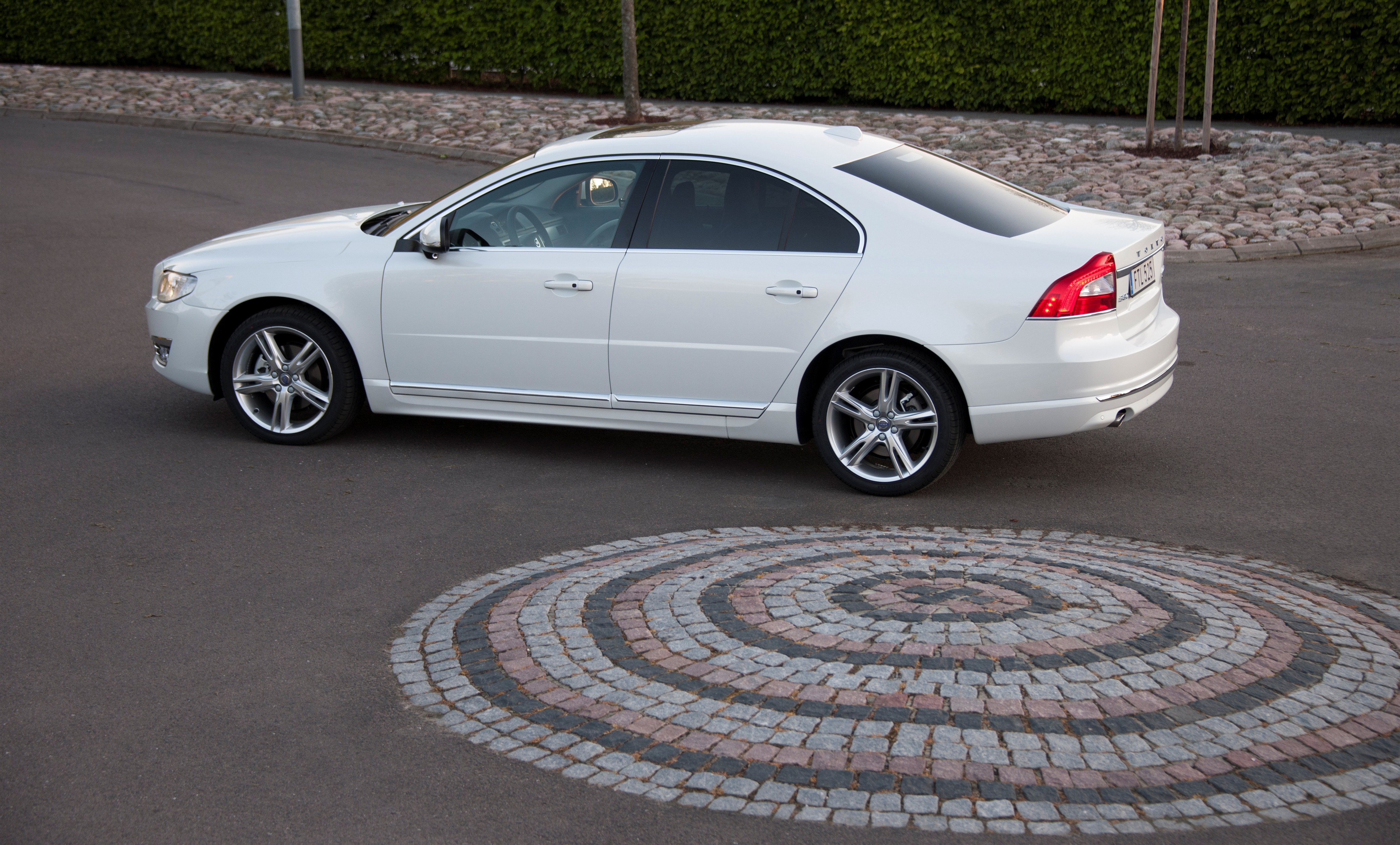

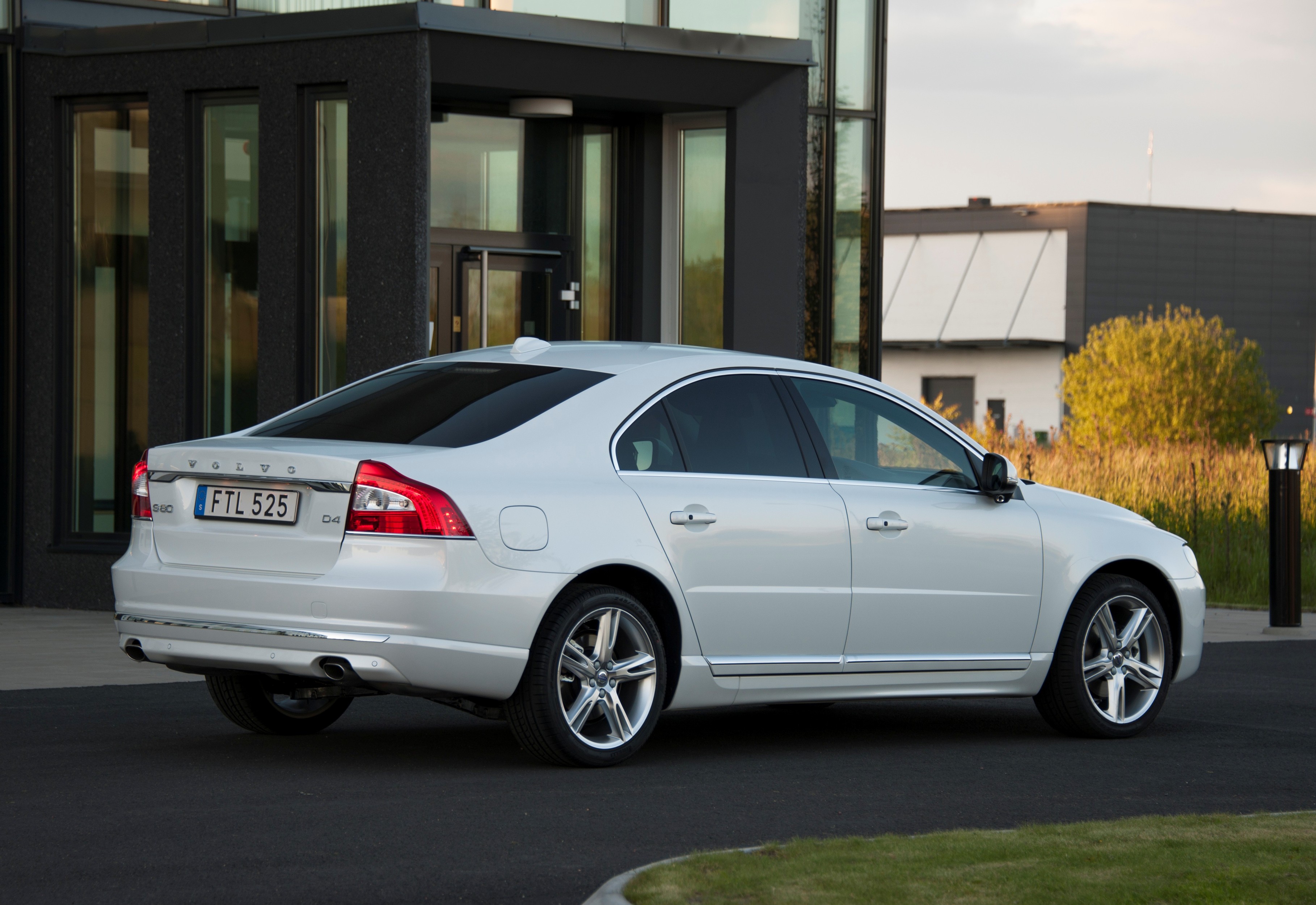

Volvo S80
Date of manufacture
2013 – 2016 (Sedan)
Platform
Volvo P3
Manufacturing locations
Torslanda, Sweden
Chongqing, People's Republic of China
Designer
Todd Levy
Tags
E-segment
Swedish cars
The Volvo S80 is a sedan car that has been produced since 2013. The vehicle can be built in Sweden or China on the P3 platform and offers both petrol and diesel engines. The most powerful model is the T6 AWD with 224 kW, which reaches a top speed of 250 km/h. The most economical version, the D4 Drive-E, has a fuel consumption of 4 l/100 km and CO2 emissions of 104 g/km. The luggage compartment has a capacity of 480 l.
Technical data
Sedan
| T4 | T4 | T5 | T5 Drive-E | T6 AWD | D2 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2013 | - | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 | 4/8 |
| Engine displacement [cm³] | 1595 | 1595 | 1999 | 1969 | 2953 | 1560 |
| Maximum output / speed [kW/min-1] | 132/5700 | 132/5700 | 177/5500 | 180/5500 | 224/5600 | 84/3600 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 320/1800-5000 | 350/1500-4800 | 440/2100-4200 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 79.0 x 81.4 | 87,5 x 83,1 | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 10.8:1 | 9.3:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 220 | 220 | 240 | 230 | 250 | 190 |
| Acceleration 0–100 km/h [s] | 8,5 | 9,2 | 7.7 | 6.5 | 6.4 | 11,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,8 | 9,7 | 11.4 | 8.7-8.4 | 14.5 | 4,6 |
| Out of town [l] | 5,3 | 5,6 | 6.2 | 5.1-4.9 | 7.3 | 3,8 |
| Combined [l] | 6,6 | 7,1 | 8.1 | 6.4-6.2 | 9.9 | 4,1 |
| CO2 emissions [g/km] | 152 | 165 | 189 | 149-144 | 231 | 107 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1629 | 1652 | 1687 | 1711 | 1817 | 1658 |
| Overall weight [kg] | 2090 | 2100 | 2130 | 2140-2200 | 2290 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1800 | 750/1800 | 750/2000 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 90 | 90 | 90 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot length with rear seats folded [mm] | 1927 | 1927 | 1927 | 1927 | 1927 | 1927 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 591 | 591 | 591 | 591 | 591 | 591 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/50 R17 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/50 R17 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1431/- | 1431/- | 1431/- | 1431/- | 1431/- | 1431/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/890 | -/890 | -/890 | -/890 | -/890 | -/890 |
| D2 | D3 | D3 | D4 | D4 | D4 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from to 2013 | from to 2013 | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 5/20 | 5/20 | 5/20 | 5/20 | 4/16 |
| Engine displacement [cm³] | 1560 | 1984 | 1984 | 1984 | 1984 | 1969 |
| Maximum output / speed [kW/min-1] | 84/3600 | 100/3500 | 100/3500 | 120/3500 | 120/3500 | 133/4250 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 350/1500-2250 | 350/1500-2250 | 400/1500-2750 | 400/1500-2750 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 185 | 205 | 200 | 215 | 210 | 225 |
| Acceleration 0–100 km/h [s] | 12,8 | 10,4 | 10,4 | 9,7 | 9,7 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,8 | 5,1 | 6,0 | 5,1 | 6,0 | 4.6-4.5 |
| Out of town [l] | 3,8 | 3,9 | 4,3 | 3,9 | 4,3 | 3.8-3.7 |
| Combined [l] | 4,1 | 4,3 | 4,9 | 4,3 | 4,9 | 4.1-4.0 |
| CO2 emissions [g/km] | 109 | 114 | 129 | 114 | 129 | 108-104 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1680 | 1693 | 1720 | 1693 | 1720 | 1704 |
| Overall weight [kg] | 2120 | 2190 | 2200 | 2190 | 2200 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 480 | 480 | 480 | 480 | 480 | 480 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot length with rear seats folded [mm] | 1927 | 1927 | 1927 | 1927 | 1927 | 1927 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 591 | 591 | 591 | 591 | 591 | 591 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1431/- | 1431/- | 1431/- | 1431/- | 1431/- | 1431/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/890 | -/890 | -/890 | -/890 | -/890 | -/890 |
| D4 Drive-E | D5 | D5 | D5 AWD | |||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2015 | from to 2015 | from to 2015 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 5/20 | ||
| Engine displacement [cm³] | 1969 | 2400 | 2400 | 2400 | ||
| Maximum output / speed [kW/min-1] | 133/4250 | 158/4000 | 158/4000 | 158/4000 | ||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 420/1500-3250 | 440/1500-3000 | 440/1500-3000 | ||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | ||
| Compression ratio | 15.8:1 | 16.5:1 | 16.5:1 | 16.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | 4x4 | ||
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 225 | 230 | 225 | 225 | ||
| Acceleration 0–100 km/h [s] | 8.4 | 7,6 | 7,8 | 7.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.3-5.1 | 5,6 | 8,4 | 8.6 | ||
| Out of town [l] | 4.2-3.9 | 4,0 | 4,7 | 5.1 | ||
| Combined [l] | 4.6-4.3 | 4,6 | 6,1 | 6.4 | ||
| CO2 emissions [g/km] | 120-113 | 120 | 159 | 167 | ||
| Emission standard | EU6 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1766 | 1723 | 1730 | 1795 | ||
| Overall weight [kg] | 2140-2230 | 2190 | 2200 | 2270 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1600 | 750/2000 | 750/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 90 | 75 | 90 | 90 | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 480 | 480 | 480 | 480 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | ||
| Boot length with rear seats folded [mm] | 1927 | 1927 | 1927 | 1927 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 591 | 591 | 591 | 591 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | ||
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | ||
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | ||
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | ||
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | ||
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | ||
| Overall height [mm] | 1493 | 1493 | 1493 | 1493 | ||
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | ||
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | ||
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | ||
| Forward overhang [mm] | 978 | 978 | 978 | 978 | ||
| Rear overhang [mm] | 1040 | 1040 | 1040 | 1040 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | ||
| Headroom rear [mm] | 973 | 973 | 973 | 973 | ||
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | ||
| Rear elbow/shoulder width [mm] | 1431/- | 1431/- | 1431/- | 1431/- | ||
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | ||
| Legroom rear knees/total [mm] | -/890 | -/890 | -/890 | -/890 |

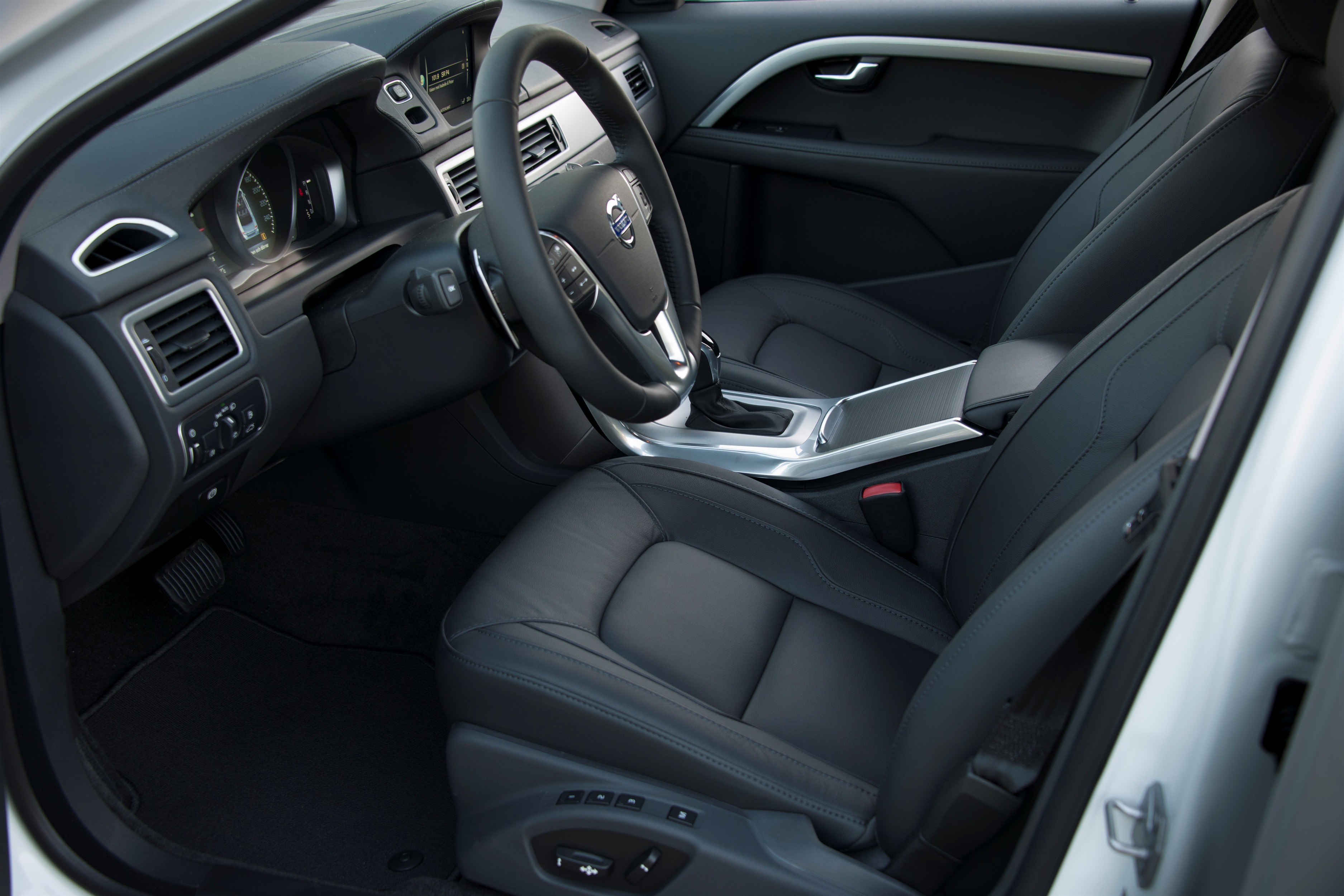

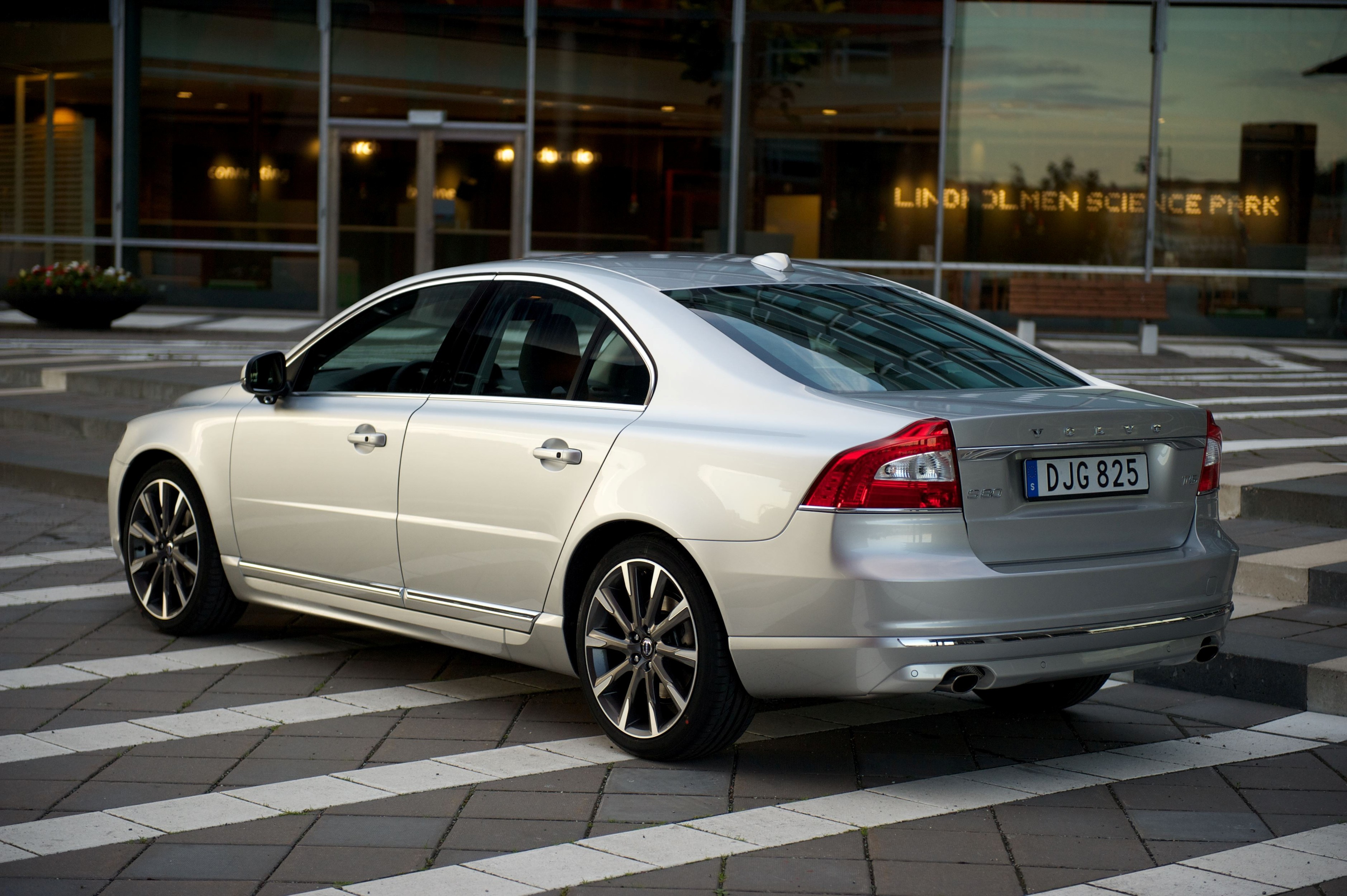

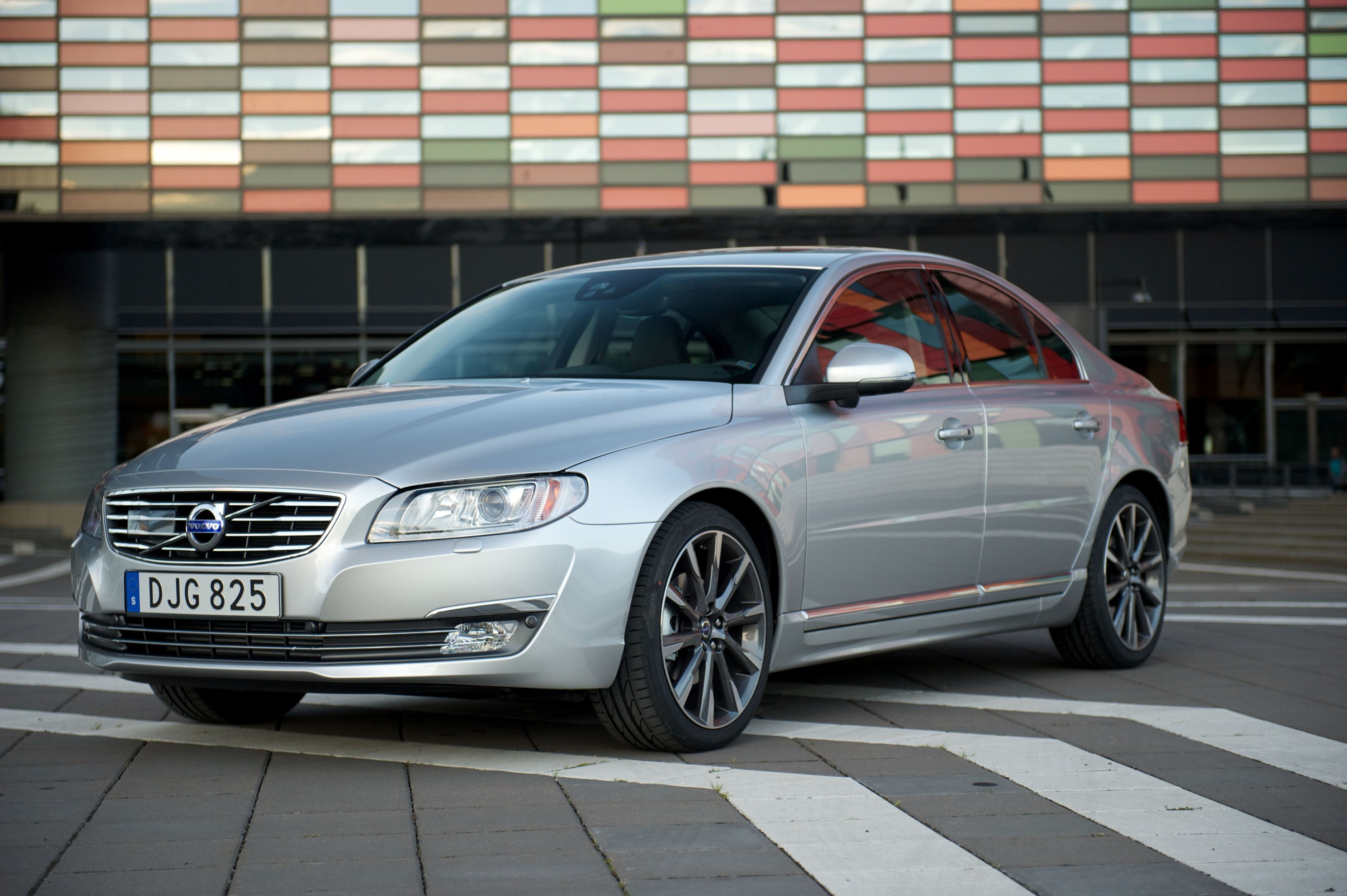

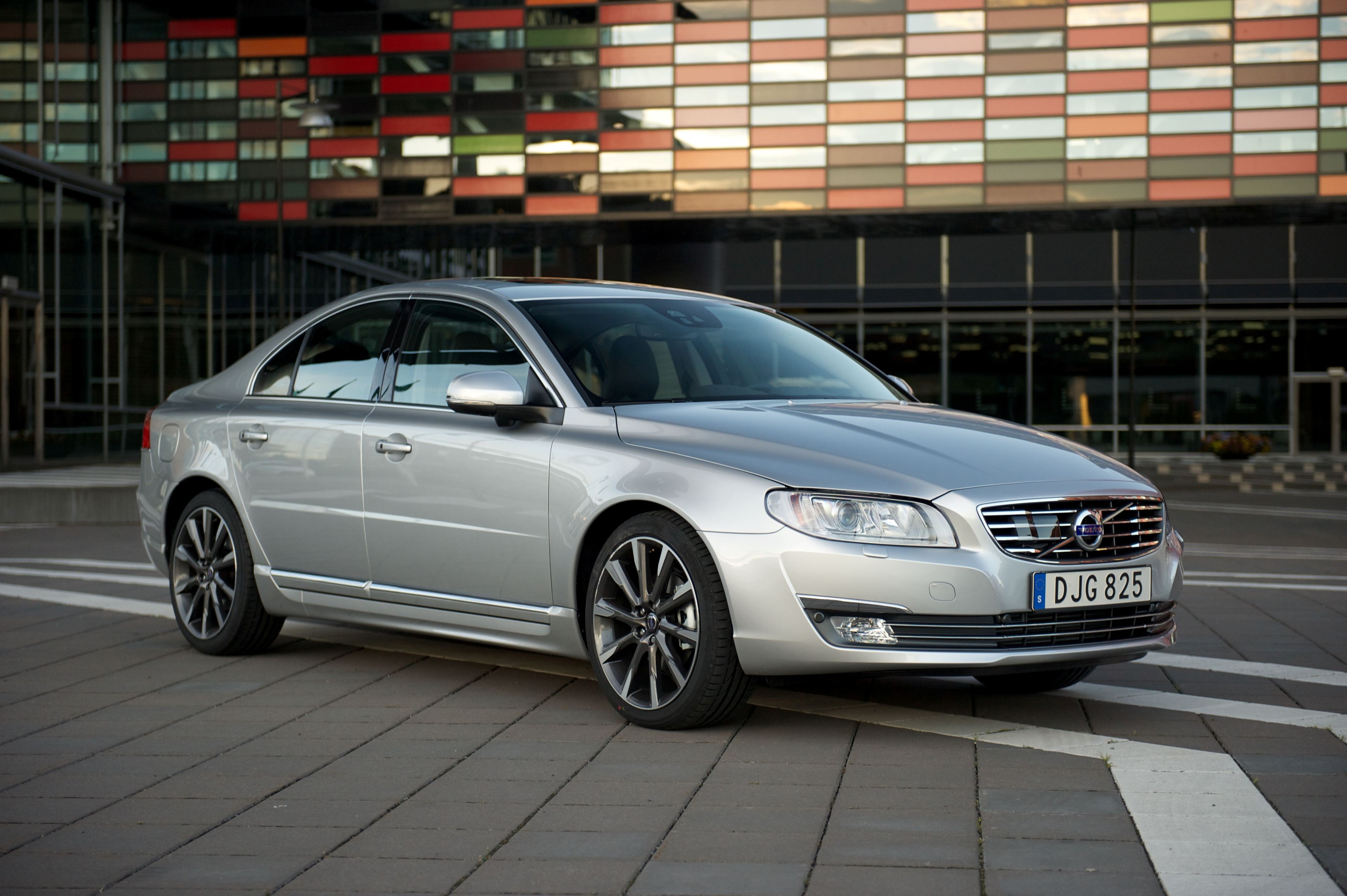

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
