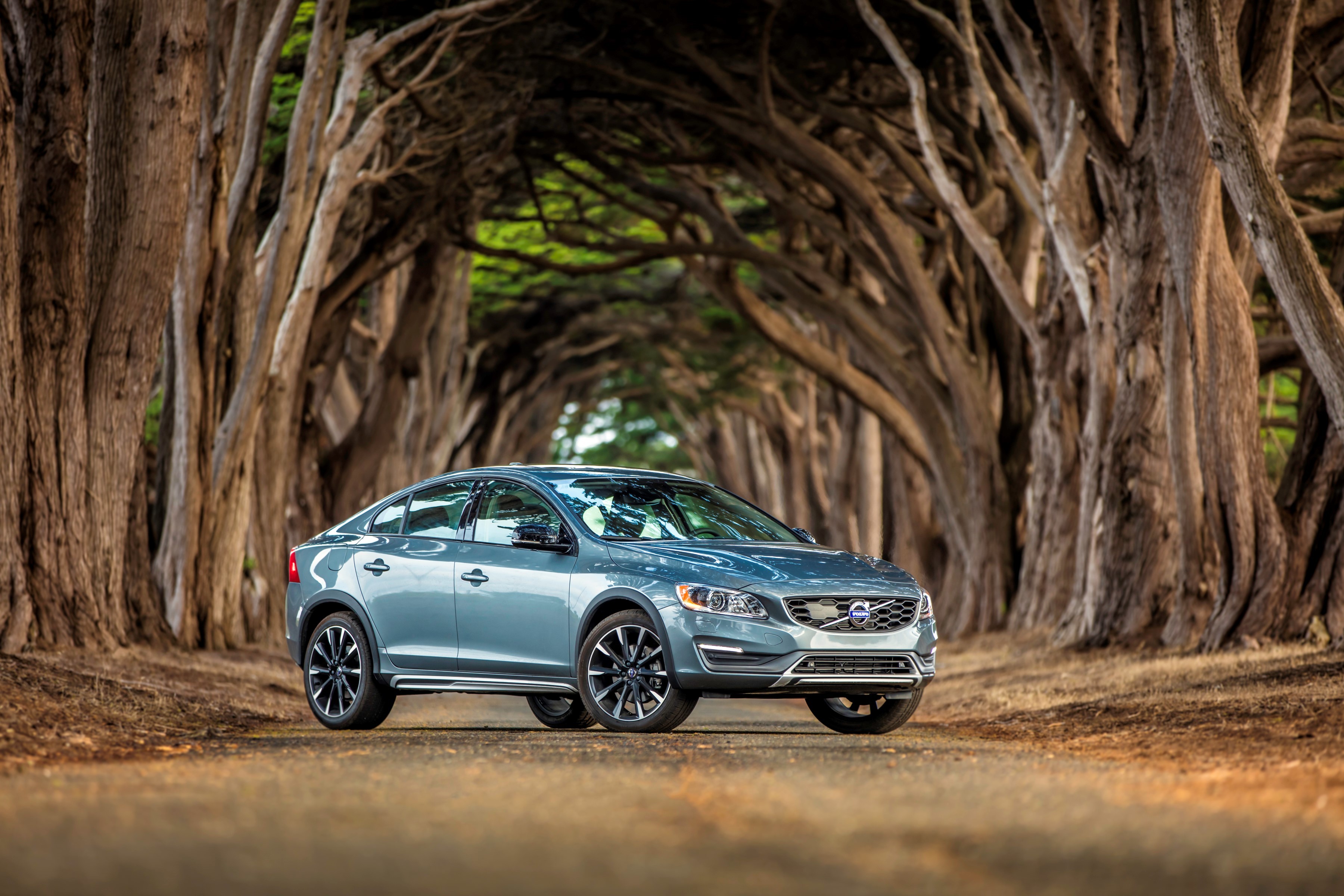

Volvo S60
Date of manufacture
2013 – 2018 (Sedan)
Platform
Volvo P3
Manufacturing locations
Torslanda, Sweden
Ghent, Belgium
Chengdu, People's Republic of China
Designer
Örjan Sterner
Jonathan Disley
Pontus Fontaeus
Tags
D-segment
Swedish cars
The Volvo S60 is a sedan version of the car that has been produced since 2013. The vehicle is built on the Volvo P3 platform and is assembled in Sweden, Belgium and China. The engine range includes petrol and diesel variants with a maximum power of 270 kW in the POLESTAR model. This model can reach speeds of up to 250 km/h and has the most economical version D4 Drive-E with a combined consumption of 3.7 l/100 km and CO2 emissions of 97 g/km. The trunk of the car has a capacity of 380 l.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2013 – 2018Internal designation
-Engine size
Diesel
Technical data
Sedan
| T2 Drive-E | T3 | T3 | T3 Drive-E | T3 Drive-E | T4 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1595 | 1595 | 1969 | 1969 | 1595 |
| Maximum output / speed [kW/min-1] | 90/5000 | 110/5700 | 110/5700 | 112/5000 | 112/5000 | 132/5700 |
| Maximum torque [Nm/min-1] | 220/1600-3500 | 240/1600-4000 | 240/1600-4000 | 250/1300-4000 | 250/1700-4000 | 240/1600-5000 |
| Bore and stroke [mm x mm] | 82.0 x 70.9 | 79.0 x 81.4 | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 93.2 | 79.0 x 81.4 |
| Compression ratio | 10.5:1 | 10.0:1 | 10.0:1 | 11.3:1 | 10.3:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 195 | 205 | 210 | 210 | 210 | 225 |
| Acceleration 0–100 km/h [s] | 10,2 | 9,4 | 10,2 | 8,6 | 8,6 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4 | 7,1 | 9,5 | 7,4 | 7,4 | 7,3 |
| Out of town [l] | 4.8 | 4,6 | 5,4 | 4,6 | 4,8 | 4,9 |
| Combined [l] | 5.8 | 5,5 | 6,8 | 5,6 | 5,8 | 5,8 |
| CO2 emissions [g/km] | 134 | 129 | 159 | 131 | 134 | 134 |
| Emission standard | EU6 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1632 | 1573 | 1599 | 1613 | 1608 | 1570 |
| Overall weight [kg] | 2110 | 2020 | 2030 | 2060 | 2110 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1600 | 750/1600 | 750/1600 | 750/1500 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| T4 | T4 F | T4 F | T4 Drive-E | T4 Drive-E | T5 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2013 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1969 | 1969 | 1999 |
| Maximum output / speed [kW/min-1] | 132/5700 | 132/5700 | 132/5700 | 140/4700 | 140/4700 | 177/5500 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 240/1600-5000 | 300/1300-4000 | 300/1300-4000 | 320/1800-5000 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 79.0 x 81.4 | 79.0 x 81.4 | 82.0 x 93.2 | 82.0 x 93.2 | 87,5 x 83,1 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 11.3:1 | 10.3:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 225 | 225 | 225 | 230 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 9,0 | 8,3 | 9.0 | 7,2 | 7,2 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,5 | - | - | 7,4 | 7,4 | 11,4 |
| Out of town [l] | 5,4 | - | - | 4,6 | 4,8 | 6,2 |
| Combined [l] | 6,8 | 6,8 [9.3 E85] | 6.8 [9.4 E85] | 5,6 | 5,8 | 8,1 |
| CO2 emissions [g/km] | 159 | 149 [152 E85] | 159 [154 E85] | 131 | 134 | 189 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1599 | - | - | 1605 | 1624 | 1633 |
| Overall weight [kg] | 2030 | 2020 | 2030 | 2060 | 2110 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| T5 Drive-E | T6 AWD | T6 Drive-E AWD | T6 AWD POLESTAR | POLESTAR | T5 Drive-E AWD Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from 2015 to | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 4/16 | 6/24 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 2953 | 1969 | 2953 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 180/5500 | 224/5600 | 225/5700 | 242/5400-6500 | 270/6000 | 180/5500 |
| Maximum torque [Nm/min-1] | 350/1500-4800 | 440/2100-4200 | 400/2100-4800 | 480/3000-3600 | 470/3100-5100 | 350/1500-4800 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.8:1 | 9.3:1 | 10.3:1 | 9.3:1 | - | 10.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 6 gear automatic | 8 gear automatic | 6 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 230 | 250 | 250 | 250 | 250 | 210 |
| Acceleration 0–100 km/h [s] | 6.3 | 5.9 | 5.9 | 6.1 | 4.7 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 14.5 | 9.2 | 14,5 | 10.5 | 9.8 |
| Out of town [l] | 4.9 | 7.3 | 5.6 | 7,3 | 6.3 | 6.0 |
| Combined [l] | 6.2 | 9.9 | 6.9 | 9,9 | 7.8 | 7.4 |
| CO2 emissions [g/km] | 145 | 231 | 161 | 231 | 179 | 168 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1643 | 1752 | 1735 | 1711 | 1751 | 1722 |
| Overall weight [kg] | 2110 | 2220 | 2180 | 2220 | 2180 | 2210 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | - | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 90/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 225/50 R17 | 215/50 R17 | 225/50 R17 | 245/35 R20 | 235/55 R17 |
| Tyre dimensions rear | 215/55 R16 | 225/50 R17 | 215/50 R17 | 225/50 R17 | 245/35 R20 | 235/55 R17 |
| Wheel size front | - | - | - | - | - | 7,5J x 17 |
| Wheel size rear | - | - | - | - | - | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4637 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1866/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1539 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2774 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1619 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1577 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 920 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| D2 | D2 | D2 Drive-E | D2 Drive-E | D3 | D3 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1560 | 1560 | 1969 | 1969 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 84/3600 | 84/3600 | 88/3750 | 88/3750 | 100/3500 | 100/3500 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 270/1750-2500 | 280/1500-2250 | 280/1500-2250 | 350/1500-2250 | 350/1500-2250 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 195 | 190 | 195 | 195 | 205 | 200 |
| Acceleration 0–100 km/h [s] | 10,9 | 12,3 | 11,2 | 11,4 | 10,2 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,4 | 4,7 | 4,4 | 4,96 | 5,1 | 6,0 |
| Out of town [l] | 3,6 | 3,7 | 3,6 | 4,06 | 3,9 | 4,1 |
| Combined [l] | 3,9 | 4,1 | 3,9 | 4,36 | 4,3 | 4,8 |
| CO2 emissions [g/km] | 103 | 107 | 102 | 1136 | 114 | 126 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1614 | 1635 | 1605 | 1679 | 1639 | 1663 |
| Overall weight [kg] | 2030 | 2050 | 2090 | 2110 | 2090 | 2111 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | 750/1300 | 750/1600 | 750/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| D3 Drive-E | D3 Drive-E | D4 | D4 | D4 Drive-E | D4 Drive-E | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2014 | from to 2014 | from 2014 to 2015 | from 2014 to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1984 | 1984 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 110/3750 | 110/3750 | 120/2900 | 120/2900 | 133/4250 | 133/4250 |
| Maximum torque [Nm/min-1] | 320/1750-3000 | 320/1750-3000 | 400/1400-2850 | 400/1400-2850 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 77,0 | 81,0 x 77,0 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 16.0:1 | 16.0:1 | 16.5:1 | 16.5:1 | 15.8:1 | 15.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 215 | 210 | 220 | 215 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 9,0 | 9,0 | 9,2 | 9,2 | 7,4 | 7,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,6 | 4,9 | 5,1 | 6,0 | 4,3 | 4.9 |
| Out of town [l] | 3,7 | 4,0 | 3,9 | 4,1 | 3,4 | 3,7 |
| Combined [l] | 4,0 | 4,3 | 4,3 | 4,8 | 3,7 | 4,1 |
| CO2 emissions [g/km] | 105 | 113 | 114 | 126 | 97 | 107 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1664 | 1679 | 1644 | 1667 | 1652 | 1701 |
| Overall weight [kg] | 2090 | 2110 | 2090 | 2110 | 2090 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1750 | 750/1750 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| D4 Drive-E | D4 Drive-E | D4 AWD | D5 | D5 | D5 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1969 | 1969 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 140/4250 | 140/4250 | 140/4000 | 158/4000 | 158/4000 | 158/4000 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 440/1500-2750 | 420/1500-3250 | 440/1500-3000 | 440/1500-3000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 15.8:1 | 15.8:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 230 | 230 | 230 | 230 | 230 | 225 |
| Acceleration 0–100 km/h [s] | 7,6 | 7,6 | 8.8 | 7,4 | 7,6 | 7,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4,5 | 5,3 | 6.7 | 5,7 | 8,1 | 8,1 |
| Out of town [l] | 3,6 | 3,7 | 4.7 | 3,8 | 4,6 | 4,7 |
| Combined [l] | 3,9 | 4,3 | 5.4 | 4,5 | 5,9 | 5,9 |
| CO2 emissions [g/km] | 102 | 113 | 143 | 119 | 154 | 156 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1636 | 1701 | 1746 | 1669 | 1680 | 1752 |
| Overall weight [kg] | 2090 | 2110 | 2200 | 2090 | 2110 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4635 | 4635 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| D5 Drive-E | D5 POLESTAR | D5 POLESTAR | D5 AWD POLESTAR | D3 Drive-E Cross Country | D3 Drive-E Cross Country | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from to 2015 | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 5/20 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 2400 | 2400 | 2400 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 165/4250 | 169/4000 | 169/4000 | 169/4000 | 110/3750 | 110/3750 |
| Maximum torque [Nm/min-1] | 470/1750-2500 | 470/1750-2250 | 470/1750-2250 | 470/1750-2250 | 320/1750-3000 | 320/1750-3000 |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 15.8:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 230 | 230 | 230 | 225 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 6.4 | 7,4 | 7,6 | 8.1 | 9,1 | 9,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5,7 | 8,1 | 8,5 | 4,6 | 5,3 |
| Out of town [l] | 4.0 | 3,8 | 4,6 | 5,1 | 4,0 | 4,2 |
| Combined [l] | 4.5 | 4,5 | 5,9 | 6,3 | 4,2 | 4,6 |
| CO2 emissions [g/km] | 119 | 119 | 154 | 166 | 111 | 120 |
| Emission standard | EU6 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1670 | 1658 | 1683 | 1760 | 1723 | 1745 |
| Overall weight [kg] | 2110 | 2090 | 2110 | 2200 | 2130 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 75 | 75 | 75 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 90/- | 90/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 656 | 656 | 656 | 656 | 656 | 656 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/55 R17 | 235/55 R17 |
| Wheel size front | - | - | - | - | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | - | - | - | - | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4635 | 4635 | 4635 | 4635 | 4637 | 4637 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1866/2097 | 1866/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1539 | 1539 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2774 | 2774 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1619 | 1619 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1577 | 1577 |
| Forward overhang [mm] | 943 | 943 | 943 | 943 | 943 | 943 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 920 | 920 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 999 | 999 | 999 | 999 | 999 | 999 |
| Headroom rear [mm] | 951 | 951 | 951 | 951 | 951 | 951 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 | -/852 | -/852 | -/852 |
| D4 Drive-E Cross Country | D4 Drive-E Cross Country | D4 AWD Cross Country | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | |||
| Engine displacement [cm³] | 1969 | 1969 | 2400 | |||
| Maximum output / speed [kW/min-1] | 140/4250 | 140/4250 | 140/4000 | |||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 440/1500-2750 | |||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 81,0 x 93,15 | |||
| Compression ratio | 15.8:1 | 15.8:1 | 16.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear automatic | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 210 | 210 | 210 | |||
| Acceleration 0–100 km/h [s] | 7,7 | 7,7 | 8.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4,6 | 5,3 | 6.8 | |||
| Out of town [l] | 4,0 | 4,2 | 5.1 | |||
| Combined [l] | 4,2 | 4,6 | 5.7 | |||
| CO2 emissions [g/km] | 111 | 120 | 149 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1723 | 1745 | 1744 | |||
| Overall weight [kg] | 2130 | 2150 | 2230 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1900 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 380 | 380 | 380 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 965 | 965 | 965 | |||
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 656 | 656 | 656 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 4 | 4 | 4 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | |||
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | |||
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | |||
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | |||
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | |||
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | |||
| Overall length [mm] | 4637 | 4637 | 4637 | |||
| Overall width without/including mirrors [mm] | 1866/2097 | 1866/2097 | 1866/2097 | |||
| Overall height [mm] | 1539 | 1539 | 1539 | |||
| Wheelbase [mm] | 2774 | 2774 | 2774 | |||
| Front wheel track [mm] | 1619 | 1619 | 1619 | |||
| Rear wheel track [mm] | 1577 | 1577 | 1577 | |||
| Forward overhang [mm] | 943 | 943 | 943 | |||
| Rear overhang [mm] | 920 | 920 | 920 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 999 | 999 | 999 | |||
| Headroom rear [mm] | 951 | 951 | 951 | |||
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | |||
| Rear elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | |||
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | |||
| Legroom rear knees/total [mm] | -/852 | -/852 | -/852 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
