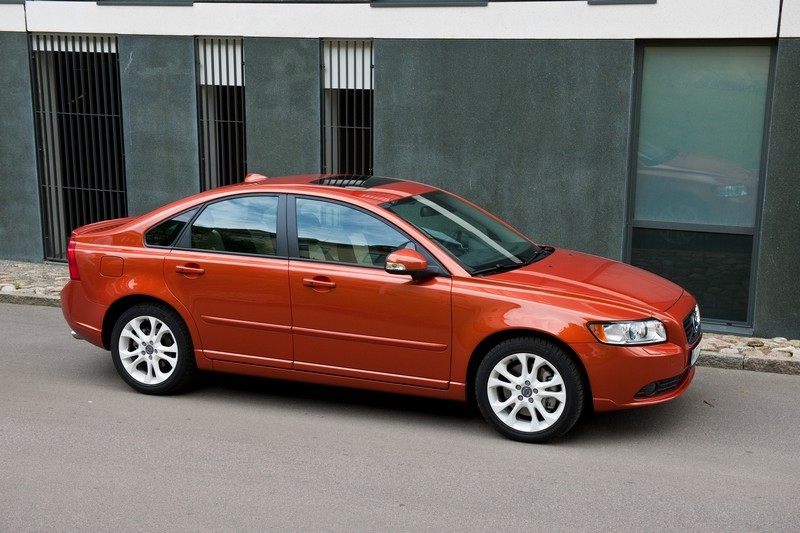

Volvo S40
Date of manufacture
2007 – 2012 (Sedan)
Platform
Volvo P1 platform
Manufacturing locations
Ghent, Belgium
Chongqing, People's Republic of China
Designer
-
Tags
C-segment
Swedish cars
Volvo S40 is a sedan car made by Volvo. It was first introduced on the market in 2007. The car is based on the Volvo P1 platform and offers both gasoline and diesel engines. The most powerful model, the T5 AWD, has an engine power of 169 kW. The fastest model, the T5, can reach a speed of 240 km/h and has the lowest fuel consumption of 3.8 l/100 km. The car has a total capacity of 404 l. During safety tests conducted by EURONCAP, the Volvo S40 received a rating of 5 out of 5. The car is made in two countries - Belgium and China.
Car body style
Technical data
Sedan
| 1.6 | 1.8 | 1.8 Flexifuel | 2.0 | 2.0 F | 2.4 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from to 2010 | - | - | from to 2010 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1596 | 1798 | 1798 | 1999 | 1999 | 2435 |
| Maximum output / speed [kW/min-1] | 74/6000 | 92/6000 | 92/6000 | 107/6000 | 107/6000 | 103/5000 |
| Maximum torque [Nm/min-1] | 150/4000 | 165/4000 | 165/4000 | 185/4500 | 185/4500 | 220/4000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 83,0 x 83,1 | 83,0 x 83,1 | 87,5 x 83,1 | 87,5 x 83,1 | 83,0 x 90,0 |
| Compression ratio | 11.0:1 | 10.8:1 | 10.8:1 | 10.8:1 | 10.8:1 | 10.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
| - |
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 185 | 200 | 200 | 210 | 210 | 200 |
| Acceleration 0–100 km/h [s] | 11,9 | 10,9 | 10,9 | 9,5 | 9,5 | 10,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,2 | 10,1 | 10,1 | 10,8 | 10,9 | 13,2 |
| Out of town [l] | 5,8 | 5,7 | 5,7 | 5,7 | 5,9 | 6,7 |
| Combined [l] | 7,1 | 7,3 | 7,3 | 7,6 | 7,7 | 9,1 |
| CO2 emissions [g/km] | 169 | 174 | 174 | 176 | 180 | 217 |
| Emission standard | EU4 | EU4 | EU4 | EU4-EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1315 | 1358 | 1363 | 1370-1453 | 1449 | 1454 |
| Overall weight [kg] | 1800 | 1850 | 1850 | 1850 | 1850 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 650/1200 | 650/1300 | 650/1300 | 650/1350 | 650/1350 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 404 | 404 | 404 | 404 | 404 | 404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| Boot length [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Boot length with rear seats folded [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | 441/- | 441/- | 441/- | 441/- | 441/- | 441/- |
| Loading edge height [mm] | 642 | 642 | 642 | 642 | 642 | 642 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | 278 | 278 | 278 | 278 | 278 | 300 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1454 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/874 | -/874 | -/874 | -/874 | -/874 | -/874 |
| 2.4 | 2.4 | T5 | T5 | T5 AWD | T5 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from to 2010 | - | from to 2010 | from to 2010 |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2435 | 2435 | 2521 | 2521 | 2521 | 2521 |
| Maximum output / speed [kW/min-1] | 125/6000 | 125/6000 | 169/5000 | 169/5000 | 169/5000 | 169/5000 |
| Maximum torque [Nm/min-1] | 230/4400 | 230/4400 | 320/1500-5000 | 320/1500-5000 | 320/1500-5000 | 320/1500-5000 |
| Bore and stroke [mm x mm] | 83,0 x 90,0 | 83,0 x 90,0 | 83,0 x 93,2 | 83,0 x 93,2 | 83,0 x 93,2 | 83,0 x 93,2 |
| Compression ratio | 10.3:1 | 10.3:1 | 9.0:1 | 9.0:1 | 9.0:1 | 9.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 5 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 220 | 215 | 240 | 230 | 230 | 225 |
| Acceleration 0–100 km/h [s] | 8,2 | 8,9 | 6,8 | 7,2 | 7,1 | 7,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,4 | 13,2 | 12,6 | 13,5 | 13,5 | 14,3 |
| Out of town [l] | 6,6 | 6,7 | 6,4 | 6,5 | 7,3 | 7,2 |
| Combined [l] | 8,5 | 9,1 | 8,7 | 9,6 | 9,0 | 9,8 |
| CO2 emissions [g/km] | 203 | 217 | 203 | 224 | 211 | 229 |
| Emission standard | EU4 | EU4 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1437 | 1459 | 1465 | 1478 | 1541 | 1557 |
| Overall weight [kg] | 1940 | 1940 | 1960 | 1960 | 2020 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 404 | 404 | 404 | 404 | 404 | 404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| Boot length [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Boot length with rear seats folded [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | 441/- | 441/- | 441/- | 441/- | 441/- | 441/- |
| Loading edge height [mm] | 642 | 642 | 642 | 642 | 642 | 642 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 57 | 57 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | 300 | 300 | 300 | 300 | 320 | 320 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1454 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/874 | -/874 | -/874 | -/874 | -/874 | -/874 |
| 1.6 D | 1.6 D DRIVe | D2 DRIVe | D2 | 2.0 D | 2.0 D | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from 2010 to | from 2010 to | from to 2010 | from to 2010 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 80/4000 | 80/4000 | 84/3600 | 84/3600 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 270/1750-2500 | 270/1750-2500 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 18.3:1 | 18.3:1 | 16.0:1 | 16.0:1 | 18.3:1 | 18.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 190 | 190 | 195 | 195 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 12,0 | 11,4 | 11,4 | 11,4 | 9,5 | 9,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,2 | 5,7 | 4,3 | 5,2 | 7,6 | 7,8 |
| Out of town [l] | 4,2 | 3,8 | 3,5 | 3,8 | 4,8 | 5,0 |
| Combined [l] | 4,9 | 4,5 | 3,8 | 4,3 | 5,8 | 6,0 |
| CO2 emissions [g/km] | 129 | 119 | 99 | 114 | 153 | 159 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1388 | 1384 | 1473 | 1467 | 1454 | 1454 |
| Overall weight [kg] | 1880 | 1880 | 1880 | 1880 | 1940 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | 650/800 | 650/800 | 650/1300 | 650/1300 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 404 | 404 | 404 | 404 | 404 | 404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| Boot length [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Boot length with rear seats folded [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | 441/- | 441/- | 441/- | 441/- | 441/- | 441/- |
| Loading edge height [mm] | 642 | 642 | 642 | 642 | 642 | 642 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 55 | 55 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | 278 | 278 | - | - | 300 | 300 |
| Brake dimensions rear | 280 | 280 | - | - | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1454 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/874 | -/874 | -/874 | -/874 | -/874 | -/874 |
| D3 | D3 | D4 | D4 | D5 | D5 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | from 2010 to | from 2010 to | from 2010 to | from to 2010 | from to 2010 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 130/3500 | 130/3500 | 132/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 350/1500-2750 | 350/1500-2750 | 400/1750-2750 | 400/1750-2750 | 400/1750-3250 | 400/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 17.3:1 | 17.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 210 | 205 | 220 | 215 | 225 | 220 |
| Acceleration 0–100 km/h [s] | 9,5 | 9,6 | 8,7 | 8,8 | 7,9 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0 | 7,6 | 7,0 | 7,6 | 8,4 | 9,7 |
| Out of town [l] | 4,0 | 4,5 | 4,0 | 4,5 | 4,9 | 5,4 |
| Combined [l] | 5,1 | 5,6 | 5,1 | 5,6 | 6,3 | 7,0 |
| CO2 emissions [g/km] | 134 | 149 | 134 | 149 | 166 | 184 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1586 | 1602 | 1586 | 1602 | 1504 | 1504 |
| Overall weight [kg] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 700/1500 | 700/1500 | 700/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 404 | 404 | 404 | 404 | 404 | 404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/883 | -/883 | -/883 | -/883 | -/883 | -/883 |
| Boot length [mm] | 976 | 976 | 976 | 976 | 976 | 976 |
| Boot length with rear seats folded [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | 441/- | 441/- | 441/- | 441/- | 441/- | 441/- |
| Loading edge height [mm] | 642 | 642 | 642 | 642 | 642 | 642 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | - | - | - | - | 320 | 320 |
| Brake dimensions rear | - | - | - | - | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 | 2.9 |
| Turning diameter track/circumference [m] | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 | 10.6/11.1 |
| Overall length [mm] | 4476 | 4476 | 4476 | 4476 | 4476 | 4476 |
| Overall width without/including mirrors [mm] | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 | 1770/2022 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1454 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Rear elbow/shoulder width [mm] | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- | 1374/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/874 | -/874 | -/874 | -/874 | -/874 | -/874 |

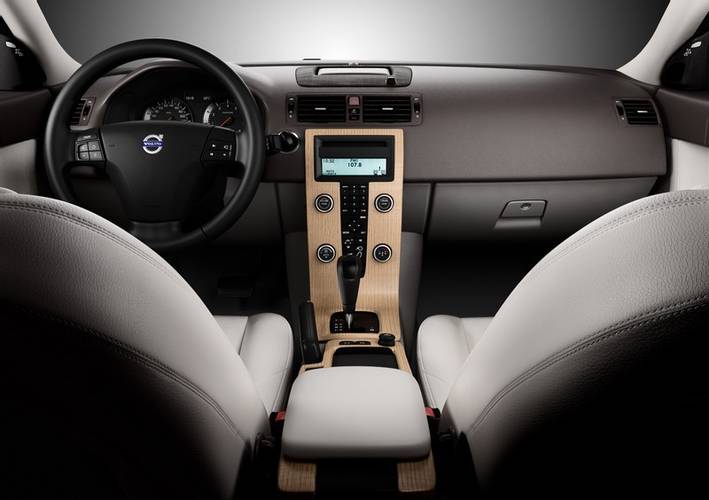

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
