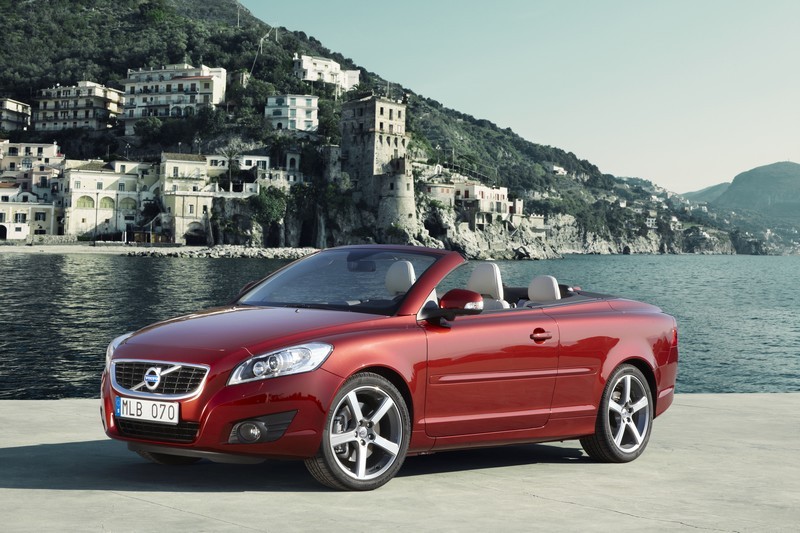

Volvo C70
Date of manufacture
11/2009 – 2013 (Convertible)
Platform
Volvo P1
Manufacturing locations
Uddevalla, Sweden
Designer
Steve Mattin
Fedde Talsma
John Kinsey
Tags
Convertible
Swedish cars
Volvo C70 is a coupé based on the Volvo P1 platform. The first generation car was manufactured in Sweden in 2009 and offers both petrol and diesel engines. The most powerful variant, the T5, has a maximum power of 169 kW and can reach a speed of 240 km/h. The most fuel-efficient engine, the D3, has a fuel consumption of 5.9 l/100 km and emissions of 154 g/km. The passenger space is of a size of 200-404 l.
Technical data
Convertible
| 2.4 | 2.4 | 2.4 | 2.4 | T5 | T5 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from to 2010 | from to 2010 | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2435 | 2435 | 2435 | 2435 | 2521 | 2521 |
| Maximum output / speed [kW/min-1] | 103/5000 | 103/5000 | 125/6000 | 125/6000 | 169/5000 | 169/5000 |
| Maximum torque [Nm/min-1] | 220/4000 | 220/4000 | 230/4400 | 230/4400 | 320/1500-5000 | 320/1500-5000 |
| Bore and stroke [mm x mm] | 83,0 x 90,0 | 83,0 x 90,0 | 83,0 x 90,0 | 83,0 x 90,0 | 83,0 x 93,2 | 83,0 x 93,2 |
| Compression ratio | 10.3:1 | 10.3:1 | 10.3:1 | 10.3:1 | 9.0:1 | 9.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear automatic | 5 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 205 | 200 | 220 | 215 | 240 | 235 |
| Acceleration 0–100 km/h [s] | 11,0 | 11,8 | 9,1 | 10,0 | 7,6 | 8,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,8 | 13,8 | 12,9 | 13,8 | 12,9 | 14,0 |
| Out of town [l] | 6,7 | 7,0 | 6,7 | 7,0 | 6,6 | 6,7 |
| Combined [l] | 8,9 | 9,6 | 9,0 | 9,6 | 8,9 | 9,4 |
| CO2 emissions [g/km] | 212 | 229 | 215 | 229 | 209 | 219 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1685 | 1707 | 1683 | 1707 | 1711 | 1725 |
| Overall weight [kg] | 2070 | 2090 | 2070 | 2090 | 2090 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 200-404 | 200-404 | 200-404 | 200-404 | 200-404 | 200-404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/50 R17 | 235/50 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/50 R17 | 235/50 R17 |
| Wheel size front | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.58 | 2.58 | 2.58 | 2.58 | 2.58 | 2.58 |
| Turning diameter track/circumference [m] | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 |
| Overall length [mm] | 4615 | 4615 | 4615 | 4615 | 4615 | 4615 |
| Overall width without/including mirrors [mm] | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 |
| Overall height [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Front elbow/shoulder width [mm] | 1361/- | 1361/- | 1361/- | 1361/- | 1361/- | 1361/- |
| Rear elbow/shoulder width [mm] | 1194/- | 1194/- | 1194/- | 1194/- | 1194/- | 1194/- |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/862 | -/862 | -/862 | -/862 | -/862 | -/862 |
| 2.0 D | 2.0 D | D3 | D3 | D4 | D4 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | from 2010 to | from 2010 to | from 2010 to | from 2010 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1997 | 1997 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 100/4000 | 100/4000 | 110/3500 | 110/3500 | 130/3500 | 130/3500 |
| Maximum torque [Nm/min-1] | 320/2000 | 320/2000 | 350/1500-2750 | 350/1500-2750 | 400/1750-2750 | 400/1750-2750 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 18.3:1 | 18.3:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 205 | 205 | 210 | 205 | 220 | 215 |
| Acceleration 0–100 km/h [s] | 11,0 | 11,1 | 10,8 | 10,9 | 9,8 | 9,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9 | 8,1 | 7,9 | 8,7 | 7,9 | 8,7 |
| Out of town [l] | 4,9 | 6,3 | 4,6 | 5,1 | 4,6 | 5,1 |
| Combined [l] | 6,0 | 6,3 | 5,9 | 6,4 | 5,9 | 6,4 |
| CO2 emissions [g/km] | 158 | 167 | 154 | 169 | 154 | 169 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1702 | 1729 | 1739 | 1755 | 1739 | 1755 |
| Overall weight [kg] | 2090 | 2100 | 2130 | 2150 | 2130 | 2150 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 200-404 | 200-404 | 200-404 | 200-404 | 200-404 | 200-404 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 62 | 62 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 |
| Wheel size rear | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 | 7,5J x 16 |
| Brake dimensions front | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 | 300 or 320 |
| Brake dimensions rear | 280 | 280 | 280 | 280 | 280 | 280 |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.58 | 2.58 | 2.58 | 2.58 | 2.58 | 2.58 |
| Turning diameter track/circumference [m] | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 | 11.8/11.95 |
| Overall length [mm] | 4615 | 4615 | 4615 | 4615 | 4615 | 4615 |
| Overall width without/including mirrors [mm] | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 | 1836/2025 |
| Overall height [mm] | 1407 | 1407 | 1407 | 1407 | 1407 | 1407 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | 1015 |
| Headroom rear [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Front elbow/shoulder width [mm] | 1361/- | 1361/- | 1361/- | 1361/- | 1361/- | 1361/- |
| Rear elbow/shoulder width [mm] | 1194/- | 1194/- | 1194/- | 1194/- | 1194/- | 1194/- |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/862 | -/862 | -/862 | -/862 | -/862 | -/862 |
| D5 | D5 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | from to 2010 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 5/20 | 5/20 | ||||
| Engine displacement [cm³] | 2400 | 2400 | ||||
| Maximum output / speed [kW/min-1] | 132/4000 | 132/4000 | ||||
| Maximum torque [Nm/min-1] | 400/1750-3250 | 350/1750-3250 | ||||
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | ||||
| Compression ratio | 17.3:1 | 17.3:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 5 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 225 | 220 | ||||
| Acceleration 0–100 km/h [s] | 9,0 | 9,5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 8,7 | 10,3 | ||||
| Out of town [l] | 5,4 | 5,8 | ||||
| Combined [l] | 6,6 | 7,3 | ||||
| CO2 emissions [g/km] | 174 | 193 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1747 | 1758 | ||||
| Overall weight [kg] | 2130 | 2150 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 200-404 | 200-404 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 680 | 680 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | ||||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | ||||
| Wheel size front | 7,5J x 16 | 7,5J x 16 | ||||
| Wheel size rear | 7,5J x 16 | 7,5J x 16 | ||||
| Brake dimensions front | 300 or 320 | 300 or 320 | ||||
| Brake dimensions rear | 280 | 280 | ||||
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | ||||
| Number of steering wheel turns | 2.58 | 2.58 | ||||
| Turning diameter track/circumference [m] | 11.8/11.95 | 11.8/11.95 | ||||
| Overall length [mm] | 4615 | 4615 | ||||
| Overall width without/including mirrors [mm] | 1836/2025 | 1836/2025 | ||||
| Overall height [mm] | 1407 | 1407 | ||||
| Wheelbase [mm] | 2640 | 2640 | ||||
| Front wheel track [mm] | 1550 | 1550 | ||||
| Rear wheel track [mm] | 1560 | 1560 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 140 | 140 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1015 | 1015 | ||||
| Headroom rear [mm] | 875 | 875 | ||||
| Front elbow/shoulder width [mm] | 1361/- | 1361/- | ||||
| Rear elbow/shoulder width [mm] | 1194/- | 1194/- | ||||
| Legroom front knees/total [mm] | -/1074 | -/1074 | ||||
| Legroom rear knees/total [mm] | -/862 | -/862 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
