Volvo C40

C40 2021

Date of manufacture

10/2021 – to this day (Medium SUV)

Platform

CMA

Manufacturing locations

Ghent, Belgium
Luqiao, People's Republic of China

Designer

-

Tags

Compact SUV
Swedish cars
Volvo C40 is a medium SUV that was manufactured in 2021. It is available in two countries - Belgium and China. It is based on the CMA platform with electric motors. The most powerful model is the Pure Electric Single Motor with a power of 170 kW. The fastest version is the Pure Electric Twin Motor with a combined fuel consumption of 18.7 kWh/100 km. The cargo capacity is 413 l and the car achieved a safety rating of 5 out of 5 according to the EURONCAP test method in 2022.

Car body style

Medium SUV

Date of manufacture
10/2021 – to this day
Internal designation
-

Euro NCAP

Test year 2022
Rating
star iconstar iconstar iconstar iconstar icon
Adults
92 %
Adults
Children
89 %
Children
Pedestrians
70 %
Pedestrians
Assist systems
89 %
Assist systems

Technical data

Medium SUV

Pure Electric Single Motor Pure Electric Twin Motor
Date of sale--
Engine typeElectricElectric
Number of cylinders/valves--
Engine displacement [cm³]--
Maximum output / speed [kW/min-1]
170/4919-11000
150/4350-13900
150/4350-13900
Maximum torque [Nm/min-1]
330/0-4919
330/0-4350
330/0-4350
Drive axleFront4x4
Gearbox1 gear automatic1 gear automatic
Top speed [km/h]160180
Acceleration 0–100 km/h [s]7.44.7
City [l]--
Out of town [l]--
Combined [l]--
CO2 emissions [g/km]--
Combined speed [l]19.7-18.7 kWh22.3-20.7 kWh
CO2 emissions [g/km]--
Emission standardEuro 6dEuro 6d
System voltage [V]400400
Battery type and capacityLithium-Ionen-Akkumulator, 69 kWhLithium-ion, 78 kWh (75 net)
Range with fully charged battery [km]400-423 [WLTP]415-444 [WLTP]
Charging time
  • 64 hours, charger 230V, 1 x 6A
  • 36 hours, charger 230V, 1 x 10 A
  • 21 hours, charger 230V, 1 x 16 A
  • 20 hours, charger 230V, 3 x 6 A
  • 13 hours, charger 230V, 3 x 10 A
  • 7 hours, charger 230V, 3 x 16A
  • from 10% to 80%, 0:56 hours, charger 50 kW DC
  • from 10% to 80%, 0:32 hours, charger 150 kW DC
  • 72 hours, charger 230V, 1 x 6A
  • 40 hours, charger 230V, 1 x 10 A
  • 24 hours, charger 230V, 1 x 16 A
  • 22 hours, charger 230V, 3 x 6 A
  • 14 hours, charger 230V, 3 x 10 A
  • 8 hours, charger 230V, 3 x 16A
  • from 10% to 80%, 0:68 hours, charger 50 kW DC
  • from 10% to 80%, 0:37 hours, charger 150 kW DC
Standby weight [kg]20372207
Overall weight [kg]24622620
Maximum trailer weight unbraked/braked [kg]750/1500750/1800
Boot volume [l]413413
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1205-/1205
Number of doors55
Number of seats55
Fuel tank volume [l]--
AdBlue tank volume [l]--
Overall length [mm]44404440
Overall width without/including mirrors [mm]1873/20341873/2034
Overall height [mm]15911591
Wheelbase [mm]27022702
Headroom front [mm]10401040
Headroom rear [mm]932932
Front elbow/shoulder width [mm]1440/13901440/1390
Rear elbow/shoulder width [mm]1429/13881429/1388

Gallery

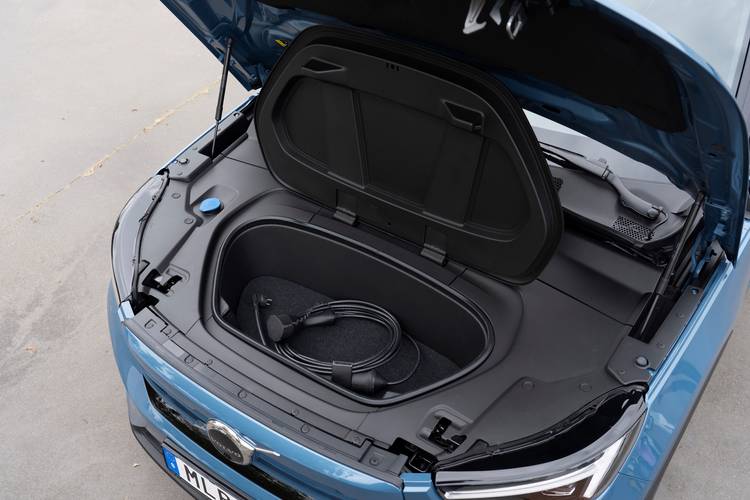

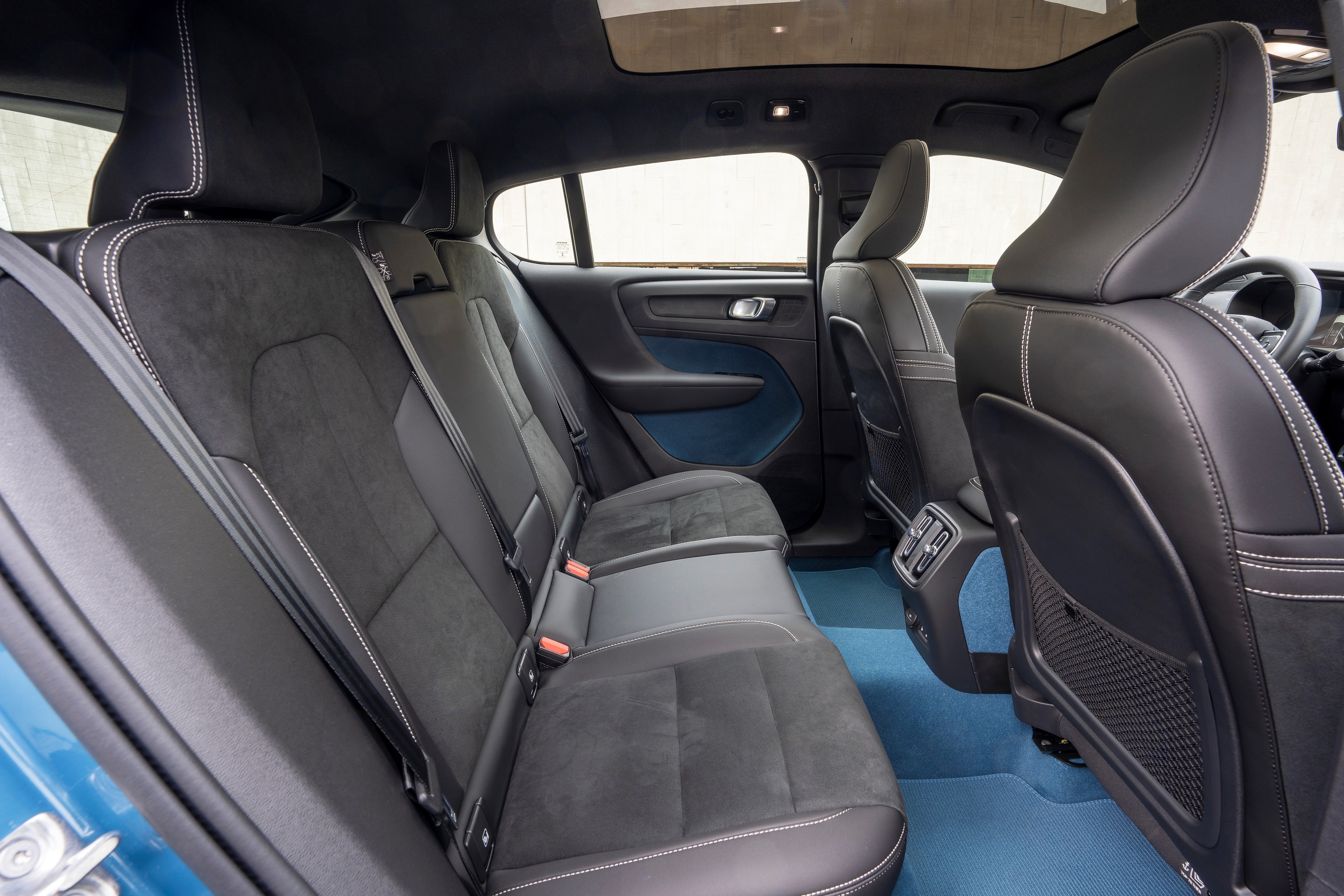

Volvo C40 2021 interiorVolvo C40 2021 front seatsVolvo C40 2022 rear seatsVolvo C40 2021 bootVolvo C40 2022 rear folding seatsVolvo C40 2022 boot
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
