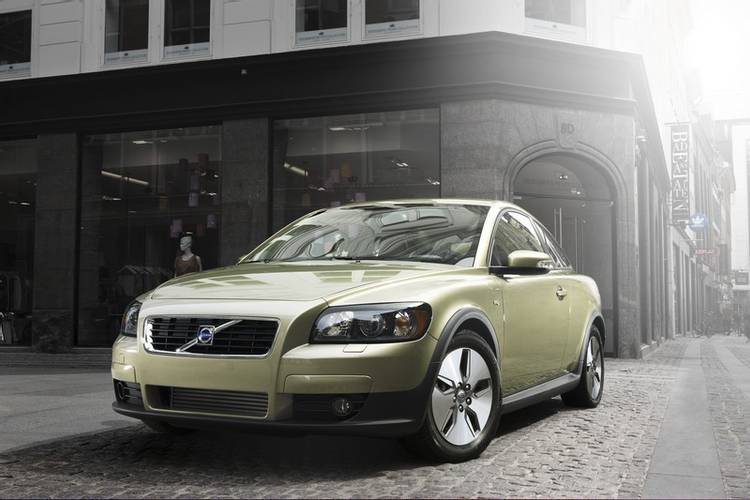

Volvo C30
Date of manufacture
2006 – 2009 (Three-door hatchback)
Platform
Volvo P1 platform
Manufacturing locations
Ghent, Belgium
Designer
-
Tags
C-segment
Swedish cars
Volvo C30 is a three-door hatchback that was introduced on the market in 2006. It is available on the Volvo P1 platform and offers both gasoline and diesel engine options. The most powerful model is the T5 with a power of 169 kW and a maximum speed of 240 km/h. The most fuel-efficient model is the 1.6 D with a combined fuel consumption of 3.9 l/100 km and emissions of CO2 104 g/km. The cargo area of the vehicle is 251 l. The car underwent safety tests by EURONCAP with a rating of 5 out of 5.
Car body style
Technical data
Three-door hatchback
| 1.6 | 1.8 | 1.8F | 2.0 | 2.0 | 2.4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 5/20 |
| Engine displacement [cm³] | 1596 | 1798 | 1798 | 1999 | 1999 | 2435 |
| Maximum output / speed [kW/min-1] | 74/6000 | 92/6000 | 92/6000 | 107/6000 | 107/6000 | 125/6000 |
| Maximum torque [Nm/min-1] | 150/4000 | 165/4000 | 165/4000 | 185/4500 | 185/4500 | 230/4400 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 83,0 x 83,1 | 83,0 x 83,1 | 87,5 x 83,1 | 87,5 x 83,1 | 83,0 x 90,0 |
| Compression ratio | 11.0:1 | 10.8:1 | 10.8:1 | 10.8:1 | - | 10.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
| - | - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 185 | 200 | 200 | 210 | 205 | 220 |
| Acceleration 0–100 km/h [s] | 11,8 | 10,8 | 10,8 | 9,4 | 9,7 | 8,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,3 | 10,1 | 10,1 | 10,2 | 10,2 | 12,0 |
| Out of town [l] | 5,7 | 5,8 | 5,8 | 5,8 | 5,8 | 6,3 |
| Combined [l] | 7,0 | 7,3 | 7,3 | 7,4 | 7,9 | 8,4 |
| CO2 emissions [g/km] | 167 | 174 | 174 | 177 | 177 | 200 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1279 | 1329 | 1329 | 1327 | 1327 | 1429 |
| Overall weight [kg] | 1700 | 1750 | 1750 | 1750 | 1750 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 650/1300 | 650/1300 | 650/1350 | - | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 251 | 251 | 251 | 251 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4252 | 4252 | 4252 | 4252 | 4252 | 4252 |
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1548 | 1548 | 1548 | 1548 | 1548 | 1548 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- |
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 | -/869 | -/869 | -/869 |
| 2.4 | T5 | T5 | 1.6 D | 1.6 D | 2.0 D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2435 | 2521 | 2521 | 1560 | 1560 | 1997 |
| Maximum output / speed [kW/min-1] | 125/6000 | 169/5000 | 169/5000 | 80/4000 | 80/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 230/4400 | 320/1500-5000 | 320/1500-5000 | 240/1750 | 240/1750 | 320/2000 |
| Bore and stroke [mm x mm] | 83,0 x 90,0 | 83,0 x 93,2 | 83,0 x 93,2 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 |
| Compression ratio | 10.3:1 | 9.0:1 | 9.0:1 | 18.3:1 | 18.3:1 | 18.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear automatic | 6 gear manual | 5 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 215 | 240 | 235 | 190 | 190 | 205 |
| Acceleration 0–100 km/h [s] | 8,8 | 6,7 | 7,1 | 11,9 | 11,9 | 9,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13,1 | 12,5 | 14,1 | 6,2 | - | 7,6 |
| Out of town [l] | 6,6 | 6,5 | 6,7 | 4,2 | - | 4,6 |
| Combined [l] | 9,0 | 8,7 | 9,4 | 4,9 | 3.9 | 5,7 |
| CO2 emissions [g/km] | 214 | 208 | 224 | 129 | 104 | 151 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1429 | 1437 | 1437 | 1373 | 1373 | 1421 |
| Overall weight [kg] | 1840 | 1860 | 1860 | 1780 | 1780 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 750/1500 | 750/1500 | - | - | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | - | - | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 251 | 251 | 251 | 251 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 62 | 62 | 62 | 52 | 52 | 52 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4252 | 4252 | 4252 | 4252 | 4252 | 4252 |
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1548 | 1535 | 1535 | 1548 | 1548 | 1548 |
| Rear wheel track [mm] | 1544 | 1531 | 1531 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- |
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- |
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 | -/869 | -/869 | -/869 |
| 2.0 D | D5 | D5 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | |||
| Engine displacement [cm³] | 1997 | 2400 | 2400 | |||
| Maximum output / speed [kW/min-1] | 100/4000 | 132/4000 | 132/4000 | |||
| Maximum torque [Nm/min-1] | 320/2000 | 400/1750-3250 | 400/1750-3250 | |||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 81,0 x 93,15 | 81,0 x 93,15 | |||
| Compression ratio | 18.3:1 | 17.3:1 | 17.3:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear automatic | 6 gear manual | 5 gear automatic | |||
| Drive specifications |
| - |
| |||
| Top speed [km/h] | 205 | 225 | 220 | |||
| Acceleration 0–100 km/h [s] | 9,5 | 7,7 | 8,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7,6 | 8,3 | 9,5 | |||
| Out of town [l] | 4,9 | 5,0 | 5,4 | |||
| Combined [l] | 5,9 | 6,2 | 6,9 | |||
| CO2 emissions [g/km] | 156 | 164 | 182 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1421 | 1479 | 1479 | |||
| Overall weight [kg] | 1840 | 1900 | 1900 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 251 | 251 | 251 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 807 | 807 | 807 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 52 | 60 | 60 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | |||
| Overall length [mm] | 4252 | 4252 | 4252 | |||
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | |||
| Overall height [mm] | 1447 | 1447 | 1447 | |||
| Wheelbase [mm] | 2640 | 2640 | 2640 | |||
| Front wheel track [mm] | 1548 | 1535 | 1535 | |||
| Rear wheel track [mm] | 1544 | 1531 | 1531 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 988 | 988 | 988 | |||
| Headroom rear [mm] | 959 | 959 | 959 | |||
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | |||
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | |||
| Legroom front knees/total [mm] | -/1057 | -/1057 | -/1057 | |||
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
