Volkswagen up!
Date of manufacture
12/2011 – 4/2016 (Three-door hatchback)
12/2011 – 4/2016 (Five-door hatchback)
Platform
Volkswagen Group NSF
Manufacturing locations
Bratislava, Slovakia
Designer
Marco Pavone
Walter de'Silva
Klaus Bischoff
Chris Lesmana
Tags
A-segment
German cars
The Volkswagen up! is available as a three-door hatchback and a five-door hatchback and has been in production since 2011. The car is built on the Volkswagen Group NSF platform and offers both petrol and electric powertrains. The most powerful model is the e-up!, which produces 60 kW of power, the 1.0 MPI has a top speed of 171 km/h and the 1.0 CNG has the lowest fuel consumption of 2.9 kg/100 km and emissions of 79 g/km. The three-door hatchback has a boot capacity of 251 litres, while the five-door model has a capacity of 251 litres. In terms of safety, the car was rated 5 out of 5 by EURONCAP in 2011.
Car body style
Technical data
Three-door hatchback
| 1.0 MPI | 1.0 MPI BMT | 1.0 MPI | 1.0 CNG | 1.0 MPI | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 160 | 160 | 160 | 164 | 171 | 171 |
| Acceleration 0–100 km/h [s] | 14.4 | 14.4 | 15.3 | 16.3 | 13.2 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.0 | 5.3 | 5.5 m3 [3.6 kg] | 5.9 | 5.5 |
| Out of town [l] | 3.9 | 3.6 | 3.9 | 3.8 m3 [2.5 kg] | 4.0 | 4.0 |
| Combined [l] | 4.5 | 4.1 | 4.4 | 4.4 m3 [2.9 kg] | 4.7 | 4.5 |
| CO2 emissions [g/km] | 105 | 95 | 103 | 79 | 108 | 105 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 940 | 932 | 1031 | 929 | 932 |
| Overall weight [kg] | 1290 | 1290 | 1290 | 1370 | 1290 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 251 | 251 | 251 | 213 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/951 | -/951 | -/951 | -/913 | -/951 | -/951 |
| Boot length [mm] | 632 | 632 | 632 | 605 | 632 | 632 |
| Boot length with rear seats folded [mm] | 1252 | 1252 | 1252 | 1230 | 1252 | 1252 |
| Boot width between wheels/max [mm] | -/978 | -/978 | -/978 | -/978 | -/978 | -/978 |
| Boot height to headliner/ceiling [mm] | 650/939 | 650/939 | 650/939 | 559/888 | 650/939 | 650/939 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 10 [11 kg] | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 |
| Tyre dimensions rear | 165/70 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/- | 9.8/- | 9.8/- | 9.8/- | 9.8/- | 9.8/- |
| Overall length [mm] | 3540 | 3540 | 3540 | 3540 | 3540 | 3540 |
| Overall width without/including mirrors [mm] | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 |
| Overall height [mm] | 1489 | 1489 | 1489 | 1489 | 1489 | 1489 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2420 | 2420 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 |
| Approach angle rear [°] | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
| Transition angle [°] | 11 | 11 | 11 | 11 | 11 | 11 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Rear elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- |
| Legroom front knees/total [mm] | -/1009 | -/1009 | -/1009 | -/1009 | -/1009 | -/1009 |
| Legroom rear knees/total [mm] | -/789 | -/789 | -/789 | -/789 | -/789 | -/789 |
Five-door hatchback
| 1.0 MPI | 1.0 MPI BMT | 1.0 MPI | 1.0 CNG | 1.0 MPI | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 160 | 160 | 160 | 164 | 171 | 171 |
| Acceleration 0–100 km/h [s] | 14.4 | 14.4 | 15.3 | 16.3 | 13.2 | 13.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.0 | 5.3 | 5.5 m3 [3.6 kg] | 5.9 | 5.5 |
| Out of town [l] | 3.9 | 3.6 | 3.9 | 3.8 m3 [2.5 kg] | 4.0 | 4.0 |
| Combined [l] | 4.5 | 4.1 | 4.4 | 4.4 m3 [2.9 kg] | 4.7 | 4.5 |
| CO2 emissions [g/km] | 105 | 95 | 103 | 79 | 108 | 105 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 940 | 932 | 1031 | 929 | 932 |
| Overall weight [kg] | 1290 | 1290 | 1290 | 1370 | 1290 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 251 | 251 | 251 | 213 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/959 | -/959 | -/959 | -/921 | -/959 | -/959 |
| Boot length [mm] | 632 | 632 | 632 | 605 | 632 | 632 |
| Boot length with rear seats folded [mm] | 1252 | 1252 | 1252 | 1230 | 1252 | 1252 |
| Boot width between wheels/max [mm] | -/978 | -/978 | -/978 | -/978 | -/978 | -/978 |
| Boot height to headliner/ceiling [mm] | 650/939 | 650/939 | 650/939 | 559/888 | 650/939 | 650/939 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1990 | 1990 | 1990 | 1990 | 1990 | 1990 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 10 [11 kg] | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 |
| Tyre dimensions rear | 165/70 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 | 175/65 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/- | 9.8/- | 9.8/- | 9.8/- | 9.8/- | 9.8/- |
| Overall length [mm] | 3540 | 3540 | 3540 | 3540 | 3540 | 3540 |
| Overall width without/including mirrors [mm] | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 |
| Overall height [mm] | 1489 | 1489 | 1489 | 1489 | 1489 | 1489 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2420 | 2420 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 |
| Approach angle rear [°] | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
| Transition angle [°] | 11 | 11 | 11 | 11 | 11 | 11 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1369/- | 1369/- | 1369/- | 1369/- | 1369/- | 1369/- |
| Rear elbow/shoulder width [mm] | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- |
| Legroom front knees/total [mm] | -/1009 | -/1009 | -/1009 | -/1009 | -/1009 | -/1009 |
| Legroom rear knees/total [mm] | -/789 | -/789 | -/789 | -/789 | -/789 | -/789 |

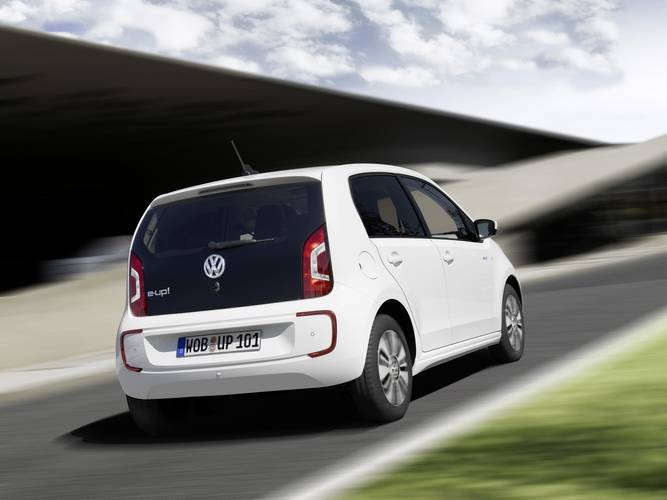

| e-up! | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Electric | |||||
| Number of cylinders/valves | - | |||||
| Engine displacement [cm³] | - | |||||
| Maximum output / speed [kW/min-1] | 60/2800-12000 | |||||
| Maximum torque [Nm/min-1] | 210/2800 | |||||
| Bore and stroke [mm x mm] | - | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 1 gear automatic | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 130 | |||||
| Acceleration 0–100 km/h [s] | 12.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 11.7 kWh | |||||
| CO2 emissions [g/km] | - | |||||
| Emission standard | - | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 374 | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 18.7 kWh | |||||
| Range with fully charged battery [km] | 160 | |||||
| Charging time |
| |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 1224 | |||||
| Overall weight [kg] | 1510 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 50/- | |||||
| Boot volume [l] | 250 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/923 | |||||
| Boot length [mm] | 632 | |||||
| Boot length with rear seats folded [mm] | 1259 | |||||
| Boot width between wheels/max [mm] | -/978 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 1990 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 165/65 R15 | |||||
| Tyre dimensions rear | 165/65 R15 | |||||
| Wheel size front | 5.0J x 15 | |||||
| Wheel size rear | 5.0J x 15 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 9.8/- | |||||
| Overall length [mm] | 3540 | |||||
| Overall width without/including mirrors [mm] | 1645/1910 | |||||
| Overall height [mm] | 1489 | |||||
| Wheelbase [mm] | 2420 | |||||
| Front wheel track [mm] | 1428 | |||||
| Rear wheel track [mm] | 1424 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 144 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 15.1 | |||||
| Approach angle rear [°] | 23.5 | |||||
| Transition angle [°] | 11 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 993 | |||||
| Headroom rear [mm] | 947 | |||||
| Front elbow/shoulder width [mm] | 1369/- | |||||
| Rear elbow/shoulder width [mm] | 1388/- | |||||
| Legroom front knees/total [mm] | -/1009 | |||||
| Legroom rear knees/total [mm] | -/789 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
