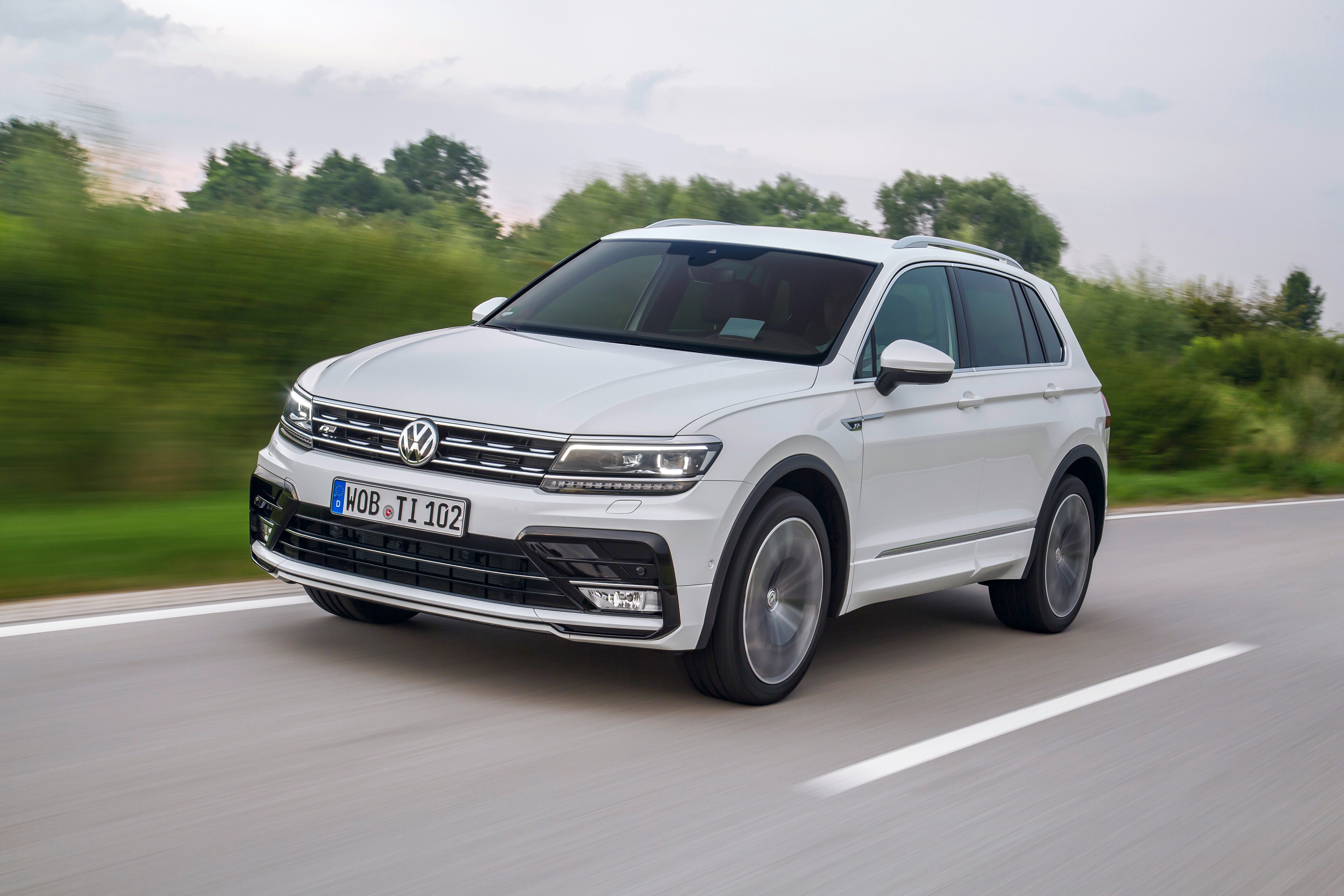

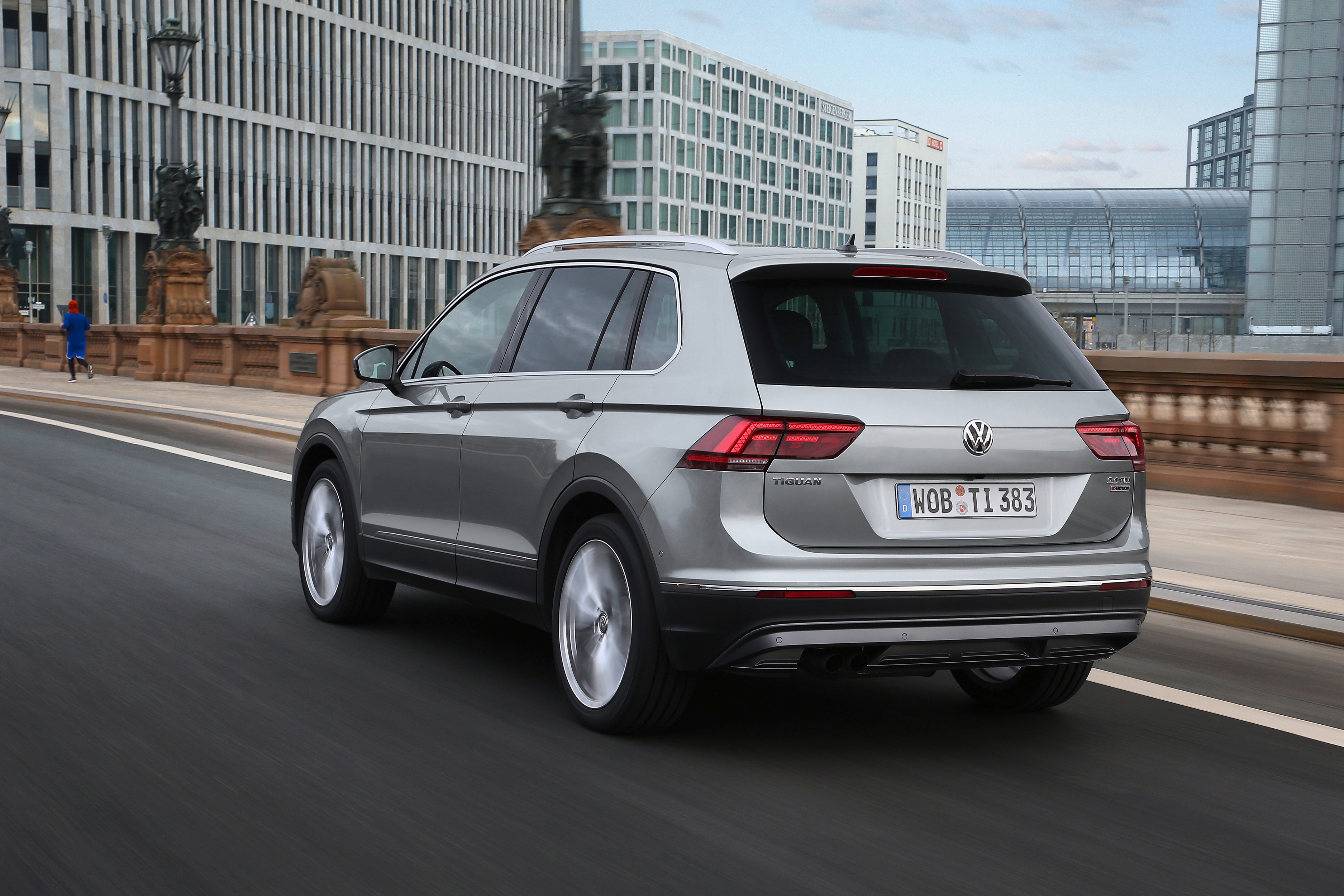

Volkswagen Tiguan
Date of manufacture
2016 – 2020 (Medium SUV)
Platform
Volkswagen Group MQB A2
Manufacturing locations
Wolfsburg, Germany
Puebla, Mexico
Shanghai, People's Republic of China
Kaluga, Russia
Relizane, Algeria
Designer
-
Tags
Compact SUV
German cars
The Volkswagen Tiguan is a mid-size SUV that has been produced since 2016. It is built on the Volkswagen Group MQB A2 platform and offers petrol and diesel engines. The highest power output is achieved by the 2.0 TDI Allspace 4MOTION with 176 kW. The 2.0 TDI 4MOTION reaches a maximum speed of 230 km/h and the 2.0 TDI has the lowest consumption of 4.7 l/100 km and CO2 emissions of 122 g/km. The size of the luggage compartment is 615 liters and during EURONCAP safety tests, the car received a rating of 5 out of 5 according to the 2016 methodology. The car is manufactured in Germany, Mexico, China, Russia and Algeria.
Car body style
Medium SUV
Date of manufacture
2016 – 2020Internal designation
AD/BWEngine size
Petrol
Diesel
Technical data
Medium SUV
| 1.4 TSI | 1.5 TSI ACT | 1.4 TSI ACT | 1.4 TSI ACT | 1.4 TSI ACT 4MOTION | 1.4 TSI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2017 to 2018 | from 2017 to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1498 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 96/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 220/1750-3500 | 250/1500-3000 | 250/1500-3000 | 250/1500-3000 | 250/1500-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 12,5:1 | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 190 | 192 | 202 | 200 | 200 | 198 |
| Acceleration 0–100 km/h [s] | 10,5 | 10,2 | 9,2 | 9,2 | 9,4 | 9,4 |
| Acceleration 0–80 km/h [s] | 6,9 | 6,9 | 6,3 | 6,3 | 6,5 | 6,5 |
| Acceleration 80–120 km/h [s] | 9,0 (13,0 (4th/5th gear) | 9,5 (13,0 (4th/5th gear) | 8,0 (11,0 (4th/5th gear) | - | 8,0 (11,0 (4th/5th gear) | - |
| City [l] | 7,5 | 7,1 | 7,1 | 7,3 | 7,5 | 8,1 |
| Out of town [l] | 5,3 | 5,0 | 5,1 | 5,5 | 5,9 | 6,1 |
| Combined [l] | 6,1 | 5,7 | 5,8 | 6,1 | 6,5 | 6,9 |
| CO2 emissions [g/km] | 137 | 130 | 132 | 139 | 148 | 155 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1490 | 1520 | 1490 | 1498 | 1570 | 1592 |
| Overall weight [kg] | 2120 | 2100 | 2140 | 2140 | 2170 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 740/1600 | 750/1600 | 740/1800 | 740/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1040/1130 | 1060/1090 | 1070/1080 | 1060/1130 | 1070/1080 | 1080/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 615 | 615 | 615 | 615 | 615 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 |
| Boot length [mm] | 977 | 977 | 977 | 977 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2087 | 2096 | 2096 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 60 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4486 | 4486 | 4486 | 4486 | 4486 | 4486 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1654 | 1654 | 1654 | 1654 | 1673 | 1673 |
| Wheelbase [mm] | 2677 | 2677 | 2677 | 2677 | 2677 | 2677 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1576 | 1576 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1566 | 1566 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 191 | 191 | 191 | 191 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.1 | 16.1 | 16.1 | 16.1 | 17.0 | 17.0 |
| Approach angle rear [°] | 16.0 | 16.0 | 16.0 | 16.0 | 15.9 | 15.9 |
| Transition angle [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.9 | 14.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1049 | 1049 | 1049 | 1049 | 1049 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 132/3940-6000 | 140/4200-6000 | 162/4700-6200 | 169/4700-6200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-3940 | 320/1500-4100 | 350/1500-4400 | 350/1500-4400 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 202 | 200 | 210 | 214 | 225 | 228 |
| Acceleration 0–100 km/h [s] | 9,3 | 9,2 | 7,7 | 7,5 | 6,3 | 6,3 |
| Acceleration 0–80 km/h [s] | 6,4 | 6,3 | 5,2 | 4,9 | 4,3 | 4,3 |
| Acceleration 80–120 km/h [s] | 8,0 (11,5 (4th/5th gear) | - | - | - | - | - |
| City [l] | 8,0-7,6 | 7,1 | 9,0-8,9 | 8,4 | 9,6 | 9,0 |
| Out of town [l] | 5,5-5,4 | 5,4-5,3 | 6,3-6,2 | 6,4 | 6,7 | 6,9 |
| Combined [l] | 6,3 | 6,1-6,0 | 7,3-7,2 | 7,1 | 7,7 | 7,7 |
| CO2 emissions [g/km] | 143 | 138-136 | 166-164 | 162 | 177 | 175 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1520 | 1550 | 1645 | 1695 | 1669 | 1710 |
| Overall weight [kg] | 2100 | 2130 | 2260 | 2230 | 2260 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1300 | 750/2100-2500 | 750/2500 | 750/2100-2500 | 750/2200-2500 |
| Maximum front/rear axle load [kg] | 1060/1090 | 1090/1090 | 1160/1150 | 1160/1120 | 1160/1160 | 1180/1150 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 615 | 615 | 615 | 615 | 615 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 |
| Boot length [mm] | 977 | 977 | 985 | 985 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2087 | 2087 | 2096 | 2096 | 2096 | 2096 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 | 235/55 R18 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 | 235/55 R18 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | 7.0J x 18 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | 7.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4486 | 4486 | 4486 | 4486 | 4486 | 4486 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1654 | 1654 | 1673 | 1673 | 1673 | 1673 |
| Wheelbase [mm] | 2677 | 2677 | 2677 | 2677 | 2677 | 2677 |
| Front wheel track [mm] | 1579 | 1579 | 1576 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1570 | 1570 | 1566 | 1566 | 1566 | 1566 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 191 | 191 | 201 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.1 | 16.1 | 17.0 | 17.0 | 17.0 | 17.0 |
| Approach angle rear [°] | 16.0 | 16.0 | 15.9 | 15.9 | 15.9 | 15.9 |
| Transition angle [°] | 14.5 | 14.5 | 14.9 | 14.9 | 14.9 | 14.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1049 | 1049 | 1049 | 1049 | 1049 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI ACT Allspace | 1.5 TSI ACT Allspace | 1.5 TSI ACT Allspace | 2.0 TSI Allspace 4MOTION | 2.0 TSI Allspace 4MOTION | 2.0 TSI Allspace 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2018 | from 2018 to | from 2018 to | from 2017 to 2018 | from 2018 to | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1498 | 1498 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/3940-6000 | 140/4200-6000 | 162/4700-6200 |
| Maximum torque [Nm/min-1] | 250/1500-3000 | 250/1500-3500 | 250/1500-3500 | 320/1500-3940 | 320/1500-4100 | 350/1500-4400 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | - | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 200 | 200 | 198 | 208 | 212 | 223 |
| Acceleration 0–100 km/h [s] | 9,5 | 9,5 | - | 8,2 | 7,8 | 6,8 |
| Acceleration 0–80 km/h [s] | 6,6 | - | - | 5,7 | - | 4,9 |
| Acceleration 80–120 km/h [s] | 8,5 (11,5 (4th/5th gear) | - | - | - | - | - |
| City [l] | 7,2 | 7,3-6.8 | 6.7-6.5 | 9,3-9,2 | 8,6 | 10,0-10,8 |
| Out of town [l] | 5,4 | 5,5-5,1 | 5.7-5.3 | 6,7-6,6 | 6,6 | 7,0-7,1 |
| Combined [l] | 6,1 | 6,0-5,7 | 6.1-5.7 | 7,7-7,6 | 7,3 | 8,1-8,3 |
| CO2 emissions [g/km] | 137 | 137-131 | 139-131 | 175-172 | 165 | 185-190 |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1570 | 1567-1575 | 1602 | 1735 | 1740 | 1755 |
| Overall weight [kg] | 2210 | 2100-2110 | 2150 | 2360 | 2290 | 2320-2360 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800-2000 | 750/1800 | 750/2000 | 750/2300-2500 | 750/2200-2500 | 750/2300-2500 |
| Maximum front/rear axle load [kg] | 1070/1190 | 1070/1080 | 1120/1080 | 1180/1230 | 1170/1170 | 1190-1200/1170-1220 1200/1170 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 760 | 760 | 760 | 760 | 760 | 760 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- |
| Boot length [mm] | 1046 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Boot length with rear seats folded [mm] | 1921 | 1921 | 1921 | 1921 | 1921 | 1921 |
| Boot width between wheels/max [mm] | 1002/- | 1002/- | 1002/- | 1002/- | 1002/- | 1002/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2097 | 2097 | 2097 | 2097 | 2097 | 2097 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4701 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Wheelbase [mm] | 2787 | 2787 | 2787 | 2787 | 2787 | 2787 |
| Front wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Rear wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 201 | 201 | 201 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16,9 | 16,9 | 16,9 | 16,9 | 16,9 | 16,9 |
| Approach angle rear [°] | 14,5 | 14,5 | 14,5 | 14,5 | 14,5 | 14,5 |
| Transition angle [°] | 14,9 | 14,9 | 14,9 | 14,9 | 14,9 | 14,9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2018 | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-2500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 185 | 204 | 202 | 201 | 200 | 212 |
| Acceleration 0–100 km/h [s] | 10,9 | 9,3 | 9,3 | 9,3 | 9,4 | 7,9 |
| Acceleration 0–80 km/h [s] | 7,2 | 6,7 | 6,7 | 6,7 | 6,3 | 5,3 |
| Acceleration 80–120 km/h [s] | 9,0 (11,5 (4th/5th gear) | 7,5 (10,0 (4th/5th gear) | - | 7,5 (10,0 (4th/5th gear) | - | - |
| City [l] | 5,8-5,4 | 5,8-5,6 | 5,7-5,4 | 6,7-6,4 | 6,8-6,0 | 6,5 |
| Out of town [l] | 4,3-4,2 | 4.3-4.2 | 4.7-4,5 | 5,0-4,8 | 5,1-5,0 | 5,1-5,2 |
| Combined [l] | 4,8-4,7 | 4.8-4,7 | 5.0-4,9 | 5,6-5,4 | 5,7-5,3 | 5,6-5,7 |
| CO2 emissions [g/km] | 125-122 | 125-123 | 131-128 | 146-141 | 149-140 | 147-149 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1574-1600 | 1574-1605 | 1615-1645 | 1665 | 1700-1725 | 1735-1755 |
| Overall weight [kg] | 2050-2190 | 2200-2210 | 2230-2250 | 2310 | 2320-2340 | 2340-2350 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/2000 | 750/2200-2500 | 750/2200-2500 | 750/2200-2500 |
| Maximum front/rear axle load [kg] | 1110-1130/970-1130 | 1120-1140/1050-1120 | 1150-1160/1130-1140 | 1170/1120 | 1180-1190/1190 | 1200-1220/1120-1180 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 615 | 615 | 615 | 615 | 615 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 |
| Boot length [mm] | 977 | 977 | 977 | 985 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2096 | 2096 | 2096 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 60 | 60 | 60 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4486 | 4486 | 4486 | 4486 | 4486 | 4486 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1654 | 1654 | 1654 | 1673 | 1673 | 1673 |
| Wheelbase [mm] | 2677 | 2677 | 2677 | 2677 | 2677 | 2677 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1566 | 1566 | 1566 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 191 | 191 | 191 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.1 | 16.1 | 16.1 | 17.0 | 17.0 | 17.0 |
| Approach angle rear [°] | 16.0 | 16.0 | 16.0 | 15.9 | 15.9 | 15.9 |
| Transition angle [°] | 14.5 | 14.5 | 14.5 | 14.9 | 14.9 | 14.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1049 | 1049 | 1049 | 1049 | 1049 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 4MOTION | 2.0 TDI Allspace | 2.0 TDI Allspace | 2.0 TDI Allspace 4MOTION | 2.0 TDI Allspace 4MOTION | 2.0 TDI Allspace 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2017 to | from 2017 to | from 2017 to 2018 | from 2017 to | from 2017 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 176/4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 500/1750-2500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,8:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 230 | 202 | 200 | 199 | 198 | 210 |
| Acceleration 0–100 km/h [s] | 6,2 | 9.7-9,8 | 9,7-9,8 | 9,9 | 9.7-9,9 | 8,2-8,6 |
| Acceleration 0–80 km/h [s] | 4,2 | 7,2 | 6,8 | 7,3 | 6,8 | 5,9 |
| Acceleration 80–120 km/h [s] | - | 8,0 (10,5 (4th/5th gear) | - | 8,0 (10,5 (4th/5th gear) | - | - |
| City [l] | 7,1-7,5 | 5,9-5,7 | 6,0-5,4 | 6,8-6,7 | 6,8-6,2 | 6,7-6,9 |
| Out of town [l] | 5,6-5,7 | 4,5-4,3 | 4,6-4,7 | 5,1-5,0 | 5,3-5,1 | 5,2-5,3 |
| Combined [l] | 6,2-6,4 | 5,0-4,9 | 5,1-4,9 | 5,7-5,6 | 5,9-5,5 | 5,8-5,9 |
| CO2 emissions [g/km] | 162-167 | 131-128 | 132-129 | 150-147 | 153-143 | 153 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1810-1815 | 1660-1680 | 1695-1710 | 1735 | 1775-1790 | 1805 |
| Overall weight [kg] | 2360 | 2230-2290 | 2270-2320 | 2360 | 2360-2520 | 2400-2420 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300-2500 | 750/2000 | 750/2000 | 750/2300-2500 | 750/2300-2500 | 750/2400-2500 |
| Maximum front/rear axle load [kg] | 1220-1230/1180 | 1150/1130-1190 | 1180/1190 | 1180/1230 | 1200/1250-1370 | 1220/1230-1250 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 760 | 760 | 760 | 760 | 760 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- |
| Boot length [mm] | 985 | 1046 | 1046 | 1046 | 1046 | 1046 |
| Boot length with rear seats folded [mm] | 1746 | 1921 | 1921 | 1921 | 1921 | 1921 |
| Boot width between wheels/max [mm] | 1004/- | 1002/- | 1002/- | 1002/- | 1002/- | 1002/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2096 | 2097 | 2097 | 2097 | 2097 | 2097 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 58 | 58 | 60 | 60 | 60 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 235/55 R18 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 235/55 R18 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4486 | 4701 | 4701 | 4701 | 4701 | 4701 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1673 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Wheelbase [mm] | 2677 | 2787 | 2787 | 2787 | 2787 | 2787 |
| Front wheel track [mm] | 1576 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Rear wheel track [mm] | 1566 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 201 | 201 | 201 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.0 | 16,9 | 16,9 | 16,9 | 16,9 | 16,9 |
| Approach angle rear [°] | 15.9 | 14,5 | 14,5 | 14,5 | 14,5 | 14,5 |
| Transition angle [°] | 14.9 | 14,9 | 14,9 | 14,9 | 14,9 | 14,9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Headroom rear [mm] | 1012 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI Allspace 4MOTION | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 176/4000 | |||||
| Maximum torque [Nm/min-1] | 500/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 228 | |||||
| Acceleration 0–100 km/h [s] | 6,7-6,8 | |||||
| Acceleration 0–80 km/h [s] | 4,7 | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,4-7,7 | |||||
| Out of town [l] | 5,8 | |||||
| Combined [l] | 6,4-6,5 | |||||
| CO2 emissions [g/km] | 167-170 | |||||
| Emission standard | EU6 - Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1880 | |||||
| Overall weight [kg] | 2410-2430 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2400-2500 | |||||
| Maximum front/rear axle load [kg] | 1230/1230-1250 | |||||
| Maximum vertical load on the tow bar [kg] | 100 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 760 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1920 [- | |||||
| Boot length [mm] | 1046 | |||||
| Boot length with rear seats folded [mm] | 1921 | |||||
| Boot width between wheels/max [mm] | 1002/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 2097 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | 12 | |||||
| Air resistance [Cd] | 0.35 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 235/55 R18 | |||||
| Tyre dimensions rear | 235/55 R18 | |||||
| Wheel size front | 7.0J x 18 | |||||
| Wheel size rear | 7.0J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11,9/- | |||||
| Overall length [mm] | 4701 | |||||
| Overall width without/including mirrors [mm] | 1839/2099 | |||||
| Overall height [mm] | 1674 | |||||
| Wheelbase [mm] | 2787 | |||||
| Front wheel track [mm] | 1575 | |||||
| Rear wheel track [mm] | 1564 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 201 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 16,9 | |||||
| Approach angle rear [°] | 14,5 | |||||
| Transition angle [°] | 14,9 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1054 | |||||
| Headroom rear [mm] | 1002 | |||||
| Front elbow/shoulder width [mm] | 1503/- | |||||
| Rear elbow/shoulder width [mm] | 1503/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
