Volkswagen Polo

Date of manufacture

2021 – to this day (Five-door hatchback)

Platform

Volkswagen Group MQB A0

Manufacturing locations

Pamplona, Spain

São Bernardo do Campo, Brazil

Shanghai, People's Republic of China

Designer

Klaus Bishoff

Car body style

Five-door hatchback

after upgrade (facelift)

Date of manufacture

2021 – to this day

Internal designation

Engine size

Euro NCAP

Technical data

Five-door hatchback

	1.0	1.0 TSI	1.0 TSI	1.0 TSI	2.0 TSI GTI	1.0 TGI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	3/12	3/12	3/12	3/12	4/16	3/12
Engine displacement [cm³]	999	999	999	999	1984	999
Maximum output / speed [kW/min-1]	59	70/5000-5500	70/5000-5500	81/5500	152	66/4500-5800
Maximum torque [Nm/min-1]	93/3700-3900	175/1600-3500	175/2000-3500	200/2000-3000	320/1500-4500	160/1800-3800
Bore and stroke [mm x mm]	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	82,5 x 92,8	74,5 x 76,4
Compression ratio	10,5:1	10,5:1	10,5:1	11.5:1	9,6:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift Gasoline Particulate Filter start&stop system brake energy recuperation	combustion of petrol or CNG direct injection turbo-supercharged variable timing of intake and exhaust valves Particle filter for diesel engines (only models that comply with Euro 6d-TEMP) start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	7 gear automatic	7 gear automatic	5 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	dual-clutch automatic gearbox DSG	seven-speed dual-clutch automatic gearbox DSG	-

Top speed [km/h]	171	187	187	195	240	183
Acceleration 0–100 km/h [s]	15.5	10.8	11.3	10.4	6.5	12.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.8	5.7	5.6	5.3	7.4	4.1 kg
Out of town [l]	4.2	4.0	4.0	4.3	4.7-4.6	2.8 kg
Combined [l]	4.8	4.6	4.6	4.7	5.7-5.6	3.3 kg
CO2 emissions [g/km]	109	106	105	107	131-128	91

Low speed [l]	6.5	6.7	7.2	7.4	9.6-9.3	4.9 kg
Medium speed [l]	5.2	5.1	5.5	5.5	7.1-6.8	3.6 kg
High speed [l]	5.0	4.5	4.8	4.8	6.1-5.9	3.2 kg
Extra high speed [l]	6.0	5.4	5.6	5.5	6.9-6.6	3.7 kg
Combined speed [l]	5.6	5.2	5.5	5.5	7.1-6.8	3.7 kg
CO2 emissions [g/km]	127	119	126	125	161-154	101

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1132	1172	1204	1207	1361	1305
Overall weight [kg]	1540	1620	1650	1660	1800	1680
Maximum trailer weight unbraked/braked [kg]	560/800	580/1000	600/1000	600/1100	680/1200	-
Maximum front/rear axle load [kg]	840/750	870/800	900/800	910/800	1000/850	860/870
Maximum vertical load on the tow bar [kg]	50	50	50	50	50	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	351	351	351	351	305	251
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1125	-/1125	-/1125	-/1125	-/1079	-/1025
Boot length [mm]	706	706	706	706	706	706
Boot length with rear seats folded [mm]	1380	1380	1380	1380	1432	1380
Boot width between wheels/max [mm]	-/1002	-/1002	-/1002	-/1002	-/1002	-/1002
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	1989	1989	1989	1989	1981	1989
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	40	40	40	40	40	9 [10.6 kg]
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	185/70 R14	185/65 R15	185/65 R15	185/65 R15	215/45 R17	185/65 R15
Tyre dimensions rear	185/70 R14	185/65 R15	185/65 R15	185/65 R15	215/45 R17	185/65 R15
Wheel size front	5.0J x 14	5.5J x 15	5.5J x 15	5.5J x 15	7.5J x 17	5.5J x 15
Wheel size rear	5.0J x 14	5.5J x 15	5.5J x 15	5.5J x 15	7.5J x 17	5.5J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-	10.6/-

Overall length [mm]	4074	4074	4074	4074	4074	4074
Overall width without/including mirrors [mm]	1751/1964	1751/1964	1751/1964	1751/1964	1751/1964	1751/1964
Overall height [mm]	1451	1451	1451	1451	1431	1435
Wheelbase [mm]	2552	2552	2552	2552	2549	2555
Front wheel track [mm]	1500	1500	1500	1500	1501	1508
Rear wheel track [mm]	1509	1509	1509	1509	1496	1510
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1019	1019	1019	1019	1019	1019
Headroom rear [mm]	964	964	964	964	964	964
Front elbow/shoulder width [mm]	1446/-	1446/-	1446/-	1446/-	1446/-	1446/-
Rear elbow/shoulder width [mm]	1425/-	1425/-	1425/-	1425/-	1425/-	1425/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

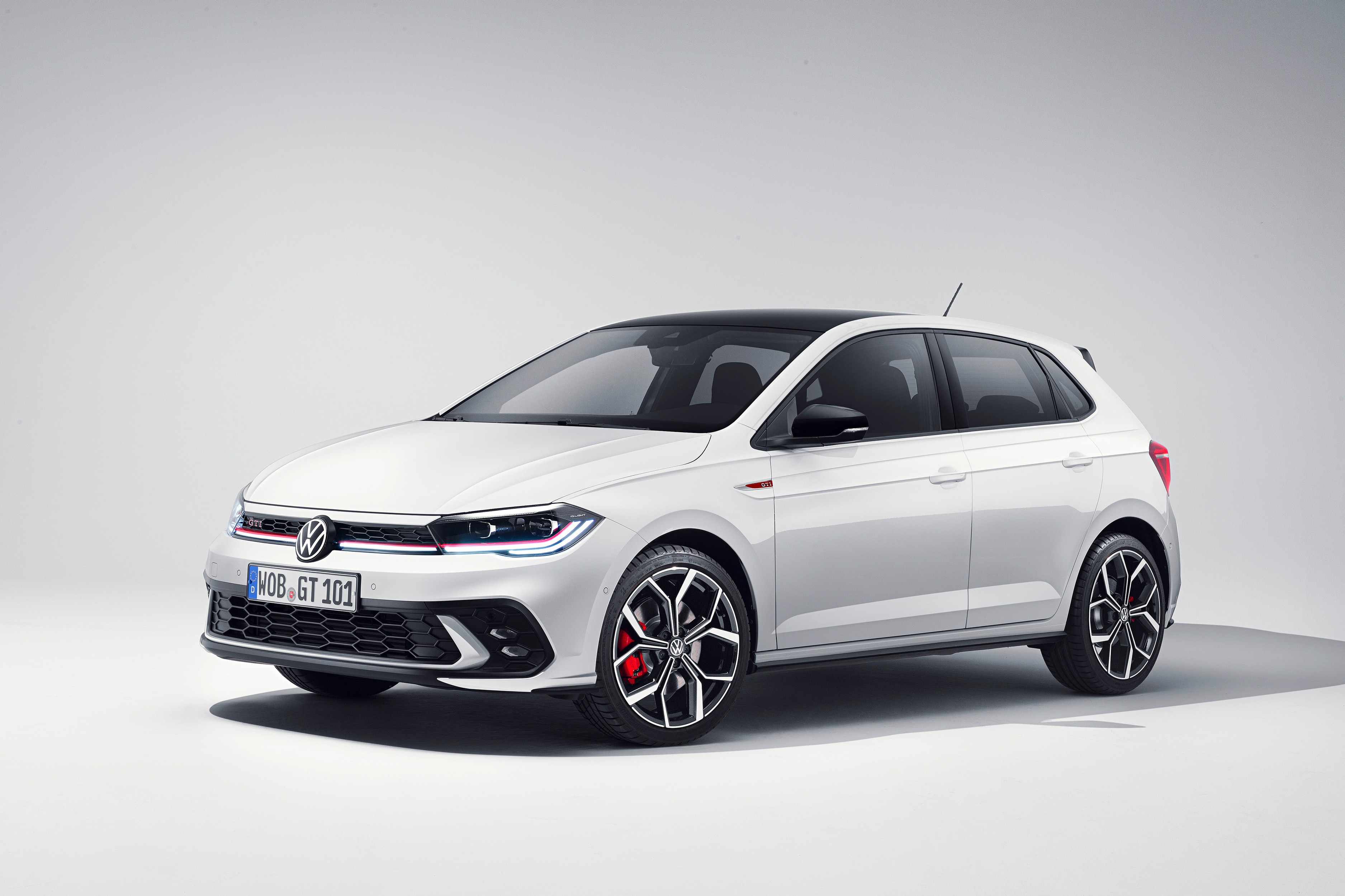

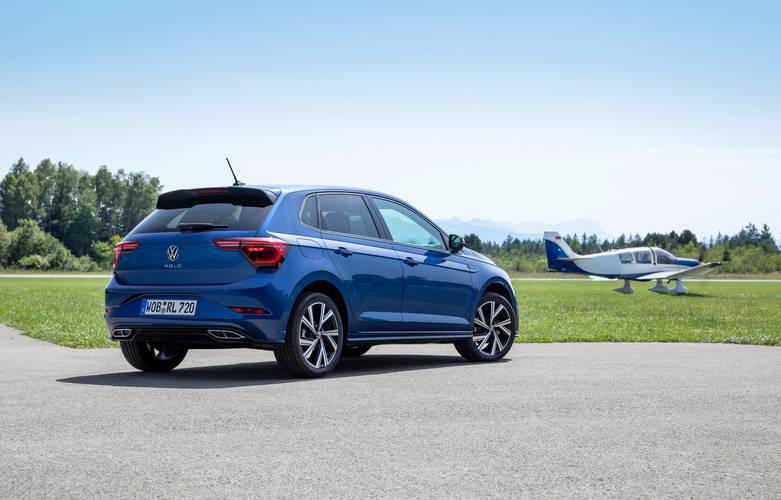

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
