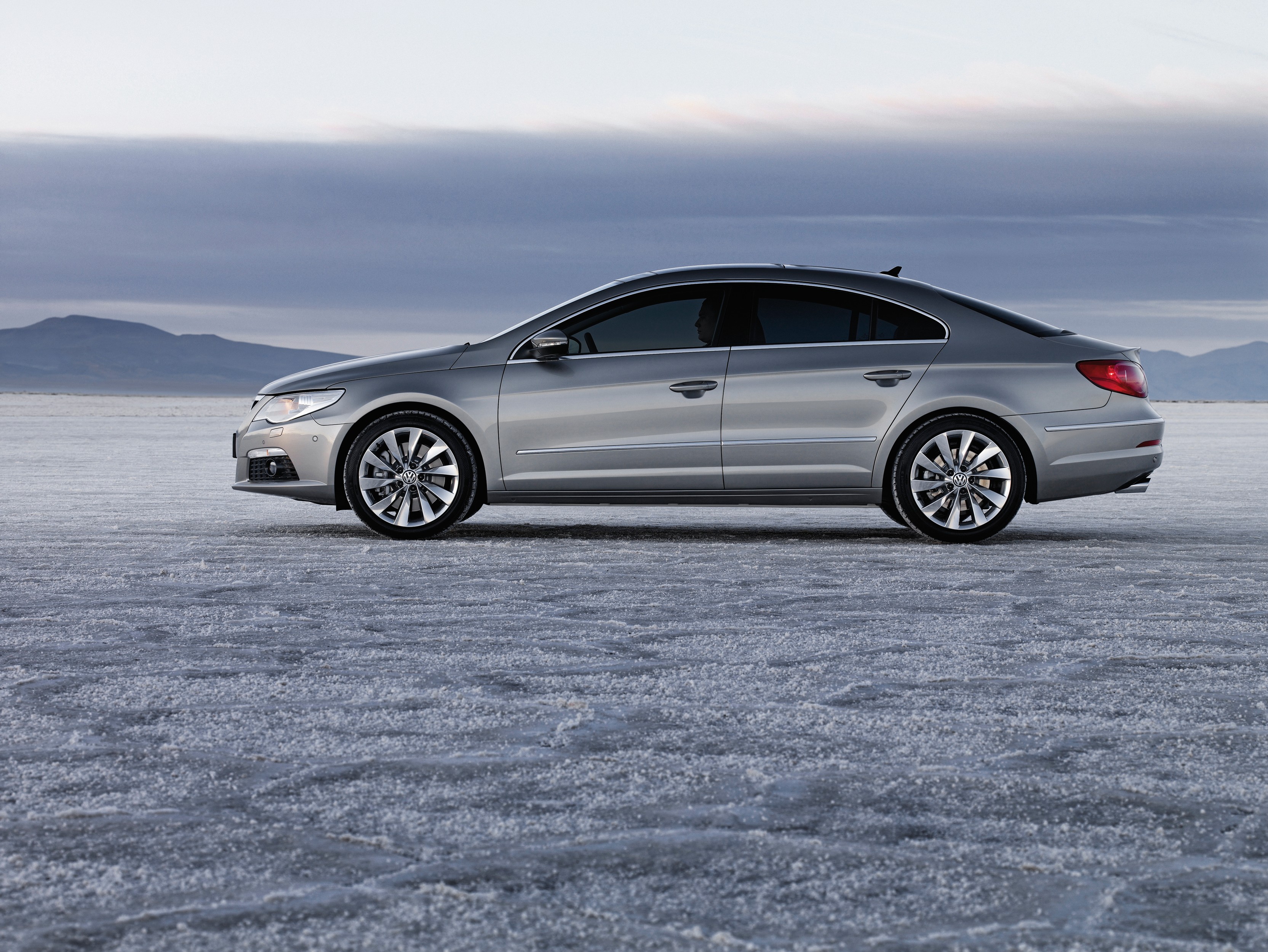

Volkswagen Passat CC
Date of manufacture
2008 – 12/2011 (Sedan)
Platform
Volkswagen Group B
Manufacturing locations
Emden, Germany
Changchun, People's Republic of China
Kaluga, Russia
Designer
Oliver Stefan
Tags
D-segment
German cars
The Volkswagen Passat CC has been produced since 2008 in three countries - Germany, China and Russia. It is built on the Volkswagen Group B platform and offers petrol and diesel engines. The most powerful model is the R36 3.6 FSI 4MOTION with a maximum speed of 250 km/h. The most economical engine is the 2.0 TDI BMT with a consumption of 4.7 l/100 km and CO2 emissions of 125 g/km. The trunk volume reaches 532 liters.
Car body style
Sedan
Date of manufacture
2008 – 12/2011Internal designation
-Technical data
Sedan
| 1.8 TSI | 1.8 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2010 | from to 2010 | - | from 2010 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1798 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/5000 | 118/5000 | 147/5500 | 147/5500 | 147/5500 | 155/5300-6200 |
| Maximum torque [Nm/min-1] | 250/1500 | 250/1500 | 280/1800 | 280/1800 | 280/1800 | 280/1700-5200 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 222 | 220 | 237 | 232 | 235 | 240 |
| Acceleration 0–100 km/h [s] | 8,6 | 8,5 | 7,6 | 7,8 | 7,7 | 7.6 |
| Acceleration 0–80 km/h [s] | 6.0 | 6.0 | - | - | - | 5.4 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,5-10,4 | 9.6-9,8 | 10,8-11,0 | 12,1 | 11,0 | 10.1 |
| Out of town [l] | 5,5-6,0 | 5.6-5,8 | 6,1 | 6,4 | 6,0 | 5.6 |
| Combined [l] | 7,1-7,6 | 7.2-7,3 | 7,9 | 8,5 | 7,9 | 7.3 |
| CO2 emissions [g/km] | 165-180 | 167-169 | 183-186 | 199 | 184 | 171 |
| Emission standard | EU4 - EU5 | EU4 - EU5 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1513 | 1511 | 1529 | 1533 | 1513 |
| Overall weight [kg] | 1950 | 1960 | 1990 | 2000 | 2000 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | - | - | - | 750/1600 |
| Maximum front/rear axle load [kg] | 1060/950 | 1080/950 | - | - | - | 1070/960 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 532 | 532 | 532 | 532 | 532 | 532 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1184 | 1184 | 1184 | 1184 | 1184 | 1184 |
| Boot length with rear seats folded [mm] | 1949 | 1949 | 1949 | 1949 | 1949 | 1949 |
| Boot width between wheels/max [mm] | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 |
| Boot height to headliner/ceiling [mm] | -/450 | -/450 | -/450 | -/450 | -/450 | -/450 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Tyre dimensions rear | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4799 | 4799 | 4799 | 4799 | 4799 | - |
| Overall width without/including mirrors [mm] | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 |
| Overall height [mm] | 1417 | 1417 | 1417 | 1417 | 1417 | - |
| Wheelbase [mm] | 2711 | 2711 | 2711 | 2711 | 2711 | - |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | - |
| Rear wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
| Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Transition angle [°] | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1461/- | 1247/- | 1247/- | 1247/- | 1247/- | 1247/- |
| Rear elbow/shoulder width [mm] | 1497/- | 1261/- | 1261/- | 1261/- | 1261/- | 1261/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | R36 3.6 FSI 4MOTION | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | - | from to 2010 | from to 2010 | from to 2010 | from 2010 to |
| Engine type | Ignition supercharged | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 3597 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 155/5300-6200 | 220/6600 | 103/4000 | 103/4000 | 103/4200 | 103/4000 |
| Maximum torque [Nm/min-1] | 280/1700-5200 | 350/2400-5300 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 89,0 x 96,4 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | - | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 238 | 250 | 213 | 210 | 209 | 213 |
| Acceleration 0–100 km/h [s] | 7.6 | 5,6 | 9,8 | 9,8 | 10,2 | 9.8 |
| Acceleration 0–80 km/h [s] | 5.4 | - | - | - | - | 6.9 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.0 | 12.4-15,1 | 7,2-7,5 | 7,8-8,1 | 7,9 | 5.7 |
| Out of town [l] | 6.0 | 7,3-7.4 | 4,6-4,8 | 5,0-5,1 | 4,9 | 4.3 |
| Combined [l] | 7.8 | 9,3-10,1 | 5,6-5,8 | 6,0-6,2 | 6,0 | 4.7 |
| CO2 emissions [g/km] | 182 | 215-242 | 146-153 | 158-163 | 158 | 125 |
| Emission standard | EU5 | EU4 - EU5 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1535 | 1702 | 1541 | 1560 | 1631 | 1550 |
| Overall weight [kg] | 1990 | 2210 | 1960 | 1980 | 2080 | 1970 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | - | - | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/950 | - | - | - | - | 1080/940 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 532 | 532 | 532 | 532 | 532 | 532 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1184 | 1184 | 1184 | 1184 | 1184 | 1184 |
| Boot length with rear seats folded [mm] | 1949 | 1949 | 1949 | 1949 | 1949 | 1949 |
| Boot width between wheels/max [mm] | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 |
| Boot height to headliner/ceiling [mm] | -/450 | -/450 | -/450 | -/450 | -/450 | -/450 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | 70 | 70 | 70 | 70 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | - | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Tyre dimensions rear | - | 235/45 R17 | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | - | 4799 | 4799 | 4799 | 4799 | - |
| Overall width without/including mirrors [mm] | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 |
| Overall height [mm] | - | 1417 | 1417 | 1417 | 1417 | - |
| Wheelbase [mm] | - | 2711 | 2711 | 2711 | 2711 | - |
| Front wheel track [mm] | - | 1552 | 1552 | 1552 | 1552 | - |
| Rear wheel track [mm] | - | 1559 | 1559 | 1559 | 1559 | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
| Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Transition angle [°] | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1247/- | 1247/- | 1247/- | 1247/- | 1247/- | 1247/- |
| Rear elbow/shoulder width [mm] | 1261/- | 1261/- | 1261/- | 1261/- | 1261/- | 1261/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | from 2010 to | from to 2010 | from to 2010 | from to 2010 | from 2010 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4000 | 103/4200 | 125/4200 | 125/4200 | 125/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 213 | 210 | 227 | 224 | 220 | 227 |
| Acceleration 0–100 km/h [s] | 9.8 | 9.9 | 8,6 | 8,6 | 8,6 | 8.6 |
| Acceleration 0–80 km/h [s] | 6.9 | 6.5 | - | - | - | 6.2 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 6.5 | 7,4-7,7 | 7,8 | 8,0 | 5.8 |
| Out of town [l] | 4.7 | 4.9 | 4,6-4,8 | 5,1 | 5,5 | 4.4 |
| Combined [l] | 5.3 | 5.5 | 5,6-5,8 | 6,1 | 6,4 | 4.9 |
| CO2 emissions [g/km] | 139 | 143 | 146-153 | 159 | 168 | 129 |
| Emission standard | EU5 | EU5 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1564 | 1640 | 1548 | 1566 | 1627 | 1557 |
| Overall weight [kg] | 1990 | 2060 | 1970 | 1990 | 2090 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | - | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | 1100/940 | 1120/990 | - | - | - | 1080/920 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 532 | 532 | 532 | 532 | 532 | 532 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1184 | 1184 | 1184 | 1184 | 1184 | 1184 |
| Boot length with rear seats folded [mm] | 1949 | 1949 | 1949 | 1949 | 1949 | 1949 |
| Boot width between wheels/max [mm] | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 | 996/1200 |
| Boot height to headliner/ceiling [mm] | -/450 | -/450 | -/450 | -/450 | -/450 | -/450 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1792 | 1792 | 1792 | 1792 | 1792 | 1792 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | 70 | 70 | 70 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | - | - | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Tyre dimensions rear | - | - | 235/45 R17 | 235/45 R17 | 235/45 R17 | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | - | - | 4799 | 4799 | 4799 | - |
| Overall width without/including mirrors [mm] | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 | 1855/2090 |
| Overall height [mm] | - | - | 1417 | 1417 | 1417 | - |
| Wheelbase [mm] | - | - | 2711 | 2711 | 2711 | - |
| Front wheel track [mm] | - | - | 1552 | 1552 | 1552 | - |
| Rear wheel track [mm] | - | - | 1559 | 1559 | 1559 | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 | 136-104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
| Approach angle rear [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Transition angle [°] | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 949 | 949 | 949 | 949 | 949 | 949 |
| Headroom rear [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Front elbow/shoulder width [mm] | 1247/- | 1247/- | 1247/- | 1247/- | 1247/- | 1247/- |
| Rear elbow/shoulder width [mm] | 1261/- | 1261/- | 1261/- | 1261/- | 1261/- | 1261/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | from 2010 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | ||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 6 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 224 | 220 | ||||
| Acceleration 0–100 km/h [s] | 8.6 | 8.5 | ||||
| Acceleration 0–80 km/h [s] | 6.2 | 5.8 | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.6 | 7.0 | ||||
| Out of town [l] | 4.9 | 5.2 | ||||
| Combined [l] | 5.5 | 5.9 | ||||
| CO2 emissions [g/km] | 144 | 154 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1581 | 1627 | ||||
| Overall weight [kg] | 1970 | 2090 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | 1100/920 | 1140/1000 | ||||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 532 | 532 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | 1184 | 1184 | ||||
| Boot length with rear seats folded [mm] | 1949 | 1949 | ||||
| Boot width between wheels/max [mm] | 996/1200 | 996/1200 | ||||
| Boot height to headliner/ceiling [mm] | -/450 | -/450 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 1792 | 1792 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | - | - | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | four-link | four-link | ||||
| Tyre dimensions front | - | - | ||||
| Tyre dimensions rear | - | - | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | ||||
| Overall length [mm] | - | - | ||||
| Overall width without/including mirrors [mm] | 1855/2090 | 1855/2090 | ||||
| Overall height [mm] | - | - | ||||
| Wheelbase [mm] | - | - | ||||
| Front wheel track [mm] | - | - | ||||
| Rear wheel track [mm] | - | - | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 136-104 | 136-104 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 13.0 | 13.0 | ||||
| Approach angle rear [°] | 12.6 | 12.6 | ||||
| Transition angle [°] | 10.0 | 10.0 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 949 | 949 | ||||
| Headroom rear [mm] | 930 | 930 | ||||
| Front elbow/shoulder width [mm] | 1247/- | 1247/- | ||||
| Rear elbow/shoulder width [mm] | 1261/- | 1261/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

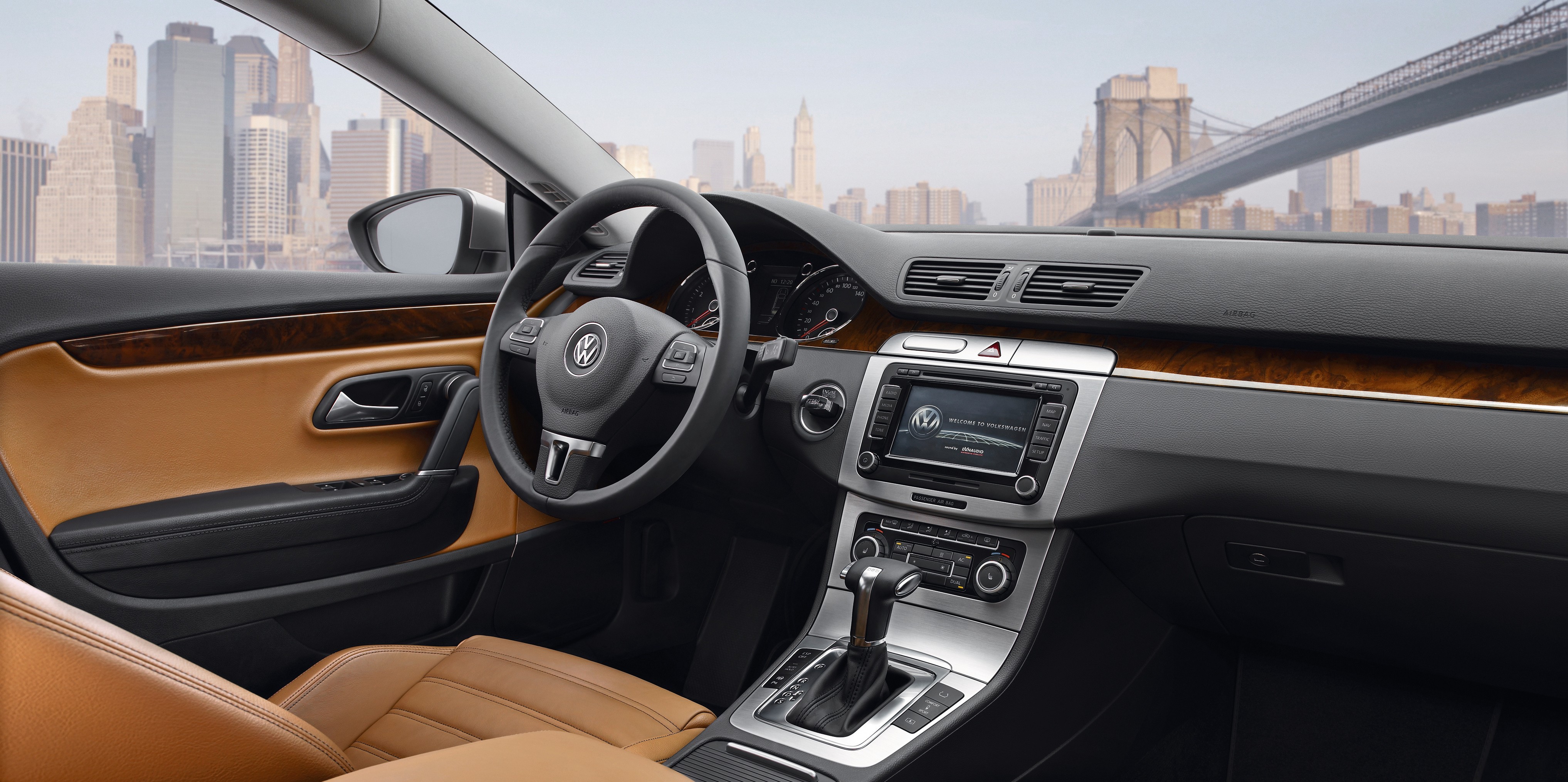

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
