Volkswagen Passat
Date of manufacture
2014 – 2019 (Sedan)
2014 – 2019 (Estate)
Platform
Volkswagen Group MQB
Manufacturing locations
Emden, Germany
Zwickau, Germany
Changchun, People's Republic of China
Designer
Philipp Römers
Tags
D-segment
German cars
The Volkswagen Passat has been manufactured since 2014 and can be purchased in two body styles - sedan or estate. The model has a country of origin as Germany but also the People's Republic of China. It is built on the Volkswagen Group MQB platform and offers petrol, diesel and hybrid engines. The most powerful version 2.0 TSI 4MOTION reaches 206 kW and is the fastest with a top speed of 250 km/h. The most economical model 1.4 TSI GTE with a consumption of 1.7 l/100 km has a boot capacity of 650 liters for the estate and 586 liters for the sedan. In 2014, the Passat was tested in the EURONCAP safety area and achieved a rating of 5 out of 5 points.
Car body style
Sedan
Date of manufacture
2014 – 2019Internal designation

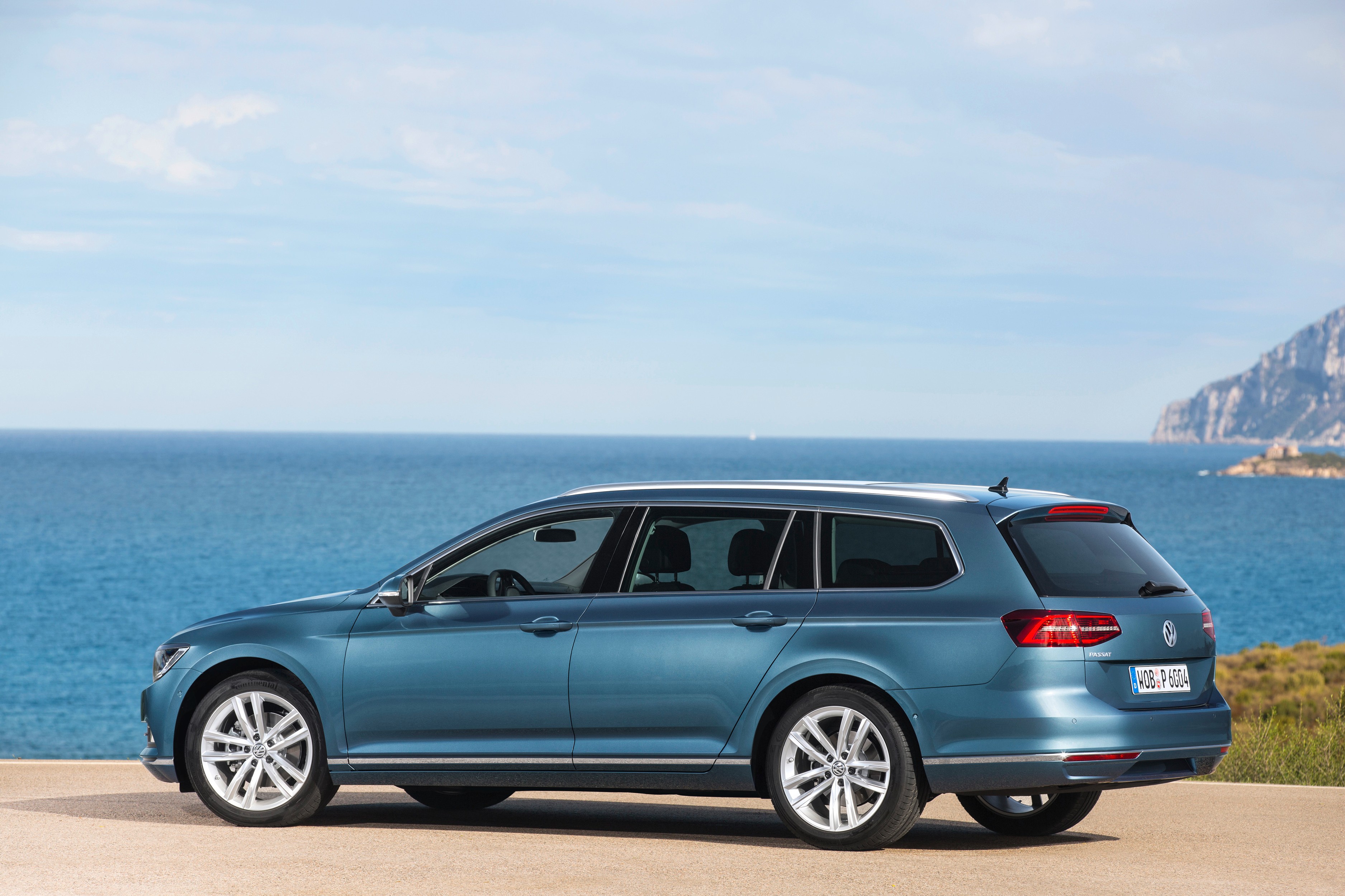

B8Estate (Variant)
Date of manufacture
2014 – 2019Internal designation
B8Engine size
PetrolPetrol + Electric
Technical data
Sedan
| 1.4 TSI | 1.4 TSI ACT BMT | 1.4 TSI ACT BMT | 1.5 TSI ACT | 1.5 TSI ACT | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1498 | 1498 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 250/1500-3000 | 250/1500-3000 | 250/1500-3500 | 250/1500-3500 | 250/1250-5000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | - | - | 10,5:1 | 10,5:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 208 | 220 | 220 | 213 | 213 | 232 |
| Acceleration 0–100 km/h [s] | 9,7 | 8,4 | 6,0 | 8.6 | 8.6 | 7,9 |
| Acceleration 0–80 km/h [s] | 6,5 | 6,1 | - | 6.5 | 6.5 | 5,8 |
| Acceleration 80–120 km/h [s] | 8.5 (10.5 (4th/5th gear) | 7.5 (9.5 (4th/5th gear) | - | 8.5 (10.5 (4th/5th gear) | - | - |
| City [l] | 6,9-6,8 | 6,1-6,0 | 6,3 | 6.6-6.5 | 6.7 | 7,2 |
| Out of town [l] | 4,6-4,4 | 4,4-4,3 | 4,5-4,4 | 4.6-4.4 | 4.6-4.5 | 5,2-5,1 |
| Combined [l] | 5,4-5,3 | 5,0-4,9 | 5,1 | 5.3-5.1 | 5.4-5.3 | 5,9 |
| CO2 emissions [g/km] | 126-123 | 116-115 | 118-117 | 121-117 | 123-121 | 136-135 |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1367 | 1387 | 1413 | 1405 | 1420 | 1480 |
| Overall weight [kg] | 1910 | 1940 | 1970 | 1980 | 1990 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 680/1500 | 690/1600 | 700/1600 | 700/1600 | 710/1600 | 740/1800 |
| Maximum front/rear axle load [kg] | 960/1000 | 980/1010 | 1000/1020 | 1000/1030 | 1010/1030 | 1050/1030 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 586 | 586 | 586 | 586 | 586 | 586 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | 1194 | 1194 |
| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | 2052 | 2052 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI 4MOTION | 1.4 TSI GTE | 1.6 TDI | 1.6 TDI | 1.6 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2017 | from 2015 to | from to 2018 | from to 2018 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1395 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 206/5600-6500 | 110/5000-6000 combustion 85/2500 el. 160 total | 88/3600-4000 | 88/3600-4000 | 88/3600-4000 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1500-4400 | 250/1500-3000 combustion 400 total | 250/1750-3500 | 250/1750-3500 | 250/1750-3500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,3:1 | 10,5:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 246 | 250 | 225 | 206 | 206 | 210 |
| Acceleration 0–100 km/h [s] | 6,7 | 5.5 | 7.4 | 10,8 | 10,8 | 10,8 |
| Acceleration 0–80 km/h [s] | 5,2 | 4.1 | 4.9 | 7,3 | 7,3 | 7,3 |
| Acceleration 80–120 km/h [s] | - | - | - | 8.5 (12.0 (4th/5th gear) | - | 9.0 (12.5 (4th/5th gear) |
| City [l] | 7,9 | 9.0-8.9 | - | 4,9-4,7 | 4,7-4,6 | 4,3 |
| Out of town [l] | 5,4 | 6.2-6.1 | - | 3,8-3,6 | 4,0-3,8 | 3,3 |
| Combined [l] | 6,3 | 7.2-7.1 | 1.8-1.7 [13.7-13.2 kWh] | 4,2-4,0 | 4,2-4,1 | 3,7 |
| CO2 emissions [g/km] | 146-145 | 159 | 40-38 | 109-105 | 107-104 | 95 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 9.9 kWh | - | - | - |
| Range with fully charged battery [km] | - | - | 50 [NEDC] | - | - | - |
| Charging time | - | - |
| - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1615 | 1722 | 1444 | 1459 | 1474 |
| Overall weight [kg] | 2080 | 2220 | 2200 | 1990 | 2000 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/1600 | 720/1500 | 750/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | 1060/1070 | 1110/1160 | 1110/1140 | 1060/980 | 1070/980 | 1030/1040 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 586 | 586 | 402 | 586 | 586 | 586 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/968 | -/1152 | -/1152 | -/1152 |
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | 1194 | 1194 |
| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | 2052 | 2052 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 50 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | 13-16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1456 | 1456 | 1476 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2017 | from 2018 to | from to 2017 | from to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 88/3600-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 206 | 220 | 218 | 218 | 213 | 235 |
| Acceleration 0–100 km/h [s] | 10.8 | 8,7 | 8.7 | 8.7 | 8.9 | 7,7 |
| Acceleration 0–80 km/h [s] | 7.3 | 6,3 | 6,3 | 6,3 | 6.4 | 5,8 |
| Acceleration 80–120 km/h [s] | - | 7.0 (9.0 (4th/5th gear) | - | - | 8.0 (10.0 (4th/5th gear) | - |
| City [l] | 4.8 | 5,1-5,0 | 5.4-5.3 | 5,3-5,1 | 5.8-5.7 | 5.4 |
| Out of town [l] | 3.9-3.8 | 3,8-3,7 | 4.2-4.1 | 4,1-3,9 | 4.2-4.1 | 4.1-4.0 |
| Combined [l] | 4.2-4.1 | 4,3-4,2 | 4.6-4.5 | 4,5-4,3 | 4.8-4.7 | 4.6-4.5 |
| CO2 emissions [g/km] | 109-107 | 112-109 | 121-118 | 118-113 | 126-123 | 118-119 |
| Emission standard | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480 | 1503 | 1501 | 1544 | 1631 | 1549 |
| Overall weight [kg] | 2040 | 2050 | 2040 | 2110 | 2220 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 740/1500 | 750/1800 | 750/2000 | 750/1800 | 750/2200 | 750/2000 |
| Maximum front/rear axle load [kg] | 1070/1020 | 1070/1030 | 1090/1000 | 1110/1050 | 1090/1180 | 1110/1060 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 586 | 586 | 586 | 586 | 586 | 586 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | 1194 | 1194 |
| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | 2052 | 2052 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from to 2017 | from 2017 to | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 | 176/4000 | ||
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 500/1750-2500 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | ||
| Compression ratio | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 6 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 229 | 230 | 224 | 240 | ||
| Acceleration 0–100 km/h [s] | 7,7 | 7,5 | 7,5 | 6,1 | ||
| Acceleration 0–80 km/h [s] | 5,8 | 5,4 | 5,4 | 4,2 | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5,4 | 6.0-5.9 | 6,1-6,0 | 6,8 | ||
| Out of town [l] | 4,2-4,1 | 4.4-4.3 | 4,7-4,6 | 5,0 | ||
| Combined [l] | 4,7-4,6 | 5.0-4.9 | 5,2-5,1 | 5,7 | ||
| CO2 emissions [g/km] | 122-120 | 132-131 | 136-134 | 150-149 | ||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1547 | 1614 | 1637 | 1721 | ||
| Overall weight [kg] | 2110 | 2220 | 2250 | 2260 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2200 | 750/2200 | ||
| Maximum front/rear axle load [kg] | 1110/1050 | 1110/1170 | 1140/1160 | 1160/1150 | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | ||
| Boot volume [l] | 586 | 586 | 586 | 586 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/1152 | -/1152 | ||
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | ||
| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | ||
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | ||
| AdBlue tank volume [l] | 13-16 | 13-16 | 13-16 | 13-16 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | ||
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | ||
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | ||
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | ||
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | ||
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | ||
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | ||
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 145 | 145 | 145 | 145 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | ||
| Headroom rear [mm] | 964 | 964 | 964 | 964 | ||
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | ||
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Estate (Variant)
| 1.4 TSI | 1.4 TSI ACT BMT | 1.4 TSI ACT BMT | 1.5 TSI ACT | 1.5 TSI ACT | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1498 | 1498 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 250/1500-3000 | 250/1500-3000 | 250/1500-3500 | 250/1500-3500 | 250/1250-5000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | - | - | 10,5:1 | 10,5:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 206 | 218 | 218 | 213 | 213 | 230 |
| Acceleration 0–100 km/h [s] | 9,9 | 8,6 | 8,6 | 8.8 | 8.8 | 8,1 |
| Acceleration 0–80 km/h [s] | 6,6 | 6,1 | 6,1 | 6.6 | 6.6 | 5,9 |
| Acceleration 80–120 km/h [s] | 9,0 (11,0 (4th/5th gear) | 8,0 (10,0 (4th/5th gear) | - | 9.0 (11.0 (4th/5th gear) | - | - |
| City [l] | 7,0-6,8 | 6,3-6,2 | 6,4-6,3 | 6.7-6.5 | 6.8-6.7 | 7,3 |
| Out of town [l] | 4,6-4,4 | 4,6-4,5 | 4,5-4,4 | 4.8-4.6 | 4.8-4.7 | 5,3-5,2 |
| Combined [l] | 5,5-5,3 | 5,2-5,1 | 5,2-5,1 | 5.5-5.3 | 5.6-5.5 | 6,0 |
| CO2 emissions [g/km] | 127-124 | 120-119 | 120-119 | 124-120 | 126-124 | 137-136 |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1426 | 1451 | 1450 | 1465 | 1505 |
| Overall weight [kg] | 2000 | 2010 | 2050 | 2040 | 2060 | 2090 |
| Maximum trailer weight unbraked/braked [kg] | 690/1500 | 710/1600 | 720/1600 | 720/1600 | 720/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | 970/1080 | 990/1070 | 1020/1080 | 1000/1090 | 1010/1100 | 1040/1100 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2047 | 2047 | 2047 | 2047 | 2047 | 2047 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI Alltrack | 1.4 TSI GTE | 1.6 TDI | 1.6 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2017 | from 2015 to 2018 | from 2015 to | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1395 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 206/5600-6500 | 162/4500-6200 | 110/5000-6000 combustion 85/2500 el. 160 total | 88/3600-4000 | 88/3600-4000 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1500-4400 | 350/1500-4400 | 250/1500-3000 combustion 400 total | 250/1750-3500 | 250/1750-3500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,3:1 | 9,6:1 | 10,5:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 244 | 250 | 231 | 225 | 204 | 204 |
| Acceleration 0–100 km/h [s] | 6,9 | 5,7 | 6,8 | 7.6 | 11,0 | 11.0 |
| Acceleration 0–80 km/h [s] | 5,3 | 4,2 | 4,7 | 5.0 | 7,4 | 7.4 |
| Acceleration 80–120 km/h [s] | - | - | - | - | 9,0 (12,5 (4th/5th gear) | - |
| City [l] | 8,0 | 9,1-9,0 | 8,5 | - | 4,9-4,8 | 4,6-4,5 |
| Out of town [l] | 5,5 | 6,3 | 6,0 | - | 3,8-3,7 | 3,9-3,7 |
| Combined [l] | 6,4 | 7,3 | 6,9 | 1.8-1.7 [13.9-13.4 kWh] | 4,2-4,1 | 4,1-4,0 |
| CO2 emissions [g/km] | 149-148 | 168-167 | 158-157 | - | 110-107 | 107-104 |
| Emission standard | EU6 | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 9.9 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 50 [NEDC] | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1550 | 1674 | 1677 | 1735 | 1485 | 1500 |
| Overall weight [kg] | 2130 | 2250 | 2270 | 2250 | 2060 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2200 | 750/1600 | 740/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1040/1140 | 1100/1200 | 1080/1240 | 1100/1200 | 1040/1070 | 1050/1060 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 639 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1769 | -/1780 | -/1780 | -/1780 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2047 | 2047 | 2076 | 2047 | 2047 | 2047 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 50 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 225/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 225/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 8.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 8.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4777 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1477 | 1477 | 1506 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2791 | 2791 | 2789 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1582 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1565 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 174 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2017 | from 2018 to | from to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 88/3600-4000 | 88/3600-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3500 | 250/1750-3500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 208 | 206 | 218 | 216 | 216 | 213 |
| Acceleration 0–100 km/h [s] | 11,0 | 10.8 | 8,9 | 8.9 | 8.9 | 8.9 |
| Acceleration 0–80 km/h [s] | 7,4 | 7.3 | 6,4 | 6,4 | 6,4 | 6.4 |
| Acceleration 80–120 km/h [s] | 9,5 (13,0 (4th/5th gear) | - | 7,5 (9,5 (4th/5th gear) | - | - | 8.0 (10.0 (4th/5th gear) |
| City [l] | 4,4/ | 4.8 | 5,2-5,1 | 5.6-5.4 | 5,3-5,1 | 5.8-5.7 |
| Out of town [l] | 3,4 | 3.9-3.8 | 3,9-3,8 | 4.4-4.2 | 4,2-4,0 | 4.2-4.1 |
| Combined [l] | 3,8 | 4.2-4.1 | 4,4-4,3 | 4.8-4.6 | 4,6-4,4 | 4.8-4.7 |
| CO2 emissions [g/km] | 96/ | 109-107 | 115-112 | 124-121 | 119-114 | 126-123 |
| Emission standard | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1480 | 1540 | 1541 | 1579 | 1631 |
| Overall weight [kg] | 2070 | 2040 | 2140 | 2130 | 2180 | 2220 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 740/1500 | 750/1800 | 750/2000 | 750/1800 | 750/2200 |
| Maximum front/rear axle load [kg] | 1020/1100 | 1070/1020 | 1070/1120 | 1050/1070 | 1110/1120 | 1090/1180 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2047 | 2047 | 2047 | 2047 | 2047 | 2047 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4767 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2017 to | from to 2017 | from 2017 to | - | from 2015 to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 | 176/4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 500/1750-2500 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 233 | 227 | 228 | 222 | 238 | 205 |
| Acceleration 0–100 km/h [s] | 7,9 | 7,9 | 7,7 | 7,7 | 6,3 | 9,2 |
| Acceleration 0–80 km/h [s] | 5,9 | 5,9 | 5,5 | 5,5 | 4,2 | 6,4 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | 8.0 (10.5 (4th/5th gear) |
| City [l] | 5,4 | 5,4 | 6.1 | 6,1-6,0 | 6,9 | 5,9/ |
| Out of town [l] | 4,1 | 4,2-4,1 | 4.6-4.5 | 4,7-4,6 | 5,1 | 4,3 |
| Combined [l] | 4,6 | 4,7-4,6 | 5.1 | 5,2-5,1 | 5,8 | 4,9 |
| CO2 emissions [g/km] | 120-119 | 122-120 | 135-134 | 137-135 | 152-151 | 130-129/ |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1581 | 1591 | 1674 | 1678 | 1735 | 1670 |
| Overall weight [kg] | 2170 | 2190 | 2240 | 2290 | 2310 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2200 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | 11100/1120 | 1110/1130 | 1120/1170 | 1140/1200 | 1140/1220 | 1100/1210 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 639 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1769 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2047 | 2047 | 2047 | 2047 | 2047 | 2076 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 225/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 8.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 8.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4767 | 4767 | 4767 | 4767 | 4767 | 4777 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1506 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2789 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1582 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1565 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 174 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | ||||
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to 2017 | from 2017 to | from 2015 to | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 140/3500-4000 | 176/4000 | |||
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 500/1750-2500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 15,8:1 | 15,8:1 | 15,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 6 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 220 | 214 | 234 | |||
| Acceleration 0–100 km/h [s] | 8,0 | 8,0 | 6,4 | |||
| Acceleration 0–80 km/h [s] | 5,5 | 5,5 | 4,3 | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6,1-6,0 | 6.2-6.1 | 6,6 | |||
| Out of town [l] | 4,7-4,6 | 4.9-4.8 | 4,9-4,8 | |||
| Combined [l] | 5,2-5,1 | 5.4-5.3 | 5,5 | |||
| CO2 emissions [g/km] | 137-135 | 140-138 | 145-144 | |||
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1705 | 1710 | 1776 | |||
| Overall weight [kg] | 2290 | 2320 | 2360 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | 750/2200 | |||
| Maximum front/rear axle load [kg] | 1120/1220 | 1140/1230 | 1160/1250 | |||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | |||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | |||
| Boot volume [l] | 639 | 639 | 639 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1769 | -/1769 | -/1769 | |||
| Boot length [mm] | 1172 | 1172 | 1172 | |||
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | |||
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 2076 | 2076 | 2076 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 66 | 66 | 66 | |||
| AdBlue tank volume [l] | 13-16 | 13-16 | 13-16 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | |||
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | |||
| Wheel size front | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | |||
| Wheel size rear | 8.0J x 17 | 8.0J x 17 | 8.0J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | |||
| Overall length [mm] | 4777 | 4777 | 4777 | |||
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | |||
| Overall height [mm] | 1506 | 1506 | 1506 | |||
| Wheelbase [mm] | 2789 | 2789 | 2789 | |||
| Front wheel track [mm] | 1582 | 1582 | 1582 | |||
| Rear wheel track [mm] | 1565 | 1565 | 1565 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 174 | 174 | 174 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1031 | 1031 | 1031 | |||
| Headroom rear [mm] | 1007 | 1007 | 1007 | |||
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | |||
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

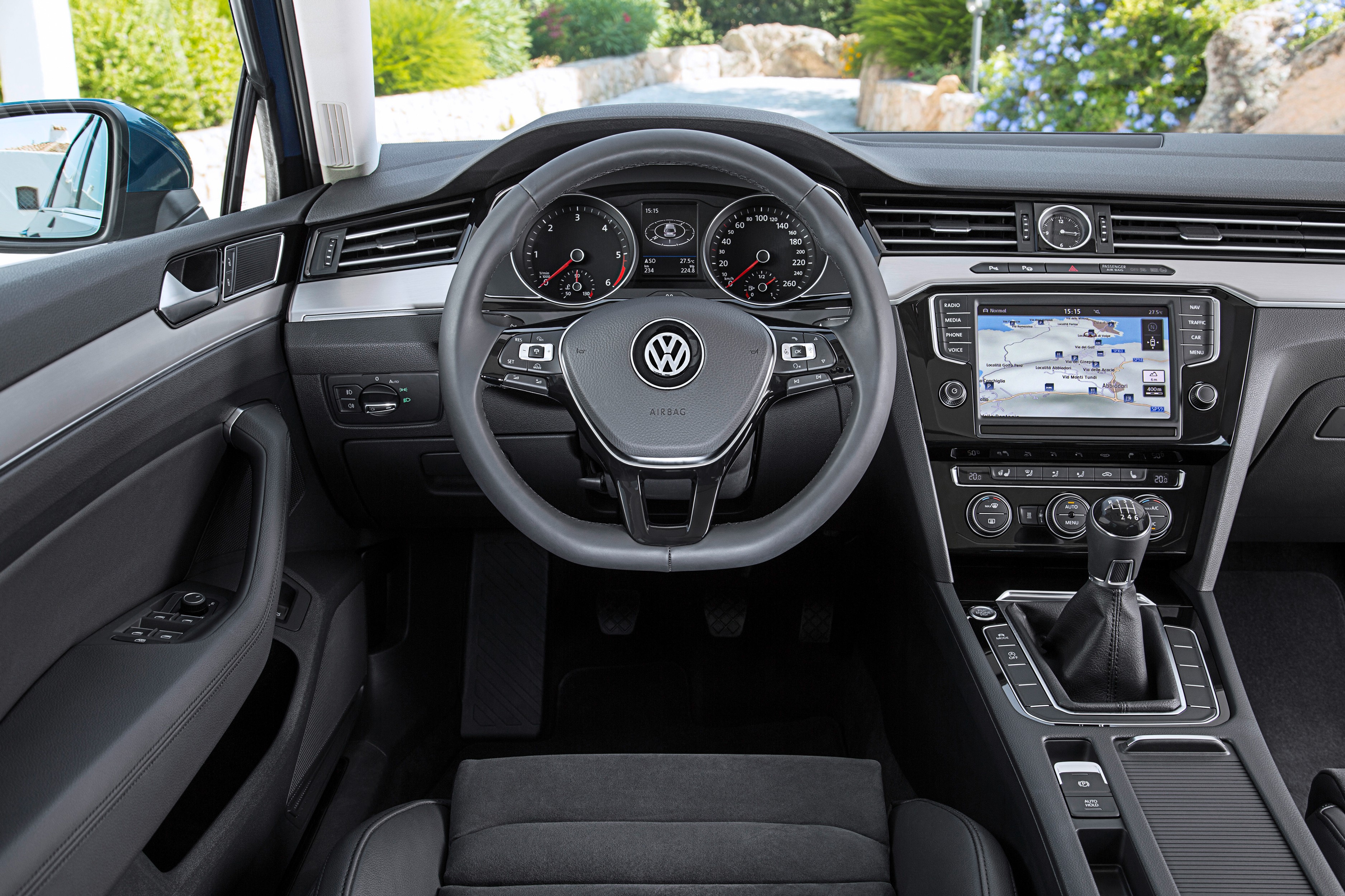

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
