Volkswagen Passat
Date of manufacture
2010 – 2015 (Sedan)
2010 – 2015 (Estate)
Platform
Volkswagen Group A6 PQ46
Manufacturing locations
Emden, Germany
Zwickau, Germany
Kaluga, Russia
Aurangabad, India
Changchun, People's Republic of China
Designer
Klaus Bischoff
Tags
D-segment
German cars
The Volkswagen Passat is available in both sedan and estate variants. The first generation of the car was produced in 2010 and is manufactured in Germany, Russia, India and China. The Volkswagen Group A6 PQ46 chassis provides good driving characteristics and the engine range includes petrol and diesel engines with a maximum power output of 220 kW (R36 3.6 FSI 4MOTION). The top speed of this model is 250 km/h and the most fuel-efficient model is the 1.6 TDI BMT with CO2 emissions of 114 g/km and fuel consumption of 4.3 l/100 km. The boot capacity of the sedan is 565 l and 603 l for the estate. In EURONCAP safety tests, the Volkswagen Passat received a rating of 5 out of 5 according to the 2010 methodology.
Car body style

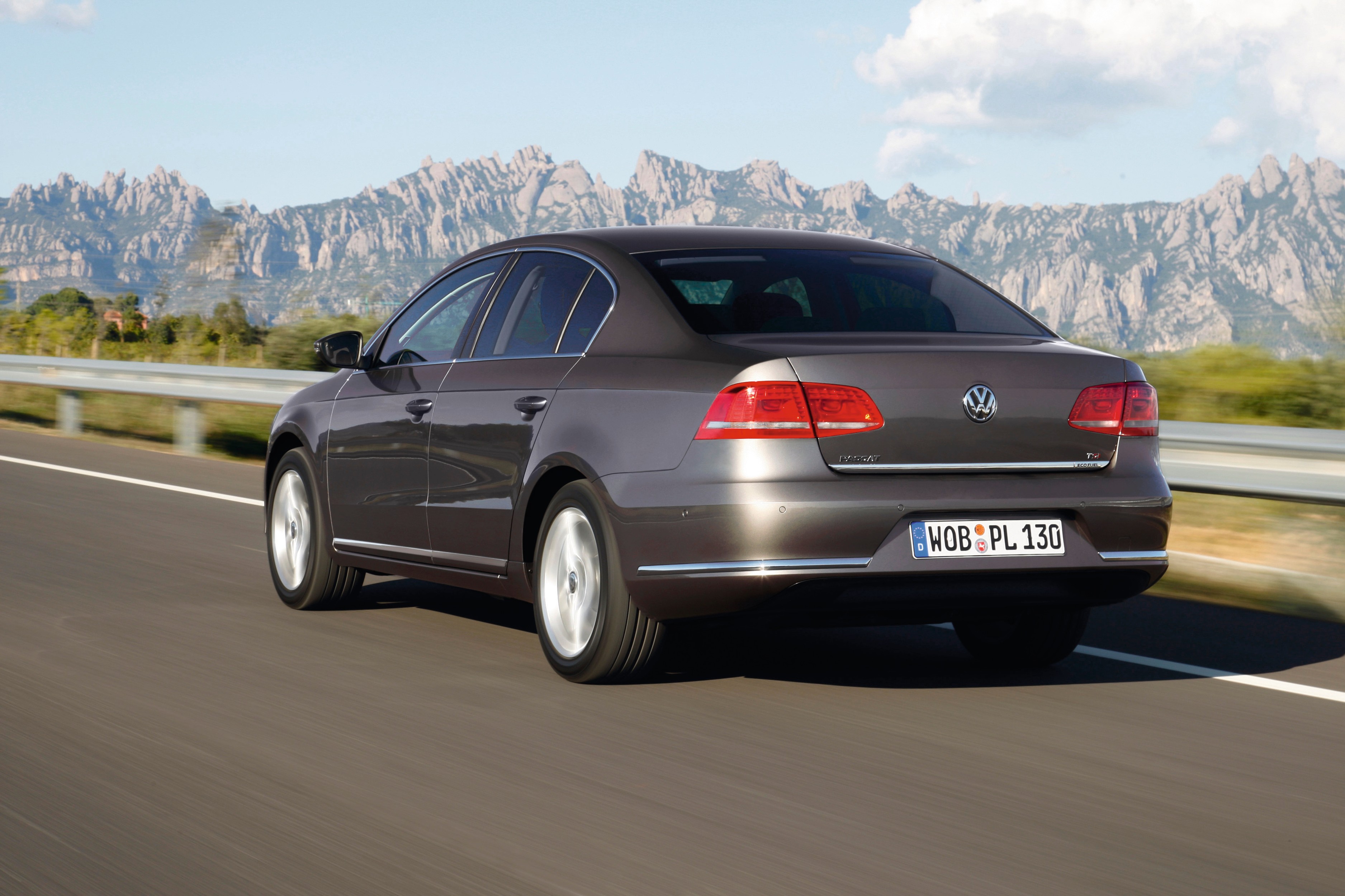

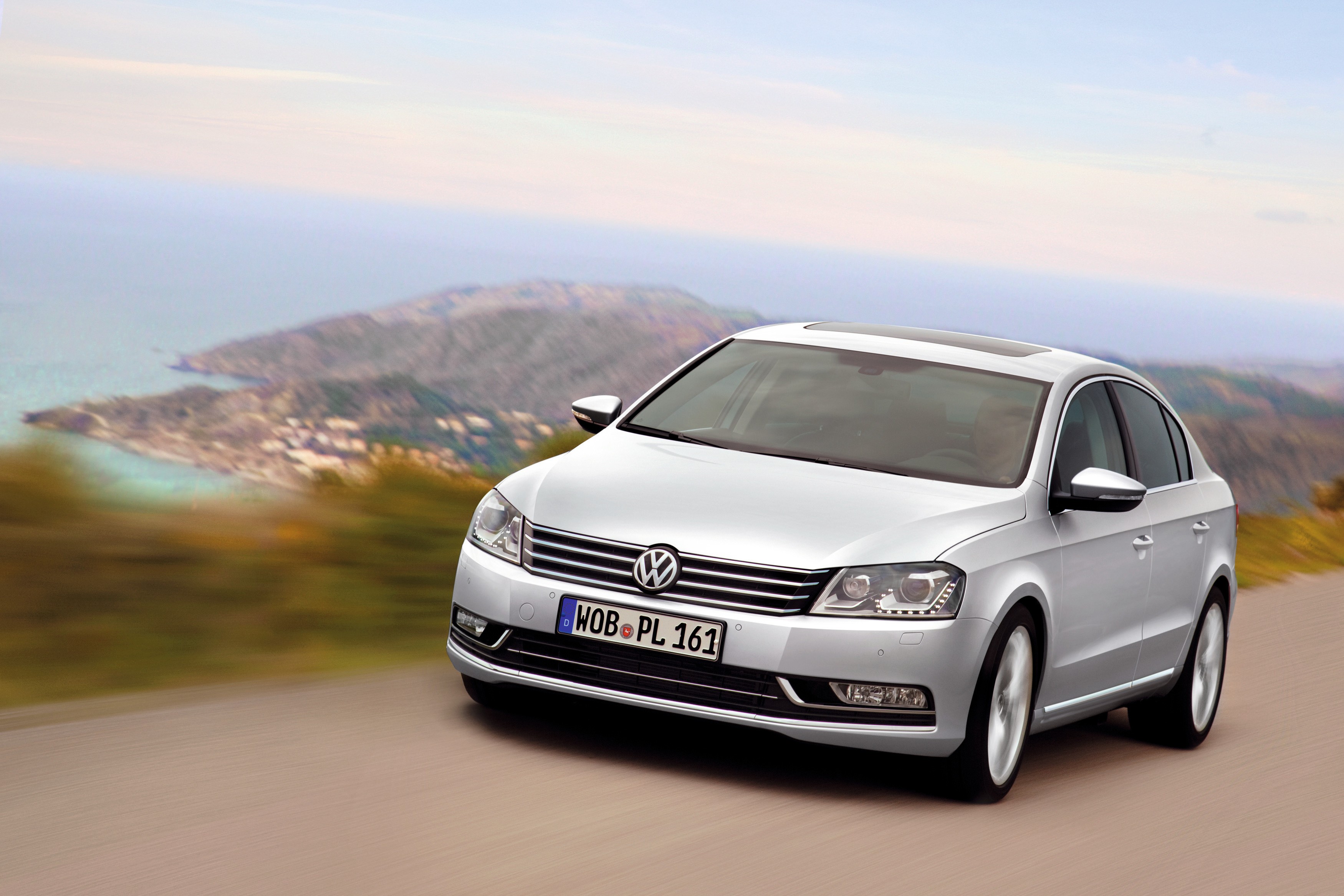

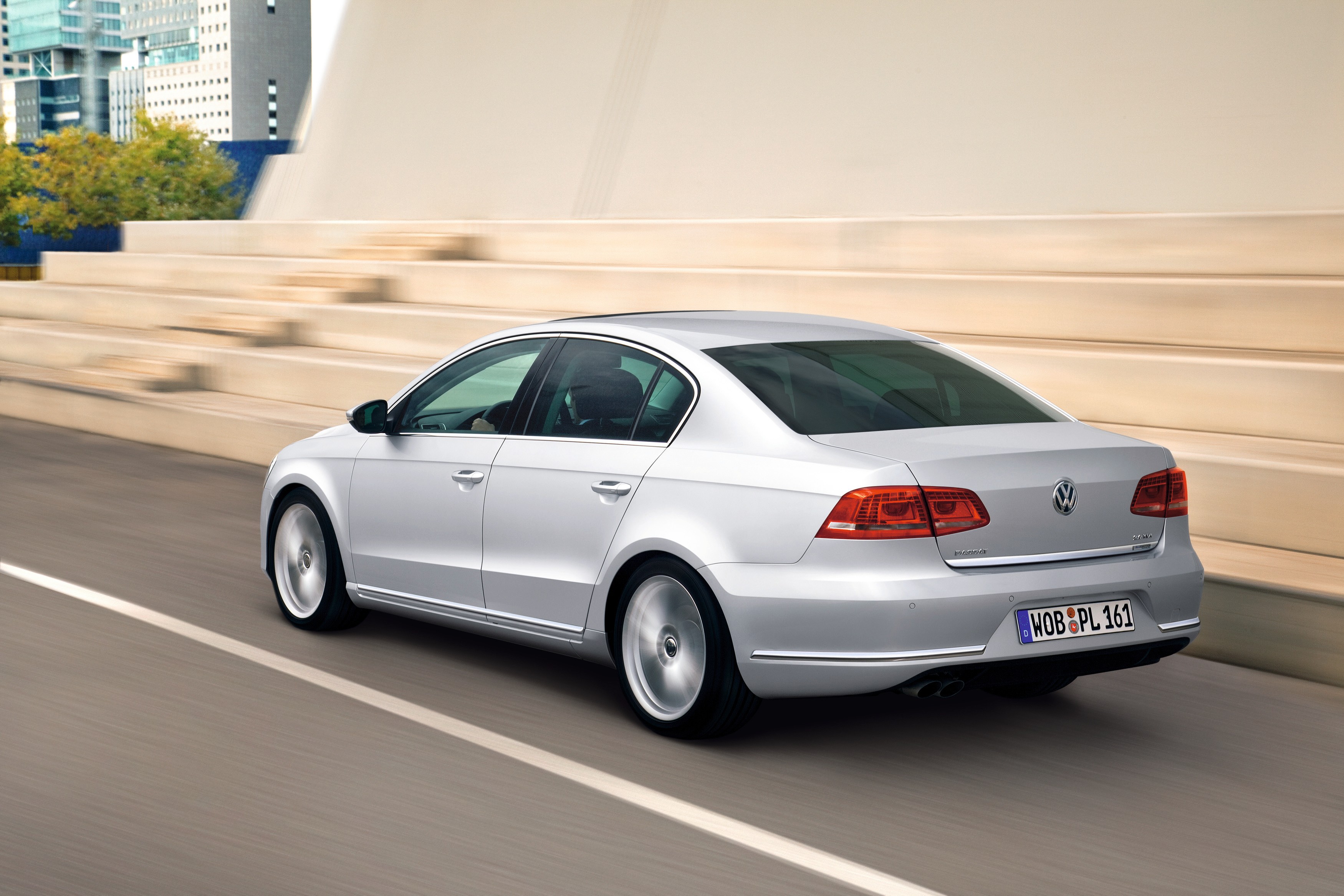

Sedan
after upgrade (facelift)
Date of manufacture
2010 – 2015Internal designation
B6 (B7)Engine size
Petrol
Diesel

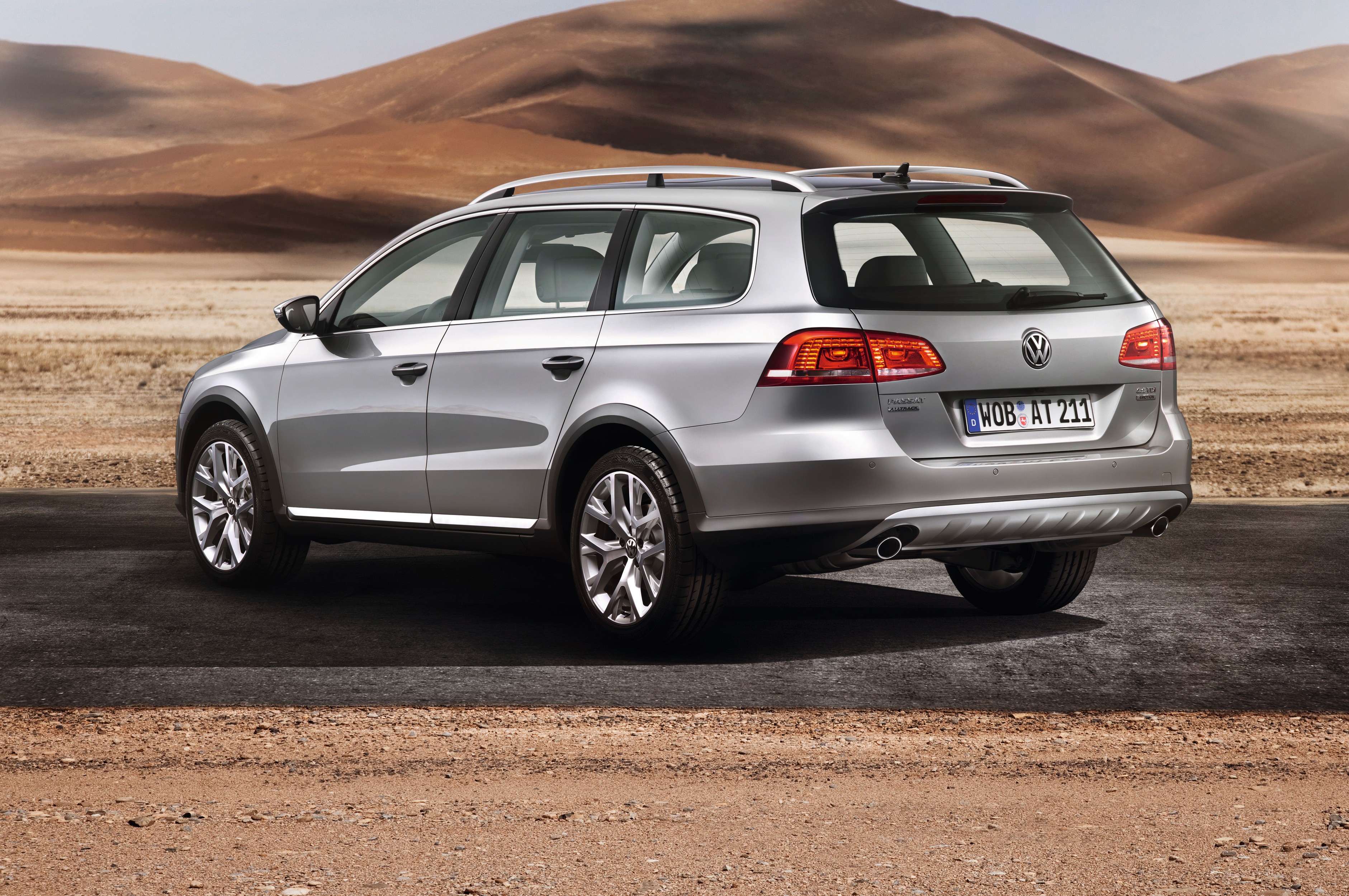

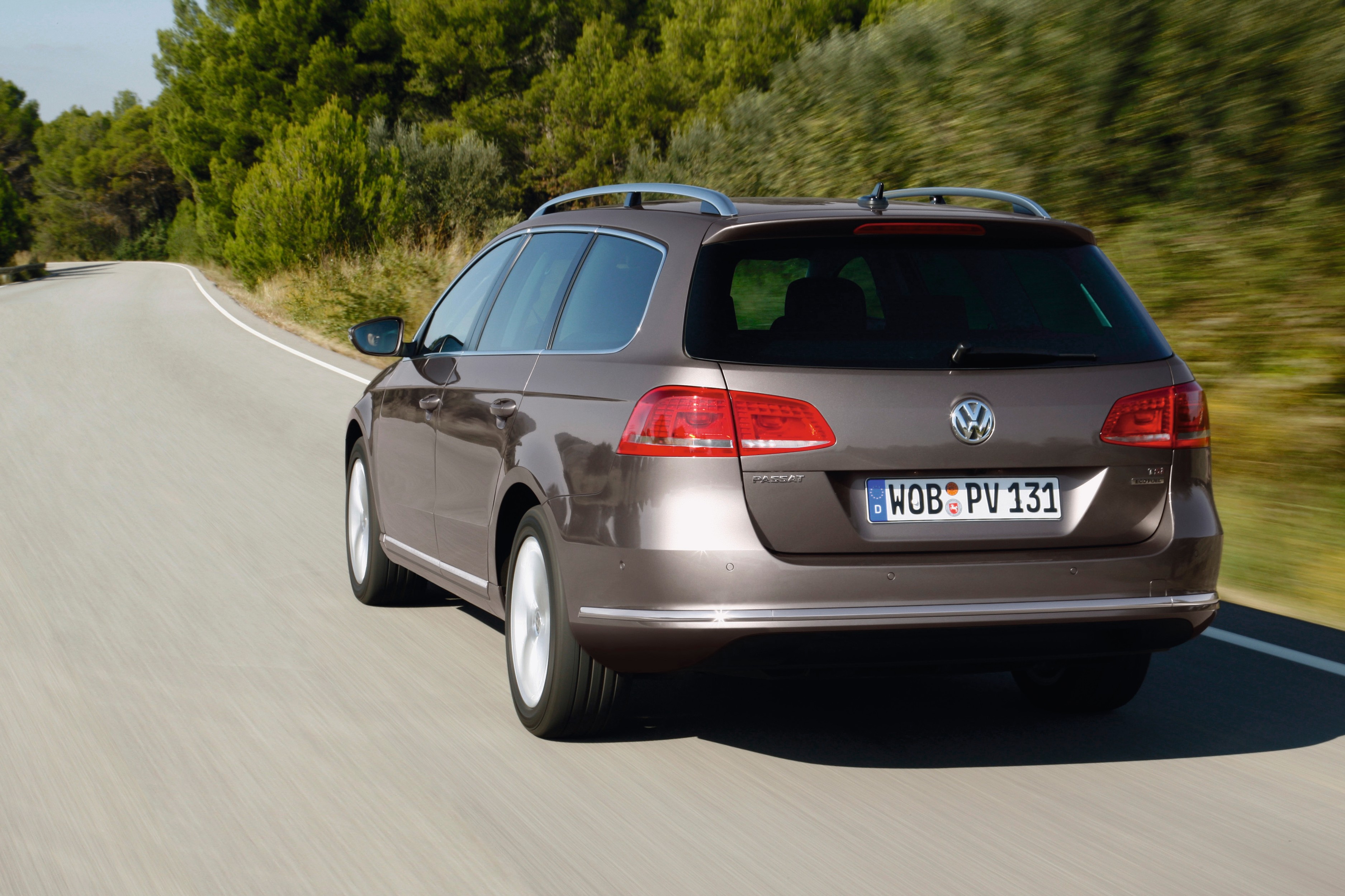

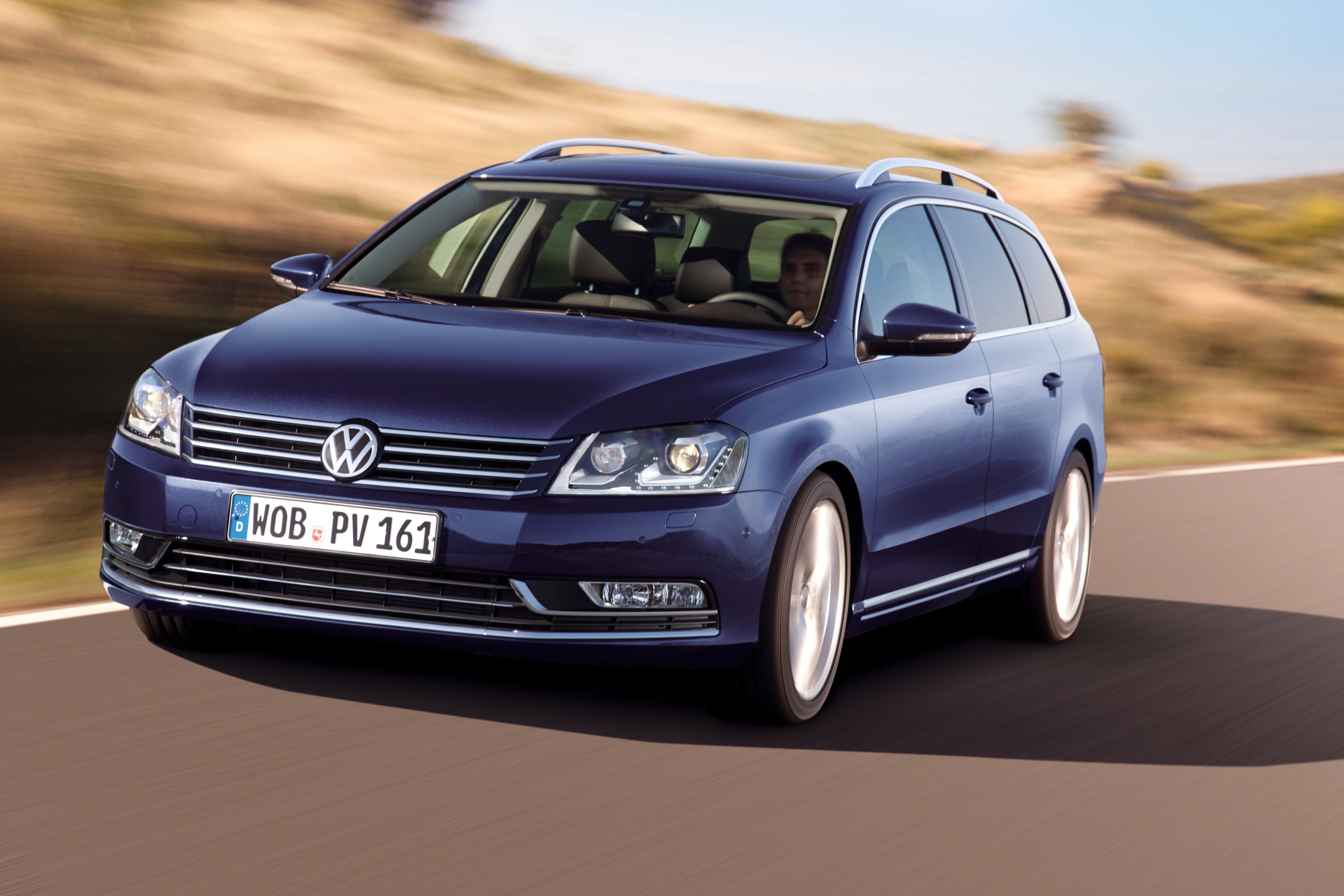

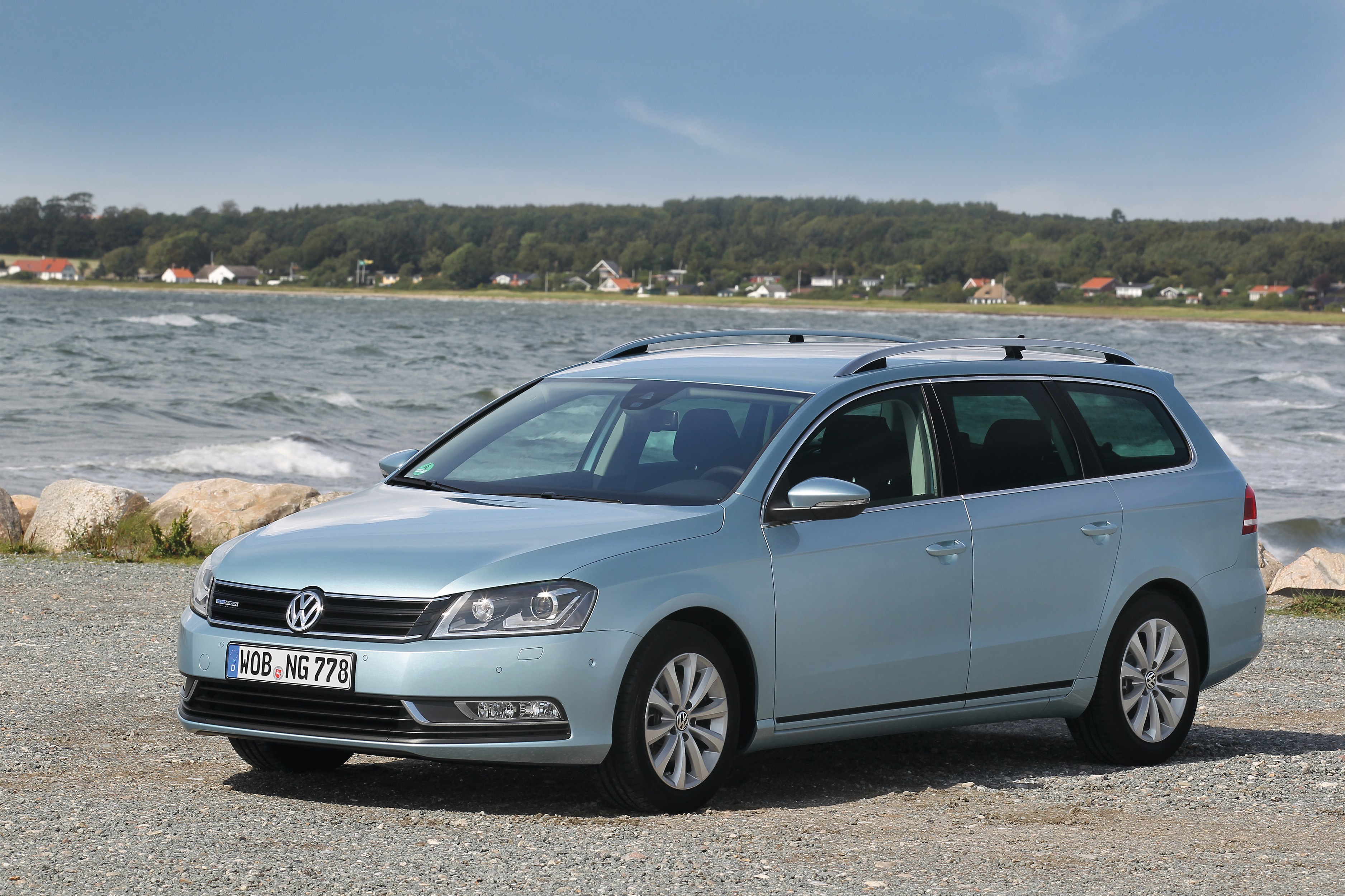

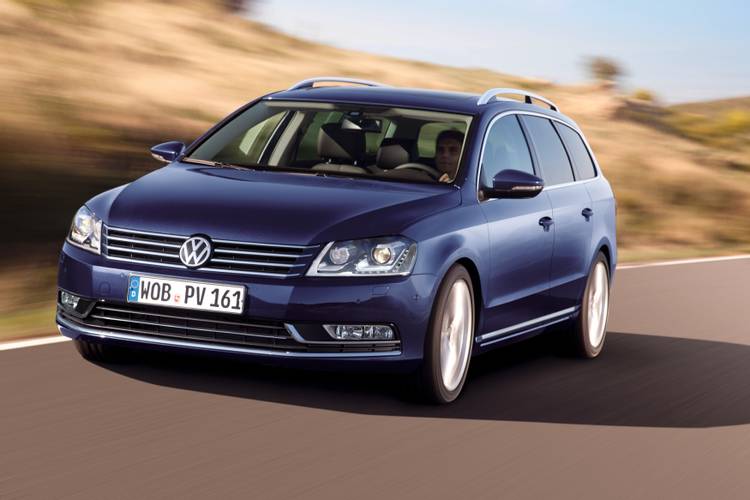

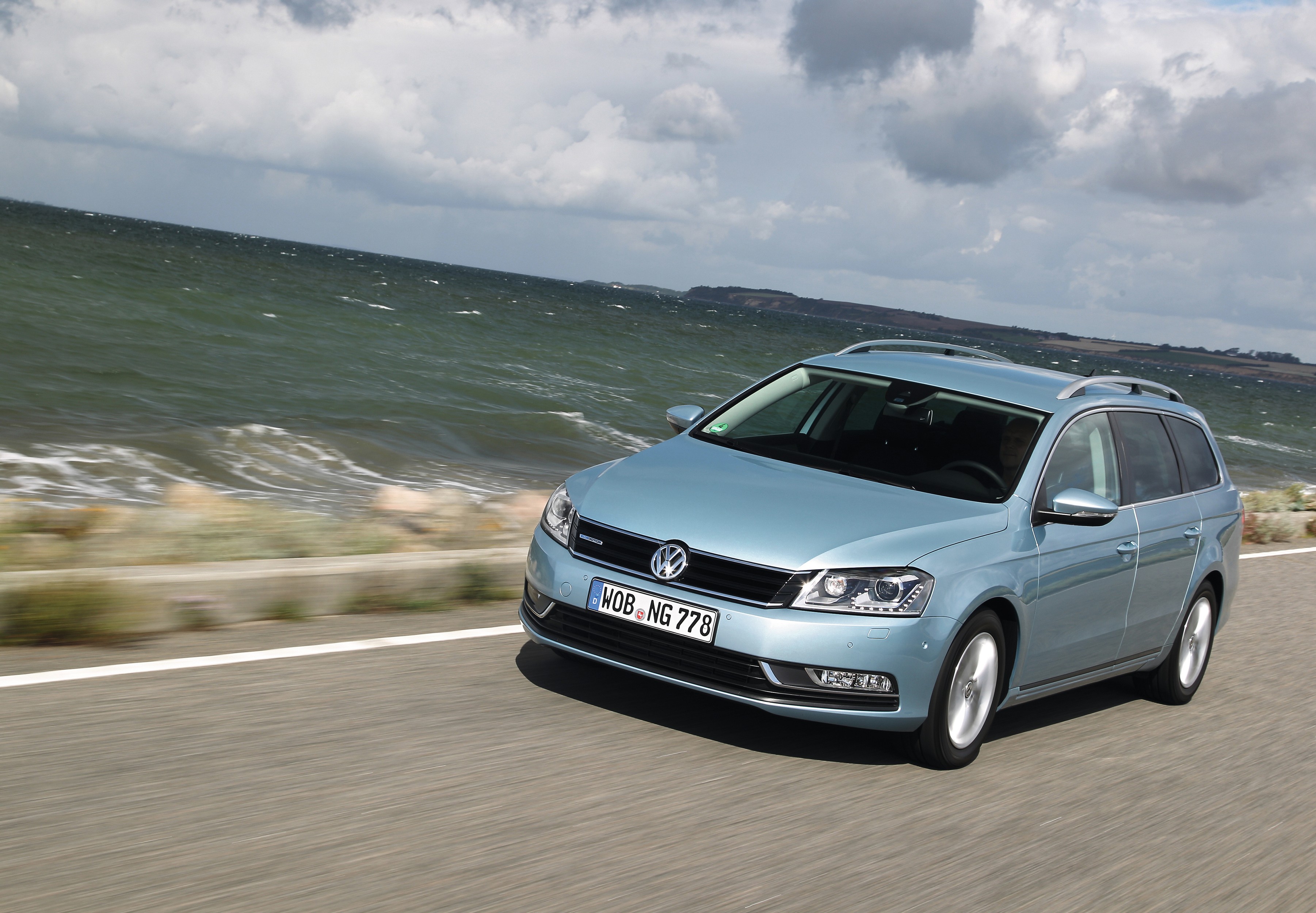

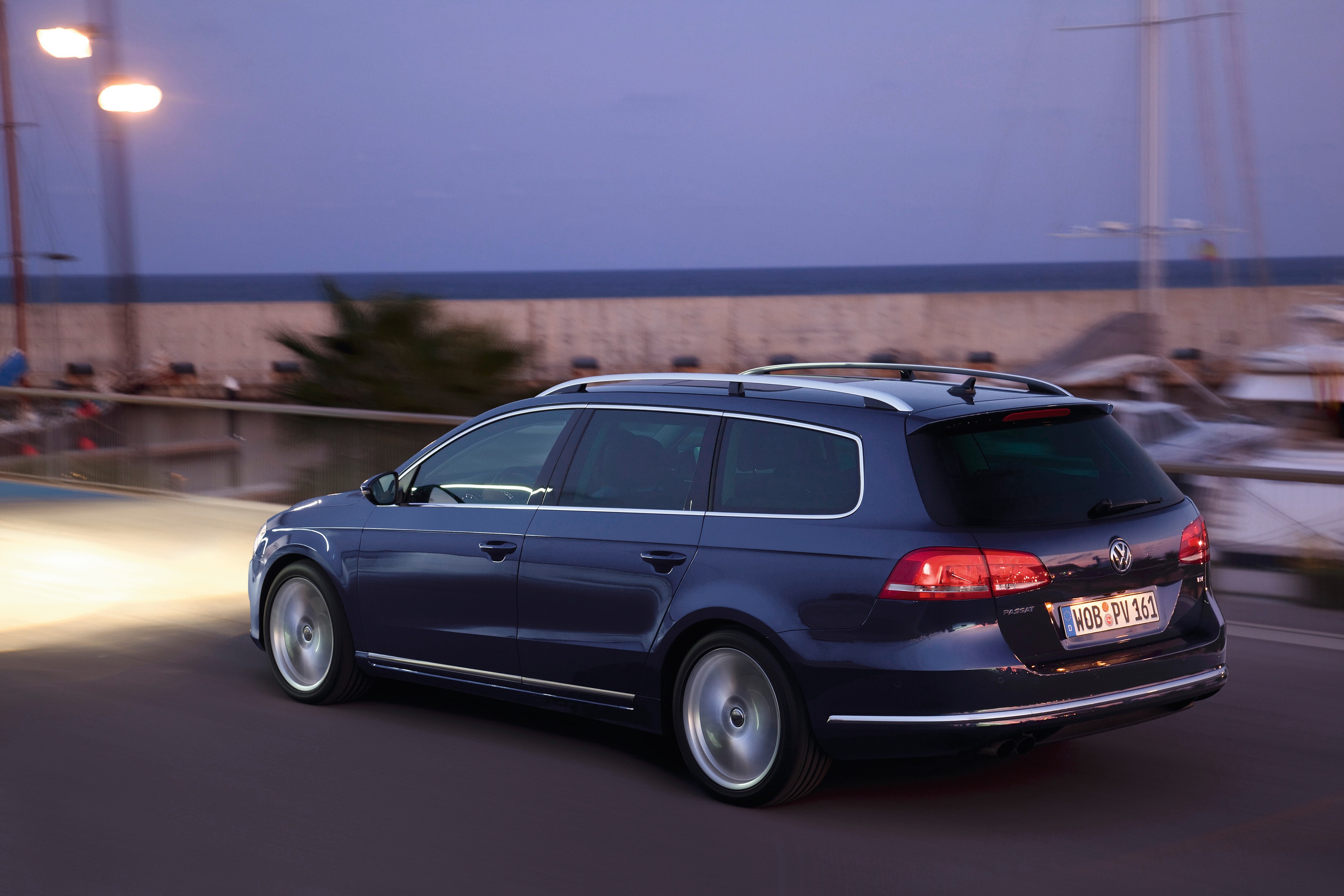

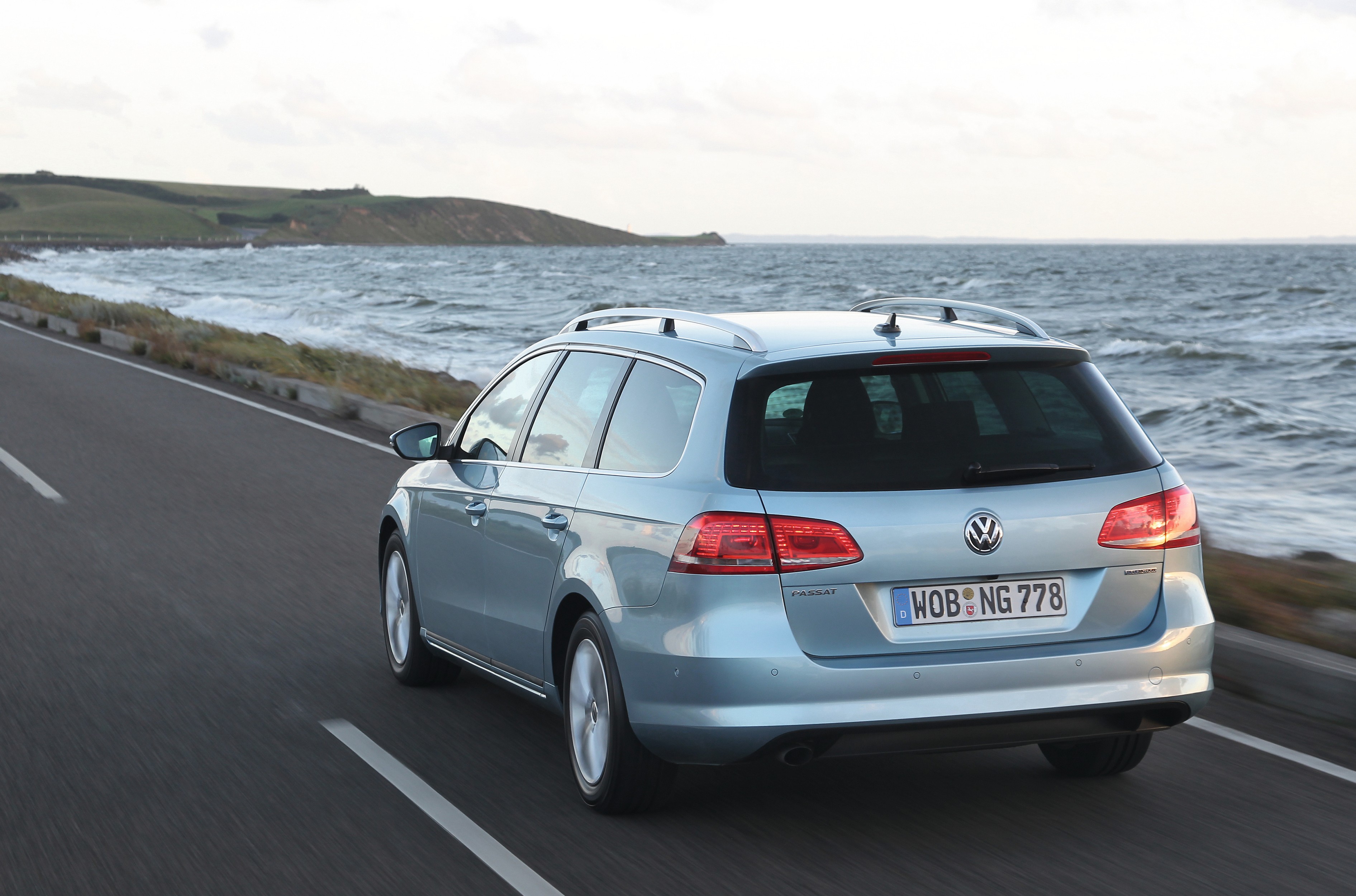

Estate (Variant)
after upgrade (facelift)
Date of manufacture
2010 – 2015Internal designation
B6 (B7)Engine size
Petrol
Diesel
Technical data
Sedan
| 1.4 TSI | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 EcoFuel TSI | 1.4 EcoFuel TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from to 2012 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1390 | 1390 | 1390 | 1798 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 90/5000 | 110/5500 | 110/5500 | 118/5000 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 200/1500-4000 | 200/1500-4000 | 220/1500-4500 | 220/1500-4500 | 250/1500 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 84,2 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | - | - | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 203 | 205 | 205 | 214 | 214 | 220 |
| Acceleration 0–100 km/h [s] | 10,3 | 10,3 | 10,3 | 9,8 | 9,8 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.9 | 6.9 | - | 6.6 | 6.6 | 6.0 |
| City [l] | 8,1 | 7,8 | 7,3 | 5,7 kg | 5,8 kg | 9,6 |
| Out of town [l] | 5,1 | 4,9 | 5,2 | 3,5 kg | 3,5 kg | 5,3 |
| Combined [l] | 6,3 | 5,9 | 6,0 | 4,3 kg | 4,3 kg | 6,9 |
| CO2 emissions [g/km] | 145 | 138 | 138 | 117 | 119 | 160 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1440 | 1451 | 1473 | 1598 | 1619 | 1502 |
| Overall weight [kg] | 1990 | 2000 | 2030 | 2120 | 2140 | 2030 |
| Maximum trailer weight unbraked/braked [kg] | 720/1400 | 720/1400 | 720/1400 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1040/1000 | 1040/1010 | 1070/1010 | 1060/1110 | 1080/1110 | 1090/990 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 485 | 485 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | 1164 | 1164 |
| Boot length with rear seats folded [mm] | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/409 | -/409 | -/409 | -/409 | -/409 | -/409 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1766 | 1766 | 1766 | 1766 | 1766 | 1766 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 31 [21 kg] | 31 [21 kg] | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R 16 | 215/55 R16 | 215/55 R16 | 205/55 R 16 | 205/55 R 16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4769 | 4769 | 4769 | 4769 | 4769 | 4769 |
| Overall width without/including mirrors [mm] | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 |
| 1.8 TSI | 1.4 TSI BMT | 1.4 TSI BMT | 2.0 TSI | 2.0 TSI | R36 3.6 FSI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2012 | from 2013 to | from 2013 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1798 | 1390 | 1390 | 1984 | 1984 | 3597 |
| Maximum output / speed [kW/min-1] | 118/5000 | 118/5800 | 118/5800 | 155/5300-6200 | 155/5300-6200 | 220/6600 |
| Maximum torque [Nm/min-1] | 250/1500 | 240/1500-4500 | 240/1500-4500 | 280/1700-5200 | 280/1700-5200 | 350/2400-5300 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 82,5 x 92,8 | 89,0 x 96,4 |
| Compression ratio | 9,6:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 220 | 220 | 220 | 238 | 236 | 250 |
| Acceleration 0–100 km/h [s] | 8,5 | 8.5 | 8.5 | 7,6 | 7,6 | 5,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.0 | 6.0 | 6.0 | 5.5 | 5.5 | 3.8 |
| City [l] | 9,5 | 8.5 | - | 10,0 | 10,8 | 12,4 |
| Out of town [l] | 5,5 | 5.2 | - | 5,6 | 5,9 | 7,4 |
| Combined [l] | 7,0 | 6.2-6.5 | 6.1 | 7,2 | 7,7 | 9,3 |
| CO2 emissions [g/km] | 162 | 144-149 | 142 | 169 | 180 | 215 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1517 | 1472 | 1508 | 1537 | 1544 | 1722 |
| Overall weight [kg] | 2050 | 2010 | 2040 | 2060 | 2080 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1600 | 750/1600 | 750/2200 |
| Maximum front/rear axle load [kg] | 1110/990 | 1050/1010 | 1080/1010 | 1100/1010 | 1120/1010 | 1180/1110 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | 541 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | 1164 | 1164 |
| Boot length with rear seats folded [mm] | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/409 | -/409 | -/409 | -/409 | -/409 | -/409 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1766 | 1766 | 1766 | 1766 | 1766 | 1766 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | - |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4769 | 4769 | 4769 | 4769 | 4769 | 4769 |
| Overall width without/including mirrors [mm] | 1820/2062 1820 | 1820/2062 | 1820/2062 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 |
| 1.6 TDI BMT | 1.6 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 BlueTDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4400 | 77/4400 | 103/4000 | 103/4000 | 103/4200 | 103/4200 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 195 | 193 | 213 | 211 | 210 | 213 |
| Acceleration 0–100 km/h [s] | 12,2 | 12.2 | 9,8 | 9,8 | 9,9 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8.2 | 8.2 | 6.8 | 6.8 | 6.5 | - |
| City [l] | 5,2 | - | 5,6 | 6,3 | 6,4 | - |
| Out of town [l] | 3,8 | - | 4,0 | 4,5 | 4,6 | - |
| Combined [l] | 4,3 | 4.6 | 4,6 | 5,2 | 5,3 | 4.7 |
| CO2 emissions [g/km] | 114 | 120 | 119 | 135 | 137 | 123 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1499 | 1530 | 1532 | 1560 | 1637 | 1580 |
| Overall weight [kg] | 2040 | 2070 | 2100 | 2130 | 2190 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 750/1400 | 750/1800 | 750/1800 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/1000 | 1110/1010 | 1120/1030 | 1150/1030 | 1150/1090 | 1120/1060 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 541 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | 1164 | 1164 |
| Boot length with rear seats folded [mm] | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/409 | -/409 | -/409 | -/409 | -/409 | -/409 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1766 | 1766 | 1766 | 1766 | 1766 | 1766 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 68 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 | 205/55 R 16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4769 | 4769 | 4769 | 4769 | 4769 | 4769 |
| Overall width without/including mirrors [mm] | 1820/2062 1820 | 1820/2062 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 |
| 2.0 BlueTDI | 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 TDI BMT | 2.0 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from to 2012 | from to 2012 | from to 2012 | from 2012 to | from 2012 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4200 | 125/4200 | 125/4200 | 125/4200 | 130/4200 | 130/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | 380/1750-2500 | 380/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 211 | 227 | 223 | 220 | 227 | 223 |
| Acceleration 0–100 km/h [s] | 9.8 | 8,6 | 8,6 | 8,5 | 8.4 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 6,3 | 6,3 | 6,0 | 6.2 | 6.2 |
| City [l] | - | 5,4 | 6,3 | 6,7 | 5.4 | 6.2 |
| Out of town [l] | - | 4,1 | 4,6 | 5,0 | 4.1 | 4.6 |
| Combined [l] | 5.2 | 4,6 | 5,3 | 5,6 | 4.6 | 5.2 |
| CO2 emissions [g/km] | 135 | 120 | 139 | 147 | 120 | 136 |
| Emission standard | EU6 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1601 | 1560 | 1591 | 1646 | 1534 | 1559 |
| Overall weight [kg] | 2160 | 2100 | 2130 | 2200 | 2090 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1150/1060 | 1130/1100 | 1160/1100 | 1170/1160 | 1120/1020 | 1150/1020 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 541 | 565 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1164 | 1164 | 1164 | 1164 | 1164 | 1164 |
| Boot length with rear seats folded [mm] | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 | -/1958 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/409 | -/409 | -/409 | -/409 | -/409 | -/409 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1766 | 1766 | 1766 | 1766 | 1766 | 1766 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 68 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R 16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4769 | 4769 | 4769 | 4769 | 4769 | 4769 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 1820 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 | -/1491 |
| 2.0 TDI BMT 4MOTION | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 130/4200 | |||||
| Maximum torque [Nm/min-1] | 380/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 220 | |||||
| Acceleration 0–100 km/h [s] | 8.3 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 5.8 | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 5.6 | |||||
| CO2 emissions [g/km] | 147 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1650 | |||||
| Overall weight [kg] | 2210 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | 1160/1100 | |||||
| Maximum vertical load on the tow bar [kg] | 90 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 541 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1164 | |||||
| Boot length with rear seats folded [mm] | -/1958 | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | -/409 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 1766 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 68 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 215/55 R16 | |||||
| Tyre dimensions rear | 215/55 R16 | |||||
| Wheel size front | 7.0J x 16 | |||||
| Wheel size rear | 7.0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 4769 | |||||
| Overall width without/including mirrors [mm] | 1820/2062 | |||||
| Overall height [mm] | 1470 | |||||
| Wheelbase [mm] | 2712 | |||||
| Front wheel track [mm] | 1552 | |||||
| Rear wheel track [mm] | 1551 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 135 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13.5 | |||||
| Approach angle rear [°] | 11.9 | |||||
| Transition angle [°] | 9.5 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 973 | |||||
| Headroom rear [mm] | 961 | |||||
| Front elbow/shoulder width [mm] | 1467/- | |||||
| Rear elbow/shoulder width [mm] | -/960 | |||||
| Legroom front knees/total [mm] | -/1053 | |||||
| Legroom rear knees/total [mm] | -/1491 |
Estate (Variant)
| 1.4 TSI | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 EcoFuel TSI | 1.4 EcoFuel TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from to 2012 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1390 | 1390 | 1390 | 1798 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 90/5000 | 110/5500 | 110/5500 | 118/5000 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 200/1500-4000 | 200/1500-4000 | 220/1500-4500 | 220/1500-4500 | 250/1500 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 84,2 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | - | - | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 202 | 202 | 202 | 212 | 212 | 218 |
| Acceleration 0–100 km/h [s] | 10,6 | 10,6 | 10,6 | 9,9 | 9,9 | 8,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.0 | 7.0 | 7.0 | 6.7 | 6.7 | 6.1 |
| City [l] | 8,1 | 8,0 | 7,5 | 5,8 kg | 5,8 kg | 9,6 |
| Out of town [l] | 5,1 | 5,0 | 5,3 | 3,5 kg | 3,5 kg | 5,3 |
| Combined [l] | 6,4 | 6,1 | 6,1 | 4,3 kg | 4,3 kg | 6,9 |
| CO2 emissions [g/km] | 149 | 142 | 140 | 119 | 119 | 160 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1473 | 1484 | 1507 | 1612 | 1612 | 1530 |
| Overall weight [kg] | 2070 | 2080 | 2110 | 2150 | 2150 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 730/1400 | 740/1400 | 750/1400 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1040/1080 | 1040/1090 | 750/1600 | 1060/1140 | 1080/1140 | 1090/1070 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 603 | 603 | 603 | 523 | 523 | 603 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1731 | -/1651 | -/1651 | -/1731 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2027 | 2027 | 2027 | 2027 | 2027 | 2027 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 31 [21 kg] | 31 [21 kg] | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 215/55 R16 | 215/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 215/55 R16 | 215/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4771 | 4771 | 4771 | 4771 | 4771 | 4771 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| 1.8 TSI | 1.4 TSI BMT | 1.4 TSI BMT | 2.0 TSI | 2.0 TSI | R36 3.6 FSI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2012 | from 2013 to | from 2013 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1798 | 1390 | 1390 | 1984 | 1984 | 3597 |
| Maximum output / speed [kW/min-1] | 118/5000 | 118/5800 | 118/5800 | 155/5300-6200 | 155/5300-6200 | 220/6600 |
| Maximum torque [Nm/min-1] | 250/1500 | 240/1500-4500 | 240/1500-4500 | 280/1700-5200 | 280/1700-5200 | 350/2400-5300 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 82,5 x 92,8 | 89,0 x 96,4 |
| Compression ratio | 9,6:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 218 | 218 | 218 | 235 | 233 | 250 |
| Acceleration 0–100 km/h [s] | 8,8 | 8.7 | 8.7 | 7,7 | 7,7 | 5,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.1 | - | - | 5.6 | 5.6 | 3.9 |
| City [l] | 9,5 | 8.5 | 7.8 | 10,0 | 10,9 | 12,4 |
| Out of town [l] | 5,6 | 5.2 | 5.3 | 5,6 | 6,1 | 7,4 |
| Combined [l] | 7,1 | 6.5 | 6.2 | 7,2 | 7,9 | 9,3 |
| CO2 emissions [g/km] | 165 | 149 | 144 | 169 | 183 | 215 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1551 | 1513 | 1539 | 1559 | 1582 | 1773 |
| Overall weight [kg] | 2130 | 2100 | 2120 | 2140 | 2160 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1600 | 750/1600 | 750/2200 |
| Maximum front/rear axle load [kg] | 1110/1070 | 1050/1090 | 1080/1090 | 1100/1090 | 1120/1090 | 1080/1190 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 603 | 603 | 603 | 603 | 603 | 588 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1731 | -/1731 | -/1731 | -/1716 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2027 | 2027 | 2027 | 2027 | 2027 | 2027 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 235/45 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | - |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4771 | 4771 | 4771 | 4771 | 4771 | 4771 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |

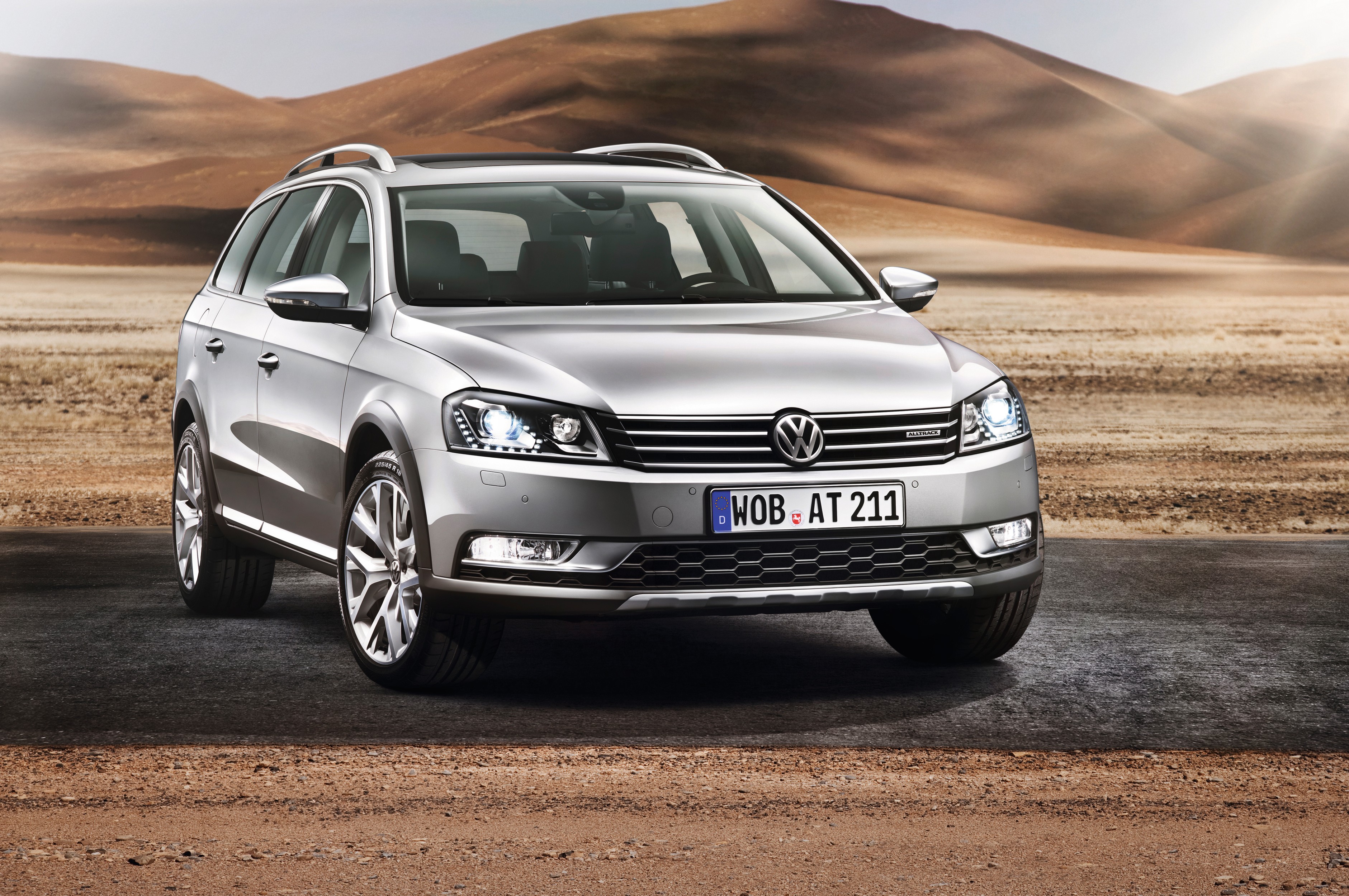

| 1.8 TSI Alltrack | 2.0 TSI Alltrack 4MOTION | 1.6 TDI BMT | 1.6 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | from 2012 to | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1798 | 1984 | 1598 | 1598 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 118/5000 | 155/5300-6200 | 77/4400 | 77/4400 | 103/4000 | 103/4000 |
| Maximum torque [Nm/min-1] | 250/1500 | 280/1700-5200 | 250/1500-2500 | 250/1500-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 16,2:1 | 16,2:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 211 | 212 | 193 | 191 | 210 | 208 |
| Acceleration 0–100 km/h [s] | 8.9 | 7.8 | 12,5 | 12.5 | 10,0 | 10,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.1 | 5.1 | 8.4 | 8.4 | 6.9 | 6.9 |
| City [l] | - | 11.5 | 5,3 | - | 5,6 | 6,3 |
| Out of town [l] | - | 6.8 | 4,0 | - | 4,0 | 4,5 |
| Combined [l] | 7.7 | 8.6 | 4,4 | 4.7 | 4,6 | 5,2 |
| CO2 emissions [g/km] | 178 | 199 | 116 | 122 | 119 | 135 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1590 | 1707 | 1543 | 1557 | 1571 | 1601 |
| Overall weight [kg] | 2170 | 2270 | 2120 | 2150 | 2180 | 2270 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/2000 | 750/1400 | 750/1400 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/1130 | 1130/1190 | 1090/1080 | 1110/1090 | 1120/1110 | 1150/1110 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 603 | 588 | 603 | 603 | 603 | 603 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1716 | -/1731 | -/1731 | -/1731 | -/1731 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2060 | 2060 | 2027 | 2027 | 2027 | 2027 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 68 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4771 | 4771 | 4771 | 4771 | 4771 | 4771 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1550 | 1550 | 1516 | 1516 | 1516 | 1516 |
| Wheelbase [mm] | 2710 | 2710 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 165 | 165 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.0 | 16.0 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 13.6 | 13.6 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 12.8 | 12.8 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| 2.0 TDI BMT 4MOTION | 2.0 BlueTDI | 2.0 BlueTDI | 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2011 to | from 2011 to | from to 2012 | from to 2012 | from to 2012 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4200 | 103/4200 | 103/4200 | 125/4200 | 125/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 207 | 210 | 208 | 224 | 220 | 217 |
| Acceleration 0–100 km/h [s] | 10,1 | 10.0 | 10.0 | 8,8 | 8,8 | 8,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 6.6 | 6.9 | 6.9 | 6.3 | 6.3 | 6.0 |
| City [l] | 6,6 | - | - | 5,6 | 6,3 | 6,8 |
| Out of town [l] | 4,6 | - | - | 4,2 | 4,6 | 5,0 |
| Combined [l] | 5,3 | 4.7 | 5.3 | 4,7 | 5,3 | 5,7 |
| CO2 emissions [g/km] | 139 | 123 | 139 | 123 | 139 | 149 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1656 | 1625 | 1648 | 1594 | 1618 | 1687 |
| Overall weight [kg] | 2270 | 2210 | 2240 | 2180 | 2210 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | 1150/1170 | 1120/1140 | 1150/1140 | 1130/1100 | 1160/1100 | 1170/1160 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 588 | 603 | 603 | 603 | 603 | 588 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1716 | -/1731 | -/1731 | -/1731 | -/1731 | -/1716 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2027 | 2027 | 2027 | 2027 | 2027 | 2027 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 68 | 70 | 70 | 70 | 70 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4771 | 4771 | 4771 | 4771 | 4771 | 4771 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2712 | 2712 | 2712 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 TDI BMT Alltrack | 2.0 TDI BMT Alltrack 4MOTION | 2.0 TDI BMT Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | from 2012 to | from 2012 to | from 2012 to | from 2012 to | from 2012 to 2012 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 130/4200 | 130/4200 | 130/4200 | 103/4000 | 103/4200 | 125/4200 |
| Maximum torque [Nm/min-1] | 380/1750-2500 | 380/1750-2500 | 380/1750-2500 | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 224 | 220 | 217 | 201 | 198 | 211 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.6 | 8.5 | 10,2 | 10,3 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 7.1 | 6.8 | 5.8 |
| City [l] | 5.6 | 6.2 | 6.8 | - | 7.0 | - |
| Out of town [l] | 4.2 | 4.6 | 5.0 | - | 5.3 | - |
| Combined [l] | 4.7 | 5.2 | 5.7 | 5.2 | 5.7 | 5.9 |
| CO2 emissions [g/km] | 123 | 136 | 149 | 135 | 149 | 155 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1558 | 1580 | 1672 | 1609 | 1706 | 1725 |
| Overall weight [kg] | 2170 | 2200 | 2280 | 2190 | 2280 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2000 | 750/1800 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1120/1100 | 1150/1100 | 1160/1170 | 1120/1120 | 1140/1190 | 1160/1190 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 603 | 603 | 588 | 603 | 588 | 588 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1731 | -/1731 | -/1716 | -/1731 | -/1716 | -/1716 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1941 | 1941 | 1941 | 1941 | 1941 | 1941 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 | 480/831 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2027 | 2027 | 2027 | 2060 | 2060 | 2060 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 68 | 70 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4771 | 4771 | 4771 | 4771 | 4771 | 4771 |
| Overall width without/including mirrors [mm] | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 | 1820/2062 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1550 | 1550 | 1550 |
| Wheelbase [mm] | 2712 | 2712 | 2712 | 2710 | 2710 | 2710 |
| Front wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Rear wheel track [mm] | 1551 | 1551 | 1551 | 1551 | 1551 | 1551 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 135 | 135 | 135 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 16.0 | 16.0 | 16.0 |
| Approach angle rear [°] | 11.9 | 11.9 | 11.9 | 13.6 | 13.6 | 13.6 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 12.8 | 12.8 | 12.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- | 1467/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 | -/1053 |
| Legroom rear knees/total [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| 2.0 TDI BMT Alltrack 4MOTION | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2012 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 130/4200 | |||||
| Maximum torque [Nm/min-1] | 380/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 211 | |||||
| Acceleration 0–100 km/h [s] | 8.7 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 5.8 | |||||
| City [l] | 7.0 | |||||
| Out of town [l] | 5.3 | |||||
| Combined [l] | 5.9 | |||||
| CO2 emissions [g/km] | 155 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1726 | |||||
| Overall weight [kg] | 2300 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | 1160/1190 | |||||
| Maximum vertical load on the tow bar [kg] | 90 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 588 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1716 | |||||
| Boot length [mm] | 1133 | |||||
| Boot length with rear seats folded [mm] | 1941 | |||||
| Boot width between wheels/max [mm] | 1003/- | |||||
| Boot height to headliner/ceiling [mm] | 480/831 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 2060 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 68 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 225/50 R17 | |||||
| Tyre dimensions rear | 225/50 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 4771 | |||||
| Overall width without/including mirrors [mm] | 1820/2062 | |||||
| Overall height [mm] | 1550 | |||||
| Wheelbase [mm] | 2710 | |||||
| Front wheel track [mm] | 1552 | |||||
| Rear wheel track [mm] | 1551 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 165 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 16.0 | |||||
| Approach angle rear [°] | 13.6 | |||||
| Transition angle [°] | 12.8 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 970 | |||||
| Headroom rear [mm] | 980 | |||||
| Front elbow/shoulder width [mm] | 1467/- | |||||
| Rear elbow/shoulder width [mm] | 1491/- | |||||
| Legroom front knees/total [mm] | -/1053 | |||||
| Legroom rear knees/total [mm] | -/960 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
