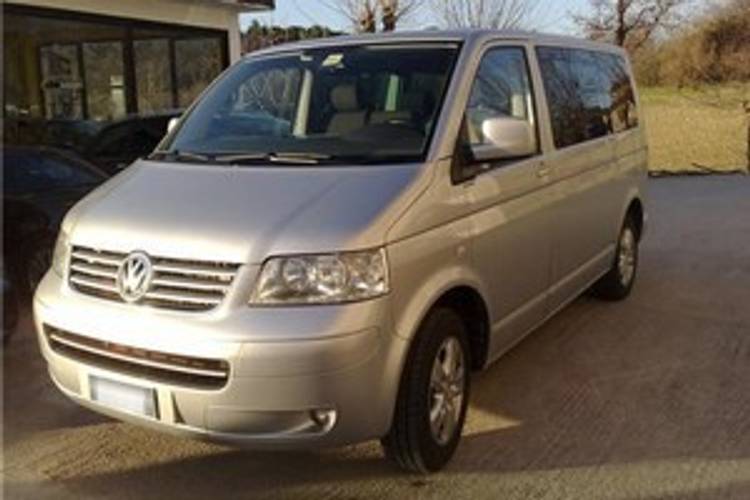

Volkswagen Multivan
Date of manufacture
2003 – 2009 (VAN)
Platform
Volkswagen Group T5
Manufacturing locations
Hanover, Germany
Poznań, Poland
Kaluga, Russia
Designer
-
Tags
Minivan
German cars
The Volkswagen Multivan has been in production since 2003. You can get it as a VAN and the country of manufacture can be Germany, Poland or Russia. This model is based on the Volkswagen Group T5 platform and the engine range includes petrol and diesel engines. The highest power output is achieved by the 3.2 V6 4MOTION with 173 kW, which is also the fastest version with a top speed of 206 km/h. The most economical variant, the 1.9 TDI, has a combined fuel consumption of 7.6 l/100 km and CO2 emissions of 199 g/km. EURONCAP safety tests rated this model 4 out of 5.
Car body style
VAN
Date of manufacture
2003 – 2009Internal designation
T5
Technical data
VAN
| 2.0 | 3.2 V6 | 3.2 V6 4MOTION | 1.9 TDI | 1.9 TDI | 2.5 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 4/8 | 4/8 | 5/10 |
| Engine displacement [cm³] | 1984 | 3189 | 3189 | 1896 | 1895 | 2461 |
| Maximum output / speed [kW/min-1] | 85/5200 | 173/6200 | 173/6200 | 62/3500 | 75/3500 | 96/3500 |
| Maximum torque [Nm/min-1] | 170/2700-4700 | 315/2950 | 315/2950 | 200/1600-2400 | 250/2000 | 340/2000-2300 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 84,0 x 95,9 | 84,0 x 95,9 | 79,5 x 95,5 | 79,5 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 11,5:1 | 10,9:1 | 10,9:1 | 19,0:1 | 19,0:1 | 18.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear automatic | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - |
|
| - | - | - |
| Top speed [km/h] | 163 | 205 | 206 | 146 | 157 | 168 |
| Acceleration 0–100 km/h [s] | 17,8 | 10,5 | 10,6 | 23,6 | 18,9 | 15,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13,7 | 18,0 | 18,6 | 9,4 | 9,4 | 10,9 |
| Out of town [l] | 8,5 | 9,7 | 10,3 | 7,2 | 6,6 | 6,8 |
| Combined [l] | 10,5 | 12,7 | 13,3 | 8,0 | 7,6 | 8,3 |
| CO2 emissions [g/km] | 253 | 303 | 316 | 211 | 199 | 219 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2092 | 2340 | 2440 | 2107 | 2107 | 2182 |
| Overall weight [kg] | 2850 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2500 | 750/2500 | 750/2200 | 750/2200 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4300 | -/4300 | -/4300 | -/4300 | -/4300 | -/4300 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1220/1625 | 1220/1625 | 1220/1625 | 1220/1625 | 1220/1625 | 1220/1625 |
| Boot height to headliner/ceiling [mm] | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1262-1295 | 1262-1295 | 1262-1295 | 1262-1295 | 1262-1295 | 1262-1295 |
| Boot opening width min/max [mm] | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485-1446 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | angled swing axle | angled swing axle | angled swing axle | angled swing axle | angled swing axle | angled swing axle |
| Tyre dimensions front | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL |
| Tyre dimensions rear | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 |
| Overall length [mm] | 4890 | 4890 | 4890 | 4890 | 4890 | 4890 |
| Overall width without/including mirrors [mm] | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 |
| Overall height [mm] | 1970 | 1970 | 1970 | 1970 | 1970 | 1970 |
| Wheelbase [mm] | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Front wheel track [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | 894 | 894 | 894 | 894 | 894 | 894 |
| Rear overhang [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.5 TDI | 2.5 TDI 4MOTION | 2.5 TDI | 2.5 TDI | 2.5 TDI 4MOTION | long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 4/8 |
| Engine displacement [cm³] | 2461 | 2461 | 2461 | 2461 | 2461 | 1895 |
| Maximum output / speed [kW/min-1] | 96/3500 | 96/3500 | 128/3500 | 128/3500 | 128/3500 | 75/3500 |
| Maximum torque [Nm/min-1] | 340/2000-2300 | 340/2000-2300 | 400/2000-2300 | 400/2000-2300 | 400/2000-2300 | 250/2000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 79,5 x 95,5 |
| Compression ratio | 18.0:1 | 18.0:1 | 18.0:1 | 18.0:1 | 18.0:1 | 19,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 5 gear automatic | 6 gear manual | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 164 | 165 | 188 | 183 | 184 | 153 |
| Acceleration 0–100 km/h [s] | 15,4 | 16,3 | 12,2 | 12,3 | 12,5 | 19,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12,6 | 11,8 | 10,6 | 12,9 | 11,8 | 10,1 |
| Out of town [l] | 7,8 | 7,6 | 7,2 | 7,9 | 7,7 | 6,9 |
| Combined [l] | 9,5 | 9,1 | 8,4 | 9,7 | 9,2 | 8,1 |
| CO2 emissions [g/km] | 251 | 240 | 221 | 257 | 243 | 214 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2182 | 2282 | 2185 | 2185 | 2282 | 2468 |
| Overall weight [kg] | 3000 | 3000 | 3000 | 3000 | 3000 | 3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- | 100-150/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4300 | -/4300 | -/4300 | -/4300 | -/4300 | -/5000 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | 2970 |
| Boot width between wheels/max [mm] | 1220/1625 | 1220/1625 | 1220/1625 | 1220/1625 | 1220/1625 | 1244/1692 |
| Boot height to headliner/ceiling [mm] | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 |
| Loading edge height [mm] | - | - | - | - | - | 569 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1262-1295 | 1262-1295 | 1262-1295 | 1262-1295 | 1262-1295 | 1295 |
| Boot opening width min/max [mm] | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485-1446 | -/1485 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | angled swing axle | angled swing axle | angled swing axle | angled swing axle | angled swing axle | angled swing axle |
| Tyre dimensions front | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL |
| Tyre dimensions rear | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9 | 11.9 | 11.9 | 11.9 | 11.9 | 13.2/- |
| Overall length [mm] | 4890 | 4890 | 4890 | 4890 | 4890 | 5290 |
| Overall width without/including mirrors [mm] | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 | 1904/2242 |
| Overall height [mm] | 1970 | 1970 | 1970 | 1970 | 1970 | 1990 |
| Wheelbase [mm] | 3000 | 3000 | 3000 | 3000 | 3000 | 3400 |
| Front wheel track [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | 1628 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1628 |
| Forward overhang [mm] | 894 | 894 | 894 | 894 | 894 | 894 |
| Rear overhang [mm] | 996 | 996 | 996 | 996 | 996 | 996 |
| Clearance [mm] | - | - | - | - | - | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| long | long | long | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 5/10 | 5/10 | 5/10 | |||
| Engine displacement [cm³] | 2461 | 2461 | 2461 | |||
| Maximum output / speed [kW/min-1] | 96/3500 | 96/3500 | 128/3500 | |||
| Maximum torque [Nm/min-1] | 340/2000-2300 | 340/2000-2300 | 400/2000-2300 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 18.0:1 | 18.0:1 | 18.0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | Front | |||
| Gearbox | 5 gear automatic | 6 gear manual | 6 gear manual | |||
| Drive specifications |
|
| - | |||
| Top speed [km/h] | 164 | 165 | 188 | |||
| Acceleration 0–100 km/h [s] | 15,4 | 16,3 | 12,2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 12,6 | 11,8 | 10,6 | |||
| Out of town [l] | 7,8 | 7,6 | 7,2 | |||
| Combined [l] | 9,5 | 9,1 | 8,4 | |||
| CO2 emissions [g/km] | 251 | 240 | 221 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2182 | 2282 | 2185 | |||
| Overall weight [kg] | 3200 | 3200 | 3200 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100-150/- | 100-150/- | 100-150/- | |||
| Boot volume [l] | - | - | - | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/5000 | -/5000 | -/5000 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | 2970 | 2970 | 2970 | |||
| Boot width between wheels/max [mm] | 1244/1692 | 1244/1692 | 1244/1692 | |||
| Boot height to headliner/ceiling [mm] | -/1317 | -/1317 | -/1317 | |||
| Loading edge height [mm] | 569 | 569 | 569 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 1295 | 1295 | 1295 | |||
| Boot opening width min/max [mm] | -/1485 | -/1485 | -/1485 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5-7 | 5-7 | 5-7 | |||
| Fuel tank volume [l] | 80 | 80 | 80 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | angled swing axle | angled swing axle | angled swing axle | |||
| Tyre dimensions front | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | |||
| Tyre dimensions rear | 235/55 R17 103 WXL | 235/55 R17 103 WXL | 235/55 R17 103 WXL | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 13.2/- | 13.2/- | 13.2/- | |||
| Overall length [mm] | 5290 | 5290 | 5290 | |||
| Overall width without/including mirrors [mm] | 1904/2242 | 1904/2242 | 1904/2242 | |||
| Overall height [mm] | 1990 | 1990 | 1990 | |||
| Wheelbase [mm] | 3400 | 3400 | 3400 | |||
| Front wheel track [mm] | 1620 | 1620 | 1620 | |||
| Rear wheel track [mm] | 1629 | 1629 | 1629 | |||
| Forward overhang [mm] | 894 | 894 | 894 | |||
| Rear overhang [mm] | 996 | 996 | 996 | |||
| Clearance [mm] | 165 | 165 | 165 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
