Volkswagen Golf Sportsvan
Date of manufacture
2017 – 2020 (MPV)
Platform
MQB platform
Manufacturing locations
Wolfsburg, Germany
Changchun, People's Republic of China
Designer
-
Tags
Mid-size MPV
German cars

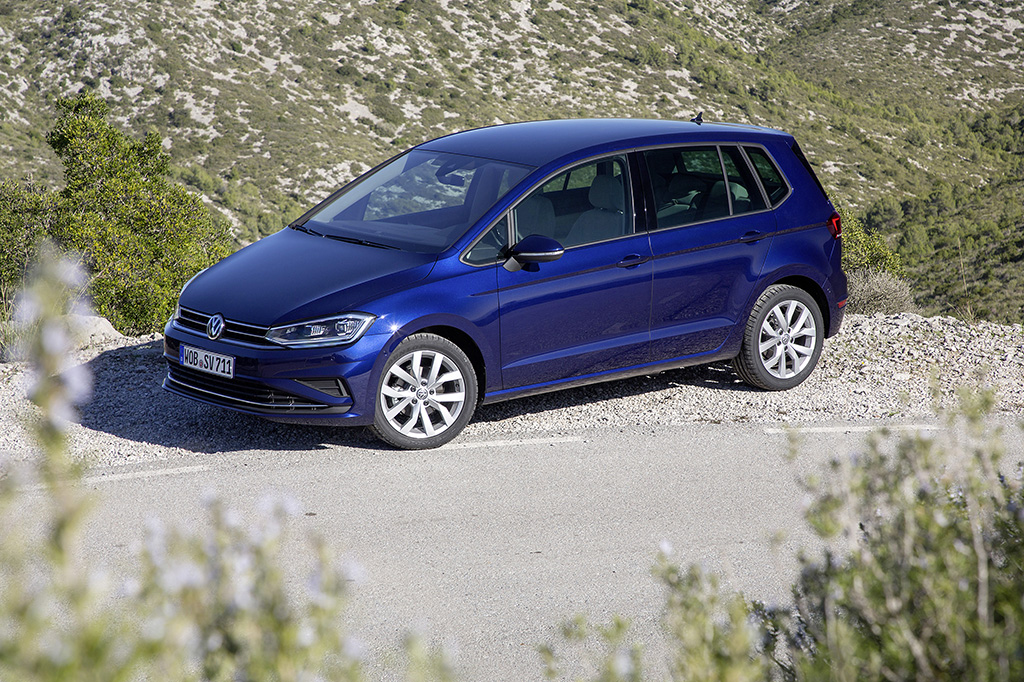

The Volkswagen Golf Sportsvan is an MPV manufactured since 2017 in Germany and China. The vehicle is built on the MQB platform and offers a wide range of petrol and diesel engines. The most powerful power unit is the 2.0 TDI SCR with 110 kW, the fastest version is the 1.5 TSI ACT with a maximum speed of 212 km/h and the most economical engine is the 1.6 TDI SCR with a consumption of 4.1 l/100 km and emissions of 108 g/km. The trunk volume reaches 590 l. The Golf Sportsvan model was tested according to the EURONCAP 2014 methodology and received a rating of 5 out of 5.
Car body style
MPV
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
Technical data
MPV
| 1.0 TSI | 1.0 TSI | 1.0 TSI | 1.0 TSI | 1.5 TSI ACT | 1.5 TSI ACT | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 63/5000-5500 | 81/5000-5500 | 81/5000-5500 | 85/5000-5500 | 96/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 175/2000-3000 | 200/2000-3000 | 200/2000-3000 | 200/2000-3500 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 177 | 192 | 192 | 192 | 202 | 202 |
| Acceleration 0–100 km/h [s] | 13.0 | 10.7 | 10.7 | 10.5 | 9.6 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0-6.1 | 5.9-6.0 | 6.0-6.1 | 6.1-5.9 | 6.8-6.4 | 6.3-6.4 |
| Out of town [l] | 4.3-4.4 | 4.4-4.5 | 4.5-4.6 | 4.6-4.3 | 4.5-4.2 | 4.4-4.5 |
| Combined [l] | 4.9-5.0 | 4.9-5.0 | 5.0-5.1 | 5.2-4.9 | 5.3-5.1 | 5.1-5.2 |
| CO2 emissions [g/km] | 112-115 | 113-115 | 113-115 | 118-112 | 122-116 | 116-118 |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1335 | 1340 | 1360 | 1330 | 1385 | 1410 |
| Overall weight [kg] | 1850 | 1850 | 1880 | 1850 | 1900 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 660/1100 | 670/1300 | 680/1300 | 660/1300 | 690/1400 | 700/1400 |
| Maximum front/rear axle load [kg] | - | - | - | 960/940 | 1000/950 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1520 | -/1520 | -/1520 | -/1520 | -/1520 |
| Boot length [mm] | 875 | 875 | 875 | 875 | 875 | 875 |

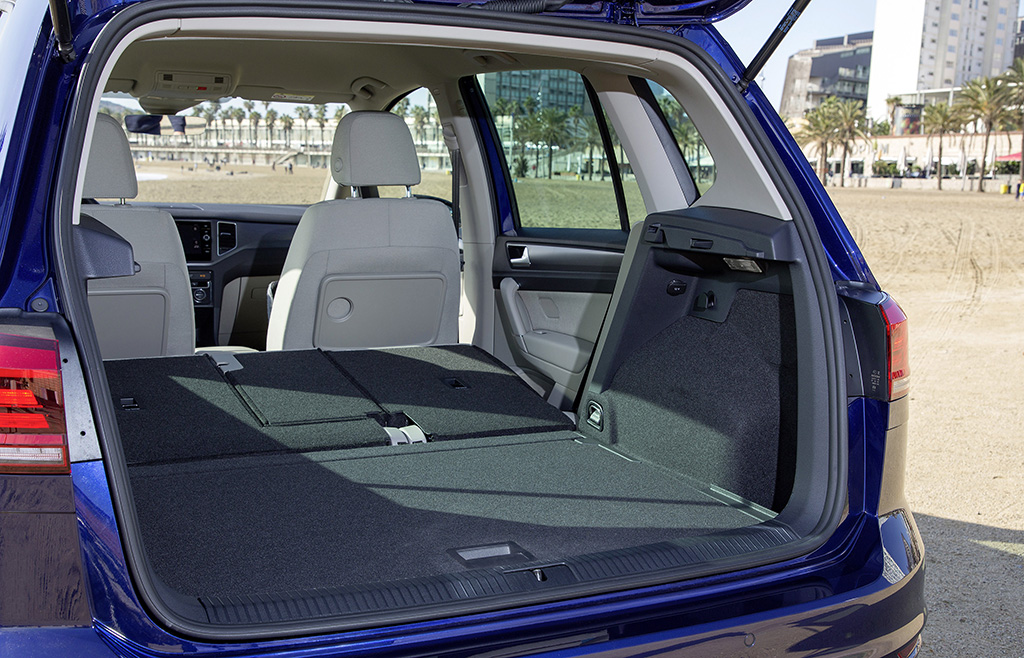

| Boot length with rear seats folded [mm] | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 |
| Boot width between wheels/max [mm] | -/1012 | -/1012 | -/1012 | -/1012 | -/1012 | -/1012 |
| Boot height to headliner/ceiling [mm] | 655/1030 | 655/1030 | 655/1030 | 655/1030 | 655/1030 | 655/1030 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4351 | 4351 | 4351 | 4351 | 4351 | 4351 |
| Overall width without/including mirrors [mm] | 1807/2050 | 1807/2050 | 1807/2050 | 1807/2050 | 1807/2050 | 1807/2050 |
| Overall height [mm] | 1613 | 1613 | 1613 | 1613 | 1613 | 1613 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Front elbow/shoulder width [mm] | 1488/- | 1488/- | 1488/- | 1488/- | 1488/- | 1488/- |
| Rear elbow/shoulder width [mm] | 1477/- | 1477/- | 1477/- | 1477/- | 1477/- | 1477/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI ACT | 1.6 TDI SCR | 1.6 TDI SCR | 2.0 TDI SCR | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1498 | 1598 | 1598 | 1968 | ||
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 | ||
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3200 | 250/1500-3200 | 340/1750-3000 | ||
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,9 | ||
| Compression ratio | 10,5:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 7 gear automatic | 5 gear manual | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 212 | 190-194 | 190 | 208-210 | ||
| Acceleration 0–100 km/h [s] | 8.8 | 11.1-11.4 | 11.4 | 9.3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.2-6.3 | 5.5-4.8 | 4.8-4.9 | 5.3-5.5 | ||
| Out of town [l] | 4.4-4.5 | 4.2-3.7 | 4.1-4.3 | 4.2-4.4 | ||
| Combined [l] | 5.1-5.2 | 4.7-4.1 | 4.3-4.5 | 4.5-4.7 | ||
| CO2 emissions [g/km] | 116-118 | 113-108 | 107-109 | 119-122 | ||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1420 | 1417-1440 | 1436 | 1501-1530 | ||
| Overall weight [kg] | 1920 | 1940-1950 | 1960 | 2010-2020 | ||
| Maximum trailer weight unbraked/braked [kg] | 710/1500 | 700/1500 | 710/1500 | 750/1600 | ||
| Maximum front/rear axle load [kg] | - | 1060/940 | - | 1100/960 | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 590 | 590 | 590 | 590 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1520 | -/1520 | -/1520 | -/1520 | ||
| Boot length [mm] | 875 | 875 | 875 | 875 | ||
| Boot length with rear seats folded [mm] | 1666 | 1666 | 1666 | 1666 | ||
| Boot width between wheels/max [mm] | -/1012 | -/1012 | -/1012 | -/1012 | ||
| Boot height to headliner/ceiling [mm] | 655/1030 | 655/1030 | 655/1030 | 655/1030 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | ||
| AdBlue tank volume [l] | - | 12 | 12 | 12 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||
| Rear suspension | multilink, stabiliser bar | torsion bar | torsion bar | multilink, stabiliser bar | ||
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 | ||
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 195/65 R15 | 205/55 R16 | ||
| Wheel size front | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | ||
| Overall length [mm] | 4351 | 4351 | 4351 | 4351 | ||
| Overall width without/including mirrors [mm] | 1807/2050 | 1807/2050 | 1807/2050 | 1807/2050 | ||
| Overall height [mm] | 1613 | 1613 | 1613 | 1613 | ||
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | ||
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | ||
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | ||
| Headroom rear [mm] | 1008 | 1008 | 1008 | 1008 | ||
| Front elbow/shoulder width [mm] | 1488/- | 1488/- | 1488/- | 1488/- | ||
| Rear elbow/shoulder width [mm] | 1477/- | 1477/- | 1477/- | 1477/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
