Volkswagen Golf
Date of manufacture
2019 – to this day (Five-door hatchback)
2020 – to this day (Estate)
Platform
Volkswagen Group MQB Evo
Manufacturing locations
Wolfsburg, Germany
Foshan, People's Republic of China
Designer
-
Tags
C-segment
German cars
The Volkswagen Golf has been produced since 2019 and offers a five-door hatchback and estate body styles. The car is built on the Volkswagen Group MQB Evo platform and offers hybrid, petrol and diesel engines. The highest performance is achieved by the 2.0 TSI R (235 kW), the highest speed is 250 km/h and the most economical model is the 1.4 eHybrid with a combined consumption of 0.9 l/100 km and CO2 emissions of 21 g/km. The hatchback has a luggage compartment capacity of 381 l, the estate 611 l. The car is produced in Germany and China.
Car body style
Five-door hatchback
Date of manufacture
2019 – to this dayInternal designation
CD1Technical data
Five-door hatchback
| 1.0 TSI | 1.0 eTSI | 1.5 TSI | 1.5 eTSI | 1.5 TGI | 1.5 TGI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 202 | 202 | 214 | 213 | 211 | 211 |
| Acceleration 0–100 km/h [s] | 10.2 | 10.2 | 9.2 | 9.4 | 9.6 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.1 | 6.5 | 5.7 | - | 4.4 kg |
| Out of town [l] | 3.9 | 3.8 | 4.2 | 4.1 | - | 2.9 kg |
| Combined [l] | 4.6 | 4.3 | 5.1 | 4.7 | - | 3.5 kg |
| CO2 emissions [g/km] | 105 | 98 | 116 | 107 | - | 95 |
| Low speed [l] | - | 6.4 | 7.5 | 7.2 | - | 6.0 kg |
| Medium speed [l] | - | 4.9 | 5.3 | 5.2 | - | 4.1 kg |
| High speed [l] | - | 4.5 | 4.5 | 4.5 | - | 3.4 kg |
| Extra high speed [l] | - | 5.4 | 5.3 | 5.7 | - | 3.8 kg |
| Combined speed [l] | 5.4 | 5.1 | 5.3 | 5.4 | - | 4.0 kg |
| CO2 emissions [g/km] | 123 | 117 | 121 | 123 | - | 110 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | 48 | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, A⋅h | - | Lithium-Ionen-Akkumulator, A⋅h | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1257 | 1302 | 1315 | 1347 | 1390 | 1399 |
| Overall weight [kg] | 1750 | 1810 | 1800 | 1840 | 1830 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 620/1300 | 650/1300 | 650/1400 | 670/1400 | 680/1400 | 690/1400 |
| Maximum front/rear axle load [kg] | 930/870 | 980/880 | 960/890 | 1000/890 | 950/930 | 980/930 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 381 | 381 | 381 | 381 | 381 | 381 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1237 | -/1237 | -/1237 | -/1237 | -/1237 | -/1237 |
| Boot length [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2011 | 2011 | 2011 | 2011 | 2011 | 2011 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 9 [17.3 kg] | 9 [17.3 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4284 | 4284 | 4284 | 4284 | 4284 | 4284 |
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 |
| Overall height [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Wheelbase [mm] | 2619 | 2619 | 2619 | 2619 | 2619 | 2619 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | 872 | 872 | 872 | 872 | 872 | 872 |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

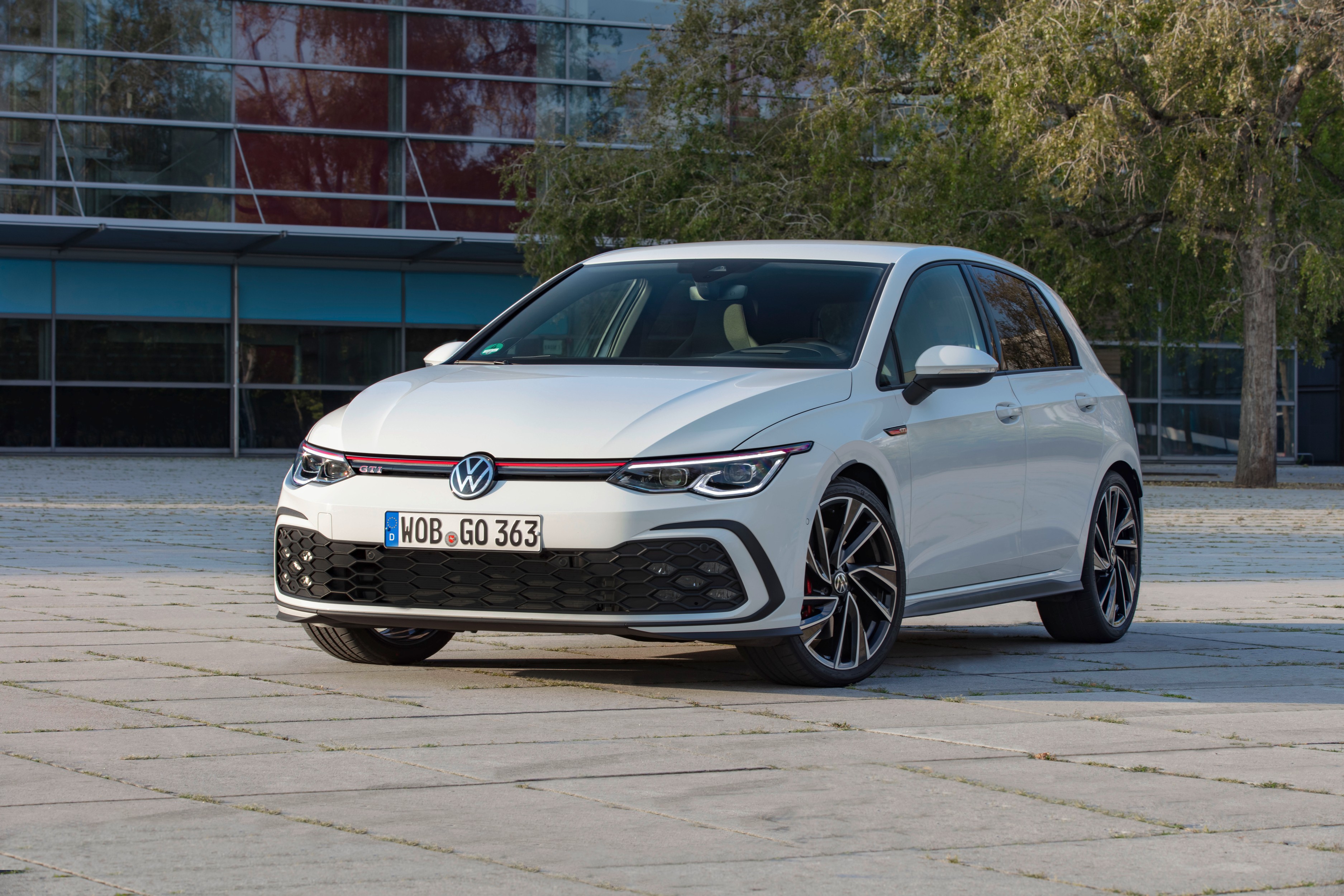

| 1.5 TSI | 1.5 eTSI | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI GTI | 2.0 TSI GTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 140/4200-6000 | 180/5000-62000 | 180/5000-62000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 320/1500-4100 | 370/1600-4300 | 370/1600-4300 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 224 | 224 | 238 | 234 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.5 | 7.1 | 6.7 | 6.4 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5 | 5.8 | 7.7 | 8.2 | 9.0 | 8.6 |
| Out of town [l] | 4.3 | 4.0 | 4.7 | 5.5 | 5.6 | 5.3 |
| Combined [l] | 5.1 | 4.7 | 5.8 | 6.5 | 6.9 | 6.5 |
| CO2 emissions [g/km] | 117 | 107 | 133 | 148 | 157 | 149 |
| Low speed [l] | 7.6 | 7.4 | 9.2 | 9.6 | 10.8 | 11.2 |
| Medium speed [l] | 5.5 | 5.3 | 6.8 | 7.3 | 7.2 | 7.4 |
| High speed [l] | 4.7 | 4.7 | 5.6 | 6.0 | 6.3 | 6.1 |
| Extra high speed [l] | 5.4 | 5.7 | 6.1 | 6.4 | 7.1 | 6.8 |
| Combined speed [l] | 5.5 | 5.5 | 6.5 | 6.9 | 7.4 | 7.6 |
| CO2 emissions [g/km] | 125 | 125 | 147 | 156 | 167 | 166 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, A⋅h | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1330 | 1365 | 1437 | 1514 | 1429 | 1463 |
| Overall weight [kg] | 1830 | 1870 | 1930 | 1980 | 1920 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 660/1500 | 680/1500 | 710/1600 | 750/1700 | 710/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | 960/920 | 990/930 | 1050/930 | 1070/960 | 1040/930 | 1070/930 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 381 | 381 | 381 | 381 | 374 | 374 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1237 | -/1237 | -/1237 | -/1237 | -/1230 | -/1230 |
| Boot length [mm] | 800 | 800 | 800 | 800 | 787 | 787 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1545 | 1545 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2011 | 2011 | 2011 | 2011 | 1999 | 1999 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4284 | 4284 | 4284 | 4284 | 4287 | 4287 |
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 |
| Overall height [mm] | 1491 | 1491 | 1491 | 1491 | 1478 | 1478 |
| Wheelbase [mm] | 2619 | 2619 | 2619 | 2619 | 2627 | 2627 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1545 | 1545 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1523 | 1523 |
| Forward overhang [mm] | 872 | 872 | 872 | 872 | - | - |
| Rear overhang [mm] | 776 | 776 | 776 | 776 | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

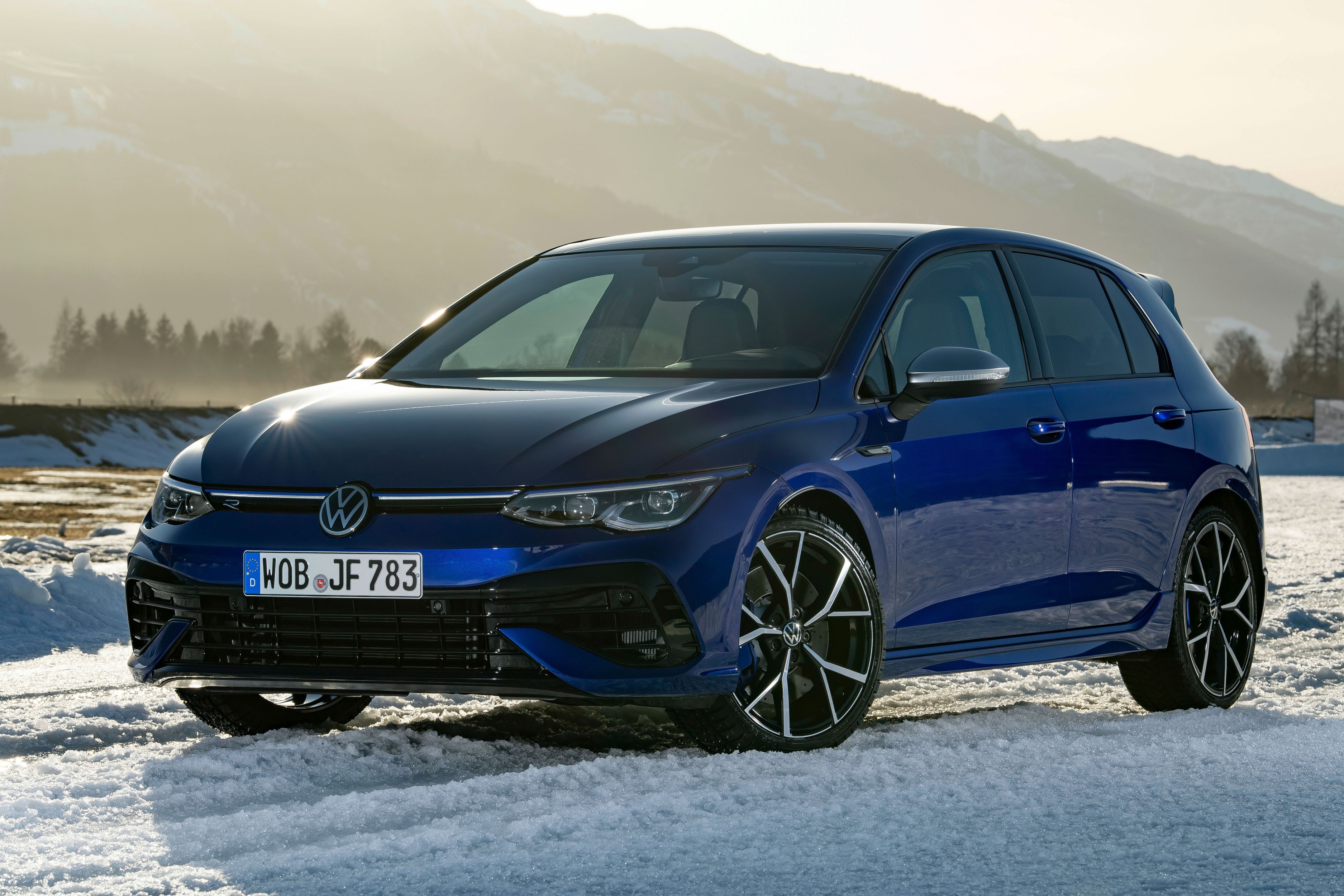

| 2.0 TSI GTI Clubsport | 2.0 TSI R | 1.4 eHybrid | 1.4 GTE | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2021 to | - | from 2020 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1395 | 1395 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 221/5500 | 235 | 110/5000-6000 combustion 80 el. 150 total | 110/5000-6000 combustion 80 el. 180 total | 85/3250-4000 | 85/3250-4000 |
| Maximum torque [Nm/min-1] | 400/2000-5200 | 420/2100-5350 | 250/1500-3000 combustion 350 total | 250/1500-3000 combustion 400 total | 300/1600-2500 | 250/1500-3250 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 74,5 x 80,0 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,3:1 | 9,3:1 | 10,5:1 | 10,5:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 250 | 250 | 220 | 225 | 202 | 202 |
| Acceleration 0–100 km/h [s] | 5.6 | 4.7 | 7.4 | 6.7 | 10.2 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 9.0 | - | - | 5.0 | 4.8 |
| Out of town [l] | 5.6 | 5.9 | - | - | 3.0 | 3.2 |
| Combined [l] | 6.6 | 7.0 | 1.4 [10.1 kWh] | 1.7 [10.7 kWh] | 3.8 | 3.8 |
| CO2 emissions [g/km] | 151 | 161 | 33 | 38 | 99 | 99 |
| Low speed [l] | 11.1 | 11.5 | - | - | 5.9 | 6.2 |
| Medium speed [l] | 7.2 | 7.8 | - | - | 4.1 | 4.3 |
| High speed [l] | 6.2 | 6.6 | - | - | 3.5 | 3.8 |
| Extra high speed [l] | 7.0 | 7.2 | - | - | 4.2 | 4.6 |
| Combined speed [l] | 7.3 | 7.7 | 0.9 [14.0 kWh] | 1.2 [14.9 kWh] | 4.2 | 4.5 |
| CO2 emissions [g/km] | 166 | 176 | 21 | 27 | 110 | 117 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 10.4 kWh | Lithium-Ionen-Akkumulator, 10.4 kWh | - | - |
| Range with fully charged battery [km] | - | - | 63-71 [WLTP] | 62-64 [WLTP] | - | - |
| Charging time | - | - |
|
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1461 | 1554 | 1590 | 1624 | 1377 | 1385 |
| Overall weight [kg] | 1930 | 2030 | 2020 | 2040 | 1880 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 750/1500 | 750/1500 | 680/1500 | 690/1500 |
| Maximum front/rear axle load [kg] | 1080/900 | 1110/970 | 1050/1020 | 1070/1020 | 1040/890 | 1060/890 |
| Maximum vertical load on the tow bar [kg] | - | - | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 374 | 374 | 381 | 381 | 381 | 381 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1230 | -/1230 | -/1237 | -/1237 | -/1237 | -/1237 |
| Boot length [mm] | 787 | 787 | 800 | 800 | 800 | 800 |
| Boot length with rear seats folded [mm] | 1545 | 1545 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2001 | - | 2011 | 2022 | 2011 | 2011 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 39.5 | 39.5 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | 12 | 12 |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/40 R18 | 225/40 R18 | 205/55 R16 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/40 R18 | 225/40 R18 | 205/55 R16 | 225/45 R17 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.0J x 16 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.0J x 16 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4295 | 4290 | 4284 | 4287 | 4284 | 4284 |
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 |
| Overall height [mm] | 1465 | 1458 | 1491 | 1484 | 1491 | 1491 |
| Wheelbase [mm] | 2628 | 2628 | 2619 | 2630 | 2619 | 2619 |
| Front wheel track [mm] | 1541 | 1541 | 1549 | 1543 | 1549 | 1549 |
| Rear wheel track [mm] | 1515 | 1516 | 1520 | 1516 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | 872 | 872 |
| Rear overhang [mm] | - | - | - | - | 776 | 776 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 968 | 968 | 968 | 968 | 968 | 968 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - |    | - | - |
| Clean Air Index | - | - | - | 6.2/10 | - | - |
| Energy Efficiency Index | - | - | - | 6.2/10 | - | - |
| GHG index | - | - | - | 5.6/10 | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI GTD | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 147/3600-4100 | |||
| Maximum torque [Nm/min-1] | 340/1600-3000 | 360/1600-2750 | 400/1750-3500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 223 | 223 | 245 | |||
| Acceleration 0–100 km/h [s] | 8.8 | 8.4 | 7.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.0 | 4.9 | 5.4 | |||
| Out of town [l] | 3.2 | 3.2 | 3.9 | |||
| Combined [l] | 3.8 | 3.8 | 4.4 | |||
| CO2 emissions [g/km] | 101 | 101 | 117 | |||
| Low speed [l] | 6.0 | 6.5 | 7.6 | |||
| Medium speed [l] | 4.2 | 4.4 | 5.1 | |||
| High speed [l] | 3.6 | 3.7 | 4.3 | |||
| Extra high speed [l] | 4.3 | 4.3 | 5.0 | |||
| Combined speed [l] | 4.3 | 4.4 | 5.2 | |||
| CO2 emissions [g/km] | 113 | 116 | 136 | |||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1421 | 1451 | 1466 | |||
| Overall weight [kg] | 1920 | 1950 | 1950 | |||
| Maximum trailer weight unbraked/braked [kg] | 710/1600 | 720/1600 | 730/1600 | |||
| Maximum front/rear axle load [kg] | 1050/920 | 1070/930 | 1070/930 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 381 | 381 | 374 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1237 | -/1237 | -/1230 | |||
| Boot length [mm] | 800 | 800 | 787 | |||
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1545 | |||
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 2011 | 2011 | 1998 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 50 | |||
| AdBlue tank volume [l] | 12 | 12 | 12 | |||
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/40 R18 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/40 R18 | |||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | |||
| Overall length [mm] | 4284 | 4284 | 4287 | |||
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | |||
| Overall height [mm] | 1491 | 1491 | 1478 | |||
| Wheelbase [mm] | 2619 | 2619 | 2626 | |||
| Front wheel track [mm] | 1549 | 1549 | 1545 | |||
| Rear wheel track [mm] | 1520 | 1520 | 1523 | |||
| Forward overhang [mm] | 872 | 872 | - | |||
| Rear overhang [mm] | 776 | 776 | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1018 | 1018 | 1018 | |||
| Headroom rear [mm] | 968 | 968 | 968 | |||
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | |||
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Variant)
| 1.0 TSI | 1.0 eTSI | 1.5 TSI | 1.5 eTSI | 1.5 TGI | 1.5 TGI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 202 | 202 | 214 | 213 | 211 | 211 |
| Acceleration 0–100 km/h [s] | 10.5 | 10.6 | 9.4 | 9.4 | - | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 5.1 | 6.5 | 5.9 | - | 4.4 kg |
| Out of town [l] | 4.1 | 3.8 | 4.3 | 4.2 | - | 2.9 kg |
| Combined [l] | 4.7 | 4.3 | 5.1 | 4.8 | - | 3.5 kg |
| CO2 emissions [g/km] | 108 | 98 | 117 | 111 | - | 95 |
| Low speed [l] | 7.2 | 6.5 | 7.7 | 7.3 | - | 6.1 kg |
| Medium speed [l] | 5.4 | 5.1 | 5.6 | 5.4 | - | 4.2 kg |
| High speed [l] | 4.7 | 4.5 | 4.8 | 4.7 | - | 3.4 kg |
| Extra high speed [l] | 5.5 | 5.4 | 5.5 | 5.9 | - | 3.8 kg |
| Combined speed [l] | 5.5 | 5.2 | 5.6 | 5.6 | - | 4.1 kg |
| CO2 emissions [g/km] | 124 | 118 | 126 | 128 | - | 111 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | 48 | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, A⋅h | - | Lithium-Ionen-Akkumulator, A⋅h | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1317 | 1365 | 1361 | 1410 | 1449 | 1453 |
| Overall weight [kg] | 1850 | 1910 | 1910 | 1960 | 1930 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 680/1300 | 680/1400 | 700/1400 | - | - |
| Maximum front/rear axle load [kg] | 920/980 | 960/1000 | 950/1010 | 990/1020 | 940/1040 | 960/1040 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 611 | 611 | 611 | 611 | 611 | 611 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 |
| Boot length [mm] | 1062 | 1062 | 1062 | 1062 | 1062 | 1062 |
| Boot length with rear seats folded [mm] | 1845 | 1845 | 1845 | 1845 | 1845 | 1845 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2064 | 2064 | 2064 | 2064 | 2064 | 2064 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 9 [17.3 kg] | 9 [17.3 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4633 | 4633 |
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI | 1.5 TSI | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI R | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2021 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 140/4200-6000 | 235 | 85/3250-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 320/1500-4100 | 420/2100-5350 | 300/1600-2500 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 9,3:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 224 | 224 | 238 | 234 | 250 | 202 |
| Acceleration 0–100 km/h [s] | 8.7 | 8.7 | 7.3 | 7.2 | 4.9 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6 | 6.1 | 7.7 | 8.2 | 9.2 | 5.1 |
| Out of town [l] | 4.5 | 4.2 | 4.7 | 5.5 | 5.9 | 3.1 |
| Combined [l] | 5.2 | 4.9 | 5.8 | 6.5 | 7.2 | 3.9 |
| CO2 emissions [g/km] | 120 | 112 | 133 | 149 | 164 | 102 |
| Low speed [l] | 7.9 | 7.6 | 9.1 | 9.8 | 11.5 | 6.0 |
| Medium speed [l] | 5.8 | 5.5 | 6.8 | 7.4 | 8.0 | 4.2 |
| High speed [l] | 5.0 | 4.9 | 5.6 | 6.1 | 6.7 | 3.6 |
| Extra high speed [l] | 5.6 | 5.9 | 6.1 | 6.5 | 7.4 | 4.2 |
| Combined speed [l] | 5.8 | 5.7 | 6.5 | 7.0 | 7.8 | 4.3 |
| CO2 emissions [g/km] | 131 | 130 | 148 | 159 | 178 | 112 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1392 | 1425 | 1493 | 1579 | 1630 | 1446 |
| Overall weight [kg] | 1930 | 1970 | 2020 | 2080 | 2140 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 690/1500 | 710/1500 | 740/1600 | 750/1700 | 750/1700 | 720/1500 |
| Maximum front/rear axle load [kg] | 960/1020 | 990/1030 | 1040/1030 | 1060/1070 | 1090/1100 | 1030/1020 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 611 | 611 | 611 | 611 | 611 | 611 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 | -/1642 |
| Boot length [mm] | 1062 | 1062 | 1062 | 1062 | 1062 | 1062 |
| Boot length with rear seats folded [mm] | 1845 | 1845 | 1845 | 1845 | 1845 | 1845 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2064 | 2064 | 2064 | 2064 | 2047 | 2064 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 55 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | 12 |
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4633 | 4633 | 4633 | 4633 | 4644 | 4633 |
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 | 1789/2073 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1466 | 1498 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2678 | 2669 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1541 | 1549 |
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1519 | 1516 | 1519 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI Alltrack | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 | 147/3600-4100 | ||
| Maximum torque [Nm/min-1] | 250/1500-3250 | 340/1600-3000 | 360/1600-2750 | 400/1750-3500 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 15.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 202 | 223 | 235 | 229 | ||
| Acceleration 0–100 km/h [s] | 10.7 | 9.1 | 8.9 | 7.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.9 | 5.1 | 4.7 | 5.8 | ||
| Out of town [l] | 3.3 | 3.2 | 3.5 | 4.1 | ||
| Combined [l] | 3.9 | 3.9 | 4.0 | 4.7 | ||
| CO2 emissions [g/km] | 102 | 102 | 104 | 125 | ||
| Low speed [l] | 6.3 | 6.2 | 6.5 | 7.9 | ||
| Medium speed [l] | 4.3 | 4.4 | 4.6 | 5.6 | ||
| High speed [l] | 3.8 | 3.8 | 3.8 | 4.8 | ||
| Extra high speed [l] | 4.6 | 4.5 | 4.4 | 5.4 | ||
| Combined speed [l] | 4.5 | 4.5 | 4.6 | 5.6 | ||
| CO2 emissions [g/km] | 119 | 118 | 119 | 147 | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1458 | 1495 | 1520 | 1609 | ||
| Overall weight [kg] | 2010 | 2030 | 2060 | 2120 | ||
| Maximum trailer weight unbraked/braked [kg] | 720/1500 | 740/1600 | 750/1600 | 750/2000 | ||
| Maximum front/rear axle load [kg] | 1040/1020 | 1040/1040 | 1070/1040 | 1080/1090 | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 611 | 611 | 611 | 611 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1642 | -/1642 | -/1642 | -/1642 | ||
| Boot length [mm] | 1062 | 1062 | 1062 | 1062 | ||
| Boot length with rear seats folded [mm] | 1845 | 1845 | 1845 | 1845 | ||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 2064 | 2064 | 2064 | 2064 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 45 | 50 | 50 | 55 | ||
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | ||
| Air resistance [Cd] | 0.275 | 0.275 | 0.275 | 0.275 | ||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||
| Rear suspension | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | ||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 | ||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R17 | ||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 17 | ||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | ||
| Overall length [mm] | 4633 | 4633 | 4633 | 4639 | ||
| Overall width without/including mirrors [mm] | 1789/2073 | 1789/2073 | 1789/2073 | 1795/- | ||
| Overall height [mm] | 1498 | 1498 | 1498 | 1510 | ||
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2679 | ||
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1548 | ||
| Rear wheel track [mm] | 1519 | 1519 | 1519 | 1520 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1020 | 1020 | 1020 | 1020 | ||
| Headroom rear [mm] | 969 | 969 | 969 | 969 | ||
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | ||
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
