Volkswagen Golf
Date of manufacture
8/2012 – 2016 (Five-door hatchback)
2013 – 2016 (Estate)
Platform
MQB platform
Manufacturing locations
Wolfsburg, Germany
Zwickau, Germany
Changchun, People's Republic of China
Puebla, Mexico
São José dos Pinhais, Brazil
Designer
Marc Lichte
Klaus Bischoff
Tags
C-segment
German cars
The Volkswagen Golf is a model of car that was first produced in 2012. It offers five-door hatchback and estate body styles. The car is built on the MQB platform and offers plug-in hybrid models. The engine range includes petrol, diesel, hybrid and electric versions with a maximum power output of 221 kW in the 2.0 TSI R model. The top speed of the model is 250 km/h and the lowest fuel consumption is 1.5 l/100 km (35 g/km CO2) in the 1.4 TSI GTE model. The luggage compartment size is 380 l for the hatchback and 605 l for the estate. The Volkswagen Golf received a 5 out of 5 rating from EURONCAP for safety in 2012. The vehicle is manufactured in Germany, China, Mexico and Brazil.
Car body style

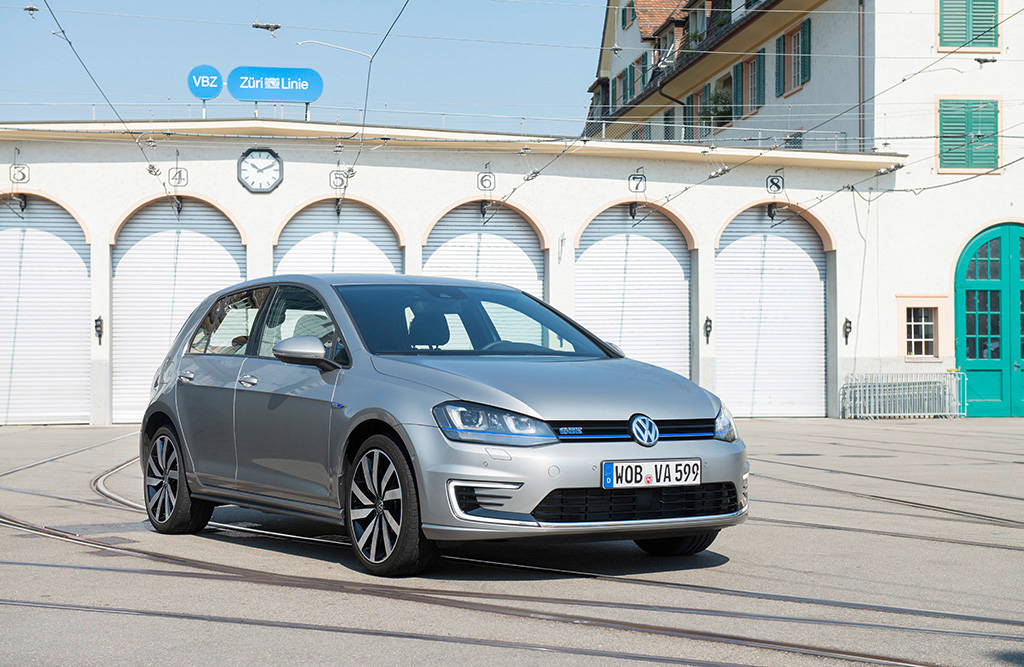

Five-door hatchback
Date of manufacture
8/2012 – 2016Internal designation
5GEngine size
Petrol
Petrol + ElectricElectricDiesel

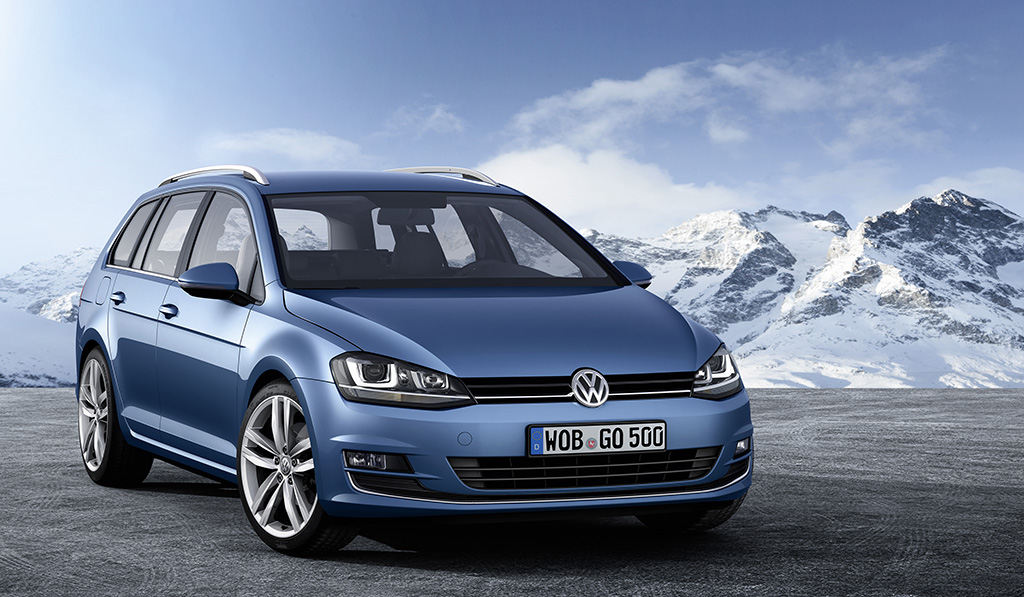

Estate (Variant)
Date of manufacture
2013 – 2016Internal designation
5GEngine size
Petrol
Diesel
Technical data
Five-door hatchback
| 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.4 TGI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1197 | 1197 | 1395 |
| Maximum output / speed [kW/min-1] | 63/4300-5300 | 77/4500-5500 | 77/4500-5500 | 81/4600-5600 | 81/4600-5600 | 81/4800-6000 |
| Maximum torque [Nm/min-1] | 160/1400-3500 | 175/1400-4000 | 175/1400-4000 | 175/1400-4000 | 175/1400-4000 | 200/1500-3500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 179 | 192 | 192 | 195 | 195 | 194 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.2 | 10.2 | 9.9 | 9.9 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-6.2 | 5.9 | 5.6 | 6.1-6.2 | 5.9-6.0 | 6.9 [4.5 kg] |
| Out of town [l] | 4.2-4.3 | 4.3 | 4.4 | 4.2-4.3 | 4.3-4.4 | 4.4 [2.9 kg] |
| Combined [l] | 4.9-5.0 | 4.9 | 4.8 | 4.9-5.0 | 4.9-5.1 | 5.3 [3.5 kg] |
| CO2 emissions [g/km] | 113-115 | 114 | 112 | 114-116 | 112-119 | 124 [94 CNG] |
| Emission standard | EU5-EU6 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1205 | 1210 | 1229 | 1210 | 1229 | 1324 |
| Overall weight [kg] | 1720 | 1720 | 1730 | 1720 | 1750 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 600/1100 | 600/1300 | 610/1300 | 600/1300 | 610/1300 | 660/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 291 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 | -/1181 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 [15 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4255 | 4255 | 4255 | 4255 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1492 |
| Wheelbase [mm] | 2637 | 2637 | 2637 | 2637 | 2637 | 2637 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TGI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 81/4800-6000 | 90/5000 | 90/5000 | 92/5000-6000 | 92/5000-6000 | 103/4500-6000 |
| Maximum torque [Nm/min-1] | 200/1500-3500 | 200/1500-4000 | 200/1500-4000 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 194 | 203 | 203 | 204 | 204 | 212 |
| Acceleration 0–100 km/h [s] | 10.6 | 9.3 | 9.3 | 9.1 | 9.1 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 [4.4 kg] | 6.6 | 6.2 | 6.7-6.8 | 6.1-6.2 | 6.4 |
| Out of town [l] | 4.4 [2.8 kg] | 4.3 | 4.3 | 4.3-4.4 | 4.3-4.4 | 4.5 |
| Combined [l] | 5.2 [3.4 kg] | 5.2 | 5.0 | 5.2-5.3 | 5.0-5.1 | 5.2 |
| CO2 emissions [g/km] | 119 [92 kg] | 120 | 116 | 123 | 116-119 | 119 |
| Emission standard | EU6 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1346 | 1225 | 1249 | 1225 | 1249 | 1268 |
| Overall weight [kg] | 1860 | 1720 | 1750 | 1730 | 1750 | 1780 |
| Maximum trailer weight unbraked/braked [kg] | 670/1400 | 610/1400 | 620/1400 | 610/1400 | 620/1400 | 640/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 291 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1181 | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 [15 kg] | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4255 | 4255 | 4255 | 4255 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1492 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Wheelbase [mm] | 2637 | 2637 | 2637 | 2637 | 2637 | 2637 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI BMT | 1.4 TSI ACT BMT | 1.4 TSI ACT BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI ACT BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 103/4500-6000 | 103/4500-6000 | 103/4500-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | - | - | 10,5:1 | 10,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 212 | 212 | 212 | 216 | 216 | 216 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.4 | 8.4 | 8.2 | 8.2 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 5.8 | 5.8 | 6.6-6.7 | 6.2-6.3 | 5.8 |
| Out of town [l] | 4.4 | 4.2 | 4.1 | 4.3-4.5 | 4.4-4.5 | 4.2 |
| Combined [l] | 5.0 | 4.7 | 4.7 | 5.2-5.3 | 5.0-5.1 | 4.7 |
| CO2 emissions [g/km] | 116 | 109 | 110 | 119-122 | 116-118 | 109 |
| Emission standard | EU5 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1288 | 1270 | 1290 | 1268 | 1288 | 1270 |
| Overall weight [kg] | 1800 | 1780 | 1800 | 1780 | 1800 | 1780 |
| Maximum trailer weight unbraked/braked [kg] | 640/1500 | 640/1500 | 640/1500 | 630/1500 | 640/1500 | 630/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4255 | 4255 | 4255 | 4255 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1491 | 1491 | 1491 | 1491 | 1491 | 1491 |
| Wheelbase [mm] | 2637 | 2637 | 2637 | 2637 | 2637 | 2637 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI ACT BMT | 2.0 TSI GTI | 2.0 TSI GTI | 2.0 TSI GTI Performance | 2.0 TSI GTI Performance | 2.0 TSI Clubsport | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 162/4500-6200 | 162/4500-6200 | 169/4700-6200 | 169/4700-6200 | 195/5300 - 6600 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 350/1500-4400 | 350/1500-4400 | 350/1500-4600 | 350/1500-4600 | 350/1700-5300 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | - | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 216 | 246 | 244 | 250 | 248 | 250 |
| Acceleration 0–100 km/h [s] | 8.2 | 6.5 | 6.5 | 6.4 | 6.4 | 6.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8 | 7.5 | 8.1 | 7.5 | 8.1 | - |
| Out of town [l] | 4.1 | 5.1 | 5.3 | 5.1 | 5.4 | - |
| Combined [l] | 4.7 | 6.0 | 6.4 | 6.0 | 6.4 | 7.0 |
| CO2 emissions [g/km] | 110 | 139 | 148 | 139 | 147 | 162 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1290 | 1351 | 1370 | 1382 | 1402 | 1375 |
| Overall weight [kg] | 1800 | 1820 | 1840 | 1850 | 1870 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 640/1500 | 670/1600 | 680/1600 | 690/1600 | 700/1600 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 |
| Wheel size front | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 |
| Wheel size rear | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4268 | 4268 | 4268 | 4268 | 4268 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1491 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2637 | 2631 | 2631 | 2631 | 2631 | 2631 |
| Front wheel track [mm] | 1549 | 1538 | 1538 | 1538 | 1538 | 1538 |
| Rear wheel track [mm] | 1520 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 133 | 133 | 133 | 133 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12 | 12 | 12 | 12 | 12.3 |
| Approach angle rear [°] | 17.5 | 13.7 | 13.7 | 13.7 | 13.7 | 15.1 |
| Transition angle [°] | 9.6 | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI Clubsport | 2.0 TSI R | 2.0 TSI R | 1.4 TSI GTE | e-Golf | 1.6 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | - | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1395 | - | 1598 |
| Maximum output / speed [kW/min-1] | 195/5300 - 6600 | 221/5500-6200 | 221/5500-6200 | 110/5000-6000 combustion 75/2500 el. 150 total | 85/3000-12000 | 66/2750-4800 |
| Maximum torque [Nm/min-1] | 350/1700-5300 | 380/1800-5500 | 380/1800-5500 | 250/1500-3000 combustion 350 total | 270/0-3000 | 230/1400-2700 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | - | 79,5 x 80,5 |
| Compression ratio | 9,3:1 | 9,3:1 | 9,3:1 | 10,5:1 | - | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 1 gear automatic | 5 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 250 | 250 | 250 | 217 [130 el.] | 140 | 185 |
| Acceleration 0–100 km/h [s] | 6.3 | 5.1 | 4.9 | 7.6 | 10.4 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 9.4 | 8.5 | - | - | - |
| Out of town [l] | - | 5.9 | 5.9 | - | - | - |
| Combined [l] | 6.9 | 7.1 | 6.9 | 1.5 [11.4 kWh] | 12.7 kWh | 3.8 |
| CO2 emissions [g/km] | 158 | 165 | 159 | 35 | - | 98 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 323 | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 8.7 kWh | Lithium-Ionen-Akkumulator, 24.2 kWh | - |
| Range with fully charged battery [km] | - | - | - | 50 | 130-190 | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1476 | 1495 | 1599 | 1585 | 1280 |
| Overall weight [kg] | 1870 | 1960 | 1980 | 2020 | 1960 | 1780 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 750/1500 | - | 640/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 343 | 343 | 272 | 341 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1233 | -/1233 | -/1162 | -/1231 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 744 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1515 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | - | - | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 55 | 55 | 40 | - | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms |
| Tyre dimensions front | 225/40 R18 | 225/40 R18 | 225/40 R18 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Tyre dimensions rear | 225/40 R18 | 225/40 R18 | 225/40 R18 | 205/55 R16 | 205/55 R16 | 195/65 R15 |
| Wheel size front | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 |
| Wheel size rear | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4268 | 4276 | 4276 | 4270 | 4270 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1470 | 1470 | 1457 | 1457 | 1491 |
| Wheelbase [mm] | 2631 | 2630 | 2630 | 2631 | 2631 | 2637 |
| Front wheel track [mm] | 1538 | 1541 | 1541 | 1543 | 1543 | 1549 |
| Rear wheel track [mm] | 1516 | 1515 | 1515 | 1512 | 1512 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 128 | 128 | 128 | 140 | 143 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.3 | 12.3 | 12.3 | - | - | 12.4 |
| Approach angle rear [°] | 15.1 | 15.1 | 15.1 | - | - | 17.5 |
| Transition angle [°] | 9.9 | 9.9 | 9.9 | - | - | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI BMT | 1.6 TDI BMT | 1.6 TDI BMT 4MOTION | 1.6 TDI BMT | 1.6 TDI Bluemotion | 1.6 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/3000-4000 | 77/3000-4000 | 77/3000-4000 | 81/3250-4000 | 81/3250-4000 | 81/3250-4000 |
| Maximum torque [Nm/min-1] | 250/1500-2750 | 250/1500-2750 | 250/1500-2750 | 250/1500-3000 | 250/1500-3000 | 250/1500-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 5 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
| - | - |
|
| Top speed [km/h] | 192 | 192 | 187 | 195 | 200 | 195 |
| Acceleration 0–100 km/h [s] | 10.7 | 10.7 | 11.5 | 10.5 | 10.5 | 10.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.6 | 4.6 | 5.5 | 4.5-4.6 | 3.9 | 4.4-4.5 |
| Out of town [l] | 3.3 | 3.5 | 4.0 | 3.5-3.6 | 3.2 | 3.6-3.7 |
| Combined [l] | 3.8 | 3.9 | 4.5 | 3.8-3.9 | 3.4 | 3.9-4.0 |
| CO2 emissions [g/km] | 99 | 102 | 119 | 99-101 | 89 | 102-104 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU5-EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295 | 1313 | 1410 | 1299 | 1265 | 1317 |
| Overall weight [kg] | 1800 | 1810 | 1920 | 1800 | 1740 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 640/1500 | 650/1500 | 700/1700 | 640/1500 | 630/1000 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 343 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1233 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 55 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4255 | 4255 | 4255 | 4255 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1491 | 1491 | 1492 | 1491 | 1472 | 1491 |
| Wheelbase [mm] | 2637 | 2637 | 2637 | 2637 | 2637 | 2637 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI BMT 4MOTION | 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 TDI GTD | 2.0 TDI GTD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 81/3200-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 135/3500-4000 | 135/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 380/1750-3250 | 380/1750-3250 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 191 | 216 | 212 | 211 | 230 | 228 |
| Acceleration 0–100 km/h [s] | 11.3 | 8.6 | 8.6 | 8.6 | 7.5 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 5.0-5.2 | 5.2-5.3 | 5.7 | 5.1-5.3 | 5.5-5.7 |
| Out of town [l] | - | 3.6-3.8 | 4.0-4.1 | 4.1 | 3.7-4.0 | 4.0-4.4 |
| Combined [l] | 4.5 | 4.1-4.3 | 4.4-4.6 | 4.7 | 4.2-4.4 | 4.5-4.8 |
| CO2 emissions [g/km] | 119 | 106-112 | 117-119 | 122 | 109-114 | 119-127 |
| Emission standard | EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1432 | 1354 | 1375 | 1471 | 1377 | 1395 |
| Overall weight [kg] | 1930 | 1860 | 1880 | 1940 | 1850 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 710/1700 | 670/1600 | 680/1600 | 720/1700 | 680/1600 | 690/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 343 | 380 | 380 | 343 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1233 | -/1270 | -/1270 | -/1233 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 50 | 50 | 55 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4255 | 4255 | 4255 | 4255 | 4255 | 4255 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1492 | 1491 | 1491 | 1492 | 1491 | 1491 |
| Wheelbase [mm] | 2637 | 2637 | 2637 | 2637 | 2637 | 2637 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1538 | 1538 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1517 | 1517 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12 | 12 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 13.7 | 13.7 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.9 | 9.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate (Variant)
| 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.2 TSI BMT | 1.4 TGI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1197 | 1197 | 1395 |
| Maximum output / speed [kW/min-1] | 63/4300-5300 | 77/4500-5500 | 77/4500-5500 | 81/4600-5600 | 81/4600-5600 | 81/4800-6000 |
| Maximum torque [Nm/min-1] | 160/1400-3500 | 175/1400-4000 | 175/1400-4000 | 175/1400-4000 | 175/1400-4000 | 200/1500-3500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 180 | 193 | 193 | 196 | 196 | 195 |
| Acceleration 0–100 km/h [s] | 12.6 | 10.7 | 10.7 | 10.4 | 10.4 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.0-6.3 | 6.0 | 5.8 | 6.3-6.4 | 6.0-6.1 | 6.9 [4.5 kg] |
| Out of town [l] | 4.3-4.2 | 4.4 | 4.5 | 4.3-4.4 | 4.4-4.5 | 4.4 [2.9 kg] |
| Combined [l] | 5.0-5.1 | 5.0 | 5.0 | 5.0-5.1 | 5.0-5.1 | 5.3 [3.5 kg] |
| CO2 emissions [g/km] | 115-117 | 117 | 115 | 117-119 | 115-117 | 124 [94 CNG] |
| Emission standard | EU5-EU6 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1285 | 1297 | 1324 | 1294 | 1324 | 1380 |
| Overall weight [kg] | 1820 | 1830 | 1860 | 1830 | 1860 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 640/1100 | 640/1300 | 660/1300 | 640/1300 | 660/1300 | 690/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 424 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1439 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 [15 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4562 | 4562 | 4562 | 4562 | 4562 | 4562 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2635 | 2635 | 2635 | 2635 | 2635 | 2630 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13 | 13 | 13 | 13 | 13 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TGI BMT | 1.0 TSI BlueMotion | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 999 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 81/4800-6000 | 85/5000-5500 | 90/5000 | 90/5000 | 92/5000-6000 | 92/5000-6000 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 200/2000-3500 | 200/1500-4000 | 200/1500-4000 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 74,5 x 76,4 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 195 | 204 | 204 | 204 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.1 | 9.7 | 9.7 | 9.5 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 [4.4 kg] | - | 6.9 | 6.3 | 6.9-7.0 | - |
| Out of town [l] | 4.4 [2.8 kg] | - | 4.4 | 4.4 | 4.4-4.5 | - |
| Combined [l] | 5.2 [3.4 kg] | 4.3 | 5.3 | 5.1 | 5.3-5.4 | 5.1 |
| CO2 emissions [g/km] | 119 [92 CNG] | 99 | 124 | 118 | 123-125 | 118 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1280 | 1329 | 1350 | 1322 | 1347 |
| Overall weight [kg] | 1880 | 1790 | 1860 | 1880 | 1880 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 640/1100 | 660/1400 | 670/1400 | 660/1400 | 670/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 424 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1439 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1826 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 461/814 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 [15 kg] | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4562 | 4562 | 4562 | 4562 | 4562 | 4562 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1481 | 1481 |
| Wheelbase [mm] | 2630 | 2635 | 2635 | 2635 | 2635 | 2635 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.1 | 13 | 13 | 13 | 13 | 13 |
| Approach angle rear [°] | 11.5 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | 9.8 | 9.9 | 9.9 | 9.9 | 9.9 | 9.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 1.4 TSI BMT | 2.0 TSI R | 1.8 TSI Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1984 | 1798 |
| Maximum output / speed [kW/min-1] | 103/4500-6000 | 103/4500-6000 | 110/5000-6000 | 110/5000-6000 | 221/5500-6200 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 380/1800-5500 | 280/1350-4500 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,3:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 213 | 213 | 218 | 218 | 250 | 217 |
| Acceleration 0–100 km/h [s] | 8.9 | 8.9 | 8.6 | 8.6 | 5.1 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6 | 6.1 | 6.7-6.8 | 6.2-6.3 | 8.6 | 8.0-8.1 |
| Out of town [l] | 4.5 | 4.4 | 4.4-4.5 | 4.4-4.5 | 6.0 | 5.6-5.7 |
| Combined [l] | 5.3 | 5.0 | 5.3-5.4 | 5.0-5.1 | 7.0 | 6.5-6.6 |
| CO2 emissions [g/km] | 121 | 116 | 121-123 | 116-118 | 162 | 153-155 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1354 | 1368 | 1353 | 1368 | 1574 | 1540 |
| Overall weight [kg] | 1880 | 1900 | 1890 | 1910 | 2080 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 670/1500 | 680/1500 | - | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 205/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4562 | 4562 | 4562 | 4562 | 4596 | 4558 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1481 | 1467 | 1515 |
| Wheelbase [mm] | 2635 | 2635 | 2635 | 2635 | 2630 | 2630 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1540 | 1546 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1519 | 1517 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 126 | 175 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13 | 13 | 13 | 12 | 15.2 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 11.7 | 13.3 |
| Transition angle [°] | 9.9 | 9.9 | 9.9 | 9.9 | 10 | 13.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI BMT | 1.6 TDI BMT | 1.6 TDI BMT | 1.6 TDI BMT 4MOTION | 1.6 TDI BMT | 1.6 TDI Bluemotion | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/2750-4800 | 77/3000-4000 | 77/3000-4000 | 77/3000-4000 | 81/3250-4000 | 81/3250-4000 |
| Maximum torque [Nm/min-1] | 230/1400-2700 | 250/1500-2750 | 250/1500-2750 | 250/1500-2750 | 250/1500-3000 | 250/1500-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 7 gear automatic | 6 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 186 | 193 | 193 | 189 | 196 | 200 |
| Acceleration 0–100 km/h [s] | 12.9 | 11.2 | 11.2 | 11.9 | 11.0 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 4.9 | 4.8 | 5.5 | 4.6-4.7 | 4.0 |
| Out of town [l] | - | 3.3 | 3.5 | 4.0 | 3.5-3.6 | 3.3 |
| Combined [l] | 3.9 | 3.9 | 4.0 | 4.5 | 3.9-4.0 | 3.3-3.5 |
| CO2 emissions [g/km] | 102 | 102 | 104 | 119 | 102-104 | 87-92 |
| Emission standard | EU5-EU6 | EU5 | EU5 | EU5 | EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1410 | 1494 | 1395 | 1391 |
| Overall weight [kg] | 1920 | 1920 | 1940 | 1980 | 1930 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 690/1500 | 700/1500 | 740/1700 | 690/1500 | 690/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4562 | 4562 | 4562 | 4562 | 4562 | 4562 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1481 | 1481 | 1479 | 1481 | 1481 |
| Wheelbase [mm] | 2635 | 2635 | 2635 | 2635 | 2635 | 2635 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 138 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13 | 13 | 13.4 | 13 | 13 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 11.8 | 12.4 | 12.4 |
| Transition angle [°] | 9.9 | 9.9 | 9.9 | 9.4 | 9.9 | 9.9 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI BMT | 1.6 TDI BMT 4MOTION | 2.0 TDI BMT | 2.0 TDI BMT | 2.0 TDI BMT 4MOTION | 2.0 TDI GTD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 81/3250-4000 | 81/3200-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 135/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3000 | 250/1500-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 380/1750-3250 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 196 | 192 | 218 | 216 | 214 | 231 |
| Acceleration 0–100 km/h [s] | 11.0 | 11.7 | 8.9 | 8.9 | 8.9 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5-4.6 | - | 5.1-5.3 | 5.3-5.4 | 5.8 | 5.2 |
| Out of town [l] | 3.7-3.8 | - | 3.7-3.9 | 4.1-4.2 | 4.2-4.3 | 4.0 |
| Combined [l] | 4.0-4.1 | 4.5 | 4.2-4.4 | 4.5-4.6 | 4.8-4.9 | 4.4 |
| CO2 emissions [g/km] | 104-106 | 119 | 108-112 | 119-120 | 124-125 | 115 |
| Emission standard | EU6 | EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1412 | 1494 | 1436 | 1454 | 1528 | 1475 |
| Overall weight [kg] | 1940 | 2030 | 1970 | 1990 | 2010 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 740/1700 | 710/1600 | 720/1600 | 750/2000 | 680/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 55 | 50 | 50 | 55 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4562 | 4562 | 4562 | 4562 | 4562 | 4575 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1481 | 1479 | 1481 | 1481 | 1479 | 1470 |
| Wheelbase [mm] | 2635 | 2635 | 2635 | 2635 | 2635 | 2631 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1538 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1514 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 138 | 140 | 140 | 138 | 131 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13 | 13.4 | 13 | 13 | 13.4 | 11.2 |
| Approach angle rear [°] | 12.4 | 11.8 | 12.4 | 12.4 | 11.8 | 11.8 |
| Transition angle [°] | 9.9 | 9.4 | 9.9 | 9.9 | 9.4 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI GTD | 1.6 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | |||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2015 to | from 2015 to | from 2015 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1598 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 135/3500-4000 | 81/3200-4000 | 110/3500-4000 | 135/3500-4000 | ||
| Maximum torque [Nm/min-1] | 380/1750-3250 | 250/1500-3000 | 340/1750-3000 | 380/1750-3250 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 79,5 x 80,5 | 81,0 x 95,9 | 81,0 x 95,9 | ||
| Compression ratio | 15,8:1 | 16,2:1 | 16,2:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 229 | 187 | 207 | 219 | ||
| Acceleration 0–100 km/h [s] | 7.9 | 12.1 | 8.9 | 7.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.7 | 5.6-5.7 | 5.8-5.9 | 5.6-5.7 | ||
| Out of town [l] | 4.3 | 4.2-4.3 | 4.3-4.4 | 4.5-4.6 | ||
| Combined [l] | 4.8 | 4.7-4.8 | 4.8-4.9 | 4.9-5.0 | ||
| CO2 emissions [g/km] | 125 | 122-124 | 125-127 | 129-132 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1495 | 1544 | 1555 | 1584 | ||
| Overall weight [kg] | 2020 | 2040 | 2050 | 2080 | ||
| Maximum trailer weight unbraked/braked [kg] | 690/1600 | 750/1700 | 750/2000 | 750/2000 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 605 | 605 | 605 | 605 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | ||
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | ||
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | ||
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | ||
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 55 | 55 | 55 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | ||
| Tyre dimensions front | 225/45 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | ||
| Tyre dimensions rear | 225/45 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | ||
| Wheel size front | 7.5J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Wheel size rear | 7.5J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | ||
| Overall length [mm] | 4575 | 4558 | 4558 | 4558 | ||
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | ||
| Overall height [mm] | 1470 | 1515 | 1515 | 1515 | ||
| Wheelbase [mm] | 2631 | 2630 | 2630 | 2630 | ||
| Front wheel track [mm] | 1538 | 1546 | 1546 | 1546 | ||
| Rear wheel track [mm] | 1514 | 1517 | 1517 | 1517 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 131 | 175 | 175 | 175 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 11.2 | 15.2 | 15.2 | 15.2 | ||
| Approach angle rear [°] | 11.8 | 13.3 | 13.3 | 13.3 | ||
| Transition angle [°] | 9.5 | 13.1 | 13.1 | 13.1 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 981 | 981 | 981 | 981 | ||
| Headroom rear [mm] | 980 | 980 | 980 | 980 | ||
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | ||
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
