Volkswagen Caddy
Date of manufacture
2015 – 2021 (Medium MPV)
2015 – 2021 (Large MPV)
Platform
-
Manufacturing locations
Poznań, Poland
Kaluga, Russia
Changchun, People's Republic of China
Relizane, Algeria
Designer
-
Tags
Mid-size MPV
German cars
The Volkswagen Caddy is available as a medium MPV and large MPV, which was first produced in 2015. This model is manufactured in four countries - Poland, Russia, China and Algeria. It offers a wide range of engines, from petrol to diesel. The highest performance is achieved by the 2.0 TDI 4MOTION (110 kW) model, which has a top speed of 194 km/h. The 1.4 TGI model has the lowest fuel consumption of 4.1 kg/100 km and emissions of 113 g/km. The size of the luggage compartment of the vehicle with the medium MPV body is 918 l and 1350 l for the vehicle with the large MPV body. In 2015, the Volkswagen Caddy underwent EURONCAP safety tests and received a rating of 4 out of 5.
Car body style
Medium MPV
after upgrade (facelift) (II.)
Date of manufacture
2015 – 2021Internal designation
2K
Technical data
Medium MPV
| 1.2 TSI | 1.0 TSI | 1.4 TGI | 1.4 TGI | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 999 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 62/4300-5300 | 75/5000-5500 | 81/4800-6000 | 81/4800-6000 | 92/5000-6000 | 92/5000-6000 |
| Maximum torque [Nm/min-1] | 160/1400-3500 | 175/1500-3500 | 200/1500-3500 | 200/1500-3500 | 220/1500-3500 | 220/1500-3500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 74,5 x 76,4 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 157 | 172 | 174 | 172 | 185 | 183 |
| Acceleration 0–100 km/h [s] | 14.7 | 12.1 | 12.9 | 12.9 | 10.9 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0-6.9 | 6.4-6.3 | 5.2-5.1 kg | 5.4-5.3 kg | 7.2 | 6.7-6.5 |
| Out of town [l] | 4.9-4.8 | 4.7 | 3.6-3.4 kg | 3.8-3.7 kg | 5.1 | 5.2-5.1 |
| Combined [l] | 5.7-5.6 | 5.3 | 4.1 kg | 4.4-4.3 kg | 5.9 | 5.8-5.7 |
| CO2 emissions [g/km] | 132-131 | 124-123 | 113-111 | 120-118 | 135 | 133-130 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1342 | 1541 | 1576 | 1387 | 1414 |
| Overall weight [kg] | 2165 | 2180 | 2175 | 2180 | 2180 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 670/1300 | 670/1200 | 750/1300 | 750/1400 | 690/1400 | 700/1500 |
| Maximum front/rear axle load [kg] | 1100/1200 | 1100/1200 | 1025/1200 | 1075/1200 | 1100/1200 | 1100/1200 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 918 | 918 | 918 | 918 | 918 | 918 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 |
| Boot length [mm] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] |
| Boot length with rear seats folded [mm] | 1781 | 1781 | 1781 | 1781 | 1781 | 1781 |
| Boot width between wheels/max [mm] | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 |
| Boot height to headliner/ceiling [mm] | -/1230 | -/1230 | -/1230 | -/1230 | -/1230 | -/1230 |
| Loading edge height [mm] | 575 | 575 | 575 | 575 | 575 | 575 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1134 | 1134 | 1134 | 1134 | 1134 | 1134 |
| Boot opening width min/max [mm] | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 55 | 55 | 9 [26 kg] | 9 [26 kg] | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs |
| Tyre dimensions front | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Tyre dimensions rear | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4408 | 4408 | 4408 | 4408 | 4408 | 4408 |
| Overall width without/including mirrors [mm] | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 |
| Overall height [mm] | 1822 | 1822 | 1822 | 1822 | 1822 | 1822 |
| Wheelbase [mm] | 2682 | 2682 | 2682 | 2682 | 2682 | 2682 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | 879 | 879 | 879 | 879 | 879 | 879 |
| Rear overhang [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Clearance [mm] | 155 | 155 | 123 | 123 | 155 | 155 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.7 | 15.7 | 15.7 | 15.7 | 15.7 | 15.7 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 13.5 | 13.5 | 13.2 | 13.2 | 13.5 | 13.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI | 1.4 TSI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | - | - | - | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 96/5000-6000 | 96/5000-6000 | 55/2400-4500 | 75/2900-4000 | 75/2900-4000 | 90/2900-4500 |
| Maximum torque [Nm/min-1] | 220/1500-3500 | 220/1500-3500 | 225/1200-2300 | 250/1300-2800 | 250/1300-2800 | 300/1500-3800 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 10,5:1 | 10,5:1 | - | - | - | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 191 | 191 | 152 | 172 | 170 | 178 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 17.6 | 12.9 | 13.0 | 11.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3 | 6.7 | 6.2-5.5 | 6.4-5.3 | 6.2--5.7 | 6.6 |
| Out of town [l] | 5.8 | 5.4 | 4.6-4.0 | 4.6-4.1 | 5.4-4.5 | 4.8 |
| Combined [l] | 6.7 | 5.9 | 5.2-4.6 | 5.3-4.6 | 5.5-5.0 | 5.4 |
| CO2 emissions [g/km] | 151 | 133 | 136-119 | 138-119 | 145--130 | 143 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1407 | 1434 | 1442 | 1457 | 1492 | 1571 |
| Overall weight [kg] | 2200 | 2200 | 2245 | 2255 | 2280 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 740/1400 | 740/1500 | 720/1400 | 720/1500 | 740/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1100/1200 | 1100/1200 | 1150/1200 | 1150/1200 | 1170/1200 | 1200/1200 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 918 | 918 | 918 | 918 | 918 | 918 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 | -/3200 |
| Boot length [mm] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] |
| Boot length with rear seats folded [mm] | 1781 | 1781 | 1781 | 1781 | 1781 | 1781 |
| Boot width between wheels/max [mm] | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 | 1168/1190 |
| Boot height to headliner/ceiling [mm] | -/1230 | -/1230 | -/1230 | -/1230 | -/1230 | -/1230 |
| Loading edge height [mm] | 575 | 575 | 575 | 575 | 575 | 612 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1134 | 1134 | 1134 | 1134 | 1134 | 1134 |
| Boot opening width min/max [mm] | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | 9 | 9 | 9 | 9 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs |
| Tyre dimensions front | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Tyre dimensions rear | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4408 | 4408 | 4408 | 4408 | 4408 | 4408 |
| Overall width without/including mirrors [mm] | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 |
| Overall height [mm] | 1822 | 1822 | 1822 | 1822 | 1822 | 1851 |
| Wheelbase [mm] | 2682 | 2682 | 2682 | 2682 | 2682 | 2682 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | 879 | 879 | 879 | 879 | 879 | 879 |
| Rear overhang [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Clearance [mm] | 155 | 155 | 155 | 155 | 155 | 153 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.7 | 15.7 | 15.7 | 15.7 | 15.7 | 14.7 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 23.2 |
| Transition angle [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 14.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | |||
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 194 | 192 | 189 | |||
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | 10.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.8-6.0 | 6.0-5.8 | 6.4 | |||
| Out of town [l] | 4.7-4.3 | 4.9-4.6 | 4.9 | |||
| Combined [l] | 5.5-4.9 | 5.3-5.0 | 5.4 | |||
| CO2 emissions [g/km] | 144-129 | 139-132 | 143 | |||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1477 | 1498 | 1590 | |||
| Overall weight [kg] | 2255 | 2280 | 2290 | |||
| Maximum trailer weight unbraked/braked [kg] | 730/1500 | 740/1500 | 750/1450 | |||
| Maximum front/rear axle load [kg] | 1150/1200 | 1170/1200 | 1200/1200 | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 918 | 918 | 918 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/3200 | |||
| Boot length [mm] | 1095 [224 seven seats] | 1095 [224 seven seats] | 1095 [224 seven seats] | |||
| Boot length with rear seats folded [mm] | 1781 | 1781 | 1781 | |||
| Boot width between wheels/max [mm] | 1168/1190 | 1168/1190 | 1168/1190 | |||
| Boot height to headliner/ceiling [mm] | -/1230 | -/1230 | -/1230 | |||
| Loading edge height [mm] | 575 | 575 | 612 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 1134 | 1134 | 1134 | |||
| Boot opening width min/max [mm] | 1183/- | 1183/- | 1183/- | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5-7 | 5-7 | 5-7 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | 9 | 9 | 9 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | |||
| Tyre dimensions front | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | |||
| Tyre dimensions rear | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | |||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | |||
| Overall length [mm] | 4408 | 4408 | 4408 | |||
| Overall width without/including mirrors [mm] | 1793/2079 | 1793/2079 | 1793/2079 | |||
| Overall height [mm] | 1822 | 1822 | 1851 | |||
| Wheelbase [mm] | 2682 | 2682 | 2682 | |||
| Front wheel track [mm] | - | - | - | |||
| Rear wheel track [mm] | - | - | - | |||
| Forward overhang [mm] | 879 | 879 | 879 | |||
| Rear overhang [mm] | 847 | 847 | 847 | |||
| Clearance [mm] | 155 | 155 | 153 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 15.7 | 15.7 | 14.7 | |||
| Approach angle rear [°] | 17.5 | 17.5 | 23.2 | |||
| Transition angle [°] | 13.5 | 13.5 | 14.8 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

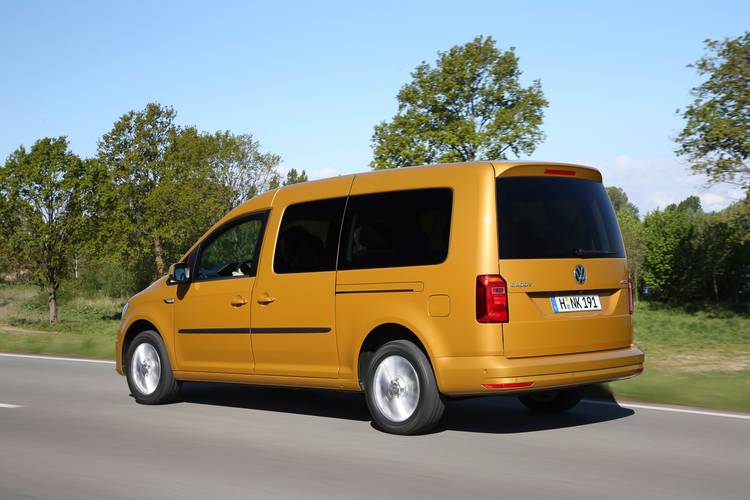

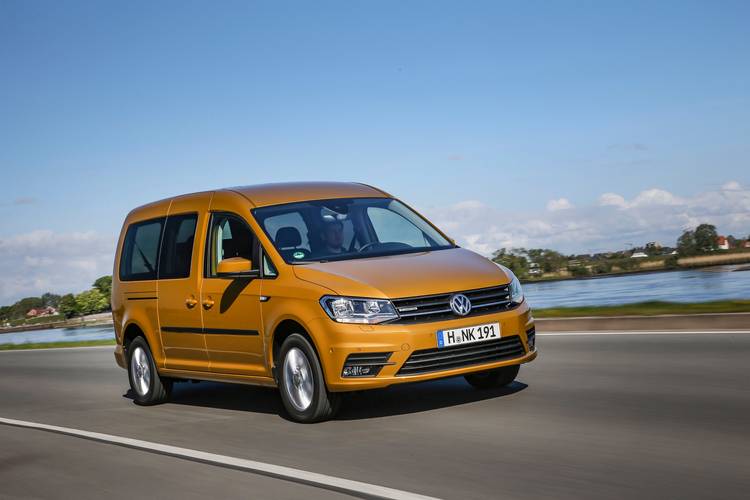

Large MPV (Maxi)
| 1.0 TSI | 1.4 TGI | 1.4 TGI | 1.4 TSI | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | - | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1395 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 75/5000-5500 | 81/4800-6000 | 81/4800-6000 | 92/5000-6000 | 92/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1500-3500 | 200/1500-3500 | 200/1500-3500 | 220/1500-3500 | 220/1500-3500 | 220/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 172 | 174 | 172 | 185 | 183 | 191 |
| Acceleration 0–100 km/h [s] | 12.5 | 13.7 | 13.7 | 11.3 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5 | 5.3-5.2 kg | 5.4 kg | 7.3 | 6.7-6.6 | 8.3 |
| Out of town [l] | 4.9-4.8 | 3.6 kg | 3.9-3.8 kg | 5.2 | 5.3-5.1 | 5.8 |
| Combined [l] | 5.5 | 4.3-4.1 kg | 4.5-4.4 kg | 6.0 | 5.8-5.7 | 6.7 |
| CO2 emissions [g/km] | 128-127 | 116-113 | 122-120 | 138 | 133-130 | 151 |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1403 | 1651 | 1686 | 1447 | 1474 | 1467 |
| Overall weight [kg] | 2260 | 2280 | 2280 | 2260 | 2280 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 700/1150 | 750/1200 | 750/1350 | 720/1400 | 730/1500 | 730/1200 |
| Maximum front/rear axle load [kg] | 1150/1230 | 1150/1250 | 1200/1250 | 1150/1250 | 1150/1250 | 1150/1250 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3880 | -/3880 | -/3880 | -/3880 | -/3880 | -/3880 |
| Boot length [mm] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] |
| Boot length with rear seats folded [mm] | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 |
| Boot width between wheels/max [mm] | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 |
| Boot height to headliner/ceiling [mm] | -/1233 | -/1233 | -/1233 | -/1233 | -/1233 | -/1233 |
| Loading edge height [mm] | 581 | 581 | 581 | 581 | 581 | 581 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1127 | 1127 | 1127 | 1127 | 1127 | 1127 |
| Boot opening width min/max [mm] | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 55 | 13 [37 kg] | 13 [37 kg] | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs |
| Tyre dimensions front | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Tyre dimensions rear | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- |
| Overall length [mm] | 4878 | 4878 | 4878 | 4878 | 4878 | 4878 |
| Overall width without/including mirrors [mm] | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 |
| Overall height [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Wheelbase [mm] | 3006 | 3006 | 3006 | 3006 | 3006 | 3006 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | 879 | 879 | 879 | 879 | 879 | 879 |
| Rear overhang [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Clearance [mm] | 158 | 146 | 146 | 158 | 158 | 158 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| Approach angle rear [°] | 15.3 | 15.3 | 15.3 | 15.3 | 15.3 | 15.3 |
| Transition angle [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | - | - | from to 2018 | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 96/5000-6000 | 75/2900-4000 | 75/2900-4000 | 90/2900-4500 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 220/1500-3500 | 250/1300-2800 | 250/1300-2800 | 300/1500-3800 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 10,5:1 | - | - | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 5 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 191 | 172 | 170 | 178 | 194 | 192 |
| Acceleration 0–100 km/h [s] | 11.3 | 13.3 | 13.4 | 11.8 | 10.3 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7 | 6.5-5.4 | 6.2-5.9 | 6.6 | 6.8-6.1 | 6.0-5.9 |
| Out of town [l] | 5.4 | 4.7-4.2 | 5.4-4.6 | 4.9 | 4.8-4.4 | 4.9-4.6 |
| Combined [l] | 5.9 | 5.4-4.7 | 5.5-5.1 | 5.6 | 5.6-5.0 | 5.3-5.1 |
| CO2 emissions [g/km] | 133 | 141-122 | 145-133 | 146 | 146-132 | 139-135 |
| Emission standard | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1494 | 1519 | 1554 | 1630 | 1537 | 1558 |
| Overall weight [kg] | 2280 | 2280 | 2280 | 2415 | 2345 | 2365 |
| Maximum trailer weight unbraked/braked [kg] | 740/1350 | 750/1500 | 750/1500 | 750/1450 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | 1150/1250 | 1175/1230 | 1200/1230 | 1235/1250 | 1200/1250 | 1200/1250 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3880 | -/3880 | -/3880 | -/3880 | -/3880 | -/3880 |
| Boot length [mm] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] | 1566 [644 seven seats] |
| Boot length with rear seats folded [mm] | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 |
| Boot width between wheels/max [mm] | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 | 1120/1121 |
| Boot height to headliner/ceiling [mm] | -/1233 | -/1233 | -/1233 | -/1233 | -/1233 | -/1233 |
| Loading edge height [mm] | 581 | 581 | 581 | 624 | 581 | 581 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1127 | 1127 | 1127 | 1127 | 1127 | 1127 |
| Boot opening width min/max [mm] | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- | 1183/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | 9 | 9 | 9 | 9 | 9 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs |
| Tyre dimensions front | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Tyre dimensions rear | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T | 196/65 R15 95T |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- | 12.2/- |
| Overall length [mm] | 4878 | 4878 | 4878 | 4878 | 4878 | 4878 |
| Overall width without/including mirrors [mm] | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 | 1793/2079 |
| Overall height [mm] | 1831 | 1831 | 1831 | 1863 | 1831 | 1831 |
| Wheelbase [mm] | 3006 | 3006 | 3006 | 3006 | 3006 | 3006 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | 879 | 879 | 879 | 879 | 879 | 879 |
| Rear overhang [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Clearance [mm] | 158 | 158 | 158 | 152 | 158 | 158 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 15.9 | 15.9 | 15.9 | 14.7 | 15.9 | 15.9 |
| Approach angle rear [°] | 15.3 | 15.3 | 15.3 | 20.2 | 15.3 | 15.3 |
| Transition angle [°] | 12.1 | 12.1 | 12.1 | 12.6 | 12.1 | 12.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 4MOTION | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | |||||
| Maximum torque [Nm/min-1] | 340/1750-3000 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,9 | |||||
| Compression ratio | 16,2:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 189 | |||||
| Acceleration 0–100 km/h [s] | 10.5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.5 | |||||
| Out of town [l] | 5.0 | |||||
| Combined [l] | 5.6 | |||||
| CO2 emissions [g/km] | 146 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1649 | |||||
| Overall weight [kg] | 2415 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1450 | |||||
| Maximum front/rear axle load [kg] | 1235/1250 | |||||
| Maximum vertical load on the tow bar [kg] | 75 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 1350 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3880 | |||||
| Boot length [mm] | 1566 [644 seven seats] | |||||
| Boot length with rear seats folded [mm] | 2250 | |||||
| Boot width between wheels/max [mm] | 1120/1121 | |||||
| Boot height to headliner/ceiling [mm] | -/1233 | |||||
| Loading edge height [mm] | 624 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 1127 | |||||
| Boot opening width min/max [mm] | 1183/- | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 55 | |||||
| AdBlue tank volume [l] | 9 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | rigid with leaf springs | |||||
| Tyre dimensions front | 196/65 R15 95T | |||||
| Tyre dimensions rear | 196/65 R15 95T | |||||
| Wheel size front | 6.0J x 15 | |||||
| Wheel size rear | 6.0J x 15 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.2/- | |||||
| Overall length [mm] | 4878 | |||||
| Overall width without/including mirrors [mm] | 1793/2079 | |||||
| Overall height [mm] | 1863 | |||||
| Wheelbase [mm] | 3006 | |||||
| Front wheel track [mm] | - | |||||
| Rear wheel track [mm] | - | |||||
| Forward overhang [mm] | 879 | |||||
| Rear overhang [mm] | 993 | |||||
| Clearance [mm] | 152 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 14.7 | |||||
| Approach angle rear [°] | 20.2 | |||||
| Transition angle [°] | 12.6 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

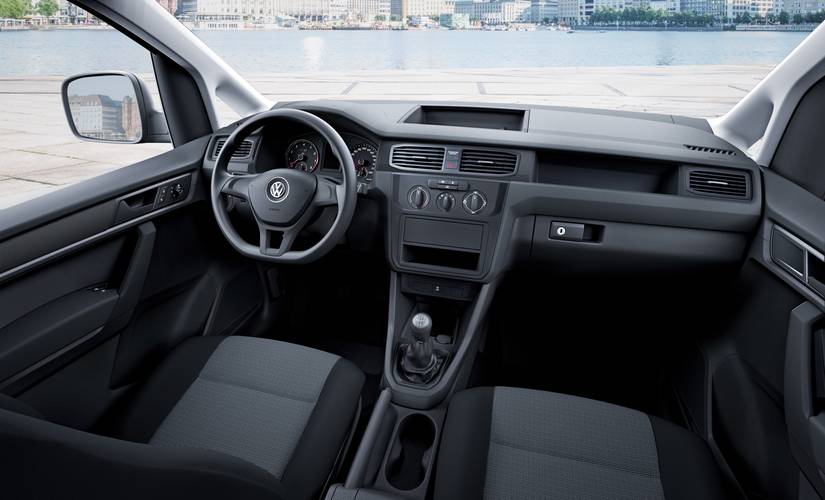

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
