Volkswagen Arteon
Date of manufacture
2017 – 2020 (Liftback)
Platform
Volkswagen Group MQB
Manufacturing locations
Emden, Germany
Osnabrück, Germany
Changchun, People's Republic of China
Designer
Tobias Suhlmann
Marc Lichte
Tags
D-segment
German cars
The Volkswagen Arteon is a liftback model first produced in 2017. The car can come from Germany, the People's Republic of China and other countries. Built on the Volkswagen Group MQB platform, the vehicle offers a wide range of engines - from gasoline to diesel and up to the highest power 2.0 TSI 4MOTION (206 kW). The top speed of this model reaches 250 km/h, while the lowest fuel consumption 3.9 l/100 km with emissions of 102 g/km belongs to the 2.0 TDI. The trunk has a capacity of 563 liters. The EURONCAP safety test gave the car a rating of 5 out of 5 points.
Car body style
Liftback
Date of manufacture
2017 – 2020Internal designation
3H7
Technical data
Liftback
| 1.5 TSI ACT | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2019 | - | from to 2018 | from 2018 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1984 | 1984 | 1984 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 140/4180-6000 | 206/5100-6500 | 200 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 320/1500-4180 | 350/1700-5600 | 350/2000-5400 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 12.2:1 | 9,3:1 | 9,3:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 222 | 239 | 250 | 250 | 222 | 220 |
| Acceleration 0–100 km/h [s] | 9,0 | 7,7 | 5,6 | - | 9,4 | 9,1 |
| Acceleration 0–80 km/h [s] | 6,3 | 5,4 | 3,7 | 5,6 | 6,7 | 6,4 |
| Acceleration 80–120 km/h [s] | 8,5 (10,5 (4th/5th gear) | - | - | - | 7.5 (9.5 (4th/5th gear) | - |
| City [l] | 6,6-6,5 | 8,4-7,8 | 9,2 | 8,9 | 5,2-4,5 | 5,4-4,5 |
| Out of town [l] | 4,4-4,3 | 5,2-4,9 | 6,1 | 6,0-5,9 | 3,8-3,5 | 4,0-3,7 |
| Combined [l] | 5,2-5,1 | 6,4-6,0 | 7,3 | 7,0 | 4,3-3,9 | 4,5-4,0 |
| CO2 emissions [g/km] | 119-117 | 144-135 | 164 | 161-160 | 112-102 | 116-105 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1504 | 1600 | 1716 | 1725 | 1614 | 1643 |
| Overall weight [kg] | 2030 | 2130 | 2240 | 2260 | 2140 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/2200 | 2200/750 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1010/1070 | 1110/1070 | 1130/1160 | 1150/1160 | 1110/1080 | 1140/1080 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 563 | 563 | 563 | 563 | 563 | 563 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 2092 | 2092 | 2092 | 2092 | 2092 | 2092 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2172 | 2172 | 2172 | 2172 | 2172 | 2172 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | 16 | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4862 | 4862 | 4862 | 4862 | 4862 | 4862 |
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2837 | 2837 | 2837 | 2837 | 2837 | 2837 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- |
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 140/3500-4000 | 176/4000 | |||
| Maximum torque [Nm/min-1] | 400/1900-3000 | 400/1900-3000 | 500/1750-2500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 15,8:1 | 15,8:1 | 15,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | 4x4 | |||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 238 | 233 | 245 | |||
| Acceleration 0–100 km/h [s] | 8,0 | 7,8 | 6,5 | |||
| Acceleration 0–80 km/h [s] | 5,9 | 5,6 | 4,3 | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5,6-5,3 | 6,0-5,7 | 7,1-6,8 | |||
| Out of town [l] | 4,2-4,0 | 4,6-4,3 | 5,3-5,1 | |||
| Combined [l] | 4,7-4,5 | 5,1-4,8 | 5,9-5,8 | |||
| CO2 emissions [g/km] | 122-119 | 134-127 | 155-151 | |||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1651-1655 | 1725-1730 | 1805-1828 | |||
| Overall weight [kg] | 2180 | 2250-2260 | 2360 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2200 | |||
| Maximum front/rear axle load [kg] | 1140/1090 | 1170/1130-1140 | 1200/1210 | |||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 563 | 563 | 563 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | 1181 | 1181 | 1181 | |||
| Boot length with rear seats folded [mm] | 2092 | 2092 | 2092 | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 2172 | 2172 | 2172 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 66 | 66 | 66 | |||
| AdBlue tank volume [l] | 16 | 16 | 16 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | four-link | four-link | four-link | |||
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | |||
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 245/45 R18 | |||
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | |||
| Overall length [mm] | 4862 | 4862 | 4862 | |||
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | |||
| Overall height [mm] | 1450 | 1450 | 1450 | |||
| Wheelbase [mm] | 2837 | 2837 | 2837 | |||
| Front wheel track [mm] | 1587 | 1587 | 1587 | |||
| Rear wheel track [mm] | 1577 | 1577 | 1577 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 138 | 138 | 138 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1008 | 1008 | 1008 | |||
| Headroom rear [mm] | 940 | 940 | 940 | |||
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | |||
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

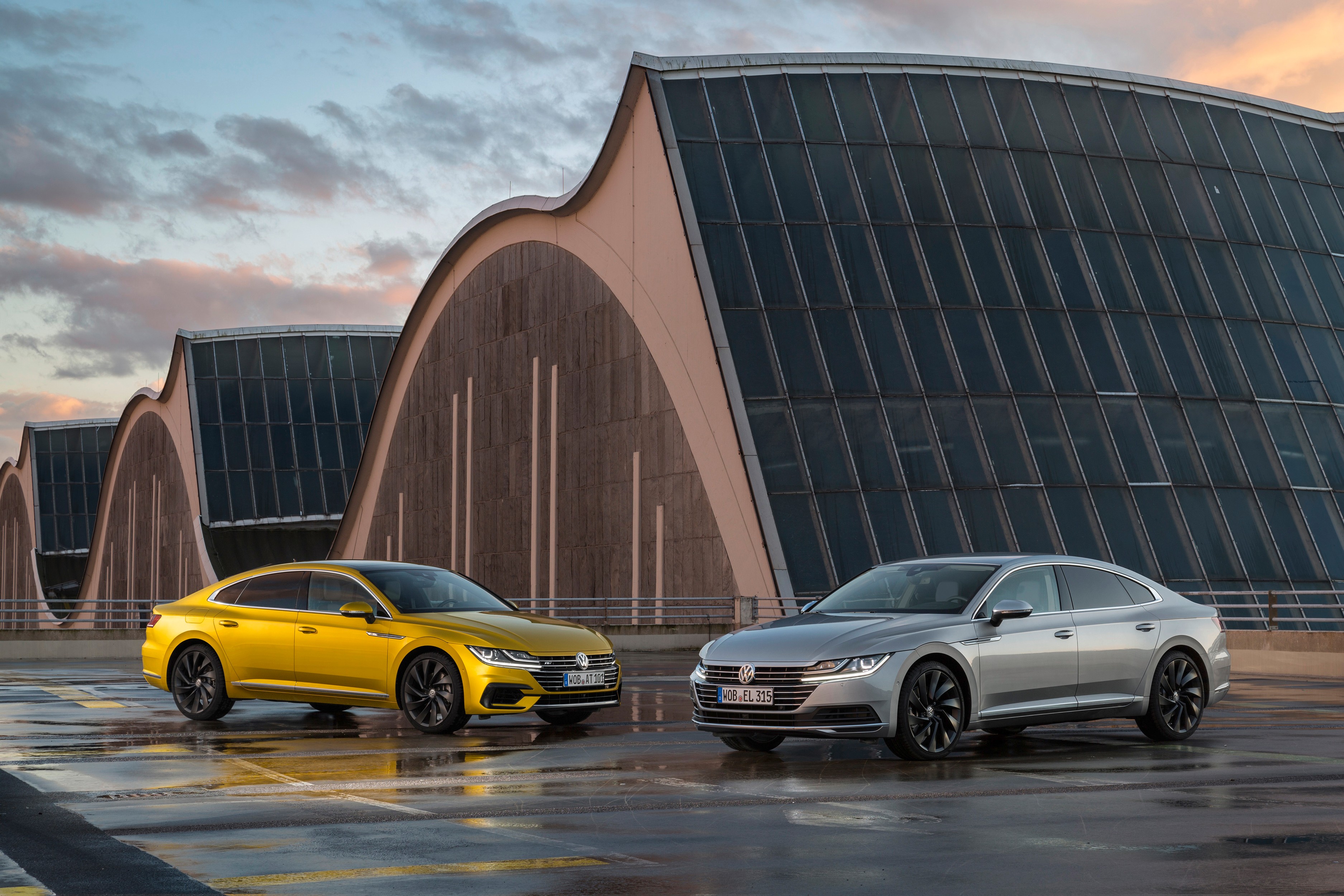

Gallery
