Toyota Yaris

Date of manufacture

2019 – to this day (Five-door hatchback)

9/2020 – to this day (Three-door hatchback)

Platform

TNGA: GA-B

Manufacturing locations

Valenciennes, France

Kolín, Czechia

Kanegasaki, Japan

Designer

Mario Majdandžić

Car body style

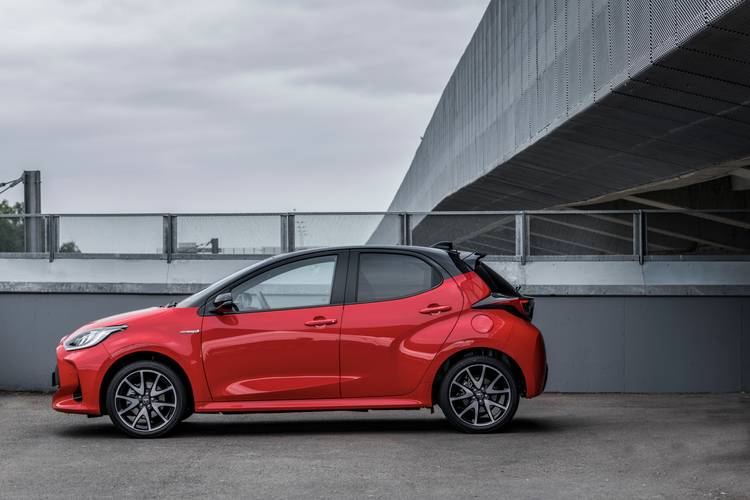

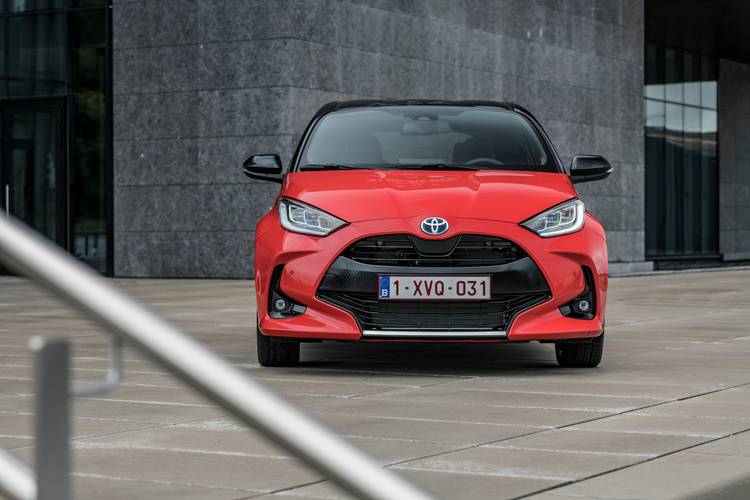

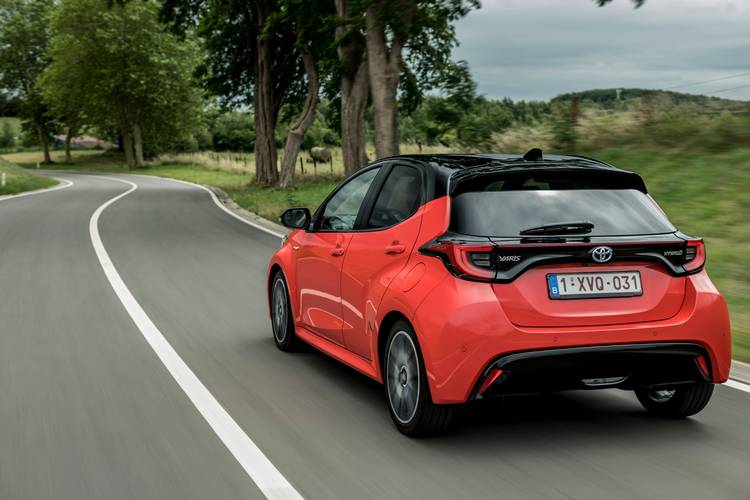

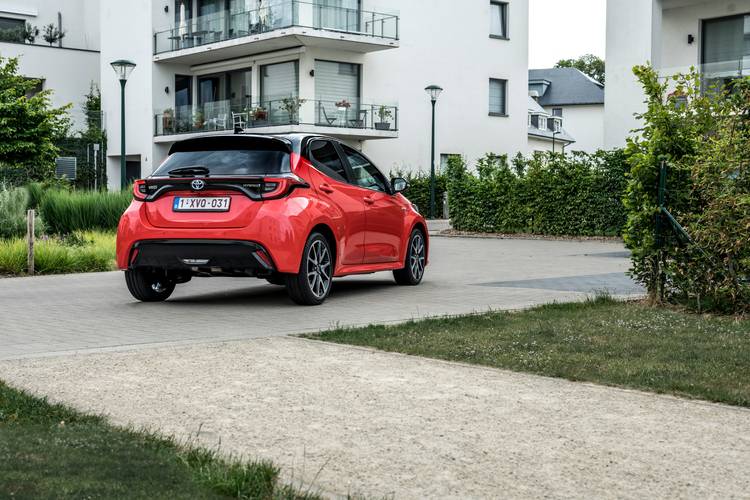

Five-door hatchback

Date of manufacture

2019 – to this day

Internal designation

XP210

Engine size

Petrol

1.0 VVT-i

1.5 Dynamic Force

Petrol + Electric

1.5 Hybrid

Three-door hatchback

Date of manufacture

9/2020 – to this day

Internal designation

XP210

Engine size

GR Yaris

Euro NCAP

Technical data

Five-door hatchback

	1.0 VVT-i	1.5 Dynamic Force	1.5 Dynamic Force	1.5 Hybrid
Date of sale	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol + Electric
Number of cylinders/valves	3/12	3/12	3/12	3/12
Engine displacement [cm³]	998	1490	1490	1490
Maximum output / speed [kW/min-1]	53/6000	92/6600	92/6600	68/5500 combustion 59 el. 85 total
Maximum torque [Nm/min-1]	95/4300	153/4800-5000	153/4800-5000	120/3600-4800 combustion 141 el.
Bore and stroke [mm x mm]	71,0 x 84,0	80.5 x 97.6	80.5 x 97.6	80.5 x 97.6
Compression ratio	11,8:1	14.0:1	14.0:1	14.0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	variable timing of intake valves VVT‐i	direct injection D-4 engine operation in the Atkinson cycle variable timing of intake valves VVT-iW variable exhaust valve timing VVT-i	direct injection D-4 engine operation in the Atkinson cycle variable timing of intake valves VVT-iW variable exhaust valve timing VVT-i	Full Hybrid electric synchronous motor with permanent magnet engine operation in the Atkinson cycle variable timing of intake valves VVT-iE variable exhaust valve timing VVT-i

Drive axle	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	1 gear automatic	1 gear automatic
Drive specifications	-	-	automatic gearbox W-CVT with one variable ratio	automatic gearbox e-CVT with one variable ratio

Top speed [km/h]	160	180	180	175
Acceleration 0–100 km/h [s]	14.6	9.0	10.2	9.7
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	5.3	6.6-5.9	6.6-5.9	2.7-2.2
Out of town [l]	4.1-4.0	4.3-4.1	4.3-4.1	3.6-3.2
Combined [l]	4.6-4.5	5.1-4.8	5.1-4.8	3.2-2.8
CO2 emissions [g/km]	103-101	117-109	117-109	73-64

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

System voltage [V]	-	-	-	-
Battery type and capacity	-	-	-	Lithium-Ionen-Akkumulator, 0.76 kWh
Range with fully charged battery [km]	-	-	-	-
Charging time	-	-	-	-
Number of modules/cells	-	-	-	-/48
Battery weight [kg]	-	-	-	-
Charger	-	-	-	-

Standby weight [kg]	960-1025	1065-1120	1090-1145	1090-1180
Overall weight [kg]	1470	1555	1585	1615
Maximum trailer weight unbraked/braked [kg]	520/750	550/850	550/850	450/450
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	50	50	50	50
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	286	286	286	286
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	768/947	768/947	768/947	768/947
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	-	-	-	-
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Tyre dimensions rear	185/65 R15	185/65 R15	185/65 R15	185/65 R15
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.4/-	10.4/-	10.4/-	10.4/-

Overall length [mm]	3940	3940	3940	3940
Overall width without/including mirrors [mm]	1745/-	1745/-	1745/-	1745/-
Overall height [mm]	1500	1500	1500	1500
Wheelbase [mm]	2560	2560	2560	2560
Front wheel track [mm]	1521	1521	1521	1521
Rear wheel track [mm]	1514	1514	1514	1514
Forward overhang [mm]	800	800	800	800
Rear overhang [mm]	580	580	580	580
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Three-door hatchback

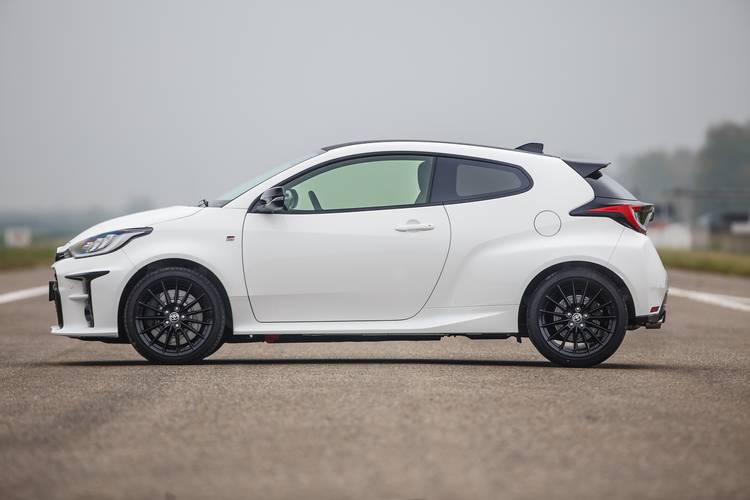

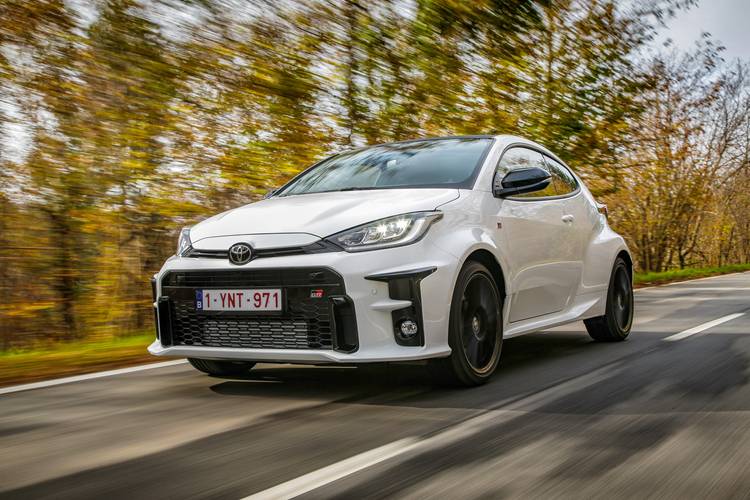

	GR Yaris
Date of sale	-
Engine type	Ignition supercharged
Number of cylinders/valves	3/12
Engine displacement [cm³]	1618
Maximum output / speed [kW/min-1]	192/6500
Maximum torque [Nm/min-1]	360/4000
Bore and stroke [mm x mm]	87.5 x 89.7
Compression ratio	10.5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct and indirect injection system D-4S turbo-supercharged variable timing of intake and exhaust valves VVT-i

Drive axle	4x4
Gearbox	6 gear manual
Drive specifications	automatically controlled all-wheel drive GR-FOUR

Top speed [km/h]	230
Acceleration 0–100 km/h [s]	5.5
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	9.3
Out of town [l]	6.7
Combined [l]	7.7
CO2 emissions [g/km]	175

Low speed [l]	-
Medium speed [l]	-
High speed [l]	-
Extra high speed [l]	-
Combined speed [l]	8.2
CO2 emissions [g/km]	186

Emission standard	Euro 6d
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	65
Driving noise [dB]	75.7/3750

Standby weight [kg]	1356-1368
Overall weight [kg]	1645
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	141
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	575
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-/1085
Boot height to headliner/ceiling [mm]	-/572
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	3
Number of seats	4
Fuel tank volume [l]	50
AdBlue tank volume [l]	-
Air resistance [Cd]	0.352
Front suspension	MacPherson
Rear suspension	double wishbone
Tyre dimensions front	225/40 R18
Tyre dimensions rear	225/40 R18
Wheel size front	-
Wheel size rear	-
Brake dimensions front	356
Brake dimensions rear	297
Steering	Rack & pinion with electric power steering
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.62/-

Overall length [mm]	3995
Overall width without/including mirrors [mm]	1805/-
Overall height [mm]	1460
Wheelbase [mm]	2558
Front wheel track [mm]	1530
Rear wheel track [mm]	1560
Forward overhang [mm]	820
Rear overhang [mm]	616
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
