Toyota Verso

Date of manufacture

2013 – 2018 (MPV)

Platform

Toyota New MC

Manufacturing locations

Adapazarı, Turkey

Guangzhou, People's Republic of China

Designer

Car body style

MPV

after upgrade (facelift)

Date of manufacture

2013 – 2018

Internal designation

AR20

Engine size

Petrol

Diesel

Euro NCAP

Test year 2010

pre-facelift version (2010)

Technical data

MPV

	1.6 Valvematic	1.8 Valvematic	1.8 Valvematic	1.6 D-4D	2.0 D-4D	2.2 D-CAT
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1798	1798	1598	1998	2231
Maximum output / speed [kW/min-1]	97/6400	108/6400	108/6400	82/4000	91/3600	110/3600
Maximum torque [Nm/min-1]	160/4400	180/4000	180/4000	270/1750-2250	310/1600-2400	340/2000-2800
Bore and stroke [mm x mm]	80,5 x 78,5	80,5 x 88,3	80,5 x 88,3	78,0 x 83,6	86,0 x 86,0	86,0 x 96,0
Compression ratio	10,7:1	10,5:1	10,5:1	16,5:1	15,8:1	15,7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry oxidation catalytic converter D‐CAT

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	1 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	-	automatic gearbox Multidrive S with one variable ratio	-	-	automatic gearbox

Top speed [km/h]	185	190	185	180	185	195
Acceleration 0–100 km/h [s]	11.7	10.4	11.1	12.7	11.3	10.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.3-8.4	8.7	8.5-8.6	5.3-5.5	5.9	8.0
Out of town [l]	5.6	5.5-5.7	5.4-5.8	3.9-4.1	4.4	5.5
Combined [l]	6.6	6.7-6.8	6.7-6.8	4.5	4.9	6.4
CO2 emissions [g/km]	154	155-158	155-159	119	129	169

Emission standard	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1545	1545	1560	1635	1655	1680
Overall weight [kg]	2125	2125	2125	2260	2260	2260
Maximum trailer weight unbraked/braked [kg]	450/1300	450/1300	450/1300	450/1300	450/1300	450/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	55	55	55	55	55	55
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	484	484	484	484	484	484
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1696	-/1696	-/1696	-/1696	-/1696	-/1696
Boot length [mm]	880	880	880	880	880	880
Boot length with rear seats folded [mm]	1575	1575	1575	1575	1575	1575
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/855	-/855	-/855	-/855	-/855	-/855
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5-7	5-7	5-7	5-7	5-7	5-7
Fuel tank volume [l]	60	60	60	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.295	0.295	0.295	0.295	0.295	0.303
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/11.6	10.8/11.6	10.8/11.6	10.8/11.6	10.8/11.6	10.8/11.6

Overall length [mm]	4460	4460	4460	4460	4460	4460
Overall width without/including mirrors [mm]	1790/-	1790/-	1790/-	1790/-	1790/-	1790/-
Overall height [mm]	1620	1620	1620	1620	1620	1620
Wheelbase [mm]	2780	2780	2780	2780	2780	2780
Front wheel track [mm]	1540	1540	1540	1540	1540	1540
Rear wheel track [mm]	1540	1540	1540	1540	1540	1540
Forward overhang [mm]	930	930	930	930	930	930
Rear overhang [mm]	750	750	750	750	750	750
Clearance [mm]	145	145	145	145	145	145
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Gallery

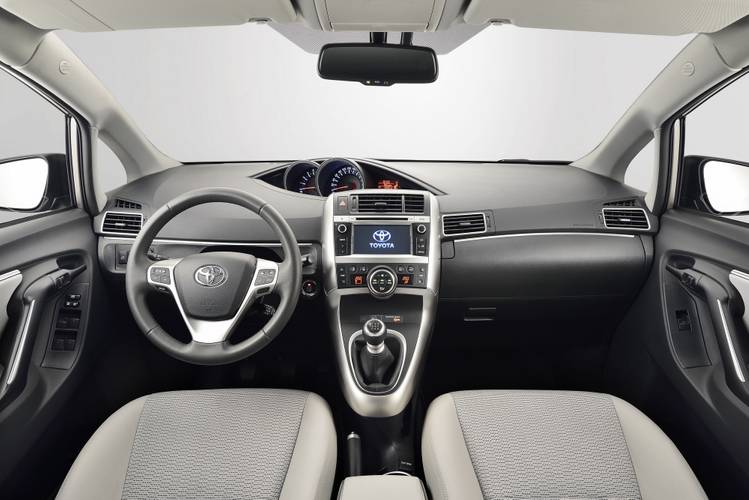

Toyota Verso AR20 facelift 2013 interior

Toyota Verso AR20 facelift 2014 front seats

Toyota Verso AR20 facelift 2014 rear seats

Toyota Verso AR20 facelift 2015 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
