Toyota RAV4

Date of manufacture

11/2005 – 2010 (SUV)

Platform

Toyota New MC platform

Manufacturing locations

Toyota, Japan

Tahara, Japan

Ōbu, Japan

Designer

Car body style

SUV

after upgrade (facelift) (I.)

Date of manufacture

11/2005 – 2010

Internal designation

XA30

Engine size

Petrol

Diesel

Euro NCAP

Technical data

SUV

	2.0 VVT-i	2.0 VVT-i	2.0 Valvematic	2.0 Valvematic	2.0 Valvematic	2.2 D-4D
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1998	1998	1987	1987	1987	2231
Maximum output / speed [kW/min-1]	112/6000	112/6000	116/6200	116/6200	116/6200	100/3600
Maximum torque [Nm/min-1]	194/4000	194/4000	198/4000	198/4000	198/4000	310/2000-2800
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0	80,5 x 97,6	80,5 x 97,6	80,5 x 97,6	86,0 x 96,0
Compression ratio	9,6:1	9,6:1	10,0:1	10,0:1	10,0:1	15,7:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves VVT‐i	variable timing of intake valves VVT‐i	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	4x4	4x4	Front	4x4	4x4	4x4
Gearbox	5 gear manual	4 gear automatic	6 gear manual	6 gear manual	1 gear automatic	6 gear manual
Drive specifications	automatically controlled all-wheel drive Active Drive	automatically controlled all-wheel drive Active Drive automatic gearbox	-	automatically controlled all-wheel drive Active Drive	automatically controlled all-wheel drive Active Drive automatic gearbox Multidrive S with one variable ratio	automatically controlled all-wheel drive Active Drive

Top speed [km/h]	185	175	185	185	185	180
Acceleration 0–100 km/h [s]	10.6	12.0	10.2	10.5	11.0	10.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.0	11.6	9.4	9.6	9.5	8.1
Out of town [l]	7.2	7.4	6.2	6.4	6.4	5.6
Combined [l]	8.6	9.0	7.4	7.6	7.5	6.6
CO2 emissions [g/km]	202	212	174	178	177	173

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1540-1605	1580-1605	1500-1645	1500-1645	1500-1645	1660-1715
Overall weight [kg]	2070-2085	2110-2125	2070	2070	2110	2190-2205
Maximum trailer weight unbraked/braked [kg]	750/1500	750/1500	750/2000	750/2000	750/1500	750/2000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	586	586	586	586	586	586
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1752	-/1752	-/1752	-/1752	-/1752	-/1752
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	215/70 R16	215/70 R16	215/70 R16	215/70 R16	215/70 R16	215/70 R16
Tyre dimensions rear	215/70 R16	215/70 R16	215/70 R16	215/70 R16	215/70 R16	215/70 R16
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.0/-	11.0/-	11.0/-	11.0/-	11.0/-	11.0/-

Overall length [mm]	4395	4395	4415	4415	4415	4395
Overall width without/including mirrors [mm]	1815/-	1815/-	1815/-	1815/-	1815/-	1815/-
Overall height [mm]	1720	1720	1720	1720	1720	1720
Wheelbase [mm]	2560	2560	2560	2560	2560	2560
Front wheel track [mm]	1560	1560	1560	1560	1560	1560
Rear wheel track [mm]	1560	1560	1560	1560	1560	1560
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	191	191	180	180	180	191
Wading depth [mm]	500	500	500	500	500	500
Approach angle front [°]	30	30	28	28	28	30
Approach angle rear [°]	30	30	24	24	24	30
Transition angle [°]	20	20	20	20	20	20
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.2 D-4D	2.2 D-4D D‐CAT	2.2 D-4D D-CAT	2.2 D-4D D‐CAT
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2231	2231	2231	2231
Maximum output / speed [kW/min-1]	110/3600	110/3600	130/3600	130/3600
Maximum torque [Nm/min-1]	340/2000-2800	340/2000-2800	400/2000-2600	400/2000-2800
Bore and stroke [mm x mm]	86,0 x 96,0	86,0 x 96,0	86,0 x 96,0	86,0 x 96,0
Compression ratio	15,7:1	15,7:1	15,7:1	15,7:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry oxidation catalytic converter D‐CAT	direct injection Common Rail turbocharger with variable blade geometry oxidation catalytic converter D‐CAT	direct injection Common Rail turbocharger with variable blade geometry oxidation catalytic converter D‐CAT

Drive axle	4x4	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear automatic	6 gear manual	6 gear manual
Drive specifications	automatically controlled all-wheel drive Active Drive	automatically controlled all-wheel drive Active Drive automatic gearbox	automatically controlled all-wheel drive Active Drive	automatically controlled all-wheel drive Active Drive

Top speed [km/h]	190	185	200	200
Acceleration 0–100 km/h [s]	10.2	10.8	9.3	9.3
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.5	8.8	8.4	7.9
Out of town [l]	5.2	6.2	6.1	5.9
Combined [l]	6.0	7.2	7.0	6.7
CO2 emissions [g/km]	159	189	185	177

Emission standard	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1670-1730	1685-1725	1670-1725	1675-1735
Overall weight [kg]	2190	2190	2190-2215	2190
Maximum trailer weight unbraked/braked [kg]	750/2000	750/1800	750/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	586	586	586	586
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1752	-/1752	-/1752	-/1752
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	60	60	60	60
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	215/70 R16	235/55 R18	225/65 R17	225/65 R17
Tyre dimensions rear	215/70 R16	235/55 R18	225/65 R17	225/65 R17
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.0/-	11.6/-	11.0/-	11.0/-

Overall length [mm]	4415	4415	4395	4415
Overall width without/including mirrors [mm]	1815/-	1815/-	1815/-	1815/-
Overall height [mm]	1720	1720	1720	1720
Wheelbase [mm]	2560	2560	2560	2560
Front wheel track [mm]	1560	1570	1560	1560
Rear wheel track [mm]	1560	1570	1560	1560
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	180	180	191	180
Wading depth [mm]	500	500	500	500
Approach angle front [°]	28	28	30	28
Approach angle rear [°]	24	24	30	24
Transition angle [°]	20	20	20	20
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

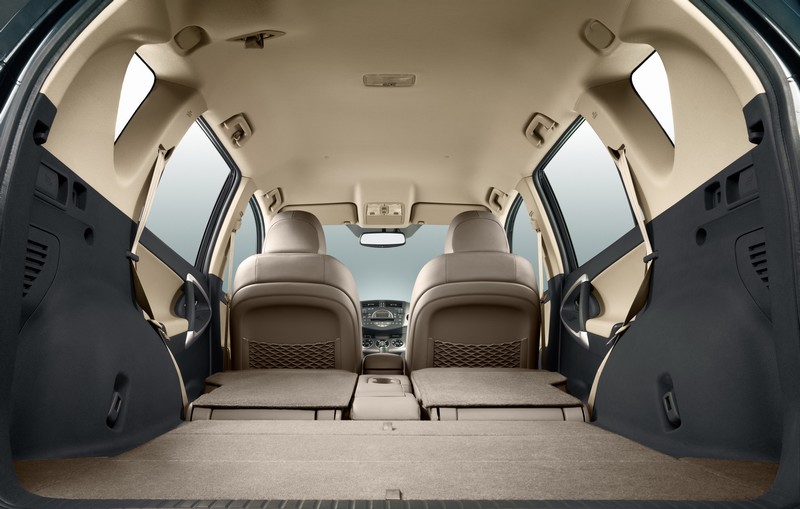

Toyota RAV4 XA30 2007 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
