Toyota Land Cruiser
Date of manufacture
2013 – 2017 (SUV)
Platform
-
Manufacturing locations
Tahara, Japan
Sichuan, People's Republic of China
Vladivostok, Russia
Designer
Tomoaki Masuda
Tags
Large SUV
Japanese cars
The Toyota Land Cruiser has been available as an SUV since 2013. The vehicle is manufactured in Japan, China and Russia and offers both petrol and diesel power units. The strongest engine is the 4.0 Dual VVT-i with 207 kW of power, which reaches a top speed of 175 km/h. The most economical engine, the 2.8 D-4D, has a fuel consumption of 7.2 l/100 km and emissions of 190 g/km CO2. The luggage compartment of the vehicle has a capacity of 390 l.
Technical data
SUV
| 4.0 Dual VVT-i | 2.8 D-4D | 2.8 D-4D | 3.0 D-4D | 3.0 D-4D | 2.8 D-4D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 3956 | 2755 | 2755 | 2982 | 2982 | 2755 |
| Maximum output / speed [kW/min-1] | 207/5600 | 130/3400 | 130/3400 | 140/3400 | 140/3400 | 130/3400 |
| Maximum torque [Nm/min-1] | 385/4400 | 420/1400-2600 | 420/1400-2600 | 420/1600-3000 | 420/1600-3000 | 420/1400-2600 |
| Bore and stroke [mm x mm] | 94,0 x 95,0 | 92,0 x 103,6 | 92,0 x 103,6 | 96,0 x 103,0 | 96,0 x 103,0 | 92,0 x 103,6 |
| Compression ratio | 10,4:1 | 15,6:1 | 15,6:1 | 17,9:1 | 17,9:1 | 15,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 5 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 175-180 | 175 | 175 | 175 | 175 | 175 |
| Acceleration 0–100 km/h [s] | 8.8-9.2 | 12.1 | 12.7 | 10.6 | 10.2 | 12.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.5-14.7 | 8.6 | 9.0 | 9.7 | 9.6 | 8.9 |
| Out of town [l] | 8.4-8.6 | 6.5 | 6.3 | 7.1 | 7.0 | 6.6 |
| Combined [l] | 10.6-10.8 | 7.2 | 7.2 | 8.1 | 7.9 | 7.4 |
| CO2 emissions [g/km] | 248-256 | 190 | 190 | 217 | 209 | 194 |
| Emission standard | EU5-EU6 | EU6 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2220 | 2085 | 2085 | 2130 | 2140 | 2240 |
| Overall weight [kg] | 2900 | 2675 | 2675 | 2600 | 2600 | 3065 |
| Maximum trailer weight unbraked/braked [kg] | 750/3000 | 750/3000 | 750/3000 | 750/3000 | 750/3000 | 750/3000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |

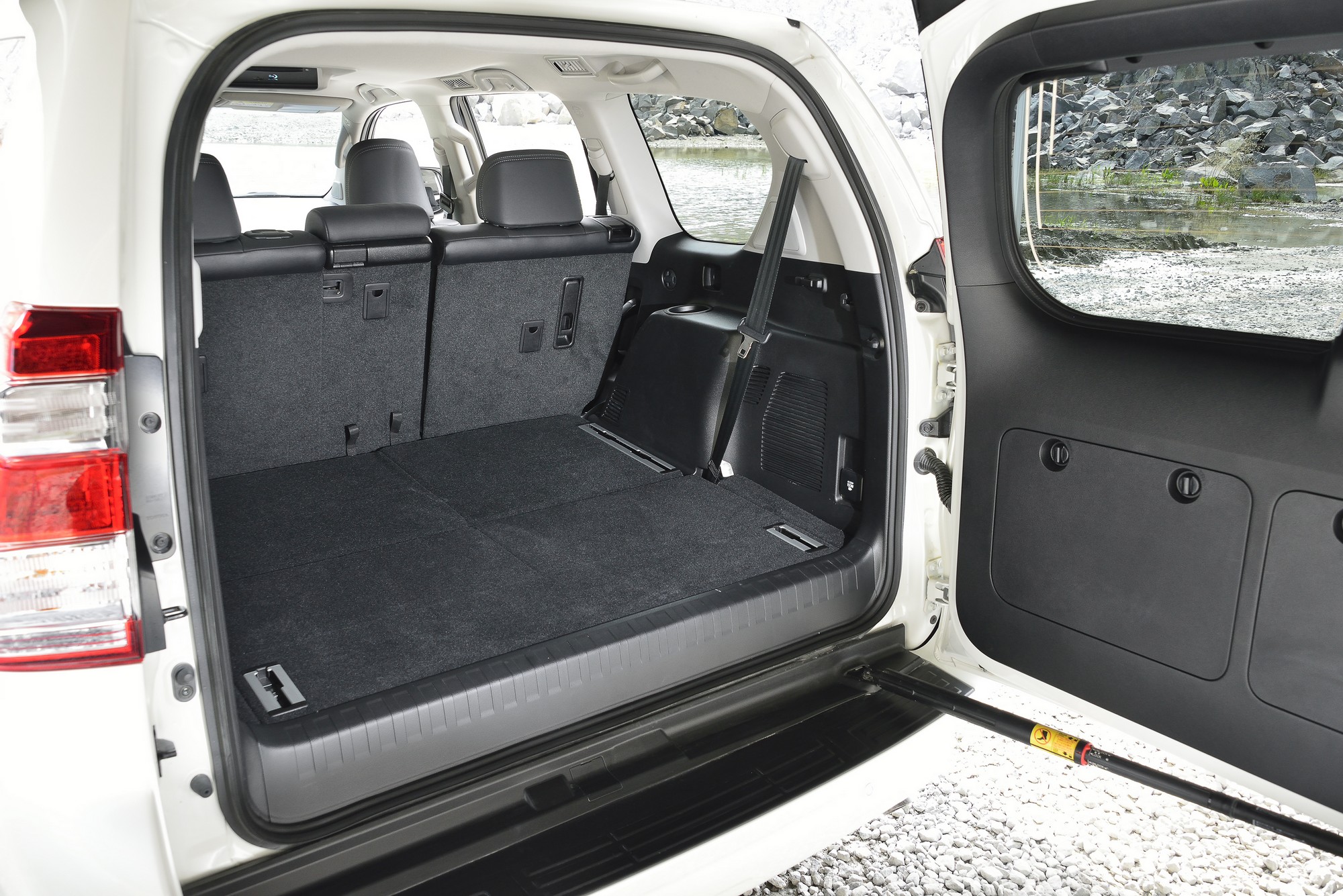

| Boot volume [l] | 120 | 390 | 390 | 390 | 390 | 640 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1934 | -/1434 | -/1434 | -/1434 | -/1434 | -/1934 |
| Boot length [mm] | 205 | 205 | 205 | 205 | 205 | 205 |
| Boot length with rear seats folded [mm] | 1955 | 1955 | 1955 | 1955 | 1955 | 1955 |
| Boot width between wheels/max [mm] | -/1389 | -/1386 | -/1386 | -/1386 | -/1386 | -/1389 |
| Boot height to headliner/ceiling [mm] | 524/1040 | 521/1040 | 521/1040 | 521/1040 | 521/1040 | 524/1040 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 3 | 3 | 3 | 3 | 5 |

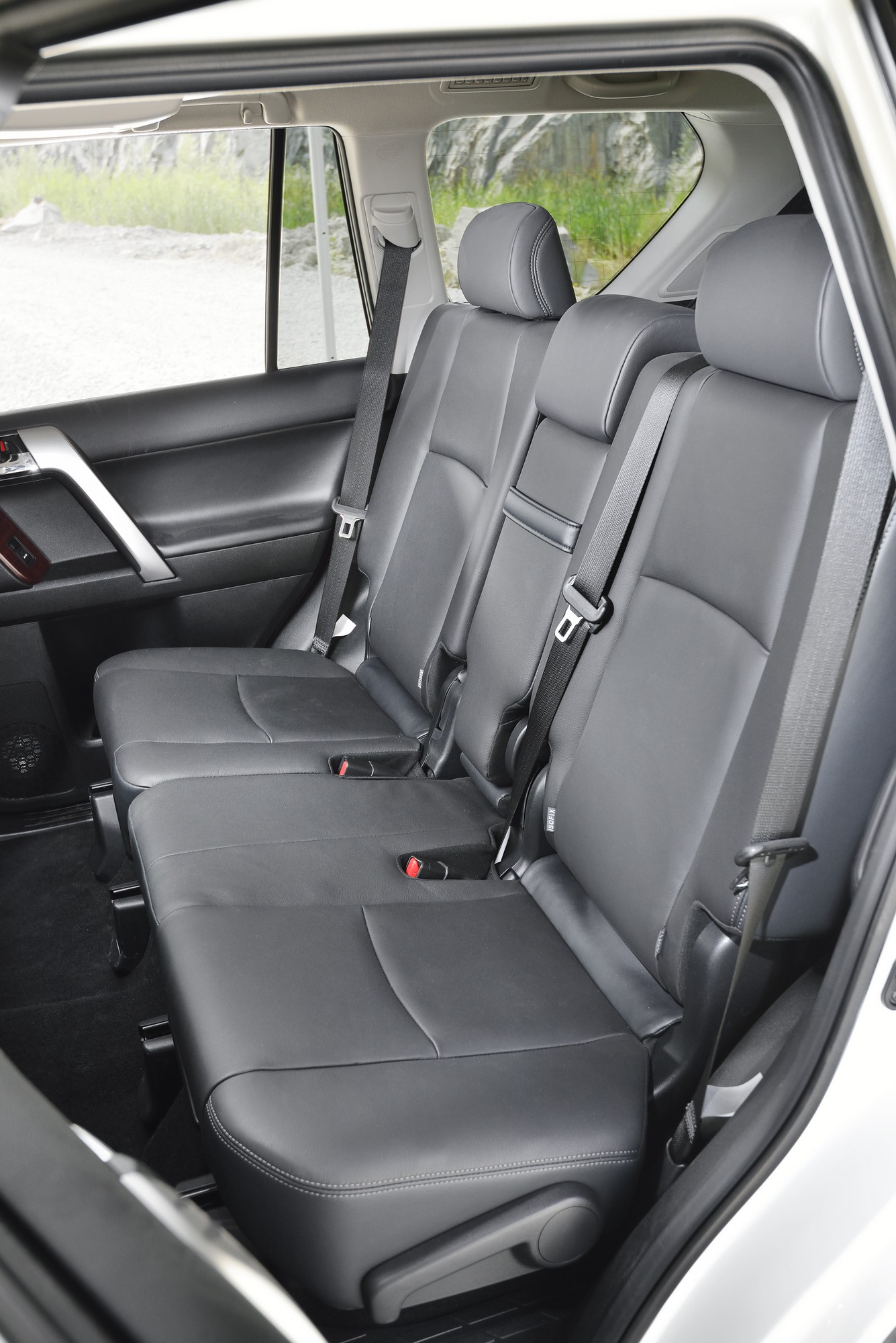

| Number of seats | 5-7 | 5 | 5 | 5 | 5 | 5-7 |
| Fuel tank volume [l] | 87 | 87 | 87 | 87 | 87 | 87 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 265/60 R18 | 245/70 R17 | 245/70 R17 | 245/70 R17 | 245/70 R17 | 245/65 R17 |
| Tyre dimensions rear | 265/60 R18 | 245/70 R17 | 245/70 R17 | 245/70 R17 | 245/70 R17 | 245/65 R17 |
| Wheel size front | 7.5J x 18 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.5J x 18 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 6.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/11.8 | 10.4/10.6 | 10.4/10.6 | 10.4/10.6 | 10.4/10.6 | 11.6/11.8 |
| Overall length [mm] | 4780 | 4335 | 4335 | 4335 | 4335 | 4780 |
| Overall width without/including mirrors [mm] | 1885/- | 1885/- | 1885/- | 1885/- | 1885/- | 1885/- |
| Overall height [mm] | 1830 | 1845 | 1845 | 1845 | 1845 | 1830 |
| Wheelbase [mm] | 2790 | 2450 | 2450 | 2450 | 2450 | 2790 |
| Front wheel track [mm] | 1585 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Rear wheel track [mm] | 1585 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Rear overhang [mm] | 1075 | 970 | 970 | 970 | 970 | 1075 |
| Clearance [mm] | 215 | 205 | 205 | 205 | 205 | 215 |
| Wading depth [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Approach angle front [°] | 32 | 32 | 32 | 32 | 32 | 32 |
| Approach angle rear [°] | 25 | 26 | 26 | 26 | 26 | 25 |
| Transition angle [°] | 22 | 22 | 22 | 22 | 22 | 22 |
| Climbing rate [°] | 42 | 42 | 42 | 42 | 42 | 42 |
| Maximum side tilt [°] | 42 | 42 | 42 | 42 | 42 | 42 |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.8 D-4D | 3.0 D-4D | 3.0 D-4D | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 2755 | 2982 | 2982 | |||
| Maximum output / speed [kW/min-1] | 130/3400 | 140/3400 | 140/3400 | |||
| Maximum torque [Nm/min-1] | 450/1600-2400 | 420/1600-3000 | 420/1600-3000 | |||
| Bore and stroke [mm x mm] | 92,0 x 103,6 | 96,0 x 103,0 | 96,0 x 103,0 | |||
| Compression ratio | 15,6:1 | 17,9:1 | 17,9:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | 4x4 | 4x4 | |||
| Gearbox | 6 gear automatic | 6 gear manual | 5 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 175 | 175 | 175 | |||
| Acceleration 0–100 km/h [s] | 12.7 | 11.4 | 11.0 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 9.2 | 9.8 | 9.7 | |||
| Out of town [l] | 6.3 | 7.3 | 7.1 | |||
| Combined [l] | 7.4 | 8.2 | 8.1 | |||
| CO2 emissions [g/km] | 194 | 217 | 213 | |||
| Emission standard | EU6 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2205 | 2255 | 2265 | |||
| Overall weight [kg] | 3065 | 2990 | 2990 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/3000 | 750/3000 | 750/3000 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | |||
| Boot volume [l] | 640 | 640 | 120 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1934 | -/1934 | -/1934 | |||
| Boot length [mm] | 205 | 205 | 205 | |||
| Boot length with rear seats folded [mm] | 1955 | 1955 | 1955 | |||
| Boot width between wheels/max [mm] | -/1389 | -/1389 | -/1389 | |||
| Boot height to headliner/ceiling [mm] | 524/1040 | 524/1040 | 524/1040 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5-7 | 5-7 | 5-7 | |||
| Fuel tank volume [l] | 87 | 87 | 87 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | four-link | four-link | four-link | |||
| Tyre dimensions front | 245/65 R17 | 245/65 R17 | 245/65 R17 | |||
| Tyre dimensions rear | 245/65 R17 | 245/65 R17 | 245/65 R17 | |||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.6/11.8 | 11.6/11.8 | 11.6/11.8 | |||
| Overall length [mm] | 4780 | 4780 | 4780 | |||
| Overall width without/including mirrors [mm] | 1885/- | 1885/- | 1885/- | |||
| Overall height [mm] | 1830 | 1830 | 1830 | |||
| Wheelbase [mm] | 2790 | 2790 | 2790 | |||
| Front wheel track [mm] | 1605 | 1605 | 1585 | |||
| Rear wheel track [mm] | 1605 | 1605 | 1585 | |||
| Forward overhang [mm] | 915 | 915 | 915 | |||
| Rear overhang [mm] | 1075 | 1075 | 1075 | |||
| Clearance [mm] | 215 | 215 | 215 | |||
| Wading depth [mm] | 700 | 700 | 700 | |||
| Approach angle front [°] | 32 | 32 | 32 | |||
| Approach angle rear [°] | 25 | 25 | 25 | |||
| Transition angle [°] | 22 | 22 | 22 | |||
| Climbing rate [°] | 42 | 42 | 42 | |||
| Maximum side tilt [°] | 42 | 42 | 42 | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

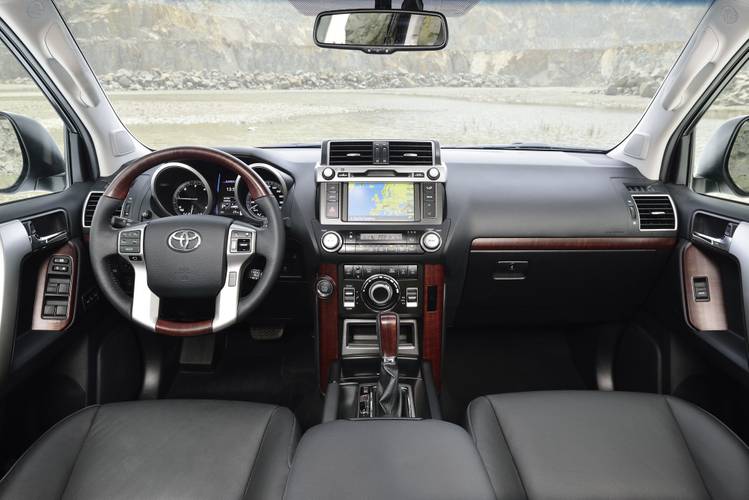

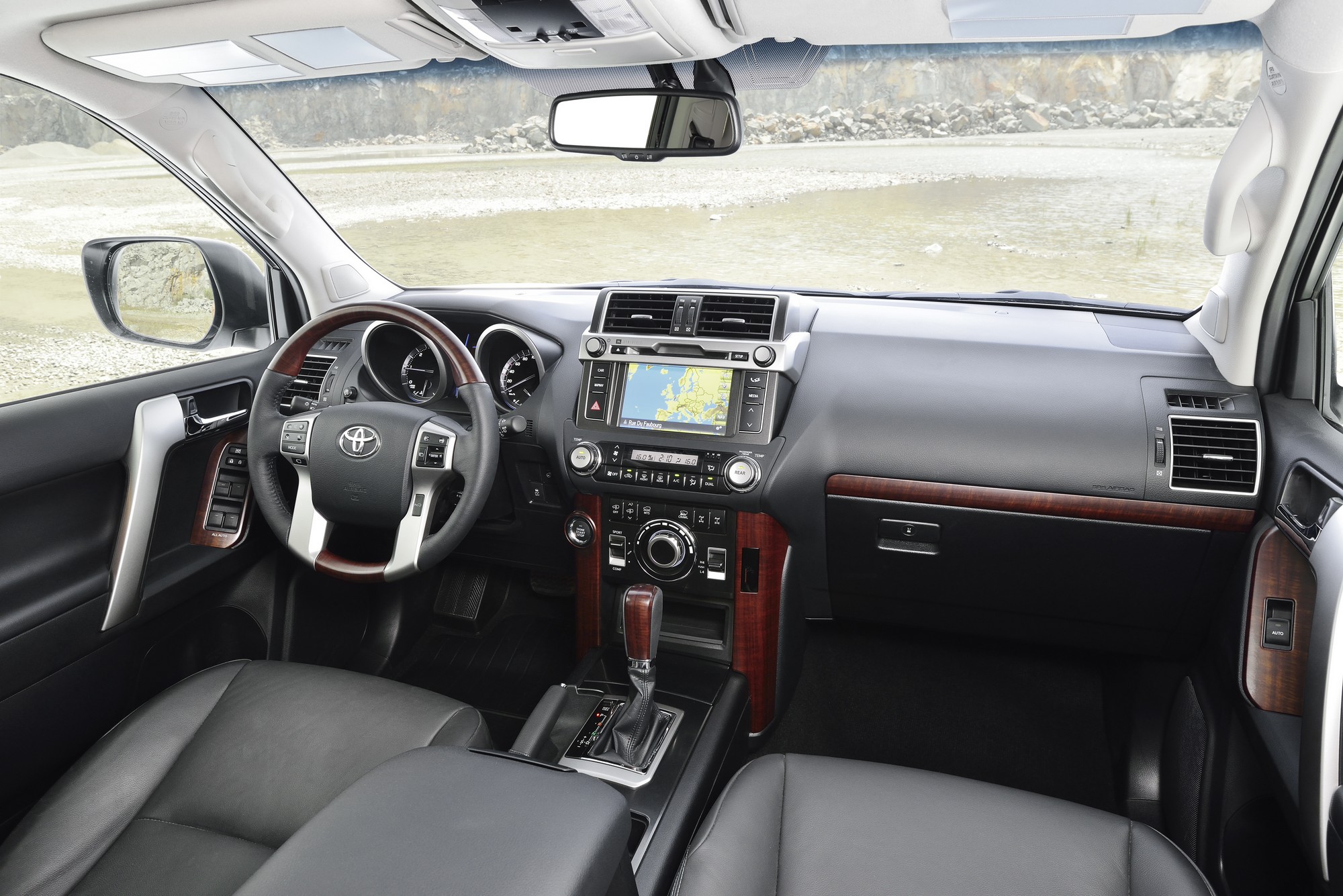

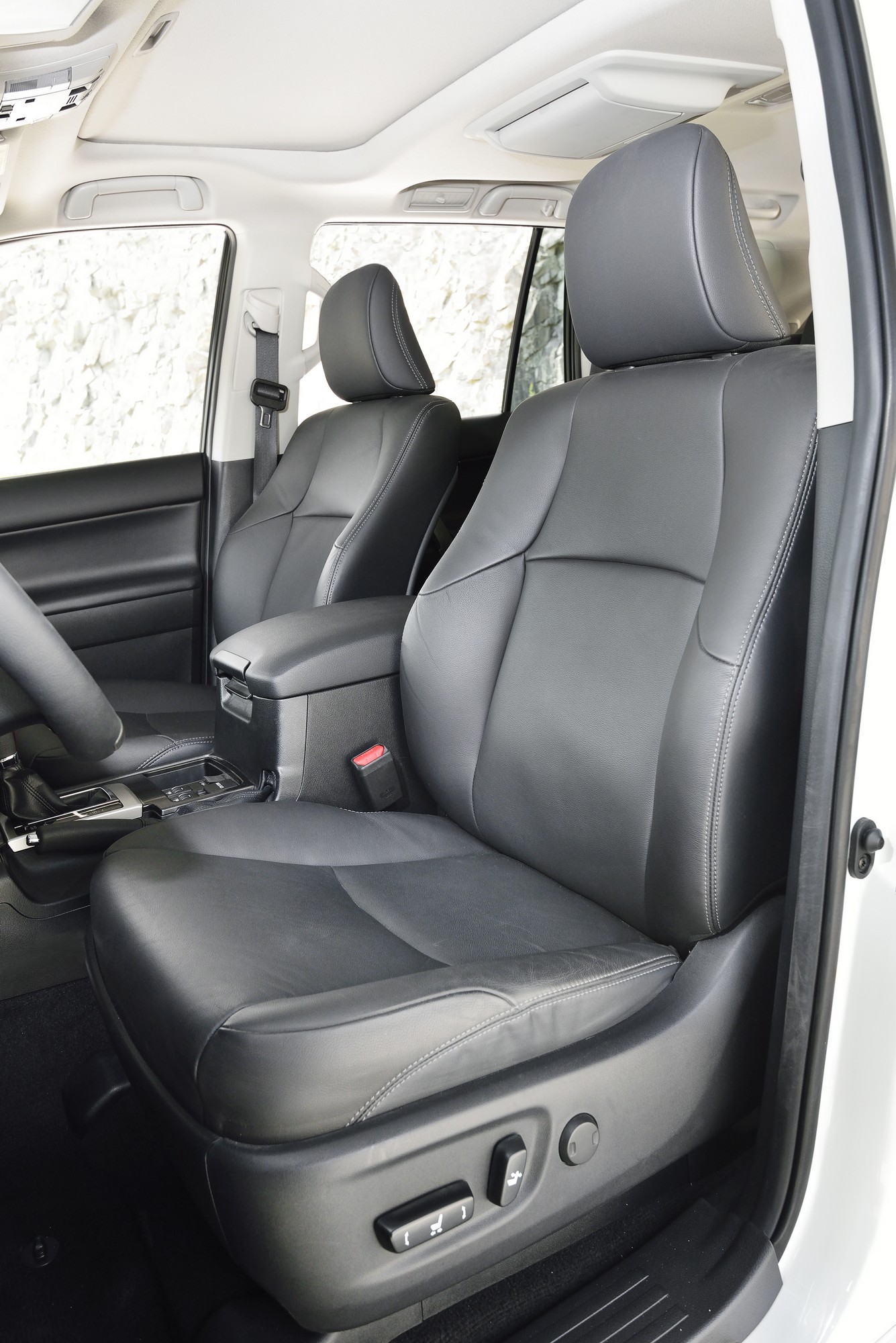

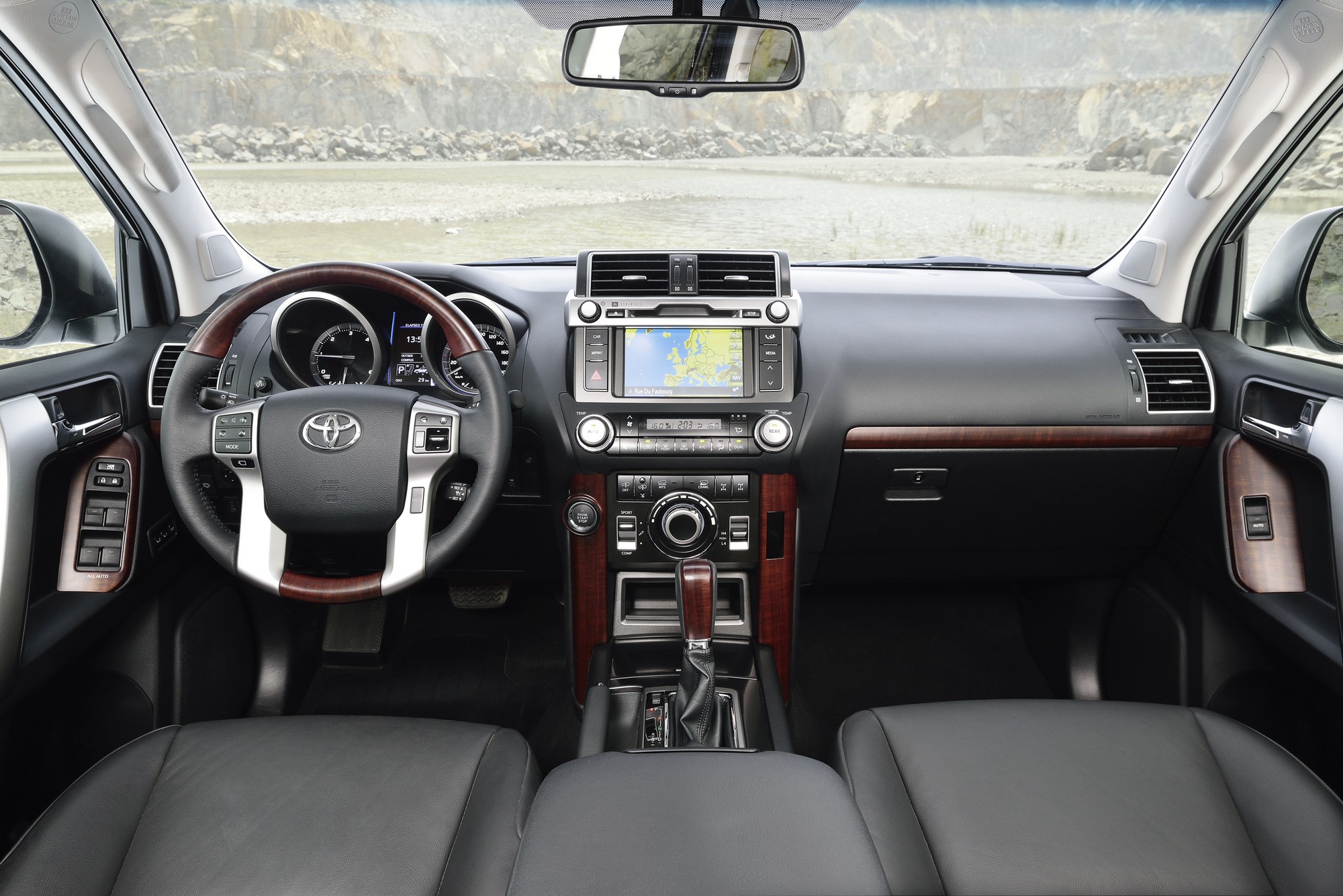

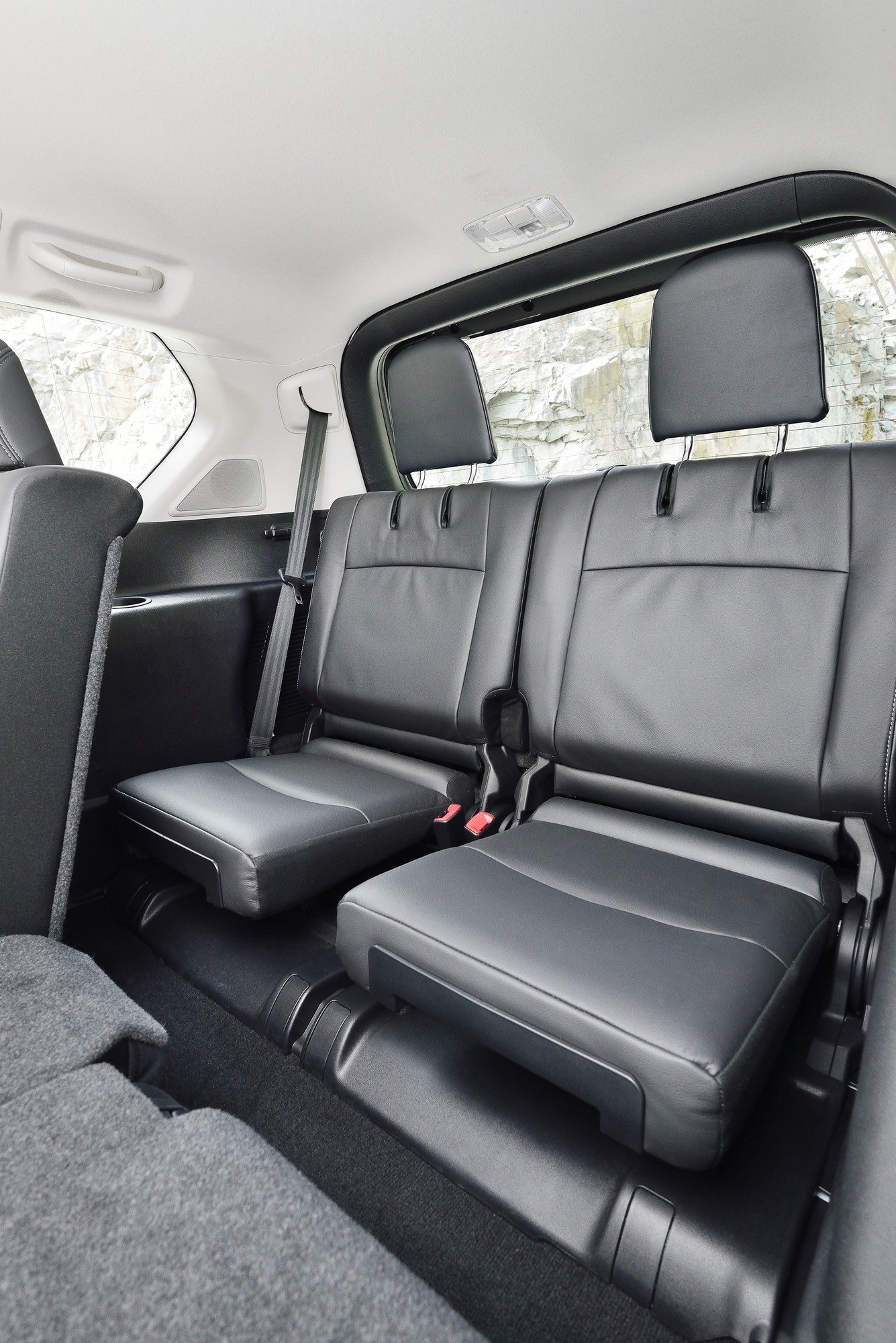

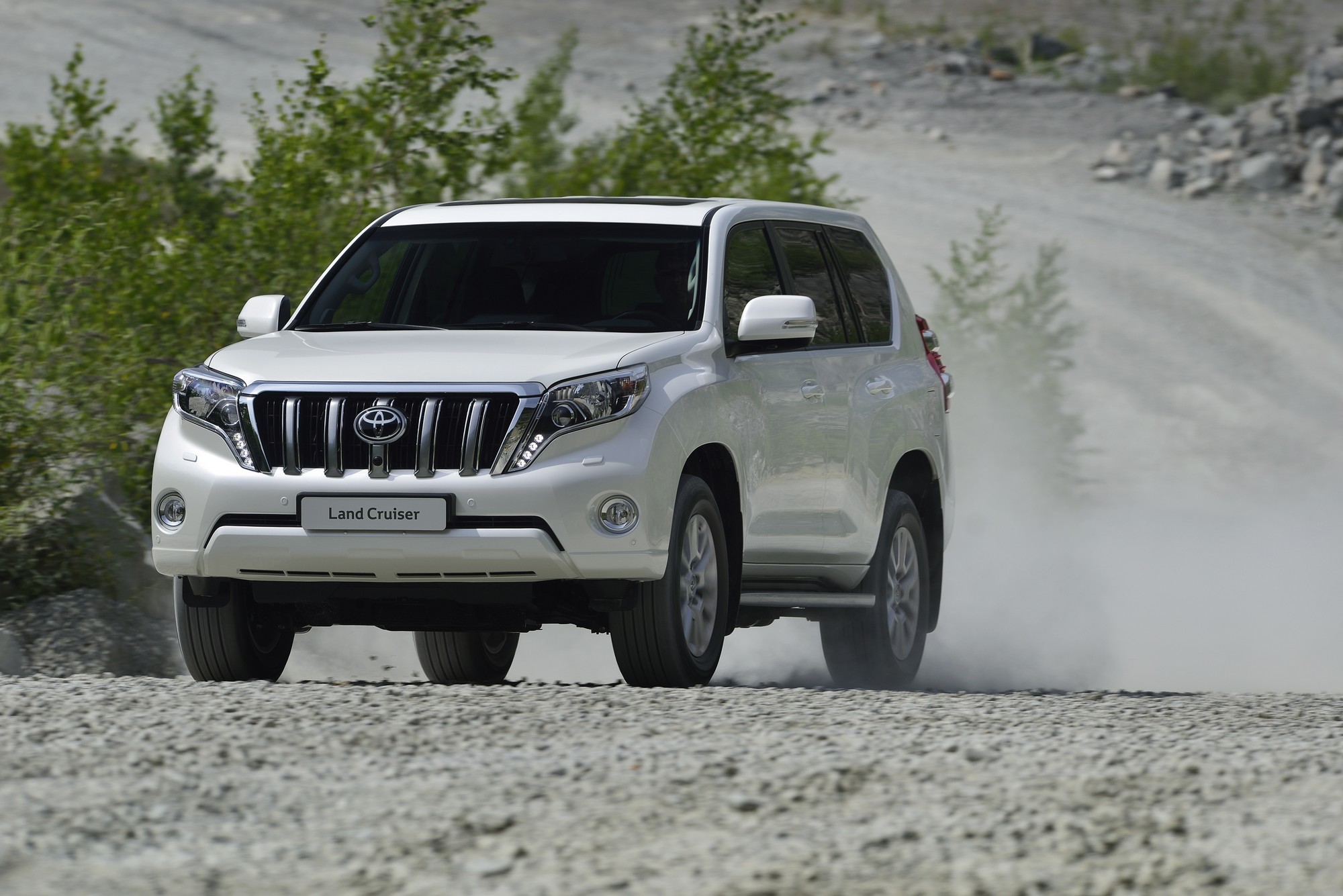

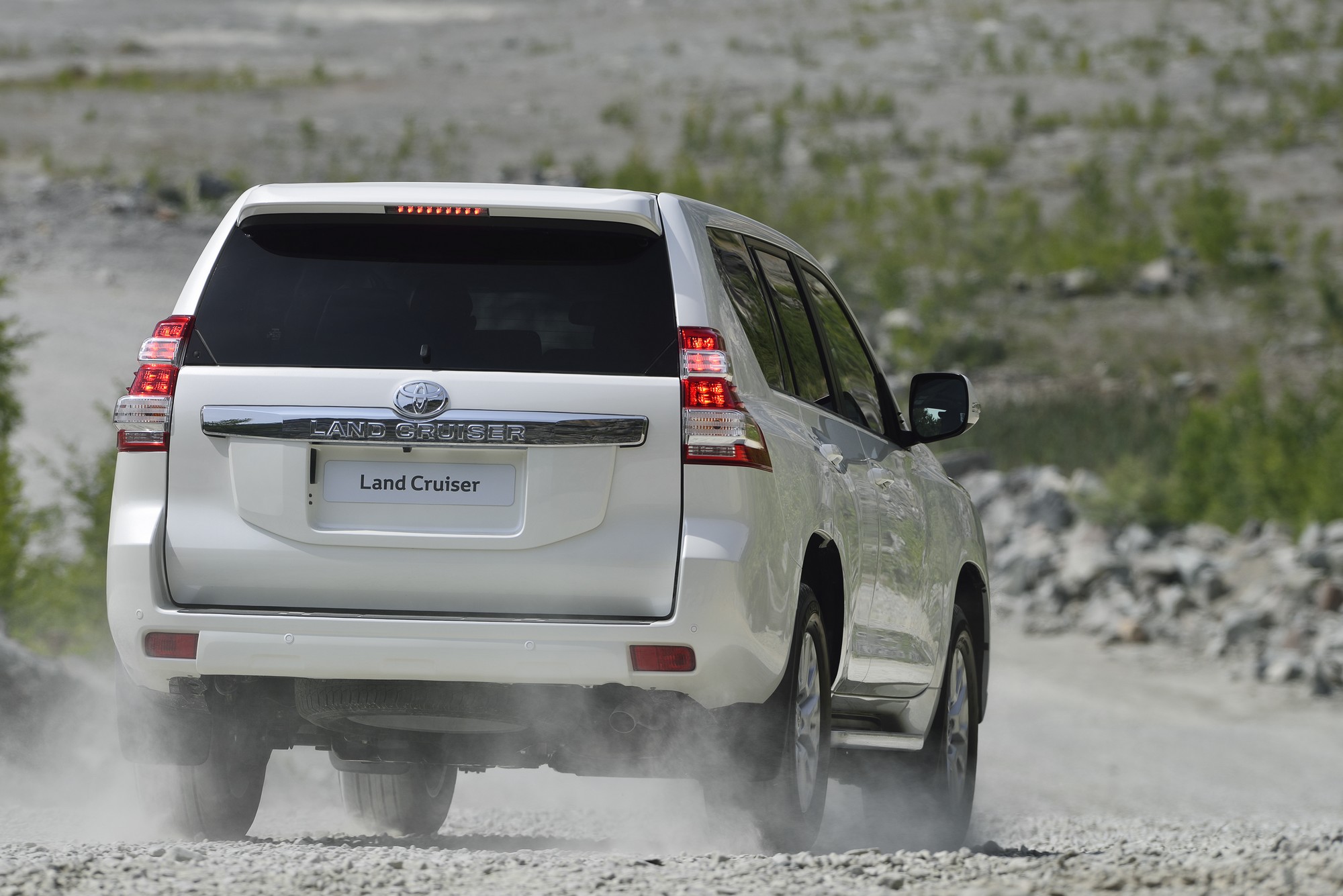

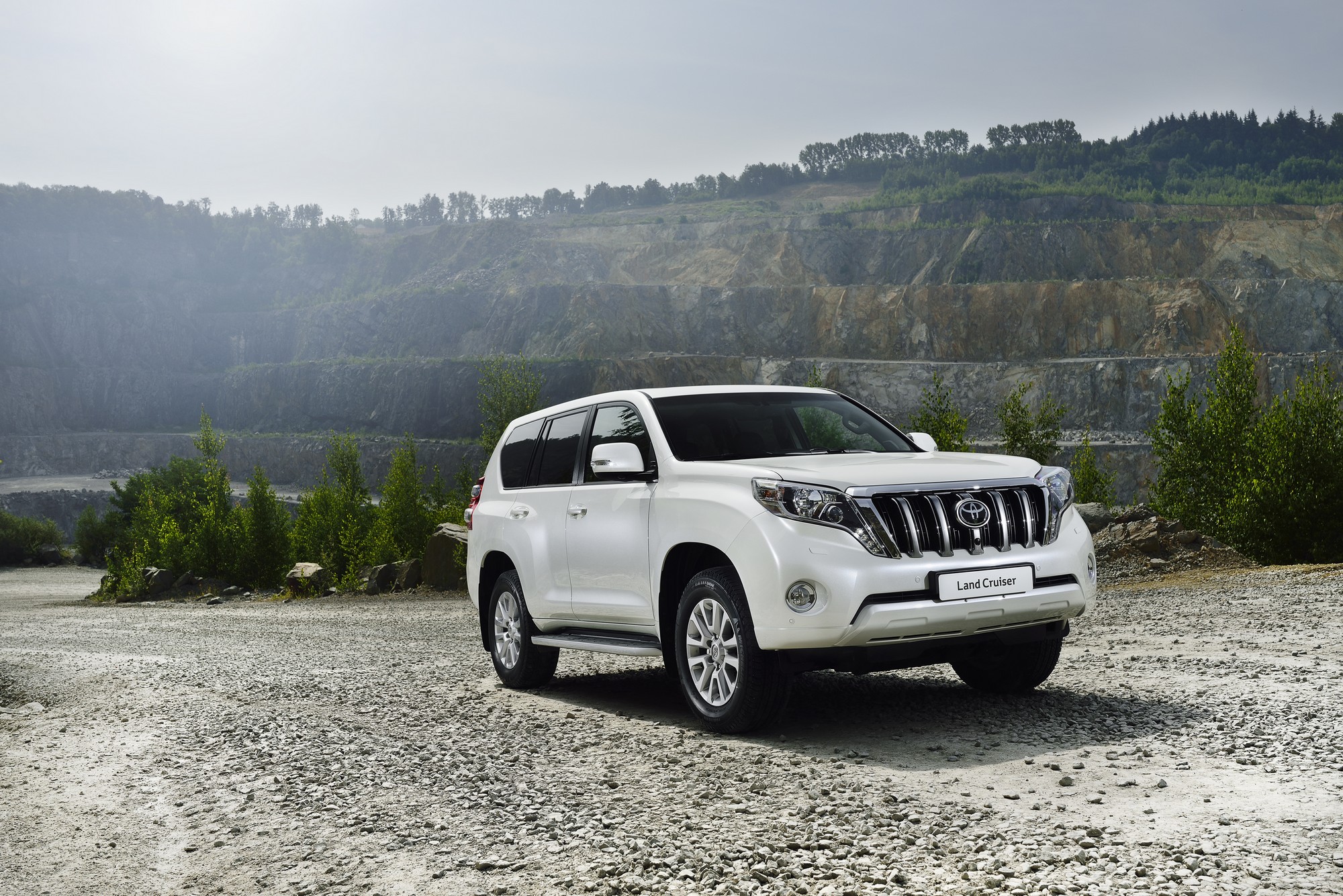

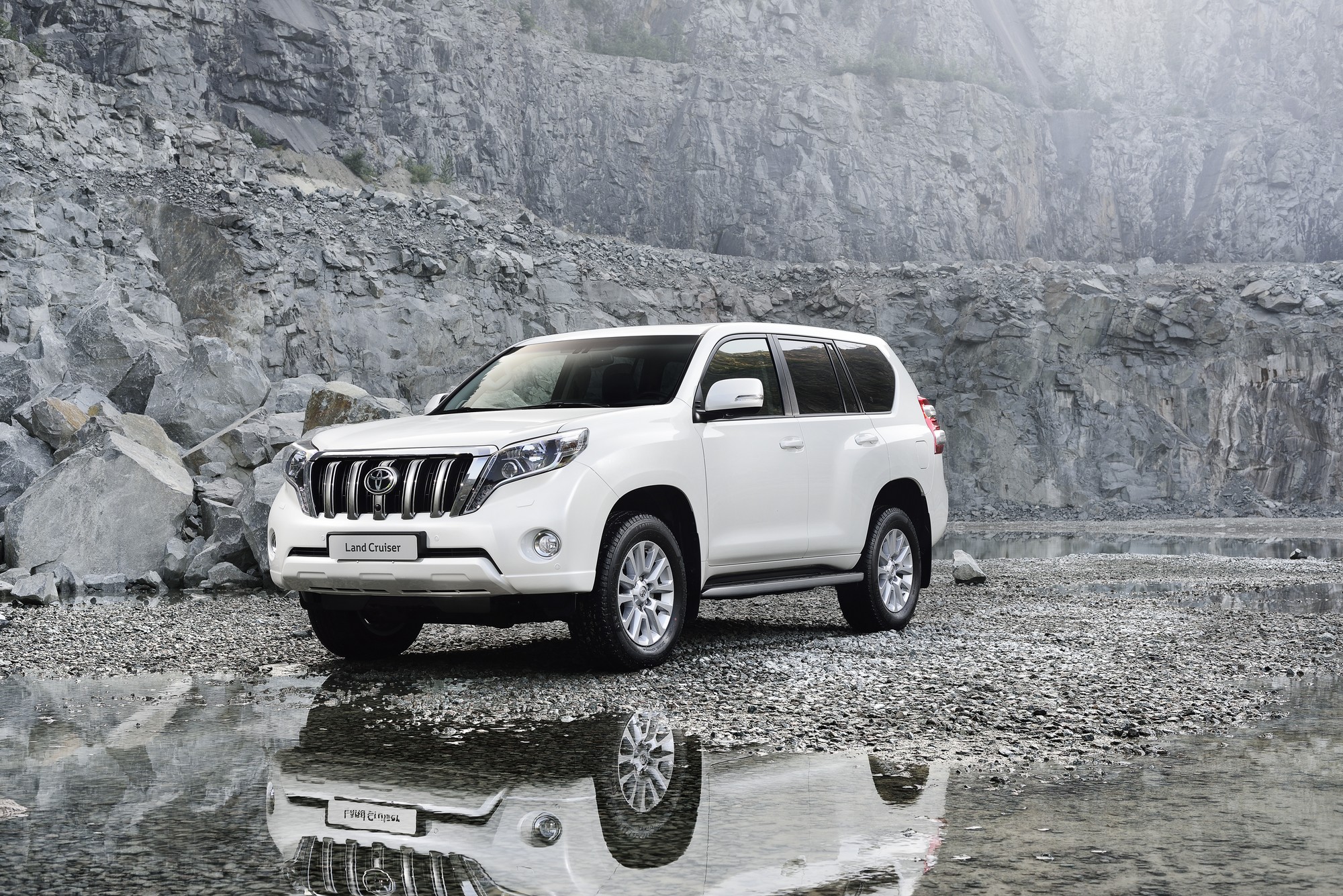

Gallery
