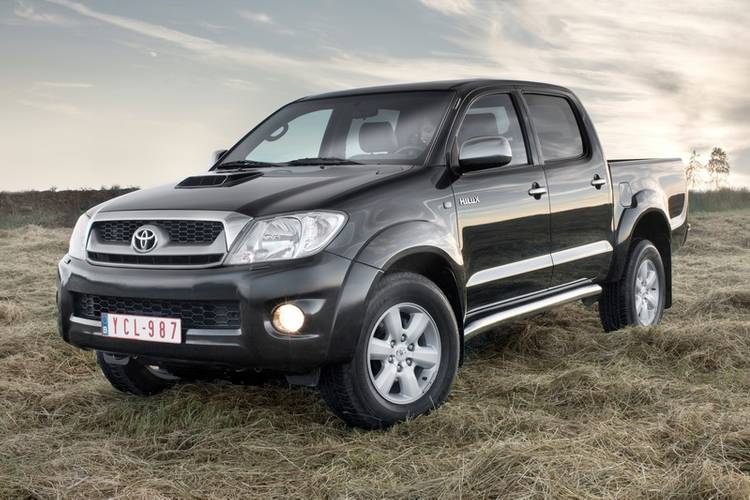

Toyota Hilux

Date of manufacture

2008 – 2011 (SUV)

Platform

Toyota IMV platform

Manufacturing locations

Chachoengsao, Thailand

Designer

Kaoru Hosokawa

Car body style

SUV

after upgrade (facelift) (I.)

Date of manufacture

2008 – 2011

Internal designation

AN10/AN20/AN30

Engine size

Technical data

SUV

	2.5 D-4D Single Cab	2.5 D-4D Extra Cab	2.5 D-4D Double Cab	3.0 D-4D Double Cab	3.0 D-4D Double Cab
Date of sale	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2494	2494	2494	2982	2982
Maximum output / speed [kW/min-1]	106/3400	106/3400	106/3400	126/3600	126/3600
Maximum torque [Nm/min-1]	343/1600-2800	343/1600-2800	343/1600-2800	343	360
Bore and stroke [mm x mm]	92,0 x 93,8	92,0 x 93,8	92,0 x 93,8	96,0 x 103,0	96,0 x 103,0
Compression ratio	18,5:1	18,5:1	18,5:1	17,9:1	17,9:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry	direct injection Common Rail turbocharger with variable blade geometry

Drive axle	4x4	4x4	4x4	4x4	4x4
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear manual	5 gear automatic
Drive specifications	permanent rear axle drive with connectable front axle	permanent rear axle drive with connectable front axle	permanent rear axle drive with connectable front axle	permanent rear axle drive with connectable front axle	permanent rear axle drive with connectable front axle automatic gearbox

Top speed [km/h]	170	170	170	170	175
Acceleration 0–100 km/h [s]	12.5	12.5	12.5	12.0	11.6
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	10.1	10.1	10.1	10.3	11.7
Out of town [l]	7.2	7.2	7.2	7.1	7.3
Combined [l]	8.3	8.3	8.3	8.3	8.9
CO2 emissions [g/km]	217	217	217	219	236

Emission standard	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1800-1895	1860-1940	1885-1980	1945-2010	1945-2010
Overall weight [kg]	2680	2685	2715	2760	2760
Maximum trailer weight unbraked/braked [kg]	750/2500	750/2500	750/2500	750/2500	750/2500
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	-	-	-	-	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	2340	1830	1545	1545	1545
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	1520/-	1515/1100	1515/1100	1515/1100	1515/1100
Boot height to headliner/ceiling [mm]	450/-	450/-	450/-	450/-	450/-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	2	4	4	4	4
Number of seats	2	4	5	5	5
Fuel tank volume [l]	80	76	80	80	80
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs
Tyre dimensions front	205 R16 C	205 R16 C	205 R16 C	255/70 R15 C	255/70 R15 C
Tyre dimensions rear	205 R16 C	205 R16 C	205 R16 C	255/70 R15 C	255/70 R15 C
Wheel size front	6.0J x 16	6.0J x 16	6.0J x 16	7.0J x 15	7.0J x 15
Wheel size rear	6.0J x 16	6.0J x 16	6.0J x 16	7.0J x 15	7.0J x 15
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	12.4/13.2	12.4/13.2	12.4/13.2	12.4/13.2	12.4/13.2

Overall length [mm]	5255	5255	5255	5255	5255
Overall width without/including mirrors [mm]	1760/-	1760/-	1760/-	1835/-	1835/-
Overall height [mm]	1795	1795	1810	1810	1810
Wheelbase [mm]	3085	3085	3085	3085	3085
Front wheel track [mm]	1510	1510	1510	1540	1540
Rear wheel track [mm]	1510	1510	1510	1540	1540
Forward overhang [mm]	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-
Clearance [mm]	212	212	212	212	212
Wading depth [mm]	700	700	700	700	700
Approach angle front [°]	30	30	30	30	30
Approach angle rear [°]	26	26	26	26	26
Transition angle [°]	25	25	25	25	25
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	48	48	48	48	48

Headroom front [mm]	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
