Toyota GT86

Date of manufacture

2016 – 3/2021 (Coupé)

Platform

Manufacturing locations

Ōta, Japan

Designer

Car body style

Coupé

after upgrade (facelift)

Date of manufacture

2016 – 3/2021

Internal designation

ZN6/ZC6

Engine size

2.0 D-4S

Technical data

Coupé

	2.0 D-4S	2.0 D-4S
Date of sale	-	-
Engine type	Petrol	Petrol
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1998	1998
Maximum output / speed [kW/min-1]	147/7000	147/7000
Maximum torque [Nm/min-1]	200/7000	200/7000
Bore and stroke [mm x mm]	86,0 x 86,0	86,0 x 86,0
Compression ratio	12,5:1	12,5:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	Boxer engine type direct and indirect injection system variable timing of intake and exhaust valves Dual AVCS	Boxer engine type direct and indirect injection system variable timing of intake and exhaust valves Dual AVCS

Drive axle	Rear	Rear
Gearbox	6 gear manual	6 gear automatic
Drive specifications	-	automatic gearbox

Top speed [km/h]	226	210
Acceleration 0–100 km/h [s]	7.6	8.2
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	10.4	9.6
Out of town [l]	6.4	5.7
Combined [l]	7.8	7.1
CO2 emissions [g/km]	181	164

Emission standard	EU6W	EU6W
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1312	1335
Overall weight [kg]	1670	1700
Maximum trailer weight unbraked/braked [kg]	-	-
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

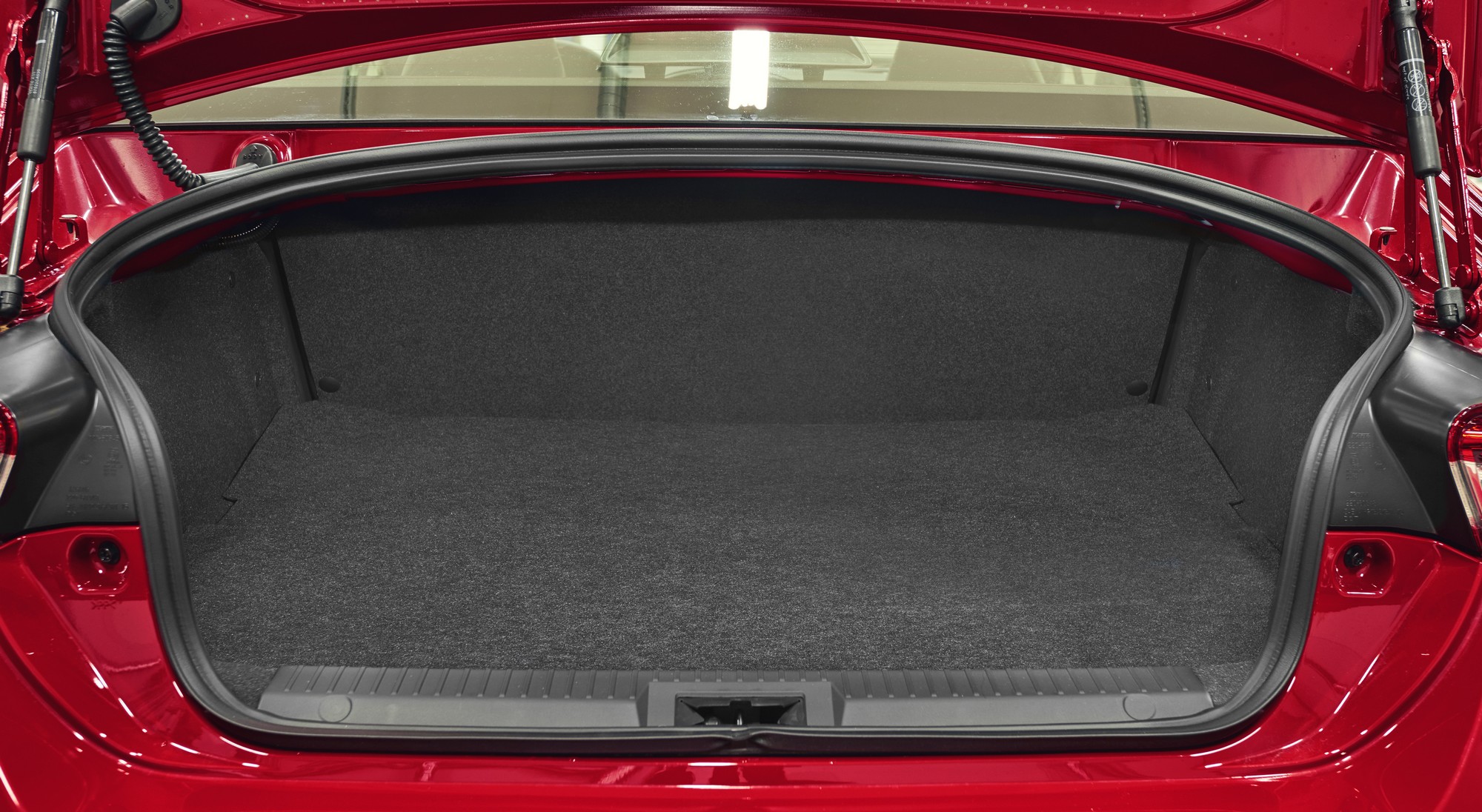

Boot volume [l]	243	243
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	2	2
Number of seats	4	4
Fuel tank volume [l]	50	50
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.27	0.27
Front suspension	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone
Tyre dimensions front	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16
Wheel size front	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.8/11.4	10.8/11.4

Overall length [mm]	4240	4240
Overall width without/including mirrors [mm]	1775/-	1775/-
Overall height [mm]	1320	1320
Wheelbase [mm]	2570	2570
Front wheel track [mm]	1520	1520
Rear wheel track [mm]	1540	1540
Forward overhang [mm]	845	845
Rear overhang [mm]	825	825
Clearance [mm]	120	130
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

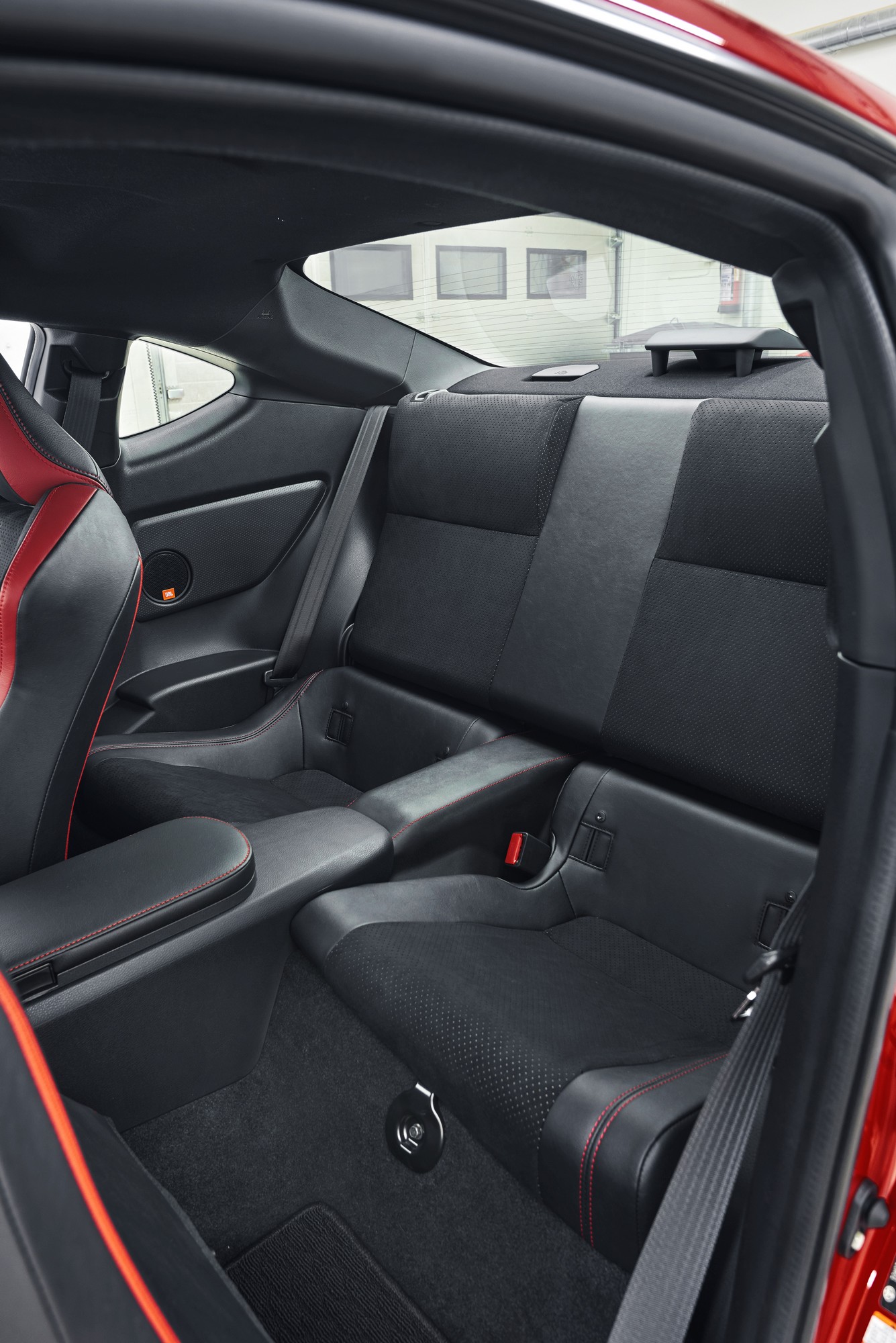

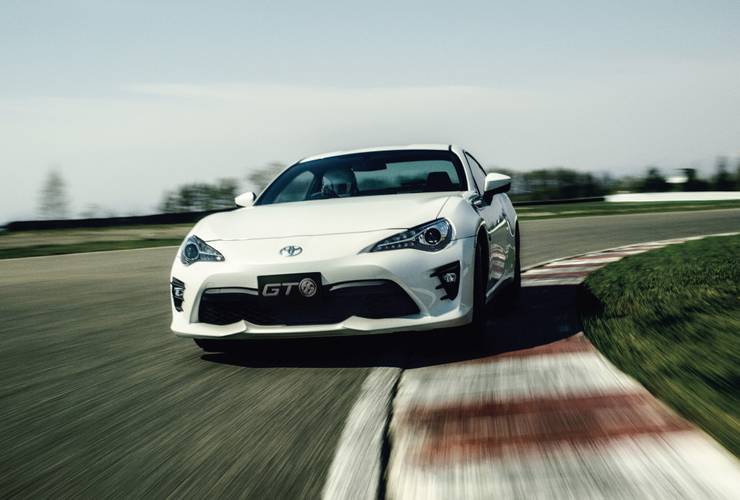

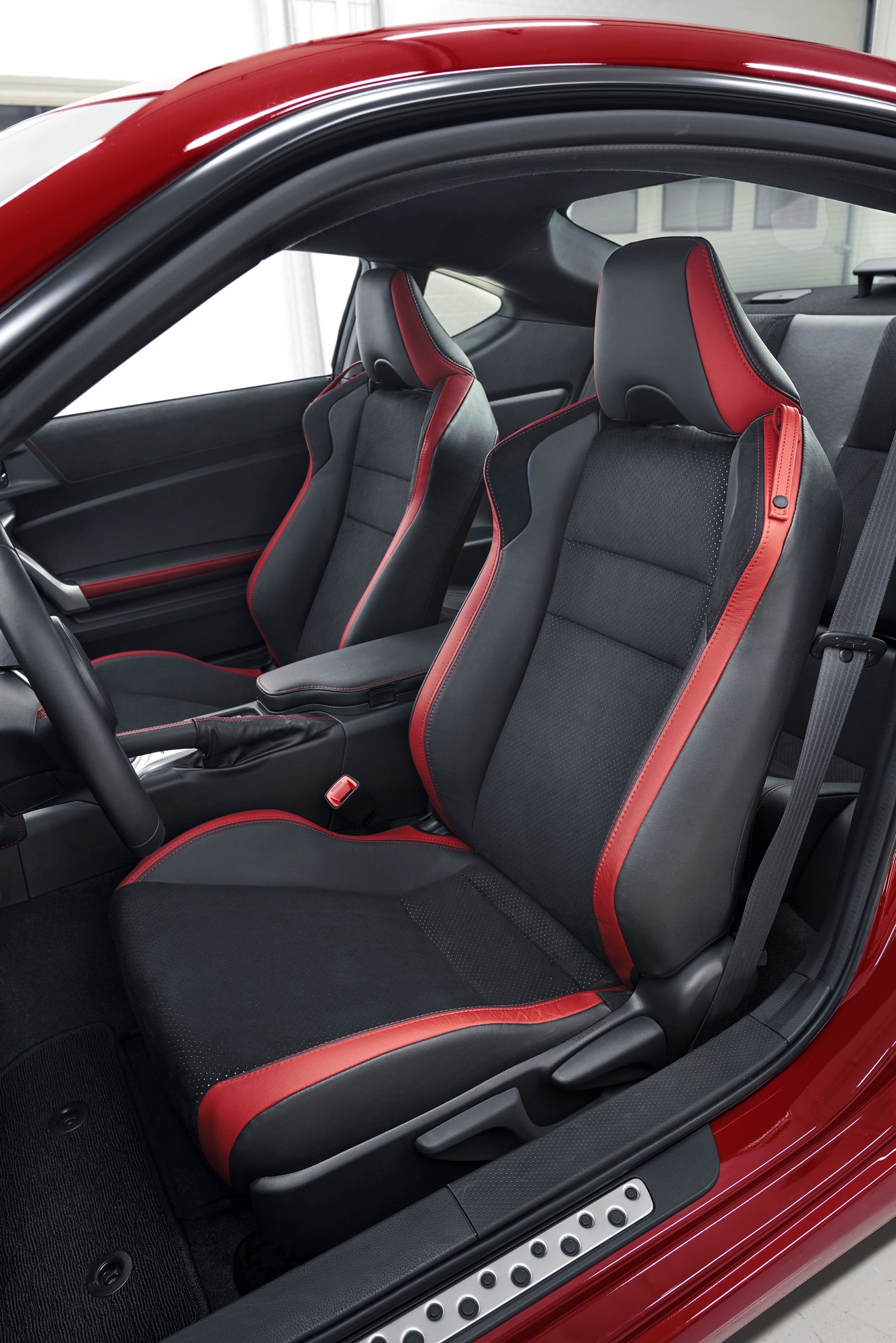

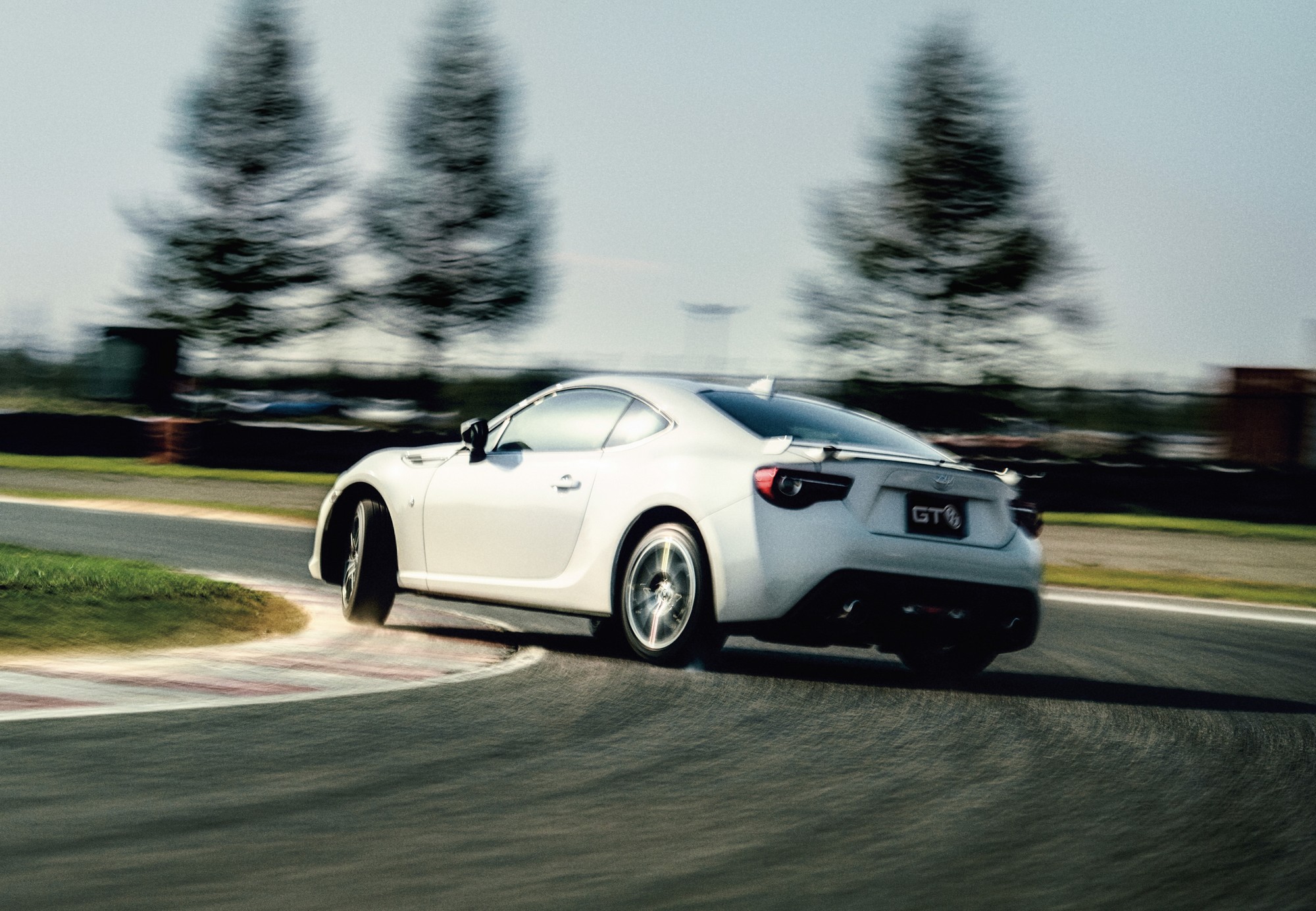

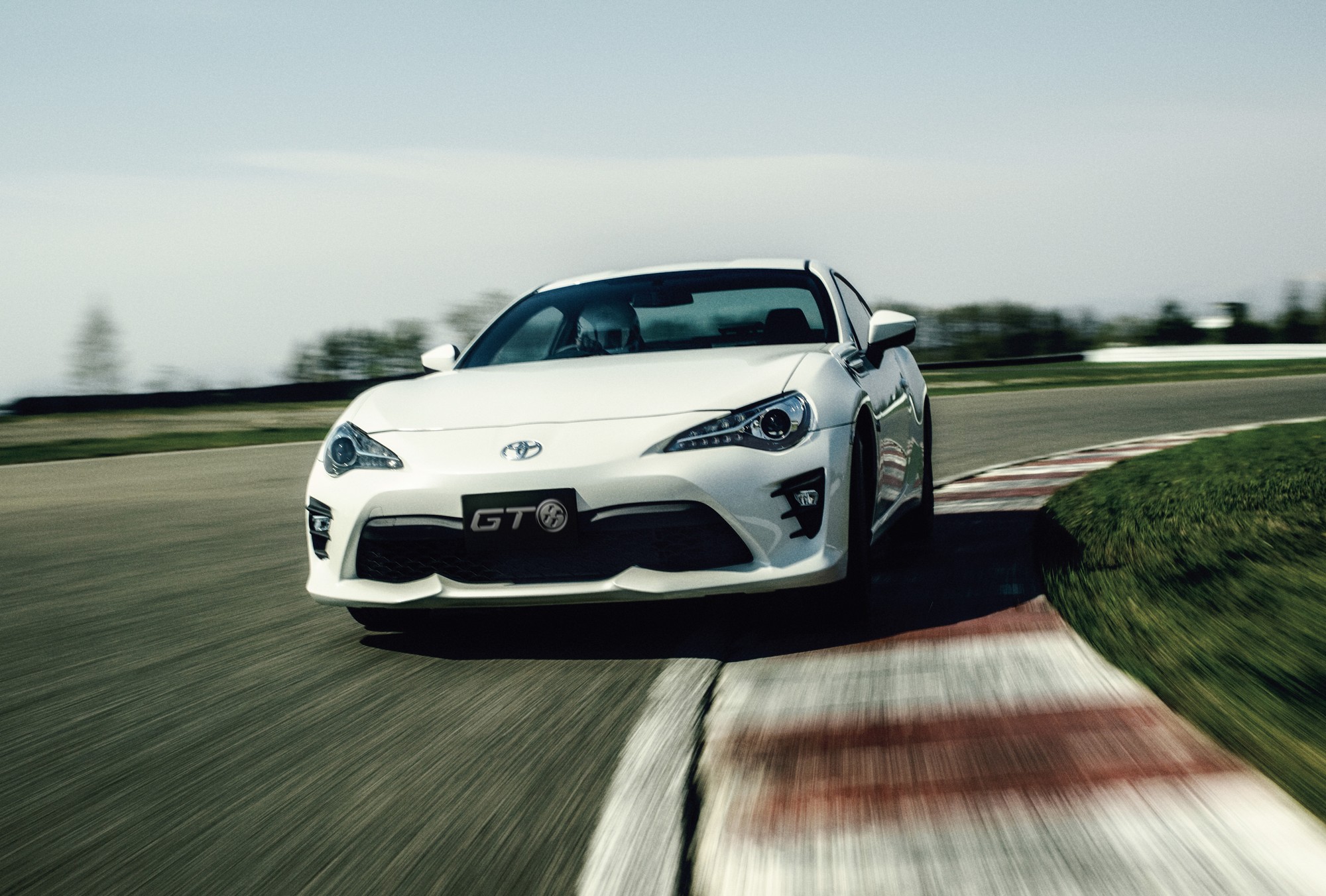

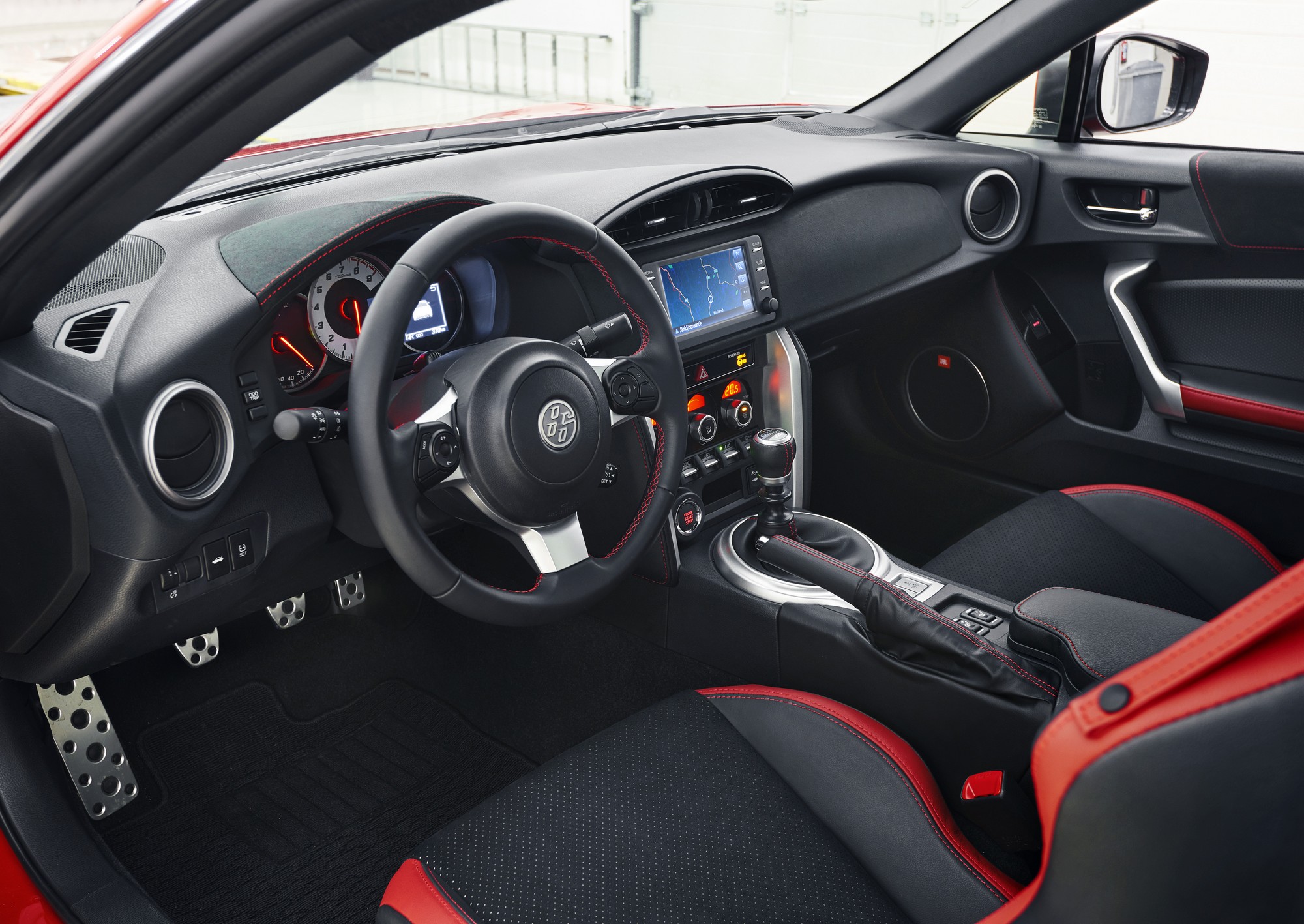

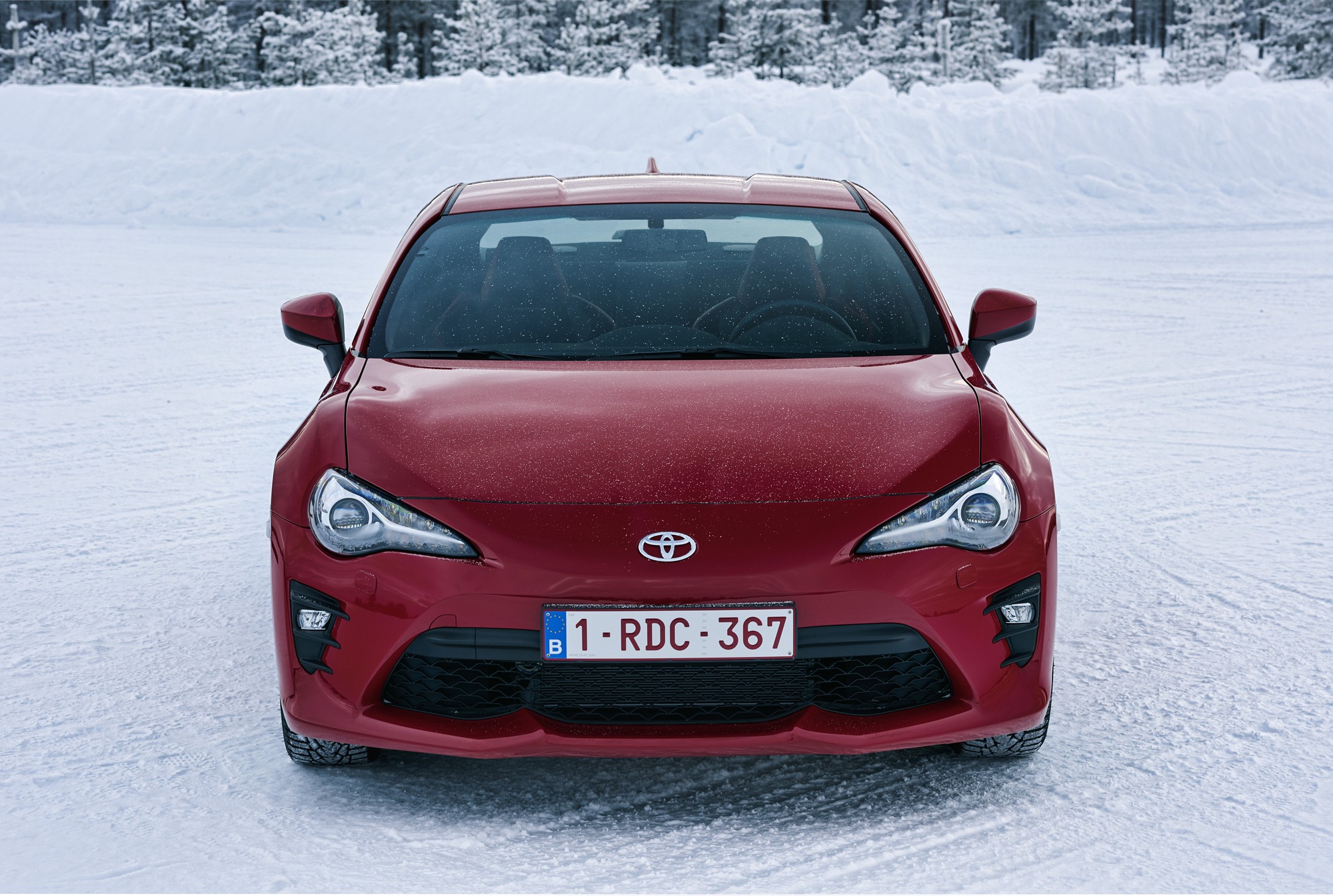

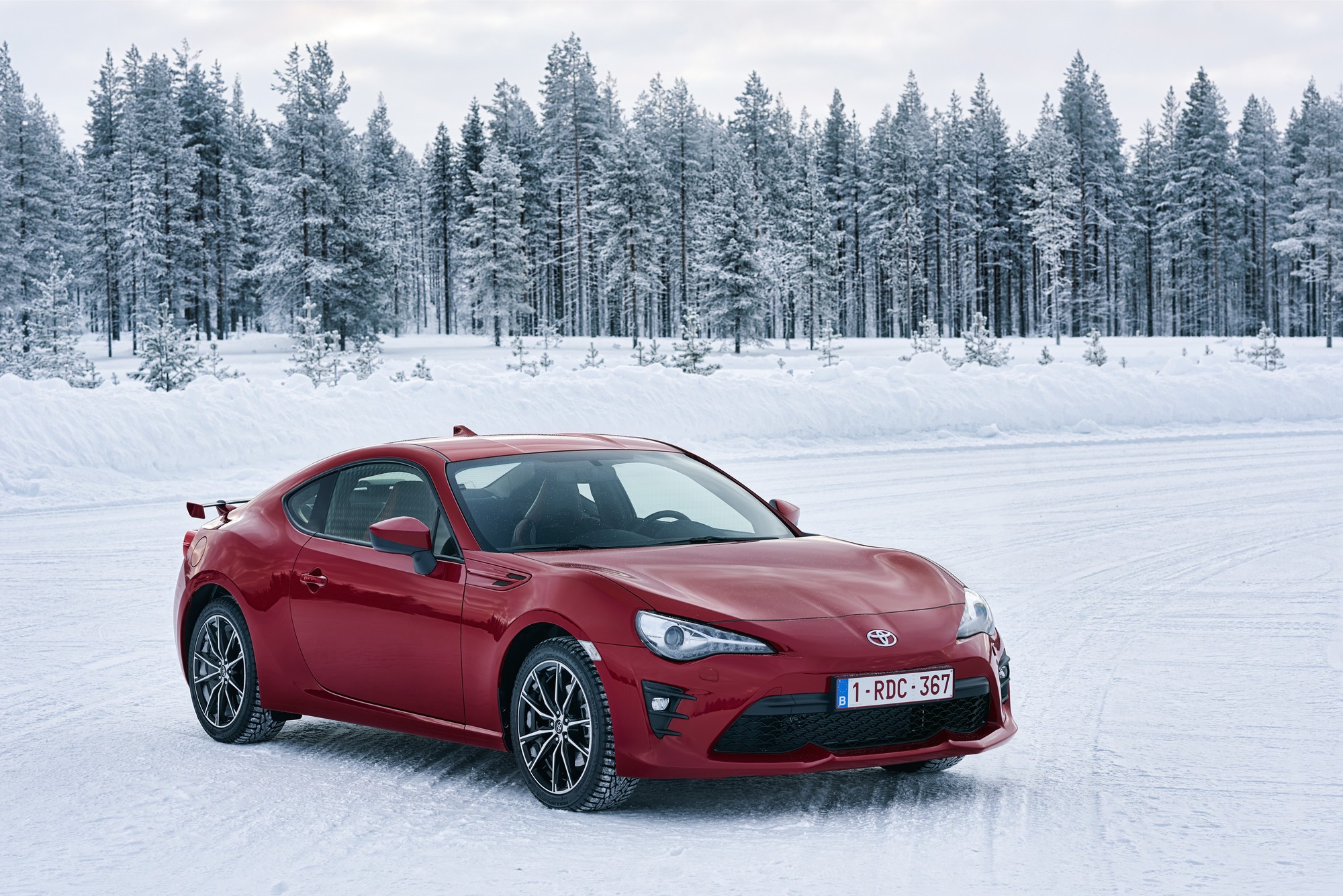

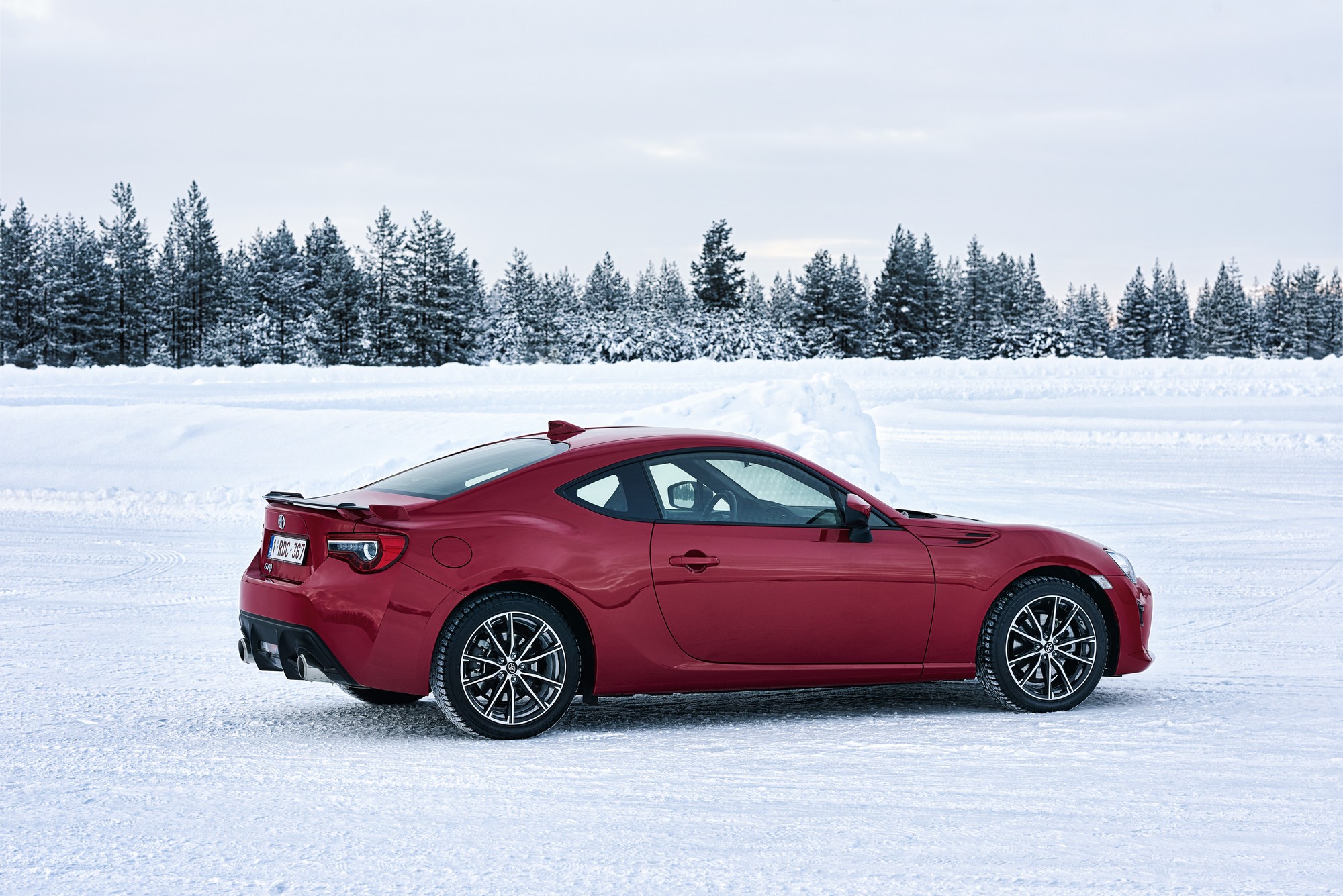

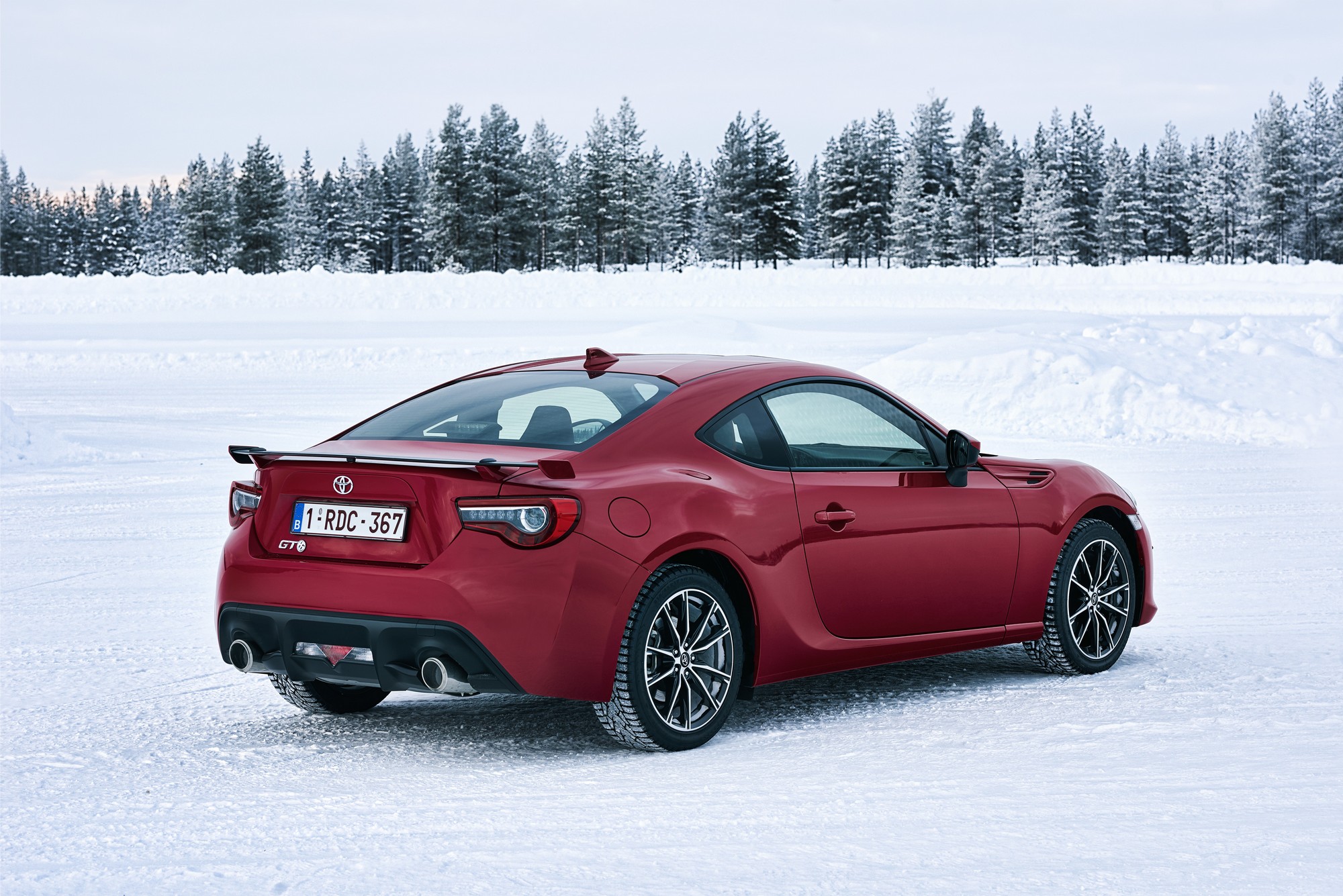

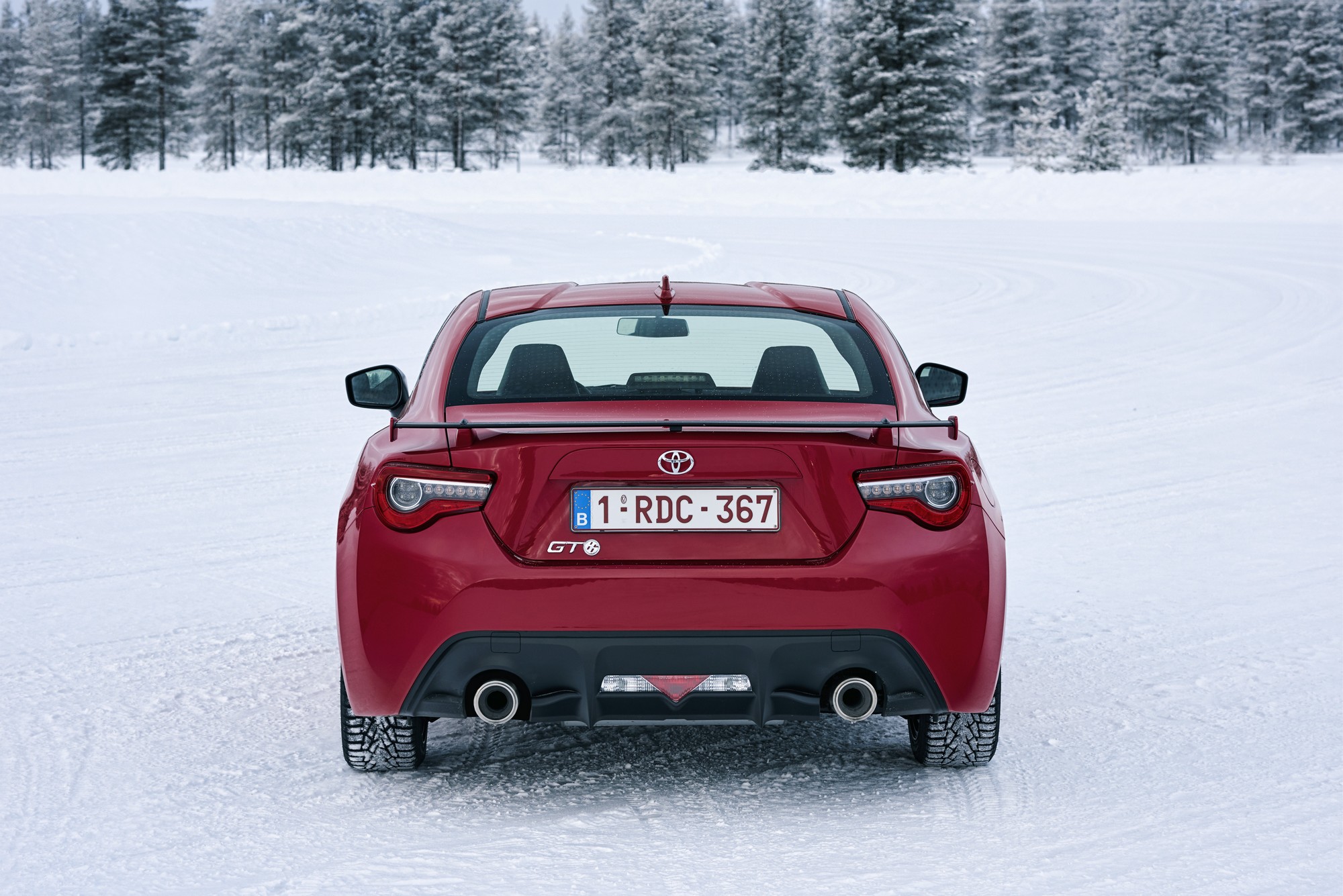

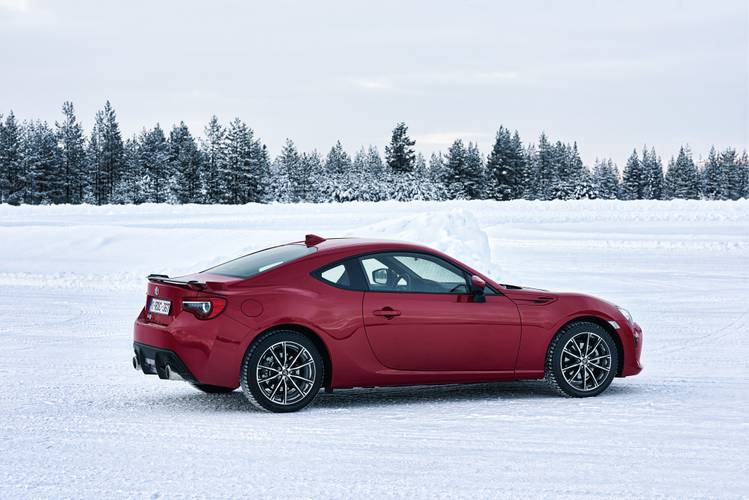

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
