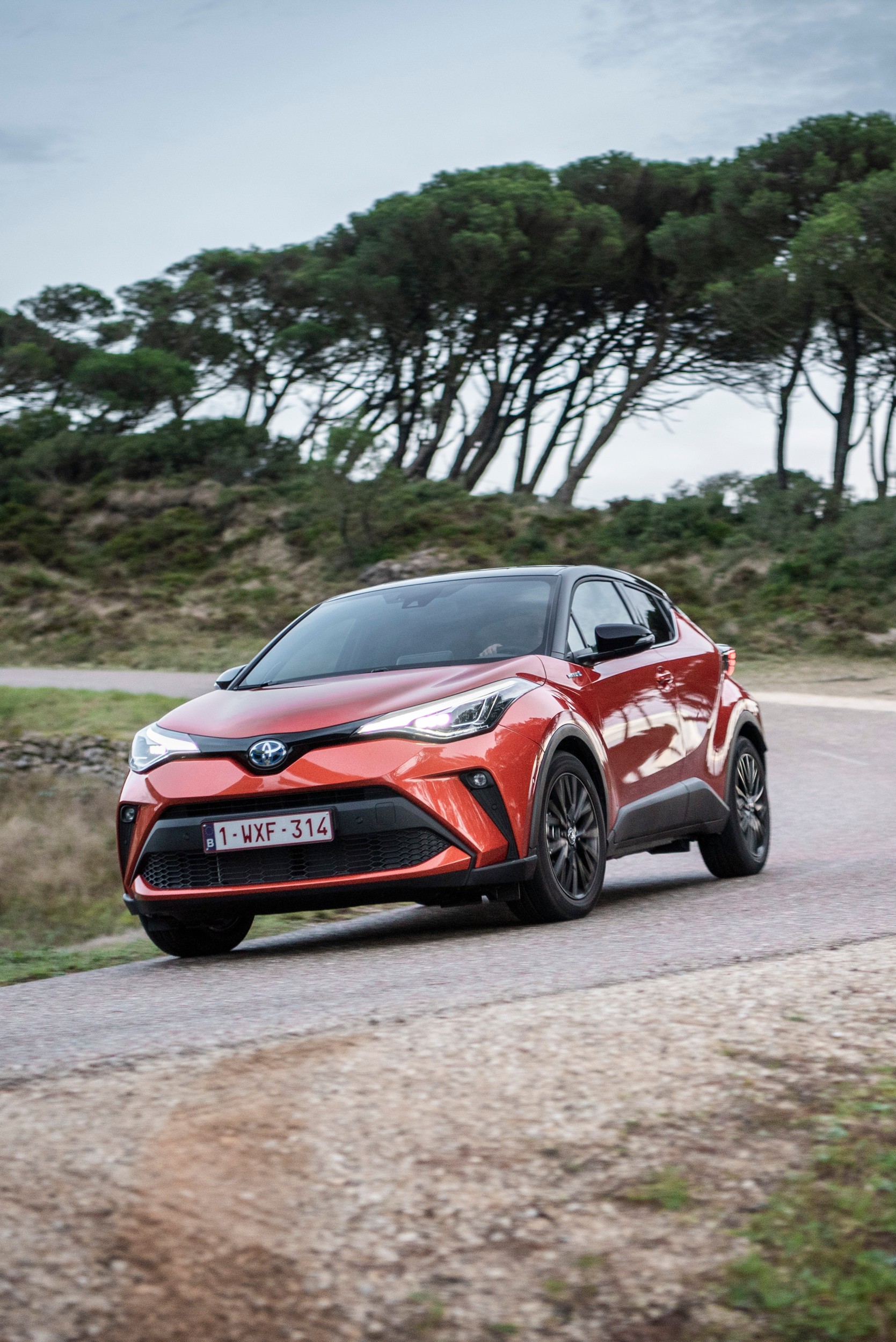

Toyota C-HR

C-HR AX10 2019

Date of manufacture

2019 – to this day (Medium SUV)

Platform

TNGA

Manufacturing locations

Iwate, Japan
Guangzhou, People's Republic of China
Adapazarı, Turkey

Designer

Kazuhiko Isawa
Ian Cartabiano

Tags

Compact SUV
Japanese cars
The Toyota C-HR is a mid-size SUV that has been in production since 2019. It is manufactured in Japan, China and Turkey on the TNGA platform. Both petrol and hybrid engines are available, including hybrid and plug-in hybrid. The most powerful version 2.0 Hybrid has 135 kW, while the 1.2 Turbo reaches a top speed of 190 km/h. The most efficient variant 1.8 Hybrid has a fuel consumption of 3.8 l/100 km and emissions of 109 g/km. The 377 l luggage compartment is another benefit of this car. It was tested in 2017 by EURONCAP and received a rating of 5 out of 5 for safety.

Car body style

Medium SUV

after upgrade (facelift)
Date of manufacture
2019 – to this day
Internal designation
AX10
Engine size
PetrolPetrol + Electric

Euro NCAP

Test year 2017
pre-facelift version (2017)
Rating
star iconstar iconstar iconstar iconstar icon
Adults
95 %
Adults
Children
77 %
Children
Pedestrians
76 %
Pedestrians
Assist systems
78 %
Assist systems

Technical data

Medium SUV

1.2 Turbo 1.2 Turbo 1.2 Turbo 1.8 Hybrid 2.0 Hybrid
Date of sale-----
Engine typeIgnition superchargedIgnition superchargedIgnition superchargedPetrol + ElectricPetrol + Electric
Number of cylinders/valves4/164/164/164/164/16
Engine displacement [cm³]11971197119717981987
Maximum output / speed [kW/min-1]
85/5200
85/5200
85/5200
72/5200 combustion
53 el.
90/5200 total
112/6000 combustion
80 el.
135/6000 total
Maximum torque [Nm/min-1]
185/1500-4000
185/1500-4000
185/1500-4000
142/3600 combustion
163 el.
190/4400-5200 combustion
202 el.
Drive axleFrontFront4x4FrontFront
Gearbox6 gear manual1 gear automatic1 gear automatic1 gear automatic1 gear automatic
Top speed [km/h]190185180170180
Acceleration 0–100 km/h [s]10.911.111.411.08.2
City [l]---3.5-3.23.9-3.7
Out of town [l]---4.2-4.34.4-4.2
Combined [l]7.1-6.47.5-7.28.3-7.93.9-3.84.3-4.0
CO2 emissions [g/km]161-145170-163188-1798692
Combined speed [l]----5.4-5.3
CO2 emissions [g/km]---111-109120-118
Emission standardEuro 6d-TEMP - Euro 6dEuro 6d-TEMP - Euro 6dEuro 6d-TEMP - Euro 6dEuro 6d-TEMP - Euro 6dEuro 6d-TEMP - Euro 6d
System voltage [V]-----
Battery type and capacity---Lithium-Ionen-Akkumulator, - A⋅hNickel-metal hydride
Range with fully charged battery [km]-----
Charging time-----
Standby weight [kg]1375-14351390-14501460-15201420-14601485-1525
Overall weight [kg]18451865193018601930
Maximum trailer weight unbraked/braked [kg]720/1300720/1100720/1100725/725725/725
Boot volume [l]377377377377358
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1160-/1160-/1160-/1160-
Number of doors55555
Number of seats55555
Fuel tank volume [l]5050504343
AdBlue tank volume [l]-----
Overall length [mm]43904390439043904390
Overall width without/including mirrors [mm]1795/-1795/-1795/-1795/-1795/-
Overall height [mm]15651565156515551555
Wheelbase [mm]26402640264026402640
Headroom front [mm]-----
Headroom rear [mm]-----
Front elbow/shoulder width [mm]-----
Rear elbow/shoulder width [mm]-----

Gallery

Toyota C-HR AX10 facelift 2020 interiorToyota C-HR AX10 facelift 2019 front seatsToyota C-HR AX10 facelift 2020 rear seatsToyota C-HR AX10 facelift 2020 boot
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
