Toyota Auris
Date of manufacture
2015 – 10/2018 (Five-door hatchback)
2015 – 10/2018 (Estate)
Platform
Toyota New MC platform
Manufacturing locations
Toyota, Japan
Burnaston, United Kingdom
Designer
Koichi Suga
Tags
C-segment
Japanese cars
The Toyota Auris, built on the Toyota New MC platform, is available in five-door hatchback and estate versions. The first car was produced in 2015 and is manufactured in the UK and Japan. It is offered with petrol, diesel and hybrid engines - the highest power is 1.8 Hybrid (100 kW), while the highest speed belongs to 1.6 Valvematic (200 km/h). The lowest consumption of 3.5 l/100 km is for the 1.8 Hybrid hybrid variant, CO2 emissions are 81 g/km. The boot of the estate offers a capacity of 600 litres, the five-door hatchback 360 litres. In 2013 it underwent EURONCAP safety tests and received a rating of 5 out of 5.
Car body style

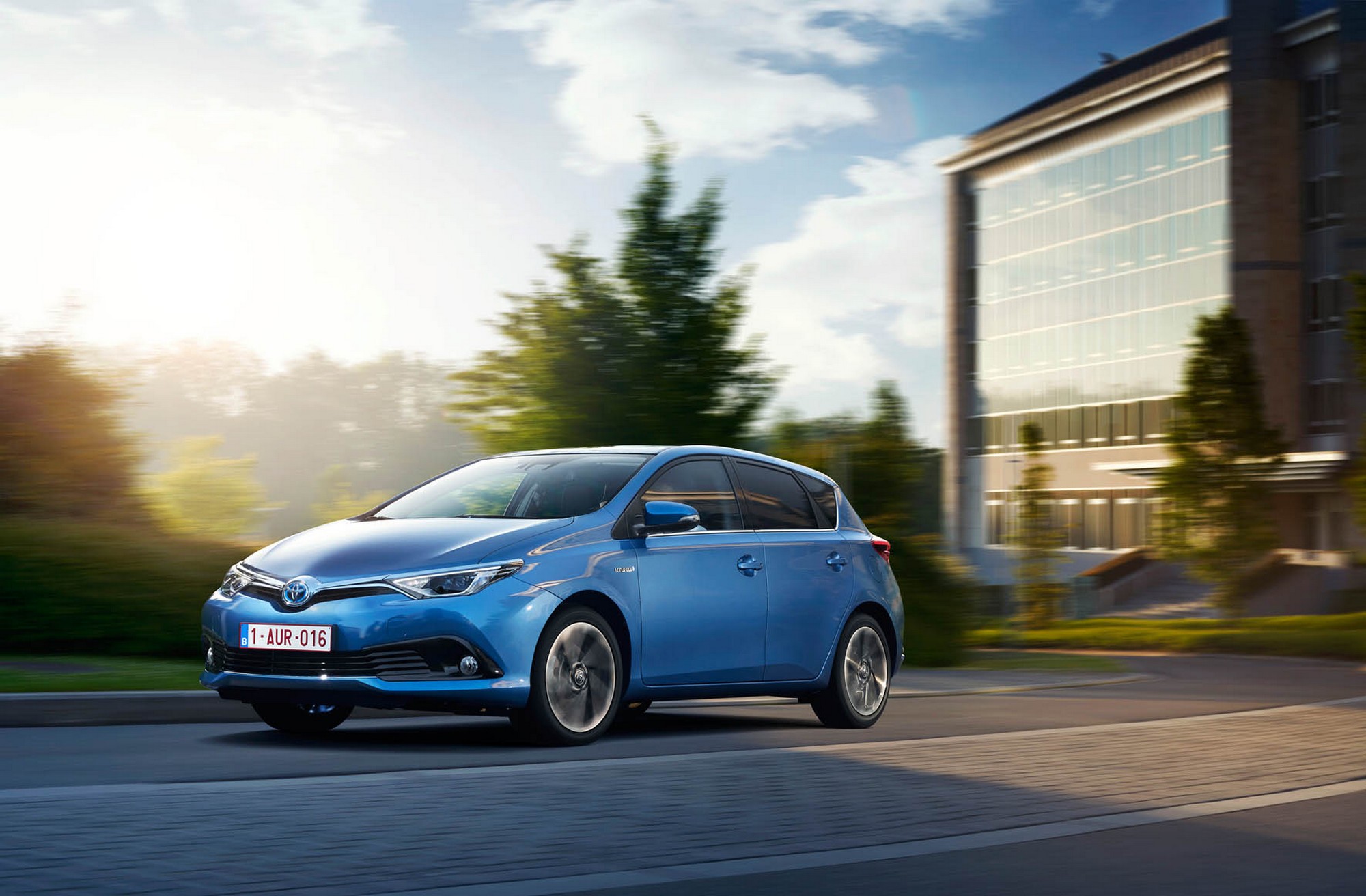

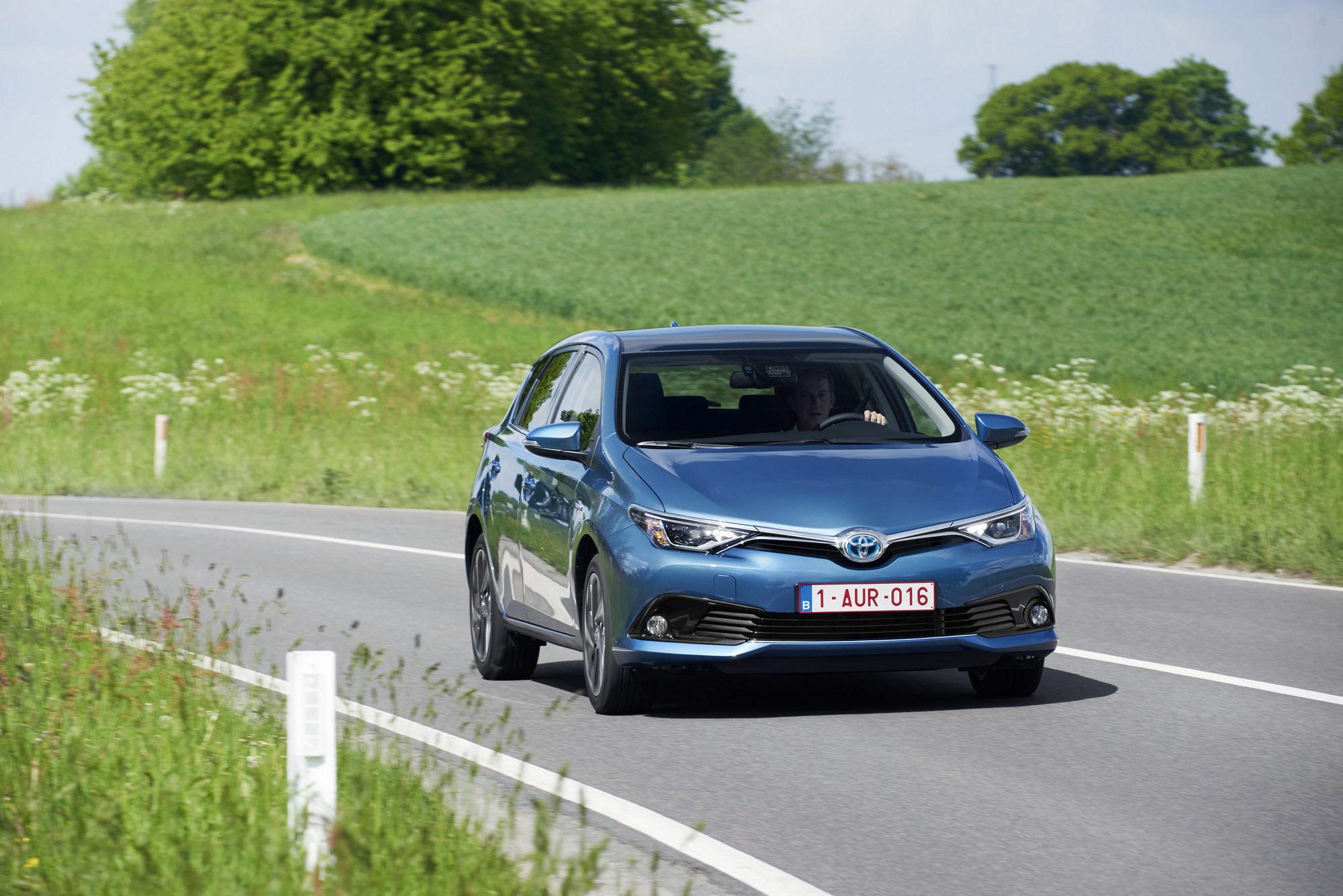

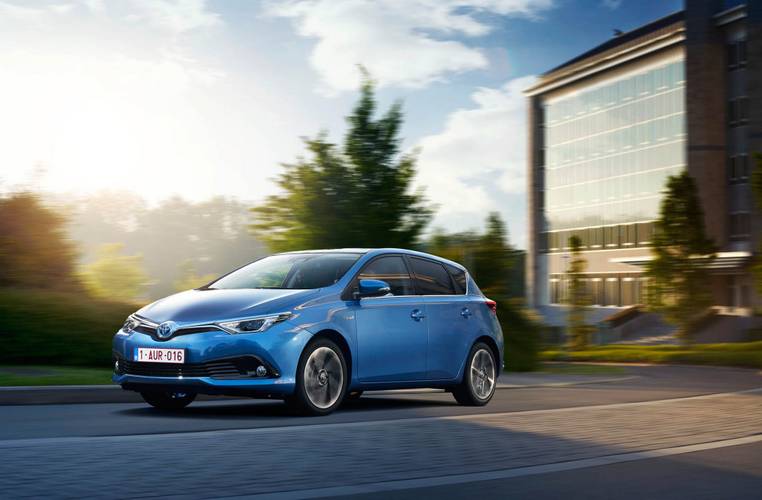

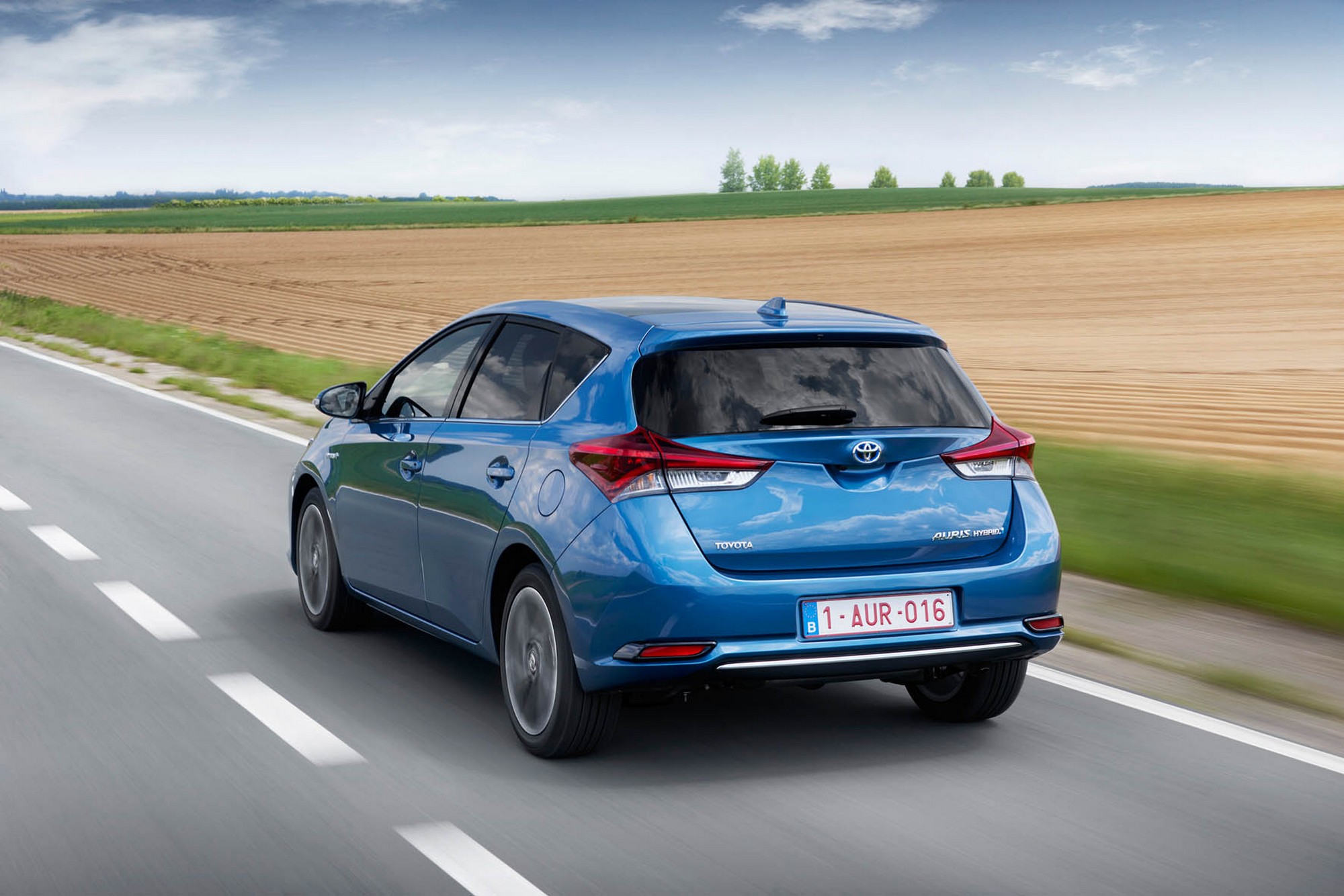

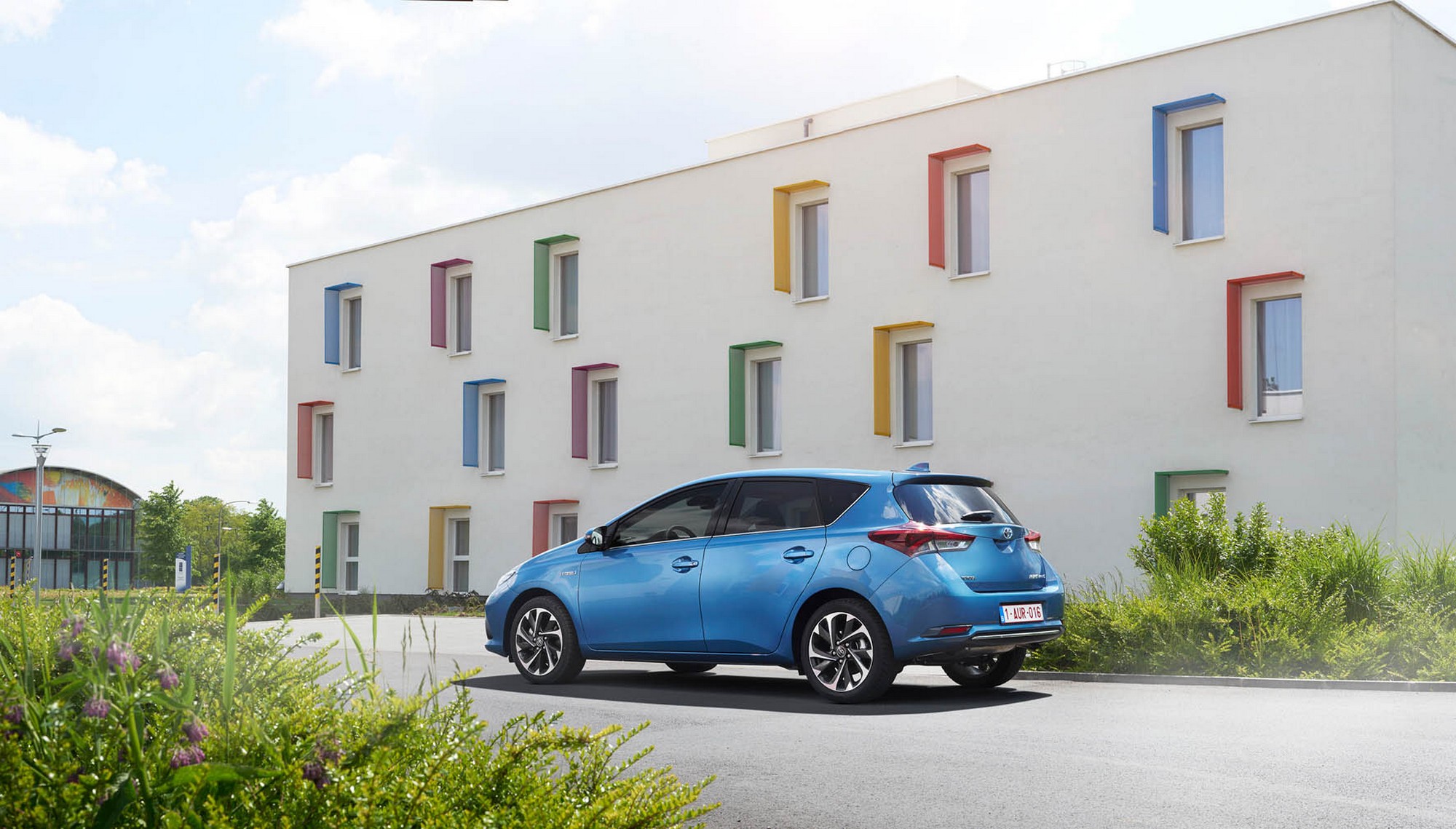

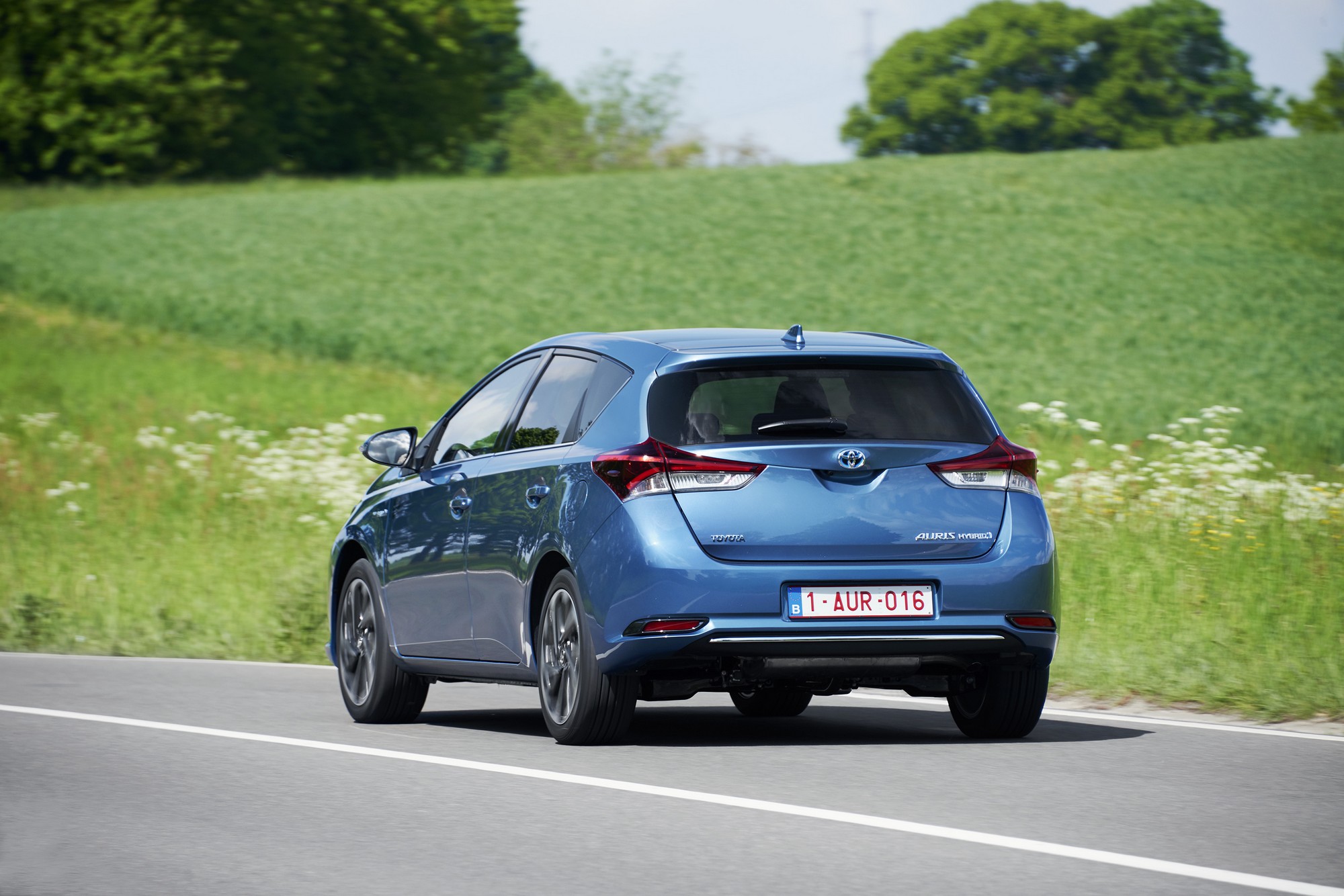

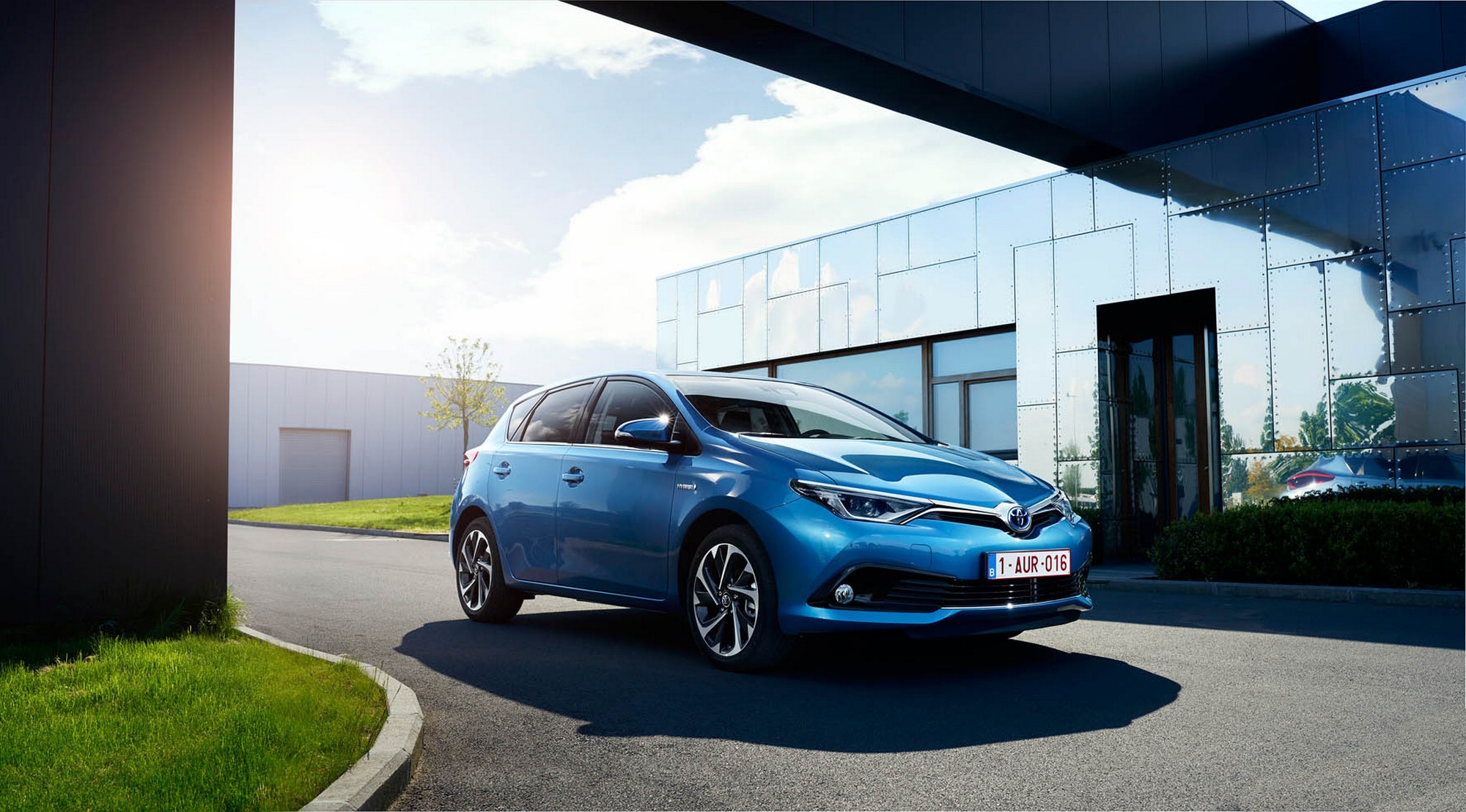

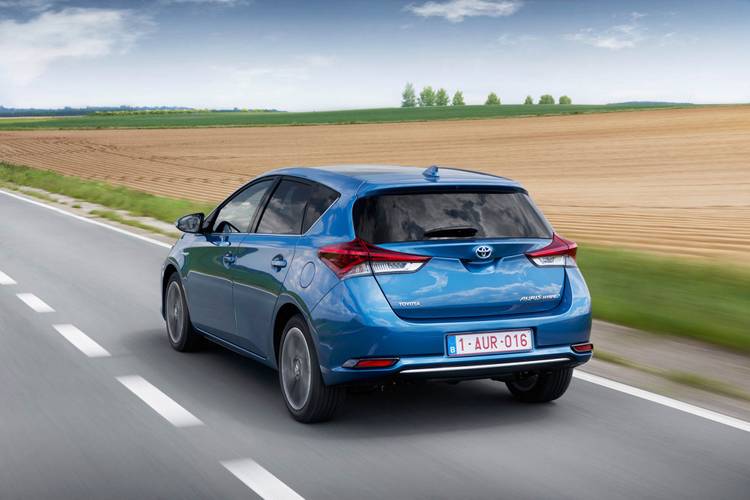

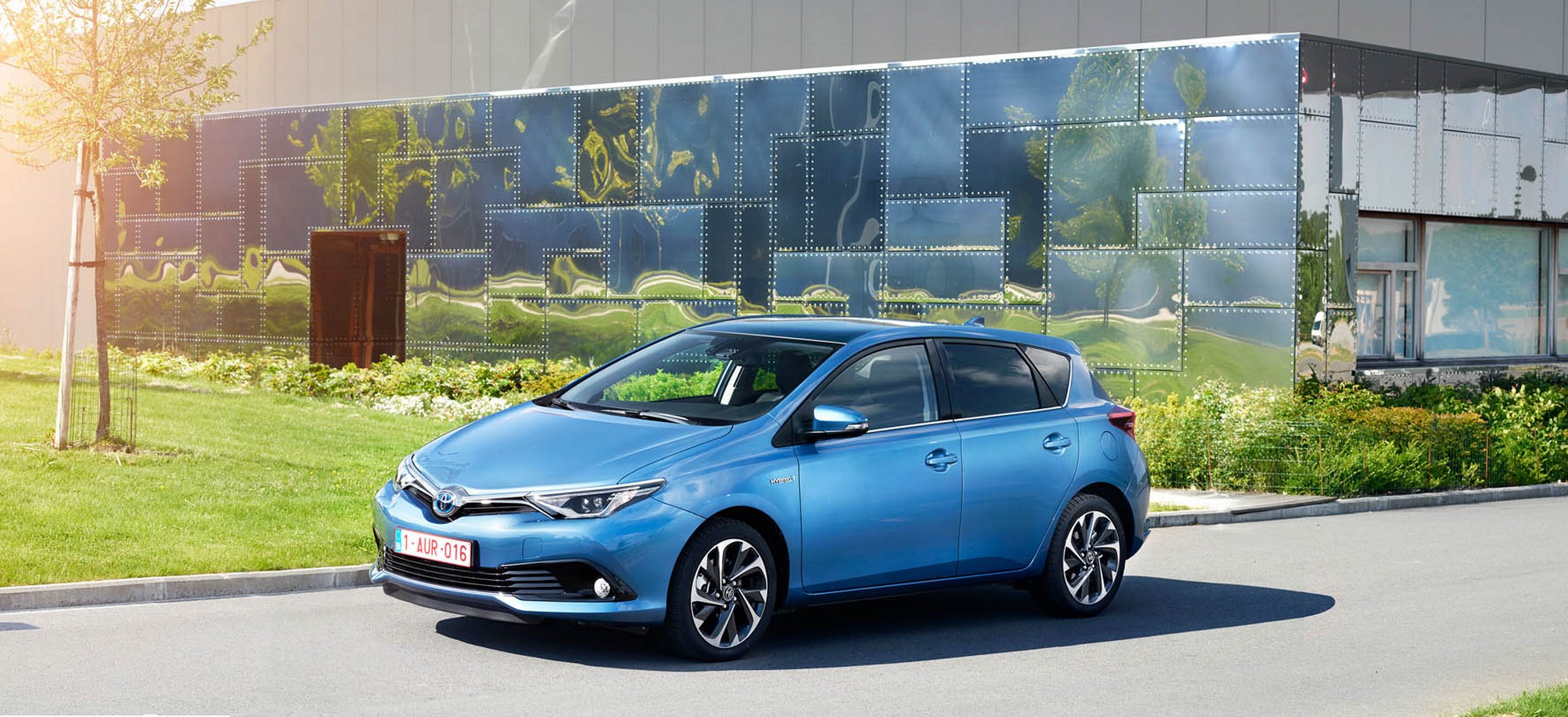

Five-door hatchback
after upgrade (facelift)
Date of manufacture
2015 – 10/2018Internal designation
E180 Engine size
PetrolPetrol + ElectricDiesel

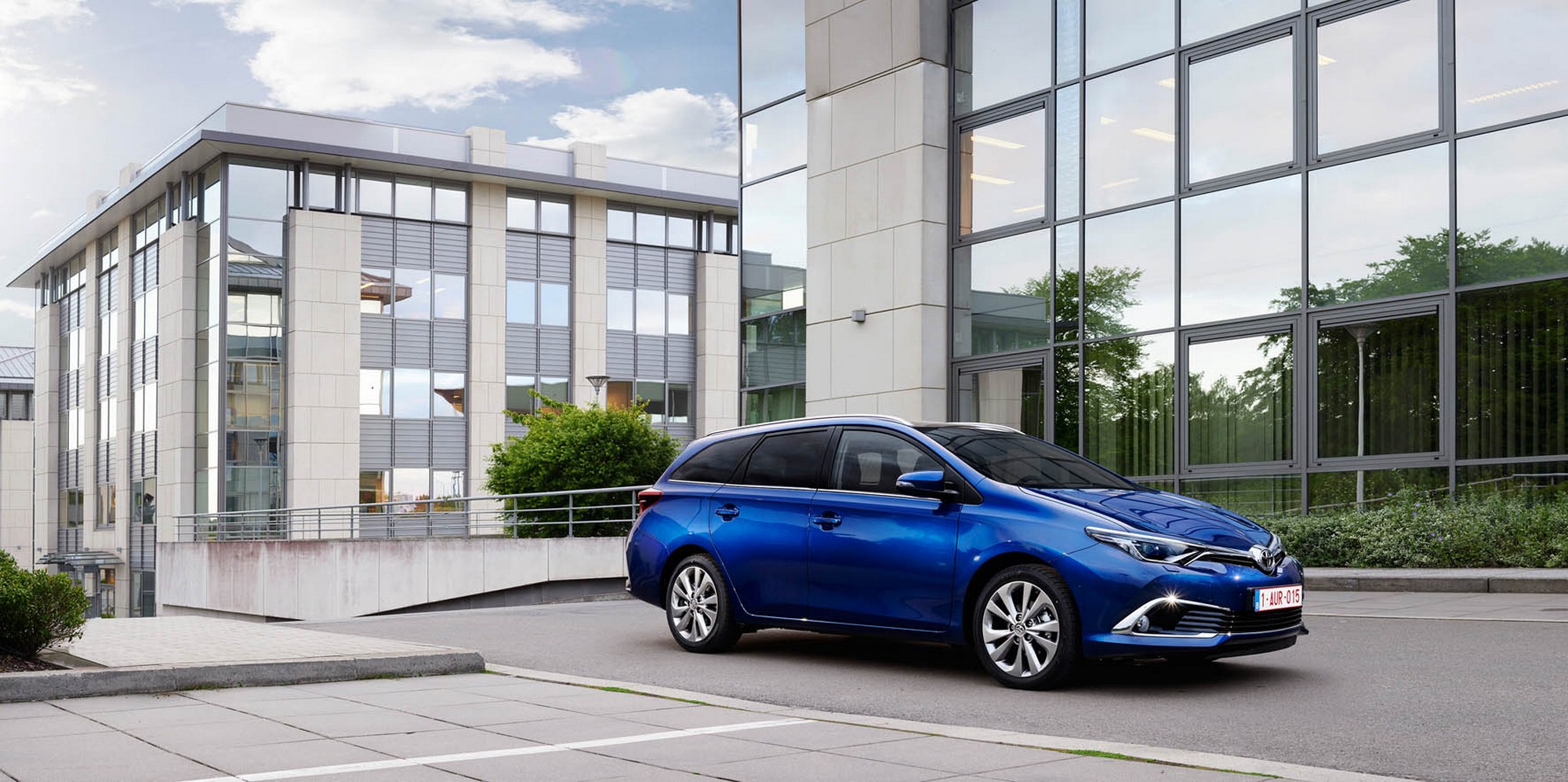

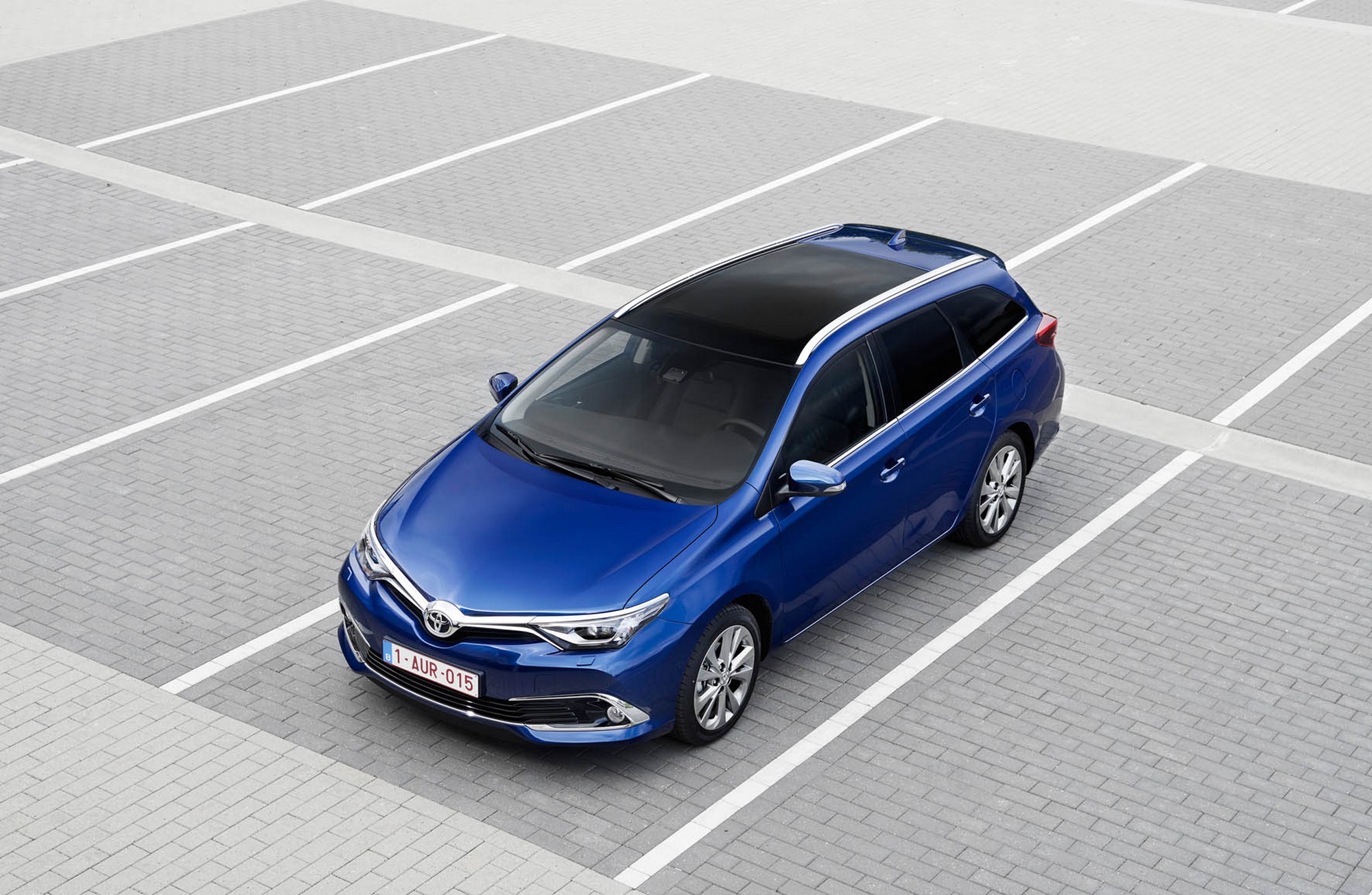

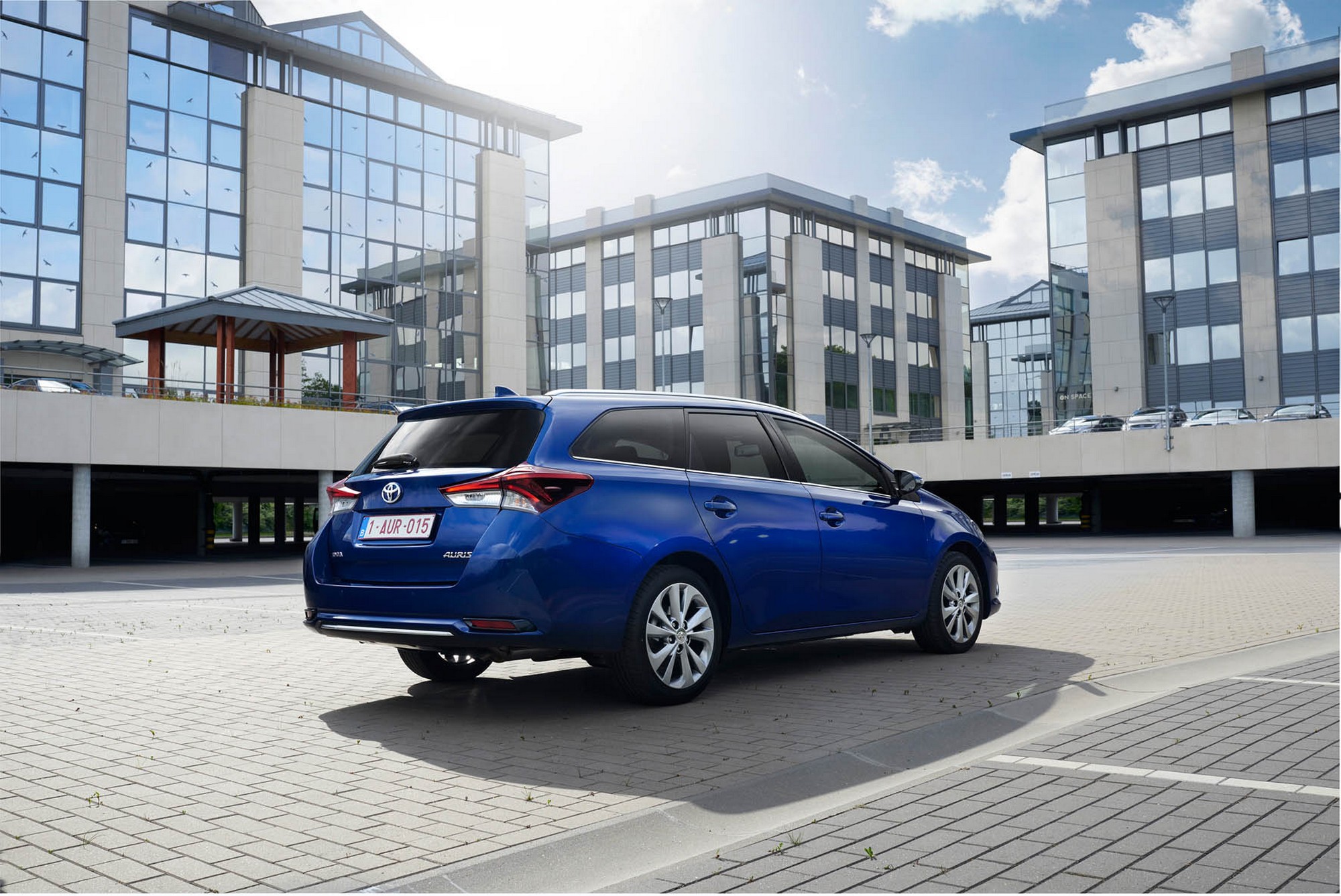

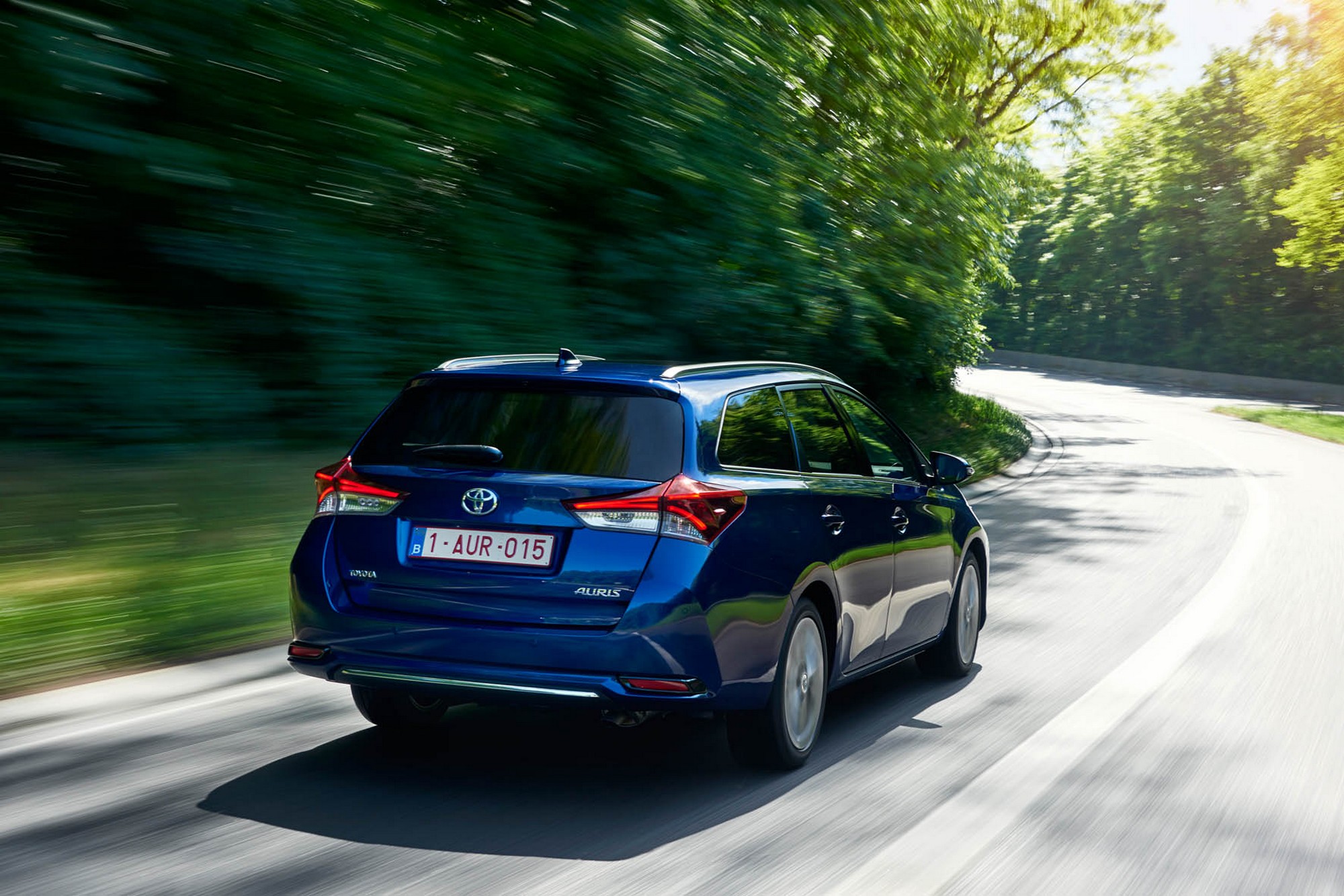

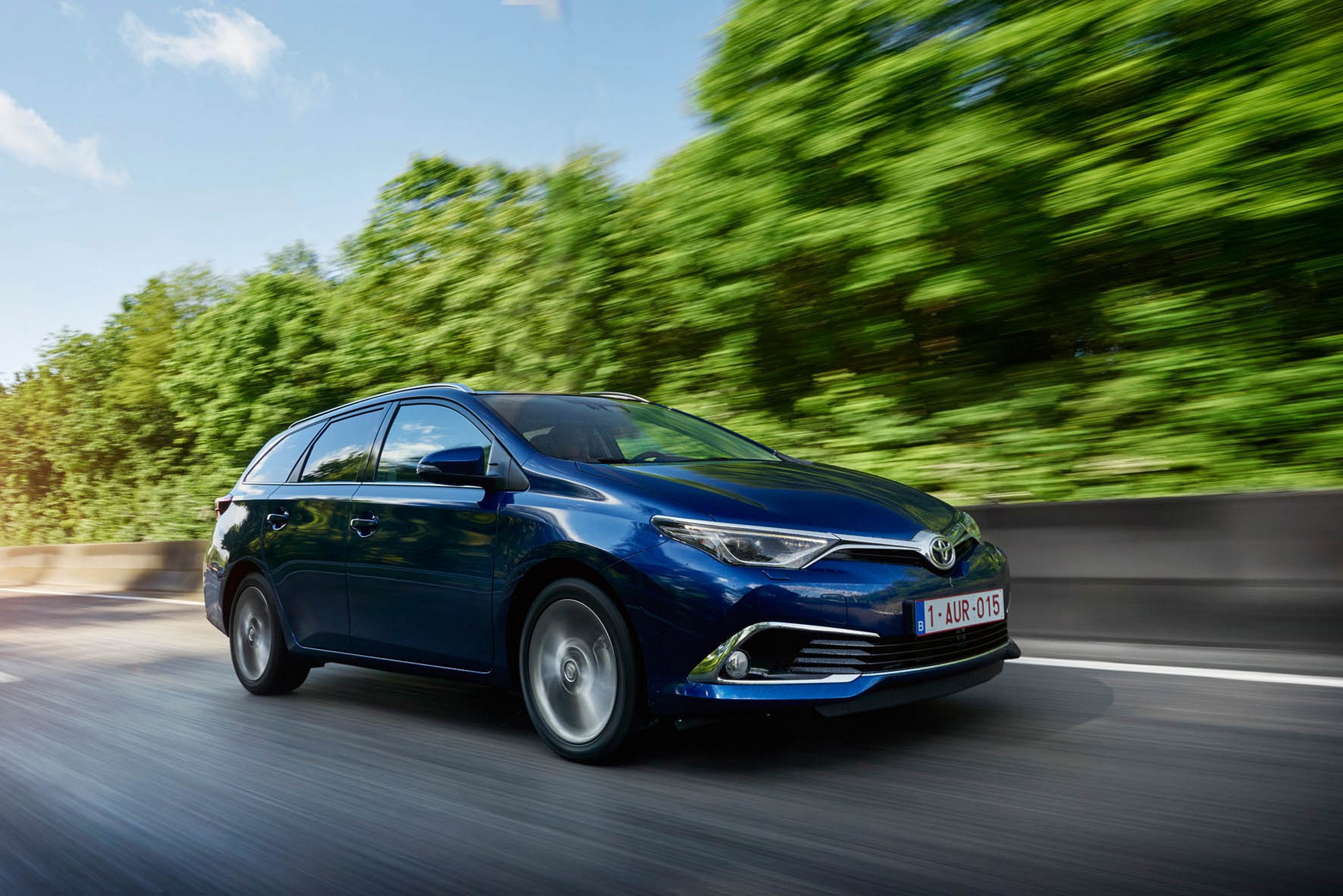

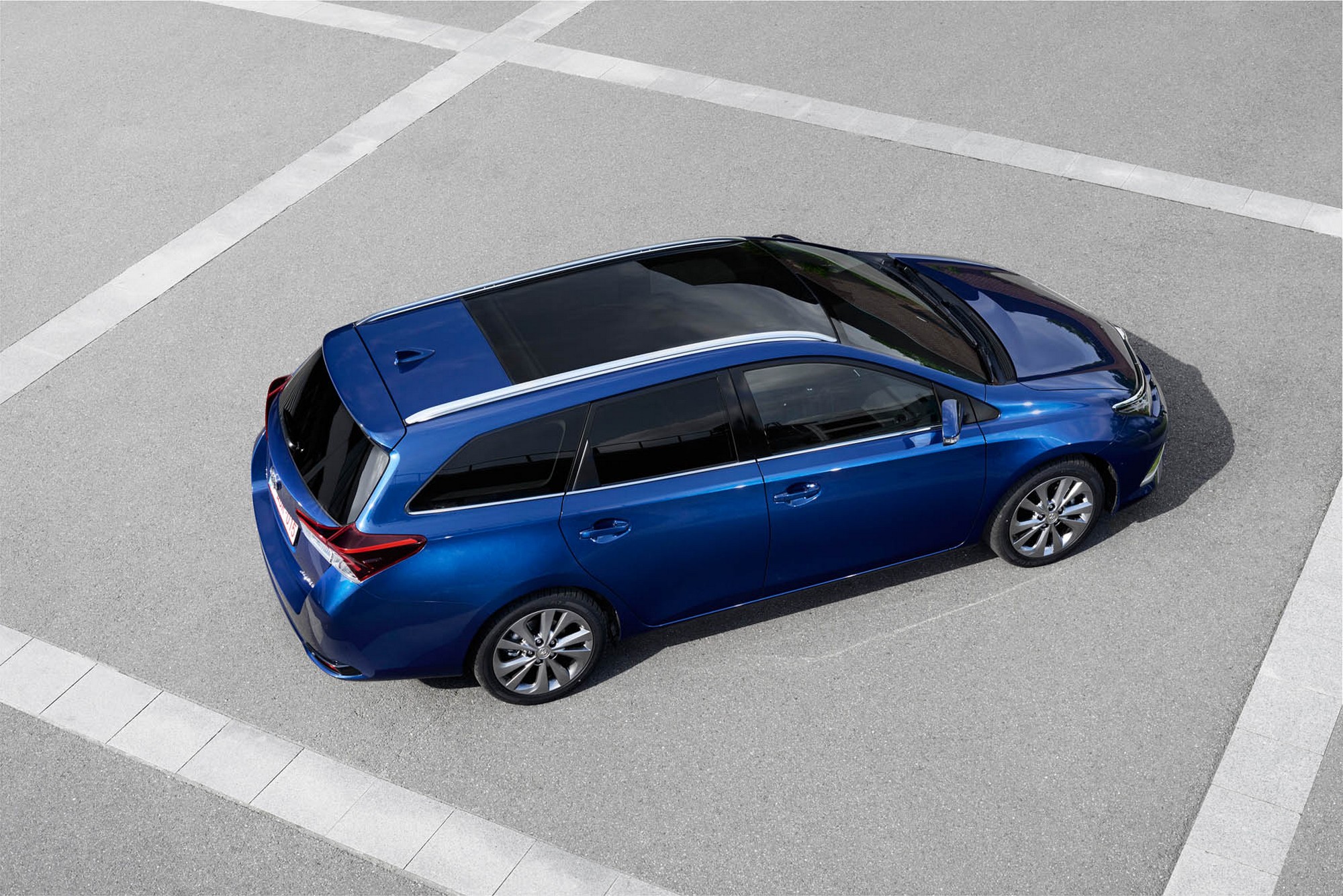

Estate (Touring Sports)
after upgrade (facelift)
Date of manufacture
2015 – 10/2018Internal designation
E180 Engine size
PetrolPetrol + ElectricDiesel
Technical data
Five-door hatchback
1.33 Dual VVT-i | 1.2 Turbo | 1.2 Turbo | 1.6 Valvematic | 1.6 Valvematic | 1.8 Hybrid | |
---|---|---|---|---|---|---|
Date of sale | from to 2018 | - | - | - | - | - |
Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol + Electric |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1329 | 1197 | 1197 | 1598 | 1598 | 1798 |
Maximum output / speed [kW/min-1] | 73/6000 | 85/5200 | 85/5200 | 97/6400 | 97/6400 | 73/5200 combustion 60 el. 100 total |
Maximum torque [Nm/min-1] | 128/3800 | 185/1500-4000 | 185/1500-4000 | 160/4400 | 160/4400 | 142/4000 combustion 207 el. |
Bore and stroke [mm x mm] | 72,5 x 80,5 | 71,5 x 74,5 | 71,5 x 74,5 | 80,5 x 78,5 | 80,5 x 78,5 | 80,5 x 88,3 |
Compression ratio | 11,5:1 | 10,0:1 | 10,0:1 | 10,7:1 | 10,7:1 | 13,0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 1 gear automatic |
Drive specifications | - | - |
| - |
|
|
Top speed [km/h] | 175 | 200 | 190 | 200 | 195 | 180 |
Acceleration 0–100 km/h [s] | 12.6 | 10.1 | 10.5 | 10.0 | 10.8 | 10.9 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 6.8 | 7.2-6.5 | 5.9-5.5 | 7.9 | 7.3-7.5 | 4.2-3.4 |
Out of town [l] | 4.8 | 4.9-4.8 | 4.9-4.1 | 4.8-5.0 | 4.6-4.7 | 3.9-3.4 |
Combined [l] | 5.5 | 5.7-5.4 | 5.3-4.6 | 5.9-6.1 | 5.6-5.7 | 4.1-3.5 |
CO2 emissions [g/km] | 128 | 132-123 | 120-106 | 138-140 | 129-132 | 94-79 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | - | - | - | Nickel metal hydride, 6.5 Ah |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1225 | 1265-1425 | 1280-1450 | 1265 | 1280 | 1385-1505 |
Overall weight [kg] | 1735 | 1805-1820 | 1830-1845 | 1805 | 1830 | 1815-1840 |
Maximum trailer weight unbraked/braked [kg] | 450/1000 | 450/1300 | 450/1300 | 450/1300 | 450/1300 | 385/385 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | 65 | 65 | - | - | 55 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1199 | -/1199 | -/1199 | -/1199 | -/1199 | -/1199 |
Boot length [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
Boot length with rear seats folded [mm] | 1395 | 1395 | 1395 | 1395 | 1395 | 1395 |
Boot width between wheels/max [mm] | 991/1350 | 991/1350 | 991/1350 | 991/1350 | 991/1350 | 991/1350 |
Boot height to headliner/ceiling [mm] | 523/875 | 523/875 | 523/875 | 523/875 | 523/875 | 523/875 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 45 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.28 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | torsion bar | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
Wheel size front | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 |
Wheel size rear | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 |
Overall length [mm] | 4330 | 4330 | 4330 | 4330 | 4330 | 4330 |
Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- |
Overall height [mm] | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
Wheelbase [mm] | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
Front wheel track [mm] | 1535 | 1525 | 1525 | 1535 | 1525 | 1535 |
Rear wheel track [mm] | 1525 | 1510 | 1510 | 1525 | 1510 | 1525 |
Forward overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
Rear overhang [mm] | 775 | 775 | 775 | 775 | 775 | 775 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.4 D-4D | 1.6 D-4D | |||||
---|---|---|---|---|---|---|
Date of sale | from to 2018 | from to 2018 | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/8 | 4/16 | ||||
Engine displacement [cm³] | 1364 | 1598 | ||||
Maximum output / speed [kW/min-1] | 66/3800 | 82/4000 | ||||
Maximum torque [Nm/min-1] | 205/1400-2800 | 270/1750-2250 | ||||
Bore and stroke [mm x mm] | 73,0 x 81,5 | 78,0 x 83,6 | ||||
Compression ratio | 18,0:1 | 16,5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | Front | ||||
Gearbox | 6 gear manual | 6 gear manual | ||||
Drive specifications | - | - | ||||
Top speed [km/h] | 180 | 195 | ||||
Acceleration 0–100 km/h [s] | 12.5 | 10.5 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 4.6 | 5.0-5.1 | ||||
Out of town [l] | 3.6 | 3.7-3.8 | ||||
Combined [l] | 4.0 | 4.2-4.3 | ||||
CO2 emissions [g/km] | 105 | 108-110 | ||||
Emission standard | EU6 | EU6 | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1275 | 1370 | ||||
Overall weight [kg] | 1820 | 1890 | ||||
Maximum trailer weight unbraked/braked [kg] | 450/1000 | 450/1300 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 360 | 360 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1199 | -/1199 | ||||
Boot length [mm] | 860 | 860 | ||||
Boot length with rear seats folded [mm] | 1395 | 1395 | ||||
Boot width between wheels/max [mm] | 991/1350 | 991/1350 | ||||
Boot height to headliner/ceiling [mm] | 523/875 | 523/875 | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 50 | 50 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | 0.28 | 0.28 | ||||
Front suspension | MacPherson | MacPherson | ||||
Rear suspension | torsion bar | double wishbone | ||||
Tyre dimensions front | 195/65 R15 | 205/55 R16 | ||||
Tyre dimensions rear | 195/65 R15 | 205/55 R16 | ||||
Wheel size front | 6.0J x 15 | 6.5J x 16 | ||||
Wheel size rear | 6.0J x 15 | 6.5J x 16 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | - | - | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 10.4/11.0 | 10.4/11.0 | ||||
Overall length [mm] | 4330 | 4330 | ||||
Overall width without/including mirrors [mm] | 1760/- | 1760/- | ||||
Overall height [mm] | 1475 | 1475 | ||||
Wheelbase [mm] | 2600 | 2600 | ||||
Front wheel track [mm] | 1535 | 1525 | ||||
Rear wheel track [mm] | 1525 | 1510 | ||||
Forward overhang [mm] | 955 | 955 | ||||
Rear overhang [mm] | 775 | 775 | ||||
Clearance [mm] | - | - | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | - | - | ||||
Headroom rear [mm] | - | - | ||||
Front elbow/shoulder width [mm] | - | - | ||||
Rear elbow/shoulder width [mm] | - | - | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Estate (Touring Sports)
1.33 Dual VVT-i | 1.2 Turbo | 1.2 Turbo | 1.6 Valvematic | 1.6 Valvematic | 1.8 Hybrid | |
---|---|---|---|---|---|---|
Date of sale | from to 2018 | - | - | - | - | - |
Engine type | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol + Electric |
Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
Engine displacement [cm³] | 1329 | 1197 | 1197 | 1598 | 1598 | 1798 |
Maximum output / speed [kW/min-1] | 73/6000 | 85/5200 | 85/5200 | 97/6400 | 97/6400 | 73/5200 combustion 60 el. 100 total |
Maximum torque [Nm/min-1] | 128/3800 | 185/1500-4000 | 185/1500-4000 | 160/4400 | 160/4400 | 142/4000 combustion 207 el. |
Bore and stroke [mm x mm] | 72,5 x 80,5 | 71,5 x 74,5 | 71,5 x 74,5 | 80,5 x 78,5 | 80,5 x 78,5 | 80,5 x 88,3 |
Compression ratio | 11,5:1 | 10,0:1 | 10,0:1 | 10,7:1 | 10,7:1 | 13,0:1 |
Oil volume [l] | - | - | - | - | - | - |
Coolant volume [l] | - | - | - | - | - | - |
Technical specifications |
|
|
|
|
|
|
Drive axle | Front | Front | Front | Front | Front | Front |
Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 1 gear automatic |
Drive specifications | - | - |
| - |
|
|
Top speed [km/h] | 175 | 195 | 190 | 195 | 190 | 175 |
Acceleration 0–100 km/h [s] | 13.2 | 10.4 | 10.8 | 10.5 | 11.2 | 11.2 |
Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
City [l] | 7.1 | 7.2-6.6 | 6.2-5.7 | 8.0-8.1 | 7.5-7.6 | 4.2-3.5 |
Out of town [l] | 4.8 | 4.9-4.8 | 4.9-4.3 | 5.0-5.1 | 4.7-5.0 | 3.9-3.4 |
Combined [l] | 5.6 | 5.7-5.4 | 5.4-4.8 | 6.1-6.2 | 5.7-5.9 | 4.1-3.5 |
CO2 emissions [g/km] | 130 | 132-123 | 123-110 | 140-143 | 132-137 | 94-81 |
Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
Standard for fuel consumption measurement | - | - | - | - | - | - |
Energy class | - | - | - | - | - | - |
Stationary vehicle noise [dB] | - | - | - | - | - | - |
Driving noise [dB] | - | - | - | - | - | - |
System voltage [V] | - | - | - | - | - | - |
Battery type and capacity | - | - | - | - | - | Nickel metal hydride, 6.5 Ah |
Range with fully charged battery [km] | - | - | - | - | - | - |
Charging time | - | - | - | - | - | - |
Number of modules/cells | - | - | - | - | - | - |
Battery weight [kg] | - | - | - | - | - | - |
Charger | - | - | - | - | - | - |
Standby weight [kg] | 1250 | 1280-1460 | 1300-1480 | 1280 | 1300 | 1410-1540 |
Overall weight [kg] | 1765 | 1835-1850 | 1860-1875 | 1835 | 1860 | 1815-1865 |
Maximum trailer weight unbraked/braked [kg] | 450/1000 | 450/1300 | 450/1300 | 450/1300 | 450/1300 | 345/345 |
Maximum front/rear axle load [kg] | - | - | - | - | - | - |
Maximum vertical load on the tow bar [kg] | - | 65 | 655 | - | - | 55 |
Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
Boot volume [l] | 600 | 600 | 600 | 600 | 600 | 600 |
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1658 | -/1658 | -/1658 | -/1658 | -/1658 | -/1658 |
Boot length [mm] | 1115 | 860 | 860 | 1115 | 1115 | 1115 |
Boot length with rear seats folded [mm] | 2047 | 1395 | 1395 | 2047 | 2047 | 2047 |
Boot width between wheels/max [mm] | 987/1452 | 987/1452 | 987/1452 | 987/1452 | 987/1452 | 987/1452 |
Boot height to headliner/ceiling [mm] | 562/890 | 562/890 | 562/890 | 562/890 | 562/890 | 562/890 |
Loading edge height [mm] | - | - | - | - | - | - |
Height of the open boot door [mm] | - | - | - | - | - | - |
Boot opening height [mm] | - | - | - | - | - | - |
Boot opening width min/max [mm] | - | - | - | - | - | - |
Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 45 |
AdBlue tank volume [l] | - | - | - | - | - | - |
Air resistance [Cd] | 0.3 | 0.3 | 0.29 | 0.29 | 0.29 | 0.29 |
Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
Rear suspension | torsion bar | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 |
Wheel size front | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 |
Wheel size rear | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.5J x 16 | 6.0J x 15 |
Brake dimensions front | - | - | - | - | - | - |
Brake dimensions rear | - | - | - | - | - | - |
Steering | - | - | - | - | - | - |
Number of steering wheel turns | - | - | - | - | - | - |
Turning diameter track/circumference [m] | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 | 10.4/11.0 |
Overall length [mm] | 4595 | 4595 | 4595 | 4595 | 4595 | 4595 |
Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- |
Overall height [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
Wheelbase [mm] | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
Front wheel track [mm] | 1535 | 1525 | 1525 | 1535 | 1525 | 1535 |
Rear wheel track [mm] | 1525 | 1510 | 1510 | 1525 | 1510 | 1525 |
Forward overhang [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
Rear overhang [mm] | 1040 | 775 | 775 | 1040 | 1040 | 1040 |
Clearance [mm] | - | - | - | - | - | - |
Wading depth [mm] | - | - | - | - | - | - |
Approach angle front [°] | - | - | - | - | - | - |
Approach angle rear [°] | - | - | - | - | - | - |
Transition angle [°] | - | - | - | - | - | - |
Climbing rate [°] | - | - | - | - | - | - |
Maximum side tilt [°] | - | - | - | - | - | - |
Headroom front [mm] | - | - | - | - | - | - |
Headroom rear [mm] | - | - | - | - | - | - |
Front elbow/shoulder width [mm] | - | - | - | - | - | - |
Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
Legroom front knees/total [mm] | - | - | - | - | - | - |
Legroom rear knees/total [mm] | - | - | - | - | - | - |
1.4 D-4D | 1.6 D-4D | |||||
---|---|---|---|---|---|---|
Date of sale | from to 2018 | from to 2018 | ||||
Engine type | Diesel supercharged | Diesel supercharged | ||||
Number of cylinders/valves | 4/8 | 4/16 | ||||
Engine displacement [cm³] | 1364 | 1598 | ||||
Maximum output / speed [kW/min-1] | 66/3800 | 82/4000 | ||||
Maximum torque [Nm/min-1] | 205/1800-2800 | 270/1750-2250 | ||||
Bore and stroke [mm x mm] | 73,0 x 81,5 | 78,0 x 83,6 | ||||
Compression ratio | 18,0:1 | 16,5:1 | ||||
Oil volume [l] | - | - | ||||
Coolant volume [l] | - | - | ||||
Technical specifications |
|
| ||||
Drive axle | Front | Front | ||||
Gearbox | 6 gear manual | 6 gear manual | ||||
Drive specifications | - | - | ||||
Top speed [km/h] | 175 | 195 | ||||
Acceleration 0–100 km/h [s] | 13.0 | 10.7 | ||||
Acceleration 0–80 km/h [s] | - | - | ||||
Acceleration 80–120 km/h [s] | - | - | ||||
City [l] | 4.8 | 5.0-5.1 | ||||
Out of town [l] | 3.7 | 3.7-3.8 | ||||
Combined [l] | 4.1 | 4.2-4.3 | ||||
CO2 emissions [g/km] | 107 | 108-110 | ||||
Emission standard | EU6 | EU6 | ||||
Standard for fuel consumption measurement | - | - | ||||
Energy class | - | - | ||||
Stationary vehicle noise [dB] | - | - | ||||
Driving noise [dB] | - | - | ||||
Standby weight [kg] | 1300 | 1395 | ||||
Overall weight [kg] | 1850 | 1890 | ||||
Maximum trailer weight unbraked/braked [kg] | 450/1000 | 450/1300 | ||||
Maximum front/rear axle load [kg] | - | - | ||||
Maximum vertical load on the tow bar [kg] | - | - | ||||
Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
Boot volume [l] | 600 | 600 | ||||
Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1658 | -/1658 | ||||
Boot length [mm] | 1115 | 860 | ||||
Boot length with rear seats folded [mm] | 2047 | 1395 | ||||
Boot width between wheels/max [mm] | 987/1452 | 987/1452 | ||||
Boot height to headliner/ceiling [mm] | 562/890 | 562/890 | ||||
Loading edge height [mm] | - | - | ||||
Height of the open boot door [mm] | - | - | ||||
Boot opening height [mm] | - | - | ||||
Boot opening width min/max [mm] | - | - | ||||
Number of doors | 5 | 5 | ||||
Number of seats | 5 | 5 | ||||
Fuel tank volume [l] | 50 | 50 | ||||
AdBlue tank volume [l] | - | - | ||||
Air resistance [Cd] | 0.29 | 0.28 | ||||
Front suspension | MacPherson | MacPherson | ||||
Rear suspension | torsion bar | double wishbone | ||||
Tyre dimensions front | 195/65 R15 | 205/55 R16 | ||||
Tyre dimensions rear | 195/65 R15 | 205/55 R16 | ||||
Wheel size front | 6.0J x 15 | 6.5J x 16 | ||||
Wheel size rear | 6.0J x 15 | 6.5J x 16 | ||||
Brake dimensions front | - | - | ||||
Brake dimensions rear | - | - | ||||
Steering | - | - | ||||
Number of steering wheel turns | - | - | ||||
Turning diameter track/circumference [m] | 10.4/11.0 | 10.4/11.0 | ||||
Overall length [mm] | 4595 | 4595 | ||||
Overall width without/including mirrors [mm] | 1760/- | 1760/- | ||||
Overall height [mm] | 1485 | 1485 | ||||
Wheelbase [mm] | 2600 | 2600 | ||||
Front wheel track [mm] | 1535 | 1525 | ||||
Rear wheel track [mm] | 1525 | 1510 | ||||
Forward overhang [mm] | 955 | 955 | ||||
Rear overhang [mm] | 1040 | 775 | ||||
Clearance [mm] | - | - | ||||
Wading depth [mm] | - | - | ||||
Approach angle front [°] | - | - | ||||
Approach angle rear [°] | - | - | ||||
Transition angle [°] | - | - | ||||
Climbing rate [°] | - | - | ||||
Maximum side tilt [°] | - | - | ||||
Headroom front [mm] | - | - | ||||
Headroom rear [mm] | - | - | ||||
Front elbow/shoulder width [mm] | - | - | ||||
Rear elbow/shoulder width [mm] | - | - | ||||
Legroom front knees/total [mm] | - | - | ||||
Legroom rear knees/total [mm] | - | - |
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
