	1.33 Dual VVT-i
Date of sale	-
Engine type	Petrol
Number of cylinders/valves	4/16
Engine displacement [cm³]	1329
Maximum output / speed [kW/min-1]	73/6000
Maximum torque [Nm/min-1]	128/3800
Bore and stroke [mm x mm]	72,5 x 80,5
Compression ratio	11,5:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	variable timing of intake and exhaust valves Dual VVT‐i

Drive axle	Front
Gearbox	6 gear manual
Drive specifications	-

Top speed [km/h]	175
Acceleration 0–100 km/h [s]	13.1
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	7.5
Out of town [l]	5.2
Combined [l]	6.0
CO2 emissions [g/km]	139

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1295-1360
Overall weight [kg]	1720
Maximum trailer weight unbraked/braked [kg]	450/1000
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	75/-

Boot volume [l]	354
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1335
Boot length [mm]	-
Boot length with rear seats folded [mm]	1540
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-/865
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	3
Number of seats	5
Fuel tank volume [l]	55
AdBlue tank volume [l]	-
Air resistance [Cd]	0.292
Front suspension	MacPherson
Rear suspension	torsion bar
Tyre dimensions front	195/65 R15
Tyre dimensions rear	195/65 R15
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.4/11.0

Overall length [mm]	4245
Overall width without/including mirrors [mm]	1760/-
Overall height [mm]	1515
Wheelbase [mm]	2600
Front wheel track [mm]	1535
Rear wheel track [mm]	1535
Forward overhang [mm]	905
Rear overhang [mm]	740
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Five-door hatchback

	1.33 Dual VVT-i	1.6 Valvematic	1.6 Valvematic	1.8 Valvematic	1.8 HSD Hybrid	1.4 D-4D
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol + Electric	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/8
Engine displacement [cm³]	1329	1598	1598	1798	1798	1364
Maximum output / speed [kW/min-1]	73/6000	97/6400	97/6400	108/6400	73/5200 combustion 60 el. 100 total	66/3800
Maximum torque [Nm/min-1]	128/3800	160/4400	160/4400	180/4000	142/4000 total 207 el.	205/1800-2800
Bore and stroke [mm x mm]	72,5 x 80,5	80,5 x 78,5	80,5 x 78,5	80,5 x 88,3	80,5 x 88,3	73,0 x 81,5
Compression ratio	11,5:1	10,7:1	10,7:1	10,5:1	-	18,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves Dual VVT‐i	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	Full Hybrid HSD variable timing of intake valves VVT‐i electric synchronous motor with permanent magnet	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear robotic manual	6 gear manual	1 gear automatic	6 gear manual
Drive specifications	-	-	robotic gearbox MultiMode	-	automatic gearbox with one variable ratio E‐CVT	-

Top speed [km/h]	175	195	195	200	180	175
Acceleration 0–100 km/h [s]	13.1	10.0	11.9	9.5	11.4	11.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.5	8.6	8.0	8.7	3.8	5.6
Out of town [l]	5.2	5.5	5.4	5.5	3.8	4.2
Combined [l]	6.0	6.6	6.3	6.7	3.8	4.7
CO2 emissions [g/km]	139	152	146	155	89	124

Emission standard	EU5	EU5	EU5	EU5	EU5	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	-	-	Nickel-metal hydride	-
Range with fully charged battery [km]	-	-	-	-	-	-
Charging time	-	-	-	-	-	-
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1295-1360	1320-1390	1355-1395	1350-1390	1455-1495	1335-1385
Overall weight [kg]	1720	1750	1750	1750	1805	1760
Maximum trailer weight unbraked/braked [kg]	450/1000	450/1300	450/1200	450/1300	-	450/1000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	354	354	354	354	310	354
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1335	-/1335	-/1335	-/1335	-/1290	-/1335
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	1540	1540	1540	1540	1540	1540
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-/865	-/865	-/865	-/865	-/865	-/865
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	45	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.292	0.292	0.292	0.292	0.292	0.292
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	195/65 R15	205/55 R16	205/55 R16	205/55 R16	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	205/55 R16	205/55 R16	205/55 R16	195/65 R15	195/65 R15
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0

Overall length [mm]	4245	4245	4245	4245	4245	4245
Overall width without/including mirrors [mm]	1760/-	1760/-	1760/-	1760/-	1760/-	1760/-
Overall height [mm]	1515	1515	1515	1515	1515	1515
Wheelbase [mm]	2600	2600	2600	2600	2600	2600
Front wheel track [mm]	1535	1525	1525	1525	1535	1535
Rear wheel track [mm]	1535	1525	1525	1525	1535	1535
Forward overhang [mm]	905	905	905	905	905	905
Rear overhang [mm]	740	740	740	740	740	740
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 D-4D	2.0 D-4D
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/8	4/16
Engine displacement [cm³]	1364	1998
Maximum output / speed [kW/min-1]	66/3800	93/3600
Maximum torque [Nm/min-1]	205/1800-2800	310/1800-2400
Bore and stroke [mm x mm]	73,0 x 81,5	86,0 x 86,0
Compression ratio	18,0:1	15,8:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front
Gearbox	6 gear robotic manual	6 gear manual
Drive specifications	robotic gearbox MultiMode	-

Top speed [km/h]	175	195
Acceleration 0–100 km/h [s]	14.7	10.3
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	5.8	6.5
Out of town [l]	4.3	4.4
Combined [l]	4.8	5.2
CO2 emissions [g/km]	127	138

Emission standard	EU4	EU5
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1360-1395	1480-1515
Overall weight [kg]	1760	1890
Maximum trailer weight unbraked/braked [kg]	450/1000	450/1500
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	75/-	75/-

Boot volume [l]	354	354
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1335	-/1335
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	1540	1540
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-/865	-/865
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	55	55
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.292	0.292
Front suspension	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar
Tyre dimensions front	195/65 R15	205/55 R16
Tyre dimensions rear	195/65 R15	205/55 R16
Wheel size front	-	-
Wheel size rear	-	-
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.4/11.0	10.4/11.0

Overall length [mm]	4245	4245
Overall width without/including mirrors [mm]	1760/-	1760/-
Overall height [mm]	1515	1515
Wheelbase [mm]	2600	2600
Front wheel track [mm]	1535	1525
Rear wheel track [mm]	1535	1525
Forward overhang [mm]	905	905
Rear overhang [mm]	740	740
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Gallery

Toyota Auris E150 facelift 2010 interior

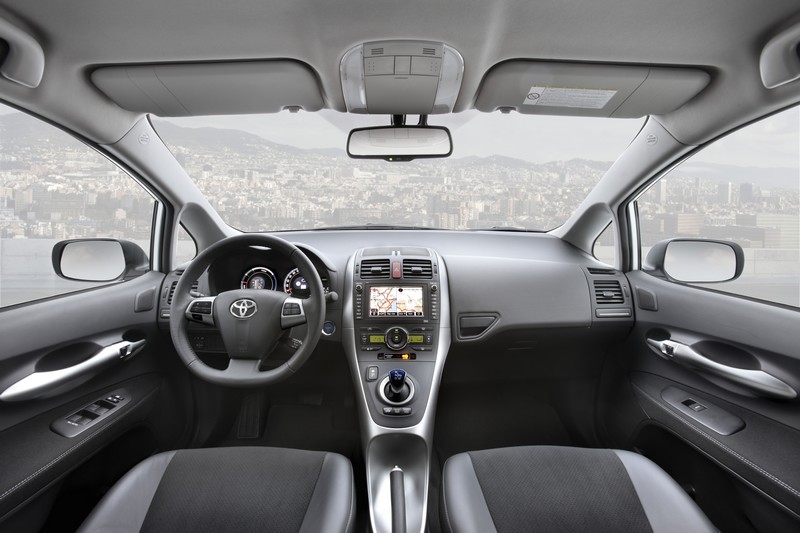

Toyota Auris E150 facelift 2011 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
