Tesla Model X

Date of manufacture

2021 – to this day (Large SUV)

Platform

Manufacturing locations

Fremont, California, USA

Designer

Franz von Holzhausen

Car body style

Large SUV

after upgrade (facelift)

Date of manufacture

2021 – to this day

Internal designation

Engine size

Model X

Model X Plaid

Euro NCAP

Technical data

Large SUV

	Model X	Model X Plaid
Date of sale	-	-
Engine type	Electric	Electric
Number of cylinders/valves	-	-
Engine displacement [cm³]	-	-
Maximum output / speed [kW/min-1]	493	750
Maximum torque [Nm/min-1]
Bore and stroke [mm x mm]	-	-
Compression ratio	-	-
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	electric synchronous motor with permanent magnet Asynchronous electric motor	three electric motors

Drive axle	4x4	4x4
Gearbox	1 gear automatic	1 gear automatic
Drive specifications	all-wheel drive (one engine on the front axle and one on the rear) constant ratio gearbox	automatically controlled all-wheel drive constant ratio gearbox

Top speed [km/h]	250	262
Acceleration 0–100 km/h [s]	3.9	2.6
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	-	-
Out of town [l]	-	-
Combined [l]	-	-
CO2 emissions [g/km]	-	-

Emission standard	-	-
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

System voltage [V]	-	-
Battery type and capacity	Lithium-Ionen-Akkumulator, 95 kWh	-
Range with fully charged battery [km]	560	536
Charging time	-	-
Number of modules/cells	-	-
Battery weight [kg]	-	-
Charger	250 kW fast charging, 16.5 kW on-board charger	250 kW fast charging, on-board charger

Standby weight [kg]	2352	2455
Overall weight [kg]	-	-
Maximum trailer weight unbraked/braked [kg]	-/2268	-/2268
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	-	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-
Boot length [mm]	-	-
Boot length with rear seats folded [mm]	-	-
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	-	-
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5-7	5-7
Fuel tank volume [l]	-	-
AdBlue tank volume [l]	-	-
Air resistance [Cd]	0.24	0.24
Front suspension	double wishbone	double wishbone
Rear suspension	multilink	multilink
Tyre dimensions front	-	-
Tyre dimensions rear	-	-
Wheel size front	-	-
Wheel size rear	-	-
Brake dimensions front	-	-
Brake dimensions rear	-	-
Steering	-	-
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	-	-

Overall length [mm]	5036	5036
Overall width without/including mirrors [mm]	1999/-	1999/-
Overall height [mm]	1684	1684
Wheelbase [mm]	2964	2964
Front wheel track [mm]	-	-
Rear wheel track [mm]	-	-
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

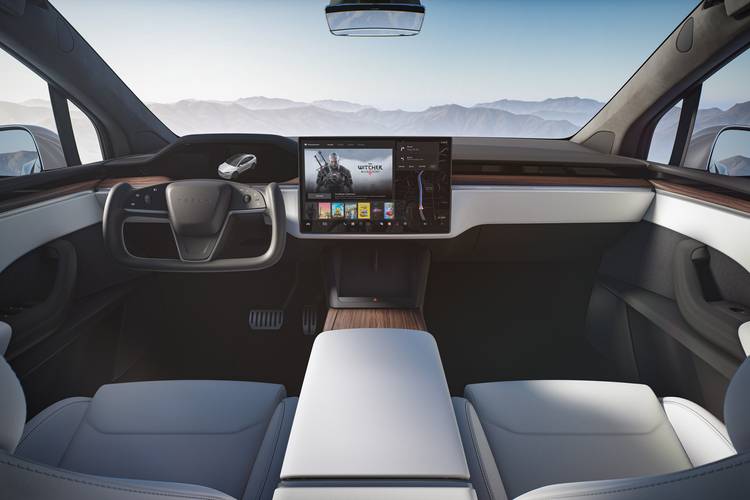

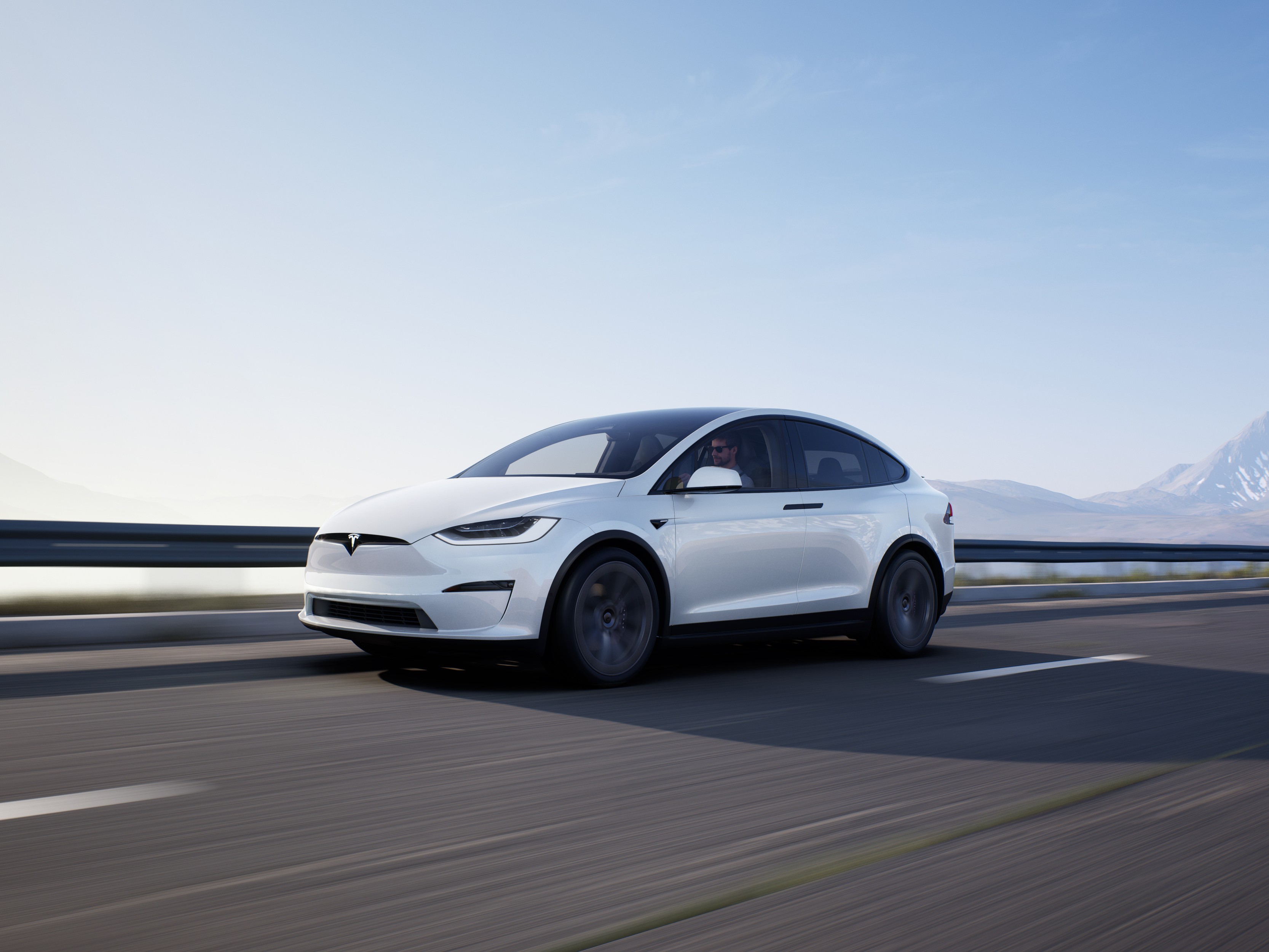

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
