Suzuki Swift
Date of manufacture
12/2016 – to this day (Five-door hatchback)
Platform
HEARTECT
Manufacturing locations
Makinohara, Japan
Rayong, Thailand
Designer
Kimitoshi Sato
Toshiyuki Koike
Tags
B-segment
Japanese cars

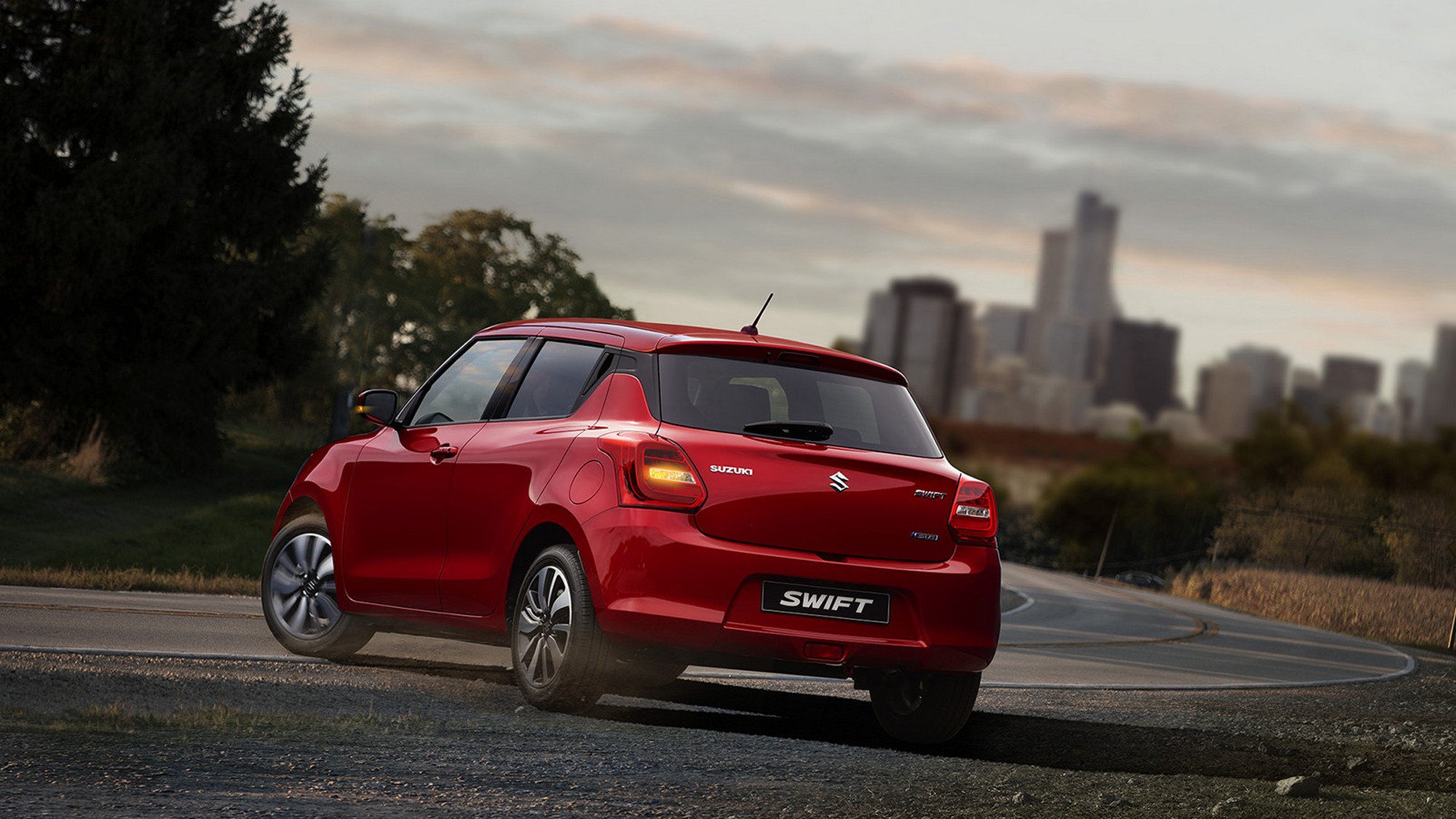

The Suzuki Swift is a five-door hatchback, produced since 2016 in Japan and Thailand. The Swift is built on the HEARTECT platform and offers only gasoline engines. The most powerful 1.4 Boosterjet Sport variant produces 103 kW, has a top speed of 210 km/h and the best acceleration from 0-100 km/h in 8.1 seconds. The most economical 1.2 Dualjet SHVS engine has a combined fuel consumption of 4.1 l/100 km and CO2 emissions of 94 g/km. The car's trunk has a capacity of 265 l. In 2017, it underwent EURONCAP safety tests, where it earned a rating of 4 out of 5.
Car body style
Five-door hatchback
Date of manufacture
12/2016 – to this dayInternal designation
A2L
Technical data
Five-door hatchback
| 1.2 Dualjet Hybrid | 1.2 Dualjet Hybrid | 1.2 Dualjet Hybrid | 1.2 Dualjet | 1.2 Dualjet | 1.2 Dualjet | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2020 to | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1242 | 1242 | 1242 |
| Maximum output / speed [kW/min-1] | 61/6000 | 61/6000 | 61/6000 | 66/6000 | 66/6000 | 66/6000 |
| Maximum torque [Nm/min-1] | 107/2800 | 107/2800 | 107/2800 | 120/4400 | 120/4400 | 120/4400 |
| Bore and stroke [mm x mm] | 73.0 x 71.5 | 73.0 x 71.5 | 73.0 x 71.5 | 73,0 x 74,2 | 73,0 x 74,2 | 73,0 x 74,2 |
| Compression ratio | 13.0:1 | 13.0:1 | 13.0:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 5 gear manual | 1 gear automatic | 5 gear manual | 5 gear manual | 1 gear automatic | 5 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 175 | 170 | 165 | 180 | 175 | 170 |
| Acceleration 0–100 km/h [s] | 13.1 | 12.2 | 13.8 | 11.9 | 11.0 | 12.6-13.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.3 | 4.6 | 4.6 | 5.8-5.4 | 5.9-5.6 | 5.9 |
| Out of town [l] | 3.7 | 3.9 | 4.0 | 4.0-3.7 | 4.2-4.0 | 4.4-4.3 |
| Combined [l] | 3.9 | 4.1 | 4.2 | 4.6-4.3 | 4.8-4.6 | 4.9 |
| CO2 emissions [g/km] | 88 | 94 | 95 | 106-98 | 110-103 | 112-110 |
| Low speed [l] | 5.1 | 5.6 | 5.7 | - | - | - |
| Medium speed [l] | 4.2 | 4.6 | 4.8 | - | - | - |
| High speed [l] | 4.1 | 4.4 | 4.7 | - | - | - |
| Extra high speed [l] | 5.4 | 5.8 | 6.2 | - | - | - |
| Combined speed [l] | 4.7 | 5.1 | 5.4 | - | - | - |
| CO2 emissions [g/km] | 106 | 115 | 121 | - | - | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | Lithium-Ionen-Akkumulator, 10 A⋅h | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 940 | 1000 | 1050 | 915 | 975 | 1025 |
| Overall weight [kg] | 1365 | 1375 | 1420 | 1365 | 1365 | 1405 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 |
| Maximum front/rear axle load [kg] | 740/760 | 740/760 | 760/790 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 265 | 265 | 265 | 265 | 265 | 265 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 579/947 | 579/947 | 579/947 | 579/947 | 579/947 | 579/947 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 37 | 37 | 37 | 37 | 37 | 37 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 175/65 R15 | 175/65 R15 | 185/55 R16 83V | 175/65 R15 84H | 185/55 R16 83V | 185/55 R16 83V |
| Tyre dimensions rear | 175/65 R15 | 175/65 R15 | 185/55 R16 83V | 175/65 R15 84H | 185/55 R16 83V | 185/55 R16 83V |
| Wheel size front | 5J x 15 | 5J x 15 | 6.0J x 16 | 5.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 5J x 15 | 5J x 15 | 6.0J x 16 | 5.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.0/- | 10.0/- | 10.0/- | 10.0/- | 10.0/- | 10.0/- |
| Overall length [mm] | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Overall width without/including mirrors [mm] | 1735/- | 1735/- | 1735/- | 1735/- | 1735/- | 1735/- |
| Overall height [mm] | 1480 | 1480 | 1505 | 1480 | 1480 | 1505 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1530 | 1530 | 1515 | 1530 | 1520 | 1520 |
| Rear wheel track [mm] | 1520 | 1520 | 1525 | 1530 | 1520 | 1525 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 115 | 115 | 140 | 115 | 115 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 Dualjet SHVS | 1.2 Dualjet SHVS | 1.0 Boosterjet | 1.0 Boosterjet | 1.0 Boosterjet SHVS | 1.4 Boosterjet Sport | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2018 | from to 2018 | - | from 2020 to |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1242 | 1242 | 998 | 998 | 998 | 1373 |
| Maximum output / speed [kW/min-1] | 66/6000 | 66/6000 | 82/5500 | 82/5500 | 82/5500 | 95/5500 |
| Maximum torque [Nm/min-1] | 120/4400 | 120/4400 | 170/2000-3500 | 170/2000-3500 | 170/2000-3500 | 235/2000 |
| Bore and stroke [mm x mm] | 73,0 x 74,2 | 73,0 x 74,2 | 73,0 x 79,5 | 73,0 x 79,5 | 73,0 x 79,5 | 73,0 x 82.0 |
| Compression ratio | 12,5:1 | 12,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10.8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 180 | 170 | 195 | 190 | 195 | 210 |
| Acceleration 0–100 km/h [s] | 11.9 | 12.9-13.0 | 10.6 | 10.0 | 10.6 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.6-4.5 | 4.9-4.8 | 5.7 | 6.4 | 4.8 | 5.3 |
| Out of town [l] | 3.9-3.7 | 4.3-4.2 | 4.0 | 4.3 | 4.0 | 4.3 |
| Combined [l] | 4.1-4.0 | 4.5-4.4 | 4.6 | 5.0 | 4.3 | 4.7 |
| CO2 emissions [g/km] | 94-90 | 101 | 104 | 114 | 97 | 106 |
| Low speed [l] | - | - | - | - | - | 6.2 |
| Medium speed [l] | - | - | - | - | - | 5.0 |
| High speed [l] | - | - | - | - | - | 4.9 |
| Extra high speed [l] | - | - | - | - | - | 6.2 |
| Combined speed [l] | - | - | - | - | - | 5.6 |
| CO2 emissions [g/km] | - | - | - | - | - | 125 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 48 |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 3 A⋅h | Lithium-Ionen-Akkumulator, 3 A⋅h | - | - | - | Lithium-Ionen-Akkumulator, 8 A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 925 | 1035 | 940 | 1015 | 950 | 1095 |
| Overall weight [kg] | 1365 | 1405 | 1380 | 1380 | 1380 | 1445 |
| Maximum trailer weight unbraked/braked [kg] | 400/1000 | 400/1000 | 400/1000 | 400/1000 | 400/1000 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | 790/760 |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 265 | 265 | 265 | 265 | 265 | 265 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 579/947 | 579/947 | 579/947 | 579/947 | 579/947 | 579/947 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 37 | 37 | 37 | 37 | 37 | 37 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 195/45 R17 |
| Tyre dimensions rear | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 185/55 R16 83V | 195/45 R17 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6,5J x 17 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.0/- | 10.0/- | 9.6/- | 9.6/- | 9.6/- | 10.2/- |
| Overall length [mm] | 3840 | 3840 | 3840 | 3840 | 3840 | 3890 |
| Overall width without/including mirrors [mm] | 1735/- | 1735/- | 1735/- | 1735/- | 1735/- | 1735/- |
| Overall height [mm] | 1480 | 1505 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1510 |
| Rear wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1515 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 115 | 140 | 115 | 115 | 115 | 116 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Boosterjet Sport | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to 2020 | |||||
| Engine type | Ignition supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1373 | |||||
| Maximum output / speed [kW/min-1] | 103/5500 | |||||
| Maximum torque [Nm/min-1] | 230/2500-3500 | |||||
| Bore and stroke [mm x mm] | 73,0 x 82.0 | |||||
| Compression ratio | 9.9:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 5 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 210 | |||||
| Acceleration 0–100 km/h [s] | 8.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.8 | |||||
| Out of town [l] | 4.8 | |||||
| Combined [l] | 5.6 | |||||
| CO2 emissions [g/km] | 125 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1045 | |||||
| Overall weight [kg] | 1445 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | 790/760 | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 265 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 579/947 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 37 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, coil springs | |||||
| Rear suspension | torsion bar | |||||
| Tyre dimensions front | 195/45 R17 | |||||
| Tyre dimensions rear | 195/45 R17 | |||||
| Wheel size front | 6,5J x 17 | |||||
| Wheel size rear | 6,5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering m | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.2/- | |||||
| Overall length [mm] | 3890 | |||||
| Overall width without/including mirrors [mm] | 1735/- | |||||
| Overall height [mm] | 1480 | |||||
| Wheelbase [mm] | 2450 | |||||
| Front wheel track [mm] | 1510 | |||||
| Rear wheel track [mm] | 1515 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 116 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
