Basic information Technical Specifications Gallery

Subaru XV

Date of manufacture

2012 – 2015 (SUV)

Platform

Manufacturing locations

Ōta, Japan

Designer

Car body style

SUV

Date of manufacture

2012 – 2015

Internal designation

Engine size

Petrol

1.6

2.0

Diesel

2.0D

Euro NCAP

Technical data

SUV

	1.6	1.6	2.0	2.0	2.0D
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1600	1600	1995	1995	1998
Maximum output / speed [kW/min-1]	84/5600	84/5600	110/6200	110/6200	108/3600
Maximum torque [Nm/min-1]	150/4000	150/4000	196/4200	196/4200	350/1600-2400
Bore and stroke [mm x mm]	78,8 x 82,0	78,8 x 82,0	84,0x90,0	84,0x90,0	86,0x86,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	16,0:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	Boxer engine type variable timing of intake and exhaust valves Dual AVCS start&stop system	Boxer engine type variable timing of intake and exhaust valves Dual AVCS start&stop system	Boxer engine type variable timing of intake and exhaust valves Dual AVCS start&stop system	Boxer engine type variable timing of intake and exhaust valves Dual AVCS start&stop system	Boxer engine type direct injection Common Rail turbocharger with variable blade geometry particulate filter

Drive axle	4x4	4x4	4x4	4x4	4x4
Gearbox	5 gear manual	1 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	all-wheel drive with inter-axle viscous coupling Symmetrical AWD reduction gearbox Dual Range	all-wheel drive Symmetrical AWD with active torque distribution system MPT automatic gearbox with one variable ratio Lineartronic	all-wheel drive with inter-axle viscous coupling Symmetrical AWD	all-wheel drive Symmetrical AWD with active torque distribution system MPT automatic gearbox with one variable ratio Lineartronic steering wheel paddles for gearbox control	all-wheel drive with inter-axle viscous coupling Symmetrical AWD

Top speed [km/h]	179	175	187	187	198
Acceleration 0–100 km/h [s]	13.1	13.8	10.5	10.7	9.3
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	8.0	7.9	8.8	8.6	6.8
Out of town [l]	5.8	5.5	5.9	5.5	5.0
Combined [l]	6.5	6.3	6.9	6.6	5.6
CO2 emissions [g/km]	151	146	160	153	146

Emission standard	EU5B	EU5B	EU5B	EU5B	EU5B
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	79	79	80	80	75
Driving noise [dB]	70.3	69	71.4	69.8	70.9

Standby weight [kg]	1370-1375	1405-1410	1370-1375	1400-1405	1435-1440
Overall weight [kg]	1940	1940	1940	1940	1960
Maximum trailer weight unbraked/braked [kg]	650/1500	650/1200	650/1600	650/1200	650/1600
Maximum front/rear axle load [kg]	1075/1060	1075/1060	1075/1060	1075/1060	1075/1060
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	380	380	380	380	380

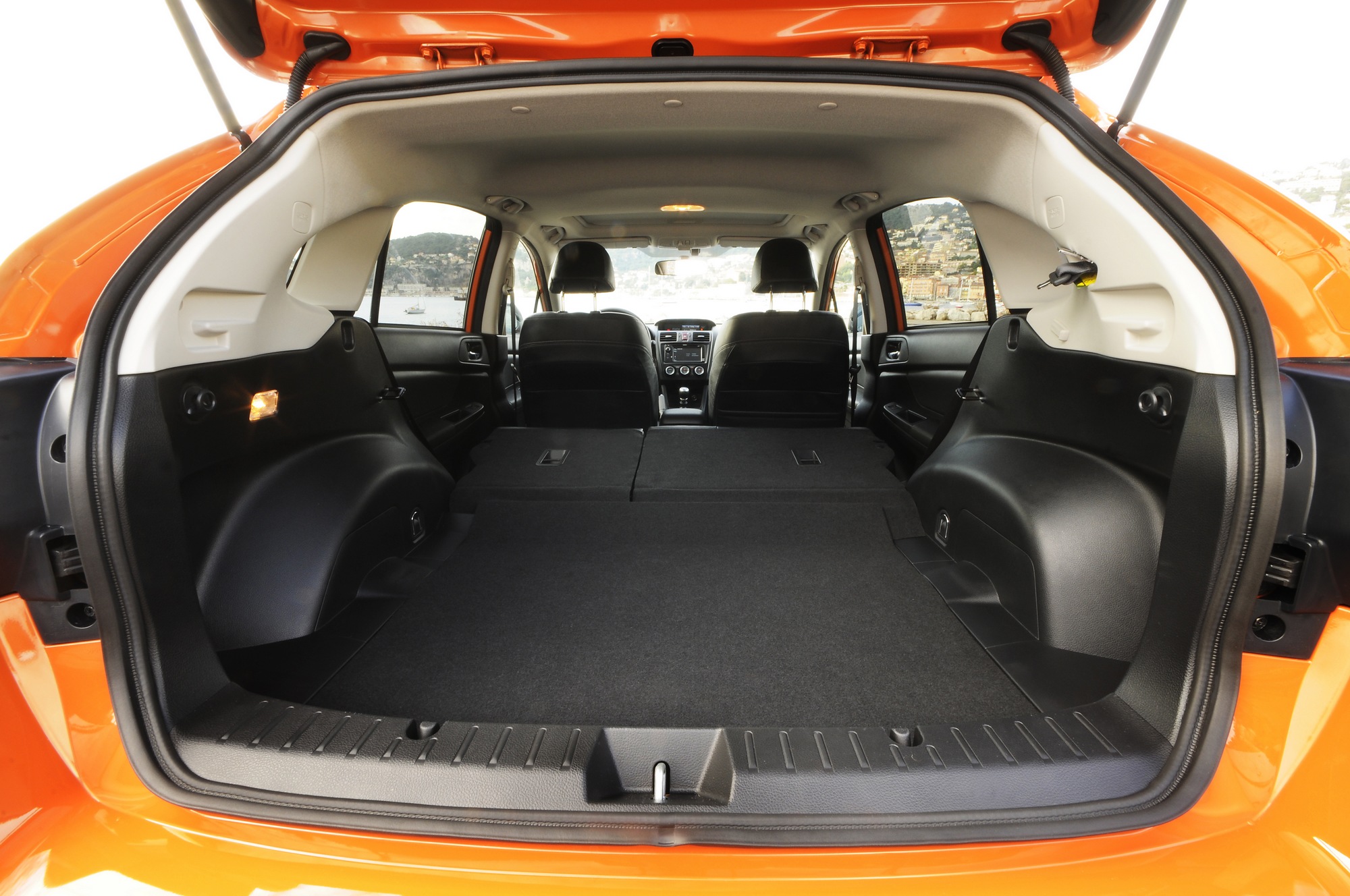

Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1270	-/1270	-/1270	-/1270	-/1270
Boot length [mm]	815	815	815	815	815
Boot length with rear seats folded [mm]	1880	1880	1880	1880	1880
Boot width between wheels/max [mm]	1065/1350	1065/1350	1065/1350	1065/1350	1065/1350
Boot height to headliner/ceiling [mm]	-/780	-/780	-/780	-/780	-/780
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	5	5	5	5	5
Number of seats	5	5	5	5	5
Fuel tank volume [l]	60	60	60	60	60
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-
Front suspension	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs	MacPherson, coil springs
Rear suspension	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs
Tyre dimensions front	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Tyre dimensions rear	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V	225/55 R17 97V
Wheel size front	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48
Wheel size rear	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48	7J x 17 ET 48
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m	Rack & pinion with electric power steering m
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.6/11.3	10.6/11.3	10.6/11.3	10.6/11.3	10.6/11.3

Overall length [mm]	4450	4450	4450	4450	4450
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1570	1570	1570	1570	1570
Wheelbase [mm]	2635	2635	2635	2635	2635
Front wheel track [mm]	1525	1525	1525	1525	1525
Rear wheel track [mm]	1525	1525	1525	1525	1525
Forward overhang [mm]	970	970	970	970	970
Rear overhang [mm]	845	845	845	845	845
Clearance [mm]	220	220	220	220	220
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	19.6	19.6	19.6	19.6	19.6
Approach angle rear [°]	23.3	23.3	23.3	23.3	23.3
Transition angle [°]	22.1	22.1	22.1	22.1	23
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	1010	1010	1010	1010	1010
Headroom rear [mm]	957	957	957	957	957
Front elbow/shoulder width [mm]	1412/-	1412/-	1412/-	1412/-	1412/-
Rear elbow/shoulder width [mm]	1377/-	1377/-	1377/-	1377/-	1377/-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
