Subaru Legacy
Date of manufacture
2009 – 2012 (Sedan)
2009 – 2012 (Estate)
Platform
-
Manufacturing locations
Ōta, Japan
Lafayette, Indiana, USA
Designer
-
Tags
D-segment
Japanese cars
The Subaru Legacy has been produced since 2009 and is available in both sedan and wagon versions. The car has a choice of petrol and diesel engines, the most powerful being the 2.5 GT with 195 kW. The top speed is 245 km/h and the most fuel-efficient model is the 2.0 D with CO2 emissions of 149 g/km and fuel consumption of 5.7 l/100 km. The combined wagon version has a luggage capacity of 526 litres, while the sedan has 486 litres. The safety of this car was tested according to the EURONCAP 2009 methodology and received a rating of 5 out of 5.
Car body style
Technical data
Sedan
| 2.0i | 2.0i | 2.5i | 2.5 GT | 2.0 D | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1994 | 1994 | 2457 | 2457 | 1998 | |
| Maximum output / speed [kW/min-1] | 110/6000 | 110/6000 | 123/5600 | 195/5600 | 110/3600 | |
| Maximum torque [Nm/min-1] | 196/3000 | 196/3000 | 229/4000 | 350/2400-5200 | 350/1800-2400 | |
| Bore and stroke [mm x mm] | 92,0 x 75,0 | 92,0 x 75,0 | 99,5 x 79,0 | 99,5 x 79,0 | 86,0 x 86,0 | |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 8,4:1 | 16,3:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 1 gear automatic | 1 gear automatic | 5 gear automatic | 6 gear manual | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 210 | 203 | 210 | 245 | 206 | |
| Acceleration 0–100 km/h [s] | 9.5 | 11.1 | 10.3 | 6.2 | 9.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 11.8 | 10.8 | 11.0 | 14.9 | 7.5 | |
| Out of town [l] | 6.7 | 6.4 | 6.2 | 8.1 | 5.1 | |
| Combined [l] | 8.5 | 8.0 | 8.0 | 10.6 | 5.9 | |
| CO2 emissions [g/km] | 198 | 185 | 185 | 250 | 156 | |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1495-1518 | 1535-1558 | 1534-1571 | 1617-1633 | 1574-1612 | |
| Overall weight [kg] | 2000 | 2020 | 2020 | 2070 | 2045 | |
| Maximum trailer weight unbraked/braked [kg] | 715/1500 | 725/1500 | 720/1800 | 750/1800 | 750/1700 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 486 | 486 | 486 | 486 | 486 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/1085 | -/1085 | -/1085 | -/1085 | -/1085 | |
| Boot height to headliner/ceiling [mm] | -/500 | -/500 | -/500 | -/500 | -/500 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | |
| Rear suspension | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 215/50 R17 91V | 225/45 R18 91W | 205/60 R16 92H | |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 215/50 R17 91V | 225/45 R18 91W | 205/60 R16 92H | |
| Wheel size front | 6.5J x 16 ET48 | 6.5J x 16 ET48 | 7.5J x 17 ET55 | 7.5J x 18 ET55 | 6.5JJ x 16 ET48 | |
| Wheel size rear | 6.5J x 16 ET48 | 6.5J x 16 ET48 | 7.5J x 17 ET55 | 7.5J x 18 ET55 | 6.5JJ x 16 ET48 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with hydraulic power steering | Rack & pinion with electric power steering m | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | |
| Overall length [mm] | 4730 | 4730 | 4730 | 4730 | 4730 | |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | |
| Front wheel track [mm] | 1545 | 1545 | 1495 | 1530 | 1545 | |
| Rear wheel track [mm] | 1545 | 1545 | 1490 | 1535 | 1550 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 15.7 | 15.7 | 15.5 | 15.7 | 15.7 | |
| Approach angle rear [°] | 19 | 19 | 19 | 19 | 19 | |
| Transition angle [°] | 15 | 15 | 15 | 15 | 15 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate
| 2.0i | 2.0i | 2.5i | 2.5 GT | 2.0 D | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1994 | 1994 | 2457 | 2457 | 1998 | |
| Maximum output / speed [kW/min-1] | 110/6000 | 110/6000 | 123/5600 | 195/5600 | 110/3600 | |
| Maximum torque [Nm/min-1] | 196/3000 | 196/3000 | 229/4000 | 350/2400-5200 | 350/1800-2400 | |
| Bore and stroke [mm x mm] | 92,0 x 75,0 | 92,0 x 75,0 | 99,5 x 79,0 | 99,5 x 79,0 | 86,0 x 86,0 | |
| Compression ratio | 10,2:1 | 10,2:1 | 10,0:1 | 8,4:1 | 16,3:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 1 gear automatic | 1 gear automatic | 5 gear automatic | 6 gear manual | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 206 | 200 | 205 | 245 | 203 | |
| Acceleration 0–100 km/h [s] | 9.8 | 11.3 | 10.3 | 6.3 | 9.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 11.7 | 10.8 | 11.1 | 14.9 | 7.0-7.6 | |
| Out of town [l] | 6.8 | 6.8 | 6.4 | 8.1 | 4.9-5.3 | |
| Combined [l] | 8.6 | 8.1 | 8.1 | 10.6 | 5.7-6.1 | |
| CO2 emissions [g/km] | 199 | 187 | 188 | 250 | 149-161 | |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1538-1561 | 1570-1601 | 1582-1614 | 1661-1677 | 1631-1667 | |
| Overall weight [kg] | 2010 | 2030 | 2030 | 2080 | 2075 | |
| Maximum trailer weight unbraked/braked [kg] | 730/1500 | 735/1500 | 735/1800 | 750/1800 | 750/1700 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 526 | 526 | 526 | 526 | 526 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1726 | -/1726 | -/1726 | -/1726 | -/1726 | |
| Boot length [mm] | 1070 | 1070 | 1070 | 1070 | 1070 | |
| Boot length with rear seats folded [mm] | 1660 | 1660 | 1660 | 1660 | 1660 | |
| Boot width between wheels/max [mm] | -/1090 | -/1090 | -/1090 | -/1090 | -/1090 | |
| Boot height to headliner/ceiling [mm] | -/815 | -/815 | -/815 | -/815 | -/815 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | |
| Front suspension | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | MacPherson, coil springs | |
| Rear suspension | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | double wishbone, coil springs | |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 215/50 R17 91V | 225/45 R18 91W | 205/60 R16 92H | |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 215/50 R17 91V | 225/45 R18 91W | 205/60 R16 92H | |
| Wheel size front | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 7.5J x 17 ET55 | 7.5J x 18 ET55 | 6.5JJ x 16 ET48 | |
| Wheel size rear | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 7.5J x 17 ET55 | 7.5J x 18 ET55 | 6.5JJ x 16 ET48 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with hydraulic power steering | Rack & pinion with electric power steering m | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | |
| Overall length [mm] | 4775 | 4775 | 4775 | 4775 | 4775 | |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | |
| Overall height [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | |
| Wheelbase [mm] | 2750 | 2750 | 2750 | 2750 | 2750 | |
| Front wheel track [mm] | 1545 | 1545 | 1530 | 1530 | 1545 | |
| Rear wheel track [mm] | 1545 | 1545 | 1530 | 1535 | 1545 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 15.4 | 15.4 | 15.4 | 15.4 | 15.4 | |
| Approach angle rear [°] | 20 | 20 | 20 | 20 | 20 | |
| Transition angle [°] | 16 | 16 | 16 | 16 | 16 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

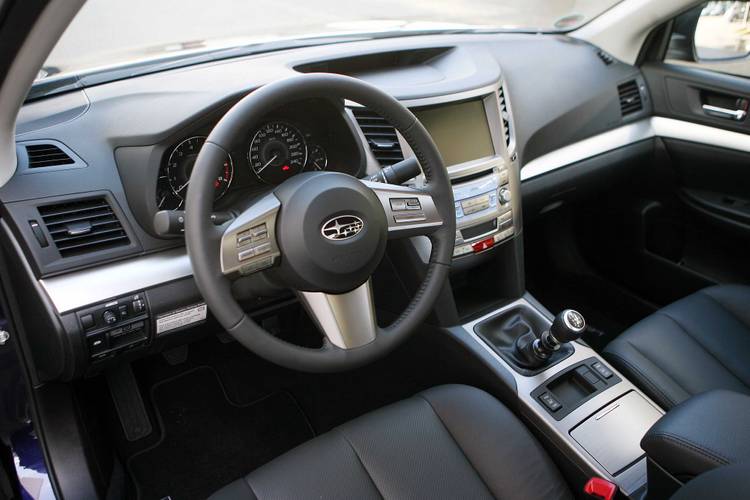

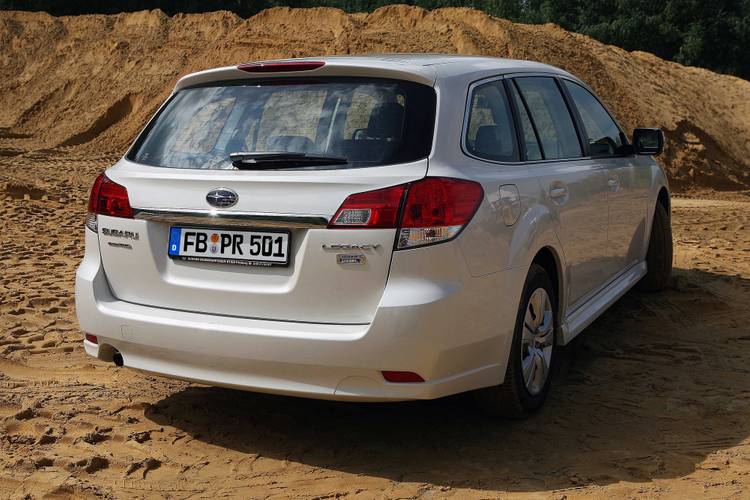

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
