SsangYong XLV

Date of manufacture

2016 – 2020 (Medium SUV)

Platform

Manufacturing locations

Pyeongtaek, South Korea

Designer

Car body style

Medium SUV

Date of manufacture

2016 – 2020

Internal designation

Engine size

Petrol

Petrol 1.6L

Diesel

DIESEL 1.6L

Euro NCAP

Technical data

Medium SUV

	Petrol 1.6L	Petrol 1.6L	Petrol 1.6L	DIESEL 1.6L	DIESEL 1.6L	DIESEL 1.6L
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1597	1597	1597	1597	1597	1597
Maximum output / speed [kW/min-1]	94,1/6000	94,1/6000	94,1/6000	84,6/3400-4000	84,6/3400-4000	84,6/3400-4000
Maximum torque [Nm/min-1]	160/4600	160/4600	160/4600	300/1500-2500	300/1500-2500	300/1500-2500
Bore and stroke [mm x mm]	76,0 x 88,0	76,0 x 88,0	76,0 x 88,0	76,0 x 88,0	76,0 x 88,0	76,0 x 88,0
Compression ratio	10,5:1	10,5:1	10,5:1	15,5:1	15,5:1	15,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable valve timing CVVT	variable valve timing CVVT	variable valve timing CVVT	direct injection Common Rail turbo-supercharged E-VGT particulate filter	direct injection Common Rail turbo-supercharged E-VGT particulate filter	direct injection Common Rail turbo-supercharged E-VGT particulate filter

Drive axle	Front	Front	4x4	Front	Front	4x4
Gearbox	6 gear manual	6 gear automatic	6 gear automatic	6 gear manual	6 gear automatic	6 gear automatic
Drive specifications	-	six-speed automatic gearbox Aisin	permanent front axle drive with automatic rear axle engagement six-speed automatic gearbox Aisin	-	six-speed automatic gearbox Aisin	permanent front axle drive with automatic rear axle engagement six-speed automatic gearbox Aisin

Top speed [km/h]	178	172	172	170	174	174
Acceleration 0–100 km/h [s]	-	-	-	-	-	-
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	9,3-9,5	9,5-10,3	9,7-10,8	5,4-6,2	7,5-8,2	7,9-8,6
Out of town [l]	5,6-6,6	6,0-6,4	6,2-6,7	4,2-4,6	4,9-5,2	5,3-5,6
Combined [l]	7,1-7,6	7,6	7,8-7,9	4,7-5,2	5,9-6,3	6,3-6,7
CO2 emissions [g/km]	169-174	174	179	136	166	176

Low speed [l]	10,6	12,3	-	6,6	9,2	-
Medium speed [l]	7,3	7,7	-	5,1	6,5	-
High speed [l]	6,7	6,7	-	4,7	5,5	-
Extra high speed [l]	8,2	8,0	-	5,8	6,7	-
Combined speed [l]	7,9	8,1	-	5,4	6,6	-
CO2 emissions [g/km]	179	184	-	142	173	-

Emission standard	Euro 6C	Euro 6C	Euro 6C	Euro 6C	Euro 6C	Euro 6C
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1315-1389	1345-1410	1450-1515	1395-1444	1425-1490	1535-1600
Overall weight [kg]	1870	1870	1950	1920	1970	2060
Maximum trailer weight unbraked/braked [kg]	500/1000	500/1000	500/1000	500/1500	500/1500	500/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	720	720	720	720	720	720
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1440	-/1440	-/1440	-/1440	-/1440	-/1440
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	47	47	47	47	47	47
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	multilink	torsion bar	torsion bar	multilink
Tyre dimensions front	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Tyre dimensions rear	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16	205/60 R16
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	298	298	298	298	298	298
Brake dimensions rear	284	284	284	284	284	284
Steering	Electric power steering Flex Steering	Electric power steering Flex Steering	Electric power steering Flex Steering	Electric power steering Flex Steering	Electric power steering Flex Steering	Electric power steering Flex Steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10,6/-	10,6/-	10,6/-	10,6/-	10,6/-	10,6/-

Overall length [mm]	4440	4440	4440	4440	4440	4440
Overall width without/including mirrors [mm]	1798/-	1798/-	1798/-	1798/-	1798/-	1798/-
Overall height [mm]	1605	1605	1605	1605	1605	1605
Wheelbase [mm]	2600	2600	2600	2600	2600	2600
Front wheel track [mm]	1555	1555	1555	1555	1555	1555
Rear wheel track [mm]	1555	1555	1555	1555	1555	1555
Forward overhang [mm]	865	865	865	865	865	865
Rear overhang [mm]	975	975	975	975	975	975
Clearance [mm]	167	167	167	167	167	167
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	20,0	20,0	20,0	20,0	20,0	20,0
Approach angle rear [°]	20,8	20,8	20,8	20,8	20,8	20,8
Transition angle [°]	17,0	17,0	17,0	17,0	17,0	17,0
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

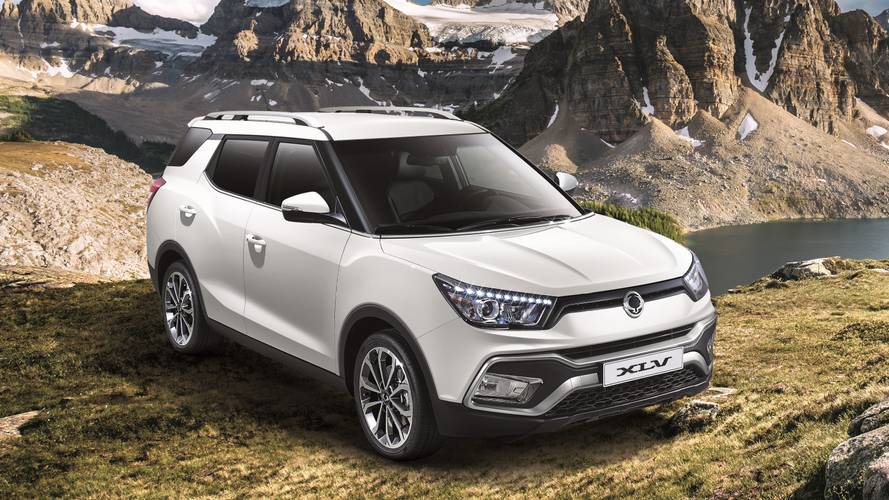

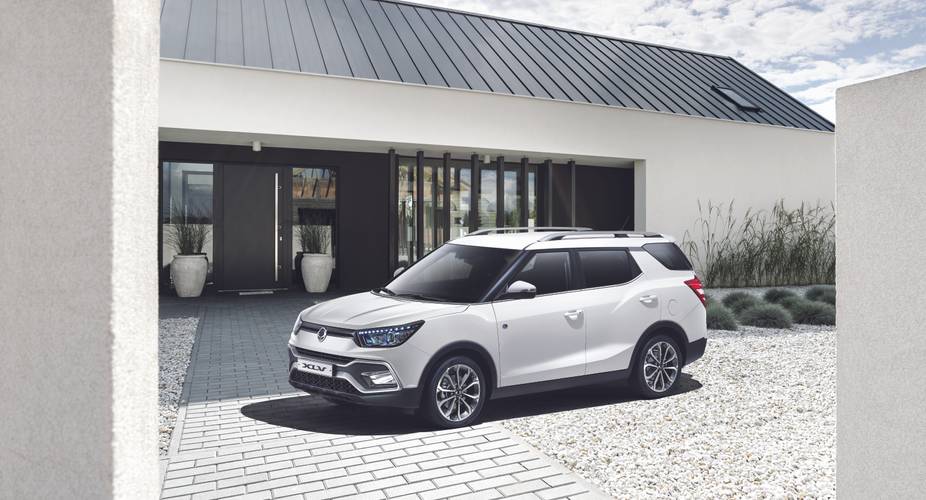

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
