SsangYong Musso & Musso Grand
Date of manufacture
2018 – to this day (Pick-up)
Platform
-
Manufacturing locations
Pyeongtaek, South Korea
Designer
-
Tags
Pick-up
Korean cars
The SsangYong Musso Grand has been manufactured as a pick-up since 2018 in South Korea production. It offers a wide range of modern diesel engines, the most powerful of which has 133.1 kW. The highest speed is achieved by the DIESEL 2.2 e-XDI version, at 195 km/h. In terms of fuel economy, this model boasts the lowest combined consumption of 7.6 l/100 km and CO2 emissions of 199 g/km.
Car body style
Pick-up
Date of manufacture
2018 – to this dayInternal designation
Q200Engine size
Technical data
Pick-up
| DIESEL 2.2 e-XDI220 | DIESEL 2.2 e-XDI220 | DIESEL 2.2 e-XDI220 | DIESEL 2.2 e-XDI220 | DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2157 | 2157 | 2157 | 2157 | 2157 | 2157 |
| Maximum output / speed [kW/min-1] | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 |
| Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 420/1600-2600 | 400/1400-2800 | 400/1400-2800 |
| Bore and stroke [mm x mm] | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 195 | 185 | 195 | 185 | 178 | 178 |
| Acceleration 0–100 km/h [s] | - | - | - | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6-9,4 | 10,5 | 9.8-9,7 | 10,9-10.4 | 10.1-10,0 | 9,7 |
| Out of town [l] | 6.7-6,5 | 7,0 | 7.2-6,9 | 7.4-7,2 | 7.1-6,9 | 6,9 |
| Combined [l] | 7,6 | 8,3 | 8.0-7,9 | 8,6-8.4 | 8,1 | 7,9 |
| CO2 emissions [g/km] | 199 | 218 | 209-211 | 226-219 | 212 | 208 |
| Emission standard | Euro 6b | Euro 6b | Euro 6b | Euro 6b | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1980-2077 | 1990-2092 | 2080-2177 | 2090-2192 | 2150 | - |
| Overall weight [kg] | 2830 | 2830 | 2880 | 2880 | 3120 | 2880 |
| Maximum trailer weight unbraked/braked [kg] | 750/2800 | 750/2800 | 750/2800 | 750/3000 | 750/2600-2800 | 750/2600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1300 | 1300 | 1300 | 1300 | 1610 | 1610 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1570 | -/1570 | -/1570 | -/1570 | -/1570 | -/1570 |
| Boot height to headliner/ceiling [mm] | -/570 | -/570 | -/570 | -/570 | -/570 | -/570 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | five-link | five-link | five-link | five-link | rigid with leaf springs | five-link |
| Tyre dimensions front | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 |
| Tyre dimensions rear | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,82/- | 11,82/- | 11,82/- | 11,82/- | 12,18/- | 12,18/- |
| Overall length [mm] | 5095 | 5095 | 5095 | 5095 | 5405 | 5405 |
| Overall width without/including mirrors [mm] | 1950/- | 1950/- | 1950/- | 1950/- | 1950/- | 1950/- |
| Overall height [mm] | 1840 | 1840 | 1840 | 1840 | 1855 | 1855 |
| Wheelbase [mm] | 3100 | 3100 | 3100 | 3100 | 3210 | 3210 |
| Front wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Rear wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1105 | 1105 | 1105 | 1105 | 1305 | 1305 |
| Clearance [mm] | 215 | 215 | 215 | 215 | 220 | 220 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 20,2 | 20,2 | 20,2 | 20,2 | - | - |
| Approach angle rear [°] | 22,5 | 22,5 | 22,5 | 22,5 | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | DIESEL 2.2 e-XDI220 Musso Grand | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2157 | 2157 | 2157 | 2157 | 2157 | 2157 |
| Maximum output / speed [kW/min-1] | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 | 133,1/4000 |
| Maximum torque [Nm/min-1] | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 420/1600-2600 | 420/1600-2600 |
| Bore and stroke [mm x mm] | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 | 86,2 x 92,4 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 172 | 172 | 178 | 178 | 172 | 172 |
| Acceleration 0–100 km/h [s] | - | - | - | - | - | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10,8 | 10,7 | 10,1 | 9,8 | 10.7-11,1 | 10,9 |
| Out of town [l] | 7,5 | 7,3 | 7,3 | 7,2 | 7.9-7,7 | 7,5 |
| Combined [l] | 8,7 | 8,5 | 8,3 | 8,1 | 9.1-9,0 | 8,8 |
| CO2 emissions [g/km] | 229 | 224 | 218 | 214 | 238-236 | 231 |
| Emission standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | - | - | 2200-2292 | 2090-2196 | 2210-2307 | 2100-2211 |
| Overall weight [kg] | 3120 | 2880 | 3220-3250 | 2980 | 3220-3250 | 2980 |
| Maximum trailer weight unbraked/braked [kg] | 750/3000 | 750/2600 | 750/2600-2800 | 750/2600 | 750/3000 | 750/3000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1570 | -/1570 | -/1570 | -/1570 | -/1570 | -/1570 |
| Boot height to headliner/ceiling [mm] | -/570 | -/570 | -/570 | -/570 | -/570 | -/570 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 75 | 75 | 75 | 75 | 75 | 75 |
| AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | rigid with leaf springs | five-link | rigid with leaf springs | five-link | rigid with leaf springs | five-link |
| Tyre dimensions front | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 |
| Tyre dimensions rear | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 | 235/70 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,18/- | 12,18/- | 12,18/- | 12,18/- | 12,18/- | 12,18/- |
| Overall length [mm] | 5405 | 5405 | 5405 | 5405 | 5405 | 5405 |
| Overall width without/including mirrors [mm] | 1950/- | 1950/- | 1950/- | 1950/- | 1950/- | 1950/- |
| Overall height [mm] | 1855 | 1855 | 1855 | 1855 | 1855 | 1855 |
| Wheelbase [mm] | 3210 | 3210 | 3210 | 3210 | 3210 | 3210 |
| Front wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Rear wheel track [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1305 | 1305 | 1305 | 1305 | 1305 | 1305 |
| Clearance [mm] | 220 | 220 | 220 | 220 | 220 | 220 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

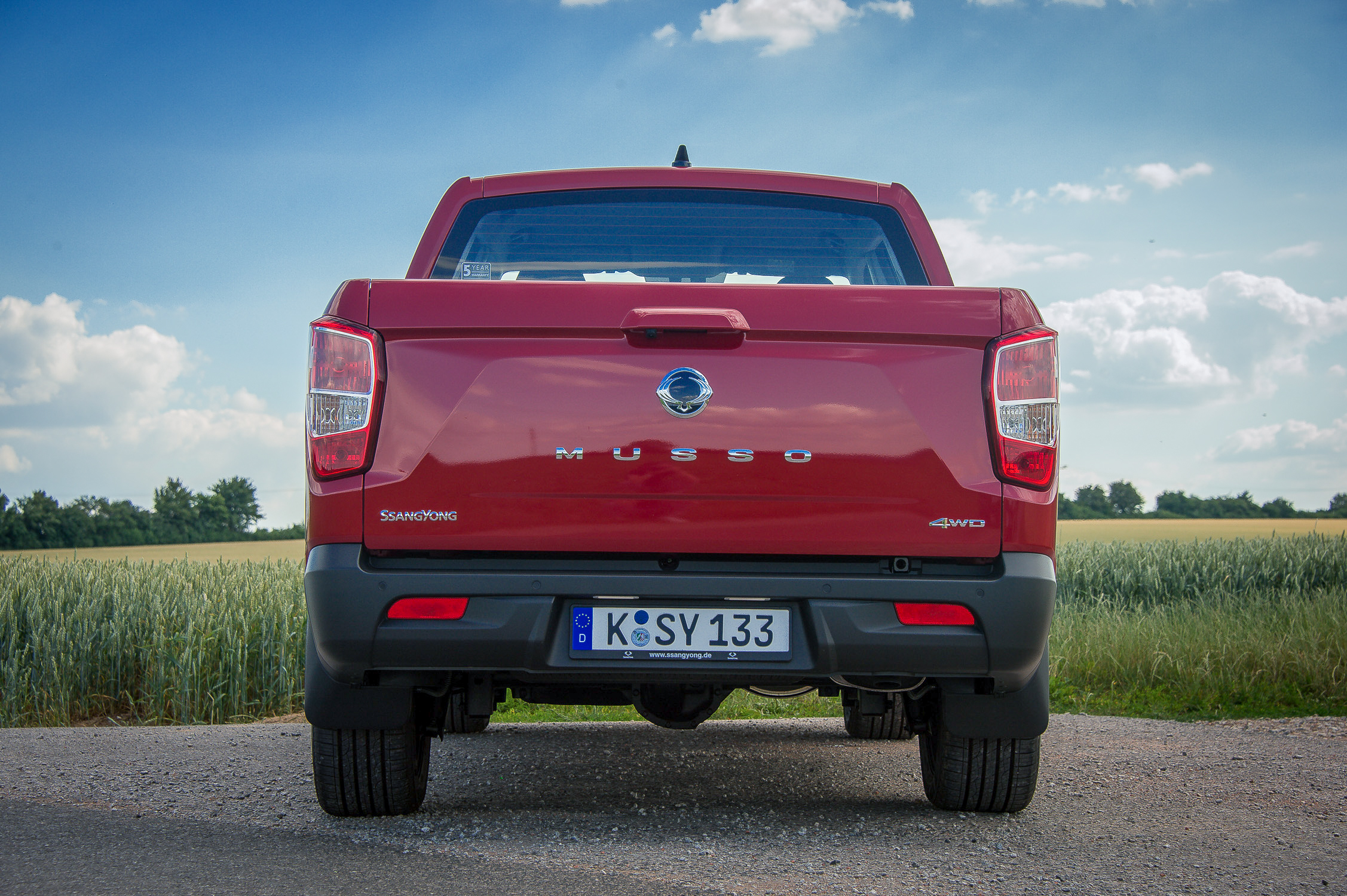

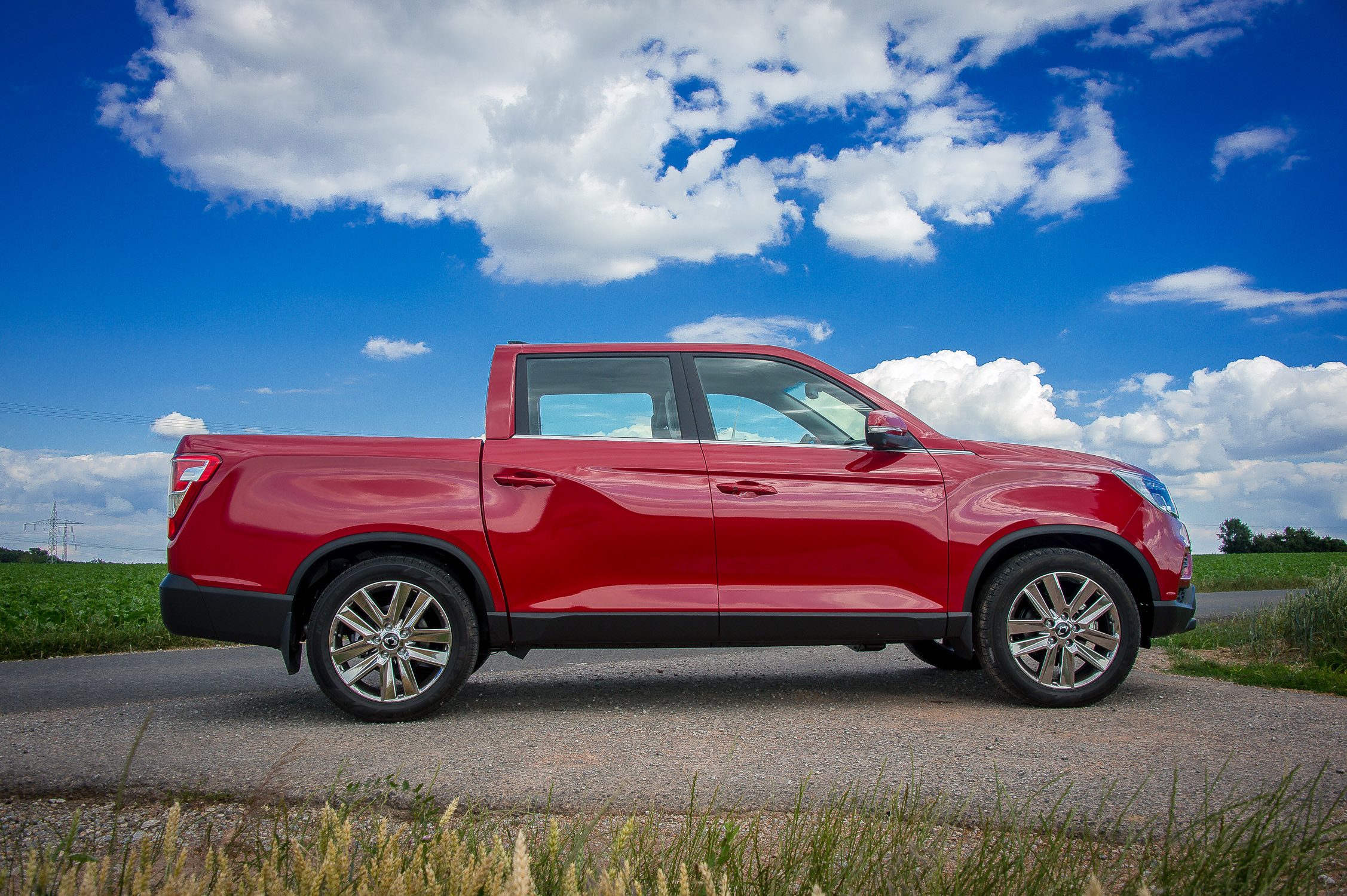

Gallery
