Škoda Superb
Date of manufacture
3/2015 – 2019 (Sedan)

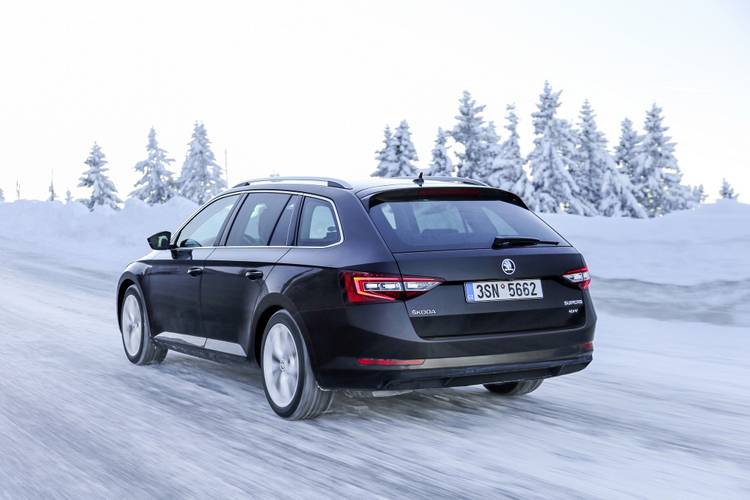

6/2015 – 2019 (Estate)
Platform
MQB
Manufacturing locations
Kvasiny, Czechia
Nanjing, People's Republic of China
Aurangabad, India
Designer
Jozef Kabaň
Tags
D-segment
Czech cars

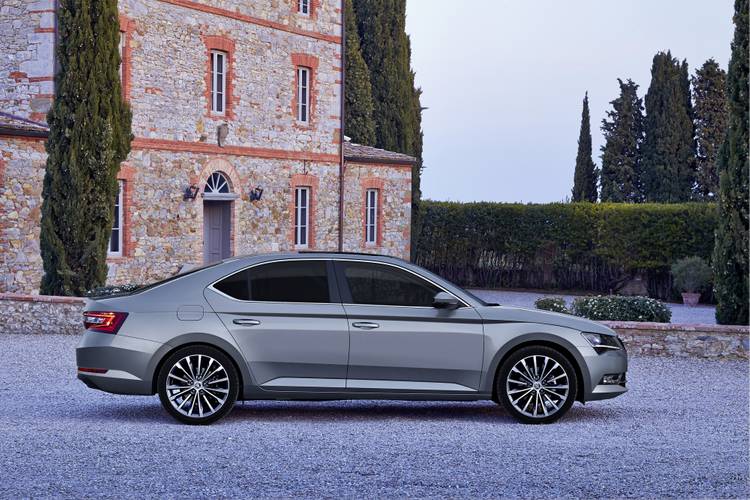

The Škoda Superb is a modern car that has been manufactured since 2015. The model offers sedan and estate body styles and is built on the MQB platform. Both petrol and diesel engines are available, with the highest power of 206 kW for the 2.0 TSI model, which is also the fastest variant of the car with a top speed of 250 km/h and acceleration from 0-100 km/h in 5.8 seconds. The most economical version, the 1.6 TDI, has a combined fuel consumption of 3.9 l/100 km and CO2 emissions of 101 g/km. Both body styles offer plenty of space for your luggage - 625 l for the sedan and 660 l for the estate. Safety has been rated 5 out of 5 by EURONCAP according to the 2015 methodology.
Car body style
Sedan
Date of manufacture
3/2015 – 2019Internal designation
B8 3V3
Technical data
Sedan
| 1.4 TSI | 1.4 TSI ACT | 1.4 TSI ACT | 1.4 TSI ACT | 1.8 TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2016 | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/4000-6200 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 320/1450-3900 | 250/1250-5000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 84,2 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 208 | 220 | 220 | 215 | 232 | 232 |
| Acceleration 0–100 km/h [s] | 9.9 | 8.6 | 8.8 | 9.0 | 8.0 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 6.2-6.0 | 6.3 | 6.9-6.6 | 7.7-7.5 | 7.3-7.1 |
| Out of town [l] | 4.4 | 4.5-4.3 | 4.5-4.4 | 5.2-4.9 | 5.1-4.9 | 5.1-4.9 |
| Combined [l] | 5.3 | 5.2-4.9 | 5.2-5.1 | 5.8-5.5 | 6.0-5.9 | 5.9-5.7 |
| CO2 emissions [g/km] | 122 | 119-115 | 121-117 | 135-128 | 137-134 | 134-129 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375 | 1395-1435 | 1425-1450 | 1505-1535 | 1465-1485 | 1485-1495 |
| Overall weight [kg] | 1920 | 1948-1988 | 1982-2007 | 2107-2137 | 2017-2037 | 2035-2045 |
| Maximum trailer weight unbraked/braked [kg] | 680/1600 | 690-710/1600 | 710-720/1600 | 750/1800 | 730-740/1800 | 740/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

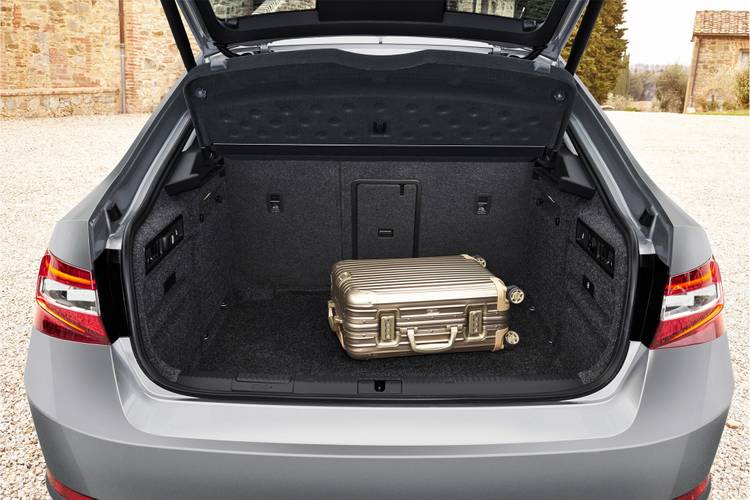

| Boot volume [l] | 625 | 625 | 625 | 625 | 730 | 730 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 |
| Boot length [mm] | 1126 | 1126 | 1126 | 1126 | 1126 | 1126 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.279 | 0.282 | 0.282 | 0.282 | 0.277 | 0.277 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |

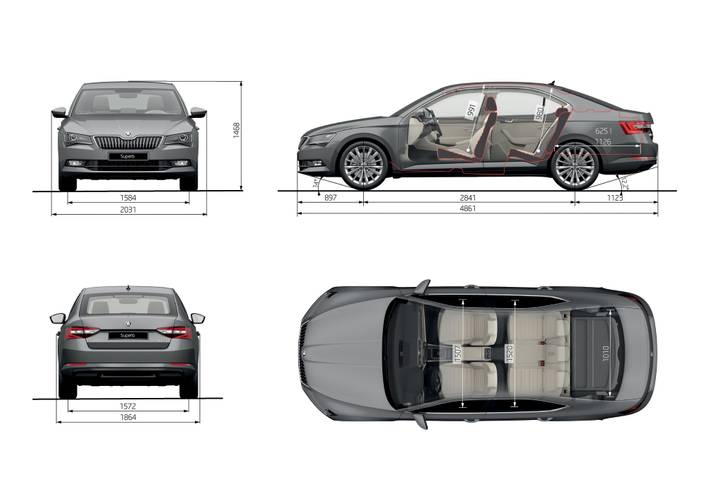

| Overall length [mm] | 4861 | 4861 | 4861 | 4861 | 4861 | 4861 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2836 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1123 | 1123 | 1123 | 1123 | 1123 | 1123 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI | 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2016 | from to 2016 | - | from to 2017 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1598 | 1598 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 206/5600-6500 | 88/3600-4000 | 88/3600-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1700-5600 | 250/1600-3250 | 250/1600-3250 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,3:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 245 | 250 | 206 | 206 | 220 | 218 |
| Acceleration 0–100 km/h [s] | 7.0 | 5.8 | 10.9 | 11.0 | 8.8-9.1 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0-7.8 | 8.9 | 4.7 | 4.4 | 5.1-4.8 | 5.3 |
| Out of town [l] | 5.5-5.3 | 6.1 | 3.6 | 3.6 | 3.8-3.7 | 4.1 |
| Combined [l] | 6.4-6.2 | 7.1 | 4.0 | 3.9 | 4.3-4.1 | 4.5 |
| CO2 emissions [g/km] | 146-142 | 159 | 103 | 101 | 112-108 | 118 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505-1525 | 1615-1625 | 1465 | 1480 | 1485-1550 | 1500 |
| Overall weight [kg] | 2075-2100 | 2220-2230 | 2011 | 2025 | 2030-2095 | 2045 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 730/1500 | 740/1500 | 740-750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 730 | 730 | 625 | 625 | 625 | 625 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 |
| Boot length [mm] | 1126 | 1126 | 1126 | 1126 | 1126 | 1126 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.308 | - | 0.275 | 0.275 | 0.276 | 0.275 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6,5J x 17 | 6,5J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6,5J x 17 | 6,5J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |
| Overall length [mm] | 4861 | 4861 | 4861 | 4861 | 4861 | 4861 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2836 |
| Front wheel track [mm] | 1586 | 1586 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1574 | 1574 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1123 | 1123 | 1123 | 1123 | 1123 | 1123 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | - | from to 2017 | from 2017 to | from to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 400/1750-3250 | 400/1750-3250 | 400/1750-3250 | 400/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 217 | 215 | 237 | 235 | 234 | 230 |
| Acceleration 0–100 km/h [s] | 9.0 | 9.0 | 8.0-8.4 | 7.7 | 8.3 | 7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 5.9-5.5 | 5.5-4.9 | 5.4 | 5.4 | 5.9 |
| Out of town [l] | 4.3 | 4.3-3.9 | 3.9-3.6 | 4.0 | 4.1 | 4.3 |
| Combined [l] | 4.9 | 4.9-4.5 | 4.5-4.1 | 4.5 | 4.6 | 4.9 |
| CO2 emissions [g/km] | 124 | 124-119 | 117-106 | 118 | 120 | 131 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1570 | 1605-1630 | 1505-1555 | 1555 | 1585 | 1615 |
| Overall weight [kg] | 2115 | 2235-2260 | 2080-2130 | 2116 | 2130 | 2245 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2000 | 750/2000 | 750/2000 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 625 | 625 | 625 | 625 | 625 | 625 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 |
| Boot length [mm] | 1126 | 1126 | 1126 | 1126 | 1126 | 1126 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.275 | 0.276 | 0.295 | 0.295 | 0.295 | 0.295 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 |
| Wheel size rear | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |
| Overall length [mm] | 4861 | 4861 | 4861 | 4861 | 4861 | 4861 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2836 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1123 | 1123 | 1123 | 1123 | 1123 | 1123 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | |||||
| Maximum torque [Nm/min-1] | 400/1750-3250 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 229 | |||||
| Acceleration 0–100 km/h [s] | 8.0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.0 | |||||
| Out of town [l] | 4.6 | |||||
| Combined [l] | 5.1 | |||||
| CO2 emissions [g/km] | 134 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1660 | |||||
| Overall weight [kg] | 2290 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 625 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | |||||
| Boot length [mm] | 1126 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1010/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 66 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.295 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 215/55 R17 | |||||
| Tyre dimensions rear | 215/55 R17 | |||||
| Wheel size front | 6,5J x 17 | |||||
| Wheel size rear | 6,5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.1/11.7 | |||||
| Overall length [mm] | 4861 | |||||
| Overall width without/including mirrors [mm] | 1864/2031 | |||||
| Overall height [mm] | 1468 | |||||
| Wheelbase [mm] | 2836 | |||||
| Front wheel track [mm] | 1584 | |||||
| Rear wheel track [mm] | 1572 | |||||
| Forward overhang [mm] | 897 | |||||
| Rear overhang [mm] | 1123 | |||||
| Clearance [mm] | 149 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 14 | |||||
| Approach angle rear [°] | 12.2 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 991 | |||||
| Headroom rear [mm] | 980 | |||||
| Front elbow/shoulder width [mm] | 1507/- | |||||
| Rear elbow/shoulder width [mm] | 1520/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate
| 1.4 TSI | 1.4 TSI ACT | 1.4 TSI ACT | 1.4 TSI ACT | 1.8 TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/4000-6200 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 320/1450-3900 | 250/1250-5000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 84,2 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 206 | 218 | 218 | 213 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 10.0 | 8.7 | 8.9 | 9.1 | 8.1 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8 | 6.3-6.2 | 6.4-6.3 | 7,0-6.8 | 7,8-7.5 | 7.4-7.1 |
| Out of town [l] | 4.4 | 4.6-4.5 | 4.6-4.4 | 5.3-5.1 | 5.2-4.9 | 5.2-5.0 |
| Combined [l] | 5.3 | 52-5.1 | 5.2-5.1 | 5.9-5.7 | 6.2-5.9 | 6.0-5.8 |
| CO2 emissions [g/km] | 123 | 121-119 | 122-119 | 137-132 | 140-135 | 137-130 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1415-1460 | 1445-1475 | 1525-1560 | 1485-1510 | 1505-1520 |
| Overall weight [kg] | 1961 | 1986-2031 | 2032-2062 | 2135-2170 | 2060-2085 | 2080-2095 |
| Maximum trailer weight unbraked/braked [kg] | 690/1600 | 700-730/1600 | 720-730/1600 | 750/1800 | 740-750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.289 | 0.291 | 0.291 | 0.291 | 0.288 | 0.288 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2841 | 2841 | 2841 | 2841 | 2841 | 2841 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1118 | 1118 | 1118 | 1118 | 1118 | 1118 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI | 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2017 | from to 2017 | - | from to 2017 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1598 | 1598 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 206/5600-6500 | 88/3600-4000 | 88/3600-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1700-5600 | 250/1600-3250 | 250/1600-3250 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,3:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 243 | 250 | 204 | 204 | 218 | 216 |
| Acceleration 0–100 km/h [s] | 7.1 | 5.8 | 11.0 | 11.1 | 8.9-9.2 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.1-7.9 | 9.0 | 4.7 | 4.5 | 5.1-4.8 | 5.4 |
| Out of town [l] | 5.5-5.4 | 6.2 | 3.6 | 3.7 | 3.8-3.7 | 4.2 |
| Combined [l] | 6.5-6.3 | 7.2 | 4.0 | 4.0 | 4.3-4.1 | 4.6 |
| CO2 emissions [g/km] | 147-145 | 163 | 105 | 104 | 113-109 | 121 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1525-1550 | 1635-1650 | 1485 | 1500 | 1505-1575 | 1520 |
| Overall weight [kg] | 2105-2130 | 2275-2290 | 2060 | 2065 | 2070-2140 | 2109 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 740/1500 | 750/1500 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | - | 0.285 | 0.285 | 0.285 | 0.285 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6,5J x 17 | 6,5J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6,5J x 17 | 6,5J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2841 | 2841 | 2841 | 2841 | 2841 | 2841 |
| Front wheel track [mm] | 1586 | 1586 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1574 | 1574 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1118 | 1118 | 1118 | 1118 | 1118 | 1118 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | - | - | from to 2017 | from 2017 to | from to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 400/1750-3250 | 400/1750-3250 | 400/1750-3250 | 400/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 214 | 213 | 235 | 233 | 232 | 228 |
| Acceleration 0–100 km/h [s] | 9.1 | 9.1 | 8.1-8.5 | 7.8 | 8.4 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.9-5.6 | 5.6-5.0 | 5.4 | 5.4 | 6.1 |
| Out of town [l] | 4.0 | 4.4-4.0 | 3.9-3.8 | 4.1 | 4.2 | 4.5 |
| Combined [l] | 4.5 | 5.0-4.6 | 4.5-4.2 | 4.6 | 4.6 | 5.1 |
| CO2 emissions [g/km] | 117 | 130-120 | 118-109 | 119 | 121 | 134 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1625-1655 | 1525-1580 | 1575 | 1610 | 1635 |
| Overall weight [kg] | 2184 | 2265-2295 | 2115-2170 | 2165 | 2200 | 2275 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2000 | 750/2000 | 750/2000 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.285 | 0.285 | 0.304 | 0.304 | 0.304 | 0.304 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 |
| Wheel size rear | 6.5J x 16 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 | 6,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 | 11.1/11.7 |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1477 | 1477 | 1477 | 1477 | 1477 | 1477 |
| Wheelbase [mm] | 2841 | 2841 | 2841 | 2841 | 2841 | 2841 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1572 | 1572 | 1572 | 1572 | 1572 | 1572 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1118 | 1118 | 1118 | 1118 | 1118 | 1118 |
| Clearance [mm] | 149 | 149 | 149 | 149 | 149 | 149 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Headroom rear [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | |||||
| Maximum torque [Nm/min-1] | 400/1750-3250 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 226 | |||||
| Acceleration 0–100 km/h [s] | 8.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.0 | |||||
| Out of town [l] | 4.6 | |||||
| Combined [l] | 5.1 | |||||
| CO2 emissions [g/km] | 135 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1685 | |||||
| Overall weight [kg] | 2325 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 660 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | |||||
| Boot length [mm] | 1140 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1010/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 66 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.304 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 215/55 R17 | |||||
| Tyre dimensions rear | 215/55 R17 | |||||
| Wheel size front | 6,5J x 17 | |||||
| Wheel size rear | 6,5J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.1/11.7 | |||||
| Overall length [mm] | 4856 | |||||
| Overall width without/including mirrors [mm] | 1864/2031 | |||||
| Overall height [mm] | 1477 | |||||
| Wheelbase [mm] | 2841 | |||||
| Front wheel track [mm] | 1584 | |||||
| Rear wheel track [mm] | 1572 | |||||
| Forward overhang [mm] | 897 | |||||
| Rear overhang [mm] | 1118 | |||||
| Clearance [mm] | 149 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 14 | |||||
| Approach angle rear [°] | 12.2 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 995 | |||||
| Headroom rear [mm] | 1001 | |||||
| Front elbow/shoulder width [mm] | 1507/- | |||||
| Rear elbow/shoulder width [mm] | 1520/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
