Škoda Superb
Date of manufacture
2013 – 2015 (Liftback)
2013 – 2015 (Estate)
Platform
Volkswagen Group A6 (PQ46)
Manufacturing locations
Kvasiny, Czechia
Shanghai, People's Republic of China
Aurangabad, India
Designer
-
Tags
D-segment
Czech cars
The Škoda Superb has been produced since 2013 in three countries - the Czech Republic, China and India. It is based on the Volkswagen Group A6 (PQ46) platform and offers petrol and diesel engines with a maximum power of 191 kW in the 3.6 V6 FSI model. This engine has a top speed of 250 km/h and the best acceleration from 0-100 km/h in 6.4 seconds. The most economical version is the 1.6 TDI CR GreenLine with a consumption of 4.2 l/100 km and emissions of 109 g/km. The liftback body style has a boot capacity of 595 l, while the estate has 633 l. In EURONCAP safety tests, the Superb received a rating of 5 out of 5 according to the 2009 methodology.

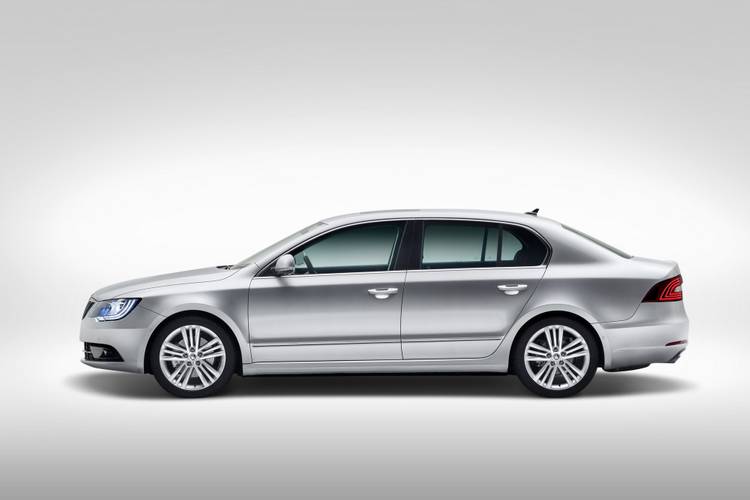

Car body style
Liftback
after upgrade (facelift)
Date of manufacture
2013 – 2015Internal designation
3T Estate
after upgrade (facelift)
Date of manufacture
2013 – 2015Internal designation
3T
Technical data
Liftback
| 1.4 TSI | 1.8 TSI | 1.8 TSI | 1.8 TSI | 2.0 TSI | 3.6 V6 FSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1390 | 1798 | 1798 | 1798 | 1984 | 3580 |
| Maximum output / speed [kW/min-1] | 92/5000 | 118/4500-6200 | 118/4500-6200 | 118/4500-6200 | 147/5100-6000 | 191/6000 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 250/1500-4500 | 250/1500-4500 | 250/1500-4500 | 280/1700-5000 | 350/2500-5000 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 89,0 x 96,4 |
| Compression ratio | 10,0:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 204 | 222 | 222 | 219 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 10.5 | 8.2 | 8.4 | 8.4 | 7.7 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 9.4 | 9.3 | 10.1 | 10.6 | 13.0 |
| Out of town [l] | 4.9 | 5.2 | 5.6 | 6.3 | 6.3 | 7.0 |
| Combined [l] | 5.9 | 6.8 | 7.0 | 8.0 | 7.9 | 9.3 |
| CO2 emissions [g/km] | 138 | 158 | 162 | 185 | 178 | 215 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1467 | 1469 | 1508 | 1587 | 1540 | 1704 |
| Overall weight [kg] | 2030 | 2059 | 2071 | 2150 | 2103 | 2265 |
| Maximum trailer weight unbraked/braked [kg] | 730/1400 | 750/1500 | 750/1500 | 750/1600 | 750/1600 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 595 | 595 | 595 | 595 | 595 | 595 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | 1075 | 1075 | 1075 | 1075 | 1075 | 1075 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 |
| Overall length [mm] | 4833 | 4833 | 4833 | 4833 | 4833 | 4833 |
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2761 | 2761 | 2761 | 2761 | 2761 | 2761 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Forward overhang [mm] | 958 | 958 | 958 | 958 | 958 | 958 |
| Rear overhang [mm] | 1114 | 1114 | 1114 | 1114 | 1114 | 1114 |
| Clearance [mm] | 139 | 139 | 139 | 139 | 139 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
| Approach angle rear [°] | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- |
| Rear elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR | 1.6 TDI CR | 1.6 TDI CR GreenLine | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4400 | 77/4400 | 77/4400 | 103/4200 | 103/4200 | 103/4200 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 194 | 193 | 197 | 212 | 212 | 210 |
| Acceleration 0–100 km/h [s] | 12.1 | 12.2 | 12.2 | 10.0 | 10.1 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2 | 5.5 | 5.2 | 5.6 | 6.2 | 6.4 |
| Out of town [l] | 4.0 | 4.1 | 3.6 | 4.6 | 4.5 | 4.6 |
| Combined [l] | 4.5 | 4.6 | 4.2 | 5.4 | 5.1 | 5.3 |
| CO2 emissions [g/km] | 117 | 120 | 109 | 143 | 134 | 137 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1512 | 1519 | 1519 | 1532 | 1554 | 1609 |
| Overall weight [kg] | 2075 | 2082 | 2082 | 2095 | 2117 | 2172 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1200 | 750/1500 | 750/1800 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 595 | 595 | 595 | 595 | 595 | 595 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | 1075 | 1075 | 1075 | 1075 | 1075 | 1075 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.27 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 |
| Overall length [mm] | 4833 | 4833 | 4833 | 4833 | 4833 | 4833 |
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2761 | 2761 | 2761 | 2761 | 2761 | 2761 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Forward overhang [mm] | 958 | 958 | 958 | 958 | 958 | 958 |
| Rear overhang [mm] | 1114 | 1114 | 1114 | 1114 | 1114 | 1114 |
| Clearance [mm] | 139 | 139 | 125 | 139 | 139 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 |
| Approach angle rear [°] | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- |
| Rear elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | 125/4200 | |||
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 228 | 222 | 219 | |||
| Acceleration 0–100 km/h [s] | 8.6 | 8.6 | 8.7 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.4 | 6.4 | 6.5 | |||
| Out of town [l] | 4.1 | 4.6 | 4.8 | |||
| Combined [l] | 4.6 | 5.2 | 5.6 | |||
| CO2 emissions [g/km] | 120 | 138 | 147 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1540 | 1557 | 1634 | |||
| Overall weight [kg] | 2103 | 2120 | 2197 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2000 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 595 | 595 | 595 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | |||
| Boot length [mm] | 1075 | 1075 | 1075 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 60 | 60 | 60 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | |||
| Overall length [mm] | 4833 | 4833 | 4833 | |||
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | |||
| Overall height [mm] | 1462 | 1462 | 1462 | |||
| Wheelbase [mm] | 2761 | 2761 | 2761 | |||
| Front wheel track [mm] | 1545 | 1545 | 1545 | |||
| Rear wheel track [mm] | 1518 | 1518 | 1518 | |||
| Forward overhang [mm] | 958 | 958 | 958 | |||
| Rear overhang [mm] | 1114 | 1114 | 1114 | |||
| Clearance [mm] | 139 | 139 | 139 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.5 | 14.5 | 14.5 | |||
| Approach angle rear [°] | 11.8 | 11.8 | 11.8 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 988 | 988 | 988 | |||
| Headroom rear [mm] | 955 | 955 | 955 | |||
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | |||
| Rear elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate
| 1.4 TSI | 1.8 TSI | 1.8 TSI | 1.8 TSI | 2.0 TSI | 3.6 V6 FSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 1390 | 1798 | 1798 | 1798 | 1984 | 3580 |
| Maximum output / speed [kW/min-1] | 92/5000 | 118/4500-6200 | 118/4500-6200 | 118/4500-6200 | 147/5100-6000 | 191/6000 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 250/1500-4500 | 250/1500-4500 | 250/1500-4500 | 280/1700-5000 | 350/2500-5000 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 | 89,0 x 96,4 |
| Compression ratio | 10,0:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 203 | 221 | 221 | 215 | 238 | 250 |
| Acceleration 0–100 km/h [s] | 10.6 | 8.3 | 8.5 | 8.5 | 7.8 | 6.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 9.5 | 9.4 | 10.2 | 10.7 | 13.0 |
| Out of town [l] | 5.0 | 6.3 | 5.7 | 6.4 | 6.4 | 7.0 |
| Combined [l] | 6..1 | 6.9 | 7.1 | 8.1 | 8.0 | 9.3 |
| CO2 emissions [g/km] | 142 | 160 | 164 | 187 | 180 | 217 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1489 | 1518 | 1530 | 1609 | 1562 | 1726 |
| Overall weight [kg] | 2052 | 2081 | 2093 | 2172 | 2125 | 2287 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1500 | 750/1500 | 750/1600 | 750/1600 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1865 | -/1865 | -/1865 | -/1865 | -/1865 | -/1865 |
| Boot length [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 |
| Overall length [mm] | 4833 | 4833 | 4833 | 4833 | 4833 | 4833 |
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 |
| Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Wheelbase [mm] | 2761 | 2761 | 2761 | 2761 | 2761 | 2761 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Forward overhang [mm] | 958 | 958 | 958 | 958 | 958 | 958 |
| Rear overhang [mm] | 1114 | 1114 | 1114 | 1114 | 1114 | 1114 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 14 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Headroom rear [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR | 1.6 TDI CR | 1.6 TDI CR GreenLine | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4400 | 77/4400 | 77/4400 | 103/4200 | 103/4200 | 103/4200 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 192 | 192 | 195 | 211 | 210 | 208 |
| Acceleration 0–100 km/h [s] | 12.2 | 12.3 | 12.3 | 10.1 | 10.2 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.6 | 5.2 | 5.6 | 6.2 | 6.6 |
| Out of town [l] | 4.1 | 4.2 | 3.8 | 4.0 | 4.5 | 4.6 |
| Combined [l] | 4.6 | 4.7 | 4.3 | 4.6 | 5.1 | 5.3 |
| CO2 emissions [g/km] | 119 | 122 | 113 | 119 | 134 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1534 | 1541 | 1541 | 1554 | 1576 | 1631 |
| Overall weight [kg] | 2097 | 2104 | 2104 | 2117 | 2139 | 2194 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1200 | 750/1500 | 750/1800 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 633 | 633 | 633 | 633 | 633 | 633 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1865 | -/1865 | -/1865 | -/1865 | -/1865 | -/1865 |
| Boot length [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.29 | 0.3 | 0.3 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 | -/11.69 |
| Overall length [mm] | 4833 | 4833 | 4833 | 4833 | 4833 | 4833 |
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 | 1817/2009 |
| Overall height [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Wheelbase [mm] | 2761 | 2761 | 2761 | 2761 | 2761 | 2761 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Forward overhang [mm] | 958 | 958 | 958 | 958 | 958 | 958 |
| Rear overhang [mm] | 1114 | 1114 | 1114 | 1114 | 1114 | 1114 |
| Clearance [mm] | 141 | 141 | 126 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 | 11.7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Headroom rear [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- | 1468/- |
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- | 1450/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | 125/4200 | |||
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | 350/1750-2500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 226 | 221 | 218 | |||
| Acceleration 0–100 km/h [s] | 8.7 | 8.7 | 8.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5 | 6.4 | 6.8 | |||
| Out of town [l] | 4.2 | 4.6 | 5.1 | |||
| Combined [l] | 4.7 | 5.2 | 5.7 | |||
| CO2 emissions [g/km] | 122 | 138 | 149 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1562 | 1579 | 1656 | |||
| Overall weight [kg] | 2125 | 2142 | 2219 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2000 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 633 | 633 | 633 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1865 | -/1865 | -/1865 | |||
| Boot length [mm] | 1058 | 1058 | 1058 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 60 | 60 | 60 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/11.69 | -/11.69 | -/11.69 | |||
| Overall length [mm] | 4833 | 4833 | 4833 | |||
| Overall width without/including mirrors [mm] | 1817/2009 | 1817/2009 | 1817/2009 | |||
| Overall height [mm] | 1510 | 1510 | 1510 | |||
| Wheelbase [mm] | 2761 | 2761 | 2761 | |||
| Front wheel track [mm] | 1545 | 1545 | 1545 | |||
| Rear wheel track [mm] | 1518 | 1518 | 1518 | |||
| Forward overhang [mm] | 958 | 958 | 958 | |||
| Rear overhang [mm] | 1114 | 1114 | 1114 | |||
| Clearance [mm] | 141 | 141 | 141 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | |||
| Approach angle rear [°] | 11.7 | 11.7 | 11.7 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1001 | 1001 | 1001 | |||
| Headroom rear [mm] | 986 | 986 | 986 | |||
| Front elbow/shoulder width [mm] | 1468/- | 1468/- | 1468/- | |||
| Rear elbow/shoulder width [mm] | 1450/- | 1450/- | 1450/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
