Škoda Octavia
Date of manufacture
2/2017 – 2019 (Liftback)
2/2017 – 2020 (Estate)
Platform
Volkswagen Group MQB
Manufacturing locations
Mladá Boleslav, Czechia
Nizhny Novgorod, Russia
Ningbo, People's Republic of China
Aurangabad, India
Designer
Jozef Kabaň
Tags
C-segment
Czech cars
The new Skoda Octavia is available in liftback and combi body variants, manufactured since 2017. It is built on the Volkswagen Group MQB platform and its engine range includes petrol and diesel versions. The most powerful engine is the 2.0 TSI RS with 180 kW of power, reaching a top speed of 250 km/h and the best 0-100 km/h acceleration in 6.6 seconds. The most economical model is the 1.6 TDI with a combined consumption of 4 l/100 km and CO2 emissions of 105 g/km. The liftback body has a trunk size of 590 l, while the combi body has 610 l. The model has been tested in the safety area by EURONCAP and achieved an overall rating of 5 out of 5 points. Currently, this model is manufactured in the Czech Republic, Russia, China and India.
Car body style

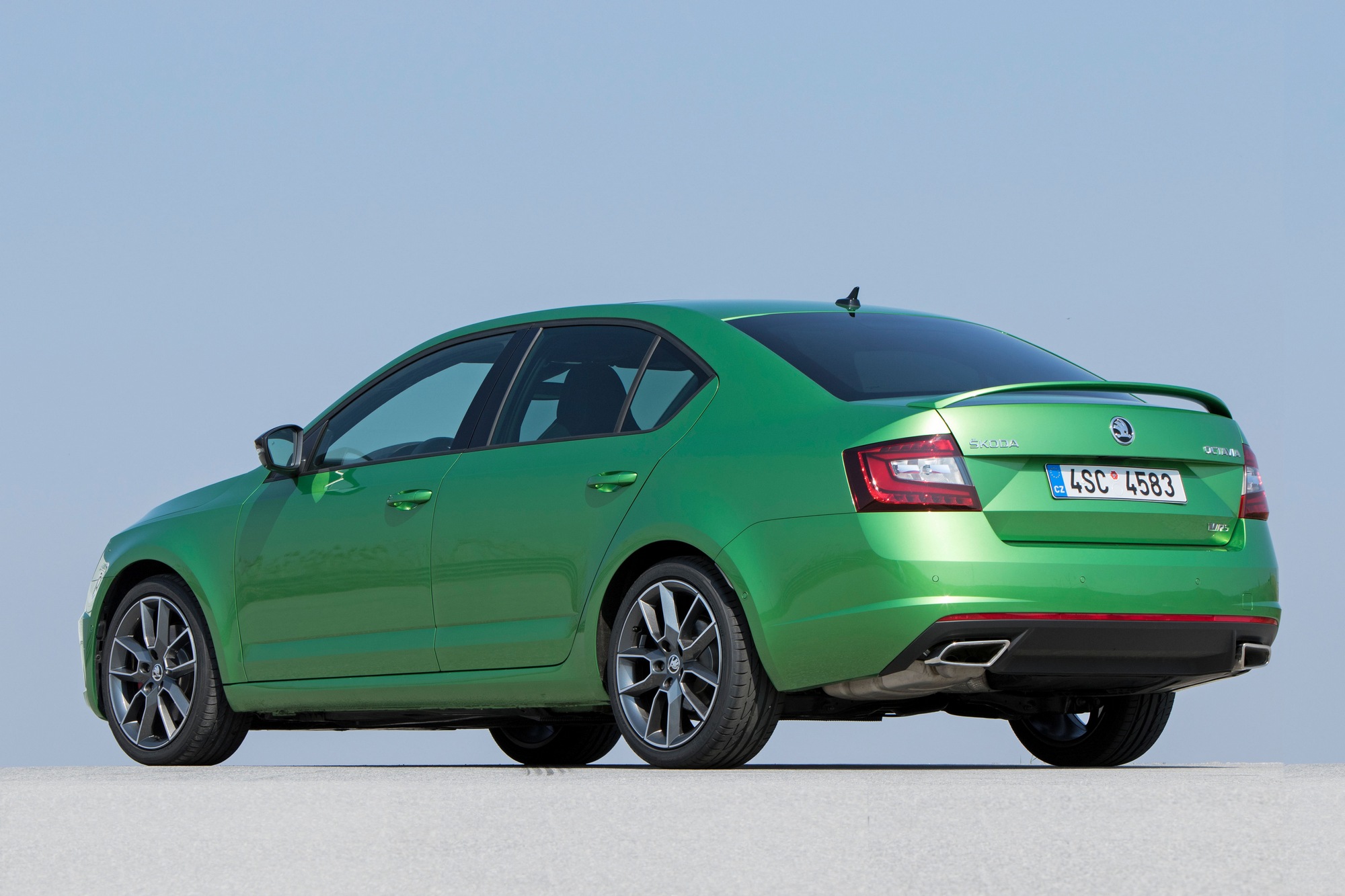

Liftback
after upgrade (facelift)
Date of manufacture
2/2017 – 2019Internal designation

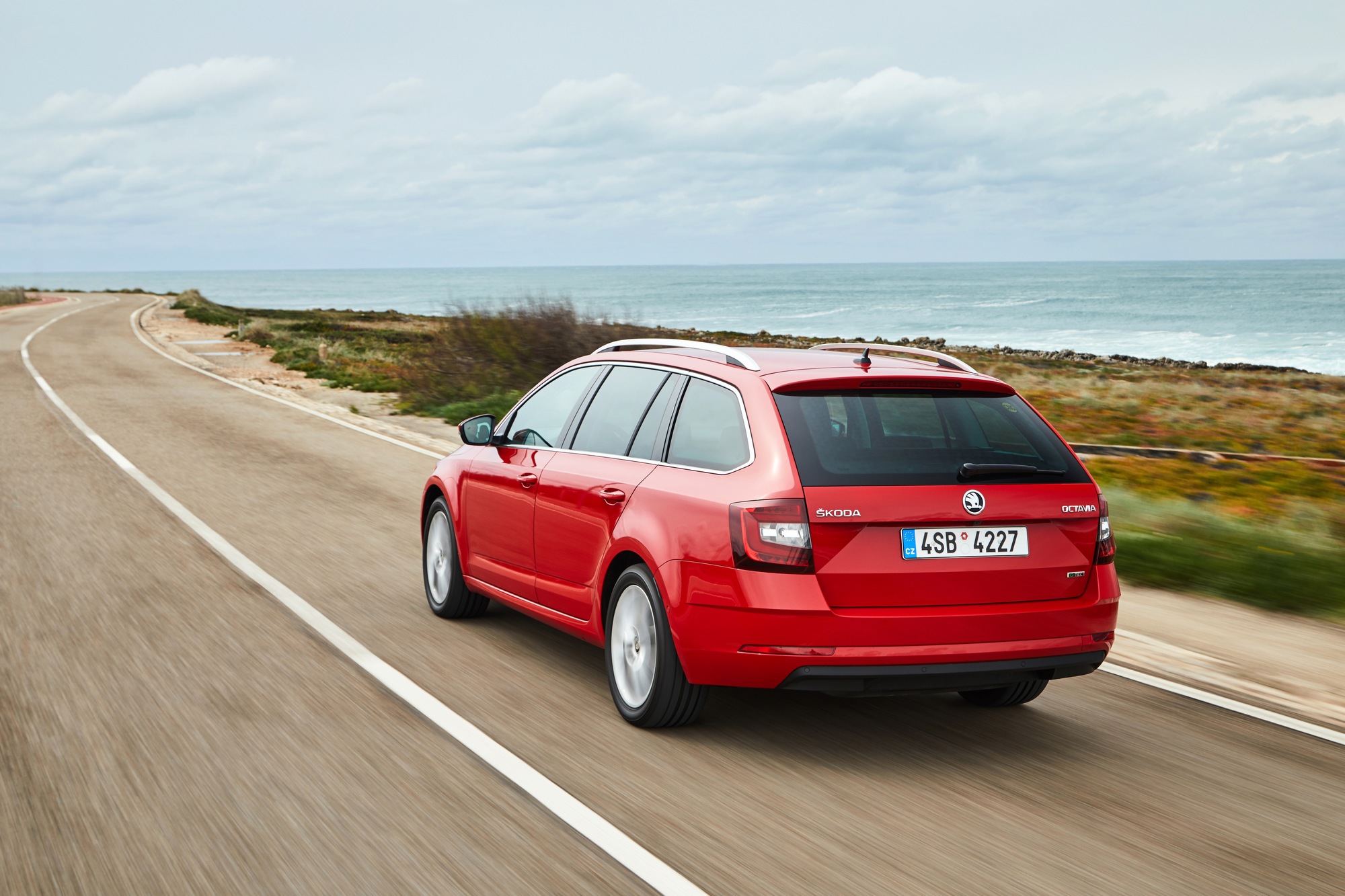

5E Estate
after upgrade (facelift)
Date of manufacture
2/2017 – 2020Internal designation
5E
Technical data
Liftback
| 1.4 TSI G-TEC | 1.4 TSI G-TEC | 1.0 TSI | 1.0 TSI | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 999 | 999 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 81/4800-6000 | 81/4800-6000 | 85/5000-5500 | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/1500-3500 | 200/1500-3500 | 200/2000-3500 | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 195 | 195 | 202-205 | 202-205 | 219 | 219 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 9.9-10.0 | 10.0-10.1 | 8.1 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 [7.4 m³] | 6.7 [6.9 m³] | 6.5-5.4 | 5.4-5.3 | 6.4 | 6.0 |
| Out of town [l] | 4.7 [4.6 m³] | 4.8 [4.7 m³] | 4.3-3.9 | 4.4-4.1 | 4.3 | 4.2 |
| Combined [l] | 5.7 [5.7 m³] | 5.5 [5.5 m³] | 4.9-4.5 | 4.8-4.5 | 5.2 | 4.6 |
| CO2 emissions [g/km] | 131 [101 CNG] | 125 [98 CNG] | 112-104 | 108-105 | 121 | 114 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | 6.5-5.0 | - | - | - |
| CO2 emissions [g/km] | - | - | 147-113 | - | - | - |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1394 | 1419 | 1225-1409 | 1250-1431 | 1255 | 1270 |
| Overall weight [kg] | 1878 | 1892 | 1775-1816 | 1778-1838 | 1805 | 1820 |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 700/1400 | 610-620/1300 | 620-630/1300 | 620/1500 | 630/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 460 | 460 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 [15 kg] | 50 [15 kg] | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.269 | 0.269 | 0.298 | 0.294 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 |
| Overall length [mm] | 4670 | 4670 | 4670 | 4670 | 4670 | 4670 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI | 1.5 TSI | 1.8 TSI | 1.8 TSI | 1.8 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from to 2018 | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1798 | 1798 | 1798 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 132/5100-6200 | 132/5100-6200 | 132/5100-6200 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1250-5000 | 280/1350-4500 | 250/1250-5000 | 320/1500-4100 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11.65-12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 223 | 223 | 231 | 231 | 229 | 236 |
| Acceleration 0–100 km/h [s] | 8.3 | 8.3 | 7.3 | 7.4 | 7.4 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6-6.4 | 6.8-6.4 | 7.5-7.8 | 6.9-7.1 | 7.9 | 7.8 |
| Out of town [l] | 4.3-4.0 | 4.3-4.2 | 5.0-5.1 | 4.8-4.9 | 5.5 | 4.8 |
| Combined [l] | 5.1-4.9 | 5.1-5.0 | 5.9-6.1 | 5.6-5.7 | 6.4 | 5.9 |
| CO2 emissions [g/km] | 115-111 | 116-113 | 135-141 | 128-131 | 149 | 133 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.7-5.0 | 7.1-5.6 | - | - | - | - |
| CO2 emissions [g/km] | 152-113 | 162-127 | - | - | - | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU5-EU6 | EU5-EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280-1443 | 1295-1458 | 1320 | 1335 | 1428 | 1388-1543 |
| Overall weight [kg] | 1790-1850 | 1805-1865 | 1830 | 1845 | 1938 | 1873-1918 |
| Maximum trailer weight unbraked/braked [kg] | 640/1500 | 640/1500 | 650/1600 | 660/1600 | 710/1600 | 690/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 80 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.280-0.310 | 0.280-0.310 | 0.304 | 0.304 | 0.304 | 0.280-0.310 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.04 | 10.4/11.04 | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.04 |
| Overall length [mm] | 4670 | 4670 | 4670 | 4670 | 4670 | 4670 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1460 | 1461 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 138 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 14.1 | 14 | 14 | 14.1 | 14.1 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI RS230 | 2.0 TSI RS230 | 2.0 TSI RS | 2.0 TSI RS | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | - | - | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1968 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 169/4700-6200 | 169/4700-6200 | 180/5250-6500 | 180/5250-6500 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 350/1500-4600 | 350/1500-4600 | 370/1600-4300 | 370/1600-4300 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,9 |
| Compression ratio | 11.65-12.2:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 232 | 250 | 249 | 250 | 250 | 218 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.7 | 6.8 | 6.6 | 6.7 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5 | 7.9-7.7 | 8.5-8.1 | 8.7 | 8.3-8.0 | 5.1 |
| Out of town [l] | 5.4 | 5.5-5.3 | 5.5-5.4 | 5.4 | 5.3-5.0 | 3.9 |
| Combined [l] | 6.5 | 6.5-6.2 | 6.6-6.4 | 6.8-6.4 | 6.4-6.1 | 4.3 |
| CO2 emissions [g/km] | 148 | 149-142 | 149 | 154-150 | 146-139 | 113 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | - | 7.9-7.1 | - |
| CO2 emissions [g/km] | - | - | - | - | 180-160 | - |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1473-1636 | 1420 | 1440 | 1445 | 1445-1565 | 1332 |
| Overall weight [kg] | 1983-2036 | 1887 | 1907 | 1912 | 1932-1970 | 1882 |
| Maximum trailer weight unbraked/braked [kg] | 730/1700 | 710/1600 | 720/1600 | 720/1600 | 730/1600 | 660/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.280-0.310 | 0.298 | 0.298 | 0.306 | 0.306 | 0.294 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 225/35 R19 | 225/35 R19 | 225/40 R18 | 225/40 R18 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/35 R19 | 225/35 R19 | 225/40 R18 | 225/40 R18 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 7.5J x 9 | 7.5J x 19 | 7,5J x 18 | 7,5J x 18 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.5J x 9 | 7.5J x 19 | 7,5J x 18 | 7,5J x 18 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.04 | -/11.13 | -/11.13 | 10.4/11.04 | 10.4/11.04 | 10.4/11.05 |
| Overall length [mm] | 4670 | 4670 | 4670 | 4689 | 4689 | 4670 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1461 | 1449 | 1449 | 1448 | 1448 | 1461 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2680 | 2680 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1535 | 1535 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1544 | 1544 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 138 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 12.9 | 12.9 | 14.1 | 14.1 | 14 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 135/3500-4000 | 135/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 380/1750-3250 | 380/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 215 | 221 | 215 | 214 | 228 | 228 |
| Acceleration 0–100 km/h [s] | 8.5 | 8.9 | 8.5 | 8.7 | 7.1 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2 | 5.1-5.0 | 5.7 | 5.7 | 5.6 | 5.6 |
| Out of town [l] | 4.1 | 3.8-3.4 | 4.2 | 4.3-4.2 | 4.4 | 4.4 |
| Combined [l] | 4.5 | 4.3-4.2 | 4.7 | 4.8-4.7 | 4.9 | 4.9 |
| CO2 emissions [g/km] | 118 | 112-110 | 124 | 126-124 | 125 | 125 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1352 | 1408-1571 | 1438 | 1501-1664 | 1463 | 1463 |
| Overall weight [kg] | 1902 | 1918-1978 | 2001 | 2064 | 1973 | 1973 |
| Maximum trailer weight unbraked/braked [kg] | 670/1600 | 700/1600 | 710/2000 | 750/2000 | 730/1800 | 730/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.294 | 0.284 | 0.293 | 0.293 | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.05 | 10.4/11.04 | 10.4/11.04 |
| Overall length [mm] | 4670 | 4670 | 4670 | 4670 | 4670 | 4670 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 141 | 141 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14.1 | 14.1 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 1.6 TDI | 1.6 TDI | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1598 | 1598 | 1598 | |||
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 85/3250-4000 | 85/3250-4000 | |||
| Maximum torque [Nm/min-1] | 250/1750-3200 | 250/1750-3200 | 250/1750-3200 | |||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | Front | |||
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 205 | 200 | 204 | |||
| Acceleration 0–100 km/h [s] | 10.2 | 11.6 | 10.4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4.8-4.7 | 5.9 | 4.5-4.3 | |||
| Out of town [l] | 3.8-3.6 | 4.6-4.7 | 3.8-3.6 | |||
| Combined [l] | 4.1-4.0 | 5.1 | 4.0-3.9 | |||
| CO2 emissions [g/km] | 109-106 | 133-135 | 105-103 | |||
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1348-1511 | 1463 | 1363-1526 | |||
| Overall weight [kg] | 1858-1933 | 2026 | 1873-1933 | |||
| Maximum trailer weight unbraked/braked [kg] | 670/1500 | 730/1700 | 680/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 590 | 590 | 590 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | |||
| Boot length [mm] | 1084 | 1084 | 1084 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 699 | 699 | 699 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 50 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.27 | 0.27 | 0.276 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | |||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.4/11.04 | 10.4/11.04 | 10.4/11.04 | |||
| Overall length [mm] | 4670 | 4670 | 4670 | |||
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | |||
| Overall height [mm] | 1461 | 1461 | 1461 | |||
| Wheelbase [mm] | 2686 | 2686 | 2686 | |||
| Front wheel track [mm] | 1549 | 1549 | 1549 | |||
| Rear wheel track [mm] | 1542 | 1542 | 1542 | |||
| Forward overhang [mm] | 890 | 890 | 890 | |||
| Rear overhang [mm] | 1094 | 1094 | 1094 | |||
| Clearance [mm] | 141 | 141 | 141 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.1 | 14.1 | 14.1 | |||
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 983 | 983 | 983 | |||
| Headroom rear [mm] | 980 | 980 | 980 | |||
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | |||
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate
| 1.0 TSI | 1.0 TSI | 1.4 TSI G-TEC | 1.4 TSI G-TEC | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1395 | 1395 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 85/5000-5500 | 85/5000-5500 | 81/4800-6000 | 81/4800-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/2000-3500 | 200/1500-3500 | 200/1500-3500 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 199-201 | 198-200 | 193 | 193 | 216 | 216 |
| Acceleration 0–100 km/h [s] | 10.1-10.2 | 10.2-10.3 | 11.0 | 11.1 | 8.2 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-5.6 | 5.7-5.6 | 7.5 [7.4 m³] | 6.8 [6.9 m³] | 6.8 | 6.2 |
| Out of town [l] | 4.3-4.1 | 4.6-4.3 | 4.8 [4.7 m³] | 4.8 [4.8 m³] | 4.5 | 4.4 |
| Combined [l] | 5.0-4.8 | 5.0-4.8 | 5.8 [5.7 m³] | 5.5 [5.6 m³] | 5.3 | 5.0 |
| CO2 emissions [g/km] | 114-109 | 114-108 | 132 [102 CNG] | 126 [99 CNG] | 124 | 117 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1247-1268 | 1269-1290 | 1416 | 1441 | 1277 | 1291 |
| Overall weight [kg] | 1817-1838 | 1839-1860 | 1865 | 1879 | 1847 | 1861 |
| Maximum trailer weight unbraked/braked [kg] | 620-630/1300 | 630-640/1300 | 700/1400 | 710/1400 | 630/1500 | 640/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 [15 kg] | 50 [15 kg] | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.311 | 0.311 | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4667 | 4667 | 4667 | 4667 | 4667 | 4667 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI | 1.5 TSI | 1.8 TSI | 1.8 TSI | 1.8 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from to 2018 | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1798 | 1798 | 1798 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 132/5100-6200 | 132/5100-6200 | 132/5100-6200 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1250-5000 | 280/1350-4500 | 250/1250-5000 | 320/1500-4100 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 84,2 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 | 9,6:1 | 11.65-12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 215 | 214 | 229 | 229 | 227 | 230 |
| Acceleration 0–100 km/h [s] | 8.4 | 8.4 | 7.4 | 7.5 | 7.5 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.9-6.7 | 6.7-6.5 | 7.6 | 7.1 | 8.1 | 7.9 |
| Out of town [l] | 4.6-4.4 | 4.5-4.3 | 5.2 | 5.0 | 5.7 | 5.1 |
| Combined [l] | 5.4-5.3 | 5.2-5.1 | 6.1 | 5.8 | 6.6 | 6.1 |
| CO2 emissions [g/km] | 124-119 | 119-116 | 140 | 133 | 154 | 139 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU5-EU6 | EU5-EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1302 | 1317 | 1342 | 1357 | 1450 | 1410-1565 |
| Overall weight [kg] | 1872 | 1887 | 1852 | 1867 | 2013 | 1895-1940 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 660/1600 | 670/1600 | 720/1600 | 700/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 80 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.323 | 0.32 | - | - | - | 0.327 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | 10.6/- | 10.6/- | 10.6/- | - |
| Overall length [mm] | 4667 | 4667 | 4667 | 4667 | 4667 | 4667 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 139 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI | 2.0 TSI RS230 | 2.0 TSI RS230 | 2.0 TSI RS | 2.0 TSI RS | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | from 2019 to 2020 | from 2019 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1968 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 169/4700-6200 | 169/4700-6200 | 180/5250-6500 | 180/5250-6500 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 350/1500-4600 | 350/1500-4600 | 370/1600-4300 | 370/1600-4300 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,9 |
| Compression ratio | 11.65-12.2:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 226 | 247 | 245 | 250 | 244-250 | 216 |
| Acceleration 0–100 km/h [s] | 6.8 | 6.8 | 7.0 | 6.7 | 6.8 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.5 | 7.9 | 8.5 | 8.7 | 8.3-8.0 | 5.1 |
| Out of town [l] | 5.5 | 5.5 | 5.5 | 5.4 | 5.3-5.1 | 3.9 |
| Combined [l] | 6.6 | 6.5 | 6.6 | 6.6 | 6.4-6.2 | 4.3 |
| CO2 emissions [g/km] | 150 | 149 | 149 | 150 | 146-141 | 113 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1495-1678 | 1442 | 1462 | 1467 | 1487-1629 | 1354 |
| Overall weight [kg] | 2058 | 1933 | 1953 | 1958 | 1978-2014 | 1924 |
| Maximum trailer weight unbraked/braked [kg] | 740/1700 | 720/1600 | 730/1600 | 730/1600 | 740-750/1600 | 670/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.328 | 0.307-0.319 | 0.307-0.319 | 0.307-0.319 | 0.307-0.319 | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 | 225/35 R19 | 225/35 R19 | 225/40 R18 | 225/40 R18 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/35 R19 | 225/35 R19 | 225/40 R18 | 225/40 R18 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 7.5J x 19 | 7.5J x 19 | 7,5J x 18 | 7,5J x 18 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 7.5J x 19 | 7.5J x 19 | 7,5J x 18 | 7,5J x 18 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | 10.6/- |
| Overall length [mm] | 4667 | 4689 | 4689 | 4689 | 4689 | 4667 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1465 | 1452 | 1452 | 1452 | 1452 | 1465 |
| Wheelbase [mm] | 2686 | 2677 | 2677 | 2677 | 2677 | 2686 |
| Front wheel track [mm] | 1549 | 1535 | 1535 | 1535 | 1535 | 1549 |
| Rear wheel track [mm] | 1542 | 1544 | 1544 | 1544 | 1544 | 1542 |
| Forward overhang [mm] | 890 | - | - | - | - | 890 |
| Rear overhang [mm] | 1091 | - | - | - | - | 1091 |
| Clearance [mm] | 139 | 127 | 127 | 127 | 127 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 135/3500-4000 | 135/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 380/1750-3250 | 380/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 213 | 213 | 213 | 208 | 226 | 230 |
| Acceleration 0–100 km/h [s] | 8.6 | 9.1 | 8.6 | 8.9 | 7.2 | 7.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.3 | 5.3-5.2 | 5.7 | 5.8 | 5.6 | 5.9 |
| Out of town [l] | 4.2 | 4.0-3.9 | 4.2 | 4.5-4.4 | 4.5 | 4.5 |
| Combined [l] | 4.6 | 4.5-4.4 | 4.7 | 5.0-4.9 | 4.9 | 5.1-5.0 |
| CO2 emissions [g/km] | 119 | 117-115 | 124 | 131-129 | 129 | 1 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1374 | 1430 | 1458 | 1523 | 1485 | 1516-1647 |
| Overall weight [kg] | 1944 | 1984 | 2021 | 2086 | 2048 | 2027 |
| Maximum trailer weight unbraked/braked [kg] | 680/1600 | 710/1600 | 720/2000 | 750/2000 | 730/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | 631 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0.315 | - | 0.321 | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | - | 10.6/- | 10.6/- | 10.6/- | - |
| Overall length [mm] | 4667 | 4667 | 4667 | 4667 | 4667 | 4667 |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 |
| Overall height [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Clearance [mm] | 141 | 141 | 139 | 139 | 139 | 139 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 | 14.0 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | 983 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI Scout | 2.0 TDI Scout | 1.6 TDI | 1.6 TDI | 1.6 TDI | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | - | - | - | |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1984 | 1968 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 135/3500-4000 | 85/3250-4000 | 85/3250-4000 | 85/3250-4000 | |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 380/1750-3250 | 250/1750-3200 | 250/1750-3200 | 250/1750-3200 | |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 81,0 x 95,9 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | |
| Compression ratio | 11.65-12.2:1 | 15,8:1 | 16,2:1 | 16,2:1 | 16,2:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 5 gear manual | 7 gear automatic | 6 gear manual | |
| Drive specifications |
|
| - |
|
| |
| Top speed [km/h] | 218 | 215 | 198-201 | 198-200 | 194 | |
| Acceleration 0–100 km/h [s] | 7.2 | 7.7 | 10.2-10.4 | 10.3-10.5 | 11.9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 8.9 | 6.1 | 4.8-4.6 | 4.5-4.2 | 6.0-5.9 | |
| Out of town [l] | 5.9 | 5.0 | 3.9-3.8 | 3.9-3.8 | 4.8-4.7 | |
| Combined [l] | 7.0 | 5.4 | 4.2-4.1 | 4.1-3.9 | 5.2 | |
| CO2 emissions [g/km] | 159 | 142 | 111-106 | 107-103 | 137-135 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1566-1701 | 1608-1743 | 1327-1370 | 1342-1385 | 1485 | |
| Overall weight [kg] | 2136 | 2178 | 1897-1927 | 1912-1939 | 2048 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/2000 | 660-680/1500 | 660-690/1500 | 740/1700 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1740 | -/1740 | -/1740 | -/1740 | -/1740 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 631 | 631 | 631 | 631 | 631 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 55 | 50 | 50 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0,352-0,356 | 0,352-0,356 | 0.31 | 0.31 | - | |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | - | |
| Overall length [mm] | 4687 | 4687 | 4667 | 4667 | 4667 | |
| Overall width without/including mirrors [mm] | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | 1814/2017 | |
| Overall height [mm] | 1561 | 1561 | 1465 | 1465 | 1465 | |
| Wheelbase [mm] | 2677 | 2677 | 2686 | 2686 | 2686 | |
| Front wheel track [mm] | 1538 | 1538 | 1549 | 1549 | 1549 | |
| Rear wheel track [mm] | 1539 | 1539 | 1542 | 1542 | 1542 | |
| Forward overhang [mm] | - | - | 890 | 890 | 890 | |
| Rear overhang [mm] | - | - | 1091 | 1091 | 1091 | |
| Clearance [mm] | 171 | 171 | 141 | 141 | 139 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 16.6 | 16.6 | 14.0 | 14.0 | 14.0 | |
| Approach angle rear [°] | 14.5 | 14.5 | 12.4 | 12.4 | 12.4 | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 983 | 983 | 983 | 983 | 983 | |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | |
| Front elbow/shoulder width [mm] | 1454/- | 1454/- | 1454/- | 1454/- | 1454/- | |
| Rear elbow/shoulder width [mm] | 1449/- | 1449/- | 1449/- | 1449/- | 1449/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
