Škoda Kodiaq
Date of manufacture
2021 – to this day (Medium SUV)
Platform
Volkswagen Group MQB A2
Manufacturing locations
Kvasiny, Czechia
Changsha, People's Republic of China
Aurangabad, India
Designer
Jozef Kabaň
Tags
Compact SUV
Czech cars
The Skoda Kodiaq is a mid-size SUV that has been manufactured since 2021. The vehicle can be built in countries such as the Czech Republic, the People's Republic of China, and India and is based on the Volkswagen Group MQB A2 platform. The engine range includes both petrol and diesel engines, with the most powerful 2.0 TSI RS model producing 180 kW and reaching a top speed of 234 km/h. The best acceleration 0-100 km/h (6.5 s) is also offered by the 2.0 TSI RS version and the lowest fuel consumption 5.4 l/100 km by the 2.0 TDI model with CO2 emissions of 140 g/km. The vehicle's luggage compartment has a capacity of 835 l and was tested according to EURONCAP in 2017, where it achieved a rating of 5 out of 5 points.
Car body style
Technical data
Medium SUV
| 1.5 TSI | 1.5 TSI | 2.0 TSI | 2.0 TSI RS | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 180/5250-6500 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 370/1600-4300 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 9,6:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 203 | 202 | 213 [212 seven seats] | 234 [233 seven seats] | 202 [201 seven seats] | 193 |
| Acceleration 0–100 km/h [s] | 9,7 [9,9 seven seats] | 9,6 [9,9 seven seats] | 7,5 [7,6 seven seats] | 6.5 [6.6 seven seats] | 9,5 [9,7 seven seats] | 10,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,3-7,0 | 7,5-7,1 | 8,6-8,3 | 9.6-9.5 | 5,6-5,4 | 6,1-5,9 |
| Out of town [l] | 5,2-4,8 | 5,4-5,1 | 6,2-5,8 | 6.2-6.2 | 4,3-4,0 | 4,7-4,4 |
| Combined [l] | 6.0-5,6 | 6,2-5,8 | 7,1-6,7 | 7.5-7.4 | 4,7-4,5 | 5,2-5,0 |
| CO2 emissions [g/km] | 136-129 | 141-133 | 162-154 | 171-170 | 125-119 | 137-131 |
| Low speed [l] | 8.4 | 9.0 | 9.9 | 12.2 | 7.1 | 7.5 |
| Medium speed [l] | 6.5 | 6.9 | 7.8 | 8.7 | 5.2 | 5.7 |
| High speed [l] | 5.7 | 6.0 | 6.9 | 7.4 | 4.6 | 5.1 |
| Extra high speed [l] | 6.8 | 7.0 | 8.0 | 8.5 | 5.5 | 6.1 |
| Combined speed [l] | 6.6 | 6.9 | 7.9 | 8.7 | 5.4 | 5.9 |
| CO2 emissions [g/km] | 151 | 157 | 179 | 197 | 140 | 155 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1544-1759 [1587-1792 seven seats] | 1581-1796 [1624-1829 seven seats] | 1703-1918 [1746-1951 seven seats] | 1794-1938 [1826-1972 seven seats] | 1679-1894 [1722-1927 seven seats] | 1755-1970 [1798-2003 seven seats] |
| Overall weight [kg] | 2151 [2209-2360 seven seats] | 2189 [2246-2360 seven seats] | 2320 [2410-2484 seven seats] | 2390 [2507 seven seats] | 2294 [2349-2436 seven seats] | 2380 [2472-2514 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2200 [750/2000 seven seats] | 750/2300-2500 [750/2000 seven seats] | 750/2000 | 750/2300-2500 [750/2000 seven seats] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 835 | 835 | 835 | 835 | 835 | 835 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 60 | 60 | 58 | 60 |
| AdBlue tank volume [l] | - | - | - | - | 18 | 18 |
| Air resistance [Cd] | 0.312-0.348 | 0.312-0.348 | 0.322-0.358 | 0.350 | 0.313-0.349 | 0.318-0.353 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/45 R20 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/45 R20 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8,0J x 20 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8,0J x 20 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 |
| Overall length [mm] | 4697 | 4697 | 4697 | 4699 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 |
| Overall height [mm] | 1681 | 1681 | 1681 | 1686 | 1681 | 1681 |
| Wheelbase [mm] | 2790 | 2790 | 2790 | 2790 | 2790 | 2790 |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1579 | 1585 | 1585 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1569 | 1575 | 1575 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 1009 | 1009 | 1009 | 1011 | 1009 | 1009 |
| Clearance [mm] | 193 | 193 | 192 | - | 192 | 192 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.1 | 19.1 | 19.1 | 18.1 | 19.1 | 19.1 |
| Approach angle rear [°] | 15.8 | 15.8 | 15.8 | 15.7 | 15.8 | 15.8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Front elbow/shoulder width [mm] | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- |
| Rear elbow/shoulder width [mm] | 1510/- | 1510/- | 1510/- | 1510/- | 1510/- | 1510/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Third row elbow/shoulder width [mm] | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 147/3500-4200 | |||||
| Maximum torque [Nm/min-1] | 400/1750-3000 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 213 [212 seven seats] | |||||
| Acceleration 0–100 km/h [s] | 7,6 [7,8 seven seats] | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6,6-6,4 | |||||
| Out of town [l] | 4,9-4,7 | |||||
| Combined [l] | 5,6-5,3 | |||||
| CO2 emissions [g/km] | 146-140 | |||||
| Low speed [l] | 8.4 | |||||
| Medium speed [l] | 6.1 | |||||
| High speed [l] | 5.4 | |||||
| Extra high speed [l] | 6.5 | |||||
| Combined speed [l] | 6.3 | |||||
| CO2 emissions [g/km] | 166 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1746-1961 [1789-1994 seven seats] | |||||
| Overall weight [kg] | 2369 [2460-2500 seven seats] | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2300-2500 [750/2000 seven seats] | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 100 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 835 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2065 [- | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1165 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | -/1004 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | 18 | |||||
| Air resistance [Cd] | 0.320-0.355 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 215/65 R17 | |||||
| Tyre dimensions rear | 215/65 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.6/12.2 | |||||
| Overall length [mm] | 4697 | |||||
| Overall width without/including mirrors [mm] | 1882/2087 | |||||
| Overall height [mm] | 1681 | |||||
| Wheelbase [mm] | 2790 | |||||
| Front wheel track [mm] | 1585 | |||||
| Rear wheel track [mm] | 1575 | |||||
| Forward overhang [mm] | 897 | |||||
| Rear overhang [mm] | 1009 | |||||
| Clearance [mm] | 192 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 19.1 | |||||
| Approach angle rear [°] | 15.8 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1059 | |||||
| Headroom rear [mm] | 1014 | |||||
| Front elbow/shoulder width [mm] | 1527/- | |||||
| Rear elbow/shoulder width [mm] | 1510/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - | |||||
| Third row of seats, headroom [mm] | 905 | |||||
| Third row elbow/shoulder width [mm] | 1270/- |

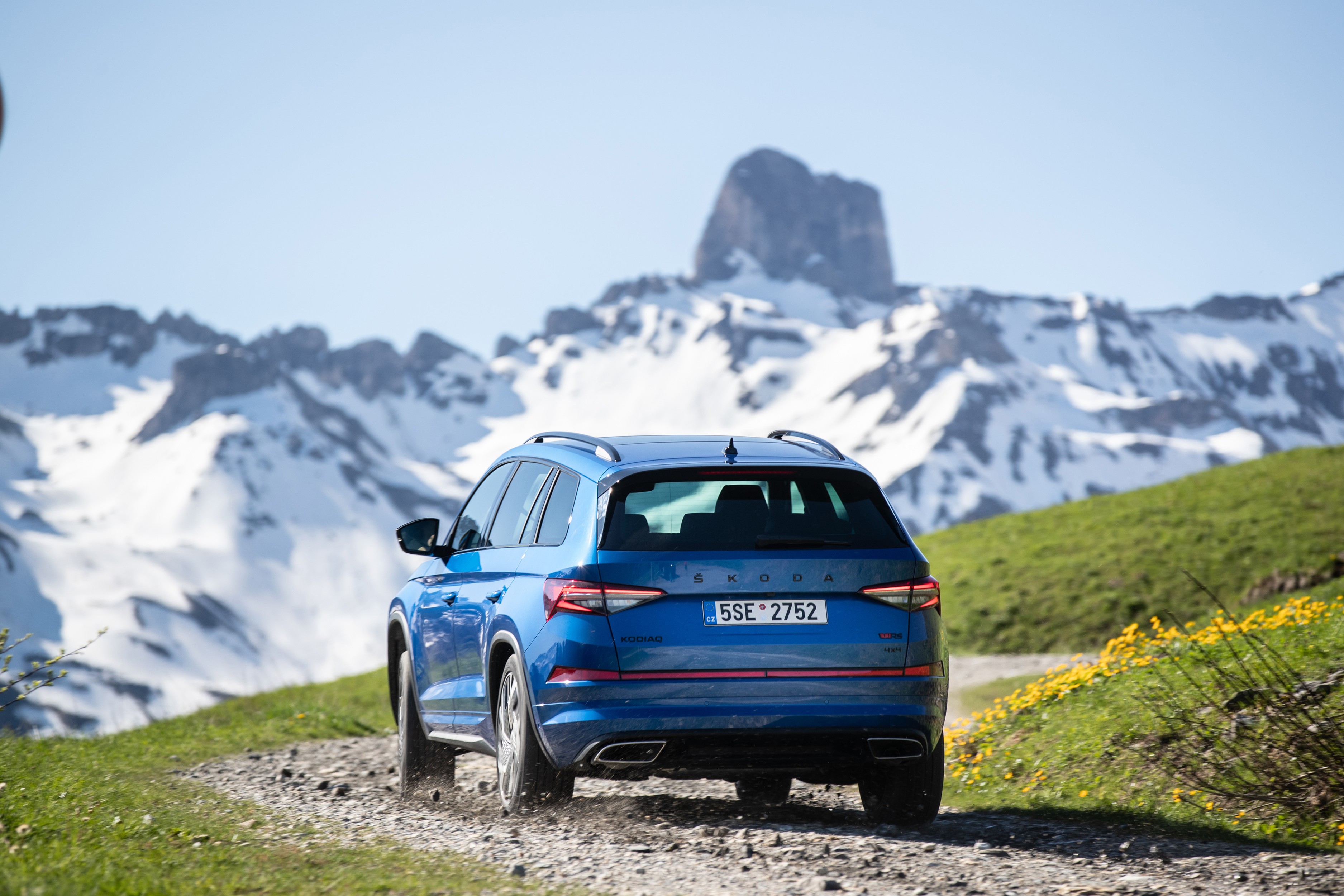

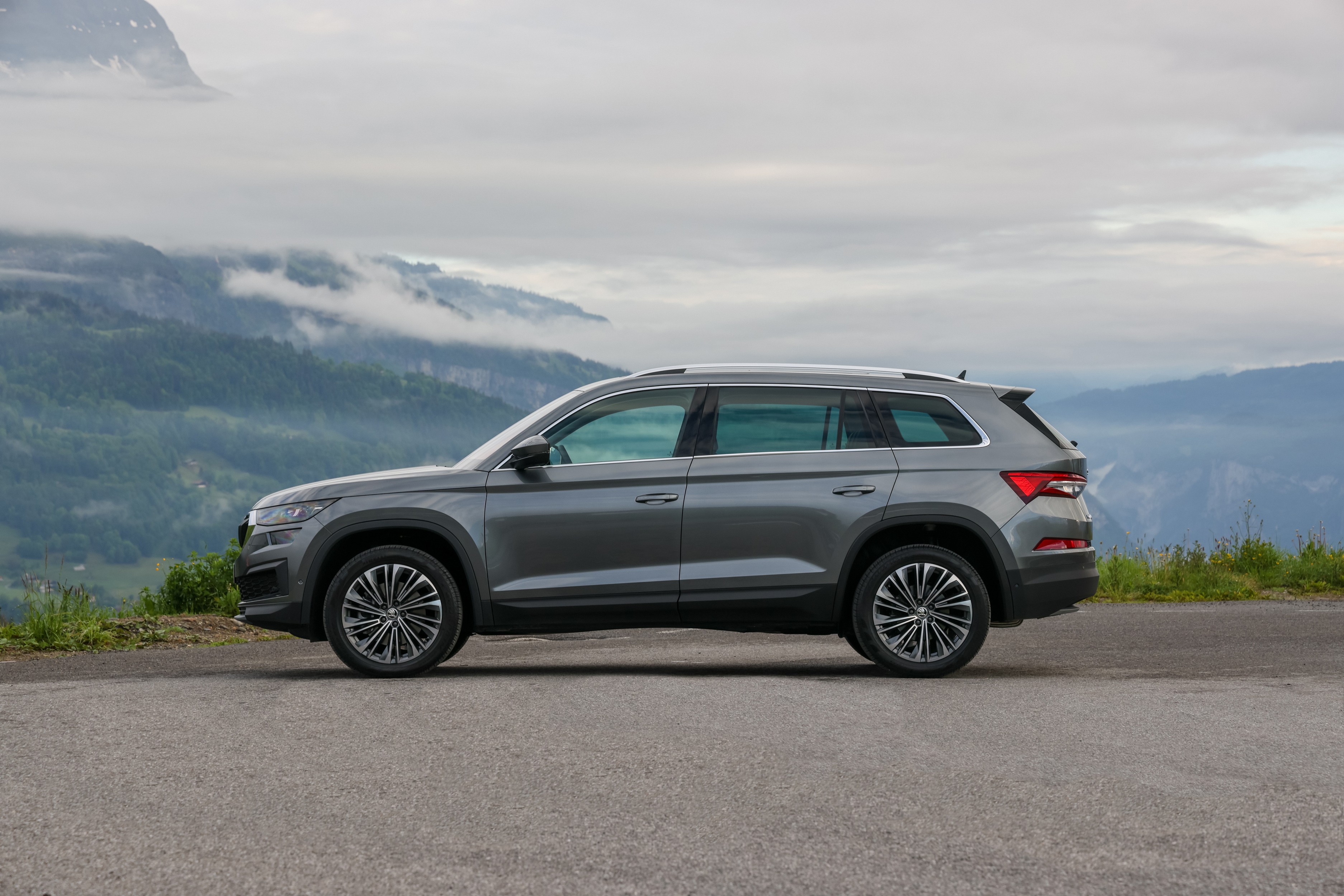

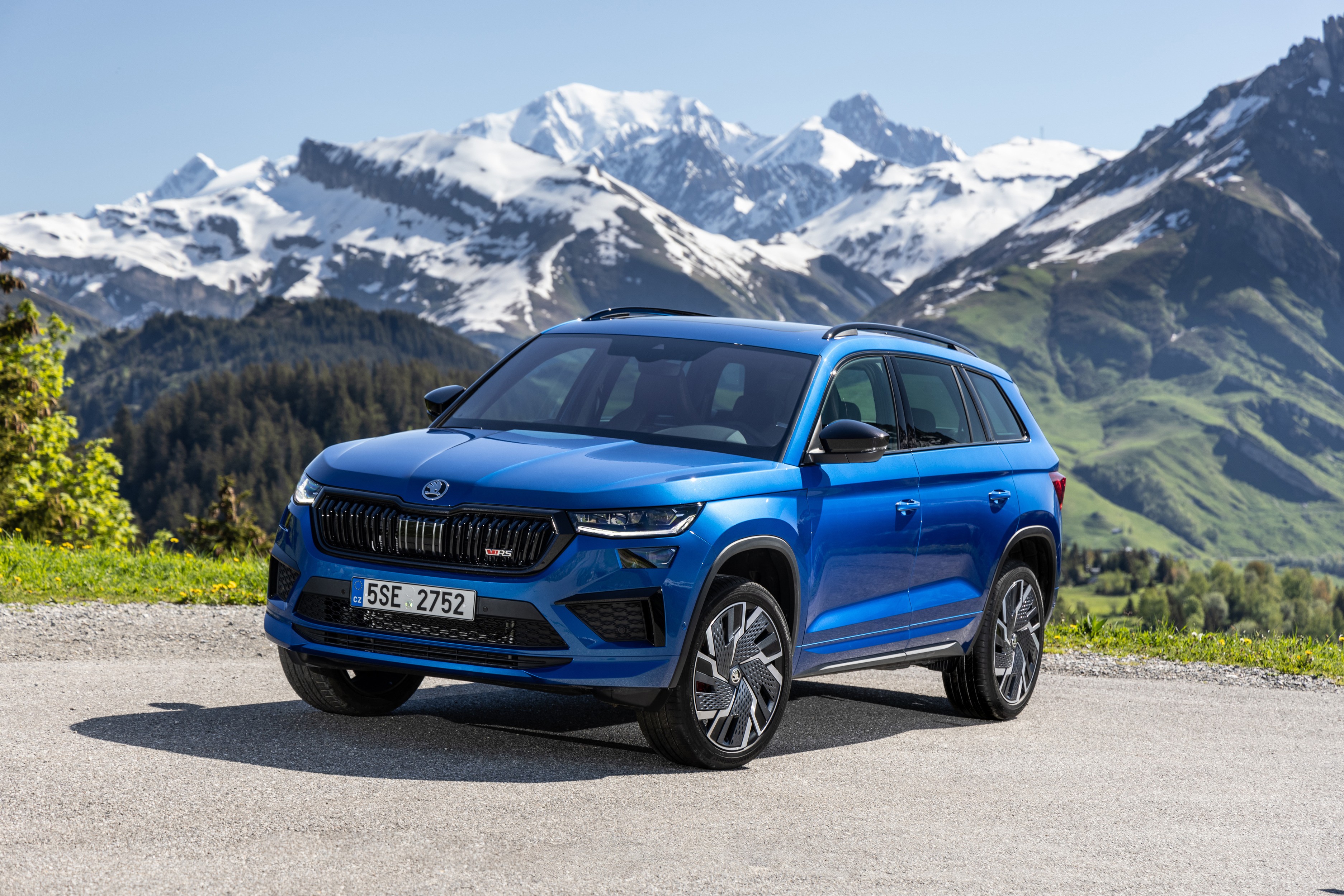

Gallery
