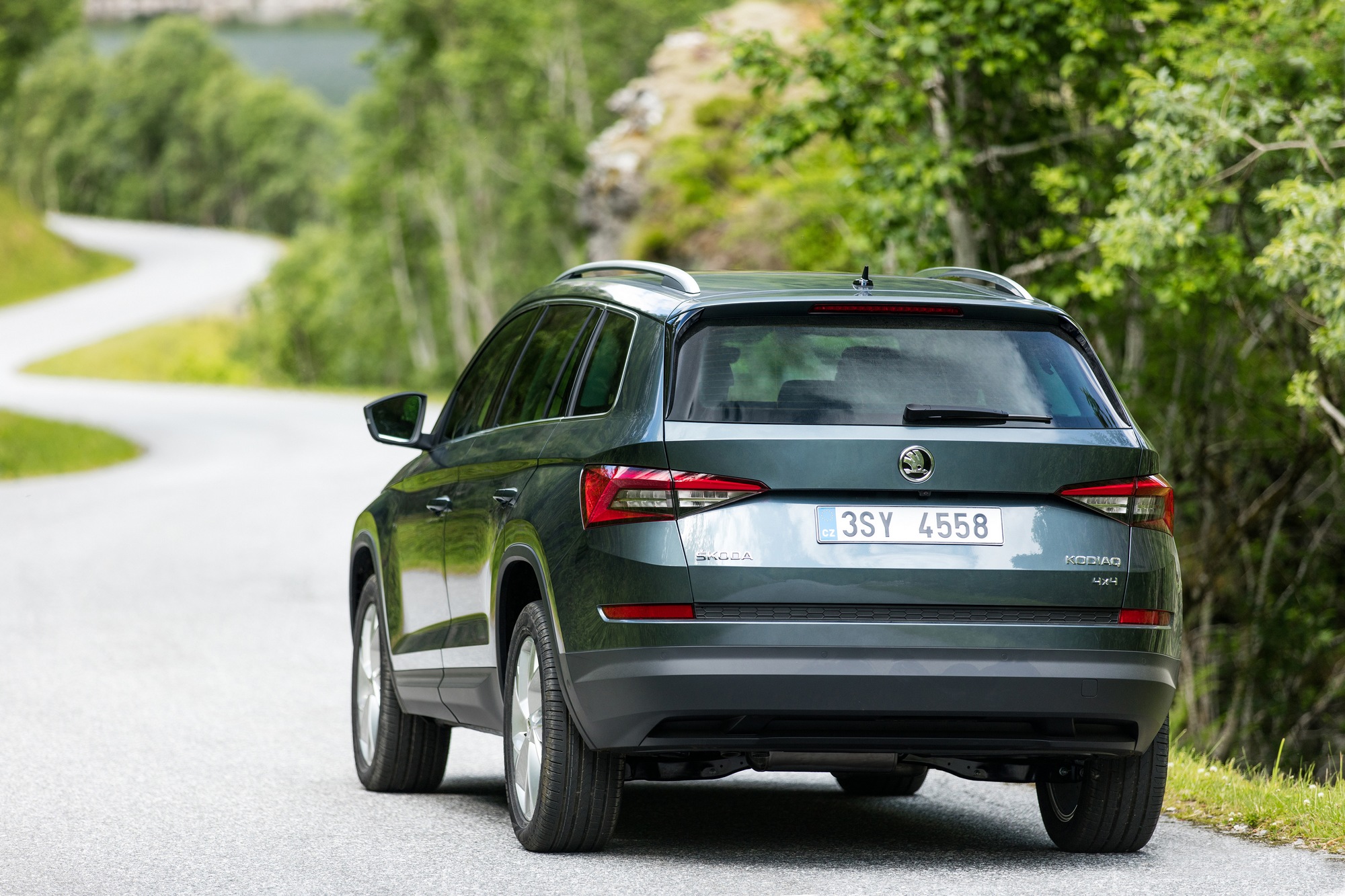

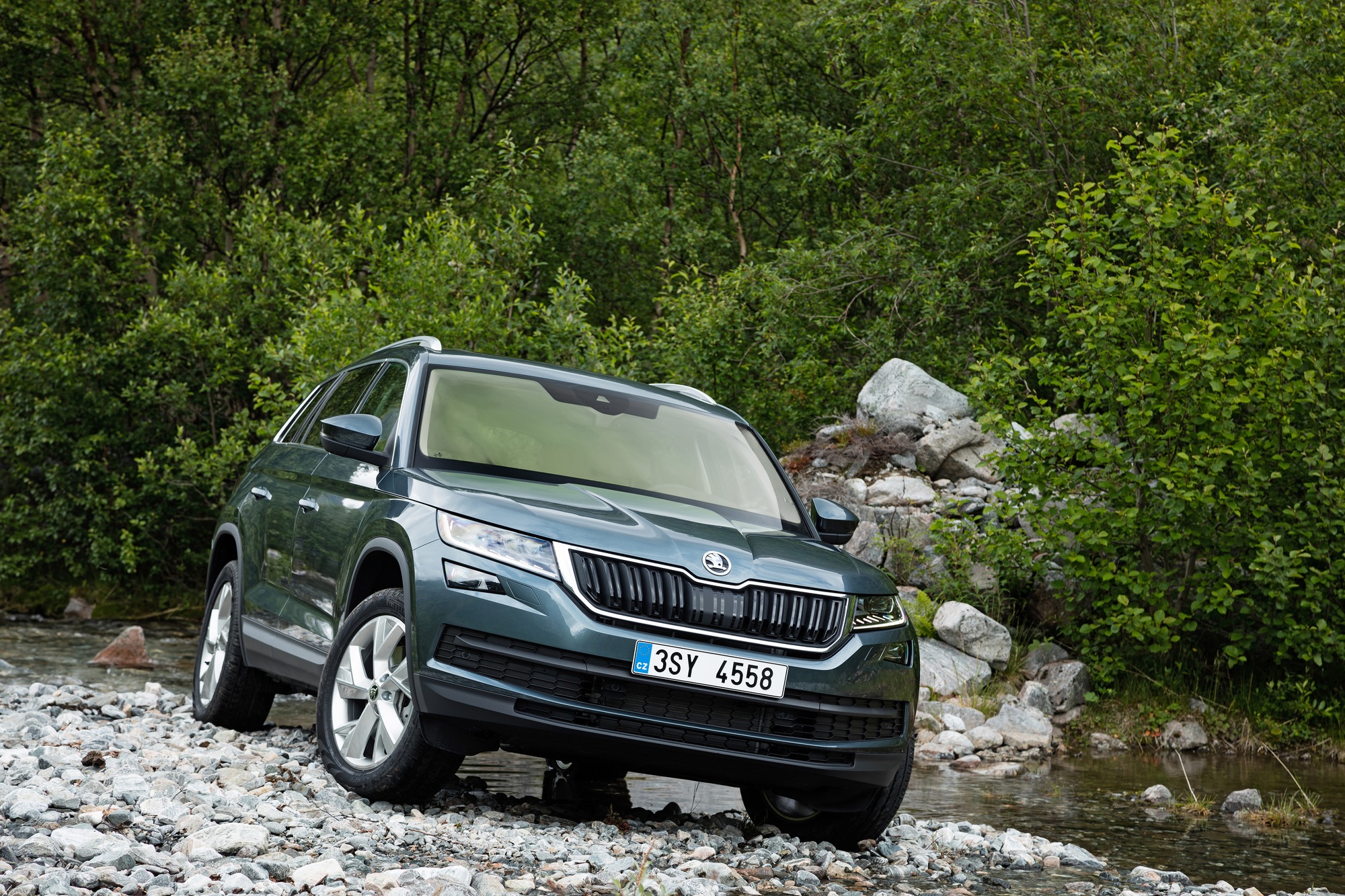

Škoda Kodiaq
Date of manufacture
10/2016 – 2021 (SUV)
Platform
Volkswagen Group MQB
Manufacturing locations
Kvasiny, Czechia
Changsha, People's Republic of China
Aurangabad, India
Designer
Jozef Kabaň
Tags
Compact SUV
Czech cars
The Skoda Kodiaq is an SUV that has been manufactured in three countries since 2016 - the Czech Republic, China and India. Built on the Volkswagen Group MQB platform, it offers a wide range of power units - from petrol to diesel engines. The most powerful model is the 2.0 TDI RS with 176 kW of power, the fastest model is the 2.0 TDI RS with a top speed of 221 km/h and the best acceleration from 0-100 km/h in 6.9 seconds. The most comfortable ride is with the economical 2.0 TDI engine with a combined fuel consumption of 5 l/100 km and CO2 emissions of 131 g/km. The boot has a capacity of 835 l and the model received a rating of 5 out of 5 in the EURONCAP safety test according to the 2017 methodology.
Car body style
SUV
Date of manufacture
10/2016 – 2021Internal designation
NS7
Technical data
SUV
| 1.4 TSI ACT | 1.4 TSI ACT | 1.4 TSI | 1.5 TSI | 1.5 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1498 | 1498 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 132/3900-6000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 320/1400-3940 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 11,65:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 198 [197 seven seats] | 197 [196 seven seats] | 194 [192 seven seats] | 200 | 198 | 207 [205 seven seats] |
| Acceleration 0–100 km/h [s] | 9.6 [9.7 seven seats] | 9.8 [9.9 seven seats] | 9.9 [10.1 seven seats] | 9.8 [9.9 seven seats] | 9.8 [9.9 seven seats] | 8.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.5 | 8.3 | 8.5 | 7.7-7.6 | 7.5-7.1 | 9.1 |
| Out of town [l] | 5.6 | 6.0 | 6.3 | 5.8-5.7 | 5.7-5.5 | 6.4 |
| Combined [l] | 6.3 | 6.9 | 7.1 | 6.5-6.4 | 6.3-6.1 | 7.4 |
| CO2 emissions [g/km] | 141 | 155 | 163 | 147-146 | 143-139 | 170 |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1546 [1589 seven seats] | 1610 [1653 seven seats] | 1625 [1668 seven seats] | 1549-1764 [1592-1797 seven seats] | 1582-1797 [1625-1830 seven seats] | 1695 [1738 seven seats] |
| Overall weight [kg] | 2121 [2299 seven seats] | 2210 [2368 seven seats] | 2225 [2383 seven seats] | 2174 [2226-2327 seven seats] | 2207 [2260-2360 seven seats] | 2295 [2453 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/2000 | 750/2000 | 750/1800 | 750/1800 | 750/2200 [750/2000 seven seats] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 835 | 835 | 835 | 835 | 835 | 835 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 60 | 60 | 58 | 58 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.332 | 0.332 | 0.332 | 0.337 | 0.337 | 0.33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 |
| Overall length [mm] | 4697 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1009 | 1009 | 1009 | 1009 | 1009 | 1009 |
| Clearance [mm] | 189 | 189 | 189 | 189 | 189 | 189 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 |
| Approach angle rear [°] | 15.6 | 15.6 | 15.6 | 15.6 | 15.6 | 15.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Front elbow/shoulder width [mm] | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- |
| Rear elbow/shoulder width [mm] | 1511/- | 1511/- | 1511/- | 1511/- | 1511/- | 1511/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Third row elbow/shoulder width [mm] | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- |
| 2.0 TSI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | - | - | - | from to 2020 | from 2020 to |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | 147/3500-4200 |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3250 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 11.65-12.2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 211 [210 seven seats] | 199 [198 seven seats] | 197 [195 seven seats] | 194 [192 seven seats] | 210 [209 seven seats] | 213 [212 seven seats] |
| Acceleration 0–100 km/h [s] | 7.5 [7.7 seven seats] | 9.8-10.1 [10.0-10.3 seven seats] | 9.5-9.7 [9.8-9.9 seven seats] | 9.8-10.0 [10.0-10.2 seven seats] | 8.4-8.9 [8.6-9.1 seven seats] | 7.6 [7.8 seven seats] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9-8.7 | 5.8-5.4 | 6.6-6.4 [6.6-6.5 seven seats] | 6.8-5.9 | 6.8-6.4 | 6.6-6.4 |
| Out of town [l] | 6.1-5.9 | 4.7-4.0 | 5.0-4.8 [5.0-4.9 seven seats] | 5.2-4.4 | 5.3-5.1 | 4.9-4.7 |
| Combined [l] | 7.1-6.9 | 5.0-4.5 | 5.4 [5.5 seven seats] | 5.7-5.0 | 5.8-5.6 | 5.5-5.3 |
| CO2 emissions [g/km] | 162-157 | 131-119 | 141 [144 seven seats] | 149-131 | 147-152 | 145-140 |
| Emission standard | Euro 6d-TEMP | EU6 - Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d | EU6 - Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1711-1926 [1754-1959 seven seats] | 1667-1901 [1710-1934 seven seats] | 1705-1940 [17481952 seven seats] | 1740-1977 [1783-1995 seven seats] | 1752-1990 [1795-2001 seven seats] | 1746-1961 [1789-1994 seven seats] |
| Overall weight [kg] | 2336 [2430-2489 seven seats] | 2247-2311 [2425-2464 seven seats] | 2305-2350 [2383-2478 seven seats] | 2340-2387 [2498-2512 seven seats] | 2352-2400 [2510-2529 seven seats] | 2369 [2460-2500 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 [750/2000 seven seats] | 750/2000 | 750/1950-2000 | 750/2300-2500 [750/1425-2000 seven seats] | 750/2300-2500 [750/1700-2000 seven seats] | 750/2300-2500 [750/2000 seven seats] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] | 100 [70 seven seats] |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 835 | 835 | 835 | 835 | 835 | 835 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- | -/2065 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 58 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | 18 | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | 0.335 | 0.323 | 0.331 | 0.331 | 0.334 | 0.333 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 | 11.6/12.2 |
| Overall length [mm] | 4697 | 4697 | 4697 | 4697 | 4697 | 4697 |
| Overall width without/including mirrors [mm] | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 | 1882/2087 |
| Overall height [mm] | 1675 | 1675 | 1675 | 1675 | 1675 | 1675 |
| Wheelbase [mm] | 2791 | 2791 | 2791 | 2791 | 2791 | 2791 |
| Front wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | 1009 | 1009 | 1009 | 1009 | 1009 | 1009 |
| Clearance [mm] | 189 | 189 | 189 | 189 | 189 | 189 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 |
| Approach angle rear [°] | 15.6 | 15.6 | 15.6 | 15.6 | 15.6 | 15.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Headroom rear [mm] | 1017 | 1017 | 1017 | 1017 | 1017 | 1017 |
| Front elbow/shoulder width [mm] | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- | 1527/- |
| Rear elbow/shoulder width [mm] | 1511/- | 1511/- | 1511/- | 1511/- | 1511/- | 1511/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Third row elbow/shoulder width [mm] | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- | 1270/- |
| 2.0 TDI RS | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 176/4000 | |||||
| Maximum torque [Nm/min-1] | 500/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 221 [220 seven seats] | |||||
| Acceleration 0–100 km/h [s] | 6.9 [7.0 seven seats] | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.4 | |||||
| Out of town [l] | 5.8 | |||||
| Combined [l] | 6.4 | |||||
| CO2 emissions [g/km] | 167 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | - | |||||
| Overall weight [kg] | - | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 100 [70 seven seats] | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 725 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1960 [- | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1165 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | -/1004 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | 18 | |||||
| Air resistance [Cd] | 0.338 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 235/45 R20 | |||||
| Tyre dimensions rear | 235/45 R20 | |||||
| Wheel size front | 8J x 20 ET41 | |||||
| Wheel size rear | 8J x 20 ET41 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.6/12.2 | |||||
| Overall length [mm] | 4699 | |||||
| Overall width without/including mirrors [mm] | 1882/2087 | |||||
| Overall height [mm] | 1686 | |||||
| Wheelbase [mm] | 2790 | |||||
| Front wheel track [mm] | 1579 | |||||
| Rear wheel track [mm] | 1567 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 197 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1059 | |||||
| Headroom rear [mm] | 1017 | |||||
| Front elbow/shoulder width [mm] | 1527/- | |||||
| Rear elbow/shoulder width [mm] | 1511/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - | |||||
| Third row of seats, headroom [mm] | 905 | |||||
| Third row elbow/shoulder width [mm] | 1270/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
