Seat Leon

Leon 5F 2012

Date of manufacture

2013 – 2016 (Three-door hatchback)

10/2012 – 2016 (Five-door hatchback)

2013 – 2016 (Estate)

Platform

Volkswagen Group MQB

Manufacturing locations

Martorell, Spain

Designer

Alejandro Mesonero-Romanos

Tags

C-segment

Spanish cars

The Seat Leon is a modern car manufactured since 2012. This model is available in three different body styles - as a three-door hatchback, five-door hatchback and estate. The vehicle is built on the Volkswagen Group MQB platform and offers petrol and diesel engines. The most powerful engine is the 2.0 TSI Cupra with a maximum power of 213 kW, which can reach speeds of up to 250 km/h with the best acceleration 0-100 km/h in 5.7 seconds. The most economical engine is the 1.6 TDI CR Ecomotive with a combined consumption of 3.3 l/100 km and CO2 emissions of 87 g/km. The volume of the luggage compartment varies depending on the type of body - for the three-door hatchback it is 380 l, for the five-door hatchback it is 380 l and for the estate 587 l. In 2012, the Seat Leon underwent EURONCAP safety tests, in which it earned a rating of 5 out of 5.

Car body style

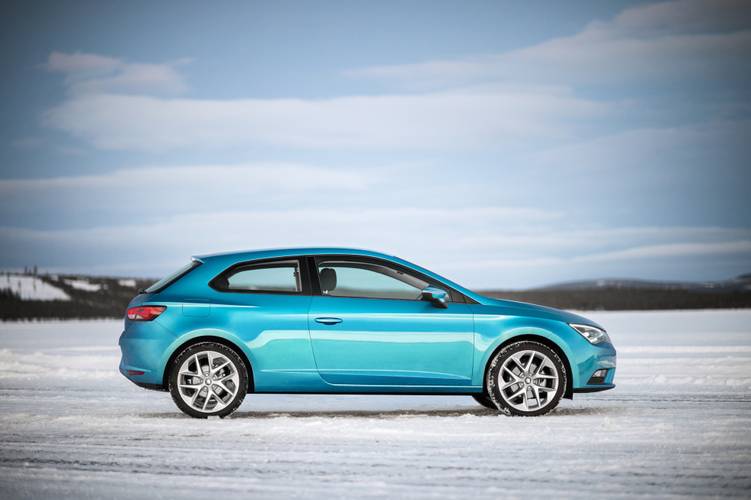

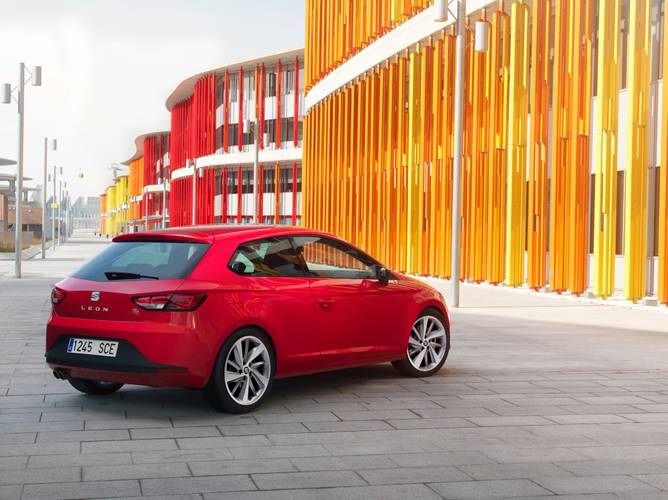

Three-door hatchback (SC)

Date of manufacture

2013 – 2016

Internal designation

5F

Engine size

Petrol

Diesel

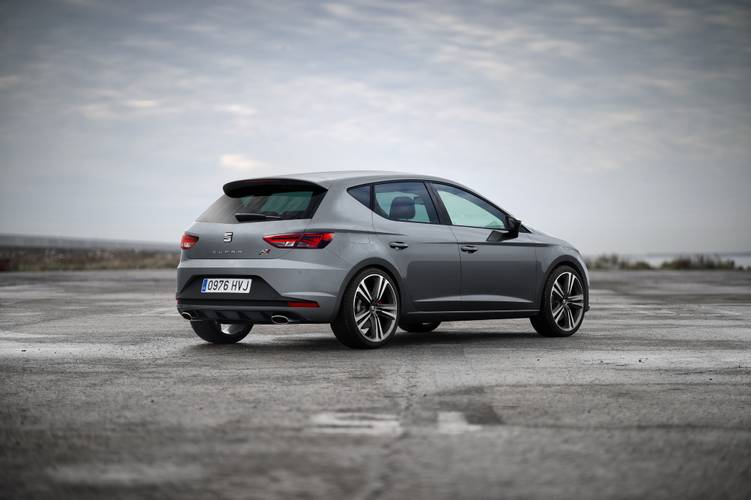

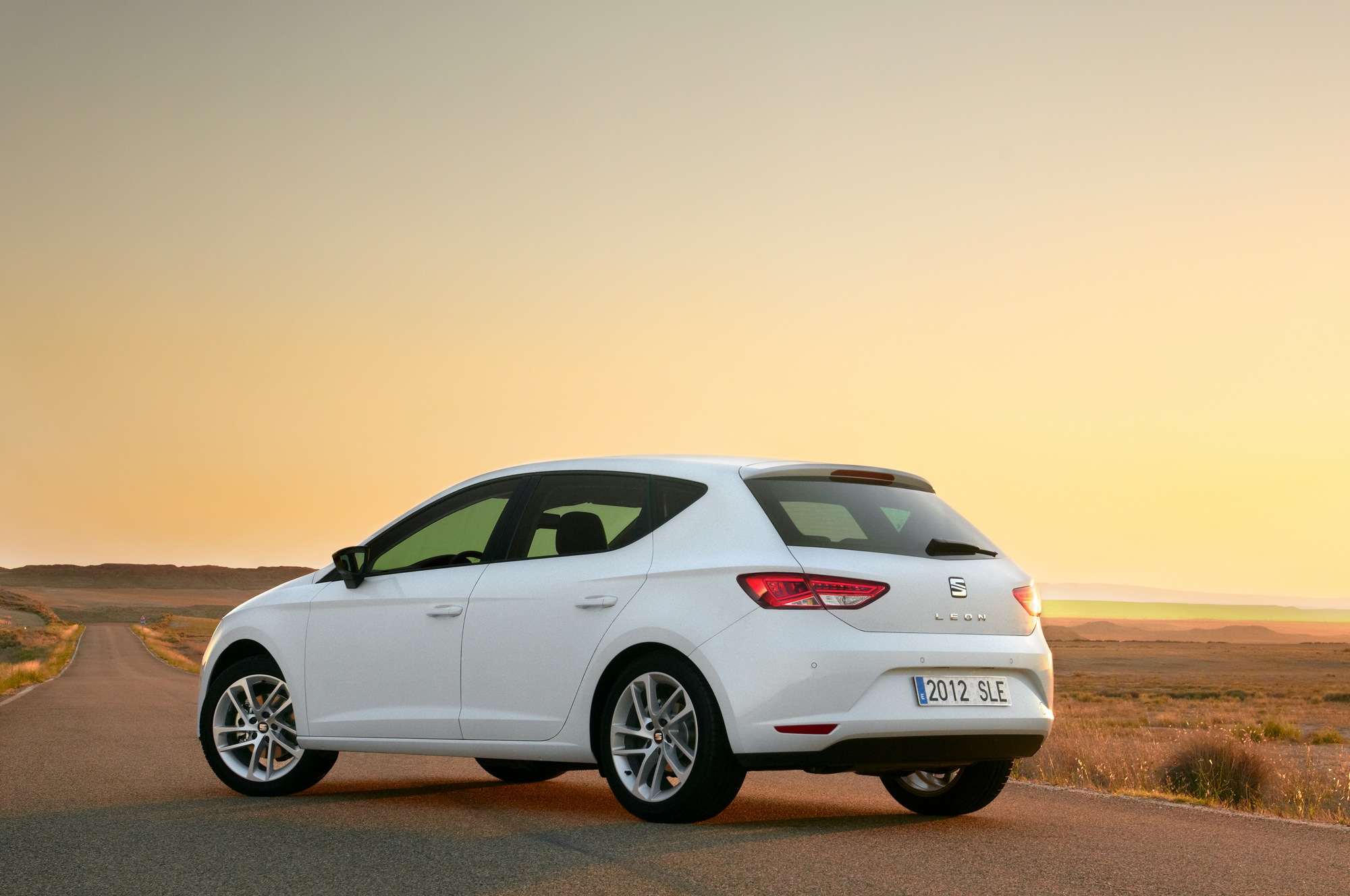

Five-door hatchback

Date of manufacture

10/2012 – 2016

Internal designation

5F

Engine size

Petrol

Diesel

1.6 TDI CR Ecomotive

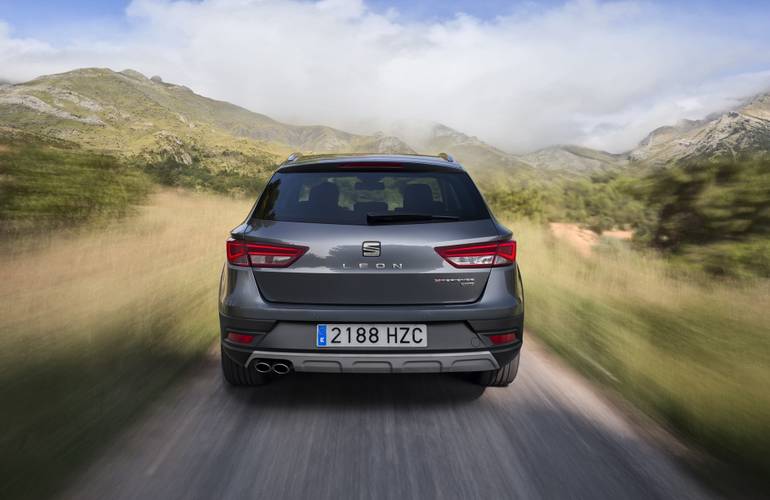

Estate (ST)

Date of manufacture

2013 – 2016

Internal designation

5F

Engine size

Petrol

1.4 TSI X-Perience

1.8 TSI X-Perience 4Drive

Diesel

1.6 TDI CR 4Drive

1.6 TDI CR Ecomotive

1.6 TDI CR 4Drive

2.0 TDI CR 4Drive

1.6 TDI CR X-Perience

1.6 TDI CR X-Perience 4Drive

2.0 TDI CR X-Perience 4Drive

2.0 TDI CR X-Perience 4Drive

Euro NCAP

Technical data

Three-door hatchback (SC)

	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1197	1197	1197	1197
Maximum output / speed [kW/min-1]	63/4300-5300	77/5000	77/5000	77/5000	81/4600-5600	81/4600-5600
Maximum torque [Nm/min-1]	160/1400-3500	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	7 gear automatic	5 gear manual	6 gear manual
Drive specifications	gearbox type MQ200‐5F	gearbox type MQ200‐5F	gearbox type MQ200‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200GA‐5F	gearbox type MQ200GA‐6F

Top speed [km/h]	178	191	191	191	191	194
Acceleration 0–100 km/h [s]	11.8	10.0	10.0	10.0	10.0	9.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4-6.5	6.5	6.0	5.9	6.5	6.1
Out of town [l]	4.4	4.4	4.3	4.4	4.4	4.2
Combined [l]	5.1-5.2	5.2	4.9	4.8	5.2	4.9
CO2 emissions [g/km]	119	119	114	112	119	114

Emission standard	EU5-EU6	EU5	EU5	EU5	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1168	1179	-	1189	1178	189
Overall weight [kg]	1700	1700	1700	1720	1710	1710
Maximum trailer weight unbraked/braked [kg]	580/1100	580/1300	580/1300	600/1300	580/1300	590/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1150	-/1150	-/1150	-/1150	-/1150	-/1150
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1530	1530	1530	1530	1530	1530
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/798	587/798	587/798	587/798	587/798	587/798
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	276 x 24	276 x 24	276 x 24	276 x 24	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-

Overall length [mm]	4228	4228	4228	4228	4228	4228
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-	1810/-	1810/-	1810/-
Overall height [mm]	1446	1446	1446	1446	1446	1446
Wheelbase [mm]	2601	2601	2601	2601	2601	2601
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	774	774	774	774	774	774
Clearance [mm]	144	144	144	144	144	144
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.8	13.8	13.8	13.8	13.8	13.8
Approach angle rear [°]	15.8	15.8	15.8	15.8	15.8	15.8
Transition angle [°]	10.1	10.1	10.1	10.1	10.1	10.1
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1032	1032	1032	1032	1032	1032
Headroom rear [mm]	952	952	952	952	952	952
Front elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Rear elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI ACT	1.4 TSI ACT
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1395	1395	1395	1395	1395
Maximum output / speed [kW/min-1]	81/4600-5600	90/5000	92/5000-6000	103/4500-6000	110/5000-6000	110/5000-6000
Maximum torque [Nm/min-1]	175/1400-4000	200/1400-4000	200/1400-4000	250/1500-3500	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	71,0 x 75,6	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	6 gear manual	6 gear manual	6 gear manual	7 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200‐6F	gearbox type MQ200GA‐6F	gearbox type MQ250‐6F	gearbox type MQ250‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)

Top speed [km/h]	194	202	202	211	215	215
Acceleration 0–100 km/h [s]	9.8	9.1	9.1	8.1	7.9	7.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.9	6.5	6.5	6.4	5.8	5.8
Out of town [l]	4.3	4.4	4.4	4.5	4.2	4.4
Combined [l]	4.9	5.2	5.2	5.2	4.7	4.9
CO2 emissions [g/km]	112	120	120	119	109	109

Emission standard	EU6	EU5	EU6	EU5	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1215	1204	1204	1211	1211	-
Overall weight [kg]	1730	1700	1710	1730	1740	-
Maximum trailer weight unbraked/braked [kg]	600/1300	600/1400	600/1400	600/1500	600/1500	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1150	-/1150	-/1150	-/1150	-/1150	-/1150
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1530	1530	1530	1530	1530	1530
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/798	587/798	587/798	587/798	587/798	587/798
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	225/45 R17 91W
Tyre dimensions rear	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	225/45 R17 91W
Wheel size front	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	7.5J x 17 ET51
Wheel size rear	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	7.5J x 17 ET51
Brake dimensions front	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-

Overall length [mm]	4228	4228	4228	4228	4228	4236
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-	1810/-	1810/-	1810/-
Overall height [mm]	1446	1446	1446	1446	1446	1431
Wheelbase [mm]	2601	2601	2601	2601	2601	2599
Front wheel track [mm]	1549	1549	1549	1549	1549	1534
Rear wheel track [mm]	1520	1520	1520	1520	1520	1508
Forward overhang [mm]	853	853	853	853	853	-
Rear overhang [mm]	774	774	774	774	774	-
Clearance [mm]	144	144	144	144	144	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.8	13.8	13.8	13.8	13.8	-
Approach angle rear [°]	15.8	15.8	15.8	15.8	15.8	-
Transition angle [°]	10.1	10.1	10.1	10.1	10.1	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1032	1032	1032	1032	1032	1032
Headroom rear [mm]	952	952	952	952	952	952
Front elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Rear elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.8 TSI	1.8 TSI	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra
Date of sale	-	-	from 2015 to 2015	from 2015 to 2015	from 2015 to 2015	from 2015 to 2015
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1798	1798	1984	1984	1984	1984
Maximum output / speed [kW/min-1]	132/4000-6200	132/4000-6200	195/5350-6600	195/5350-6600	206/5600-6500	206/5600-6500
Maximum torque [Nm/min-1]	250/1250-5000	250/1250-5000	350/1700-5300	350/1700-5300	350/1700-5600	350/1700-5600
Bore and stroke [mm x mm]	82,5 x 84,2	82,5 x 84,2	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	9,6:1	9,6:1	9,3:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	gearbox type MQ250‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)

Top speed [km/h]	226	224	250	250	250	250
Acceleration 0–100 km/h [s]	7.4	7.1	5.9	5.8	5.8	5.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.5	7.1	8.8	8.5	8.7	8.4
Out of town [l]	4.9	4.8	5.5	5.5	5.5	5.7
Combined [l]	5.9	5.7	6.7	6.6	6.6	6.6
CO2 emissions [g/km]	137	132	156	154	154	154

Emission standard	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1290	1307	1375	1395	1375	1395
Overall weight [kg]	1830	1850	1880	1890	1870	1890
Maximum trailer weight unbraked/braked [kg]	640/1500	650/1500	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1150	-/1150	-/1150	-/1150	-/1150	-/1150
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1530	1530	1530	1530	1530	1530
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/798	587/798	587/798	587/798	587/798	587/798
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Tyre dimensions rear	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Wheel size front	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Wheel size rear	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Brake dimensions front	312 x 25	312 x 25	340 x 30	340 x 30	340 x 30	340 x 30
Brake dimensions rear	272 x 10	272 x 10	310 x 22	310 x 22	310 x 22	310 x 22
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-

Overall length [mm]	4236	4236	4236	4236	4236	4236
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-	1810/-	1810/-	1810/-
Overall height [mm]	1431	1431	1423	1423	1423	1423
Wheelbase [mm]	2596	2596	2596	2596	2596	2596
Front wheel track [mm]	1534	1534	1536	1536	1536	1536
Rear wheel track [mm]	1508	1508	1510	1510	1510	1510
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1032	1032	1032	1032	1032	1032
Headroom rear [mm]	952	952	952	952	952	952
Front elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Rear elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TSI Cupra	2.0 TSI Cupra	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR
Date of sale	from 2015 to	from 2015 to	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1984	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	213/5900-6400	213/5900-6400	66/2750-4800	77/3000-4000	77/3000-4000	77/3000-4000
Maximum torque [Nm/min-1]	350/1700-5800	350/1700-5800	230/1500-2750	250/1500-2750	250/1500-2750	250/1500-2750
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	9,3:1	9,3:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	5 gear manual	5 gear manual	5 gear manual	7 gear automatic
Drive specifications	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ250‐5F	gearbox type MQ250‐5F	gearbox type MQ250‐5F	dual-clutch automatic gearbox DSG (type DQ200‐7F)

Top speed [km/h]	250	250	178	191	192	191
Acceleration 0–100 km/h [s]	5.8	5.7	12.4	10.6	10.6	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.8	8.5	5.2	5.2	4.6	4.6
Out of town [l]	5.5	5.5	3.5	3.5	3.3	3.5
Combined [l]	6.7	6.6	4.1	4.1	3.8	3.9
CO2 emissions [g/km]	156	154	108	108	99	102

Emission standard	EU6	EU6	EU5-EU6	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1375	1395	1261	1261	1266	1286
Overall weight [kg]	1870	1890	1780	1780	1770	1800
Maximum trailer weight unbraked/braked [kg]	-	-	630/1400	630/1500	-	640/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1150	-/1150	-/1150	-/1150	-/1150	-/1150
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1530	1530	1530	1530	1530	1530
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/798	587/798	587/798	587/798	587/798	587/798
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	multilink	multilink	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	225/40 R18 92Y	225/40 R18 92Y	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	225/40 R18 92Y	225/40 R18 92Y	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	7.5J x 18 ET51	7.5J x 18 ET51	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	7.5J x 18 ET51	7.5J x 18 ET51	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	340 x 30	340 x 30	276 x 24	276 x 24	276 x 24	276 x 24
Brake dimensions rear	310 x 22	310 x 22	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-	10.1/-

Overall length [mm]	4236	4236	4228	4228	4228	4228
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-	1810/-	1810/-	1810/-
Overall height [mm]	1423	1423	1446	1446	1446	1446
Wheelbase [mm]	2596	2596	2601	2601	2601	2601
Front wheel track [mm]	1536	1536	1549	1549	1549	1549
Rear wheel track [mm]	1510	1510	1520	1520	1520	1520
Forward overhang [mm]	-	-	853	853	853	853
Rear overhang [mm]	-	-	774	774	774	774
Clearance [mm]	-	-	144	144	144	144
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	13.8	13.8	13.8	13.8
Approach angle rear [°]	-	-	15.8	15.8	15.8	15.8
Transition angle [°]	-	-	10.1	10.1	10.1	10.1
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1032	1032	1032	1032	1032	1032
Headroom rear [mm]	952	952	952	952	952	952
Front elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Rear elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI CR	2.0 TDI CR	2.0 TDI CR
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1598	1968	1968
Maximum output / speed [kW/min-1]	81/3200-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	250/1500-3000	320/1750-3000	320/1750-3000
Bore and stroke [mm x mm]	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	Front	Front
Gearbox	5 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ250‐6F)

Top speed [km/h]	194	215	211
Acceleration 0–100 km/h [s]	10.4	8.3	8.3
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	4.6	5.0	5.2
Out of town [l]	3.7	3.6	4.0
Combined [l]	4.0	4.1	4.4
CO2 emissions [g/km]	102	106	117

Emission standard	EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1240	1285	1315
Overall weight [kg]	1780	1810	1830
Maximum trailer weight unbraked/braked [kg]	620/1500	640/1600	650/1600
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-	-	-

Boot volume [l]	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1150	-/1150	-/1150
Boot length [mm]	842	842	842
Boot length with rear seats folded [mm]	1530	1530	1530
Boot width between wheels/max [mm]	-	-	-
Boot height to headliner/ceiling [mm]	587/798	587/798	587/798
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	3	3	3
Number of seats	5	5	5
Fuel tank volume [l]	50	50	50
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W
Tyre dimensions rear	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W
Wheel size front	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51
Wheel size rear	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51
Brake dimensions front	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.1/-	10.1/-	10.1/-

Overall length [mm]	4228	4236	4236
Overall width without/including mirrors [mm]	1810/-	1810/-	1810/-
Overall height [mm]	1446	1431	1431
Wheelbase [mm]	2601	2599	2599
Front wheel track [mm]	1549	1534	1534
Rear wheel track [mm]	1520	1508	1508
Forward overhang [mm]	853	-	-
Rear overhang [mm]	774	-	-
Clearance [mm]	144	-	-
Wading depth [mm]	-	-	-
Approach angle front [°]	13.8	-	-
Approach angle rear [°]	15.8	-	-
Transition angle [°]	10.1	-	-
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	1032	1032	1032
Headroom rear [mm]	952	952	952
Front elbow/shoulder width [mm]	1452/-	1452/-	1452/-
Rear elbow/shoulder width [mm]	1447/-	1447/-	1447/-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Five-door hatchback

	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1197	1197	1197	1197
Maximum output / speed [kW/min-1]	63/4300-5300	77/5000	77/5000	77/5000	81/4600-5600	81/4600-5600
Maximum torque [Nm/min-1]	160/1400-3500	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	7 gear automatic	5 gear manual	6 gear manual
Drive specifications	gearbox type MQ200‐5F	gearbox type MQ200‐5F	gearbox type MQ200‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200GA‐5F	gearbox type MQ200GA‐6F

Top speed [km/h]	178	191	191	191	191	194
Acceleration 0–100 km/h [s]	11.9	10.1	10.1	10.0	10.2	9.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4-6.5	6.5	6.1	6.0	6.5	6.1
Out of town [l]	4.4	4.4	4.2	4.1	4.4	4.2
Combined [l]	5.1-5.2	5.2	4.9	4.8	5.2	4.9
CO2 emissions [g/km]	119	119	114	112	119	114

Emission standard	EU5-EU6	EU5	EU5	EU5	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1188	1195	1198	1222	1199	1213
Overall weight [kg]	1690	1710	1700	1730	1720	1740
Maximum trailer weight unbraked/braked [kg]	590/1100	590/1300	590/1300	610/1300	590/1300	600/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1210	-/1210	-/1210	-/1210	-/1210
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1563	1563	1563	1563	1563	1563
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808	587/808	587/808	587/808	587/808
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	276 x 24	276 x 24	276 x 24	276 x 24	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4263	4263	4263	4263	4263	4263
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1459	1459	1459	1459	1459	1459
Wheelbase [mm]	2636	2636	2636	2636	2636	2636
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	774	774	774	774	774	774
Clearance [mm]	144	144	144	144	144	144
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.8	13.8	13.8	13.8	13.8	13.8
Approach angle rear [°]	15.8	15.8	15.8	15.8	15.8	15.8
Transition angle [°]	9.8	9.8	9.8	9.8	9.8	9.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1042	1042	1042	1042	1042	1042
Headroom rear [mm]	970	970	970	970	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.4 TGI	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI ACT
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1395	1395	1395	1395	1395
Maximum output / speed [kW/min-1]	81/4600-5600	81/4800-6000	90/5000	92/5000-6000	103/4500-6000	110/5000-6000
Maximum torque [Nm/min-1]	175/1400-4000	200/1500-3500	200/1400-4000	200/1400-4000	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	71,0 x 75,6	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0
Compression ratio	10,5:1	10,0:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves combustion of petrol or CNG start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200GA‐6F	gearbox type MQ200‐6F	gearbox type MQ200GA‐6F	gearbox type MQ250‐6F	gearbox type MQ250‐6F

Top speed [km/h]	194	194	202	202	211	215
Acceleration 0–100 km/h [s]	9.9	10.9	9.3	9.3	8.2	8.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.9	6.9 [6.8 m³]	6.5	6.5	6.4	5.8
Out of town [l]	4.3	4.4 [4.4 m³]	4.4	4.4	4.5	4.2
Combined [l]	4.9	5.3 [5.3 m³]	5.2	5.2	5.2	4.7
CO2 emissions [g/km]	112	124 [94]	120	120	119	109

Emission standard	EU6	EU5-EU6	EU5	EU6	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1235	1359	1224	1224	1231	1231
Overall weight [kg]	1750	1840	1760	1740	1750	1730
Maximum trailer weight unbraked/braked [kg]	610/1300	670/1400	610/1400	610/1400	610/1500	610/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	275	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1105	-/1210	-/1210	-/1210	-/1210
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1563	1563	1563	1563	1563	1563
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808	587/808	587/808	587/808	587/808
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50 [15 kg]	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46
Brake dimensions front	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.1/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4263	4263	4263	4263	4263	4263
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1459	1459	1459	1459	1459	1459
Wheelbase [mm]	2636	2636	2636	2636	2636	2636
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	774	774	774	774	774	774
Clearance [mm]	144	144	144	144	144	144
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.8	13.8	13.8	13.8	13.8	13.8
Approach angle rear [°]	15.8	15.8	15.8	15.8	15.8	15.8
Transition angle [°]	9.8	9.8	9.8	9.8	9.8	9.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1042	1042	1042	1042	1042	1042
Headroom rear [mm]	970	970	970	970	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 TSI ACT	1.8 TSI	1.8 TSI	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra
Date of sale	-	-	-	from 2014 to 2015	from 2014 to 2015	from 2014 to 2015
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1395	1798	1798	1984	1984	1984
Maximum output / speed [kW/min-1]	110/5000-6000	132/4000-6200	132/4000-6200	195/5350-6600	195/5350-6600	206/5600-6500
Maximum torque [Nm/min-1]	250/1500-3500	250/1250-5000	250/1250-5000	350/1700-5300	350/1700-5300	350/1700-5600
Bore and stroke [mm x mm]	74,5 x 80,0	82,5 x 84,2	82,5 x 84,2	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,0:1	9,6:1	9,6:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ250‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F

Top speed [km/h]	215	226	224	250	250	250
Acceleration 0–100 km/h [s]	8.0	7.5	7.2	6.0	5.9	5.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.8	7.5	7.1	8.8	8.5	8.7
Out of town [l]	4.4	4.9	4.8	5.5	5.5	5.5
Combined [l]	4.9	5.9	5.7	6.7	6.6	6.6
CO2 emissions [g/km]	109	137	132	156	154	154

Emission standard	EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1251	1310	1327	1395	1421	1395
Overall weight [kg]	-	1830	1850	1890	1910	1890
Maximum trailer weight unbraked/braked [kg]	-	650/1500	660/1500	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1210	-/1210	-/1210	-/1210	-/1210
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1563	1563	1563	1563	1563	1563
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808	587/808	587/808	587/808	587/808
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Tyre dimensions rear	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Wheel size front	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Wheel size rear	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Brake dimensions front	288 x 25	312 x 25	312 x 25	340 x 30	340 x 30	340 x 30
Brake dimensions rear	253 x 10	272 x 10	272 x 10	310 x 22	310 x 22	310 x 22
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.7/-	10.7/-	10.7/-

Overall length [mm]	4271	4271	4271	4271	4271	4271
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1444	1444	1444	1435	1435	1435
Wheelbase [mm]	2634	2631	2631	2631	2631	2631
Front wheel track [mm]	1534	1534	1534	1536	1536	1536
Rear wheel track [mm]	1508	1508	1508	1510	1510	1510
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1042	1042	1042	1042	1042	1042
Headroom rear [mm]	970	970	970	970	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR
Date of sale	from 2014 to 2015	from 2015 to	from 2015 to	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1984	1984	1598	1598	1598
Maximum output / speed [kW/min-1]	206/5600-6500	213/5900-6400	213/5900-6400	66/2750-4800	77/3000-4000	77/3000-4000
Maximum torque [Nm/min-1]	350/1700-5600	350/1700-5800	350/1700-5800	230/1500-2750	250/1500-2750	250/1500-2750
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	9,3:1	9,3:1	9,3:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	5 gear manual	5 gear manual	5 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ250‐5F	gearbox type MQ250‐5F	gearbox type MQ250‐5F

Top speed [km/h]	250	250	250	178	191	192
Acceleration 0–100 km/h [s]	5.8	5.9	5.8	12.6	10.7	10.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.4	8.8	8.5	5.2	5.2	4.6
Out of town [l]	5.7	5.5	5.5	3.5	3.5	3.3
Combined [l]	6.6	6.7	6.6	4.1	4.1	3.8
CO2 emissions [g/km]	154	156	154	108	108	99

Emission standard	EU5-EU6	EU6	EU6	EU5-EU6	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1421	1395	1421	1281	1281	1286
Overall weight [kg]	1910	1890	1910	1800	1790	1820
Maximum trailer weight unbraked/braked [kg]	-	-	-	640/1400	640/1500	640/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1210	-/1210	-/1210	-/1210	-/1210
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1563	1563	1563	1563	1563	1563
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808	587/808	587/808	587/808	587/808
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	multilink	multilink	multilink	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	340 x 30	340 x 30	340 x 30	276 x 24	276 x 24	276 x 24
Brake dimensions rear	310 x 22	310 x 22	310 x 22	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.7/-	10.7/-	10.7/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4271	4271	4271	4263	4263	4263
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1435	1435	1435	1459	1459	1459
Wheelbase [mm]	2631	2631	2631	2636	2636	2636
Front wheel track [mm]	1536	1536	1536	1549	1549	1549
Rear wheel track [mm]	1510	1510	1510	1520	1520	1520
Forward overhang [mm]	-	-	-	853	853	853
Rear overhang [mm]	-	-	-	774	774	774
Clearance [mm]	-	-	-	144	144	144
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	13.8	13.8	13.8
Approach angle rear [°]	-	-	-	15.8	15.8	15.8
Transition angle [°]	-	-	-	9.8	9.8	9.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1042	1042	1042	1042	1042	1042
Headroom rear [mm]	970	970	970	970	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR Ecomotive	2.0 TDI CR	2.0 TDI CR
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1968	1968
Maximum output / speed [kW/min-1]	77/3000-4000	81/3200-4000	81/3200-4000	81/3200-4000	110/3500-4000	110/3500-4000
Maximum torque [Nm/min-1]	250/1500-2750	250/1500-3000	250/1500-3000	250/1500-3000	320/1750-3000	320/1750-3000
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	5 gear manual	7 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	-	dual-clutch automatic gearbox DSG	gearbox type MQ250‐6F	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ250‐6F)

Top speed [km/h]	191	194	194	199	215	211
Acceleration 0–100 km/h [s]	10.7	10.5	10.5	10.5	8.4	8.4
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	4.6	4.6	4.3	3.9	5.0	5.2
Out of town [l]	3.5	3.7	3.7	3.1	3.6	4.0
Combined [l]	3.9	4.0	3.9	3.3	4.1	4.4
CO2 emissions [g/km]	102	102	101	87	106	117

Emission standard	EU5	EU6	EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1306	1260	1280	1260	1305	1335
Overall weight [kg]	1810	1810	1830	1770	1810	1840
Maximum trailer weight unbraked/braked [kg]	650/1500	630/1500	640/1500	630/1000	650/1600	660/1600
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	380	380	380	380	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1210	-/1210	-/1210	-/1210	-/1210
Boot length [mm]	842	842	842	842	842	842
Boot length with rear seats folded [mm]	1563	1563	1563	1563	1563	1563
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808	587/808	587/808	587/808	587/808
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51
Brake dimensions front	276 x 24	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4263	4263	4263	4263	4271	4271
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1459	1459	1459	1459	1444	1444
Wheelbase [mm]	2636	2636	2636	2636	2634	2636
Front wheel track [mm]	1549	1549	1549	1549	1534	1534
Rear wheel track [mm]	1520	1520	1520	1520	1508	1508
Forward overhang [mm]	853	853	853	853	-	-
Rear overhang [mm]	774	774	774	774	-	-
Clearance [mm]	144	144	144	144	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.8	13.8	13.8	13.8	-	-
Approach angle rear [°]	15.8	15.8	15.8	15.8	-	-
Transition angle [°]	9.8	9.8	9.8	9.8	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1042	1042	1042	1042	1042	1042
Headroom rear [mm]	970	970	970	970	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI CR	2.0 TDI CR
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1968	1968
Maximum output / speed [kW/min-1]	135/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	380/1750-3000	380/1750-3000
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5
Compression ratio	15,8:1	15,8:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	Front
Gearbox	6 gear manual	6 gear automatic
Drive specifications	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ250‐6F)

Top speed [km/h]	228	226
Acceleration 0–100 km/h [s]	7.5	7.5
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	5.2	5.5
Out of town [l]	3.8	4.0
Combined [l]	4.2	4.5
CO2 emissions [g/km]	109	119

Emission standard	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	1370	1390
Overall weight [kg]	1850	1870
Maximum trailer weight unbraked/braked [kg]	680/1600	690/1600
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	-	-
Maximum load on roof/carrier [kg]	-	-

Boot volume [l]	380	380
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1210	-/1210
Boot length [mm]	842	842
Boot length with rear seats folded [mm]	1563	1563
Boot width between wheels/max [mm]	-	-
Boot height to headliner/ceiling [mm]	587/808	587/808
Loading edge height [mm]	-	-
Height of the open boot door [mm]	-	-
Boot opening height [mm]	-	-
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	5	5
Fuel tank volume [l]	50	50
AdBlue tank volume [l]	-	-
Air resistance [Cd]	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	multilink	multilink
Tyre dimensions front	225/45 R17 91W	225/45 R17 91W
Tyre dimensions rear	225/45 R17 91W	225/45 R17 91W
Wheel size front	7.5J x 17 ET51	7.5J x 17 ET51
Wheel size rear	7.5J x 17 ET51	7.5J x 17 ET51
Brake dimensions front	312 x 25	312 x 25
Brake dimensions rear	272 x 10	272 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-

Overall length [mm]	4271	4271
Overall width without/including mirrors [mm]	1816/1975	1816/1975
Overall height [mm]	1444	1444
Wheelbase [mm]	2636	2636
Front wheel track [mm]	1534	1534
Rear wheel track [mm]	1508	1508
Forward overhang [mm]	-	-
Rear overhang [mm]	-	-
Clearance [mm]	-	-
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	1042	1042
Headroom rear [mm]	970	970
Front elbow/shoulder width [mm]	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Estate (ST)

	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1197	1197	1197	1197
Maximum output / speed [kW/min-1]	63/4300-5300	77/5000	77/5000	77/5000	81/4600-5600	81/4600-5600
Maximum torque [Nm/min-1]	160/1400-3500	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000	175/1400-4000
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	6 gear manual	7 gear automatic	5 gear manual	6 gear manual
Drive specifications	gearbox type MQ200‐5F	gearbox type MQ200‐5F	gearbox type MQ200‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200GA‐5F	gearbox type MQ200GA‐6F

Top speed [km/h]	178	191	191	191	191	191
Acceleration 0–100 km/h [s]	12.1	10.4	10.3	10.3	10.4	10.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4-6.5	6.5	6.1	6.0	6.5	5.9
Out of town [l]	4.4	4.4	4.2	4.1	4.4	4.3
Combined [l]	5.1-5.2	5.2	4.9	4.8	5.2	4.9
CO2 emissions [g/km]	119	119	114	112	119	114

Emission standard	EU5-EU6	EU5	EU5	EU5	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1233	1244	1254	1280	1244	1254
Overall weight [kg]	1800	1810	1820	1850	1810	1820
Maximum trailer weight unbraked/braked [kg]	610/1100	-	-	-	620/1300	620/1300
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	587	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	276 x 24	276 x 24	276 x 24	276 x 24	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4535	4535	4535	4535	4535	4535
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1451	1451	1451	1451	1451	1451
Wheelbase [mm]	2636	2636	2636	2636	2636	2636
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	1046	1046	1046	1046	1046	1046
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.4 TGI	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI ACT
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1395	1395	1395	1395	1395
Maximum output / speed [kW/min-1]	81/4600-5600	81/4800-6000	90/5000	92/5000-6000	103/4500-6000	110/5000-6000
Maximum torque [Nm/min-1]	175/1400-4000	200/1500-3500	200/1400-4000	200/1400-4000	250/1500-3500	250/1500-3500
Bore and stroke [mm x mm]	71,0 x 75,6	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0	74,5 x 80,0
Compression ratio	10,5:1	10,0:1	10,5:1	10,5:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves combustion of petrol or CNG start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ200GA‐6F	gearbox type MQ200‐6F	gearbox type MQ200GA‐6F	gearbox type MQ250‐6F	gearbox type MQ250‐6F

Top speed [km/h]	191	194	202	202	211	215
Acceleration 0–100 km/h [s]	10.3	10.9	9.6	9.6	8.4	8.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.7	6.9 [6.8 m³]	-	6.8	-	5.9
Out of town [l]	4.5	4.4 [4.4 m³]	-	4.4	-	4.3
Combined [l]	4.9	5.3 [5.3 m³]	5.3	5.3	5.3	4.8
CO2 emissions [g/km]	115	124 [94]	123	123	121	112

Emission standard	EU6	EU5-EU6	EU5	EU6	EU5	EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1280	1359	1269	1269	1275	1277
Overall weight [kg]	1850	1840	1840	1840	1740	1850
Maximum trailer weight unbraked/braked [kg]	640/1300	670/1400	-	630/1400	-	630/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	482	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1365	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50 [15 kg]	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V	205/55 R16 91V
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46	6.5J x 16 ET46
Brake dimensions front	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.1/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4535	4535	4535	4535	4535	4535
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1451	1451	1451	1451	1451	1451
Wheelbase [mm]	2636	2636	2636	2636	2636	2636
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	1046	1046	1046	1046	1046	1046
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 TSI ACT	1.8 TSI	1.8 TSI	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra
Date of sale	-	-	-	from 2015 to 2015	from 2015 to 2015	from 2015 to 2015
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1395	1798	1798	1984	1984	1984
Maximum output / speed [kW/min-1]	110/5000-6000	132/4000-6200	132/4000-6200	195/5350-6600	195/5350-6600	206/5600-6500
Maximum torque [Nm/min-1]	250/1500-3500	250/1250-5000	250/1250-5000	350/1700-5300	350/1700-5300	350/1700-5600
Bore and stroke [mm x mm]	74,5 x 80,0	82,5 x 84,2	82,5 x 84,2	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,0:1	9,6:1	9,6:1	9,3:1	9,3:1	9,3:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged technology active cylinder management (shuts down two cylinders if necessary) variable timing of intake and exhaust valves start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ250‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F

Top speed [km/h]	215	226	224	250	250	250
Acceleration 0–100 km/h [s]	8.2	7.8	7.7	6.2	6.1	6.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.8	7.5	7.1	8.9	8.5	-
Out of town [l]	4.4	4.9	4.8	5.6	5.5	-
Combined [l]	4.9	5.9	5.7	6.8	6.6	-
CO2 emissions [g/km]	116	137	132	158	154	154

Emission standard	EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1297	1355	1372	1440	1466	1440
Overall weight [kg]	-	1870	1890	1970	2000	1920
Maximum trailer weight unbraked/braked [kg]	-	670/1500	680/1500	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	587	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Tyre dimensions rear	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y
Wheel size front	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Wheel size rear	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51
Brake dimensions front	288 x 25	312 x 25	312 x 25	340 x 30	340 x 30	340 x 30
Brake dimensions rear	253 x 10	272 x 10	272 x 10	310 x 22	310 x 22	310 x 22
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.7/-	10.7/-	10.7/-

Overall length [mm]	4543	4543	4543	4543	4543	4543
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1436	1436	1436	1431	1431	1431
Wheelbase [mm]	2631	2631	2631	2631	2631	2631
Front wheel track [mm]	1534	1534	1534	1536	1536	1536
Rear wheel track [mm]	1508	1508	1508	1510	1510	1510
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	1046	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TSI Cupra	2.0 TSI Cupra	2.0 TSI Cupra	1.4 TSI X-Perience	1.8 TSI X-Perience 4Drive	1.6 TDI CR
Date of sale	from 2015 to 2015	from 2015 to	from 2015 to	from 2014 to	from 2014 to	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1984	1984	1395	1798	1598
Maximum output / speed [kW/min-1]	206/5600-6500	213/5900-6400	213/5900-6400	92/5000-6000	132/4000-6200	66/2750-4800
Maximum torque [Nm/min-1]	350/1700-5600	350/1700-5800	350/1700-5800	200/1400-4000	280/1350-4500	230/1500-2750
Bore and stroke [mm x mm]	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	74,5 x 80,0	82,5 x 84,2	79,5 x 80,5
Compression ratio	9,3:1	9,3:1	9,3:1	10,5:1	9,6:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake valves start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	Front	4x4	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	5 gear manual
Drive specifications	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ200‐7F)	-	automatically controlled all-wheel drive 4Drive dual-clutch automatic gearbox DSG (type DQ250-6A)	gearbox type MQ250‐5F

Top speed [km/h]	250	250	250	200	221	178
Acceleration 0–100 km/h [s]	6.0	6.0	5.9	9.7	7.2	13.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	-	8.9	8.5	6.8	8.0	5.2
Out of town [l]	-	5.6	5.5	4.4	5.6	3.5
Combined [l]	-	6.8	6.6	5.3	6.5	4.1
CO2 emissions [g/km]	154	158	154	123	152	108

Emission standard	EU5-EU6	EU6	EU6	EU6	EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1466	1440	1466	1263	1486	1326
Overall weight [kg]	1950	1970	2000	1820	2040	1860
Maximum trailer weight unbraked/braked [kg]	-	-	-	630/1400	740/1500	660/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	587	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	50	50	55	55	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	multilink	multilink	multilink	twist beam axle with trailing arms and torsion bar	multilink	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	205/55 R17 95XLV	205/55 R17 95XLV	195/65 R15 91H
Tyre dimensions rear	225/40 R18 92Y	225/40 R18 92Y	225/40 R18 92Y	205/55 R17 95XLV	205/55 R17 95XLV	195/65 R15 91H
Wheel size front	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.0J x 17 ET42	7.0J x 17 ET42	6.0J x 15 ET43
Wheel size rear	7.5J x 18 ET51	7.5J x 18 ET51	7.5J x 18 ET51	7.0J x 17 ET42	7.0J x 17 ET42	6.0J x 15 ET43
Brake dimensions front	340 x 30	340 x 30	340 x 30	288 x 25	312 x 25	276 x 24
Brake dimensions rear	310 x 22	310 x 22	310 x 22	253 x 10	272 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.7/-	10.7/-	10.7/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4543	4543	4543	4543	4543	4535
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1431	1431	1431	1478	1478	1451
Wheelbase [mm]	2631	2631	2631	2630	2630	2636
Front wheel track [mm]	1536	1536	1536	1547	1547	1549
Rear wheel track [mm]	1510	1510	1510	1509	1509	1520
Forward overhang [mm]	-	-	-	853	853	853
Rear overhang [mm]	-	-	-	1060	1060	1046
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI CR	1.6 TDI CR 4Drive	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR	1.6 TDI CR Ecomotive
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	77/3000-4000	77/3000-4000	77/3000-4000	81/3200-4000	81/3200-4000	81/3200-4000
Maximum torque [Nm/min-1]	250/1500-2750	250/1500-2750	250/1500-2750	250/1500-3000	250/1500-3000	250/1500-3000
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	4x4	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	gearbox type MQ250‐5F	automatically controlled all-wheel drive 4Drive gearbox type MQ350‐5A	dual-clutch automatic gearbox DSG (type DQ200‐7F)	gearbox type MQ250‐6F	dual-clutch automatic gearbox DSG	gearbox type MQ250‐6F

Top speed [km/h]	191	187	191	194	194	199
Acceleration 0–100 km/h [s]	11.1	12.0	11.0	10.9	10.9	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.2	5.5	4.6	4.7	4.4	3.9
Out of town [l]	3.5	4.0	3.5	3.8	3.8	3.1
Combined [l]	4.1	4.5	3.9	4.1	4.0	3.3
CO2 emissions [g/km]	108	119	102	105	104	87

Emission standard	EU5	EU5	EU5	EU6	EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1326	1455	1351	1305	1326	1280
Overall weight [kg]	1860	1980	1890	1870	1890	1790
Maximum trailer weight unbraked/braked [kg]	660/1500	720/1500	670/1500	650/1500	660/1500	640/1000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	587	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	50	55	50	50	50	50
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Wheel size rear	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43	6.0J x 15 ET43
Brake dimensions front	276 x 24	276 x 24	276 x 24	288 x 25	288 x 25	288 x 25
Brake dimensions rear	253 x 10	272 x 10	253 x 10	253 x 10	253 x 10	253 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4535	4535	4535	4535	4535	4535
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1451	1451	1451	1451	1451	1451
Wheelbase [mm]	2636	2636	2636	2636	2636	2636
Front wheel track [mm]	1549	1549	1549	1549	1549	1549
Rear wheel track [mm]	1520	1520	1520	1520	1520	1520
Forward overhang [mm]	853	853	853	853	853	853
Rear overhang [mm]	1046	1046	1046	1046	1046	1046
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI CR 4Drive	2.0 TDI CR	2.0 TDI CR 4Drive	2.0 TDI CR	2.0 TDI CR	2.0 TDI CR
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	81/3200-4000	110/3500-4000	110/3500-4000	110/3500-4000	135/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	250/1500-3000	320/1750-3000	320/1750-3000	320/1750-3000	380/1750-3000	380/1750-3000
Bore and stroke [mm x mm]	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	15,8:1	15,8:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	4x4	Front	4x4	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4Drive	gearbox type MQ350‐6F	automatically controlled all-wheel drive 4Drive gearbox type MQ350‐6A	dual-clutch automatic gearbox DSG (type DQ250‐6F)	gearbox type MQ350‐6F	dual-clutch automatic gearbox DSG (type DQ250‐6F)

Top speed [km/h]	190	215	211	211	228	226
Acceleration 0–100 km/h [s]	12.0	8.6	8.7	8.6	7.8	7.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.6	5.0	5.8	5.4	5.4	5.7
Out of town [l]	4.2	3.6	4.2	4.1	3.7	4.1
Combined [l]	4.7	4.1	4.8	4.5	4.3	4.7
CO2 emissions [g/km]	123	106	124	119	112	122

Emission standard	EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1455	1350	1474	1380	1415	1435
Overall weight [kg]	2010	1920	2040	1950	1980	1990
Maximum trailer weight unbraked/braked [kg]	720/1700	670/1600	730/1700	690/1600	700/1600	710/1600
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-	-

Boot volume [l]	587	587	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	50	55	50	50	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	multilink	multilink
Tyre dimensions front	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W
Tyre dimensions rear	195/65 R15 91H	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W	225/45 R17 91W
Wheel size front	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51
Wheel size rear	6.0J x 15 ET43	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51	7.5J x 17 ET51
Brake dimensions front	288 x 25	288 x 25	288 x 25	288 x 25	312 x 25	312 x 25
Brake dimensions rear	253 x 10	253 x 10	272 x 10	253 x 10	272 x 10	272 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4535	4535	4535	4535	4543	4543
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1451	1451	1451	1451	1436	1436
Wheelbase [mm]	2636	2634	2634	2636	2636	2636
Front wheel track [mm]	1549	1534	1534	1534	1534	1534
Rear wheel track [mm]	1520	1508	1508	1508	1508	1508
Forward overhang [mm]	853	-	-	-	-	-
Rear overhang [mm]	1046	-	-	1046	1046	-
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI CR X-Perience	1.6 TDI CR X-Perience 4Drive	2.0 TDI CR X-Perience 4Drive	2.0 TDI CR X-Perience 4Drive
Date of sale	from 2014 to	from 2014 to	from 2014 to	from 2014 to
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1968	1968
Maximum output / speed [kW/min-1]	81/3200-4000	81/3200-4000	110/3500-4000	135/3500-4000
Maximum torque [Nm/min-1]	250/1500-3000	250/1500-3000	320/1750-3000	380/1750-3000
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	15,8:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system brake energy recuperation

Drive axle	Front	4x4	4x4	4x4
Gearbox	5 gear manual	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	-	automatically controlled all-wheel drive 4Drive gearbox type MQ350‐6A	automatically controlled all-wheel drive 4Drive gearbox type MQ350‐6A	automatically controlled all-wheel drive 4Drive dual-clutch automatic gearbox DSG (type DQ250-6A)

Top speed [km/h]	194	187	208	224
Acceleration 0–100 km/h [s]	10.9	11.6	8.7	7.1
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	4.4	5.7	5.7	6.1
Out of town [l]	3.8	4.3	4.3	5.0
Combined [l]	4.0	4.8	4.8	5.4
CO2 emissions [g/km]	104	124	125	122

Emission standard	EU6	EU6	EU6	EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1326	1472	1491	1529
Overall weight [kg]	1890	2030	2050	2080
Maximum trailer weight unbraked/braked [kg]	660/1500	730/1700	740/2000	750/2000
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	587	587	587	587
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1470	-/1470	-/1470	-/1470
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	55	55	55	55
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers	MacPherson, coil springs, hydraulic shock absorbers
Rear suspension	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	twist beam axle with trailing arms and torsion bar	multilink
Tyre dimensions front	205/55 R17 95XLV	205/55 R17 95XLV	205/55 R17 95XLV	205/55 R17 95XLV
Tyre dimensions rear	205/55 R17 95XLV	205/55 R17 95XLV	205/55 R17 95XLV	205/55 R17 95XLV
Wheel size front	7.0J x 17 ET42	7.0J x 17 ET42	7.0J x 17 ET42	7.0J x 17 ET42
Wheel size rear	7.0J x 17 ET42	7.0J x 17 ET42	7.0J x 17 ET42	7.0J x 17 ET42
Brake dimensions front	288 x 25	288 x 25	288 x 25	312 x 25
Brake dimensions rear	253 x 10	253 x 10	272 x 10	272 x 10
Steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering	Rack & pinion with electro-mechanical power steering
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.2/-	10.2/-	10.2/-	10.2/-

Overall length [mm]	4543	4543	4543	4543
Overall width without/including mirrors [mm]	1816/1975	1816/1975	1816/1975	1816/1975
Overall height [mm]	1478	1478	1478	1478
Wheelbase [mm]	2630	2630	2630	2630
Front wheel track [mm]	1547	1547	1547	1547
Rear wheel track [mm]	1509	1509	1509	1509
Forward overhang [mm]	853	853	853	853
Rear overhang [mm]	1060	1060	1060	1060
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	1041	1041	1041	1041
Headroom rear [mm]	972	972	972	972
Front elbow/shoulder width [mm]	1436/-	1436/-	1436/-	1436/-
Rear elbow/shoulder width [mm]	1435/-	1435/-	1435/-	1435/-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Seat Leon 5F 2013 interior

Seat Leon 5F 2014 rear seats

Seat Leon 5F ST FR 2013 wagon

Seat Leon 5F ST FR 2014 wagon

Seat Leon 5F ST FR 2015 wagon

Seat Leon 5F ST 2013 wagon

Seat Leon 5F ST 2014 wagon

Seat Leon 5F ST 2015 wagon

Seat Leon 5F ST 2013 wagon

Seat Leon 5F ST 2014 wagon

Seat Leon 5F ST 2013 boot

Seat Leon 5F ST 2014 rear folding seats

Seat Leon 5F Cupra ST 2015 wagon

Seat Leon 5F Cupra ST 2015 wagon

Seat Leon 5F Cupra ST 2015 wagon

Seat Leon 5F Cupra ST 2015 wagon

Seat Leon 5F X-Perience 2014 wagon

Seat Leon 5F X-Perience 2015 wagon

Seat Leon 5F X-Perience 2015 wagon

Seat Leon 5F X-Perience 2014 wagon

Seat Leon 5F X-Perience 2014 wagon

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
