Seat Ibiza
Date of manufacture
2017 – to this day (Five-door hatchback)
Platform
Volkswagen Group MQB A0
Manufacturing locations
Martorell, Spain
Relizane, Algeria
Designer
-
Tags
B-segment
Spanish cars

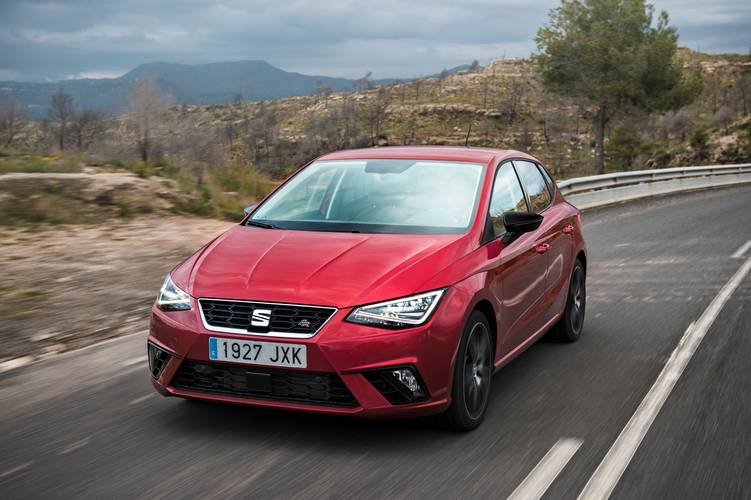

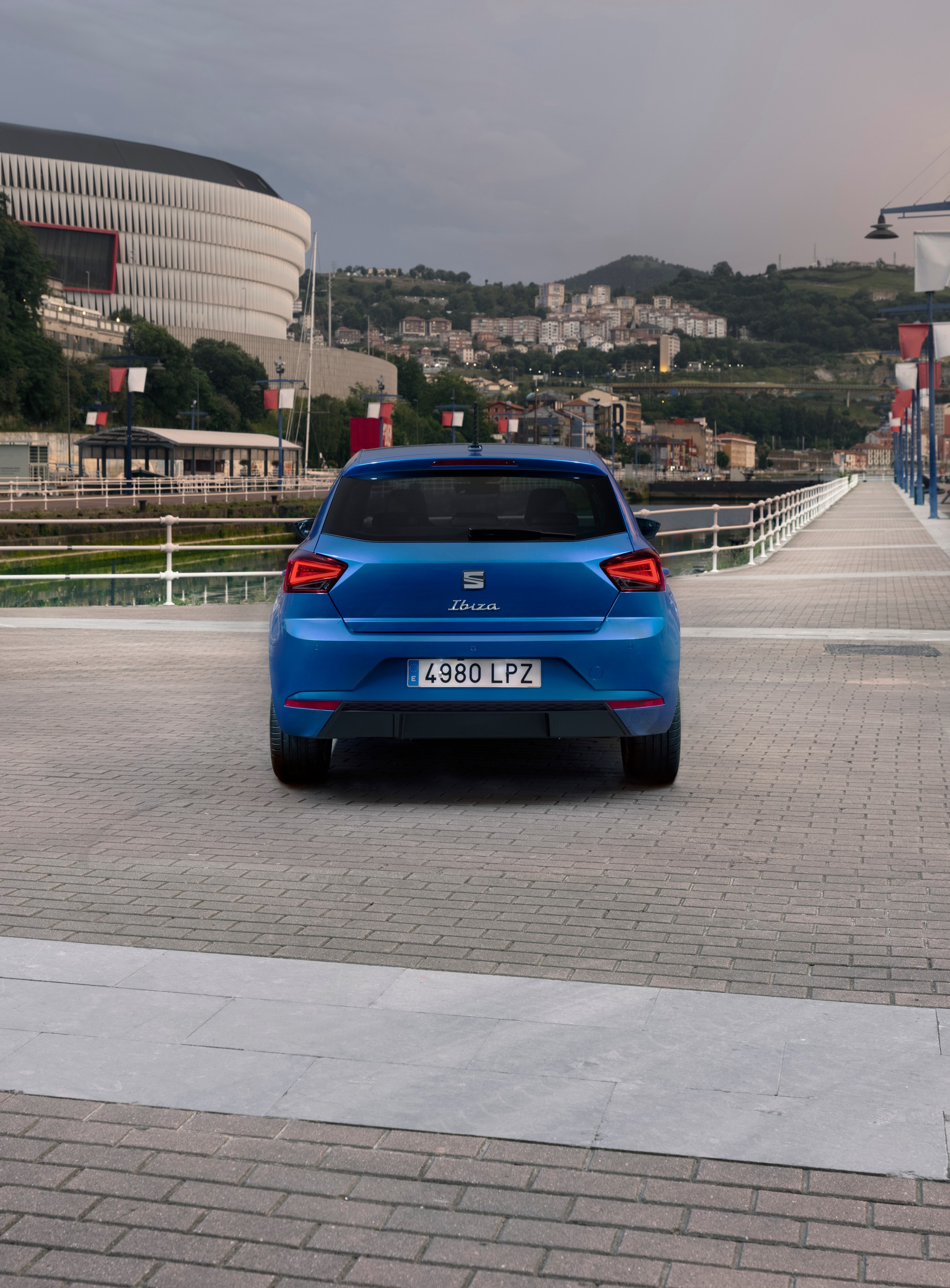

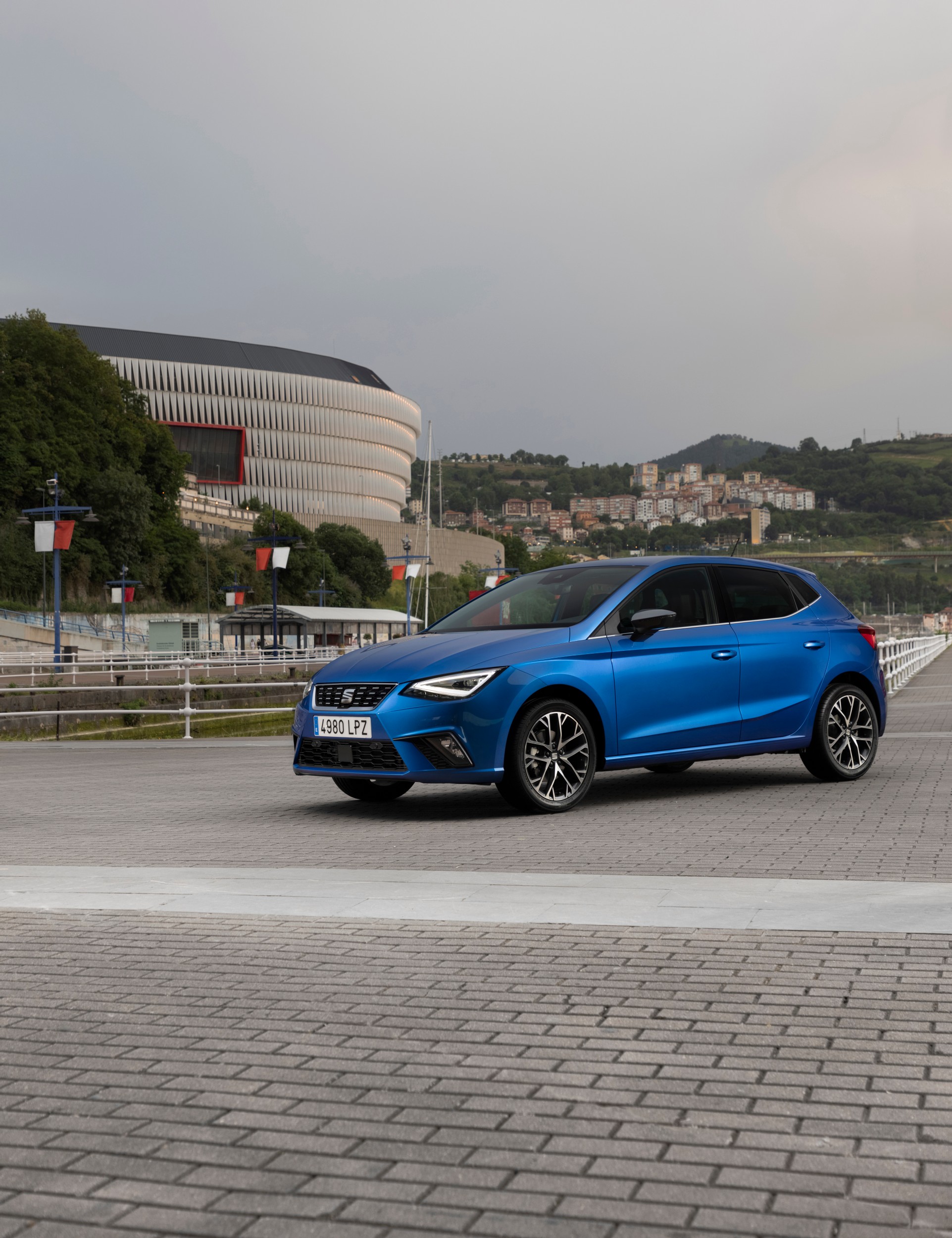

The Seat Ibiza is a five-door hatchback first produced in 2017. This Spanish car is also manufactured in Algeria on the Volkswagen Group MQB A0 platform. It offers petrol and diesel engines with a maximum power of 110 kW (1.5 TSI 150). The fastest model reaches a top speed of 219 km/h and the best acceleration from 0-100 km/h in 8.2 seconds. The combined consumption of 3.7 kg/100 km is achieved by the 1.0 TGI 90 with CO2 emissions of 101 g/km. The trunk size is 262 l, which is enough for everyday use. In 2017, the car passed EURONCAP safety tests and received a rating of 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
2017 – to this dayInternal designation
6F/KJ1
Technical data
Five-door hatchback
| 1.0 MPI 65 | 1.0 MPI 75 | 1.0 MPI 80 | 1.0 TSI 95 | 1.0 TSI 110 | 1.0 TSI 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to 2020 | from to 2018 | from 2018 to | - | from 2020 to | from 2020 to |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 48/5500 | 55/6200 | 59/6200 | 70/5000-5500 | 81/5500 | 81/5500 |
| Maximum torque [Nm/min-1] | 95/3000 | 95/3000-4300 | 95/3000 | 175/2000-3500 | 200/2000-3500 | 200/2000-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 12.5:1 | 10,5:1 | 11.5:1 | 10,5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 162 | 167 | 169 | 182-188 | 195 | 195 |
| Acceleration 0–100 km/h [s] | 15,2 | 14.7 | 14,7-15,3 | 10,9 | 10,2 | 10,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,1 | - | 5,6-6,1 | 5,4-5,7 | 5,9 | 5,3 |
| Out of town [l] | 4,3 | - | 4,2-4,3 | 4,1 | 4,2 | 4,4 |
| Combined [l] | 5,0 | 4.9 | 4,7-5,0 | 4,6-4,7 | 4,8 | 4,7 |
| CO2 emissions [g/km] | 112 | 112 | 107-112 | 105-107 | 110 | 108 |
| Low speed [l] | - | - | 6.2 | 6.8 | 6.5 | 7.3 |
| Medium speed [l] | - | - | 4.9 | 5.1 | 5.0 | 5.4 |
| High speed [l] | - | - | 4.7 | 4.5 | 4.4 | 4.8 |
| Extra high speed [l] | - | - | 5.6 | 5.3 | 5.2 | 5.5 |
| Combined speed [l] | - | - | 5,8-5,3 | 5,6-5,2 | 5,6-5,1 | 5,5-6,1 |
| CO2 emissions [g/km] | - | - | 131-119 | 128-118 | 139-127 | 125-139 |
| Emission standard | Euro 6d-TEMP | EU6 | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1099 | 1091 | 1099-1102 | 1128-1134 | 1148 | 1163 |
| Overall weight [kg] | 1520-1610 | 1530 | 1520-1620 | 1550-1640 | 1670 | 1680 |
| Maximum trailer weight unbraked/braked [kg] | 580/800 | - | 540-580/800 | 560/1000 | 570/1200 | 580/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | - | 50 | 50 | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | - | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 355 | 355 | 355 | 355 | 355 | 355 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1165 | -/1165 | -/1165 | -/1165 | -/1165 | -/1165 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | 40 | 40 | 40 | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 88H | 185/70 R14 88H | 185/70 R14 88H | 185/70 R14 88H | 185/65 R15 88H | 185/65 R15 88H |
| Tyre dimensions rear | 185/70 R14 88H | 185/70 R14 88H | 185/70 R14 88H | 185/70 R14 88H | 185/65 R15 88H | 185/65 R15 88H |
| Wheel size front | 5J x 14 ET38 | 5J x 14 ET38 | 5J x 14 ET38 | 5J x 14 ET38 | 5.5J x 15 ET40 | 5.5J x 15 ET40 |
| Wheel size rear | 5J x 14 ET38 | 5J x 14 ET38 | 5J x 14 ET38 | 5J x 14 ET38 | 5.5J x 15 ET40 | 5.5J x 15 ET40 |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 | 276 x 24 | 276 x 24 |
| Brake dimensions rear | 203 x 38 drum | 203 x 38 drum | 203 x 38 drum | 228 x 42 drum | 230 x 9 | 230 x 9 |
| Steering | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4059 | 4059 | 4059 | 4059 | 4059 | 4059 |
| Overall width without/including mirrors [mm] | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 |
| Overall height [mm] | 1444 | 1444 | 1444 | 1444 | 1444 | 1444 |
| Wheelbase [mm] | 2564 | 2564 | 2564 | 2564 | 2564 | 2564 |
| Front wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Rear wheel track [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Forward overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Rear overhang [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1022 | 1022 | 1022 | 1022 | 1022 | 1022 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1425/- | 1425/- | 1425/- | 1425/- | 1425/- | 1425/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 TSI 115 | 1.0 TSI 115 | 1.5 TSI 150 | 1.0 TGI 90 | 1.6 TDI 80 | 1.6 TDI 95 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | - | from 2019 to | from to 2019 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 999 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 85/5000-5500 | 85/5000-5500 | 110/5000-6000 | 66/4500-5500 | 59/2700-4800 | 70/2750-4600 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/2000-3500 | 250/1500-3500 | 160/1800-3800 | 230/1400-2400 | 250/1500-2600 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 76,4 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 195 | 193 | 219 | 184 | 169 | 182 |
| Acceleration 0–100 km/h [s] | 9,3 | 9,5 | 8,2 | 12,1 | 13,3 | 11,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5 | 5,5 | 5,9 | 4.3 kg | 4,4 | 4,1 |
| Out of town [l] | 4,4 | 4,6 | 4,5 | 3.0 kg | 3,5 | 3,4 |
| Combined [l] | 4,8 | 4,9 | 5,0 | 3.5 kg | 3,8 | 3,8 |
| CO2 emissions [g/km] | 108 | 112 | 114 | 93 | 100 | 100 |
| Low speed [l] | - | - | 8.2 | 4.8 kg | - | - |
| Medium speed [l] | - | - | 6.0 | 3.6 kg | - | - |
| High speed [l] | - | - | 5.2 | 3.2 kg | - | - |
| Extra high speed [l] | - | - | 6.0 | 3.8 kg | - | - |
| Combined speed [l] | - | - | 5,8-6,2 | 3.7 kg | - | - |
| CO2 emissions [g/km] | - | - | 132-142 | 101 | - | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1149 | 1172 | 1199 | 1250 | 1252 | 1256 |
| Overall weight [kg] | 1570-1660 | 1590-1680 | 1720 | 1690 | 1670-1750 | 1670-1750 |
| Maximum trailer weight unbraked/braked [kg] | 570/1100 | 580/1100 | 590/1200 | - | 620/1000 | 620/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 50 | 50 | 50 | - | 50 | 50 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 355 | 355 | 355 | 262 | 355 | 355 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1165 | -/1165 | -/1165 | -/1072 | -/1165 | -/1165 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | 40 | 40 | 9 [13.8 kg] | 40 | 40 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H | 185/65 R15 88H |
| Wheel size front | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 |
| Wheel size rear | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 | 5.5J x 15 ET40 |
| Brake dimensions front | 276 x 24 | 276 x 24 | 276 x 24 | 256 x 22 | 276 x 24 | 276 x 24 |
| Brake dimensions rear | 230 x 9 | 230 x 9 | 230 x 9 | 228 x 42 drum | 203 x 38 | 228 x 42 drum |
| Steering | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS | Electric power steering C-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4059 | 4059 | 4059 | 4059 | 4059 | 4059 |
| Overall width without/including mirrors [mm] | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 | 1780/1942 |
| Overall height [mm] | 1444 | 1444 | 1444 | 1444 | 1444 | 1444 |
| Wheelbase [mm] | 2564 | 2564 | 2564 | 2564 | 2564 | 2564 |
| Front wheel track [mm] | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 |
| Rear wheel track [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Forward overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Rear overhang [mm] | 699 | 699 | 699 | 699 | 699 | 699 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1022 | 1022 | 1022 | 1022 | 1022 | 1022 |
| Headroom rear [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Front elbow/shoulder width [mm] | 1425/- | 1425/- | 1425/- | 1425/- | 1425/- | 1425/- |
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- | 1403/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - |   | - | - |
| Clean Air Index | - | - | - | 6.7/10 | - | - |
| Energy Efficiency Index | - | - | - | 5.7/10 | - | - |
| GHG index | - | - | - | 4.5/10 | - | - |
| 1.6 TDI 95 | 1.6 TDI 115 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2019 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 70/2750-4600 | 85/3250-4000 | ||||
| Maximum torque [Nm/min-1] | 250/1500-2600 | 250/1500-3200 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,2:1 | 16,2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 7 gear automatic | 6 gear manual | ||||
| Drive specifications |
| - | ||||
| Top speed [km/h] | 181 | 195 | ||||
| Acceleration 0–100 km/h [s] | 11,7 | 10,0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4,4 | 4,6 | ||||
| Out of town [l] | 3,8 | 3,8 | ||||
| Combined [l] | 4,0 | 4,1 | ||||
| CO2 emissions [g/km] | 105 | 111 | ||||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1275 | 1262 | ||||
| Overall weight [kg] | 1690-1770 | 1680-1760 | ||||
| Maximum trailer weight unbraked/braked [kg] | 630/1100 | 620/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 50 | 50 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 355 | 355 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1165 | -/1165 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 40 | 40 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/65 R15 88H | 185/65 R15 88H | ||||
| Tyre dimensions rear | 185/65 R15 88H | 185/65 R15 88H | ||||
| Wheel size front | 5.5J x 15 ET40 | 5.5J x 15 ET40 | ||||
| Wheel size rear | 5.5J x 15 ET40 | 5.5J x 15 ET40 | ||||
| Brake dimensions front | 276 x 24 | 276 x 24 | ||||
| Brake dimensions rear | 228 x 42 drum | 230 x 9 | ||||
| Steering | Electric power steering C-EPS | Electric power steering C-EPS | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4059 | 4059 | ||||
| Overall width without/including mirrors [mm] | 1780/1942 | 1780/1942 | ||||
| Overall height [mm] | 1444 | 1444 | ||||
| Wheelbase [mm] | 2564 | 2564 | ||||
| Front wheel track [mm] | 1525 | 1525 | ||||
| Rear wheel track [mm] | 1505 | 1505 | ||||
| Forward overhang [mm] | 796 | 796 | ||||
| Rear overhang [mm] | 699 | 699 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1022 | 1022 | ||||
| Headroom rear [mm] | 957 | 957 | ||||
| Front elbow/shoulder width [mm] | 1425/- | 1425/- | ||||
| Rear elbow/shoulder width [mm] | 1403/- | 1403/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
