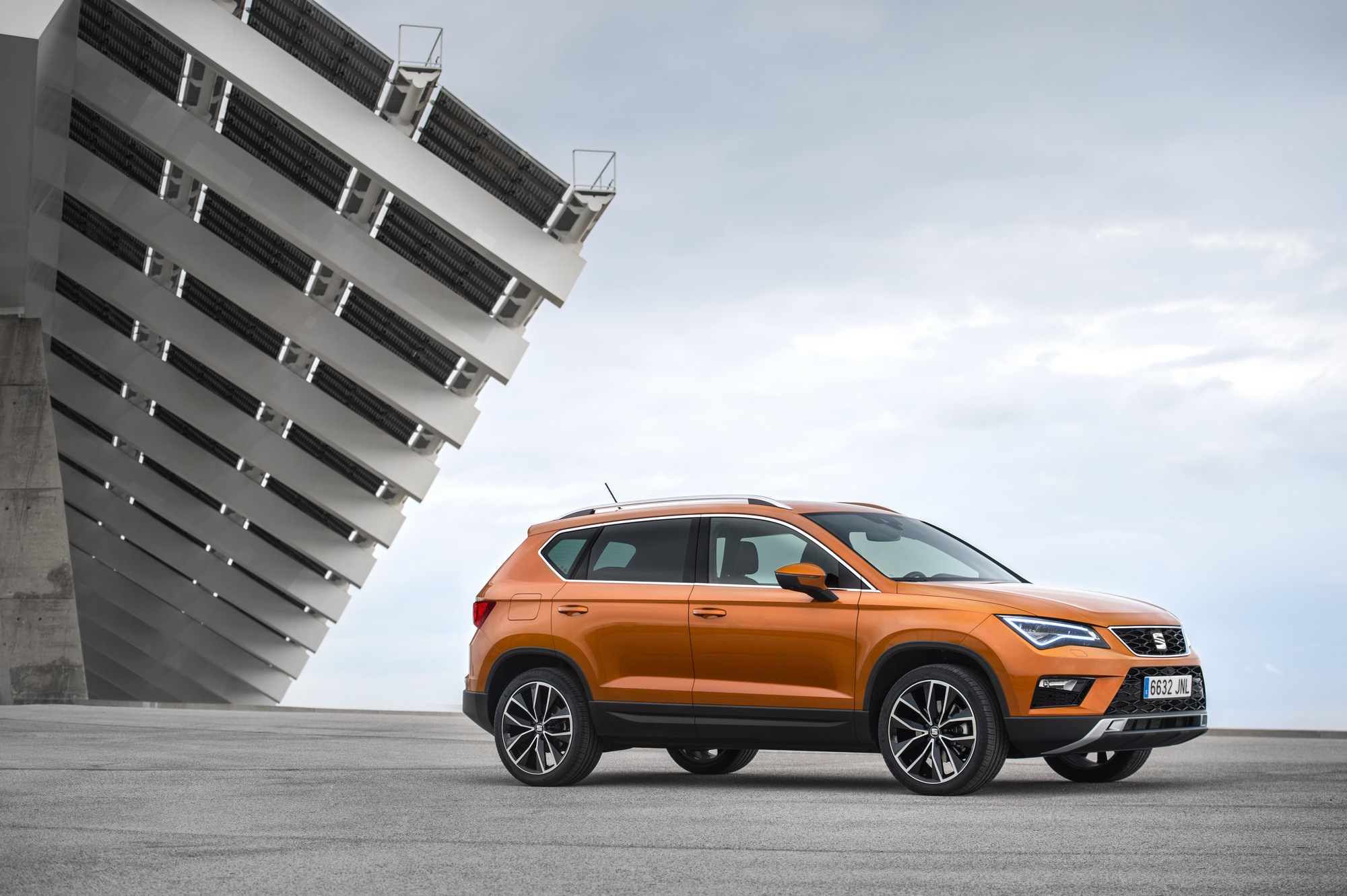

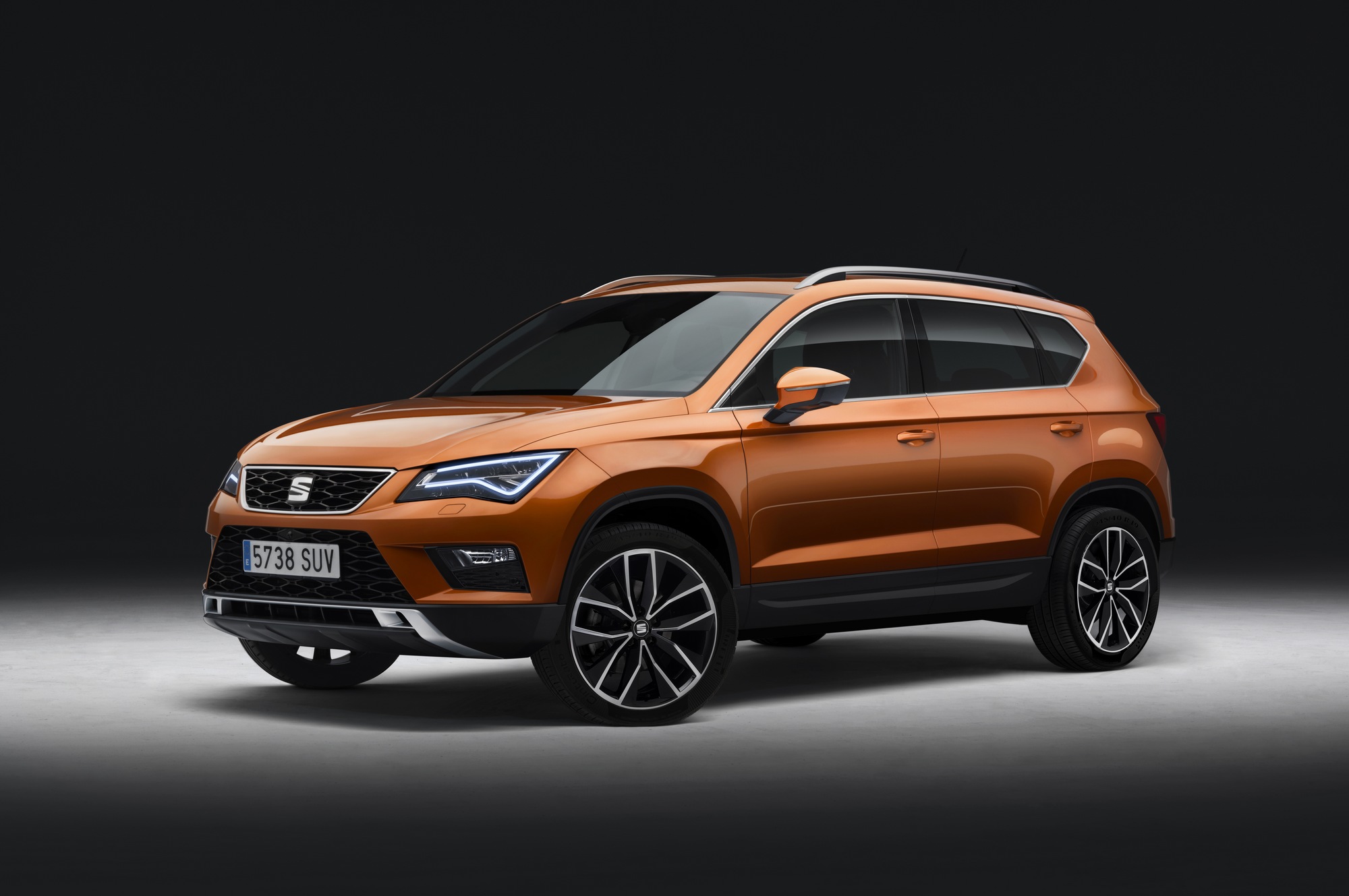

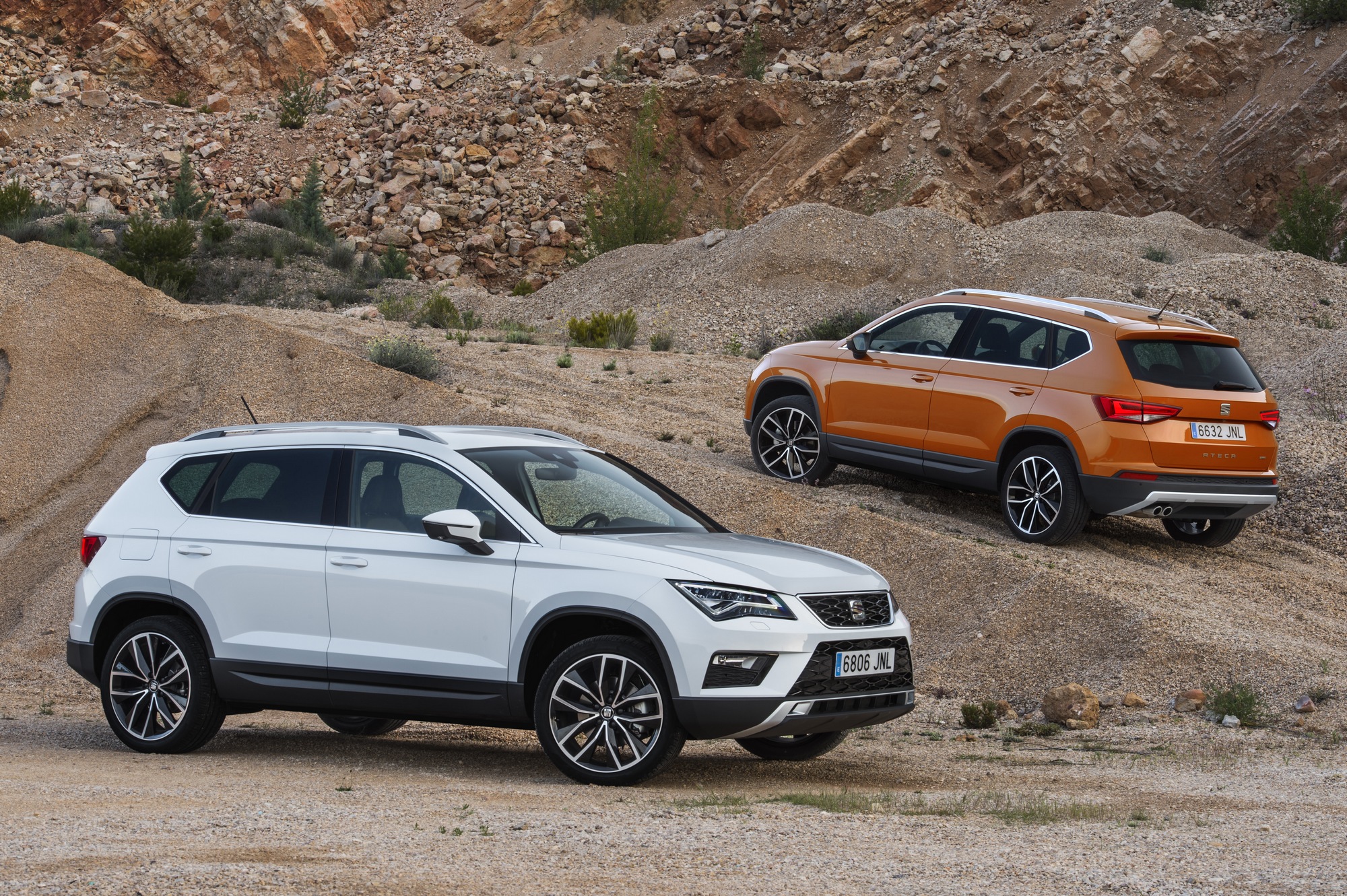

Seat Ateca
Date of manufacture
6/2016 – 2020 (SUV)
Platform
Volkswagen Group MQB
Manufacturing locations
Kvasiny, Czechia
Relizane, Algeria
Designer
Christian Felske
Alejandro Mesonero-Romanos
Tags
Compact SUV
Spanish cars
The new Seat Ateca SUV model was launched in 2016 and is produced in both the Czech Republic and Algeria. The car is built on the Volkswagen Group MQB platform and offers a wide range of petrol and diesel engines. The most powerful variant, the 2.0 TDI 4Drive, has 140 kW, which is enough for a maximum speed of 212 km/h. The fastest to reach 100 km/h is the 2.0 TSI 190 4Drive with an acceleration of 0-100 km/h in 7.1 seconds. The most economical engine is the 1.6 TDI 115 with a combined consumption of 4.3 l/100 km and CO2 emissions of 113 g/km. The car's trunk has a capacity of 510 l. The Ateca model also succeeded in the EURONCAP safety tests, where it achieved a rating of 5 out of 5.
Car body style
SUV
Date of manufacture
6/2016 – 2020Internal designation
KH7
Technical data
SUV
| 1.0 TSI | 1.4 EcoTSI | 1.4 EcoTSI | 1.4 EcoTSI 4Drive | 1.4 EcoTSI 4Drive | 1.5 TSI 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1395 | 1395 | 1395 | 1395 | 1498 |
| Maximum output / speed [kW/min-1] | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.3 | - | - | - | - | 4.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 181-183 | 201 | 198 | 192 | 189 | 201 |
| Acceleration 0–100 km/h [s] | 10,5-10,7 | 8.5 | 8.6 | 9.0 | 8.9 | 8,5 |
| Acceleration 0–80 km/h [s] | 7.1 | - | - | - | - | 5.9 |
| Acceleration 80–120 km/h [s] | 12.3 | - | - | - | - | 10.3 |
| City [l] | 6.2 | 6.2 | 6.4 | 6.9 | - | 6,4 |
| Out of town [l] | 4,6-5,0 | 4.8 | 4.9 | 5.5 | - | 5,0 |
| Combined [l] | 5,2-5,4 | 5.3 | 5.4 | 6.0 | 6.0 | 5,5 |
| CO2 emissions [g/km] | 119-122 | 122 | 124 | 138 | 140 | 126 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280-1313 | 1349 | 1364 | 1460 | 1490 | 1355 |
| Overall weight [kg] | 1830-1850 | 1890 | 1910 | 2000 | 2030 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 640-650/1300 | 670/1800 | 680/1600 | 730/1900 | 740/1700 | 670/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | - | - | - | - | 80 |
| Maximum load on roof/carrier [kg] | 75/- | - | - | - | - | 75/- |
| Boot volume [l] | 510 | 510 | 510 | 485 | 485 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1604 | -/1604 | -/1604 | -/1579 | -/1579 | -/1604 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 55 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R 16 | 215/55 R17 | 215/50 R18 | 215/55 R17 | 215/50 R18 | 215/50 R18 |
| Tyre dimensions rear | 215/60 R 16 | 215/55 R17 | 215/50 R18 | 215/55 R17 | 215/50 R18 | 215/50 R18 |
| Wheel size front | 6.0J x 16 | 7.0J x 17 | 7.0J x 18 | 7.0J x 17 | 7.0J x 18 | 7.0J x 18 |
| Wheel size rear | 6.0J x 16 | 7.0J x 17 | 7.0J x 18 | 7.0J x 17 | 7.0J x 18 | 7.0J x 18 |
| Brake dimensions front | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4363 | 4363 | 4363 | 4363 | 4363 | 4363 |
| Overall width without/including mirrors [mm] | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 |
| Overall height [mm] | 1601 | 1601 | 1601 | 1611 | 1611 | 1601 |
| Wheelbase [mm] | 2638 | 2638 | 2638 | 2630 | 2630 | 2638 |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1572 | 1572 | 1576 |
| Rear wheel track [mm] | 1541 | 1541 | 1541 | 1544 | 1544 | 1541 |
| Forward overhang [mm] | 868 | 868 | 868 | 868 | 868 | 868 |
| Rear overhang [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1063 | 1063 | 1063 | 1063 | 1063 | 1063 |
| Headroom rear [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Front elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Rear elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI 150 | 1.5 TSI 150 4Drive | 2.0 TSI 190 4Drive | 1.6 TDI 115 | 1.6 TDI 115 | 2.0 TDI 150 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from 2018 to | - | - | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1598 | 1598 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 250/1500-3250 | 250/1500-3250 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 11,6:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | 4.5 | - | 4.5 | 5.3 | 5.3 | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 198 | 189 | 212 | 184 | 184 | 200 |
| Acceleration 0–100 km/h [s] | 8,6 | 9,2 | 7,1 | 10,5-11,5 | 11,5 | 8,8 |
| Acceleration 0–80 km/h [s] | 6.0 | - | 4.7 | 8.2 | 8.2 | 6.2 |
| Acceleration 80–120 km/h [s] | 9.6 | - | 9.2 | 14.3 | 14.5 | 10.4 |
| City [l] | 6,9 | 7,7 | 8,6 | 4,7-5,2 | 5,3 | 5,7 |
| Out of town [l] | 5,0 | 5,9 | 5,9 | 4,1-4,2 | 4,7 | 4,1 |
| Combined [l] | 5,7 | 6,5 | 6,9 | 4,3-4,6 | 4,9 | 4,7 |
| CO2 emissions [g/km] | 129 | 149 | 156 | 113-120 | 128 | 124 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1502 | 1541 | 1375-1428 | 1446 | 1453 |
| Overall weight [kg] | 1920 | 2050 | 2080 | 1910-1970 | 1990 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 680/1600 | 750/1900 | 750/1900 | 680-710/1500 | 720/1500 | 720/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 510 | 485 | 485 | 510 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1604 | -/1579 | -/1579 | -/1604 | -/1604 | -/1604 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 55 | 55 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/50 R18 | 215/50 R18 | 225/50 R18 95W | 215/60 R 16 | 215/60 R 16 | 215/50 R18 |
| Tyre dimensions rear | 215/50 R18 | 215/50 R18 | 225/50 R18 95W | 215/60 R 16 | 215/60 R 16 | 215/50 R18 |
| Wheel size front | 7.0J x 18 | 7.0J x 18 | 7J x 18 ET45 | 6.0J x 16 | 6.0J x 16 | 7.0J x 18 |
| Wheel size rear | 7.0J x 18 | 7.0J x 18 | 7J x 18 ET45 | 6.0J x 16 | 6.0J x 16 | 7.0J x 18 |
| Brake dimensions front | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4363 | 4363 | 4363 | 4363 | 4363 | 4363 |
| Overall width without/including mirrors [mm] | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 |
| Overall height [mm] | 1601 | 1611 | 1611 | 1601 | 1601 | 1601 |
| Wheelbase [mm] | 2638 | 2630 | 2630 | 2638 | 2638 | 2638 |
| Front wheel track [mm] | 1576 | 1572 | 1572 | 1576 | 1576 | 1572 |
| Rear wheel track [mm] | 1541 | 1544 | 1544 | 1541 | 1541 | 1544 |
| Forward overhang [mm] | 868 | 868 | 868 | 868 | 868 | 868 |
| Rear overhang [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1063 | 1063 | 1063 | 1063 | 1063 | 1063 |
| Headroom rear [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Front elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- | 1485/- |
| Rear elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 150 | 2.0 TDI 150 4Drive | 2.0 TDI 150 4Drive | 2.0 TDI 4Drive | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | - | from 2018 to | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | ||
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1900-3300 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 | ||
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 200 | 196 | 196 | 212 | ||
| Acceleration 0–100 km/h [s] | 8,8 | 9.0 | 8.8 | 7.5 | ||
| Acceleration 0–80 km/h [s] | 6.2 | - | 5.7 | 5.3 | ||
| Acceleration 80–120 km/h [s] | 11.5 | - | 12.8 | 11.2 | ||
| City [l] | 5,4 | 5.8 | - | 5.8 | ||
| Out of town [l] | 4,3 | 4.6 | - | 4.8 | ||
| Combined [l] | 4,7 | 5.0 | 5.5 | 5.2 | ||
| CO2 emissions [g/km] | 123 | 128 | 145 | 134 | ||
| Emission standard | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1483 | 1548 | 1578 | 1589 | ||
| Overall weight [kg] | 2010 | 2100 | 2120 | 2130 | ||
| Maximum trailer weight unbraked/braked [kg] | 740/1800 | 750/2000 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 80 | - | 80 | - | ||
| Maximum load on roof/carrier [kg] | 75/- | - | 75/- | - | ||
| Boot volume [l] | 510 | 485 | 485 | 485 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1604 | -/1579 | -/1579 | -/1579 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 50 | 55 | 55 | 55 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/50 R18 | 215/50 R18 | 215/50 R18 | 215/50 R18 | ||
| Tyre dimensions rear | 215/50 R18 | 215/50 R18 | 215/50 R18 | 215/50 R18 | ||
| Wheel size front | 7.0J x 18 | 7.0J x 18 | 7.0J x 18 | 7.0J x 18 | ||
| Wheel size rear | 7.0J x 18 | 7.0J x 18 | 7.0J x 18 | 7.0J x 18 | ||
| Brake dimensions front | 312 x 25 | 312 x 25 | 312 x 25 | 312 x 25 | ||
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | ||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | ||
| Overall length [mm] | 4363 | 4363 | 4363 | 4363 | ||
| Overall width without/including mirrors [mm] | 1841/2078 | 1841/2078 | 1841/2078 | 1841/2078 | ||
| Overall height [mm] | 1601 | 1611 | 1611 | 1611 | ||
| Wheelbase [mm] | 2638 | 2630 | 2630 | 2630 | ||
| Front wheel track [mm] | 1572 | 1572 | 1572 | 1572 | ||
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | ||
| Forward overhang [mm] | 868 | 868 | 868 | 868 | ||
| Rear overhang [mm] | 857 | 857 | 857 | 857 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1063 | 1063 | 1063 | 1063 | ||
| Headroom rear [mm] | 1020 | 1020 | 1020 | 1020 | ||
| Front elbow/shoulder width [mm] | 1485/- | 1485/- | 1485/- | 1485/- | ||
| Rear elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
