Seat Alhambra
Date of manufacture
6/2010 – 2015 (MPV)
Platform
Volkswagen Group A5 (PQ46)
Manufacturing locations
Palmela, Portugal
Designer
-
Tags
Large MPV
Spanish cars
The Seat Alhambra is available on the market as an MPV. The car, manufactured in Portugal since 2010, based on the Volkswagen Group A5 (PQ46) offers a wide range of petrol and diesel engines. The most powerful model is the 2.0 TSI with 147 kW, which reaches a maximum speed of 218 km/h and the best acceleration 0-100 km/h in 8.3 seconds. The most economical is the 2.0 TDI CR with a combined consumption of 5.5 l/100 km and CO2 emissions of 143 g/km. The trunk has a capacity of 809 liters and in the safety area the car has received a rating of 5 out of 5 from EURONCAP since 2010.
Car body style
MPV
Date of manufacture
6/2010 – 2015Internal designation
7N
Technical data
MPV
| 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5800 | 110/5800 | 147/5100-6000 | 85/4200 | 103/4200 | 103/4200 |
| Maximum torque [Nm/min-1] | 240/1500-4000 | 240/1500-4000 | 280/1700-500 | 280/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,7:1 | 9,7:1 | 9,8:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 197 | 197 | 218 | 184 | 194 | 191 |
| Acceleration 0–100 km/h [s] | 10.7 | 9.9 | 8.3 | 12.6 | 10.9 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2 | 9.4 | 11.5 | 6.8 [6.9 seven seats] | 6.8 [6.9 seven seats] | 6.9 |
| Out of town [l] | 6.1 | 6.6 | 6.6 | 4.8 [4.9 seven seats] | 4.8 [4.9 seven seats] | 5.0 |
| Combined [l] | 7.2 | 7.6 | 8.4 | 5.5 [5.6 seven seats] | 5.5 [5.6 seven seats] | 5.7 |
| CO2 emissions [g/km] | 167 | 178 | 196 | 143 [146 seven seats] | 143 [146 seven seats] | 149 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1723 [1771 seven seats] | 1742 [1790 seven seats] | 1790 [1838 seven seats] | 1772 [1823 seven seats] | 1774 [1822 seven seats] | 1803 [1851 seven seats] |
| Overall weight [kg] | 2290 [2480 seven seats] | 2310 [2500 seven seats] | 2360 [2530 seven seats] | 2360 [2520 seven seats] | 2340 [2510 seven seats] | 2370 [2540 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2000 | 750/2000 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 809 | 809 | 809 | 809 | 809 | 809 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 205/60 R16 96T | 205/60 R16 96H | 205/60 R16 96H |
| Tyre dimensions rear | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 205/60 R16 96T | 205/60 R16 96H | 205/60 R16 96H |
| Wheel size front | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 |
| Wheel size rear | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 |
| Brake dimensions front | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 |
| Brake dimensions rear | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 |
| Overall height [mm] | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 |
| Wheelbase [mm] | 2919 | 2919 | 2919 | 2919 | 2919 | 2919 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |
| 2.0 TDI CR 4WD | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 103/4200 | 125/4200 | 125/4200 | 130/4200 | 130/4200 | |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 350/1750 | 350/1750 | 380/1750-2500 | 380/1750-2500 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
| - |
|
|
| |
| Top speed [km/h] | 191 | 210 | 204 | 208 | 208 | |
| Acceleration 0–100 km/h [s] | 11.4 | 9.5 | 9.8 | 9.3 | 9.6 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.4 [7.5 seven seats] | 7.3 | 6.7 | 7.3 [7.5 seven seats] | 6.7 | |
| Out of town [l] | 5.2 [5.4 seven seats] | 5.0 | 5.4 | 5.0 [5.2 seven seats] | 5.4 | |
| Combined [l] | 6.0 [6.2 seven seats] | 5.8 | 5.9 | 5.8 [6.0 seven seats] | 5.9 | |
| CO2 emissions [g/km] | 158 [162 seven seats] | 152 | 154 | 152 [158 seven seats] | 154 | |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1891 [1942 seven seats] | 1794 [1842 seven seats] | 1803 [1851 seven seats] | 1800 [1851 seven seats] | 1804 [1885 seven seats] | |
| Overall weight [kg] | 2530 [2580 seven seats] | 2360 [2530 seven seats] | 2370 [2540 seven seats] | 2370 [2530 seven seats] | 2370 [2530 seven seats] | |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2200 | 750/2200 | 750/2200 | 750/2200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 809 | 809 | 809 | 809 | 809 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 | |
| Boot volume, third row of seats [l] | - | - | - | - | - | |
| Boot volume, third row seats folded [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 | |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | |
| Tyre dimensions front | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | |
| Tyre dimensions rear | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | |
| Wheel size front | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | |
| Wheel size rear | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | |
| Brake dimensions front | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | |
| Brake dimensions rear | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | |
| Overall height [mm] | 1720 | 1720 | 1720 | 1720 | 1720 | |
| Wheelbase [mm] | 2919 | 2919 | 2919 | 2919 | 2919 | |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - | |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |

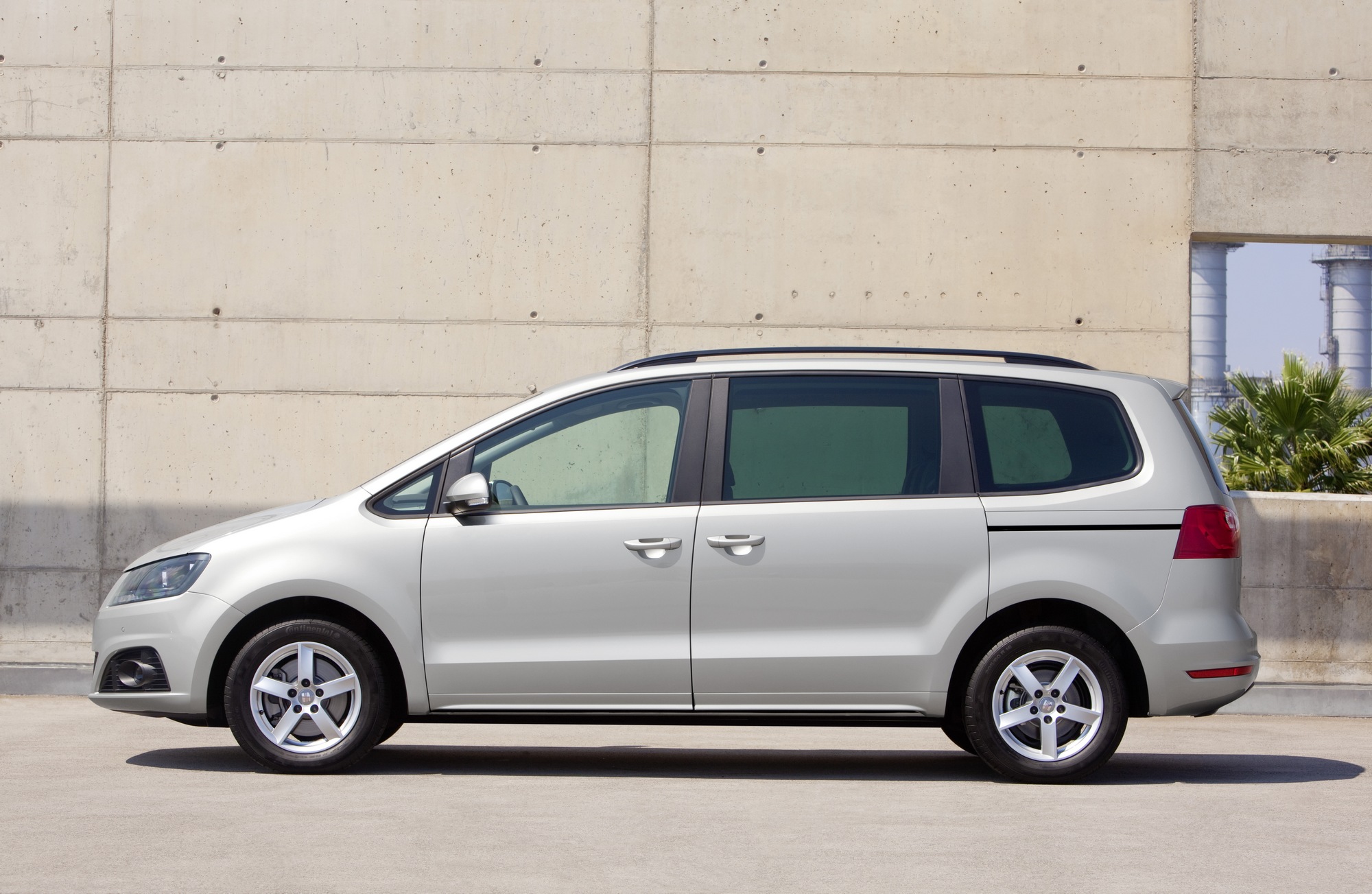

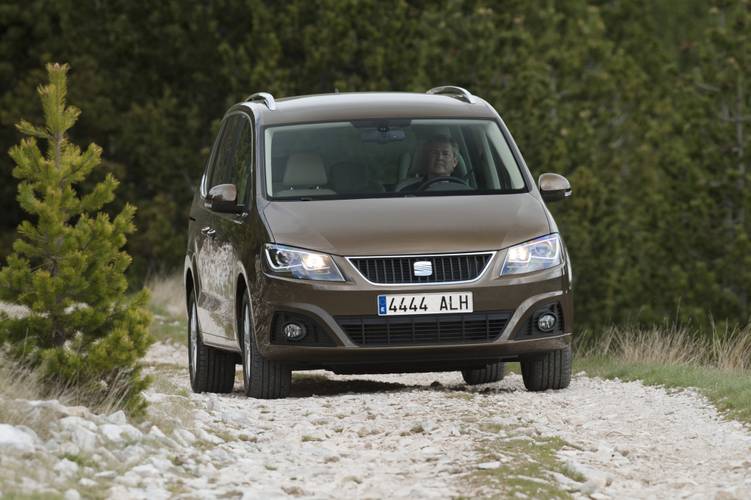

Gallery
