Renault Zoe
Date of manufacture
2019 – to this day (Five-door hatchback)
Platform
-
Manufacturing locations
Flins-sur-Seine, France
Designer
-
Tags
A-segment
French cars
Electric car

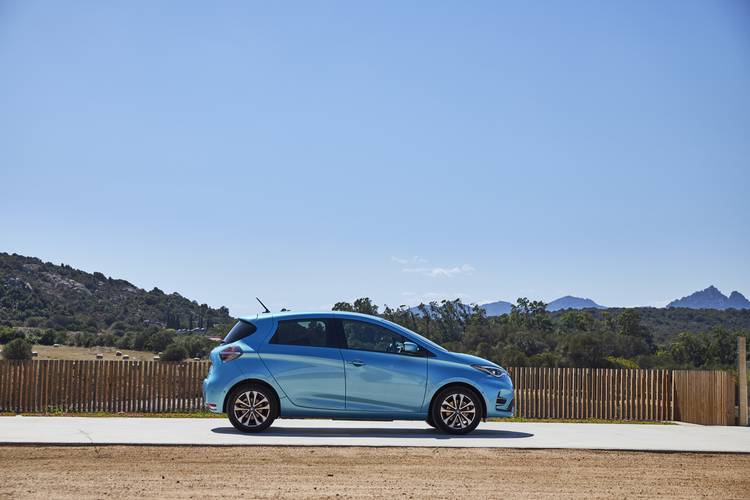

The Renault Zoe is a five-door hatchback manufactured in France since 2019. The engine range includes only electric motors, the most powerful of which is the R135 with 100 kW of power. The fastest version reaches a top speed of 140 km/h and the best acceleration from 0-100 km/h in 9.5 seconds. The most efficient model R135 has a combined consumption of 17.3 kWh/100 km. The luggage compartment volume is 338 l. The Renault Zoe successfully passed the EURONCAP safety tests in 2013 and received a rating of 5 out of 5.
Car body style
Five-door hatchback
after upgrade (facelift) (II.)
Date of manufacture
2019 – to this dayInternal designation
-Engine size
Technical data
Five-door hatchback
| R110 41 kWh | R110 52 kWh | R135 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Electric | Electric | Electric | |||
| Number of cylinders/valves | - | - | - | |||
| Engine displacement [cm³] | - | - | - | |||
| Maximum output / speed [kW/min-1] | 80/3395-10886 | 80/3395-10886 | 100/4200-11163 | |||
| Maximum torque [Nm/min-1] | 225/500-3395 | 225/500-3395 | 245/1500-3600 | |||
| Bore and stroke [mm x mm] | - | - | - | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 135 | 135 | 140 | |||
| Acceleration 0–100 km/h [s] | 11.4 | 11.4 | 9.5 | |||
| Acceleration 0–80 km/h [s] | 9.3 | 9.3 | 7.1 | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | - | - | - | |||
| Out of town [l] | - | - | - | |||
| Combined [l] | - | - | - | |||
| CO2 emissions [g/km] | - | - | - | |||
| Low speed [l] | - | - | - | |||
| Medium speed [l] | - | - | - | |||
| High speed [l] | - | - | - | |||
| Extra high speed [l] | - | - | - | |||
| Combined speed [l] | 17.3-17.8 kWh | 17.3-17.8 kWh | 17.3-17.8 kWh | |||
| CO2 emissions [g/km] | - | - | - | |||
| Emission standard | - | - | - | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | 400 | 400 | 400 | |||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 41 kWh | Lithium-Ionen-Akkumulator, 52 kWh | Lithium-Ionen-Akkumulator, 52 kWh | |||
| Range with fully charged battery [km] | 288-316 | 383-395 | 383-395 | |||
| Charging time |
|
|
| |||
| Number of modules/cells | 12/192 | 12/192 | 12/192 | |||
| Battery weight [kg] | 326 | 326 | 326 | |||
| Charger | 50 kW fast charging, 2-22 kW on-board charger | 50 kW fast charging, 2-22 kW on-board charger | 50 kW fast charging, 2-22 kW on-board charger | |||
| Standby weight [kg] | 1502-1551 | 1502-1551 | 1502-1551 | |||
| Overall weight [kg] | 1976 | 1988 | 1988 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | 1042/934 | 1048/940 | 1048/940 | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||

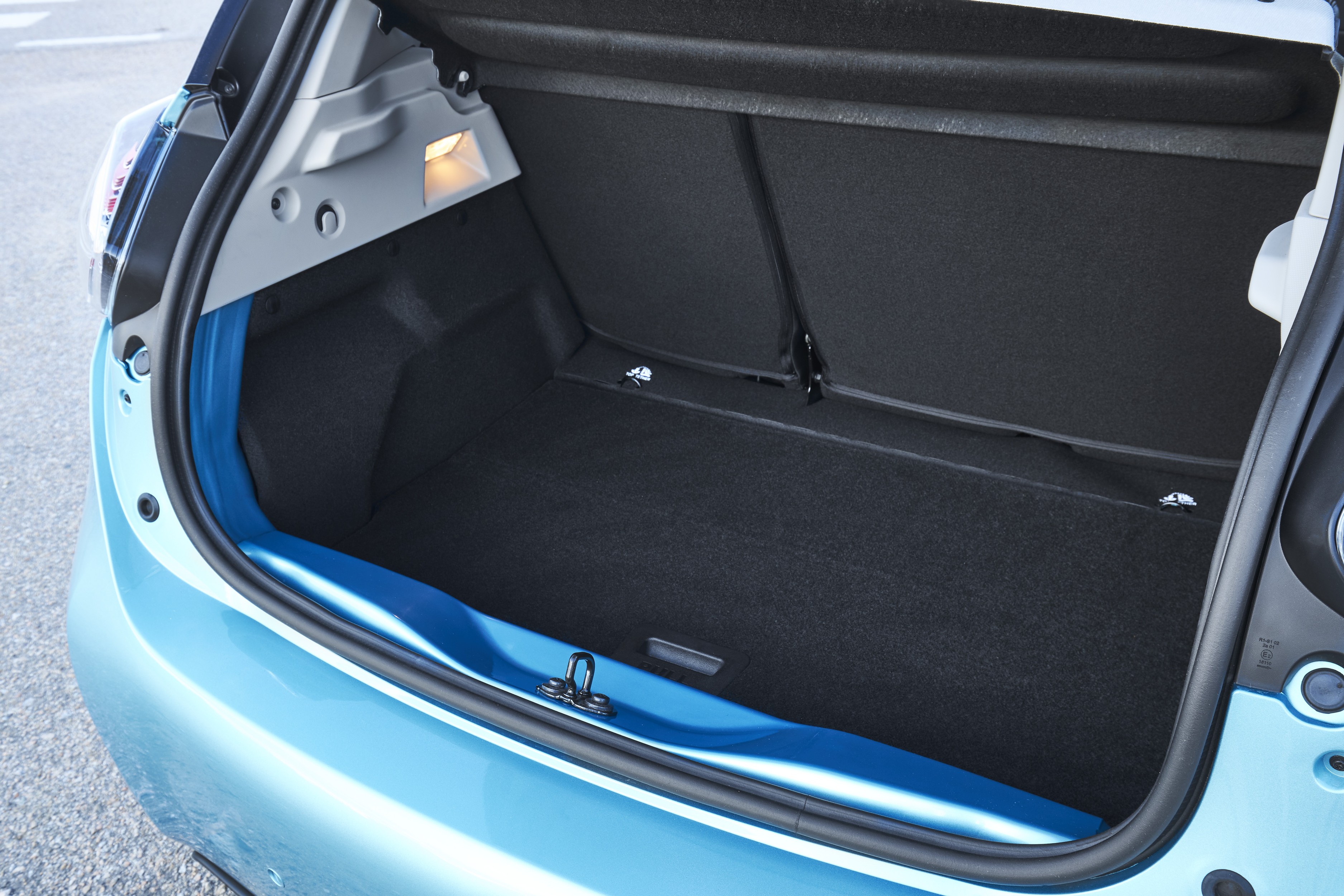

| Boot volume [l] | 338 | 338 | 338 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1225 | -/1225 | -/1225 | |||
| Boot length [mm] | 580 | 580 | 580 | |||
| Boot length with rear seats folded [mm] | 1426 | 1426 | 1426 | |||
| Boot width between wheels/max [mm] | 1037/- | 1037/- | 1037/- | |||
| Boot height to headliner/ceiling [mm] | 622/- | 622/- | 622/- | |||
| Loading edge height [mm] | 724 | 724 | 724 | |||
| Height of the open boot door [mm] | 2028 | 2028 | 2028 | |||
| Boot opening height [mm] | 685 | 685 | 685 | |||
| Boot opening width min/max [mm] | 899/941 | 899/941 | 899/941 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | - | - | - | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/65 R15 92T | 185/65 R15 92T | 185/65 R15 92T | |||
| Tyre dimensions rear | 185/65 R15 92T | 185/65 R15 92T | 185/65 R15 92T | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 280 | 280 | 280 | |||
| Brake dimensions rear | 260 | 260 | 260 | |||
| Steering | Electric power steering | Electric power steering | Electric power steering | |||
| Number of steering wheel turns | 2.73 | 2.73 | 2.73 | |||
| Turning diameter track/circumference [m] | 10.56/- | 10.56/- | 10.56/- | |||
| Overall length [mm] | 4087 | 4087 | 4087 | |||
| Overall width without/including mirrors [mm] | 1787/1945 | 1787/1945 | 1787/1945 | |||
| Overall height [mm] | 1562 | 1562 | 1562 | |||
| Wheelbase [mm] | 2588 | 2588 | 2588 | |||
| Front wheel track [mm] | 1511 | 1511 | 1511 | |||
| Rear wheel track [mm] | 1510 | 1510 | 1510 | |||
| Forward overhang [mm] | 838 | 838 | 838 | |||
| Rear overhang [mm] | 661 | 661 | 661 | |||
| Clearance [mm] | 120 | 120 | 120 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 904 | 904 | 904 | |||
| Headroom rear [mm] | 826 | 826 | 826 | |||
| Front elbow/shoulder width [mm] | 1384/1363 | 1384/1363 | 1384/1363 | |||
| Rear elbow/shoulder width [mm] | 1386/1320 | 1386/1320 | 1386/1320 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - | |||
| Rating | - |   | - | |||
| Clean Air Index | - | 10.0/10 | - | |||
| Energy Efficiency Index | - | 10.0/10 | - | |||
| GHG index | - | 10.0/10 | - |
Gallery
