Basic information Technical Specifications Gallery

Renault Trafic

Date of manufacture

2020 – to this day (VAN)

Platform

Manufacturing locations

Sandouville, France

Designer

Car body style

VAN

after upgrade (facelift)

Date of manufacture

2020 – to this day

Internal designation

Engine size

Euro NCAP

Test year 2015

pre-facelift version (2015)

Technical data

VAN

	Blue dCi 110 L1H1	Blue dCi 110 L2H1	Blue dCi 150 L1H1	Blue dCi 150 L2H1	Blue dCi 150 L1H1	Blue dCi 150 L2H1
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1997	1997	1997	1997	1997	1997
Maximum output / speed [kW/min-1]	81/3500	81/3500	110/3500	110/3500	110/3500	110/3500
Maximum torque [Nm/min-1]	300/1500	300/1500	350/1500	350/1500	350/1500	350/1500
Bore and stroke [mm x mm]	85.0 x 88.0	85.0 x 88.0	85.0 x 88.0	85.0 x 88.0	85.0 x 88.0	85.0 x 88.0
Compression ratio	15.4:1	15.4:1	15.4:1	15.4:1	15.4:1	15.4:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	6 gear automatic	6 gear automatic
Drive specifications	-	-	-	-	dual-clutch automatic gearbox EDC	dual-clutch automatic gearbox EDC

Top speed [km/h]	161	161	178	178	178	178
Acceleration 0–100 km/h [s]	16.5	16.5	13.6	13.6	11.6	11.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	-	-	-	-	-	-
Out of town [l]	-	-	-	-	-	-
Combined [l]	-	-	-	-	-	-
CO2 emissions [g/km]	-	-	-	-	-	-

Low speed [l]	-	-	-	-	-	-
Medium speed [l]	-	-	-	-	-	-
High speed [l]	-	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-	-
Combined speed [l]	7.2-7.1	7.2-7.1	7.4-7.1	7.4-7.1	7.3-7.4	7.3-7.4
CO2 emissions [g/km]	188-186	188-186	194-187	194-187	198-192	198-192

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2055	2075	2055	2075	2130	2182
Overall weight [kg]	2980	3070	2980	3070	2830	2890
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2000	750/2500	750/2500	750/1700	750/1700
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	200	200	200	200	200	200
Maximum load on roof/carrier [kg]	80/-	80/-	80/-	80/-	80/-	80/-

Boot volume [l]	673	1084	673	1084	673	1084
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/5024	-/5935	-/5024	-/5935	-/5024	-/5935
Boot length [mm]	736	1136	736	1136	736	1136
Boot length with rear seats folded [mm]	1650	2050	1650	2050	1650	2050
Boot width between wheels/max [mm]	1255/-	1255/-	1255/-	1255/-	1255/-	1255/-
Boot height to headliner/ceiling [mm]	-/1320	-/1320	-/1320	-/1320	-/1320	-/1320
Loading edge height [mm]	540	540	540	540	540	540
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	1295	1295	1295	1295	1295	1295
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	7-9	7-9	7-9	7-9	7-9	7-9
Fuel tank volume [l]	80	80	80	80	80	80
AdBlue tank volume [l]	24	24	24	24	24	24
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	215/65 R16	215/65 R16	215/65 R16	215/65 R16	215/65 R16	215/65 R16
Tyre dimensions rear	215/65 R16	215/65 R16	215/65 R16	215/65 R16	215/65 R16	215/65 R16
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	296 x 28	296 x 28	296 x 28	296 x 28	296 x 28	296 x 28
Brake dimensions rear	280 x 12	280 x 12	280 x 12	280 x 12	280 x 12	280 x 12
Steering	Electric variable power steering	Electric variable power steering	Electric variable power steering	Electric variable power steering	Electric variable power steering	Electric variable power steering
Number of steering wheel turns	3.2	3.2	3.2	3.2	3.2	3.2
Turning diameter track/circumference [m]	11.84/13.17	12.4/13.73	11.84/13.17	12.4/13.73	11.84/13.17	12.4/13.73

Overall length [mm]	5080	5480	5080	5480	5080	5480
Overall width without/including mirrors [mm]	1956/2283	1956/2283	1956/2283	1956/2283	1956/2283	1956/2283
Overall height [mm]	1973	1974	1973	1974	1973	1974
Wheelbase [mm]	3098	3498	3098	3498	3098	3498
Front wheel track [mm]	1616	1616	1616	1616	1616	1616
Rear wheel track [mm]	1616	1616	1616	1616	1616	1616
Forward overhang [mm]	1014	1014	1014	1014	1014	1014
Rear overhang [mm]	968	968	968	968	968	968
Clearance [mm]	160	160	160	160	160	160
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Blue dCi 170 L1H1	Blue dCi 170 L2H1
Date of sale	-	-
Engine type	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16
Engine displacement [cm³]	1997	1997
Maximum output / speed [kW/min-1]	125/3500	125/3500
Maximum torque [Nm/min-1]	380/1500	380/1500
Bore and stroke [mm x mm]	85.0 x 88.0	85.0 x 88.0
Compression ratio	15.4:1	15.4:1
Oil volume [l]	-	-
Coolant volume [l]	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation	direct injection Common Rail turbocharger with variable blade geometry particulate filter SCR catalytic converter with AdBlue additive injection start&stop system brake energy recuperation

Drive axle	Front	Front
Gearbox	6 gear automatic	6 gear automatic
Drive specifications	dual-clutch automatic gearbox EDC	dual-clutch automatic gearbox EDC

Top speed [km/h]	186	186
Acceleration 0–100 km/h [s]	10.6	10.6
Acceleration 0–80 km/h [s]	-	-
Acceleration 80–120 km/h [s]	-	-

City [l]	-	-
Out of town [l]	-	-
Combined [l]	-	-
CO2 emissions [g/km]	-	-

Low speed [l]	-	-
Medium speed [l]	-	-
High speed [l]	-	-
Extra high speed [l]	-	-
Combined speed [l]	7.6-7.3	7.6-7.3
CO2 emissions [g/km]	198-192	198-192

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP
Standard for fuel consumption measurement	-	-
Energy class	-	-
Stationary vehicle noise [dB]	-	-
Driving noise [dB]	-	-

Standby weight [kg]	2130	2182
Overall weight [kg]	2830	2890
Maximum trailer weight unbraked/braked [kg]	750/1700	750/1700
Maximum front/rear axle load [kg]	-	-
Maximum vertical load on the tow bar [kg]	200	200
Maximum load on roof/carrier [kg]	80/-	80/-

Boot volume [l]	673	1084
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/5024	-/5935
Boot length [mm]	736	1136
Boot length with rear seats folded [mm]	1650	2050
Boot width between wheels/max [mm]	1255/-	1255/-
Boot height to headliner/ceiling [mm]	-/1320	-/1320
Loading edge height [mm]	540	540
Height of the open boot door [mm]	-	-
Boot opening height [mm]	1295	1295
Boot opening width min/max [mm]	-	-

Number of doors	5	5
Number of seats	7-9	7-9
Fuel tank volume [l]	80	80
AdBlue tank volume [l]	24	24
Air resistance [Cd]	-	-
Front suspension	MacPherson	MacPherson
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	215/65 R16	215/65 R16
Tyre dimensions rear	215/65 R16	215/65 R16
Wheel size front	-	-
Wheel size rear	-	-
Brake dimensions front	296 x 28	296 x 28
Brake dimensions rear	280 x 12	280 x 12
Steering	Electric variable power steering	Electric variable power steering
Number of steering wheel turns	3.2	3.2
Turning diameter track/circumference [m]	11.84/13.17	12.4/13.73

Overall length [mm]	5080	5480
Overall width without/including mirrors [mm]	1956/2283	1956/2283
Overall height [mm]	1973	1974
Wheelbase [mm]	3098	3498
Front wheel track [mm]	1616	1616
Rear wheel track [mm]	1616	1616
Forward overhang [mm]	1014	1014
Rear overhang [mm]	968	968
Clearance [mm]	160	160
Wading depth [mm]	-	-
Approach angle front [°]	-	-
Approach angle rear [°]	-	-
Transition angle [°]	-	-
Climbing rate [°]	-	-
Maximum side tilt [°]	-	-

Headroom front [mm]	-	-
Headroom rear [mm]	-	-
Front elbow/shoulder width [mm]	-	-
Rear elbow/shoulder width [mm]	-	-
Legroom front knees/total [mm]	-	-
Legroom rear knees/total [mm]	-	-

Gallery

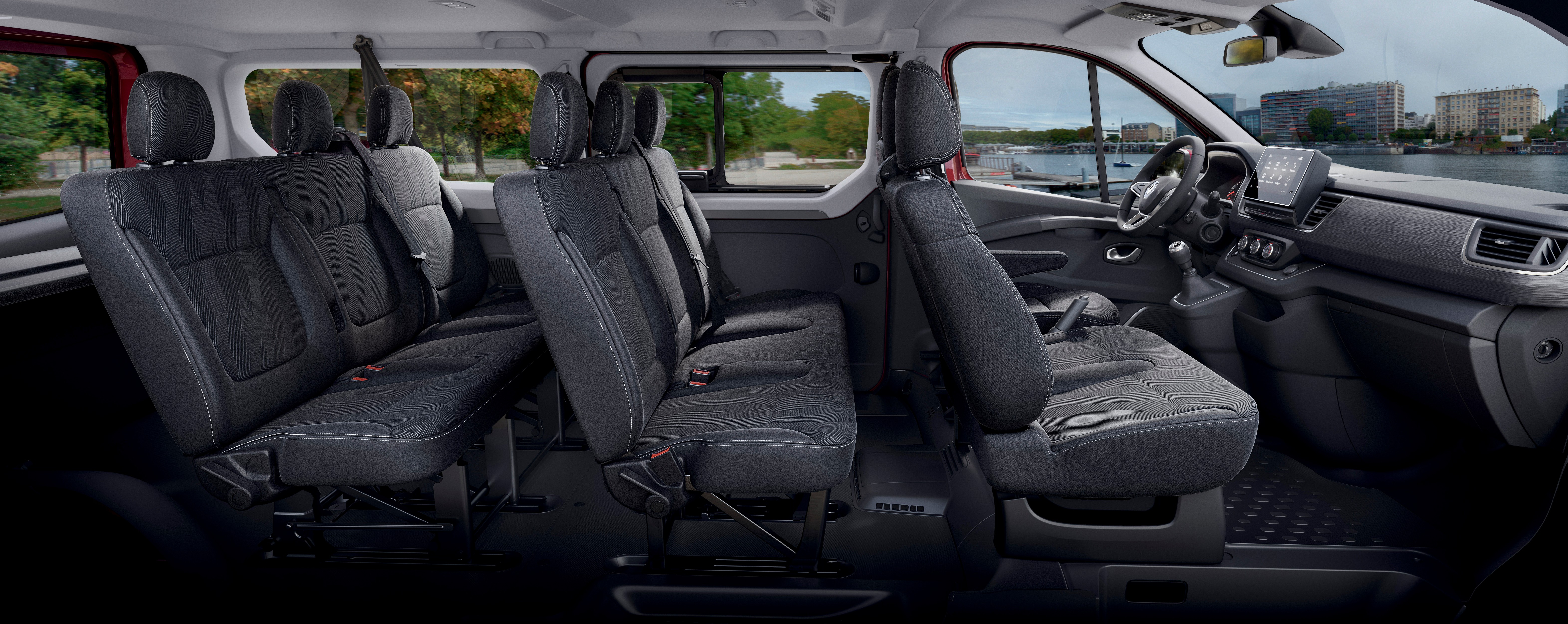

Renault Trafic facelift 2021 front seats

Renault Trafic SpaceClass facelift 2021 interior

Renault Trafic SpaceClass facelift 2020 front seats

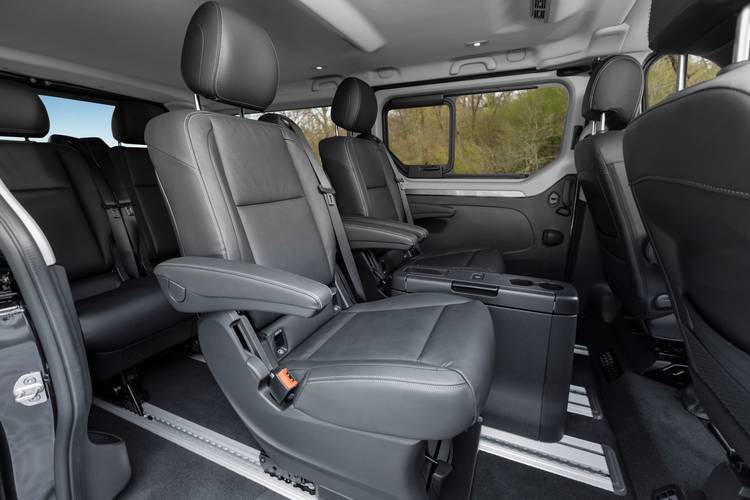

Renault Trafic SpaceClass facelift 2021 rear seats

Renault Trafic SpaceClass facelift 2022 rear seats

Renault Trafic SpaceClass facelift 2021 boot

Renault Trafic SpaceClass facelift 2022 boot

Renault Trafic SpaceClass facelift 2021 rear folding seats

Renault Trafic SpaceClass facelift 2022 rear folding seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
